Rockford Fosgate RM112D4 400W 12" Prime R1 Series Dual 4-ohm

Rockford Fosgate RM112D4 (White)

400W 12" Prime R1 Series Dual 4-ohm Marine Subwoofer

400W 12" Prime R1 Series Dual 4-ohm Marine Subwoofer

• Peak Power: 400W
• RMS Power: 200W
• Injection molded mineral filled polypropylene cone
• UV and salt fog resistant Santoprene surround
• CEA-2031 Compliant & Klippel Verified

We apologize

This item has been discontinued

DESCRIPTION
Rockford Fosgate

Authorized dealer

Rockford Fosgate RM112D4


Rockford Fosgate RM112D4 - 12" Prime R1 Series Marine Subwoofer

The RM112D4 subwoofer is a 12" Prime R1 subwoofer designed for marine watercraft or powersports applications. It features color matched grille and is UV and moisture resistant. Can be used in sealed, vented or infinite baffle installations. Its CEA-2031 Compliant 200 watts RMS is a perfect fit for a wide range of audio applications especially those that require the capacity to handle power under continuous demand.



UV Inhibitor Materials

Make Mother Nature Shake

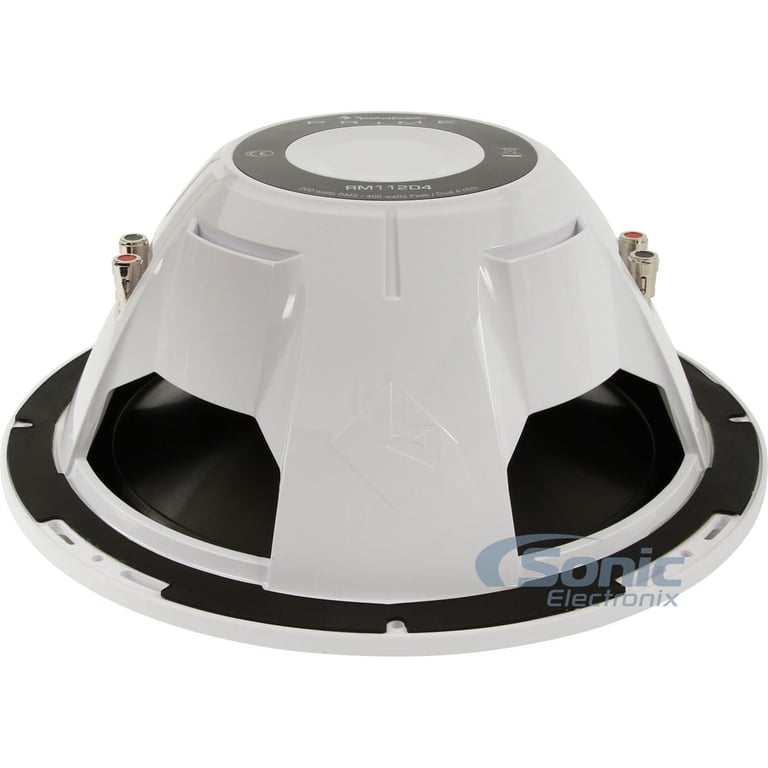

Rockford Fosgate engineered the RM112D4 to provide modest power, but enough power to get any party going. With a 2" 4-layer aluminum voice coil, Santoprene surround, and Moisture, tear and fatigue resistant Aramid fiber spider this driver is built to get Mother Nature moving. In addition The driver is Klippel Verified, which means Rockford Fosgate has made the investment to deliver the best possible subwoofers to their customers.



Element Ready

Element Ready

Rockford Fosgate knows that when you shop for speakers for your boat, UTV or motorcycle, you are looking for something that is not only going to sound amazing but stand up to the elements. The driver is equipped with 100% UV stable ASA injection molded plastic parts, including Injection molded mineral filled polypropylene cone body with UV inhibitors and UV and salt fog resistant surround to keep your rocking in even the most daunting surroundings.





General Features:

  • 12" Prime R1 Series Dual 4-ohm Marine Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Recommended power range: 75 - 200 Watts RMS
  • CEA-2031 compliant
  • Klippel Verified
  • Injection molded mineral filled polypropylene cone
  • UV and salt fog resistant Santoprene surround
  • 2" 4-layer aluminum voice coil
  • True Marine Grade compliance
  • 100% UV stable ASA injection molded plastic parts
  • Ultra-flexible fully insulated silicone lead wire
  • Proprietary corrosion resistant spring loaded push terminals
  • Moisture, tear and fatigue resistant Aramid fiber spider

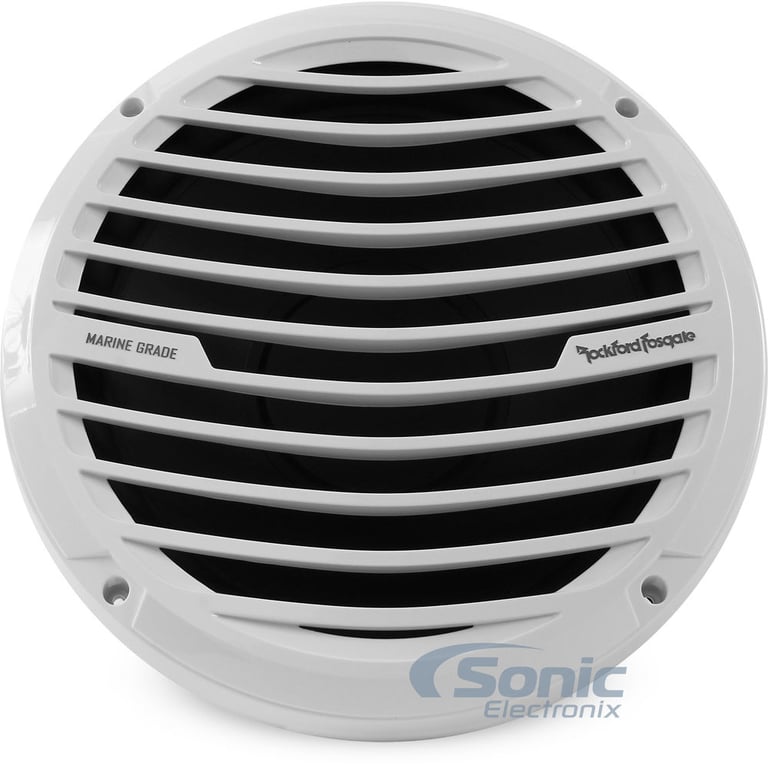

  • Removable trim ring/grille included
  • Dual 12 gauge compression terminals
  • Top-mount depth: 4.81"
  • Cutout diameter: 10.87"
  • Frequency Response: 22 - 250 Hz
  • Fs: 29 Hz
  • Qts: 0.64
  • Vas: 3.83 ft³
  • Xmas: 7.0 mm
  • Sensitivity: 88 dB
  • Optimum Sealed Enclosure: 1.65 ft³
  • Optimum Ported Enclosure: 2.45 ft³
  • Infinite Baffle Compatible
  • Also available in Black: Rockford Fosgate RM112D4B
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

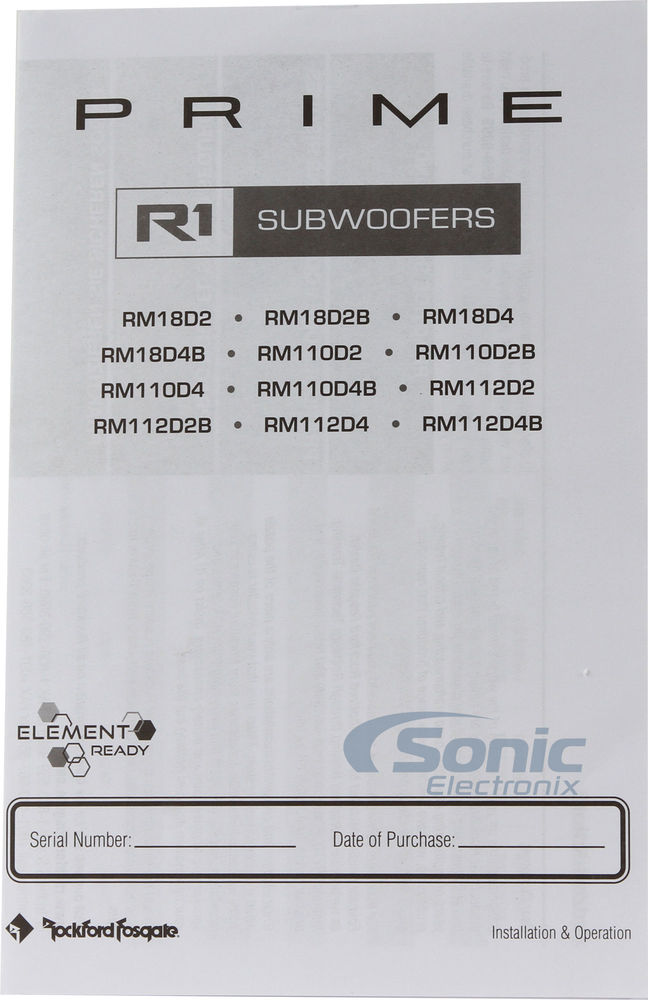

Check out the Rockford Fosgate RM112D4 Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

FEATURES & SPECS
Subwoofer Specifications
Subwoofer Series
Subwoofer Size
12"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohms
Voice Coil Diameter
Frequency Response
21 - 250 Hz
Sensitivity
88 dB
Xmax (millimeters)
7 mm
Subwoofer Design
Round / Circle
Main Cone Color
White
Woofer Composition
Injection Molded Polypropylene - IMPP
Woofer Surround
Santoprene Rubber
Magnet Structure
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
Optimum Ported Box Volume
Top-Mount Depth
4.81"
Cutout Diameter
10.87"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
Equivalent Compliance (Vas)
Total Speaker Q Value (Qts)
Electrical Q Value (Qes)
Electrical Resistance of Voice Coil (Re)
Mechanical Q Value (Qms)
Efficiency Bandwidth Product (EBP)
What is in the box?
WITB: Subwoofers
Paperwork
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
VIDEOS AND HOW - TO
REVIEWS
Rockford Fosgate RM112D4 (White)

Rockford Fosgate RM112D4 (White)


Write a review

Overall rating distribution

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
0
Value
0
Features
0
Design
0
Usability
0
ACCESSORIES
WIRING GUIDE
Wiring Guide to Wire 1 Rockford Fosgate RM112D4 (White) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate RM112D4 (White) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate RM112D4 (White) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate RM112D4 (White) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp
