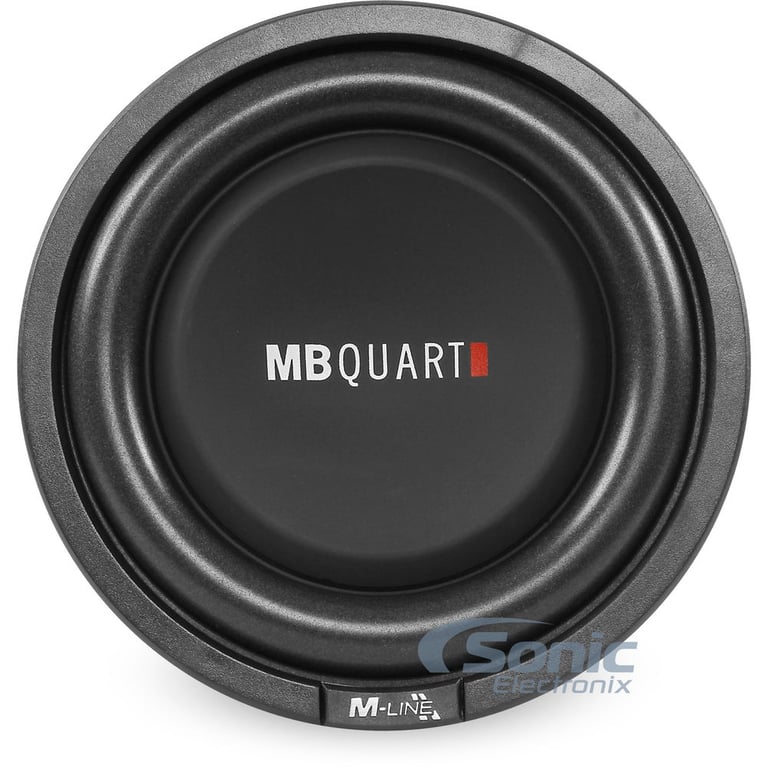

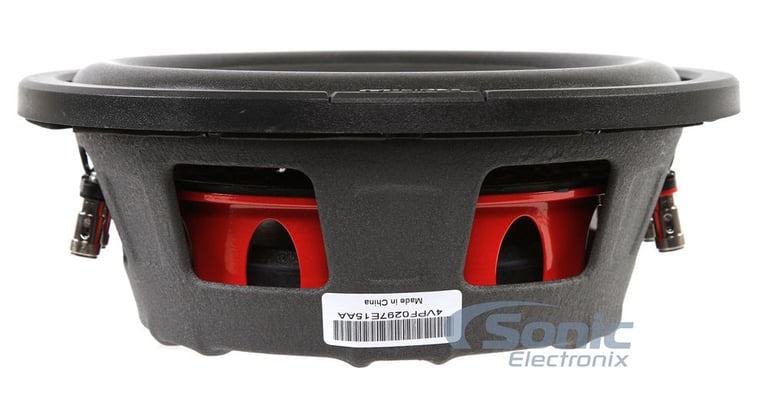

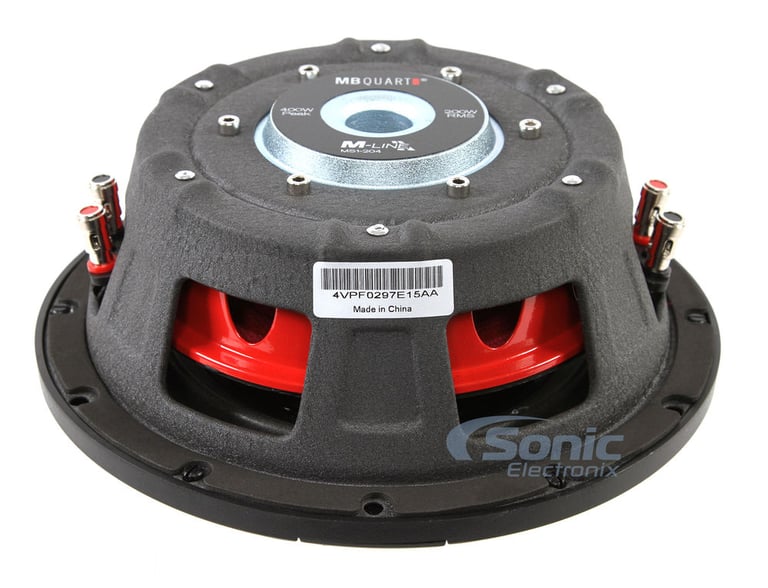

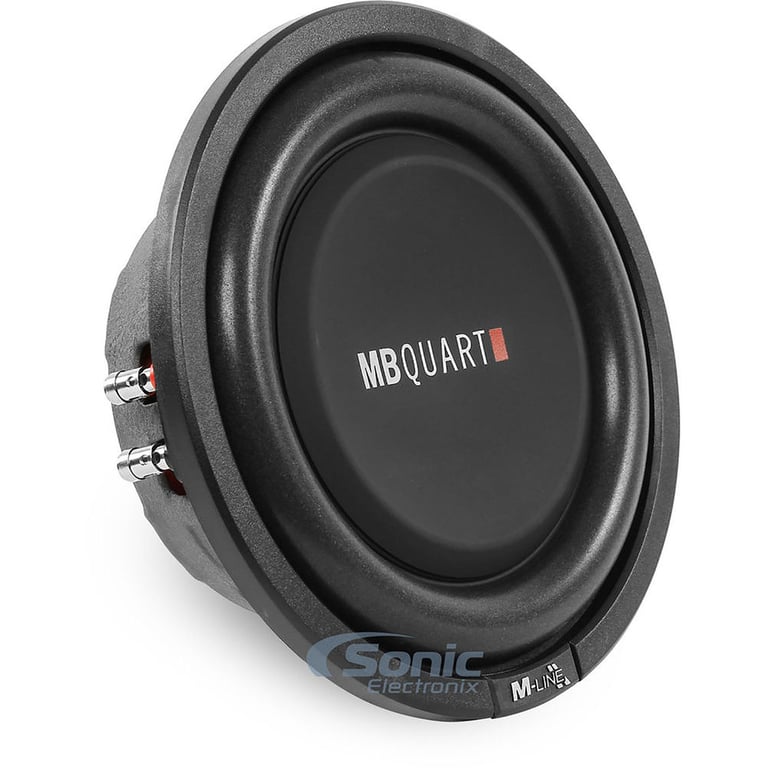

MB Quart MS1-204

400W 8" Shallow Mount Dual 4-Ohm M-Line Series Car Shallow Mount Subwoofer

MB Quart
Shop all MB Quart
Product videos
highlight-star-icon

• 200W RMS
• 400W Max
• Thermal formed PP Cone & Dust Cap
• UV Rubber Surround
• Stamp-Cast Deep Drawn Steel Basket
• 2" Copper Voice Coils
• Top-mount depth: 2.80"

Learn more about the ms1204

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
R14X2 main

Rockford Fosgate Prime R14X2

120W Peak (60W RMS) 4” Prime Series 2 Way Coaxial 4-ohm Speakers

14
C1-100ct main

JL Audio C1-100ct

120W RMS 1" C1 Series 8-ohm Component Dome Tweeters

9

Product Highlights


• 200W RMS
• 400W Max
• Thermal formed PP Cone & Dust Cap
• UV Rubber Surround
• Stamp-Cast Deep Drawn Steel Basket
• 2" Copper Voice Coils
• Top-mount depth: 2.80"

Description


MB Quart brand icon

Authorized dealer

General Features:

  • 8" Shallow Mount Dual 4-Ohm M-Line Series Car Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Thermal formed PP cone & dust cap
  • UV rubber surround
  • Stamp-cast deep drawn steel basket
  • Durable heavy textured powder coat
  • Vented aluminum voice coil formers
  • 2" copper voice coils
  • Edge wound copper wire in DVC configuration
  • Single Stacked Ferrite Magnet
  • Top-mount depth: 2.80"
  • Sensitivity: 81 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 MB Quart MS1-204 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 MB Quart MS1-204 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 MB Quart MS1-204 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 MB Quart MS1-204 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

DMDX8 main

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

AP-W81AC main

Deaf Bonce Apocalypse AP-W81AC

1200W Peak (600W RMS) 8" Apocalypse Series 4-ohm Midbass Car Speakers

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

1
-17.26%

$239.95

List price $290.00


Best selling similar products

47KBRW8 small

Kicker 47KBRW8 ReFLEX™

• 8" ReFLEX™ Passive Radiator
• Rubber covered plastic Cone
• Rubber Surround

(1)

$49.99

List price $59.99

VCW82v3 small

NVX VCW82 Version 3 (VCW82v3)

• Peak Power: 1300 watts
• RMS Power: 650 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• High Roll Foam Surround with black nylon stitching
• Mount depth: 5.31"
• Sensitivity: 83 dB (1W/1m)

(12)

$169.99

List price $203.99

R2-W8D2 small

Alpine R2-W8D2

• Peak Power: 1000 watts
• RMS Power: 350 watts
• Impedance: Dual 2 ohm
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (HAMR) Surround
• Mount depth: 4.56"
• Sensitivity: 83.6 dB

$239.95

List price $360.00

Specifications & Details


Subwoofer Specifications
Subwoofer Size
8"
Peak Power Handling
400 watts
RMS Power Handling
200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
Not Specified by Manufacture
Sensitivity
82 dB
Xmax (millimeters)
8.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Sealed
Optimum Sealed Box Volume
0.50 cubic feet
Top-Mount Depth (Mounting Depth)
2.80"
Cutout Diameter
7.17"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
41.5 Hz
Equivalent Compliance (Vas)
12.19 liters
Total Speaker Q Value (Qts)
0.830
Electrical Q Value (Qes)
1.010
Electrical Resistance of Voice Coil (Re)
6.20 ohm
Mechanical Q Value (Qms)
4.660
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MS1-204

Weight:

5.00lbs

Internal SKU:

ms1204

Internal Product ID:

94851

Product and How-to Videos


Customer Ratings & Reviews


MB Quart MS1-204 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Pleased

Good bass was really surprised by them. Small yet well built solid construction. I would recommend them to anyone with limited space.

By Calvin on February 1, 2017 Checkmark Icon Verified purchase
