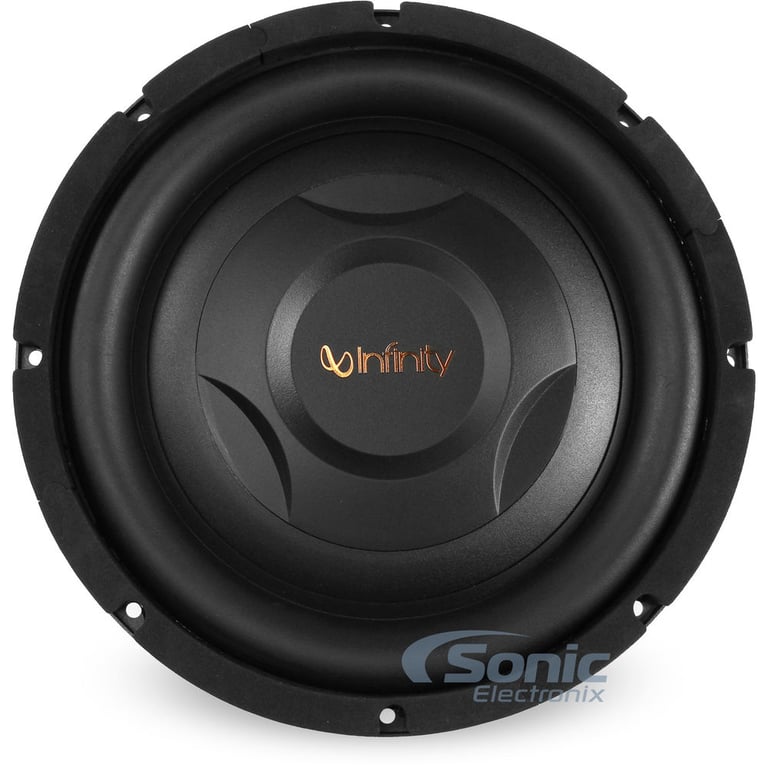

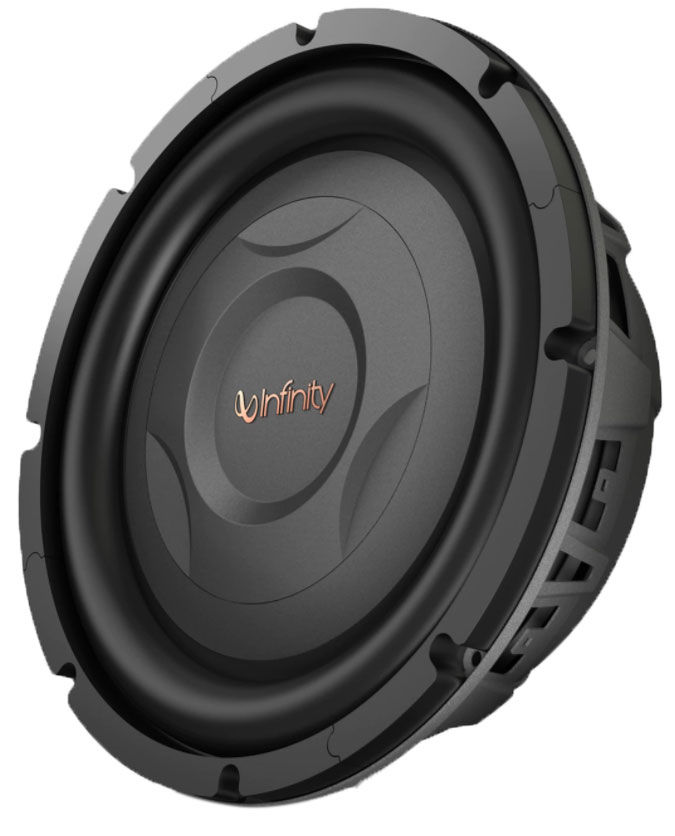

Infinity Reference REF1000S Open Box

Shallow Mount 800W 10" Reference Series Single Voice Coil Selectable Smart Impedance Car Subwoofer

Infinity
Shop all Infinity
highlight-star-icon

• Peak Power: 800W
• RMS Power: 200W
• Selectable Impedance Switch
• Polypropylene Cone with Rubber Surround

Learn more about the ls-ref1000s-obc10

We apologize

This item has been discontinued

Description


Infinity brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

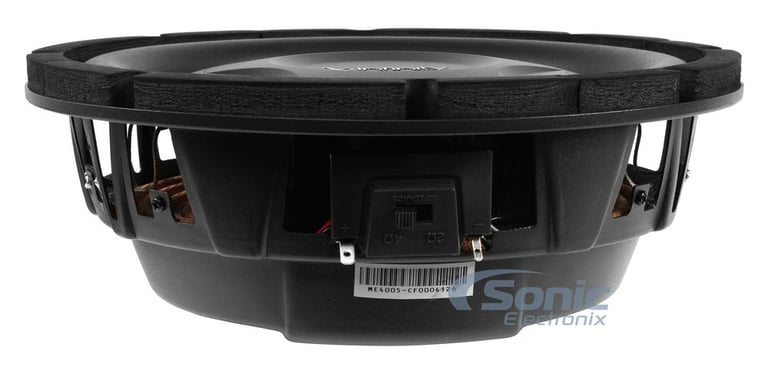

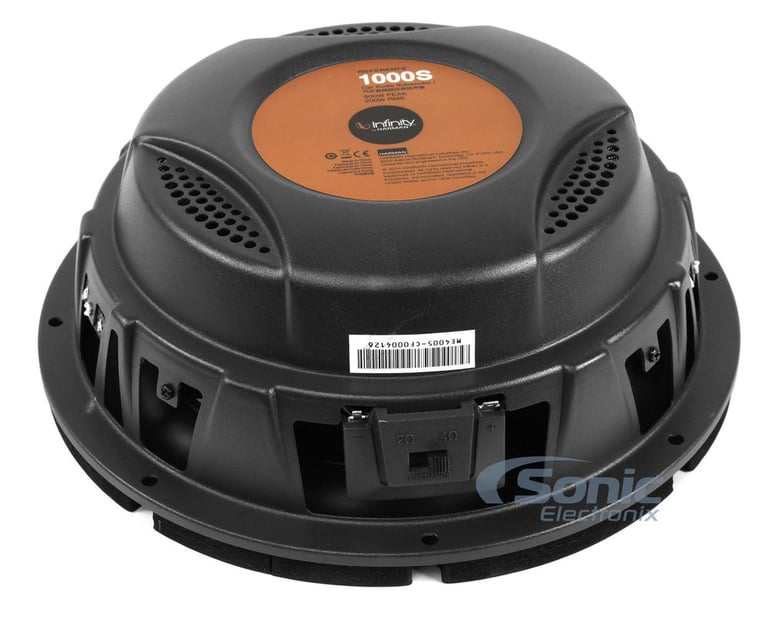

Selectable Smart Impedance Technology

Infinity’s latest Reference subwoofers offer incredible installation flexibility. Their low-profile design allows them to fit perfectly into even the most shallow of enclosure. Polypropylene woofer cones deliver exceptional bass response at frequencies as low as 27Hz. But what makes these subs really stand out is their Harman-proprietary SSITM (Selectable Smart Impedance), which allows the subwoofer to present the amplifier with either a 2 or 4 ohm load at the flip of a switch.

General Features:

  • 10" Reference Series Shallow Mount Single Voice Coil Selectable Smart Impedance™ Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 200 watts
  • Polypropylene Cone
  • Rubber Surround
  • 2" Single Voice Coil
  • Impedance: 2 or 4 ohm (Selectable)
  • Top-mount depth: 3.27"
  • Overall Diameter: 10.55"
  • Cutout Diameter: 9.50"
  • Frequency Response: 35 - 175 Hz
  • Sensitivity: 89 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

TS Parameters

  • Switch Set to 2Ω
    • REVC: 1.80Ω
    • LEVC: 0.65 mH
    • SD: 353 cm²
    • BL: 9.05 Tm
    • VAS: 34.03 l
    • CMS: 194 µM/N
    • MMS: 145.01 gr
    • FS: 29.97 Hz
    • QMS: 8.64
    • QES: 0.62
    • QTS: 0.57
    • HAG: 8.00 mm
    • HVC: 23.30 mm
  • Switch Set to 4Ω
    • REVC: 4.09Ω
    • LEVC: 0.72 mH
    • SD: 353 cm²
    • BL: 12.97 Tm
    • VAS: 33.47 l
    • CMS: 191 µM/N
    • MMS: 145.64 gr
    • FS: 30.16 Hz
    • QMS: 4.52
    • QES: 0.69
    • QTS: 0.59
    • HAG: 8.00 mm
    • HVC: 23.30 mm

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Check out the Infinity REF1200S Owner's Manual

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Reference REF1000S Open Box Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Reference REF1000S Open Box Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Reference REF1000S Open Box Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Reference REF1000S Open Box Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
10"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
35 - 175 Hz
Sensitivity
89 dB
Xmax (millimeters)
7.65 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.50 cubic feet
Optimum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
3.27"
Cutout Diameter
9.50"
Shallow Mount Installation
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

ref1000s Open Box

Weight:

11.88lbs

Internal SKU:

ls-ref1000s-obc10

Internal Product ID:

157759

Customer Ratings & Reviews


Infinity Reference REF1000S  Open Box thumbnail image

5 star
50%
4 star
33%
3 star
0%
2 star
17%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

sounds great

The following review is for Reference 1000S, which is a part of the bundle you are viewing.

I have two of these and they sound great not as much bass as a 12in but seems to be more crisp

By mike on April 4, 2018 Checkmark Icon Verified purchase

43 found this helpful


Smooth and crisp

The following review is for Reference 1000S, which is a part of the bundle you are viewing.

This is the same as the JBL club 10"shallow mount. I wanted the infinity name on it. You can't go wrong with this sub. It sounds amazing in a .51ci box. If you tight on space just get it. You know you want it.

By Hump on April 25, 2018

43 found this helpful


Substantial for some, Subpar for one.

The following review is for Reference 1000S, which is a part of the bundle you are viewing.

Pairing this Sub with Infinity Kappa Perfect 500 3-way system, because I heard great reviews on this combo. Unfortunately, my taste for deep low end is a little more than what this subwoofer has to offer. If you are placing this speaker in say a regular cab truck right behind the seat. And say don’t want too much bass in your face, and you would like a little rumble, than this is a great choice. I do like the fact that you can change the ohms with a switch of a button. Unfortunately that switch is located on back of the sub, so you must remove the speaker completely to make that change. Would have been nice if it was somehow located outside the box. All things said, If you want plenty of bass and don’t have much room I would recommend checking out JL Audio’s 10” Shallow mount Sub: 10TW3-D4. Sonic Electronix has great pricing and wonderful staff. Nothing wrong there.

By JR Huff’nStuff on October 21, 2020 Checkmark Icon Verified purchase

41 found this helpful


Damn good for the price.

The following review is for Reference 1000S, which is a part of the bundle you are viewing.

I have 2 of these in a 1.0 cu ft box in the back of my truck. For the money I am more than satisfied. I have 300w rms going to each one and they just keep suprising me everytime I turn it up. I pared these with the Infinity Kappa Perfect 600's...the detail and clarity is just amazing. Definitely worth a look if you have a space restricted install and want good bang for the buck.

By CW on February 19, 2018 Checkmark Icon Verified purchase

39 found this helpful


Excellent shallow mount 10

The following review is for Reference 1000S, which is a part of the bundle you are viewing.

I have 2 of these in a 0.8 cu. ft box powered by the sub channel of the NVX 5 channel amp (about 220 watts to each).

I am really surprised by the low end extension of these subs. The song "welcome to the machine" by Pink Floyd rattles the crap out of the interior panels of my car. You can actually hear and FEEL the different articulation of the synthesized beginning.

The sound quality, and the volume of sound are spot on for me.

We have thrown everything at these subs, from Dying Fetus to Infected Mushroom, and have yet to be disappointed. They handle lightning fast double kick flurries, as well as fat and low electronic tones.

There are a couple of nitpicky items though.
The cut out diameter is not the same as most other 10" subs. Nothing a jigsaw and/or sander can't fix if you purchase a prefab box.
The impedance switch can be moved when inserting the sub in the box if you aren't careful. It is rather close to the edge of the speaker and can easily be bumped when sliding the speaker in.

These 2 10s powered with about 220 watts each, paired with 2 pairs of Infinity 6.5" coax (each of those getting about 100 watts a piece) makes for a pleasant listening experience.

Granted, this is not your wake the dead ground pounder, but you wouldn't be reading a review for 10s if that's what you are after.

By Tiffany on May 23, 2016

38 found this helpful


Subwoofer

Worked and fit great I love it looking forward to doing my wife's car next.

By James on May 14, 2020 Checkmark Icon Verified purchase

1 found this helpful
