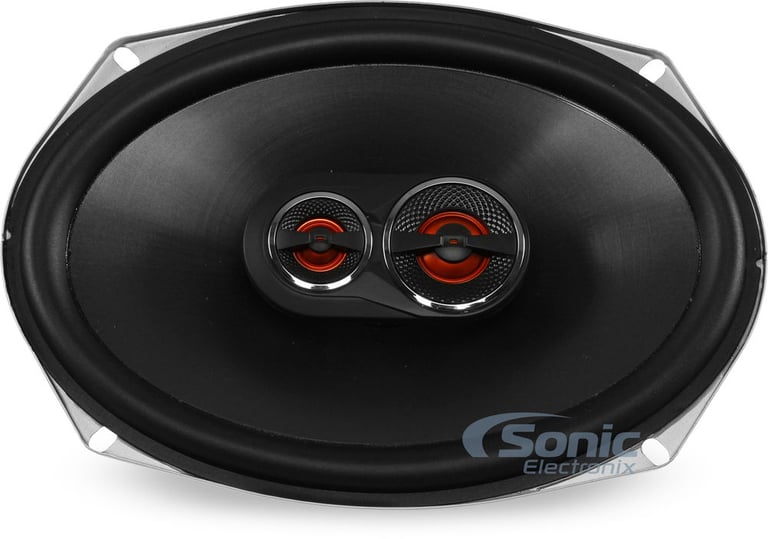

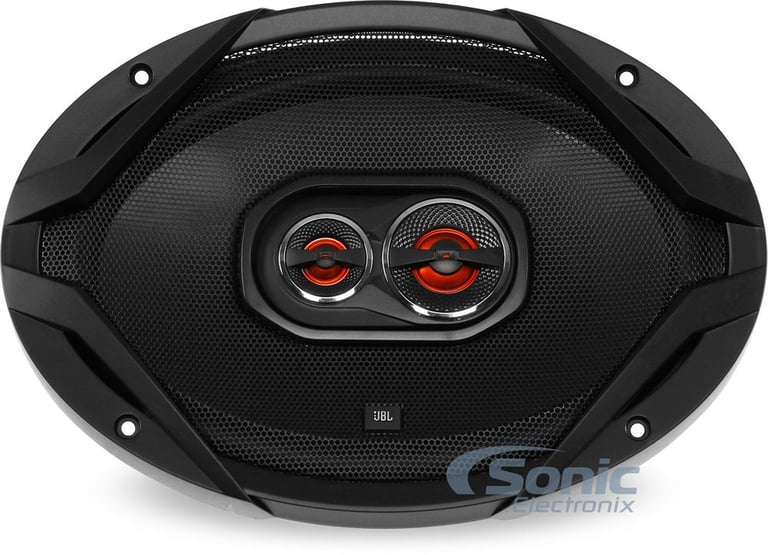

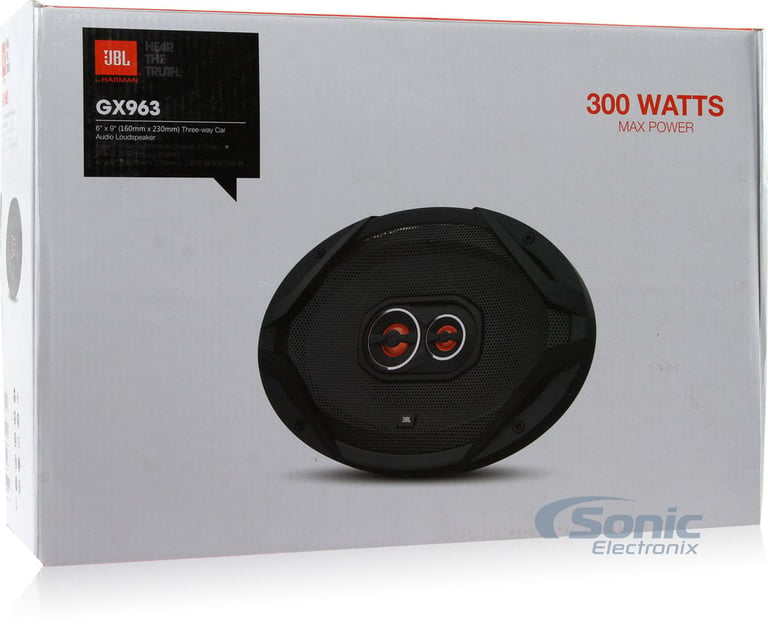

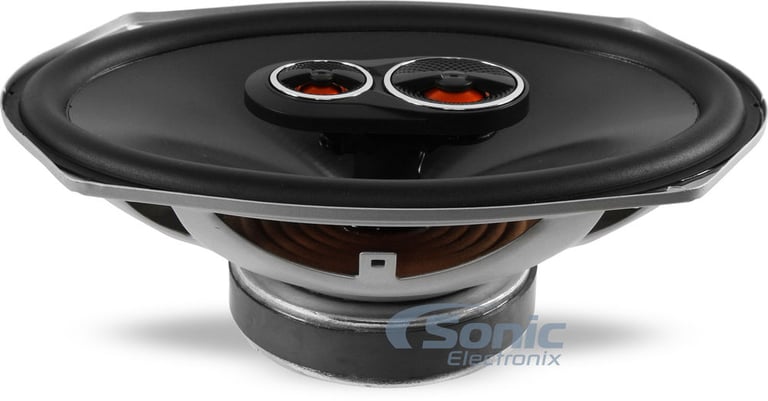

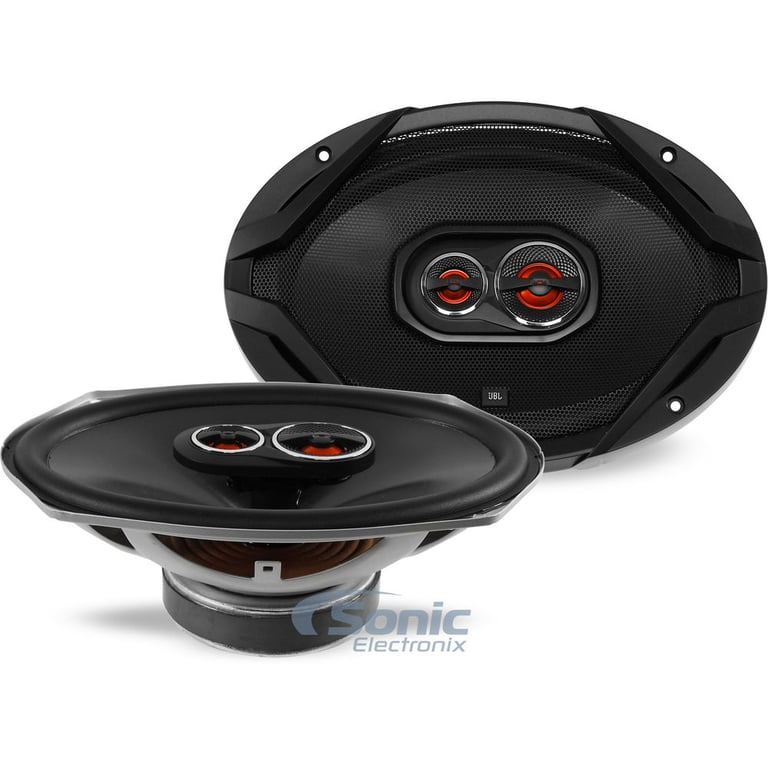

JBL GX963

600W 6" x 9" 3-Way GX Series Coaxial Car Loudspeakers

JBL
Shop all JBL
Product videos
highlight-star-icon

• Peak Power: 600W
• RMS Power: 200W
• Plus One polypropylene cone
• Mounting Depth: 2.88"
• Rubber speaker surround & Balanced dome tweeter

Learn more about the gx963

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

club9630 thumbnail

JBL Club 9630

OUR PRICE: $129.95

View item

Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Product Highlights


• Peak Power: 600W
• RMS Power: 200W
• Plus One polypropylene cone
• Mounting Depth: 2.88"
• Rubber speaker surround & Balanced dome tweeter

Description


JBL brand icon

Authorized dealer

Looks divine. Sounds delicious.

Head's are going to turn when they hear the sound that pumps through the JBL GX Series speakers. But get in and "whoa!" they look incredible. Designed to fit most factory specs, the GX series fl aunt a new HARMAN-proprietary tweeter deflector, they're individually voiced, and have three-ohm voice coils for optimal power distribution. Add Plus One woofer cones, edge-driven soft dome tweeters and an ogle-worthy design, and you've got a speaker that does much more than deliver killer sound.

Plus One Woofer Cones

Harman's patented (US patent #7,548,631) Plus One polypropylene cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low frequency output and greater musical character.

Edge-Driven Soft Dome Tweeter

Soft dome tweeters deliver a smooth high-frequency response and an increased power handling for highs and mids, which equates to more life-like sound from vocals, cymbals, brass instruments and pianos.

Frequency Response Up to 21kHz

Hear what you've been missing — the JBL GX Series offers a frequency response that delivers the full-range response associated with exceptional sound.

Affordable Pricing

The JBL GX Series are all designed to give audio enthusiasts more boom for the buck — while they maintain a conservative price point, there is never a compromise in sound.

Three-ohm DCR Voice Coils

The majority of factory-speaker wiring is so thin that it can't draw the necessary power for great sound. With low-impedance, three-ohm voice coils, the GX Series speakers can pull more power from the amplifier, which means a clearer, richer sound for the listener.

HARMAN-Proprietary Tweeter Deflector

Acting as a waveguide, the tweeter deflector allows for an angled, rotating speaker, which optimizes the off-axis sound performance. Because all cars are designed differently, this allows impeccable sound to travel throughout all locations in the cabin.

OEM-Level Reliability Testing

JBL tests every speaker design to the same rigid specifications as the automakers, subjecting them to extreme conditions that would break lesser speakers. We freeze them, bake them, shake them, blast them with ultraviolet light and drive them at full power for days to make sure your audio investment lasts for years.

External Crossover Housing

The GX component systems feature external crossover housings, which provide space for sophisticated circuits including an adjustable tweeter level control and advanced tweeter protection.

Individually Voiced

For most brands, off-the-shelf speakers and a cursory approval of frequency response curves are good enough. That's not the case with JBL. We don't only listen to our speakers against the competition — we voice them against each other to ensure each line has the consistent JBL sound signature that's known and sought out by those who care about their audio. This is just part of an extensive development process undertaken by some of the best transducer engineers in the world to provide the finest listening experience at any price point.



General Features:

  • 6" x 9" 3-Way GX Series Coaxial Car Loudspeakers
  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 200 watts per pair / 100 watts each
  • Plus One polypropylene cone
  • Rubber speaker surround
  • Balanced dome tweeter
  • 2.3 ohm Nominal impedance
  • Frequency Response: 45 - 21,000 Hz
  • Top-mount Depth: 2.88"
  • External Diameter: 6.50" x 9.31"
  • Cutout Diameter: 5.94" x 8.75"
  • Total Depth: 3.38" (top of tweeter)
  • Sensitivity (2.8V/m) : 94 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair



PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov

Product history:

JBL Club 9630 thumbnail
(newest, current model)
JBL GX963 thumbnail
(previous model, replaced by JBL Club 9630)

Best selling similar products

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

SXE-6926S small

Alpine SXE-6926S

• 280 watts Peak Each, 90 watts RMS Each
• Mylar Dome tweeters
• Natural Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$56.99

List price $71.99

R169X2 small

Rockford Fosgate Prime R169X2

• 130 watts Peak Each, 65 watts RMS Each
• 1/2" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(49)

$99.99

List price $99.99

REF697F small

Infinity REF697F (INFSPKRF697FUS)

• 300 watts Peak Each, 100 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 94 dB

(5)

$139.95

List price $169.95

TERMINATOR69 small

MTX Audio TERMINATOR69

• 120 watts Peak Each, 60 watts RMS Each
• Silk Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87.8 dB

(1)

$79.95

List price $89.95

NSP69 small

NVX NSP69

• 450 watts Peak Each, 150 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 3.14""

(53)

$89.99

List price $107.99

CLUB 964M small

JBL CLUB 964M (JBLSPKCB964M)

• 255 watts Peak Each, 85 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

$149.95

List price $179.95

DE692 small

Diamond Audio DE692

• 150 watts Peak Each, 75 watts RMS Each
• 1" Aluminum Dome tweeters
• Composite foam core carbon fiber cone material
• Impedance: 4 ohm
• Sensitivity: 84 dB

$149.99

List price $299.95

THUNDER693 small

MTX Audio THUNDER693

• 100 watts RMS Each
• 1-3/16" dual Silk Cone tweeters
• Polypropylene cone material
• 1" Silk Dome super tweeters
• Impedance: 4 ohm
• Sensitivity: 92 dB

(2)

$151.96

List price $189.95

S-E69CX small

Sundown Audio E69CX

• Peak Each, 100 watts RMS Each
• Titanium Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm

$149.99

List price $215.99

Specifications & Details


Speaker Specifications
Series
GX Series
Priced Per
Pair
Speaker Size
6" x 9"
Design
3-way Coaxial
Tweeter Design
Soft Dome
Tweeter Size
1"
Tweeter Composition
Mylar
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Peak Power Handling
210 watts
RMS Power Handling
100 watts
Sensitivity
94 dB
Frequency Response
45 - 21,000 Hz
Impedance (Per Voice Coil)
2.3 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2.88"
Cutout Dimensions
5.94 x 8.75
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JBL

Model Number:

GX963

Weight:

6.56lbs

Internal SKU:

gx963

Internal Product ID:

95463

Product and How-to Videos


Customer Ratings & Reviews


JBL GX963 thumbnail image

5 star
60%
4 star
20%
3 star
20%
2 star
0%
1 star
0%



Durability
4.4
Value
4.2
Features
4.6
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great value

I love the great sound and the price is a still

By Wito on May 21, 2015

19 found this helpful


Good speakers

They are just average, impedance too low, you're better off getting a decent pairof 4 ohm 6x9's.

By Renn on July 25, 2016 Checkmark Icon Verified purchase

2 found this helpful


Good buy for basic system

These are ok speaker high pitched notes cause whistling in th e tweeters.

By Santika on February 22, 2016

2 found this helpful


Boom Boom goes the JBL's

these are great speakers however i wasn't getting enough highs/tweets out of them, i'm not saying they're bad just weren't for me.

By Anonymous on September 25, 2018 Checkmark Icon Verified purchase

1 found this helpful


Speakers

Good sound for you the price. NIce clear crisp sound

By Jay on April 30, 2018

1 found this helpful
