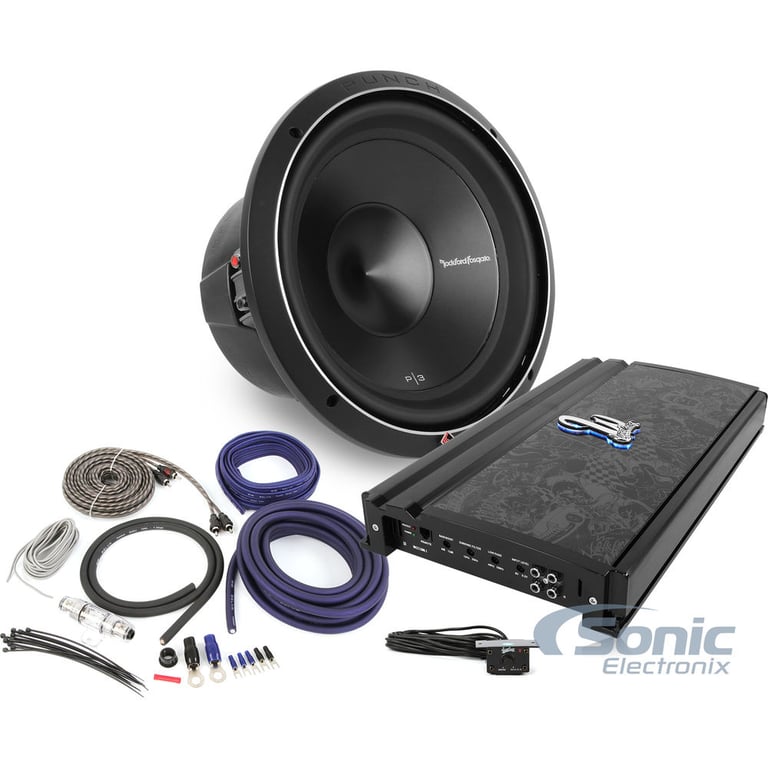

750W RMS West Coast Customs + Rockford Fosgate Bass Package

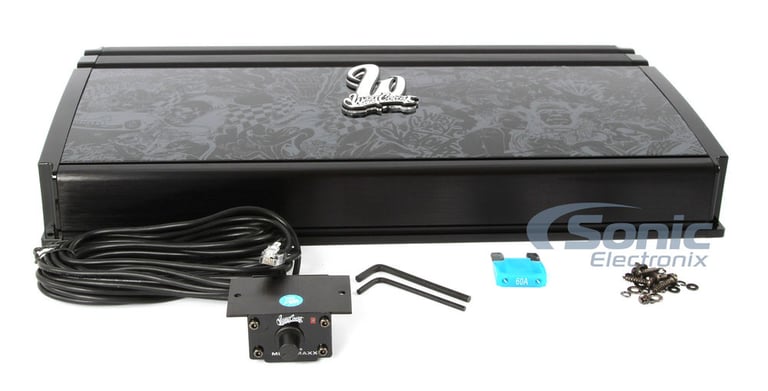

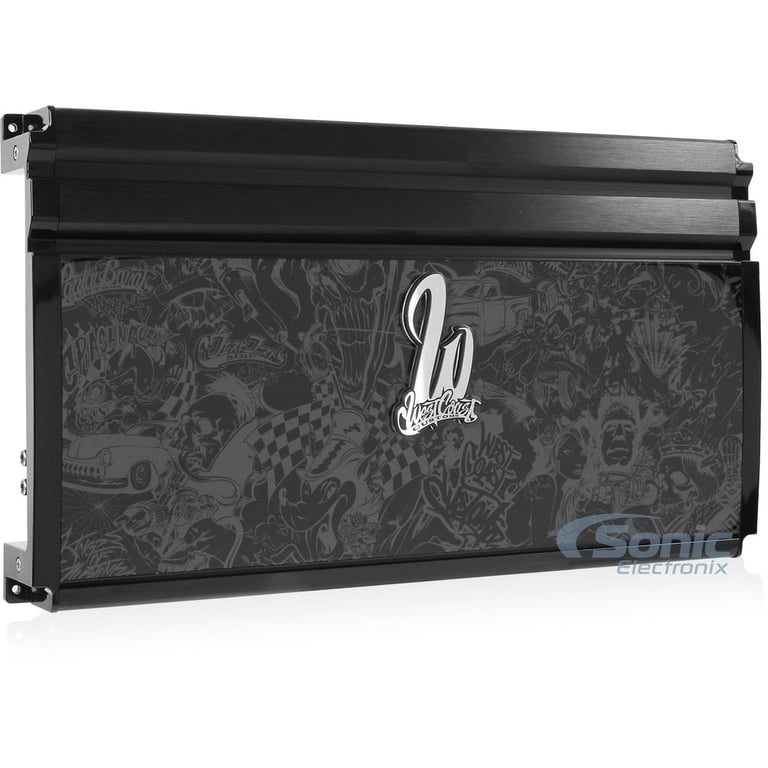

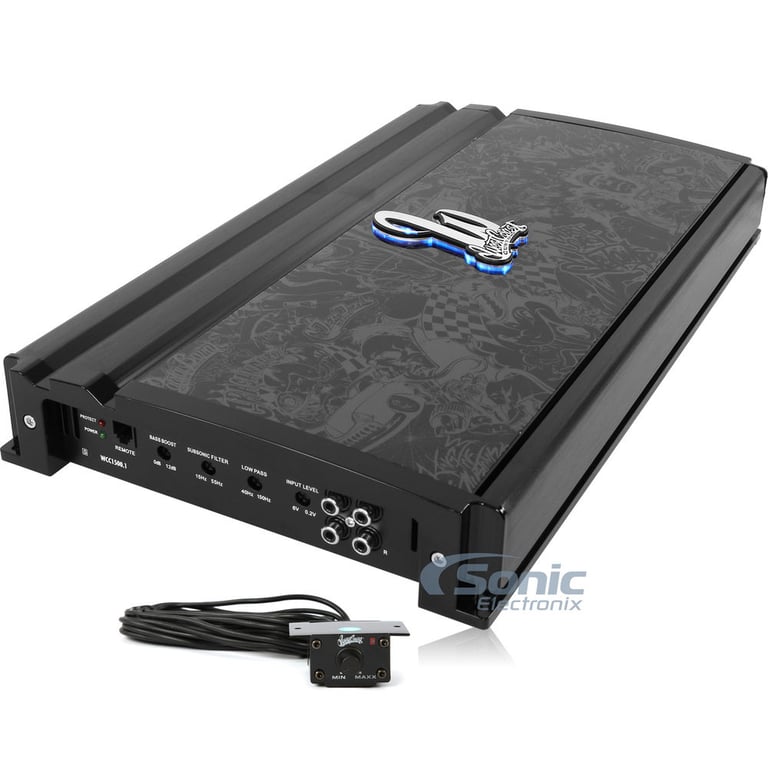

• WCC Series Single Channel Monoblock Class D Car Amplifier
• Similar to the ZRX1000.1D amplifier
• Max Power Rating:
• 2 ohm: 750 watts x 1 chan.
• Max power output: 1500 watts
• Pulse Width Modulated (PWM) MOSFET power supply
• LED power (blue) and protect (red) indicators

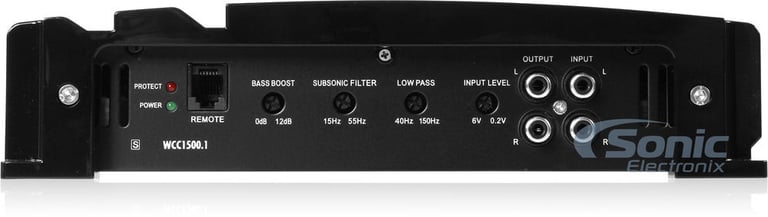

• Variable Bass Boost 0 to +12 dB
• Soft start sound function
• Mono channel operation
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload,, and speaker short protection)

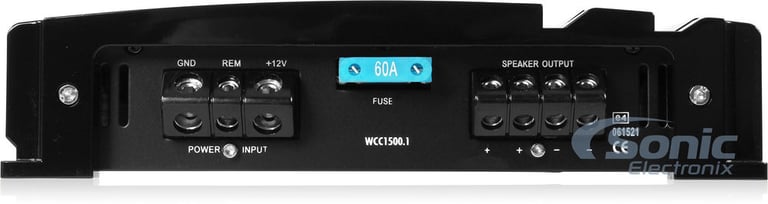

• Dual speaker terminals simplify hookup
• Heavy duty aluminum alloy vented heat-sink for maximum heat dissipation
• Silver nickle-plated RCA level inputs
• Silver nickle-plated screw terminals
• Input sensitivity:
  • Variable level: 200mV-6V
• Variable low-pass filter: 40 - 150 Hz
• Subsonic filter: 15 - 55 Hz
• Damping factor: >200
• Frequency response: 15-250 Hz
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Product Features

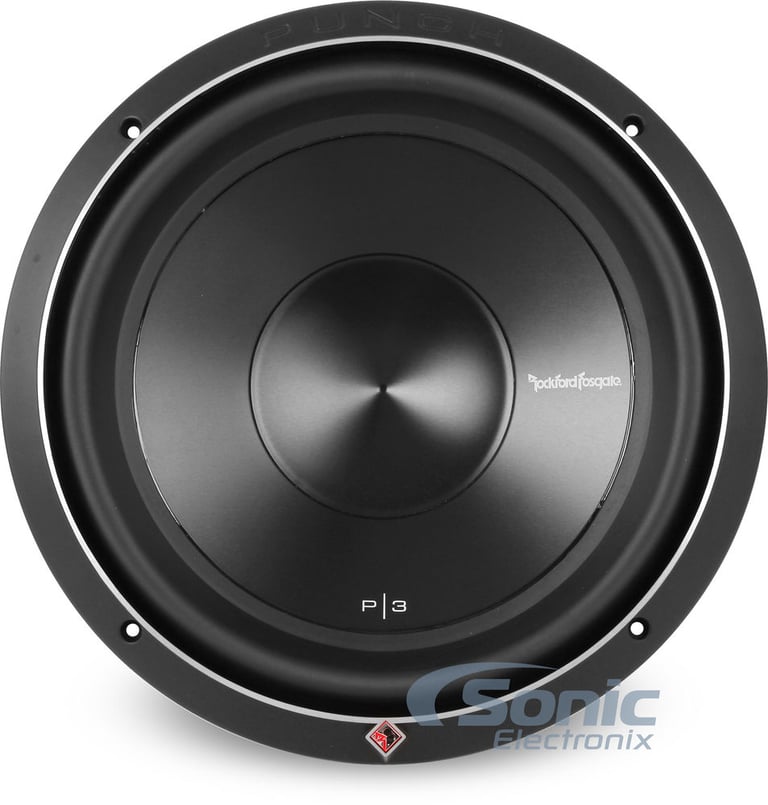

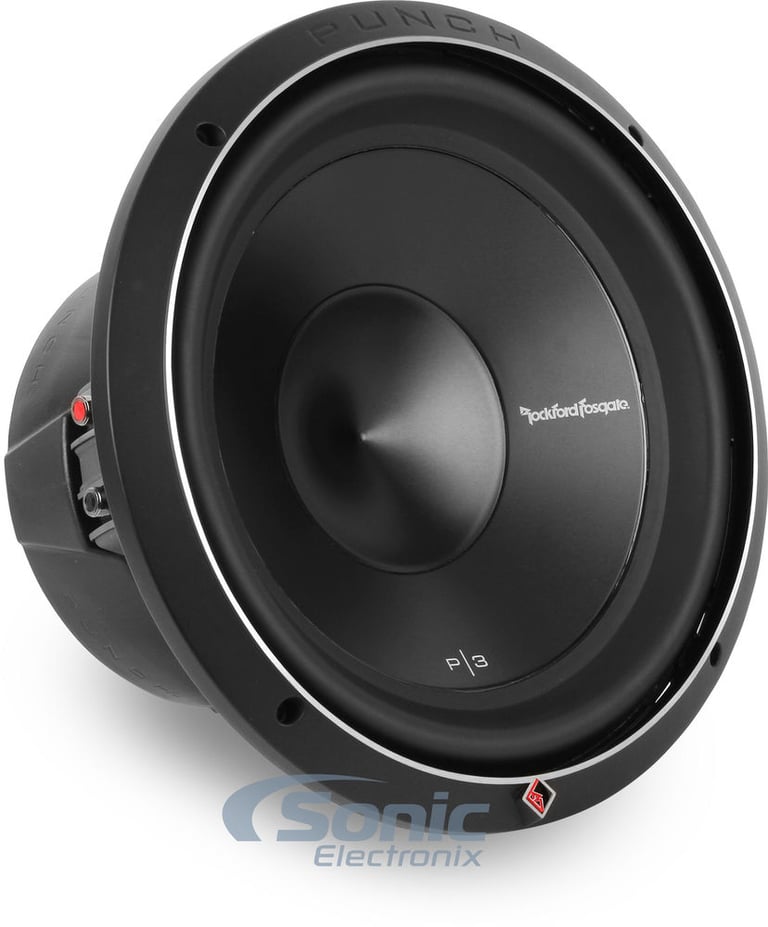

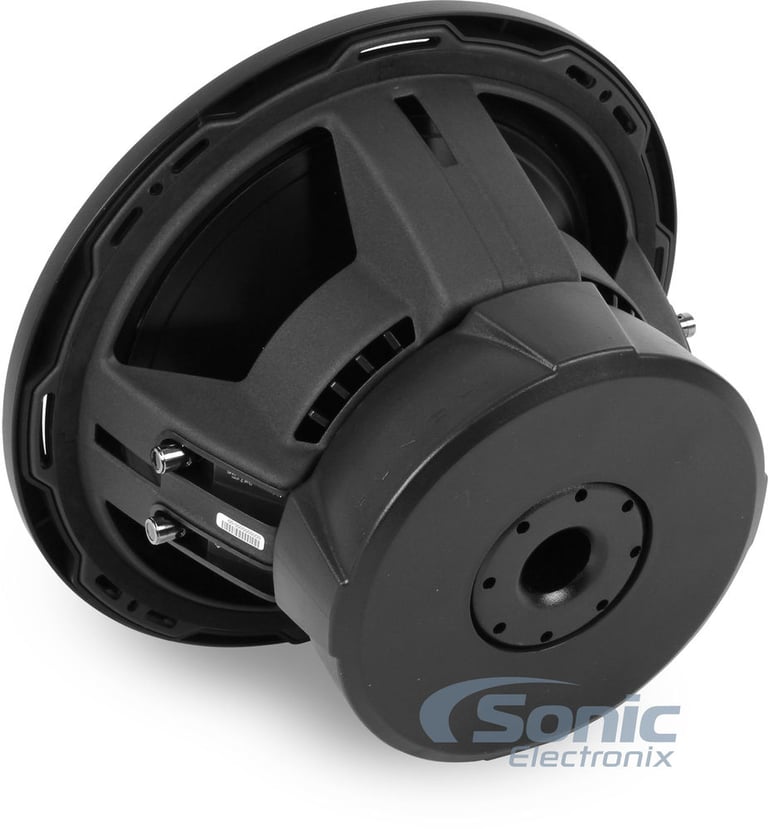

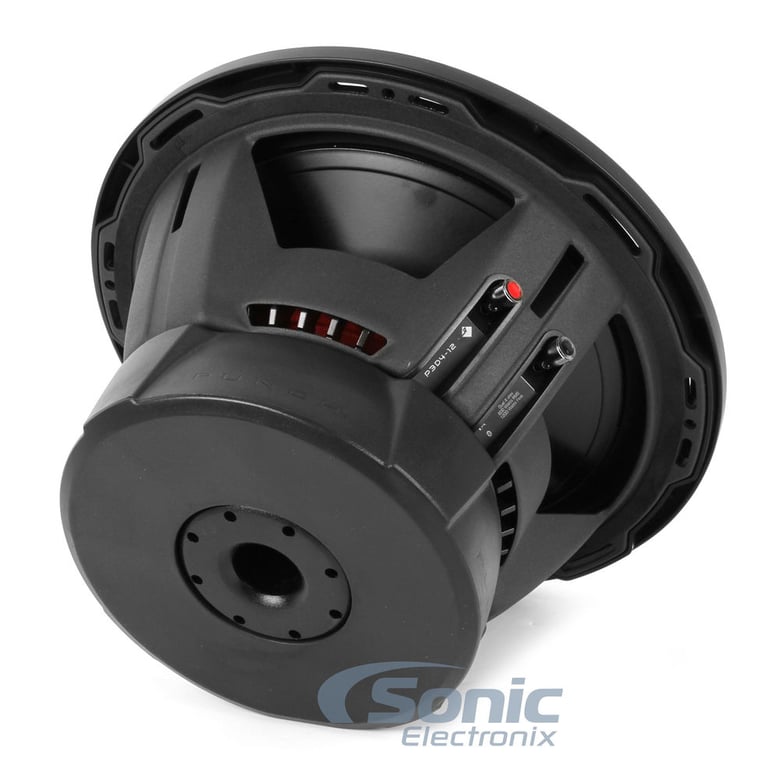

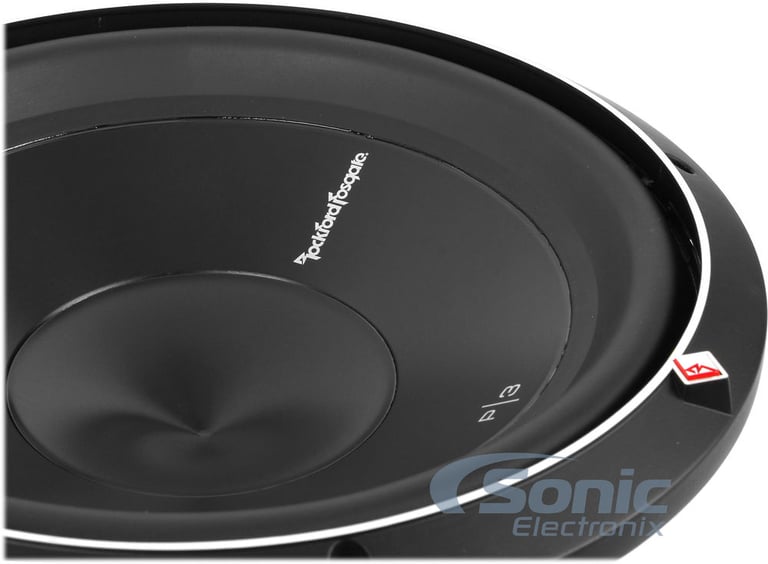

• 12" Punch P3 Series Dual 4 Ohm Subwoofer
• Power Handling:
  • Peak: 1200 watts
  • RMS: 600 watts
• Impedance: 4 ohm
• Anodized aluminum heat sinking cone & dustcap for strength and durability
• Tall profile true Santoprene vertical attach surround technique increases a speaker's effective radiating cone area
• Dual tear & fatigue resistant linear poly cotton spiders
• Optimized motor magnetics with extended pole and bumped backplate
• Fatigue resistant and reduced strain stitched tinsel leads
• Multi point high temp/strength neck joint bonding technique
• Sturdy 16 gauge compound bend frame geometry
• Semi-Flexible PVC removable protective motor cover

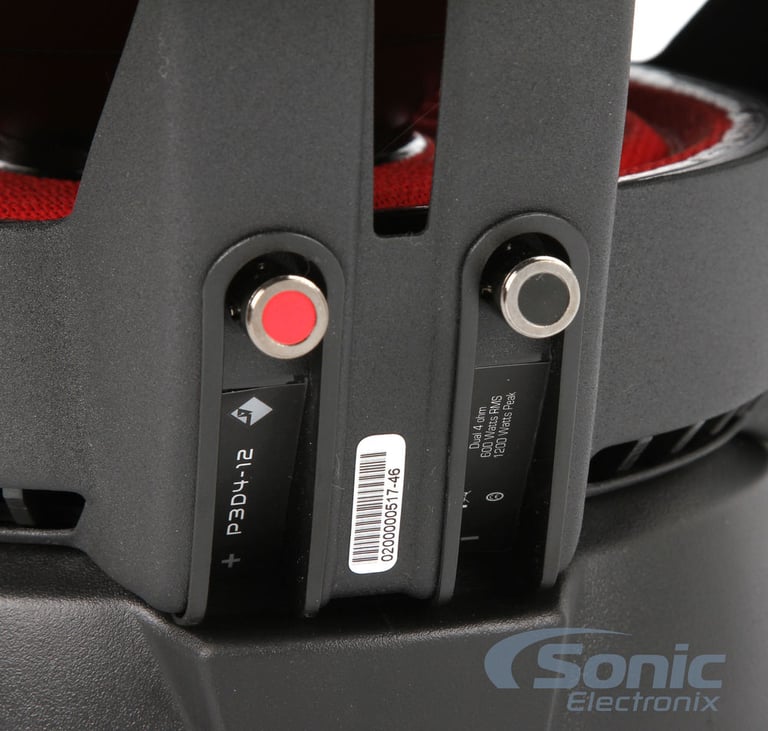

• Custom insulated compression input terminal assembly
• Proprietary spider venting/cooling technique
• Decorative die cast trim ring
• Custom 10-AWG nickel plated push terminals
• High temperature 4-layer 2-1/2" voice coil with spun laced nomex insulating reinforcement collar
• 102 oz Double stacked ferrite magnet structure
• Frequency response: 27.7-250 Hz
• Sensitivity: 85 dB
• Xmax: 16.2 mm
• Mounting Depth: 6-11/16"
• Cutout Diameter: 11-1/4"
• 1-year Sonic Electronix Warranty

General Features:

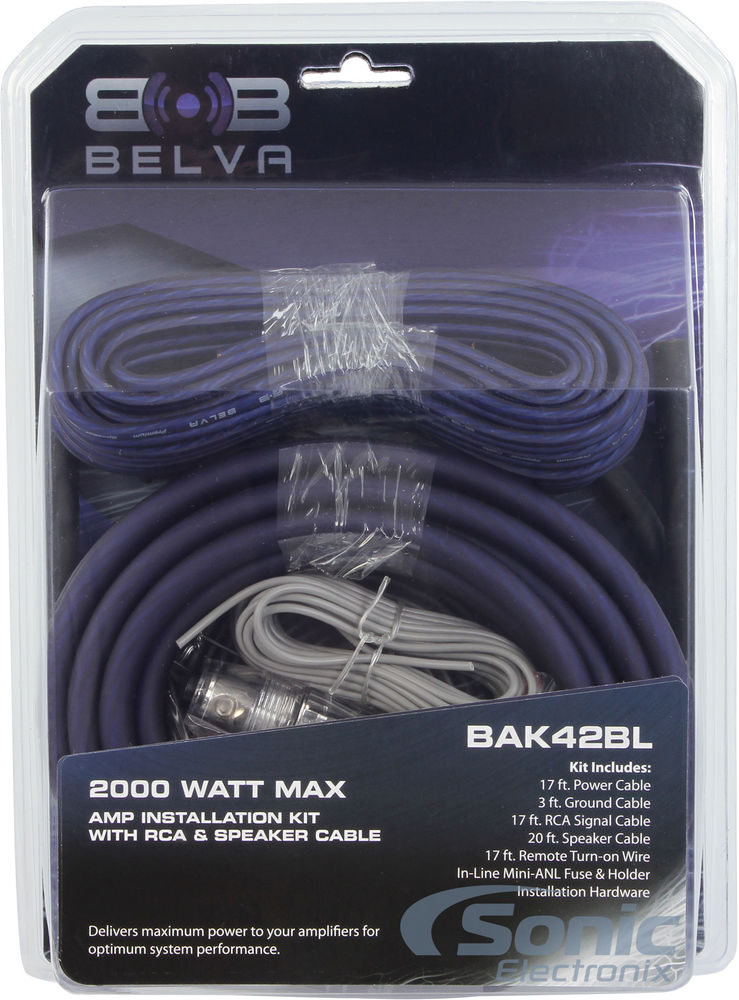

• Complete 4 Gauge 2-Channel Amplifier Installation Kit
• Designed specifically for car audio systems up to 1000 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Made from Copper-Clad Aluminum for a pure uninterrupted transfer of power and signal
• Belva CCA wire is made from 30% copper while other CCA wire is just 10% copper
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• In-line Mini-ANL Fuse holder with a 80 amp Mini-ANL fuse offers ideal protection for high powered systems
• Also available as 4-Channel Kit
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

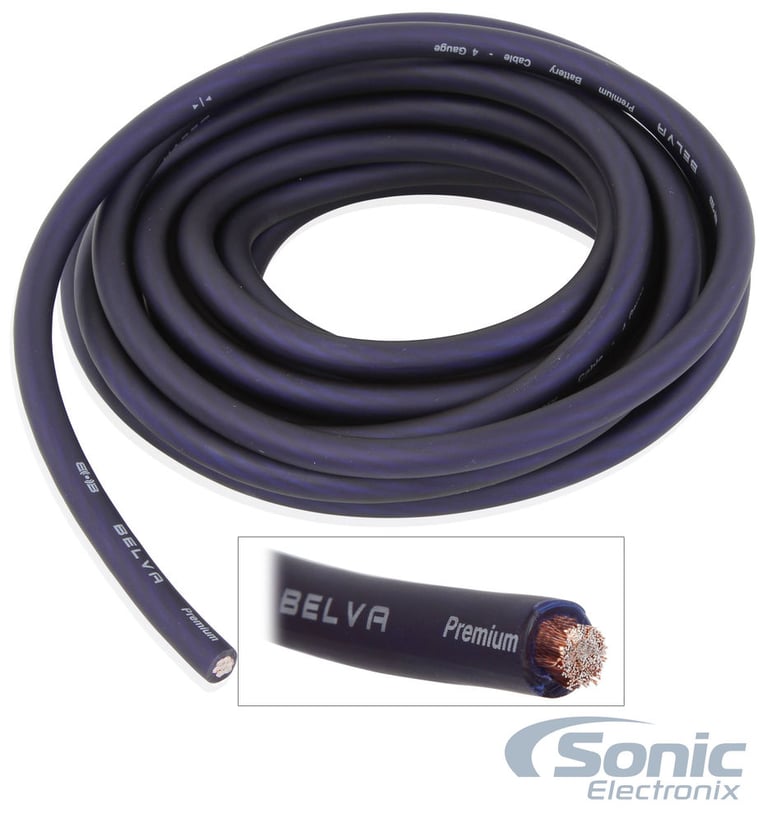

1. 17 ft. (5.2 meters) Blue 4 gauge power wire

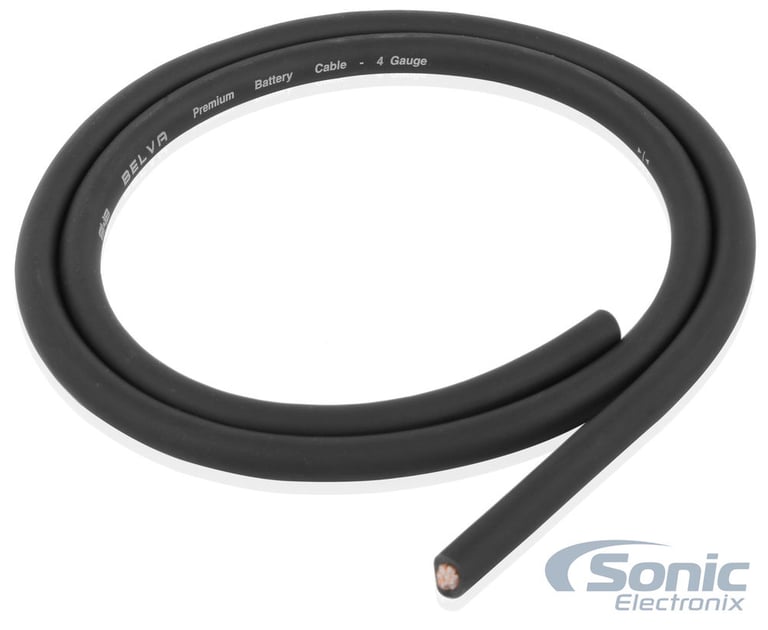

2. 3 ft. (.91 meters) Black 4 gauge ground wire
3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

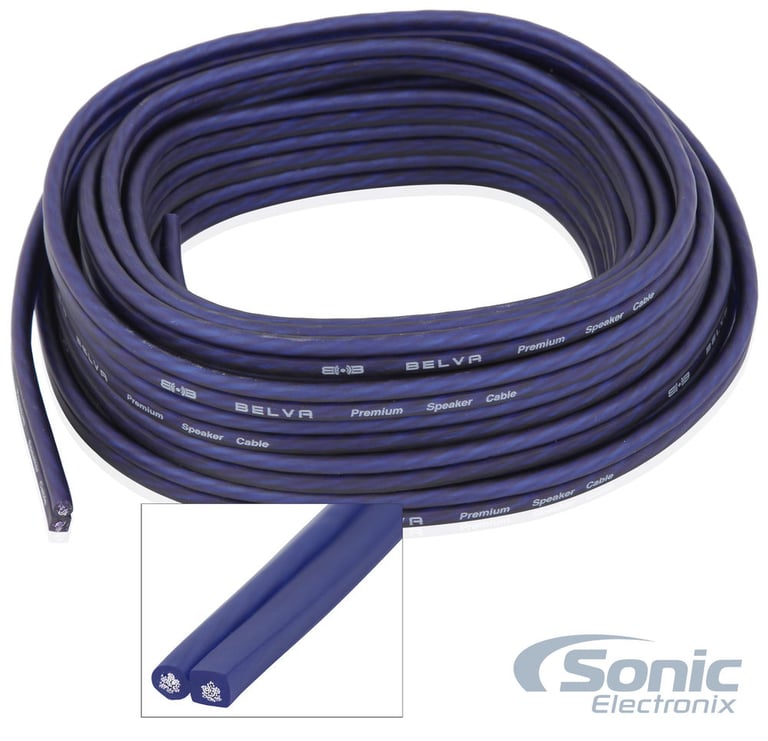

5. 20 ft. (6.1 meters) Speaker cable

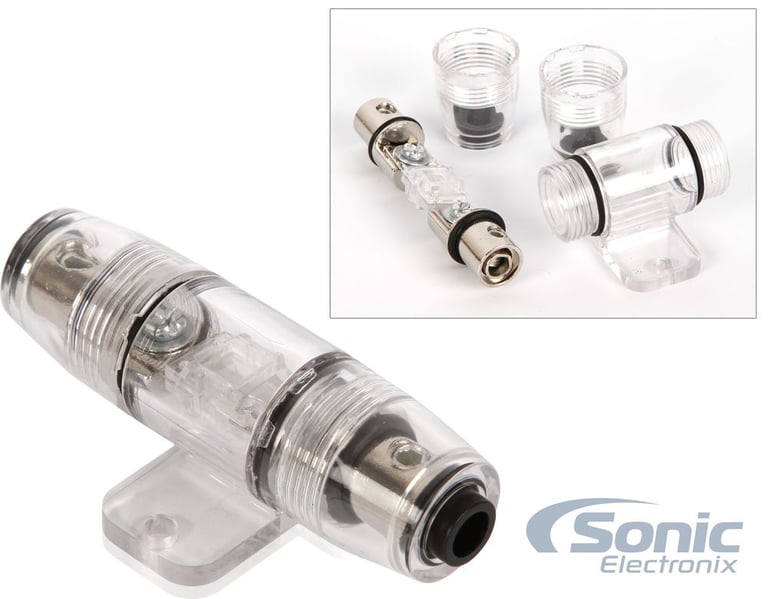

6. One In-line Mini-ANL Fuse Holder with a 80 amp Mini-ANL fuse

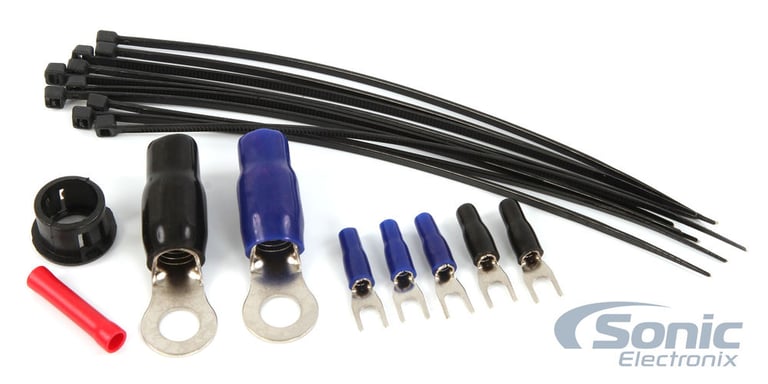

7. One Black rubber firewall grommet
8. One 4 Gauge Blue chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Blue Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
