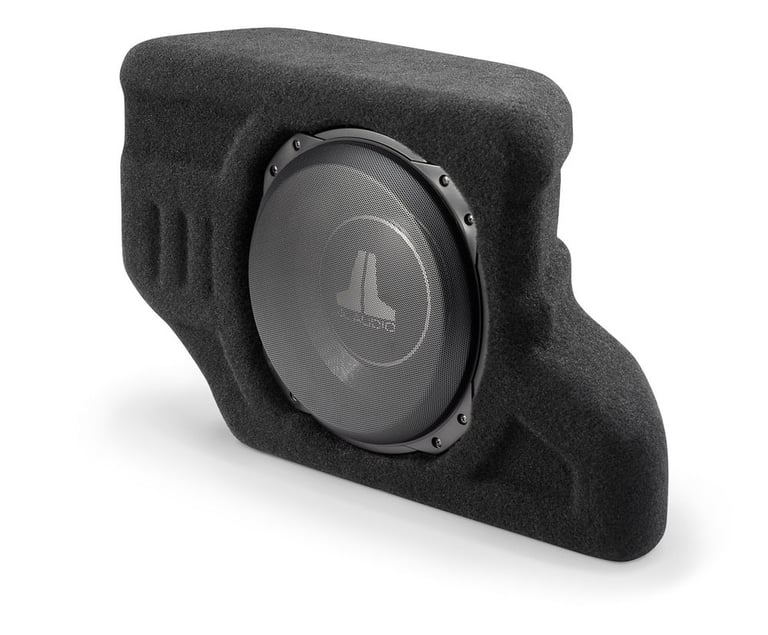

JL Audio Stealthbox® SB-HY-GENSIS/10TW3

Custom fit subwoofer enclosure for 2009-Up Hyundai Genesis Coupe

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW3-D4
• 400 Watts RMS Power Handling

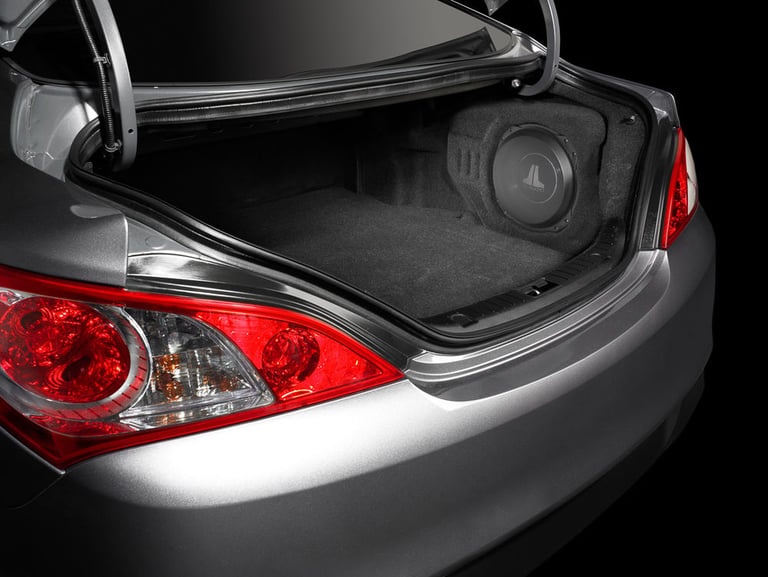

• Stealthbox Installs neatly into the passenger side rear corner of the trunk

Learn more about the sbhygensis10tw3

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

CR1277B main

Scosche CR1277B / CR1277 Dash Kit

Install a new Single-DIN car stereo in select 1998-2010 vehicles from Dodge, Chrysler, Jeep (Black)

162
-21.22%

$10.99

List price $13.95

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
OEMADAPT6.5 main

DS18 OEMADAPT6.5

Universal 6.5" Speaker Mounting Adapters

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

KMM-BT332U main

Kenwood KMM-BT332U

Single DIN Digital Media Receiver with Bluetooth (Built-in Amazon Alexa)

1
-14.00%

$129.00

List price $150.00

MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
460BRGB main

Boss Elite 460BRGB

Single DIN Digital Media Receiver with Bluetooth (Black)

8

Product Highlights


• Loaded Vehicle Specific Stealthbox Subwoofer Enclosure with Single JL Audio 10TW3-D4
• 400 Watts RMS Power Handling
• Stealthbox Installs neatly into the passenger side rear corner of the trunk

Description


JL Audio brand icon

Authorized dealer




Subwoofer Features:

  • One JL Audio 10TW3-D4 Subwoofer
  • Power Handling:
    • RMS: 400 watts
  • Recommended power range: 200 - 400 watts RMS
  • Wired to a 2 ohm load
  • No pole vent: permits mounting close to rear wall of enclosure
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability
  • DMA-optimized motor designs
  • Patented "concentric tube" architecture
  • Patented "floating cone attach method" technology
  • Cast alloy frame
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • Xmax: 15.2 mm
  • Sensitivity: 82.10 dB
  • Matching Amplifier: JL Audio XD300/1v2
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Enclosure Features:

  • Side-firing design
  • Sealed fiberglass enclosure
  • Steel mesh grille included
  • Stealthbox® Installs neatly into the passenger side rear corner of the trunk
  • Binding post terminals for secure and sturdy connection and installation
  • Installation requires permanent modification of the OEM cargo area floor
    (Modification outlined in manual, linked further below)
  • Will not fit the Genesis sedan
  • OEM Color: Trunk liner
  • Color Match Grade: Excellent



Color Matching your Stealthbox®:

Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox® color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering

Carpet Color Grade Identification
Perfect Actual exact factory color and texture (dye lot may differ slightly)
Excellent Precise color match, different texture
Good Very close to factory shade/tone
Fair Same basic color, different shade/tone
Poor Same basic color, substantially different shade/tone
Contrasts Not intended to match any factory color. Usually black. Good choice if no Good or better color match exists

Message from JL Audio: Our goal is to provide all Stealthbox® products in colors that match well with factory interiors. Because of availability issues with carpet colors, some Stealthbox® colors are not precise matches at this time. The match grades above give you an indication of how precise our color match is for each Stealthbox® model.

Check out the JL Audio SB-HY-GENSIS/10TW3 Owner's Manual


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

51KGMDL7T122 small

Kicker KGMDL7T12 (51KGMDL7T122)

• Sealed enclosure with 2 12" Solo-Baric L7T Series Subwoofer
• Compatible with select 2008-2021 Silverado 1500 / 3500 HD / 2500 HD / 1500 LD and Sierra 1500 / 3500 HD / 2500 HD / 1500 Denali and Sierra Denali
• 1200 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 15-1/2" L x 7-7/16" H x 52" W

$949.99

List price $1049.99

MBQJL-302 small

MB Quart MBQJL-302

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
• Includes one MB Quart NA2-400.1 amplifier
• Variable bass boost
• Speaker-level inputs
• Wired remote bass level control

$679.15

List price $829.99

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

A152-10 small

Atrend A152-10

• 10" Dual Sealed Subwoofer Enclosure
• Built for select 1997-2007 vehicles from GMC, Chevrolet
• 3/4" Medium Density Fiberboard (MDF) construction
• Custom down-firing fit under rear driver side seat
• Premium, ultra-tough coat spray-liner finish
• Constructed using specially formulated aliphatic wood glue
• Total box volume: 2.44 cubic feet

(2)

$225.99

List price $319.99

UBE-GM-VETC6 small

NVX Empty BOOST Box - 2006-2013 Chevrolet Corvette - UBE-GM-VETC6

• Custom Fit Empty Single 10" BOOST Sealed Enclosure
• Compatible with select 2006-2013 Corvette
• Made with hand-laid fiberglass shell covered in Carpet
• Total box volume: .60 cubic feet

$249.99

List price $275.99

51KRDL7T102 small

Kicker KRDL7T10 (51KRDL7T102)

• Ported enclosure with 2 10" Solo-Baric L7T Series Subwoofer
• select 2002-2024 vehicles from Ram, Dodge
• 1000 watts RMS
• Final Impedance: 2-ohm
• Dimensions: 16-7/16" L x 7-9/16" H x 58-7/16" W

(1)

$849.99

List price $949.99

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

51KTDL7T102 small

Kicker 51KTDL7T102

• Sealed truck enclosure with 2 10" L7T Series Subwoofer
• 1000 watts RMS
• Final Impedance: 2-ohm

$849.99

List price $949.99

BE-TOY-PRIG3 small

NVX Loaded BOOST Box - 2010-2015 Toyota Prius - BE-TOY-PRIG3

• Custom-Fit Sealed BOOST enclosure with 1 10" S Series Subwoofer
• Fits select 2010-2015 Prius
• 350 watts RMS (700 watts Peak)
• Final Impedance: 2-ohm

(5)

$349.99

List price $437.99

A341-10CP small

Atrend A341-10CP

• 10" Single Sealed Subwoofer Enclosure
• 5/8" Medium Density Fiberboard (MDF) construction
• Total box volume: 0.8 cubic feet
• Compatible with select 2009-2020 vehicles from Ford

(2)

$99.95

List price $119.99

Specifications & Details


Subwoofer Specifications
Subwoofer Design
Round / Circle
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
400 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Polymer/Mica Composite
Sensitivity
82.10 dB
Frequency Response
30 - 250 Hz
Xmax (millimeters)
15.2 mm
Subwoofer Size
10"
Enclosure Specifications
Number of Subwoofers
1
Box Style/Shape
Vehicle Specific
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Final Wired Impedance
2-ohm
Type of Enclosure
Loaded
Box Type
Sealed
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SB-HY-GENSIS/10TW3

Weight:

24.65lbs

Internal SKU:

sbhygensis10tw3

Internal Product ID:

97120

Product and How-to Videos


  • JL Audio Jeep Wrangler Stealth Box | Demo
  • JL Audio Stealthbox Vehicle Specific Subwoofer Enclosures | Product Overview

Customer Ratings & Reviews


JL Audio Stealthbox® SB-HY-GENSIS/10TW3 thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


SB-GM-SLVEXT/12W3v3/DG small

JL Audio Stealthbox® SB-GM-SLVEXT/12W3v3/DG

Custom fit subwoofer enclosure for Extended Cab Trucks with Graphite interior

$799.99

List price $1199.99

KFC-835C small

Kenwood KFC-835C OPEN BOX COMPLETE

3.5" 2-Way Performance Series Dual Cone Coaxial Car Speakers

$21.99

List price $49.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Dodge Grand Caravan

2007 Jeep Liberty

2019 Audi TT Quattro

1999 Audi A8

1971 Buick GS

2015 Lincoln MKS

2025 Ram 1500

2000 Hyundai Accent

2012 Chevrolet Silverado 2500 HD

2021 Subaru Ascent

Vehicle
Store
Delete

2023 Can-Am Defender

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
