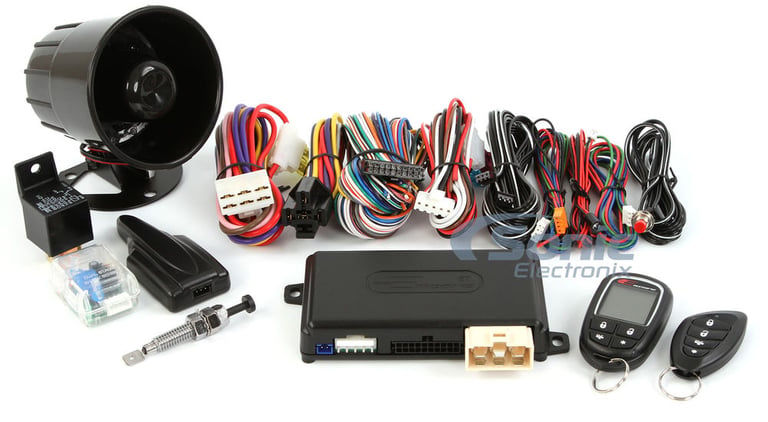

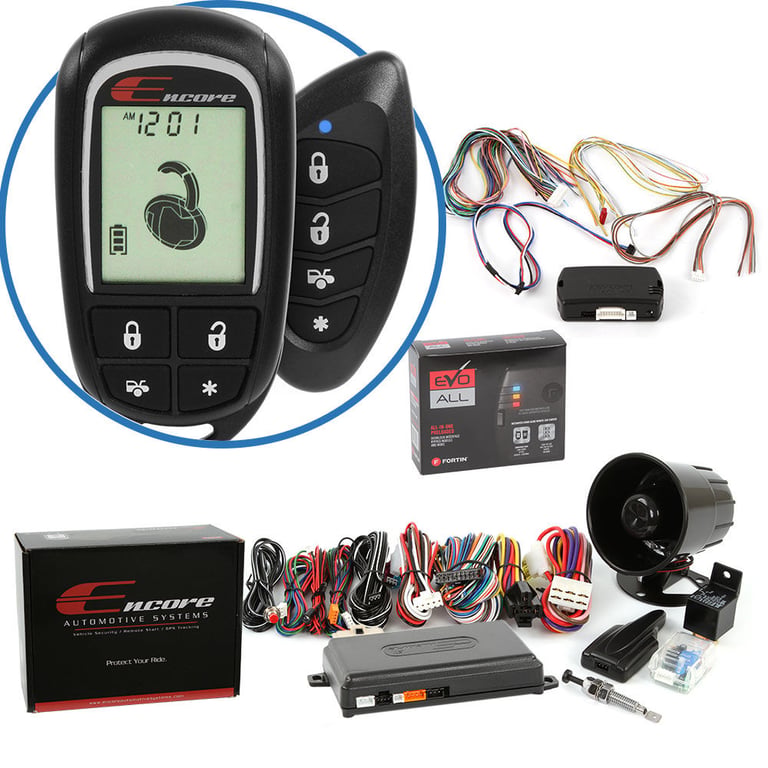

Encore E7 Vehicle Specific 2-way Remote Start & Keyless Entry Alarm System with Bypass Module for Most Vehicles - Universal!

General Features

• 4-Channel Alarm and Remote Car Starter with 5 on-board relays for parking lights, starter, accessories, ignition 1&2 and one additional relay / socket for starter disable

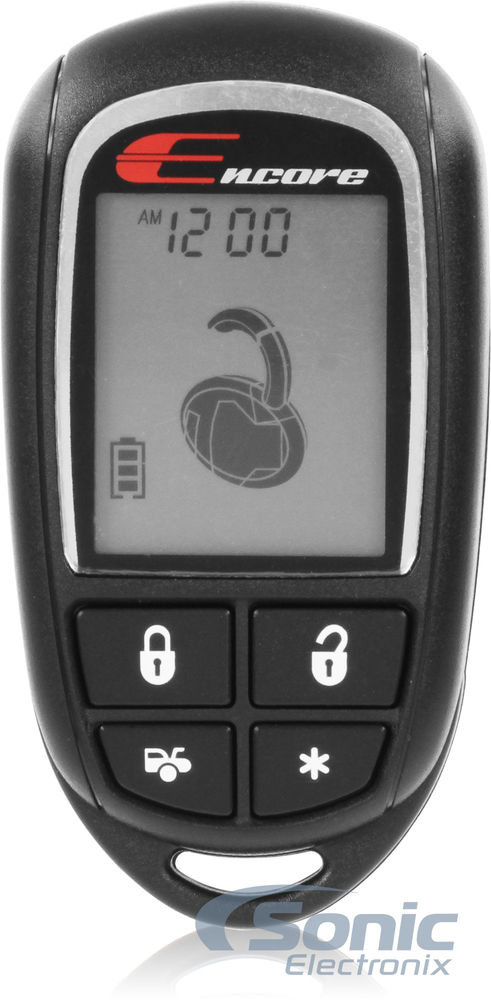

• New Thin Design Two Way LCD Remote Transmitter with Ultra Bright backlight
• ASK Long Range Technology
• Less susceptible to noise and interference than typical AM/FM technology
• Less power consumption than AM/Fm technology = Longer battery life
• Increased range by up to 60% and faster response time
• Two-way paging transceiver includes 24-hour clock with meter minder and temperature indicator and countdown run timer

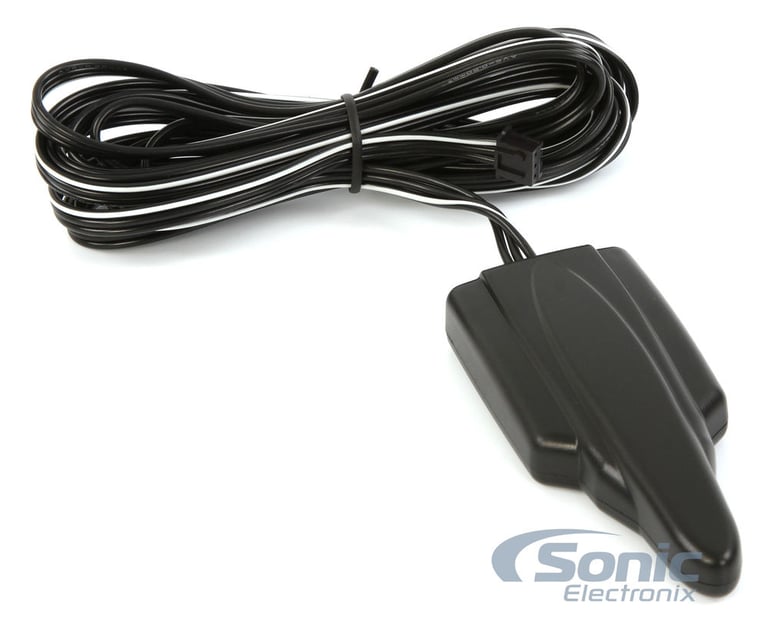

• New Design Two-way, window mount super extended range helical transceiver antenna module

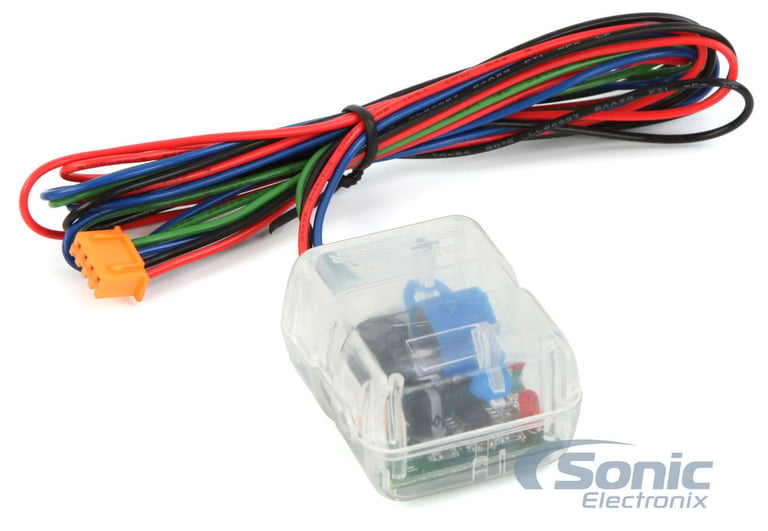

• New EAS-1 mini-size Dual Stage shock sensor
• “On-board 2 way Serial and Telematics Port” for i-Data Link Data Bus and Bypass module integration

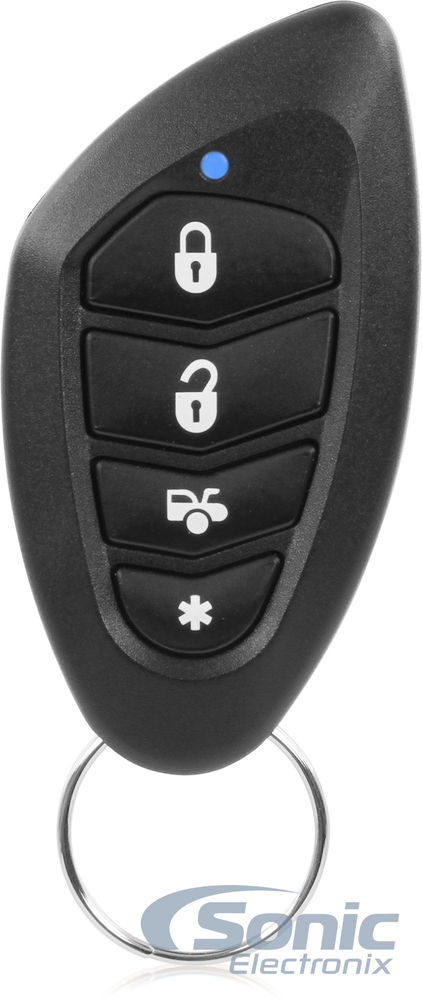

• 4-button extended range 433.9 MHz one way remote with Two car operation
• Programmable outputs, plus new starter and ignition timing sequence for improved compatibility with new vehicles

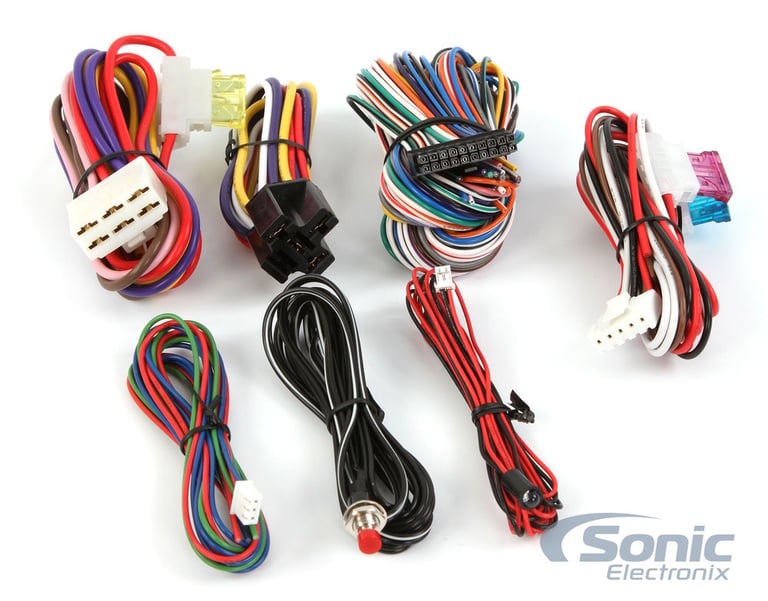

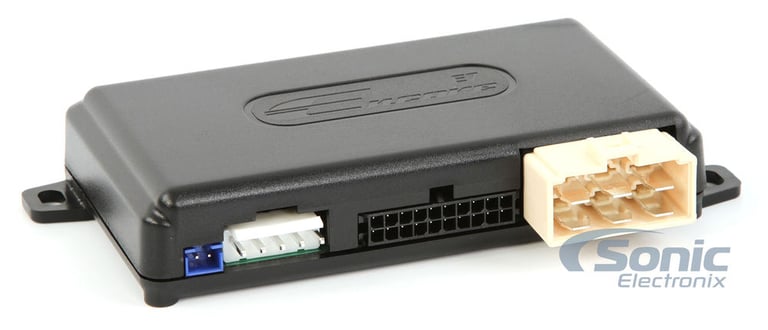

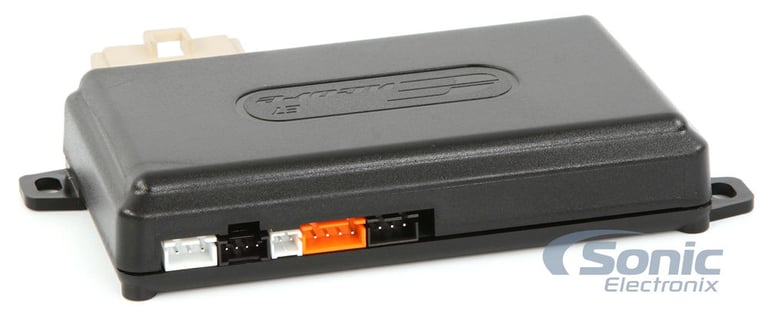

• New Main Unit Design with wiring harness on one side. On-board 30/40 ampere micro relays that contribute to 50% reduction in main unit size to fit smaller and tight spaces under the dash of newer cars
• 4-button configuration with selectable “Button Lock” to prevent accidental mis-use
• 24-hour digital clock with count down timer for parking meter reminder. The clock doubles as a temperature indicator for monitoring in-car temperature
• Multiple audible confirmation tones as well as vibrator mode for paging
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Alarm Features

• 4 Channels of outputs
• Dedicated function buttons on LCD remote and 4-button standard mini-remote transmitter
• New Turbo Timer and window “Comfort Feature”
• Code learning / Anti-scan receiver with programmable code hopping
• Back-up memory system
• Dedicated remote panic and car locator
• Selectable horn chirp timing
• Passive arming by-pass from the remote
• Parking light fl ash with dual polarity relay on-board
• Starter disable output with relay and socket included
• Dome light illuminated entry output
• Dual polarity (+/-) door lock outputs with optional driver’s door priority two step unlock
• Additional positive and negative inputs
• 500 mA grounded outputs for starter disable and door lock/unlock
• Programmable momentary, latched or timer on auxiliary channel
• Programmable manual / passive arming with true last door arming with auto re-arm “on”
• Programmable Single / Double Pulse Unlock
• Programmable Parking lights (fl ash or constant)
• Programmable Pathway Illumination (on / off)
• Programmable voltage sense for delayed dome lights (on / off)

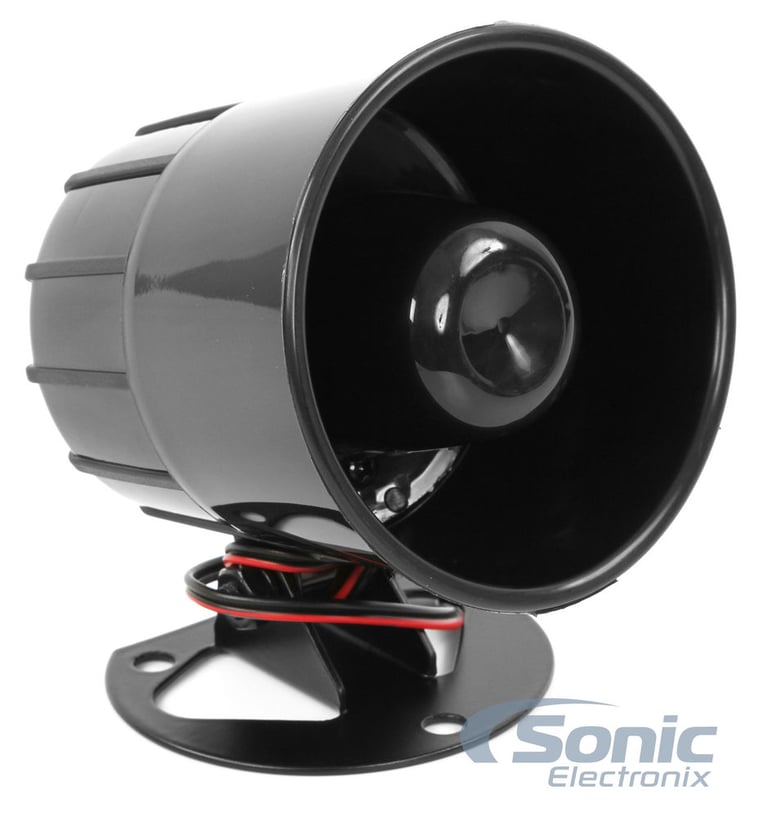

• Programmable horn and siren chirp delete
• Programmable ignition control lock and unlock
• Programmable pulse time for lock and unlock (.9 sec. / 3 sec.)

Remote Start Features

• 5 On-Board Relays:
• Selectable one or two push “Safety Start”
• Programmable gasoline or diesel with 10, 15, or 20 second
• “Wait-to-Start”

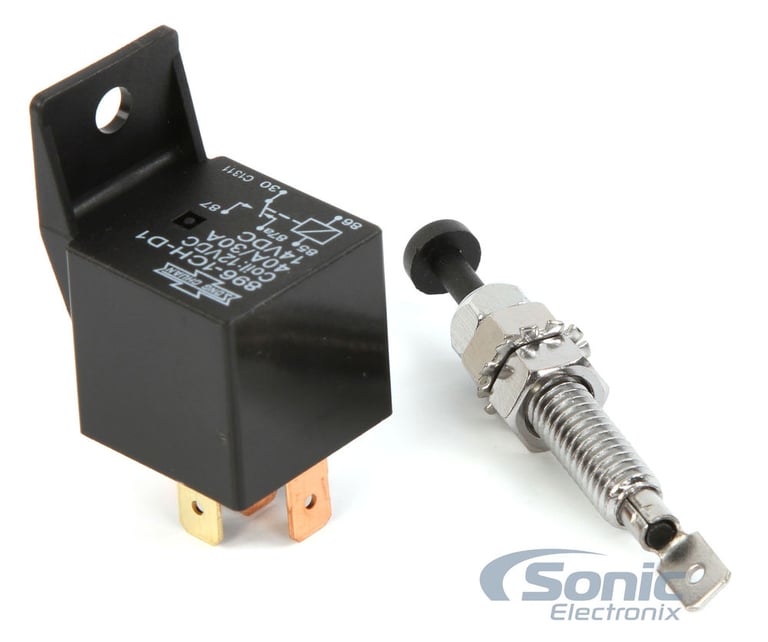

• Hood pin switch safety input (pin switch included)
• Selectable RPM / Voltage Start
• RPM / Voltage / Hi-Low level check
• Stick Start Mode
• Timer control start option
• Sensor control output during start
• Temporary Stop Feature
• Factory Alarm Disarm and Rearm signal output
• Programmable factory keyless door locking before and after start
• Programmable start status output with shock sensor bypass
• 45 second door / dome light bypass after ignition is turned off
• Programmable Ignition 2 (on / off)
• Programmable 3 hour timer start
• Programmable 1 / 3 hour timer start
• Selectable Run Timer (5/10/20/30 minutes)
• Ignition control by-pass during remote start

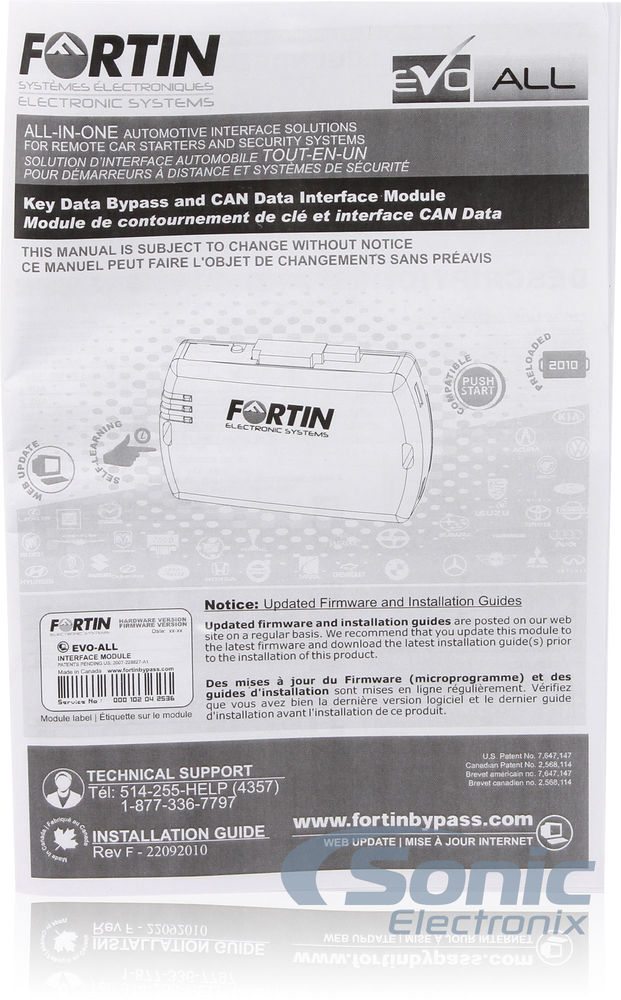

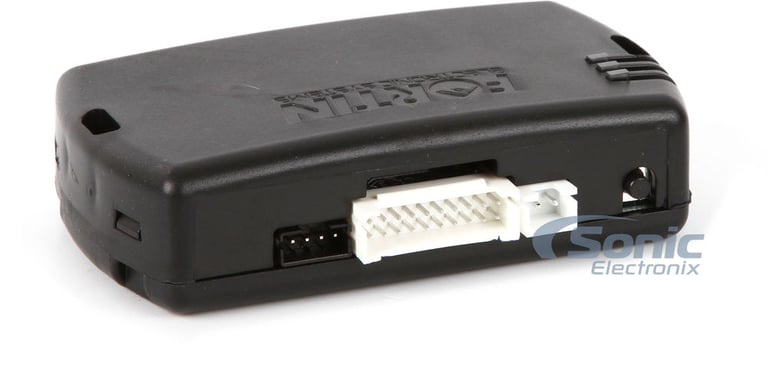

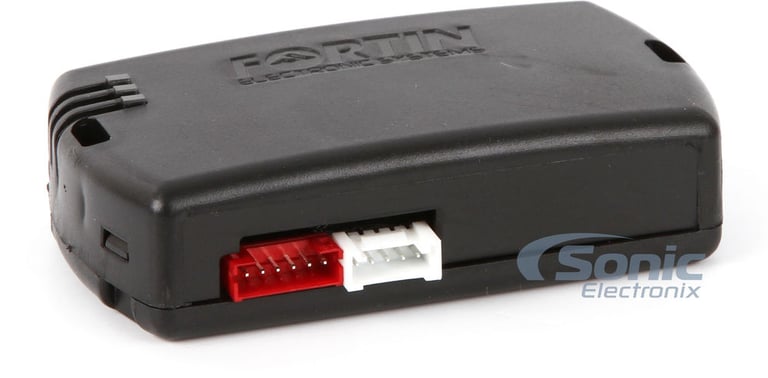

Immobilizer Bypass Features

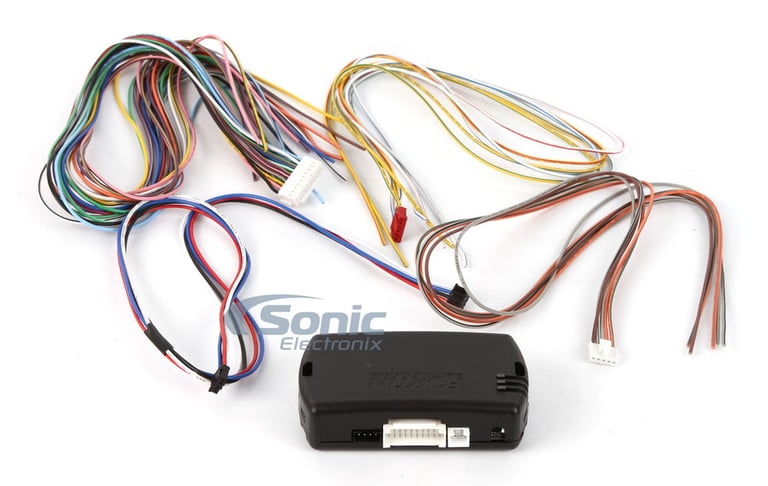

• All-in-one data immobilizer bypass and door lock interface
• Hassle free installation
• Multibus architecture with 10 separate communication ports
• 3x on-board LEDs for simplified programming and diagnostics
• 1x preloaded firmware for maximum compatibility

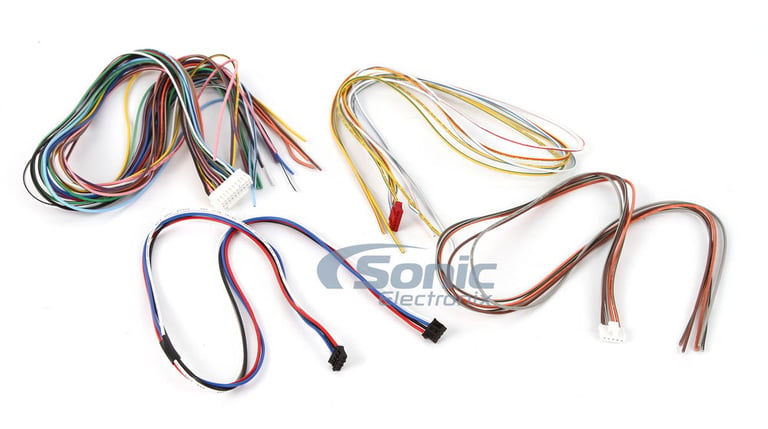

• 20-wire general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly
