JL Audio Stealthbox® SB-J-UNLTD4D/13TW5v2/DG

Subwoofer Features:

• One JL Audio 12W3v3-2 Subwoofer
• Power Handling:
• RMS: 600 watts
• Recommended Power Range: 250-600 watts
• Wired to a 2 ohm load
• Mica-filled polypropylene cone
• Santoprene surround
• Cast alloy basket
• 7-inch diameter voice coil
• Unique design allows for small airspace requirements
• 13% greater linear excursion capability over previous model
• Redesigned motor features an annular vent
• DMA-optimized motor designs
• Patented "floating cone attach method" technology
• Patented "concentric tube" architecture
• Frequency response: 20 - 200 Hz
• Sensitivity: 85.51 dB
• Xmax: 11 mm
• Matching Amplifier: JL Audio XD600/1v2
• 2 Year Manufacturer's Warranty

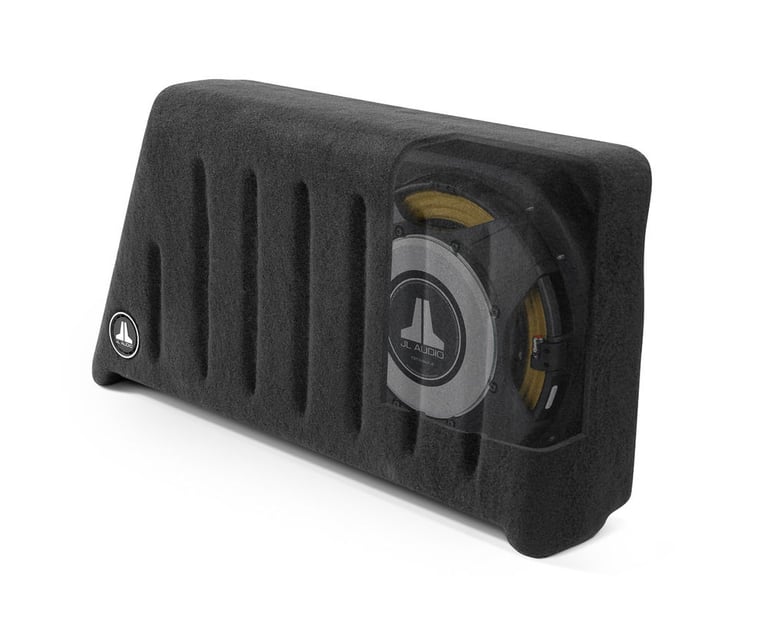

Enclosure Features:

• Compatible with select 2007-2018 vehicles from Jeep with Gray Trunk
• Side-firing design
• Sealed fiberglass enclosure

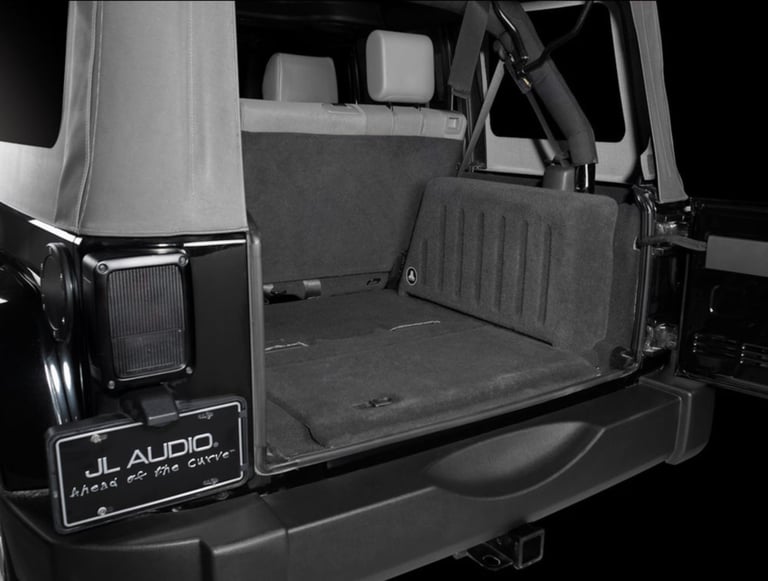

• Stealthbox bolts solidly to the passenger-side rear wheel well
• Binding post terminals for secure and sturdy connection and installation
• Requires removal of factory subwoofer, if so equipped

• For model years 2011-Up with a 12V accessory plug on the rear passenger side cargo panel/subwoofer, you must purchase a plain (without subwooofer) passenger side rear cargo trim panel (part #1pu12dx9ag) and a cover for the upper seat belt / roll bar (part #1pu18dx9ad) from Jeep/Mopar parts. Use of the accessory outlet is lost with Stealthbox installation.

• OEM Color: with Gray Trunk
• Color Match Grade: Excellent

Some JL Audio Stealthboxes are not designed to perfectly match OEM colors. Some colors will contrast with OEM colors in order to provide a stylish setup. If you are looking for the closest color match, please select the JL Audio Stealthbox color that is as close to your OEM color as possible and indicate your vehicle's interior color when ordering

Message from JL Audio: Our goal is to provide all Stealthbox products in colors that match well with factory interiors. Because of availability issues with carpet colors, some Stealthbox colors are not precise matches at this time. The match grades above give you an indication of how precise our color match is for each Stealthbox model.
