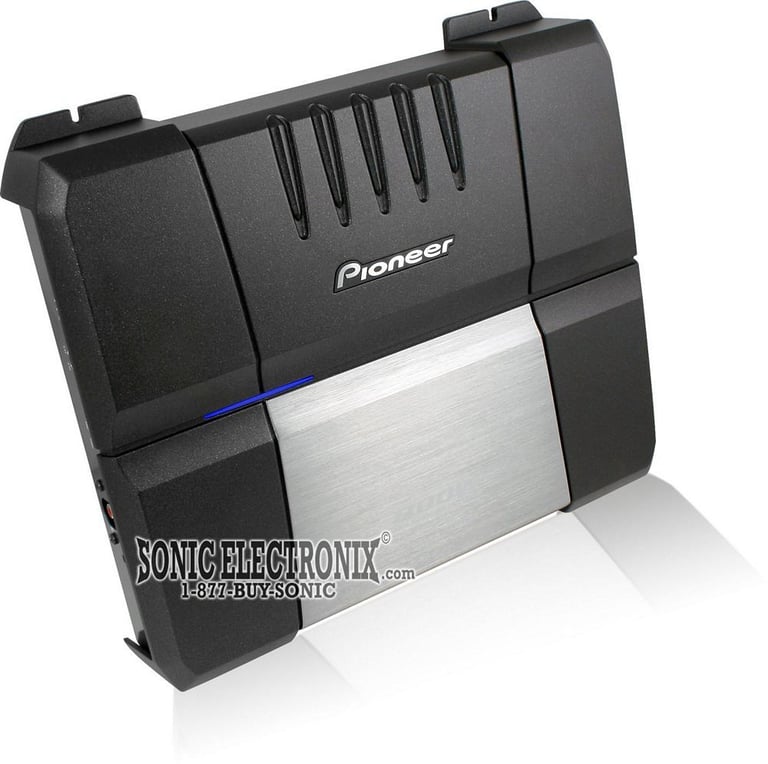

Pioneer GM-7300M

800W Max, MonoBlock Amplifier

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

800W Max, MonoBlock Amplifier • PWM Regulated MOSFET Power Supply • RCA Inputs • Speaker Level Input • Input Level Control • S/N ratio: >100 dB • Frequency Response: 10 Hz - 240 Hz

Learn more about the gm7300m

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

gmd8701 thumbnail

Pioneer GM-D8701

OUR PRICE: $169.95

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

7
-10.01%

$8.99

List price $9.99

REF687F main

Infinity REF687F (INFSPKRF687FUS)

360W Peak (120W RMS) 6x8" Reference Series 2-Way Coaxial 3-ohm Speakers

1
-18.76%

$129.95

List price $159.95

FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Limited time!
C2-350X main

JL Audio C2-350x

50W RMS 3.5” C2 Series 2 Way Coaxial 4-ohm Car Speakers

15
-15.63%

$134.99

List price $159.99

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

3
-30.04%

$55.96

List price $79.99

UNIFRING main

NVX UNIFRING

Universal Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 6)

5
-16.65%

$29.99

List price $35.98

Product Highlights


800W Max, MonoBlock Amplifier • PWM Regulated MOSFET Power Supply • RCA Inputs • Speaker Level Input • Input Level Control • S/N ratio: >100 dB • Frequency Response: 10 Hz - 240 Hz

Description


Pioneer brand icon

Authorized dealer

  • 800W Max, MonoBlock Amplifier
  • RMS Power Output:
    • 4 ohm: 250 watts x 1 channels
    • 2 ohm: 360 watts x 1 channels
  • PWM Regulated MOSFET Power Supply
  • Screw-Type Speaker Terminals
  • Balanced Isolator Input Circuit
  • RCA Inputs
  • Speaker Level Input
  • Input Level Control
  • Built-in Crossover
  • Crossover Frequency Range: 40 Hz - 240 Hz
  • Bass Level Control: 50 Hz
  • Frequency Response: 10 Hz - 240 Hz
  • Dimensions: 11-13/16"L x 13-1/8"W x 2-3/8"H
  • 1-year SonicElectronix.com warranty

Product history:

Pioneer GM-D8701 thumbnail
(newest, current model)
Pioneer GM-D8601 thumbnail
(previous model, replaced by Pioneer GM-D8701)
Pioneer GM-D7500M thumbnail
(previous model, replaced by Pioneer GM-D8601 (Ships as 2019 model: Pioneer GM-D8701))
Pioneer GM-D7400M thumbnail
(previous model, replaced by Pioneer GM-D7500M)
Pioneer GM-7300M thumbnail
(previous model, replaced by Pioneer GM-D7400M)
Pioneer GM-7200M thumbnail
(previous model, replaced by Pioneer GM-7300M)

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(36)

$259.99

List price $335.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(10)

$199.99

List price $219.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
360 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
Not Bridgeable
Amplifier Specifications
Number of Channels
1 - Mono
Total RMS Power Output
360 watts
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.03%
Speaker Level Inputs
Yes - 2 pair
Preamp Outputs
Yes
Low-Pass Crossover Frequency
40 - 240 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
+12 dB

Item Details


Manufacturer:

Model Number:

GM-7300M

Weight:

9.50lbs

Internal SKU:

gm7300m

Internal Product ID:

8577

Product and How-to Videos


Customer Ratings & Reviews


Pioneer GM-7300M thumbnail image

5 star
0%
4 star
50%
3 star
50%
2 star
0%
1 star
0%



Durability
2.5
Value
4.5
Features
3.5
Design
3
Usability
4

Customer Reviews

Sort by:

Loading...

Its good for the price...

This amp really works well, and supplies my sub plenty of power. The only complaint I have is heat. After running it at moderately loud levels for a little over an hour it went into a thermal protection mode where the sub seemed to skip and not hit almost every other note. I pulled off the highway to see what was up, and when touched it I almost burnt my fingers! I couldn't believe how hot it got! My next plan is to lift it up off the floor of my trunk by mounting it to some wood and putting spacers between it and the wood to allow some airflow underneath it. Hopefully that helps... The time it overheated was the only time so far. It seems to be fine on all short trips no matter how hard you push it. It barely even gets warm pushing it super hard on a 15 minute trip. Other than that though, this amp kicks butt!

By Keith on February 5, 2008

37 found this helpful


Good amp

I had this amp wired up to a Jensen bandpass box with two Jensen subs(jsn bp212). It made the subs hit very hard. The problem I have run into is heat. The amp does not have a fan or any holes for the heat to escape. It would work great but, then it would go into a thermal protection mode.

By Brandon on December 8, 2007

32 found this helpful
