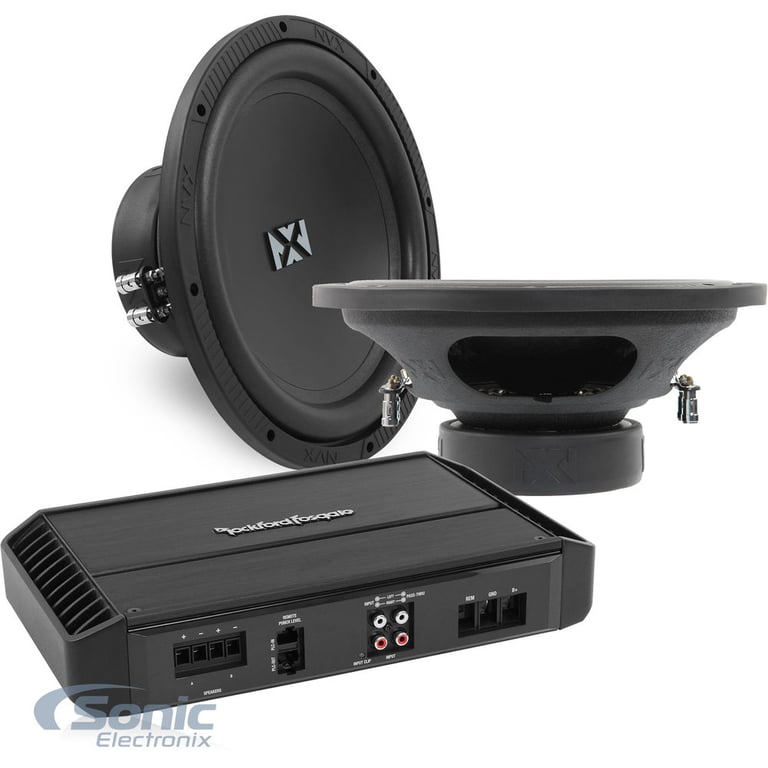

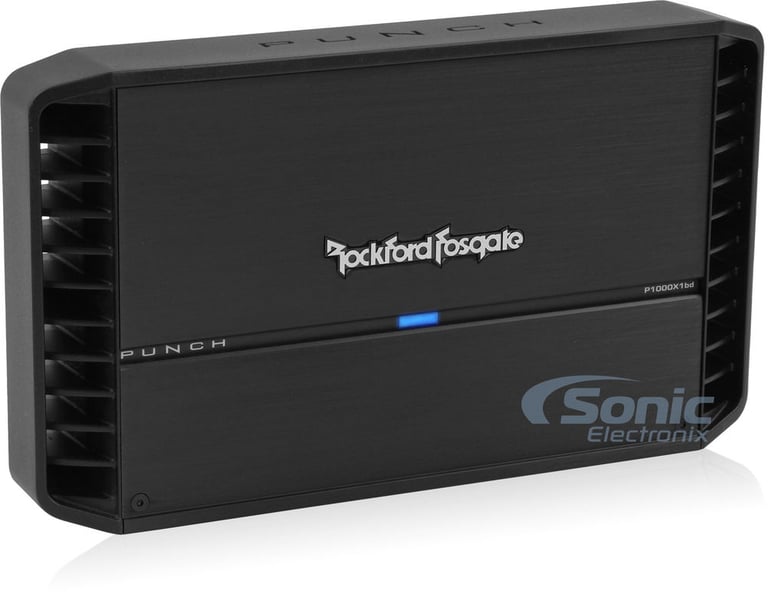

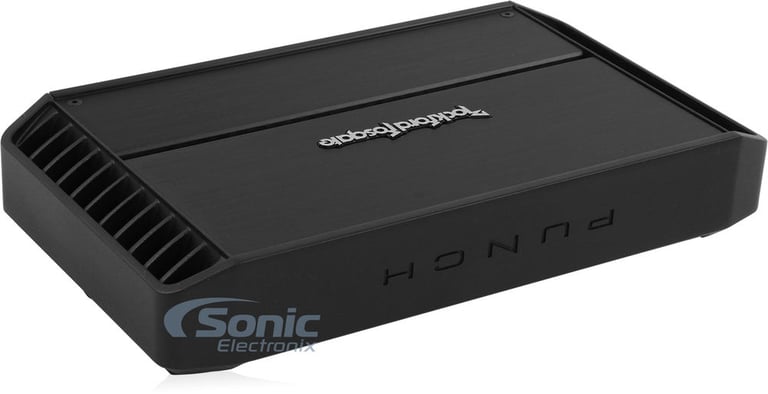

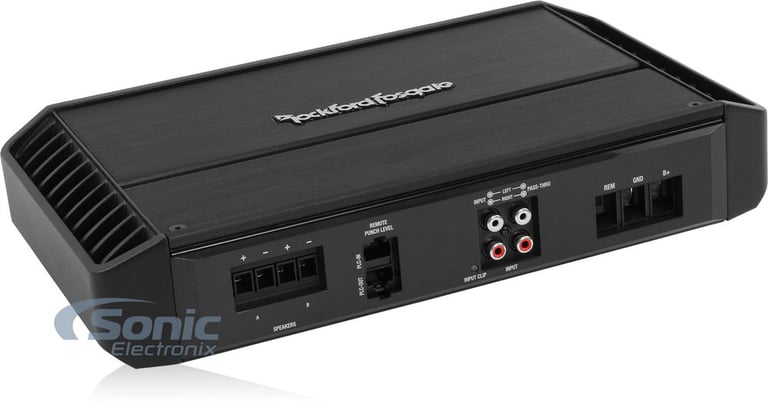

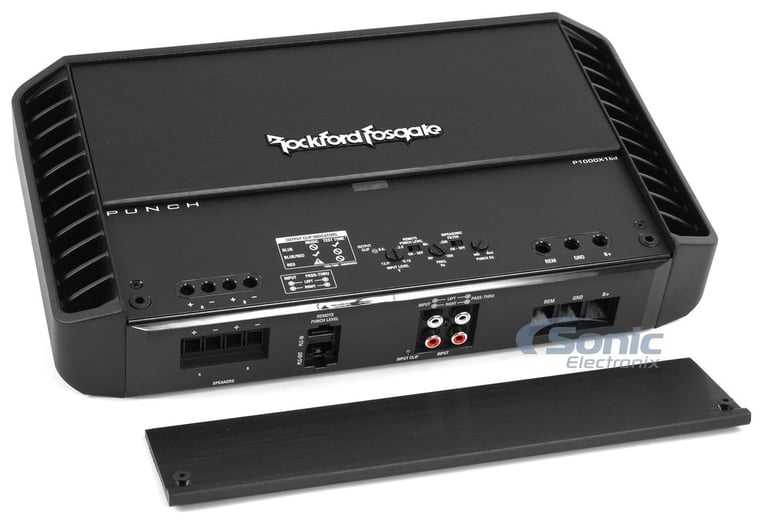

Rockford Fosgate Punch P1000X1BD
1000W RMS Punch Series Monoblock Class BD Car Power Amplifier
Quantity: 1
General Features
- Punch BD Series Monoblock Class BD Car Amplifier
- RMS Power Rating:
- 4 ohm: 300 watts x 1 chan.
- 2 ohm: 600 watts x 1 chan.
- 1 ohm: 1000 watts x 1 chan.
- MOSFET power supply
- Ultra efficient Class BD circuitry to maximize amplifier power efficiency
- Remote bass level input (remote level control sold separately)

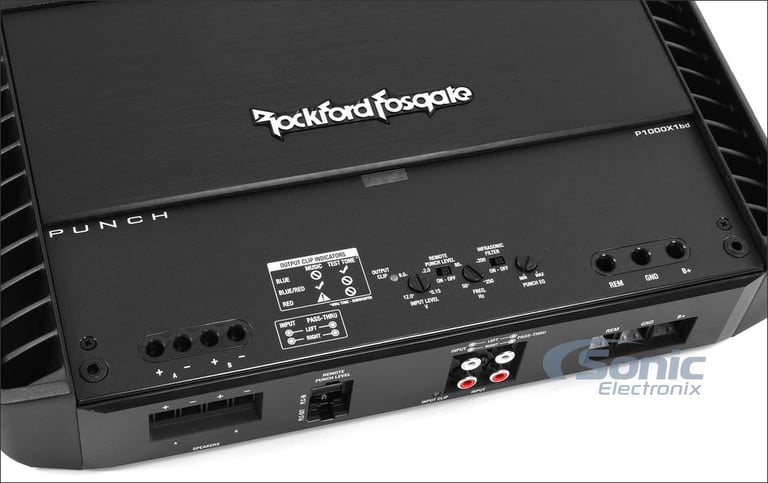

- LED power, thermal, and protect indicators
- Tuned Bass EQ (0-18 dB bass boost at 45 Hz)
- On-board differential inputs eliminates noise picked up by the signal cable
- Monoblock channel operation
- Integrated Trans•ana technology simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality
- RCA Pass-thru outputs
- MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
- DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving efficiency of the circuit and lowers operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
- Built in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
- Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across entire amplifier heatsink to efficiently keep the amplifier temperatures low
- Nickel-plated RCA level inputs
- Nickel-plated captive C-clamp terminals
- Variable high-pass filter (50-250 Hz, Butterworth, 12 dB/octave)
- Variable low-pass filter (50-250 Hz, Butterworth, 12 dB/octave)
- CEA-2006 compliant amplifier
- Frequency response: 20-250 Hz
- Dimensions: 13-5/16"L x 7-3/4"W x 2-3/8"H
- 1/0-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
- 1-year Manufacturer's Warranty

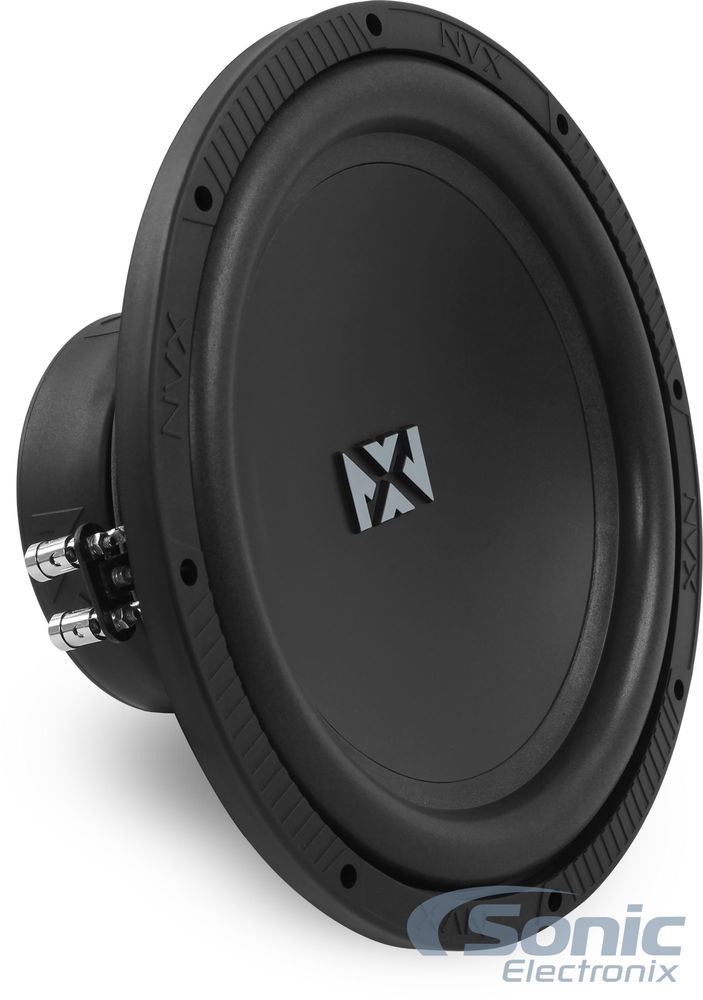

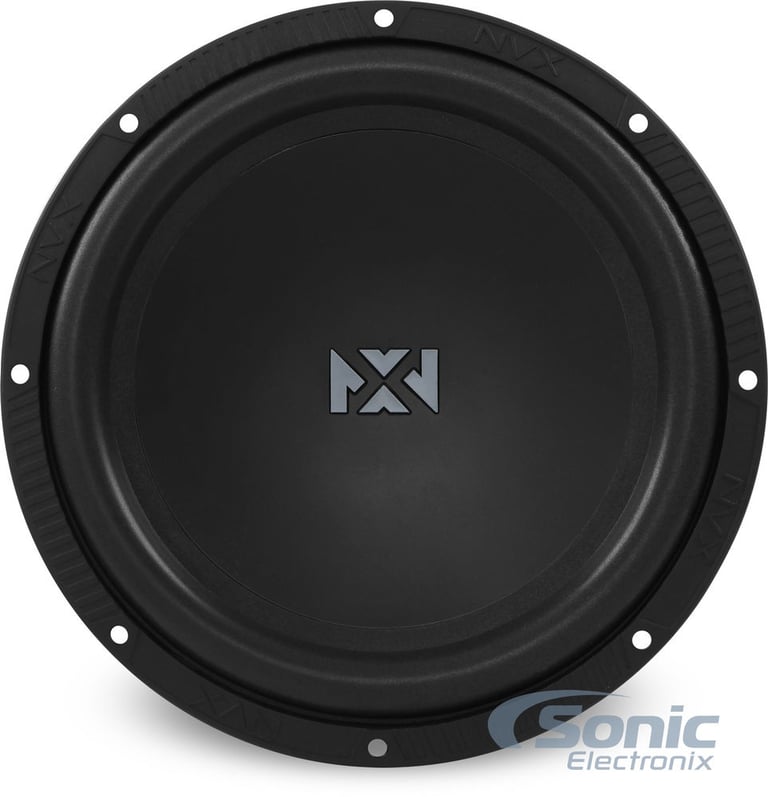

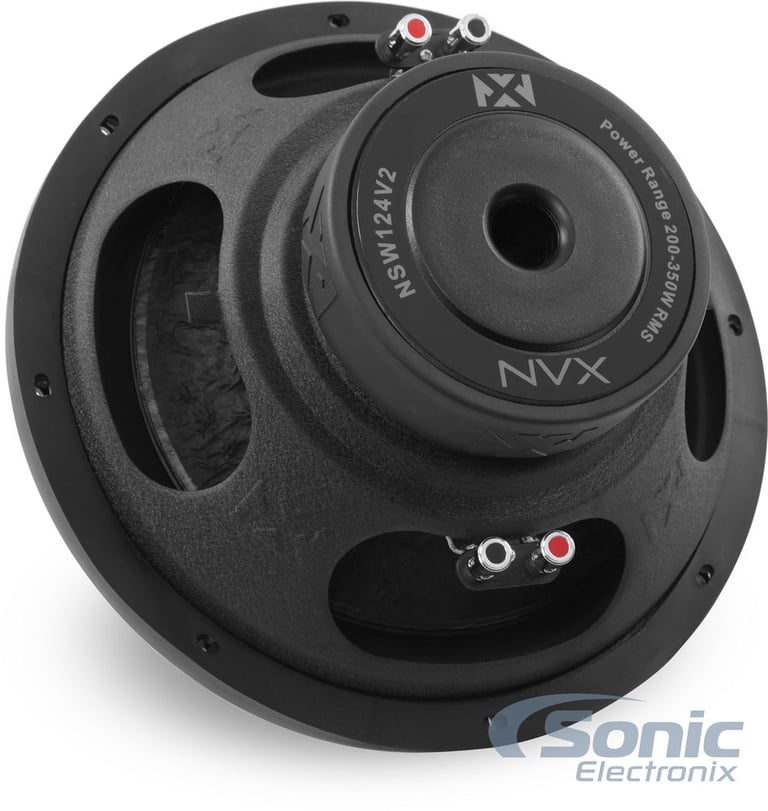

NVX NSW124V2
350W 12" N-Series V2 Dual 4-Ohm Car Subwoofer
Quantity: 2
General Features:
- 12" Dual 4-Ohm N-Series Subwoofer
- Power Handling:
- RMS: 200-350 watts

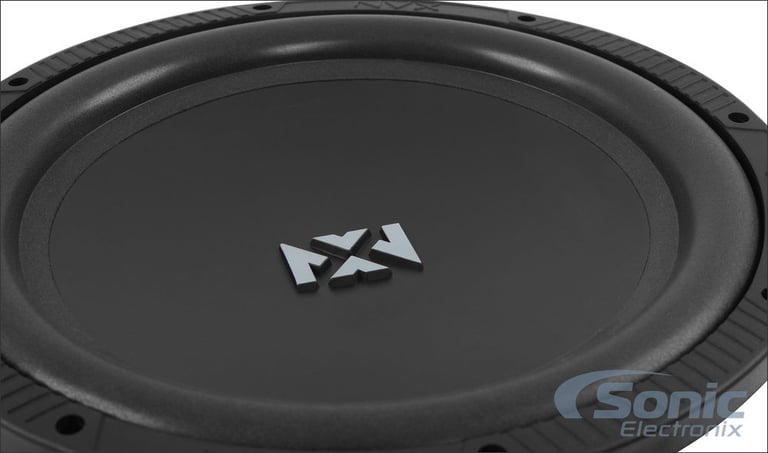

- Ultra-Light Non Pressed Paper Cone ensures accurate, responsive performance even at high volume levels
- Custom Blended High-Roll Foam Surround for extended excursion
- Specially designed high excursion strain-relieved tinsel leads
- 2" High Temperature Aluminum Voice Coil
- Top-mount depth: 5.01"
- Frequency Response: 20 - 200Hz
- Sensitivity: 86.9 dB

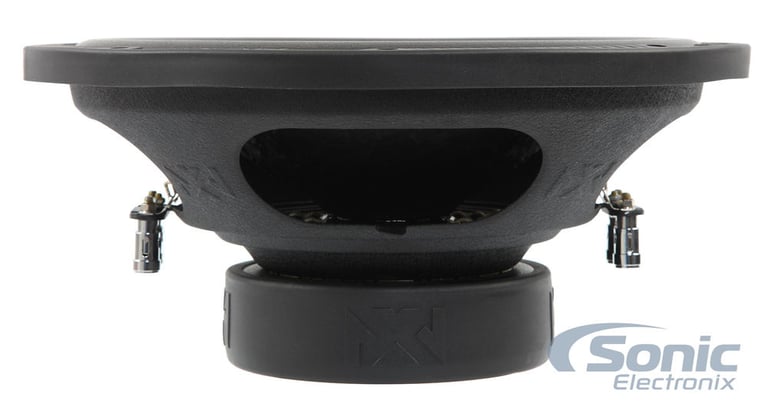

- High strength steel basket retains exceptional rigidity to minimize distortion

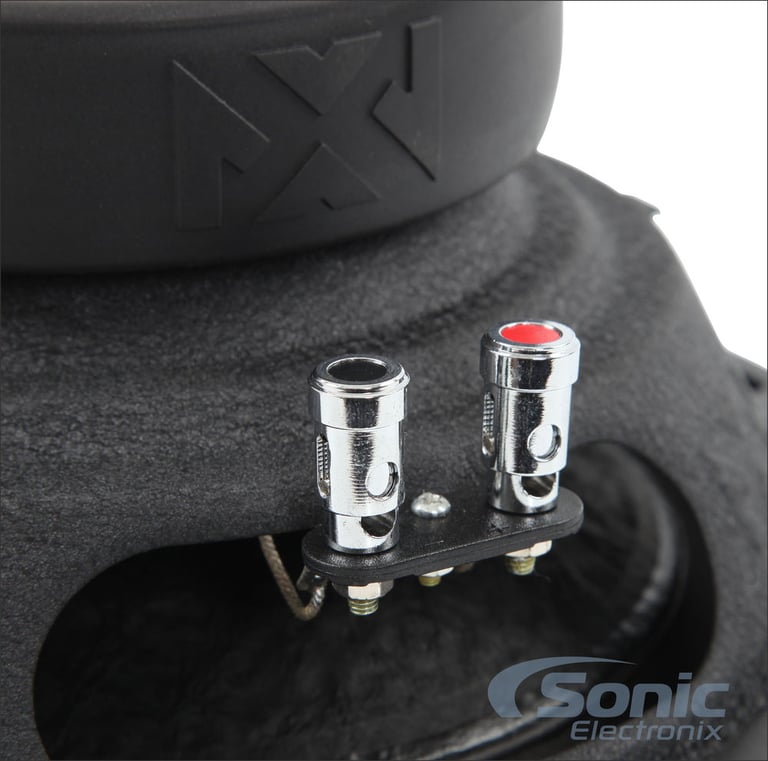

- Chrome plated, spring loaded push terminals for easy, secure installations

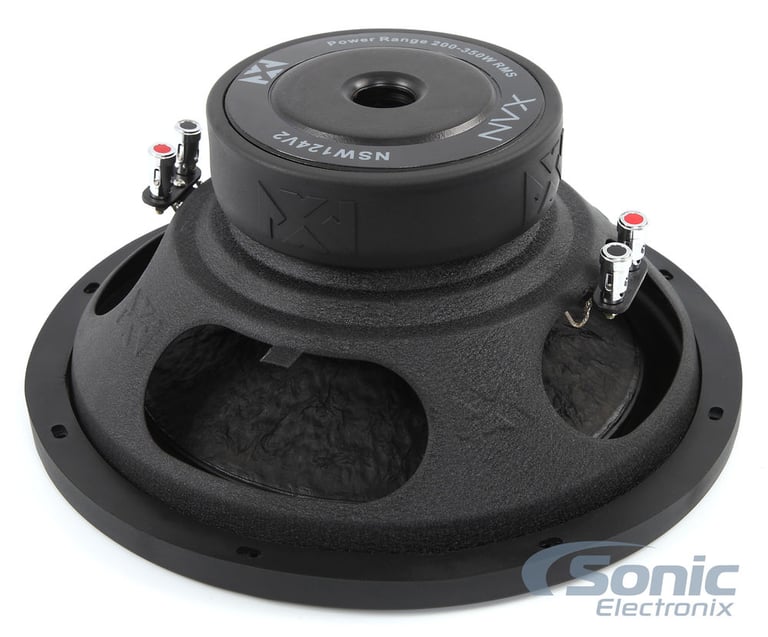

- High energy ferrite magnet motor structure allows for greater power handling and voice coil control during high excursions
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Enclosure Recommendations:
- Ported Enclosure:
- Recommended Volume: 1.75 ft3
- Tuning Frequency: 36 Hz
- Ideal Power RMS: 350W
- F3 (Hz): 41
- Sealed Enclosure:
- Recommended Volume: 1.25 ft3
- Ideal Power RMS: 350W
- F3 (Hz): 47
- FC (Hz): 55
- QTC: 0.941
