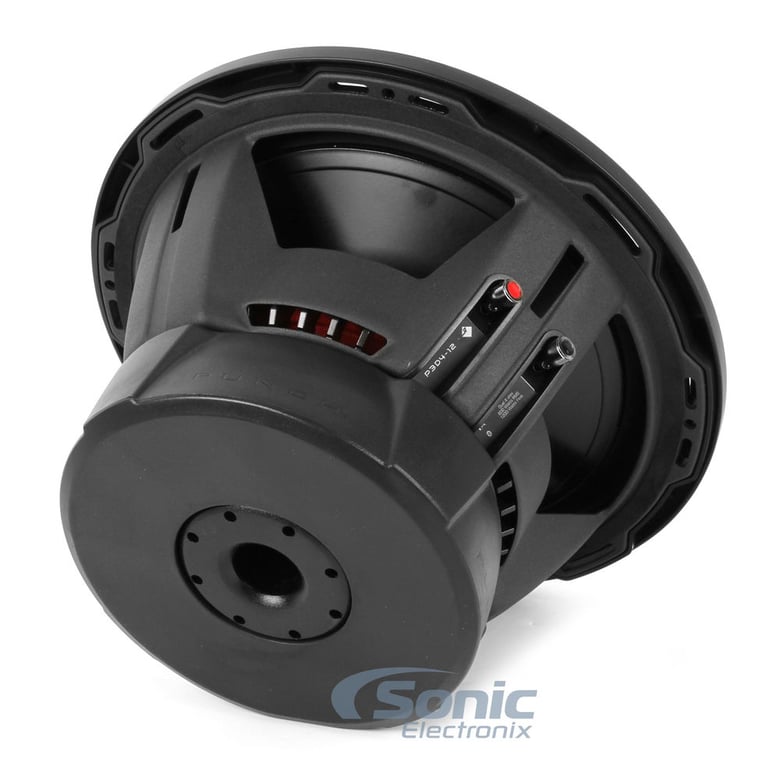

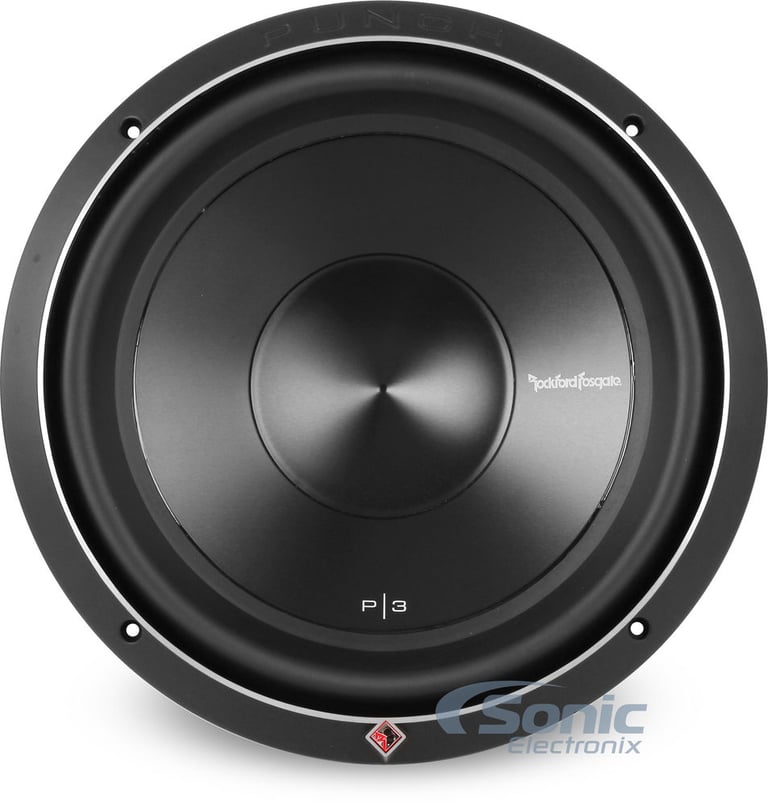

Rockford Fosgate Punch P3D4-12 (Newest Model)
600W 12" Punch Stage 3 Dual 4 ohm Subwoofer
Quantity: 2
 |
 |
 |
 |
Product Features
- 12" Punch P3 Series Dual 4 Ohm Subwoofer
- Power Handling:
- Peak: 2400 watts per pair / 1200 watts each
- RMS: 1200 watts per pair / 600 watts each
- Recommended power range: 375 - 600 watts RMS each
- Impedance: 4 ohm

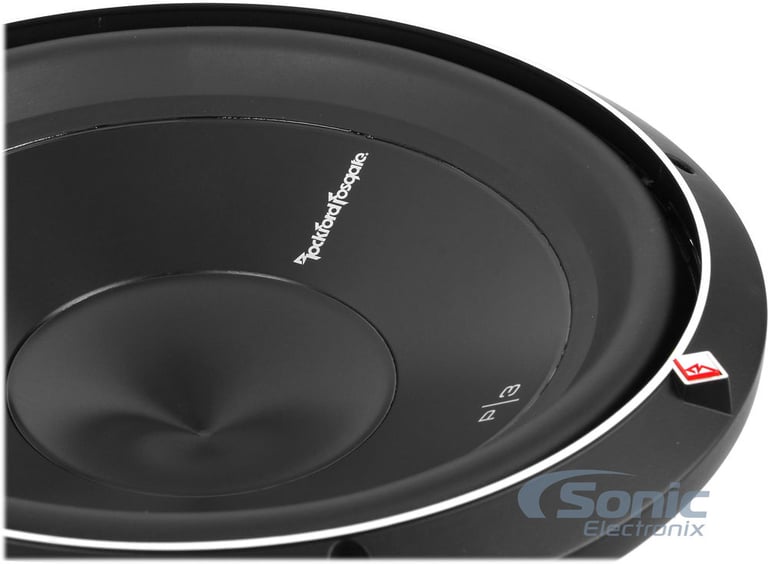

- Anodized aluminum heat sinking cone & dustcap for strength and durability
- Tall profile true Santoprene vertical attach surround technique
- Dual tear & fatigue resistant linear poly cotton spiders
- Optimized motor magnetics with extended pole and bumped backplate
- Fatigue resistant and reduced strain stitched tinsel leads
- Multi point high temp/strength neck joint bonding technique
- Sturdy 16 gauge compound bend frame geometry
- Semi-Flexible PVC removable protective motor cover
- Custom insulated compression input terminal assembly
- Proprietary spider venting/cooling technique
- Decorative die cast trim ring

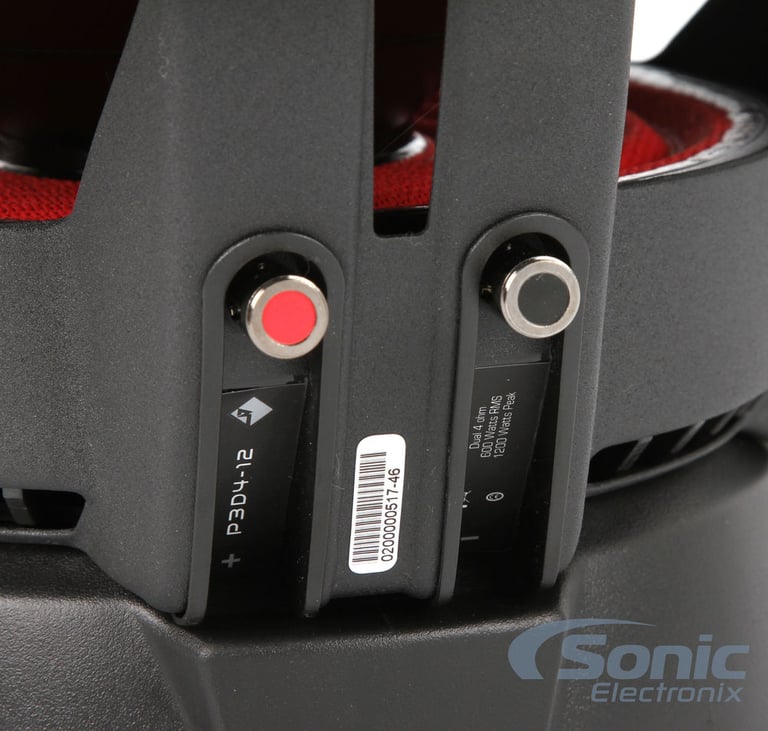

- Custom 10-AWG nickel plated push terminals
- High temperature 4-layer 2-1/2" voice coil with spun laced nomex insulating reinforcement collar
- 102 oz Double stacked ferrite magnet structure
- Frequency response: 27.7-250 Hz
- Sensitivity: 85 dB
- Xmax: 16.2 mm
- Mounting Depth: 6-11/16"
- Cutout Diameter: 11-1/4"
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

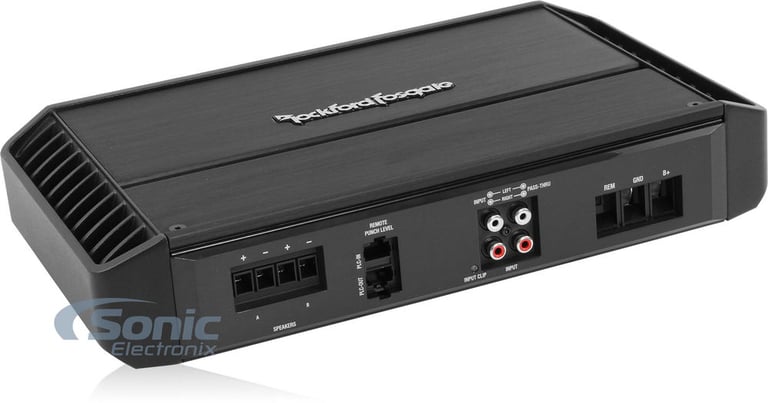

Rockford Fosgate Punch P1000X1bd
1000W RMS Punch Series Monoblock Class BD Car Power Amplifier
Quantity: 1
 |
 |
 |
 |
 |
General Features
- Punch BD Series Monoblock Class BD Car Amplifier
- RMS Power Rating:
- 4 ohm: 300 watts x 1 chan.
- 2 ohm: 500 watts x 1 chan.
- 1 ohm: 1000 watts x 1 chan.
- CEA-2006 compliant amplifier
- Features C.L.E.A.N. Set-up
- MOSFET power supply
- Muted turn on
- Cast aluminum heatsink
- 12dB/octave Butterworth crossover
- Stealth top mounted control panel
- LED power, thermal, and protect indicators
- Nickel-plated captive C-clamp terminals
- Ultra efficient Class BD circuitry to maximize amplifier power efficiency
- On-board differential inputs eliminates noise picked up by the signal cable
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- High level input capable with Auto Turn-On circuit (RFI2SW required, sold separately)
- MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
- Built in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
- Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across entire amplifier heatsink to efficiently keep the amplifier temperatures low
- DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving efficiency of the circuit and lowers operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
- Input sensitivity: 150mV - 12V
- On-board Punch EQ with +18dB boost @ 45Hz.
- Variable low-pass filter: 50-250 Hz
- Selectable infrasonic filter: off / 28 Hz
- Frequency response: 20 - 250 Hz
- Total Harmonic Distortion: <1.0%
- Dimensions: 13-5/16"L x 7-3/4"W x 2-3/8"H
- 8 AWG to 18 AWG speaker wire output terminals
- 4 gauge OFC power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
