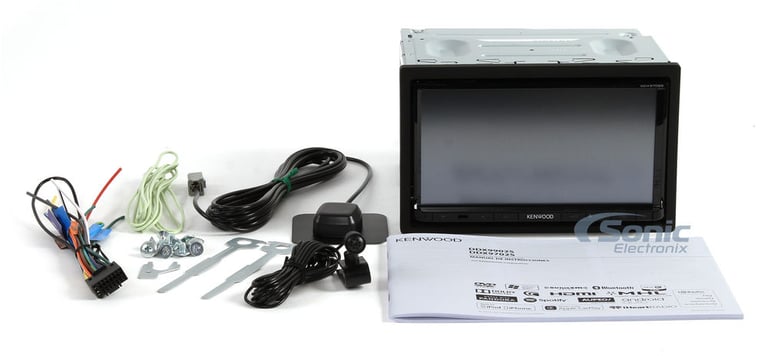

Kenwood DDX9702S (Open Box, Complete)

General Features:

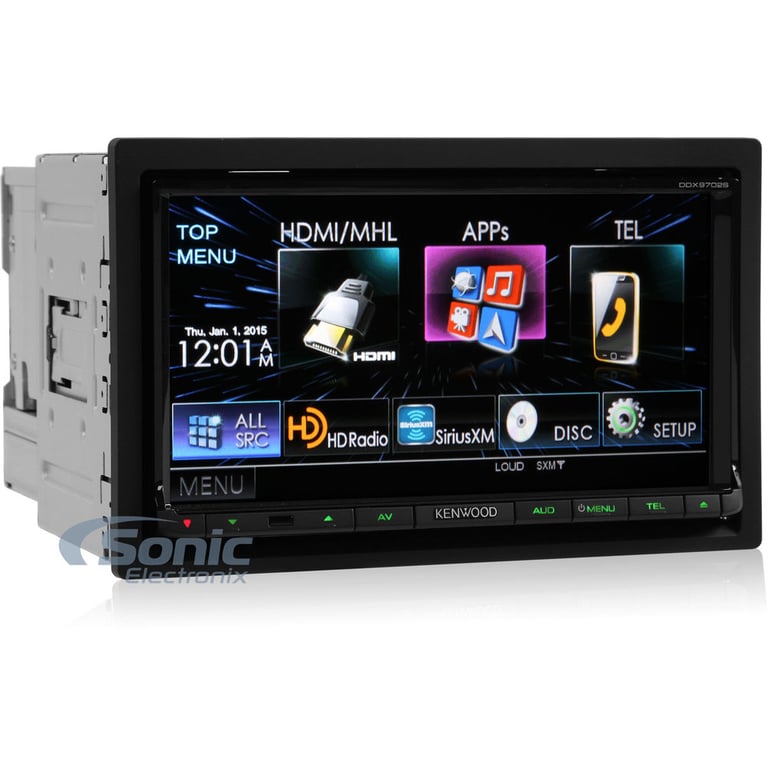

• Kenwood DDX9702S In-Dash Receiver
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels

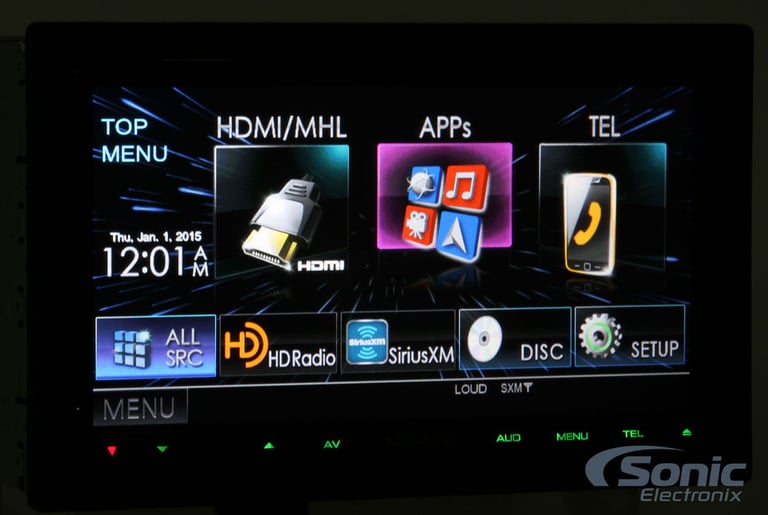

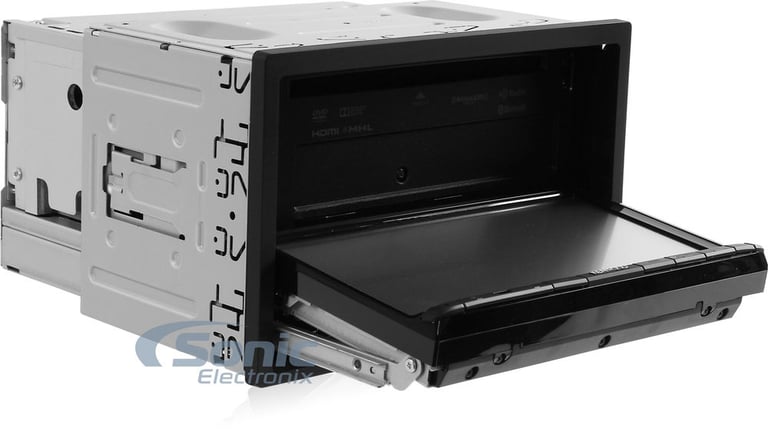

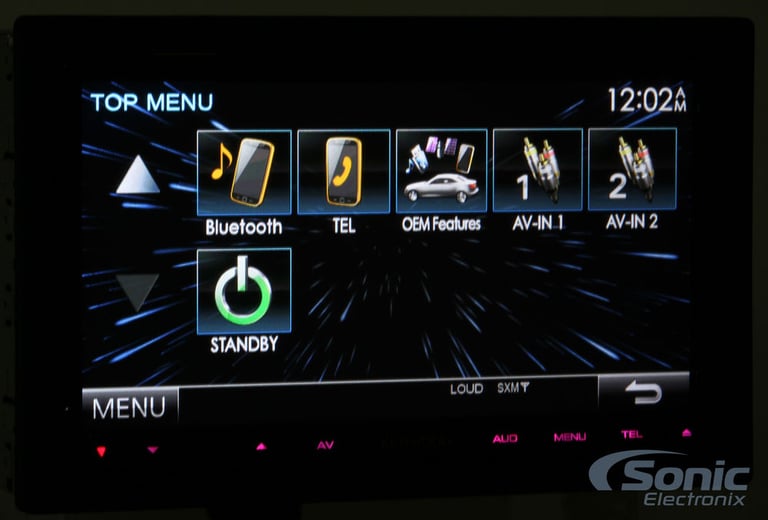

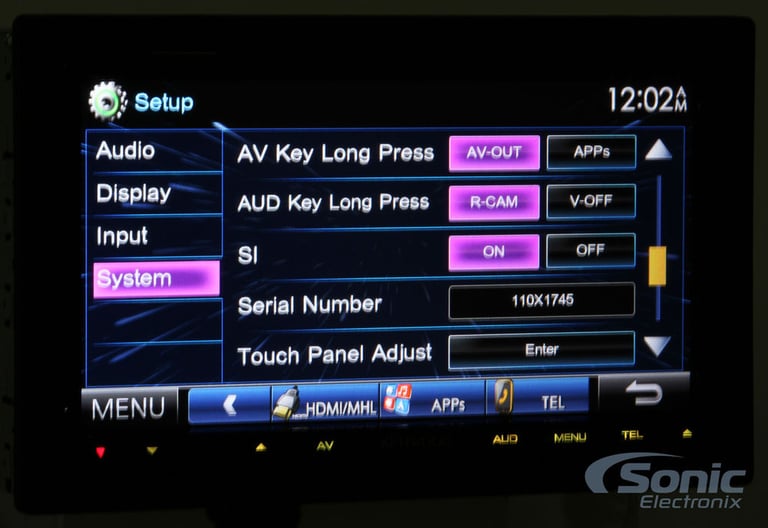

• 6.95" LCD Touchscreen, w/ TFT active matrix system
• 800H x 480V x RGB

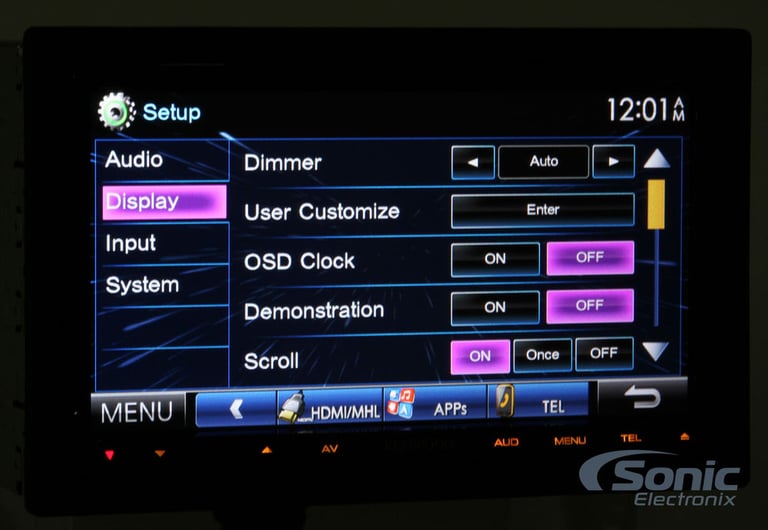

• Background Customize
• Variable Key Illumination
• Security Indicator deters thieves
• CD text information display
• Multi-Language Menu & Tag
• RBDS AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• Remote control optional: Kenwood KNA-RCDV331, sold separately
• Frequency Response: 20 - 20,000 Hz
• Dimensions: 7-3/16" W x 4-7/16" H x 6-6/16" D
• Authorized Internet Dealer
• 30 Day Sonic Electronix Warranty

Smartphone Integration Features

• Android Auto is designed to work with Android phones running 5.0 (Lollipop) or higher
• Android Auto requires microUSB-to-USB cable that came with device
• Android Auto requires device to be paired via Bluetooth
• Learn more at https://www.android.com/auto/
• Apps Mode w/ Mirroring for Android via HDM/MHL connection
• Apps Mode compatible with most Bluetooth-paired Android (4.1+) devices
• Device control via Apps Mode requries KENWOOD Smartphone Control from Google Play

• Compatible with Apple iPhone 6/6+ and iOS 8 software
• Apple CarPlay is designed to work with Apple iPhone with Lightning-connector (iOS 7.1+)
• Apple CarPlay requires device to be connected via the Lightning-cable that came with device
• Apple CarPlay features Siri voice control abilities
• Learn more at https://www.apple.com/ios/carplay/
• iPod/iPhone Audio/Video playback for Lightning-equipped devices requires Apple's Lightning-to-Digital AV adapter, a Lightning-to-USB cable, and an HDMI cable
• iPod/iPhone Audio/Video playback for 30-Pin-equipped devices requires the Kenwood KCA-IP202
• Apps Mode w/ Mirroring for iPhone (iOS 7+) via HDMI connection
• Apps Mode requires Apple's Lightning Digital AV adapter and Lightning-to-USB cable
• Siri Eyes Free Control via Bluetooth connection

Playback and Audio Features:

• HD Radio tuner built-in

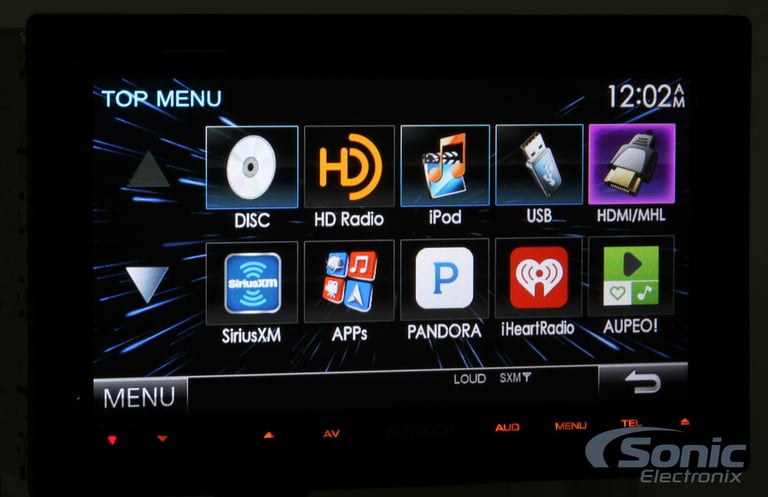

• Access Pandora, iHeartRadio, and Aupeo! apps
• Compatible Discs: CD/CD±R/RW, DVD/DVD±R/RW
• Compatible Media: MP3/WMA/AAC/MP4/WAV/FLAC
• WAV & FLAC via USB only
• 24-bit digital to analog converter

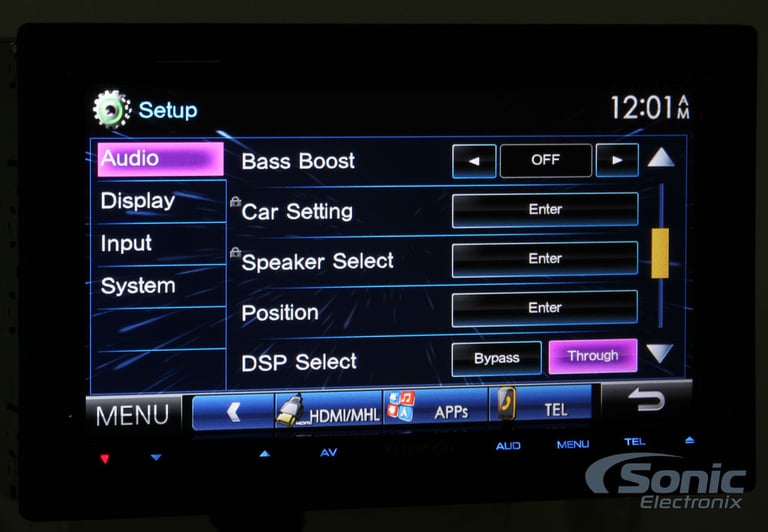

• Built-in Digital Sound Processor with digital time alignment

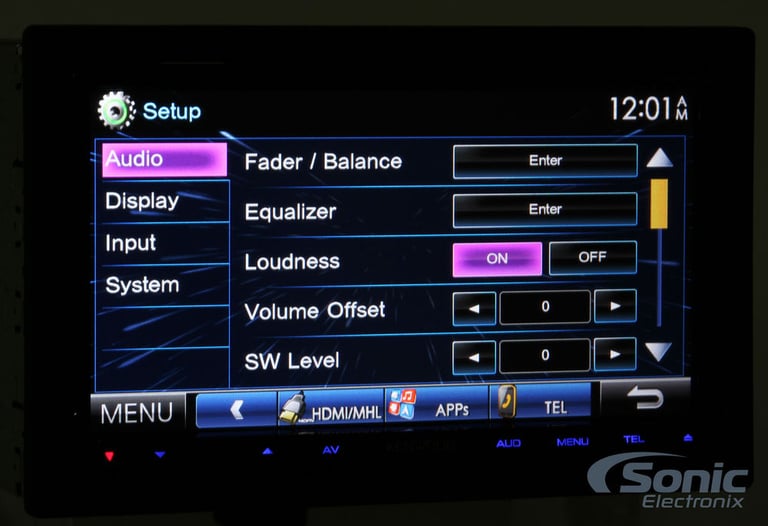

• 5-band parametric equalizer with selectable tone curves
• Drive EQ built-in
• Dual Rear 3.5mm A/V Auxiliary Inputs
• Dual Zone via A/V outputs

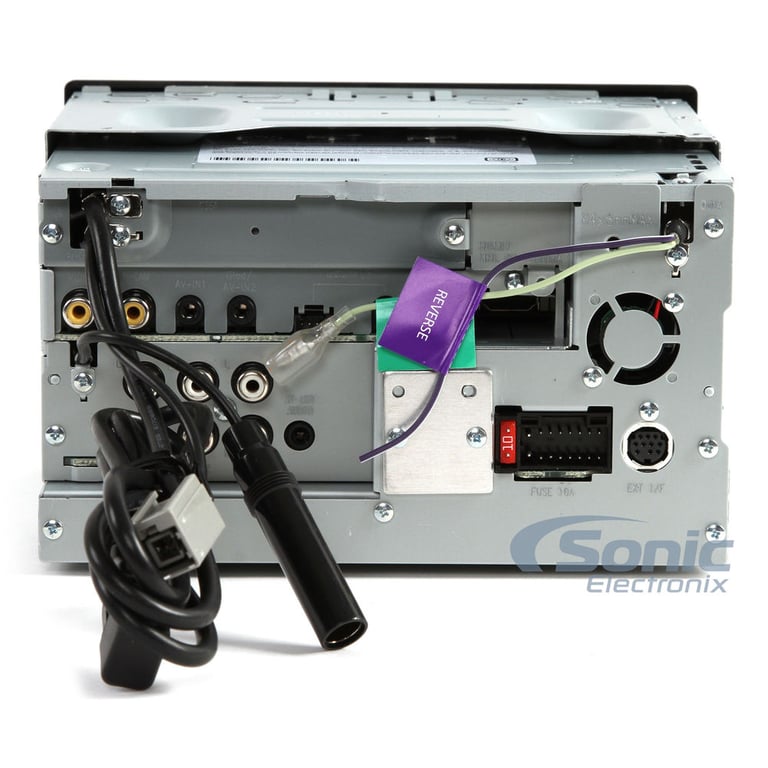

• Rear USB Input
• 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth version 3.0+EDR certified
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
• Works with most Bluetooth enabled cell phones

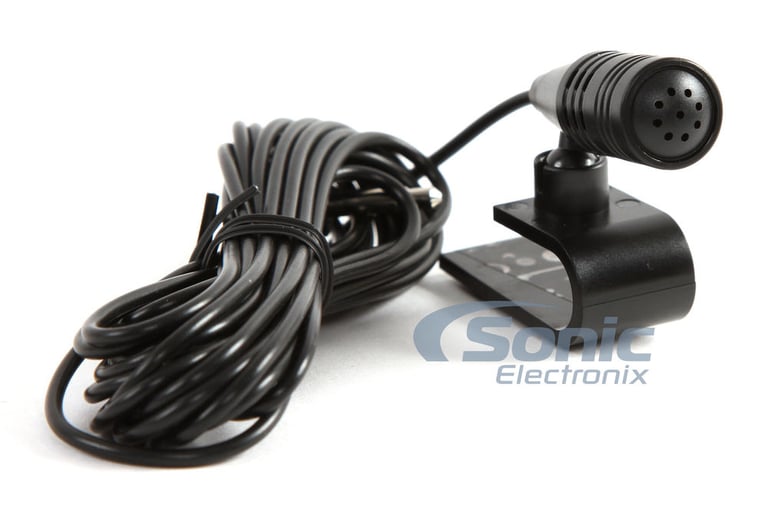

• Includes an external wired microphone for clear, convenient, distortion-free talking

Expandability Options:

• SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required and sold separately
• Steering Wheel Control Ready: PAC ControlPRO (SWI-CP5) or the Axxess ASWC-1 required and sold separately

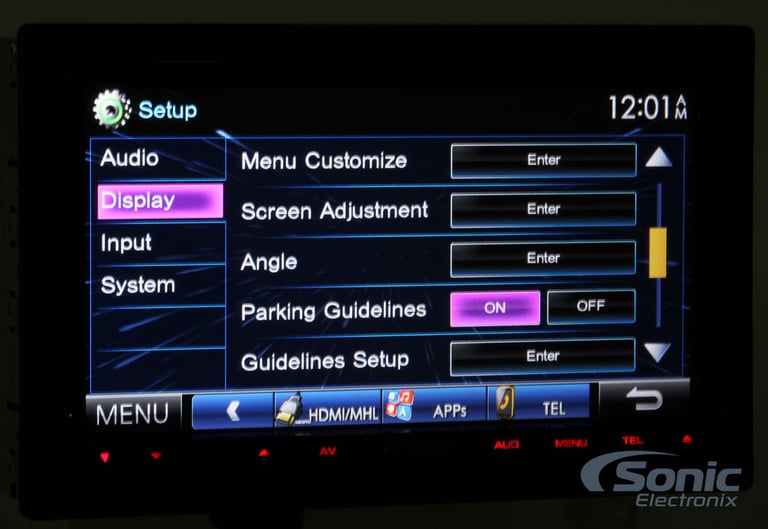

• Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Rear Video Outputs: Used for connection to separate monitors and other devices

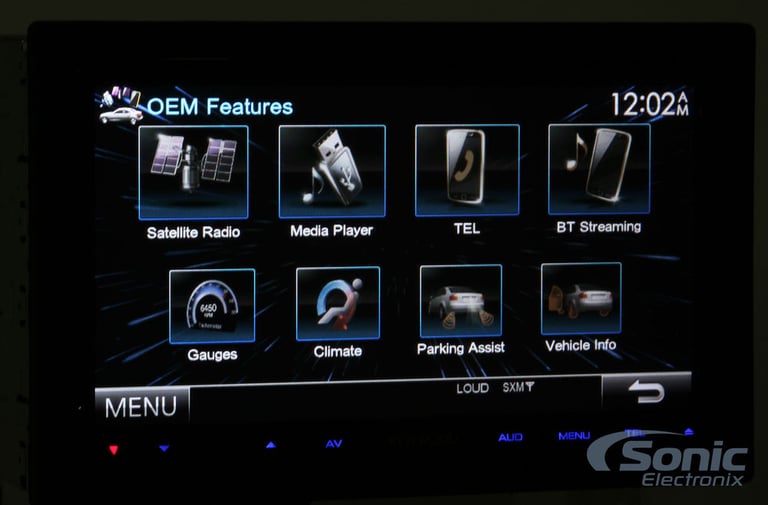

• Compatible with idataLink Maestro ADS-MRR OEM integration module
• Used to retain premium OEM features in Ford SYNC®, GM OnStar®, Chrysler Uconnect®, or VW's media systems
