Belva BB3000Dv2 (BB3000D v2) (Open Box, Good)

3000W Max (1800W RMS) Class D Monoblock BB Series Car Amplifier

Belva
Shop all Belva
Product videos
highlight-star-icon

• RMS: 780W x 1 @ 4 ohm, 1260W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total Peak Power: 3000W
• 1 Pair of Preamp Outputs
• Bass Boost 0-12 dB from 30-80 Hz
• Subsonic Filter from 20-50 Hz
• Dimensions: 13-3/4"W x 8-1/4"D x 2-1/4"H

Learn more about the ls-bb3000dv2-u7

We apologize

This item has been discontinued

Product Highlights


• RMS: 780W x 1 @ 4 ohm, 1260W x 1 @ 2 ohm, 1800W x 1 @ 1 ohm
• Total Peak Power: 3000W
• 1 Pair of Preamp Outputs
• Bass Boost 0-12 dB from 30-80 Hz
• Subsonic Filter from 20-50 Hz
• Dimensions: 13-3/4"W x 8-1/4"D x 2-1/4"H

Description


Belva brand icon

Authorized dealer

Item Condition - Open Box, Good:

This product is used, but it will work like new and is in overall good condition. It will show signs of wear that can include scuffing, scratches, fingerprints, dents, and worn corners or installation marks. May be missing non-essential parts, accessories or original packaging.

High Quality, High Power Output

These amplifiers are built with a high-quality, organized circuit board. Every amplifier in the BB Series has high power output. The BB3000Dv2 is capable of outputting 1800 watts of RMS power. This amount of power is sure to be able to adequately supply most subwoofer systems with the proper amount of wattage. Belva amplifiers will keep your woofers pumping out deep bass with honest sound reproduction and reduced distortion.

General Features:

  • BB Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 780 watts x 1 chan.
    • 2 ohm: 1260 watts x 1 chan.
    • 1 ohm: 1800 watts x 1 chan.
  • Max power output: 3000 watts
  • Pulse Width Modulated MOSFET power supply

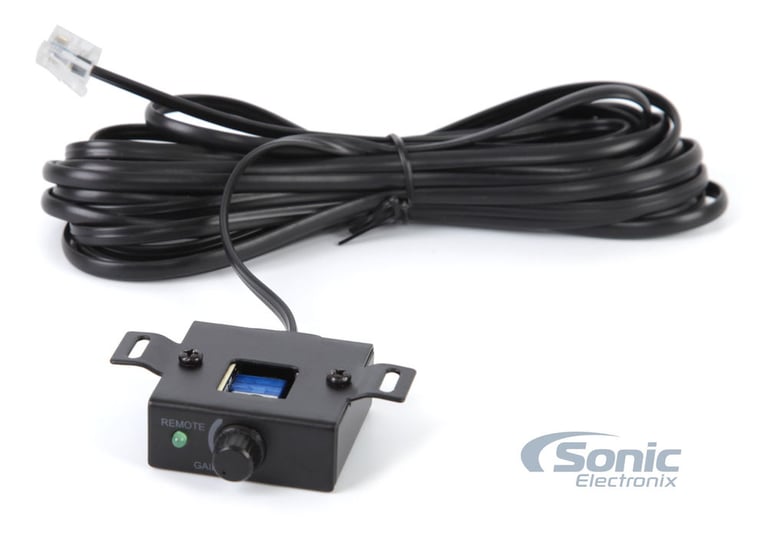

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost adjustable between 30-80 Hz)
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Input sensitivity:
    • Low level: 100mV-6V
  • Variable low-pass filter (40-180 Hz, 12 dB/octave)
  • Subsonic filter (12 dB variable from 20Hz - 50 Hz)
  • Frequency response: 20-30,000 Hz
  • 200-240 Amp in-line fuse required, see our selection of recommended fuse holders
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 13-3/4"W x 8-1/4"D x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Note: Internal fuses are not included, so an external 200-240 Amp ANL Fuse is required to safely operate this amplifier.

Product history:

Belva BB3000Dv2-4 thumbnail
(newest, current model)
Belva BB3000D thumbnail
(previous model, replaced by Belva BB3000Dv2 (BB3000D v2) (Open Box, Good))

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
780 watts x 1 channel
RMS Power @ 2 ohms
1260 watts x 1 channel
RMS Power @ 1 ohm
1800 watts x 1 channel
Power Specifications - Subwoofer Channel
Peak Power @ 4 ohm
1560 watts x 1 channel
Peak Power @ 2 ohms
2500 watts x 1 channel
Peak Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Series
BB Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
3000 watts
Total RMS Power Output
1800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Subsonic Filter
20 - 50 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BB3000Dv2-4

Weight:

8.00lbs

Internal SKU:

ls-bb3000dv2-u7

Internal Product ID:

208309

Product and How-to Videos


  • How To Install an Amplifier: Car Amplifier Basics Part 2
