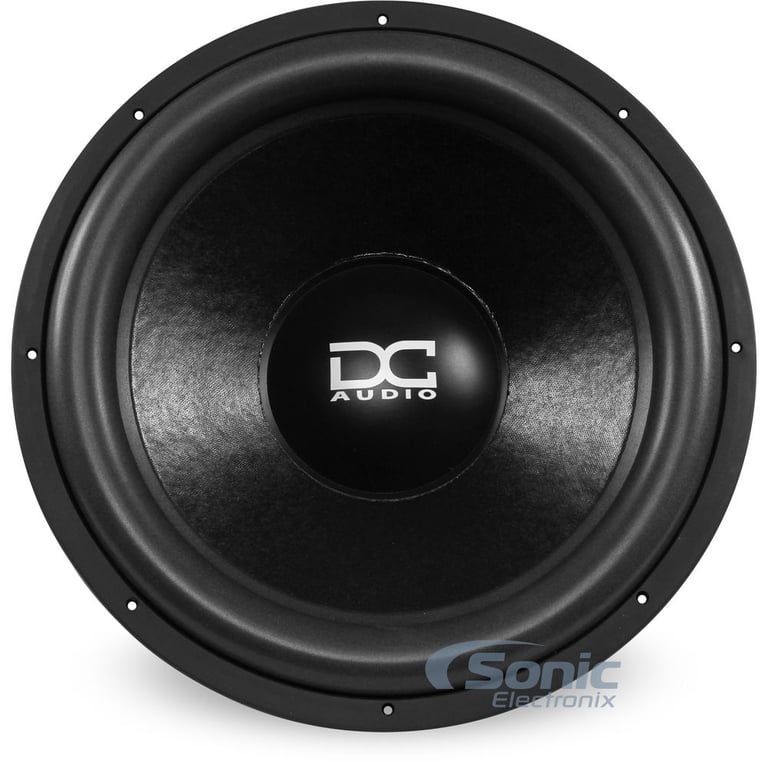

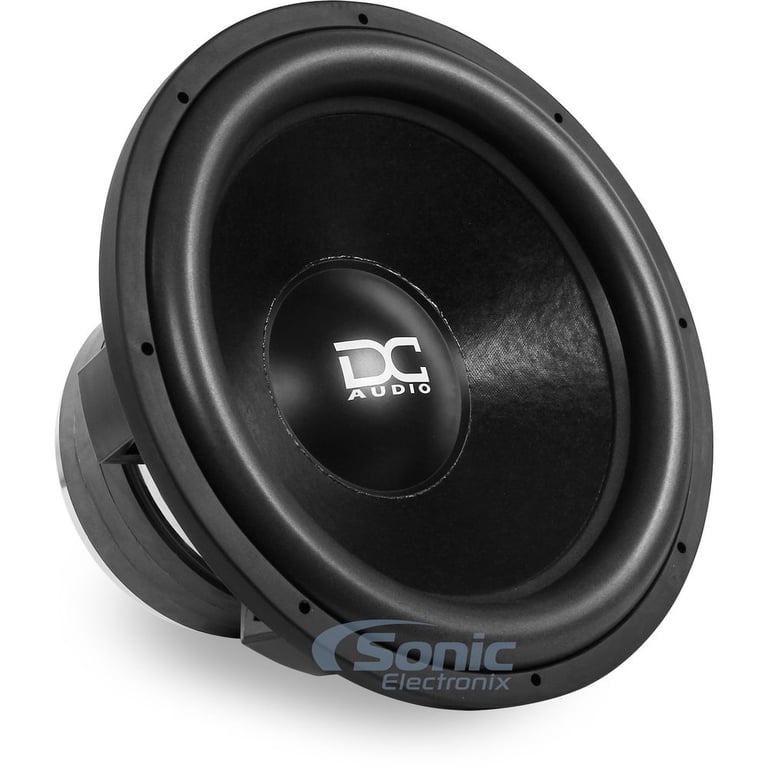

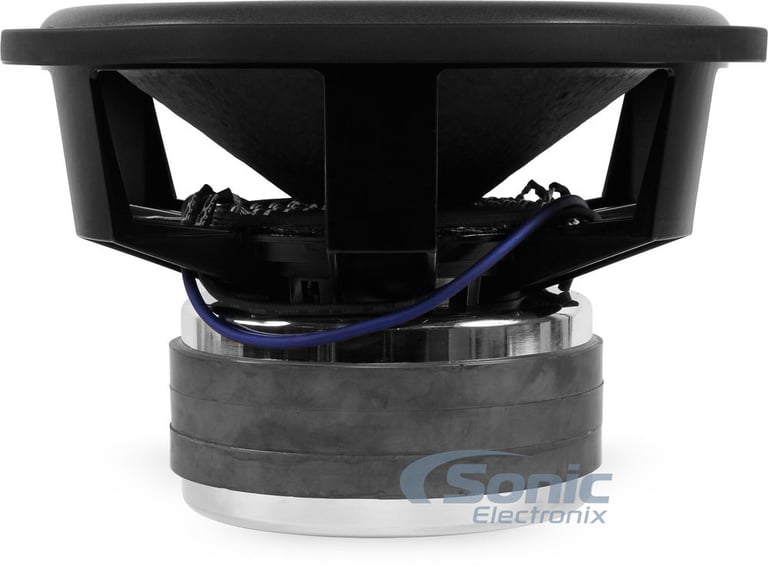

DC Audio Level 6 M3 18D1

9000W Peak 18" Level 6 m3 Series Dual 1-Ohm Subwoofer - M3LV618D1

DC Audio
Shop all DC Audio
Product videos
highlight-star-icon

• 4500 Watts RMS
• 9000 Watts Max • Extremely rigid non-pressed paper cone assembly
• Multilayered reinforced polymer foam surround
• Dome propylene dust cover with White DC logo
• 9.0" OD Linear roll spiders
• 16 Extra heavy duty interweaved tinsel lead wire
• Cast aluminum black frame
• FEA analyzed and optimized motor assembly — Fully CNC machined
• Rubber mounting gasket
• 8 AWG Direct leads
• DVC 4.0" 8 Layer Hi-temp Aluminum voice coil
• Voice coil wound on a reinforced stainless steel former with high current input strips

Learn more about the m3lv618d1

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

m5lv618d1 thumbnail

DC Audio Level 6 18M5D1 (M5LV618D1)

OUR PRICE: $1339.99

View item

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Product Highlights


• 4500 Watts RMS
• 9000 Watts Max • Extremely rigid non-pressed paper cone assembly
• Multilayered reinforced polymer foam surround
• Dome propylene dust cover with White DC logo
• 9.0" OD Linear roll spiders
• 16 Extra heavy duty interweaved tinsel lead wire
• Cast aluminum black frame
• FEA analyzed and optimized motor assembly — Fully CNC machined
• Rubber mounting gasket
• 8 AWG Direct leads
• DVC 4.0" 8 Layer Hi-temp Aluminum voice coil
• Voice coil wound on a reinforced stainless steel former with high current input strips

Description


DC Audio brand icon

Authorized dealer

General Features:

  • 18" Level 6 M3 Series Dual 1-Ohm Subwoofer
  • Power Handling:
    • Peak: 9,000 watts
    • RMS: 4,500 watts
  • Extremely rigid non-pressed paper cone assembly
  • Multilayered reinforced polymer foam surround
  • Dome propylene dust cover with White DC logo
  • 9.0" OD Linear roll spiders
  • 16 Extra heavy duty interweaved tinsel lead wire
  • Cast aluminum black frame
  • FEA analyzed and optimized motor assembly — Fully CNC machined
  • Rubber mounting gasket
  • 8 AWG Direct leads
  • DVC 4.0" 8 Layer Hi-temp Aluminum voice coil
  • Voice coil wound on a reinforced stainless steel former with high current input strips
  • Top-mount depth: 11.50"
  • Cutout diameter: 16.75"
  • Motor width: 9.84"
  • Weight: 85.0 lbs
  • Displacement: 0.26 ft³
  • Recommended ported enclosure: 5.50 ft³
  • Xmax: 31.25mm
  • Sensitivity: 90.7 dB
  • Resonance Frequency (Fs): 36.40
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Individually

TS Parameters

  • Sd: 1217cm²
  • Vas: 67.02 liters
  • Cms: 0.0325mm/n
  • Mms: 588.52g
  • Fs: 36.4
  • BL: 36.25N/A
  • Re: 4.02 Ohm
  • Le: 7.5mH
  • Qms: 22.43
  • Qes: 0.0416
  • Qts: 0.409
  • Xmax: 31.25 mm
  • Ref SPL @ 1 watt: 90.7dB

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Product history:

DC Audio m5lv618d1 thumbnail
(newest, current model)
DC Audio M4LV618D1 thumbnail
(previous model, replaced by DC Audio Level 6 18M5D1 (M5LV618D1))
DC Audio M3LV618D1 thumbnail
(previous model, replaced by DC Audio Level 6 18 m4 D1)
DC Audio M2LV618D1 thumbnail
(previous model, replaced by DC Audio Level 6 M3 18D1)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

TS9924-22 small

MTX TS9924-22

• Peak Power: 8000 watts
• RMS Power: 4000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 24.00"
• Sensitivity: 92 dB

(3)

$9999.95

List price $12500.00

13W7AE-D1.5 small

JL Audio 13W7AE-D1.5


• RMS Power: 1500 watts
• Impedance: Dual 1.5 ohm
• Polypropylene Cone
• Polyester Foam Surround
• Mount depth: 10.50"
• Sensitivity: 86.3 dB

(19)

$1899.99

List price $1899.99

13W7 small

JL Audio 13W7-D1.5

• Sensitivity: 86.3 dB
• OverRoll™ Surround
• W-Cone
• Forced-Air-Cooled Aluminum Alloy Frame
• Radially Cross-Drilled Pole Piece
• Dual Ultra-Long Voice Coils
• Black Powder-Coating

(59)

$1899.99

List price $1899.99

13TW5V24_2 small

JL Audio 13TW5v2-4 - Pair

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$1859.98

List price $1859.98

T2S2-16 small

Rockford Fosgate Power T2 T2S2-16

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 10.47"
• Sensitivity: 90 dB

$1299.99

List price $1299.99

13TW5v2-4 small

JL Audio 13TW5v2-4

• RMS Power: 600 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Santoprene Rubber Surround
• Mount depth: 2.625"
• Sensitivity: 85.63 dB

(5)

$929.99

List price $929.99

13W3v3-2 small

JL Audio 13W3v3-2

• Sensitivity: 87.63 dB
• Mounting depth: 7.63"
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor

(6)

$519.99

List price $519.99

T3S1-19 small

Rockford Fosgate Power T3 T3S1-19

• Peak Power: 6000 watts
• RMS Power: 3000 watts
• Impedance: Single 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 15.62"
• Sensitivity: 91 dB

$2199.99

List price $2199.99

T2S1-13 small

Rockford Fosgate Power T2 T2S1-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Triple 1 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 90 dB

(3)

$1099.99

List price $1099.99

T2S2-13 small

Rockford Fosgate Power T2 T2S2-13

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Single 2 ohm
• Glass Fiber Cone
• Injection molded foam Surround
• Mount depth: 9.7"
• Sensitivity: 87 dB

$1099.99

List price $1099.99

Specifications & Details


Subwoofer Specifications
Series
Level 6 Series
Subwoofer Size
18"
Peak Power Handling
9000 watts
RMS Power Handling
4500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1 ohm
Voice Coil Diameter
4.0"
Frequency Response
Not Specified by Manufacture
Sensitivity
90.7 dB
Xmax (millimeters)
31.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Poly-Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Sealed Box Volume
N/A
Optimum Ported Box Volume
5.50 cubic feet
Top-Mount Depth (Mounting Depth)
11.50"
Cutout Diameter
16.75"
Shallow Mount Installation
LOL
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
36.4 Hz
Equivalent Compliance (Vas)
67.02 liters
Total Speaker Q Value (Qts)
0.409
Electrical Q Value (Qes)
0.0416
Electrical Resistance of Voice Coil (Re)
4.02 ohm
Mechanical Q Value (Qms)
22.43
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

M3LV618D1

Weight:

85.00lbs

Internal SKU:

m3lv618d1

Internal Product ID:

98884

Product and How-to Videos


Customer Ratings & Reviews


DC Audio Level 6 M3 18D1 thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4
Value
3.5
Features
4
Design
4
Usability
4.5

Customer Reviews

Sort by:

Loading...

power full

I bought one of these to replace my 2 orion HCCA black coal 15"s they just took up too much space in my suburban. Originally i was going to buy TEAM FI 18 but there ordering process proved to be a pain in the butt. so i came oN here to see if sonic had anything what was as good as the fi. I have herd of dc but wasn't very familiar with them but i looked around on youtube and figured i would give it a try.

1# i have to say i wasn't very impressed with the shipping compared to how the orion came. not that these where not protected they just seemed more thrown together.
2# The contents of the box. you only get the speaker and a decal no owners manual ? no wiring diagram no nothing.
3# the build quality the gluing on the edge of the spider looks like my 8 year old daughter did.

but despite all those issues this think is a monster complete beast sounds equally clear and hits just as hard as the 2 orions. I love this thing and i will never get rid of it i highly recommend it.

By Big bruce on September 17, 2015

28 found this helpful


Looks good!!!

I'll let you know in the spring how it sounds. I'm good to my equipment don't run anything in winter!!

By Tha bear!! on December 26, 2015

22 found this helpful




SX650.1 small

Kicker SX650.1 Factory R/B

SX MonoBlock Class D Amplifier with Digital Sound Processing 04SX650.1

$299.99

List price $779.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Saab 9-3

1983 Subaru DL

1986 Mercury Sable

1989 Ford Probe

2011 Kia Optima

2014 Buick Regal

2018 BMW X4

2018 Mazda CX-9

2004 Lexus IS300

2006 Saab 9-3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
