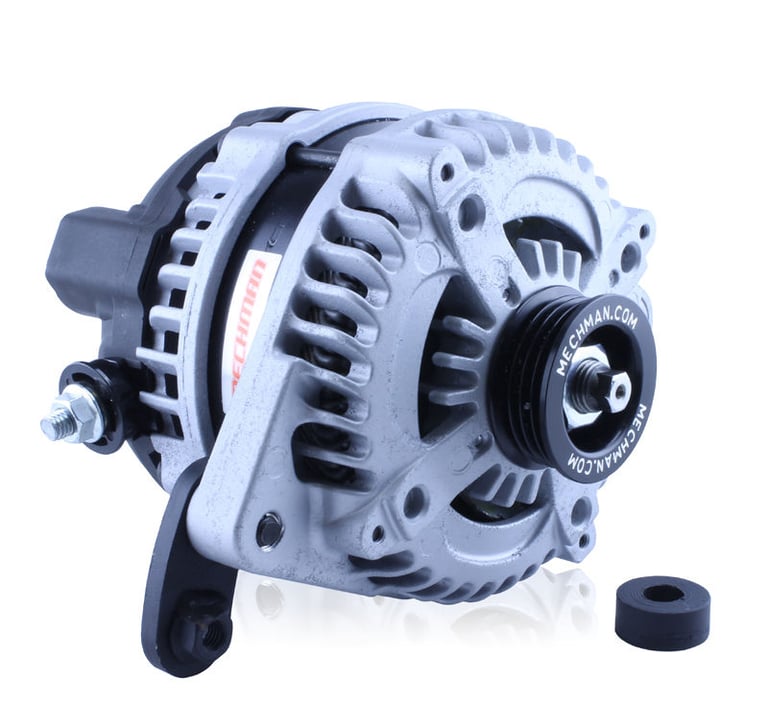

Mechman Alternators 13509170

170 Amp S Series Alternator for Select 1992 - 1995 Honda Civic/CRX

highlight-star-icon

• All Mechman alternators are built in the U.S. by hand
• Every unit is dyno tested prior to shipping
• Cast aluminum construction
• 6 phase hairpin epoxy reinforced stator technology
• Superior amperage output over OEM alternators
• Oversized charge post ensure sturdy cable connections

Learn more about the s13509170

We apologize

This item has been discontinued


Loading...
VW2317AB main

Scosche VW2317AB / VW2317 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2018 vehicles from Volkswagen (Black)]]

8
-33.24%

$15.99

List price $23.95

AXDI-VW1 main

Axxess AXDI-VW1 Wiring Interface

Install a New Car Stereo and Retain Factory Features in select 2002-2016 vehicles from Volkswagen

1
-10.00%

$116.99

List price $129.99

R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

NSP65KIT main

NVX NSP65KIT

600W Peak (200W RMS) 6.5" N-Series 2 Way Component Car Speakers

6
-16.67%

$89.99

List price $107.99

Lowest price in 30 days
NSP525 main

NVX NSP525

240W Peak (160W RMS) 5.25" N-Series 2 Way Coaxial Car Speakers

27
-16.67%

$54.99

List price $65.99

Description


Mechman Alternators brand icon

Authorized dealer

Mechman S Series Alternators

The S series family of alternators offers large case alternator performance in a compact package. Highly efficient, these 6 phase alternators use less horsepower per Kilowatt than conventional 3 phase alternators. 12 press fit diodes, twin rectifier plates, and highly efficient twin internal cooling fans make them durable in any application. Smaller, lighter rotors and reduced rotating resistance make them an excellent choice for high RPM or racing applications. Like their big brothers in the Elite series, the S series have hairpin stators and high pole count rotors that create much less Electromagnetic noise than conventional 3 phase alternators.

General Features:

  • 170A High Amperage Alternator
  • All Mechman alternators are built in the U.S. by hand
  • Every unit is dyno tested prior to shipping from Mechman's facility
  • Cast aluminum construction
  • Cutting edge 6 phase hairpin epoxy reinforced stator technology
    • Improves durability
    • Increases high RPM stability
  • Superior amperage output over OEM alternators
  • Oversized charge post ensure sturdy cable connections
  • Premium low-drag bearings
  • Ultra precision balanced rotor
    • Provides 20,000 RPM capability
  • Twin solid copper rectifiers with 12 press fit high amp diodes to spread out heat
  • 15% more efficient than typical alternators
    • Wastes less horsepower in the form of heat
  • Offer a higher amperage output at lower RPM than other alternator options
  • Precision pulley machined from bar stock
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Compatibility List*:

  • Honda:
    • 1992 - 1995 Civic, 1.6 Liter Engines
    • 1992 - 1995 CRX, 1.6 Liter Engines
*Vehicles not listed cannot be confirmed as being compatible. Please contact our Sales Specialists to check if we have a solution for your vehicle, and/or contact the manufacture's support team.

Not Sure Which Alternator Fits Your Vehicle?

Check the 2015 Mechman Alternators Vehicle Fit Guide to find the right alternator for your vehicle!
