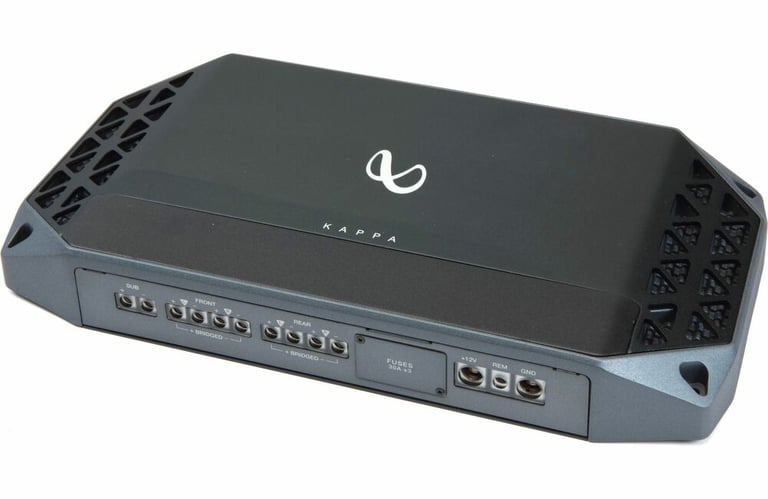

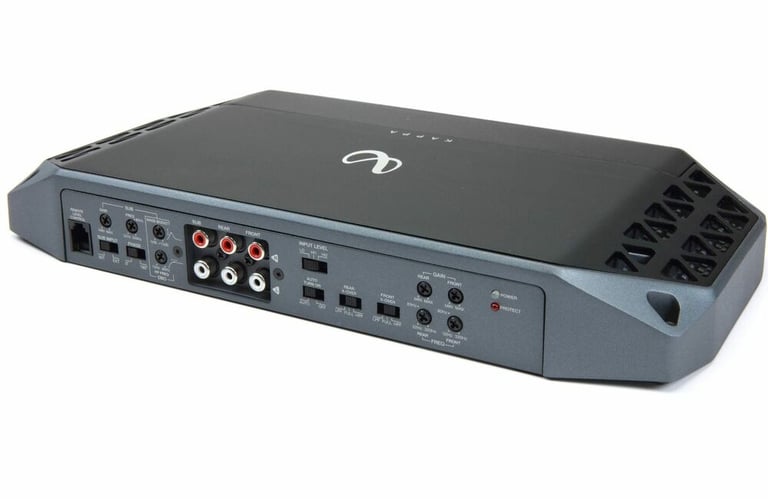

Infinity Kappa Five

2300W Peak (750W RMS) Kappa Series Class-D 5-Channel Amplifier with Bass Remote

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 75 watts x 4 channel + 200 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 350 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 350 watts x 1 channel @ 2 ohm
• Total RMS Power: 750 watts
• Class D 2 ohm Stable 5-Channel Amplifier

Learn more about the kappafiveam

We apologize

This item has been discontinued

Product Highlights


• 75 watts x 4 channel + 200 watts x 1 channel @ 4 ohm
• 100 watts x 4 channel + 350 watts x 1 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm + 350 watts x 1 channel @ 2 ohm
• Total RMS Power: 750 watts
• Class D 2 ohm Stable 5-Channel Amplifier

Description


Infinity brand icon

Authorized dealer

The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


Product Details:

  • Kappa Series Class D 2 ohm Stable 5-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 75 watts x 4 channel + 200 watts x 1 channel
    • 2 ohm: 100 watts x 4 channel + 350 watts x 1 channel
    • Bridged: 200 watts x 2 channel @ 4 ohm + 350 watts x 1 channel @ 2 ohm
  • Total power output: 750 watts
  • LED Power/Protect Light
  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Built in Bluetooth connectivity
  • Built-n Microphone
  • Exclusive Clari-Fi™ music restoration technology
  • Allows multi-pairing Party Mode
  • Input sensitivity:
    • Low level: 200mV - 10 volts
    • High level: 200mV - 10 volts
  • Frequency Response: 15 - 35000 Hz
  • Signal to Noise Ratio: 80 dB
  • Variable high-pass filter: 32 - 320 Hz
  • Variable low-pass filter: 32 - 320 Hz
  • Subsonic filter: 10 - 80 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 90A
  • 1/0 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 13-1/4" L x 7" W x 1-3/4" H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
  • MFR #: KAPPAFIVEAM

Check out the Infinity KAPPA FIVE Owner's Manual

Specifications & Details


Key Features
Amplifier Key Features
Bass Boost
Speaker Level Inputs
Power Specifications - Full Range Channels
RMS Power @ 4 ohms
75 watts x 4 channel
RMS Power @ 2 ohms
100 watts x 4 channel
Bridged RMS Power
200 watts x 2 channel
Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
350 watts x 1 channel
Amplifier Specifications
Series
Kappa Series
Amplifier Class
D
Number of Channels
5-Channel
Total Peak Power Output
2300 watts
Total RMS Power Output
750 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Frequency Response
15 - 35000 Hz
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic
High-Pass Crossover Frequency
32 - 320 Hz
Low-Pass Crossover Frequency
32 - 320 Hz
Subsonic Filter
10 - 80 Hz
Signal-to-Noise Ratio
80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 3
Total Fuse Rating
90
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
200mV - 10 volts
High-Level Input Sensitivity
200mV - 10 volts
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Amplifiers
Amplifier
Wired gain knob (wire attached)
Two spare fuses
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Kappa Five

Weight:

9.00lbs

Internal SKU:

kappafiveam

Internal Product ID:

17416

Product and How-to Videos


  • Harman International: The Pursuit of Great Sound
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews



5 star
58%
4 star
17%
3 star
8%
2 star
8%
1 star
8%



Durability
4.1
Value
4.2
Features
4.6
Design
4.4
Usability
4.4

Customer Reviews

Sort by:

Loading...

Loud, Cool, and Clean

Pros: Class D (Runs Cool), Small, Clean, Powerful. Louder than you can stand and no distortion. Good built-in crossover with DBO.

Cons: Cops apparently don't like your stereo to be louder than their sirens...

Opinion: Everyone thinks their equipment is the best and after spending so much time researching all the different models I can say I am very happy with my amp. Infinity gear is top notch, they are geared toward accurate music reproduction and true fidelity. This amp is a perfect match for the Kappa speakers as they are 2 ohm.

Notes: Another review stated that the power terminals are unprotected...Not true, they are encased in clear plastic and are not a risk for sparking.

Equip: JVC KW-AVX820, Kappa Five, Kappa 693.9i, Kappa 60.9cs, 2 Farad Cap... Haven't decided on the Sub...

By JR on April 21, 2010

66

found this helpful.

CAN'T GET ENOUGH OF MY NEW KAPPA FIVE

I installed the Kappa Five on my sailboat in the main salon (it replaced my old Reference Series 5761a). It powers 4 sets of speakers throughout the boat (through separate Niles volume controls) and 2 subwoofers in the main Salon. Performance is absolutely superb (the water ripples abound the boat). The installation was clean & simple. The Sonic Electronix support staff guided me through the one question I had & they were just great. The only problem I have is I don't have enough time to spend on-board GUSTO II to enjoy my new Kappa Five. Thank you for a great product at a great price with outstanding customer support. Be assure that I will look to Sonic Electronix for all my future stereo needs.

By Bill Balaban on July 28, 2014

60

found this helpful.

Infinity Cappa Five

Best Bang for your money, does the job quit well, I have for 4 months and performs flawless. When I listen load music it runs hot but no problems.

By Tony R on September 9, 2012

58

found this helpful.

Output issues with the RCA's

The build quality of the amp is excellent. I may have just got a defective item. 2 of the channels for the speakers do not put out their full potential power. I have tried switching rca's and I even bought a new deck and new speakers because I thought the outputs were messed up on my Panasonic deck. Come to find out, putting all of that new equipment in did nothing. It has been the amp the whole time. But who would have known? It's a "new" amp. The two channels that actually worked sounded great paired with some rockford T1 components. I would suggest this amp if you can get one that works.

By Parker on January 25, 2012

57

found this helpful.

Great Amp

Excellent 5 channel sound, very compact and even after an hour of hard use was only warm.

By Robert on April 4, 2011

59

found this helpful.

Infinity kappa 5

Excellent sound quality I would recommend to anyone product arrived as promised

By William on September 17, 2014

55

found this helpful.

Worked great until?

I have 2 of these units that i bought 10 months ago. One is in my car and the other in my son's car. Mine is still working great and his went out causing the speakers to squil. He was always adjusting his (teenager) but he did know what he was doing. I got mine set the way I like it and had no issues.
We are running kappa 4oms speakers/sub with a rockford head. Make sure that you put spacers (1/4" min) between the unit and what you are mounting it to or it will overheat. The techs with Sonic helped me order the system and helped me with hook up. So far with the return of my son's amp they have been very courteous and helpful. I havent recieved the replacement yet. So this review may change if it doesn't go smoothly. Overall i would recommend the whole Kappa line.

By Michael on February 13, 2012

55

found this helpful.

Finest sound quality

I have this amp for 4 months now, there I have connected a pair of Infinity Reference 6030cs and a pair of Infinity Kappa 62.9I, with an Alpine CDE-154BT, I started with a single Kicker TCVT82 (10TCVT82) and the bass was just OK, then I bought here another pair of Infinity Reference 1062W installed in a sealed box, with just one bass speaker was an amazing sound.... the sound is the best quality for the price, very good sound balance and quality, very good noise suppression.

By One Bass on July 17, 2014

54

found this helpful.

DOA

i bought this amp for my F150 there were certain features that i liked . Like tuning from the top side , amp came in DOA, upon hooking up it sparked like a stick welder , that was the first hint , then i turned amp on and it went into protect mode, and buzzing from speakers , i shot it off and it never came back on , might have been good but i dont have time to keep swapping amps to see witch one works and for how long , i was afraid for a minute it might have blown my speaker all new including sub, including correct wiring, sonix has been very good they did take it back but i did not up for the same amp, i went Kicker CX600.5, A/B-D tech , same foot print , and i believe more reliable but did not get it yet when i do i will right a review. This Infinity amp is a great value and has lots of features but based on my experience durability would be the most important aspect , excluding sound quality that is also at the top of the tier.

By Dimitrios on April 23, 2014

51

found this helpful.

HQ Amp

Not the loudest amp on the market but it certainly will give you high fidelity sound. If you want to have monster thump look elsewhere, if you want to have studio sound this is the amp

By chad on April 8, 2014

51

found this helpful.
