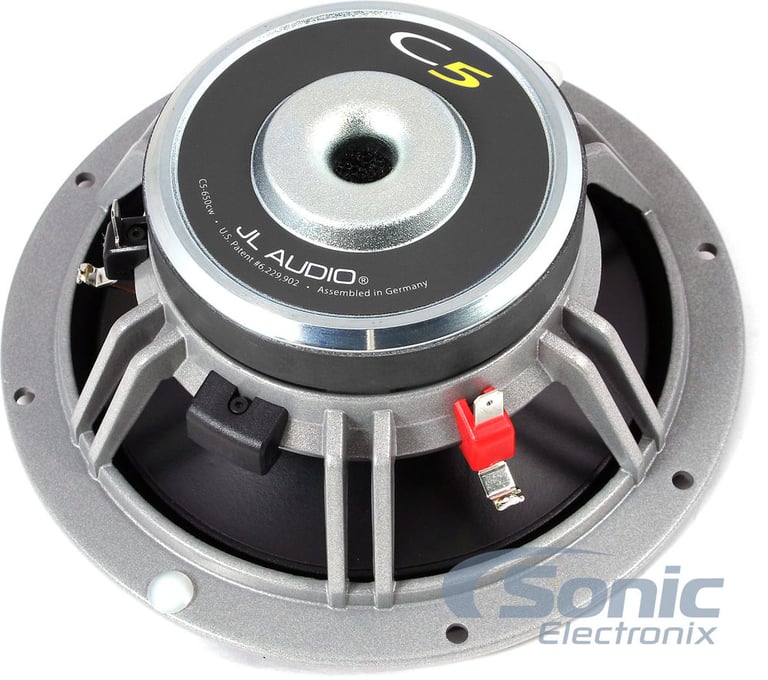

JL Audio C5-650
450W 6.5" Evolution C5 Series 2-Way Component Speaker System
Quantity: 1
Product Features:
 |
 |
 |
 |
- 6.5" Evolution C5 Series 2-way Component Car Speakers
- Power Handling:
- Peak: 450 watts per set / 225 watts per channel
- RMS: 150 watts per set / 75 watts per channel
- Recommended Power Range: 25 - 150 watts per channel
- Mineral-Filled Polypropylene Cone
- Butyl Rubber Surround
- Cast Alloy Frame/Basket
- Elevated Frame Cooling
- Ferrite Woofer Magnet
- 1.00" Voice Coil on Kapton® Former
- Low-Profile, Symmetrical Roll Spider
- Dynamic Motor Analysis (DMA) Optimized Motor

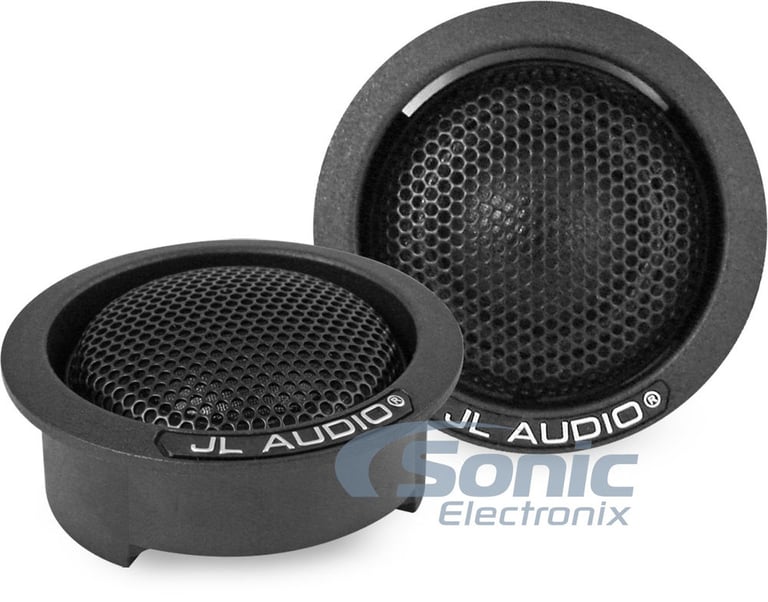

- 0.75" Silk Soft Dome Tweeter
- Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
- 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
- Premium Mylar® Capacitors w/ Air-Core Inductors
- 4-Position Adjustable Tweeter Output Level
- 3-position Mid-range Presence Control
- Polyswitch Tweeter Protection

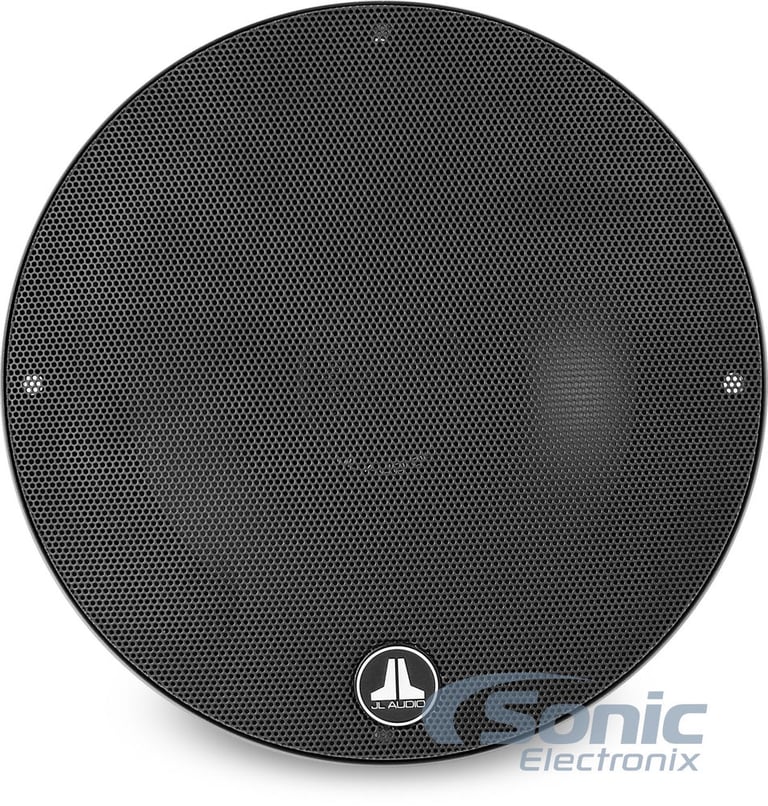

- Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
- Woofer Dimensions:
- Top-mount depth: 2.54"
- Cutout Dimensions: 5.56"
- Tweeter Dimensions: (Flush Mount)
- Top-mount depth: 0.56"
- Cutout Dimensions: 1.50"
- Crossover Dimensions:
- Width: 3.36"
- Height: 1.44"
- Depth: 4.72"
- Nominal Impedance: 4 ohm
- Efficiency: 89.5 dB @ 1 watt / 1 meter
- Frequency Response: 48 Hz - 25 KHz ± 3 dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.
Check out the JL Audio C5-650 Owner's Manual

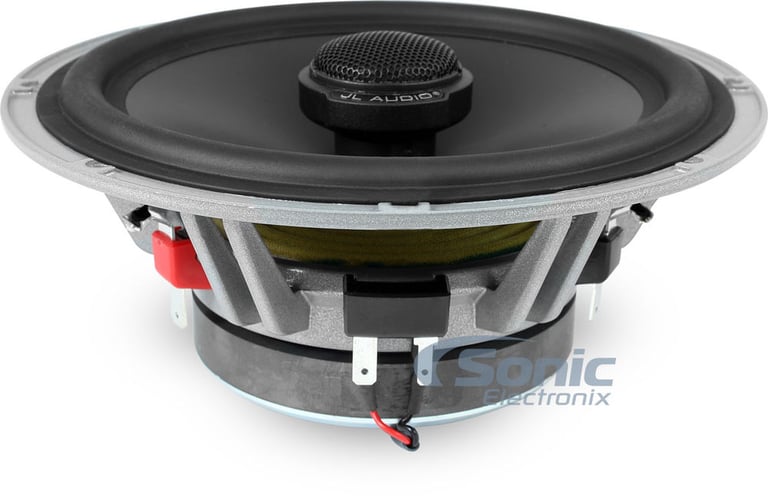

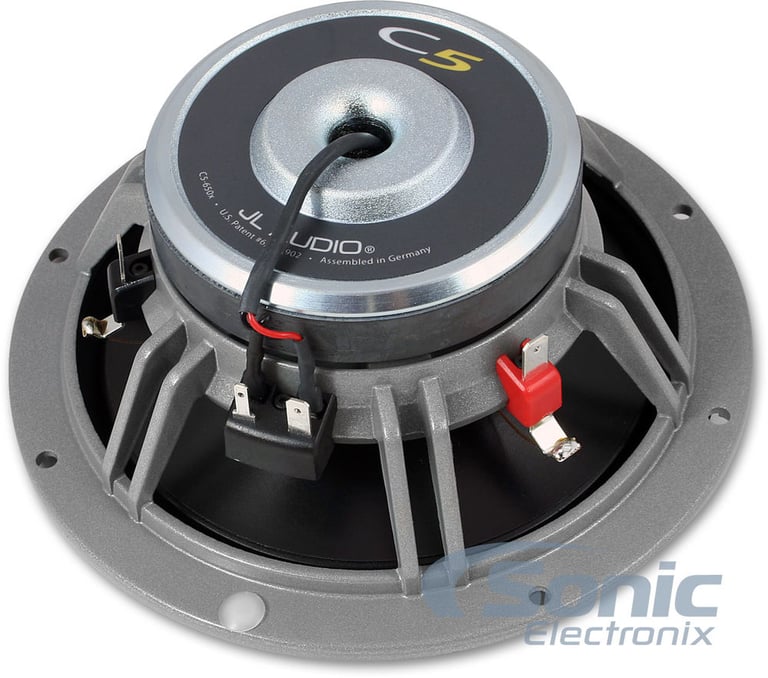

JL Audio C5-650x
450W 6.5" 2-Way Evolution C5 Series Coaxial Speaker System
Quantity: 1
Product Features:
|
|
|
|
- 6.5" Evolution C5 Series 2-way Coaxial Car Speakers
- Power Handling:
- Peak: 450 watts per set / 225 watts per channel
- RMS: 150 watts per set / 75 watts per channel
- Recommended Power Range: 25 - 150 watts per channel
- Mineral-Filled Polypropylene Cone
- Butyl Rubber Surround
- Cast Alloy Frame/Basket
- Elevated Frame Cooling
- Ferrite Woofer Magnet
- 1.00" Voice Coil on Kapton® Former
- Low-Profile, Symmetrical Roll Spider
- Dynamic Motor Analysis (DMA) Optimized Motor
- 0.75" Silk Soft Dome Tweeter
- Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
- 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
- Premium Mylar® Capacitors w/ Air-Core Inductors
- 4-Position Adjustable Tweeter Output Level
- 3-position Mid-range Presence Control
- Polyswitch Tweeter Protection
- Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
- Woofer Dimensions:
- Top-mount depth: 2.59"
- Cutout Dimensions: 5.56"
- Crossover Dimensions:
- Width: 3.36"
- Height: 1.44"
- Depth: 4.72"
- Nominal Impedance: 4 ohm
- Efficiency: 89.5 dB @ 1 watt / 1 meter
- Frequency Response: 48 Hz - 25 KHz ± 3 dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Priced Per Complete Coaxial System: 2 full-range speakers and 2 crossover networks.
Check out the JL Audio C5-650x Owner's Manual

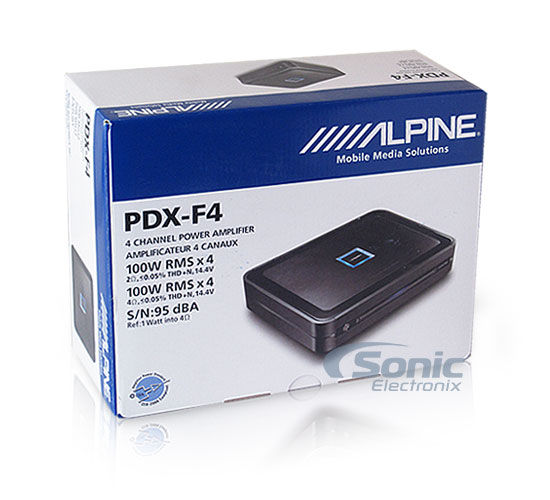

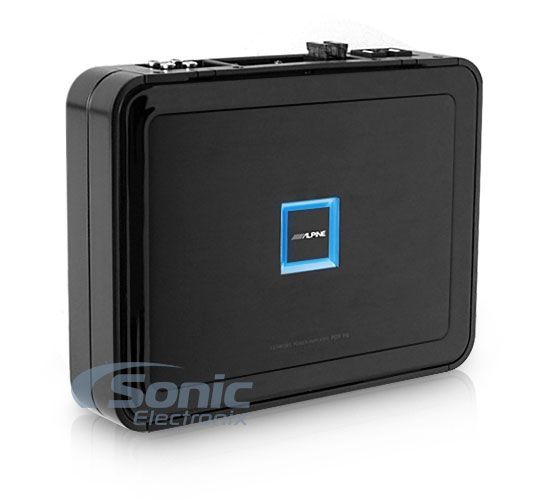

Alpine PDX-F4
400W PDX Series 4-Channel Power Density Digital Class D Car Amplifier
Quantity: 1
General Features:
- PDX Series 4-Channel Class D Car Amplifier
- RMS Power Rating (@ 14.4V):
- 4 ohm: 100 watts x 4 chan.
- 2 ohm: 100 watts x 4 chan.
- Bridged, 4 ohm: 200 watts x 2 chan.
- Total RMS output: 400 watts
- DC-DC PWM Power supply with STAR circuitry
- Blue LED power/status indicator conveniently located on the top
- Discrete pre-amp stage
- 6-Layer glass epoxy PC board
- Automatic over-current protection system
- Soft start turn-on prevent initial system popping
- 4/3/2 channel operation
- System Protection circuitry keeps the amp running properly
- Large aluminum alloy heatsink for extreme heat dissipation
- Gold-plated RCA level inputs
- Proprietary screw terminals ensure a solid and secure connection
- Input sensitivity: 200mV - 4V with input level
- Variable high-pass filter: 30-400 Hz, 12 dB/octave
- Variable low-pass filter: 30-400 Hz, 12 dB/octave
- CEA-2006 compliant amplifier
- Frequency response: 5-100,000 Hz
- Dimensions: 8-9/16"D x 10-1/8"W x 2"H
- 4-gauge power and ground wiring is required for installation
- 1-year Sonic Electronix Warranty
NVX XKIT44
100% Copper, 4-Chan. True Spec 4 Gauge Amp Installation Kit w/RCA Interconnect & 60 ft Speaker Cable
Quantity: 1
Amplifier Kit Features:
- Complete 4 Gauge Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Direct-connect engineering
- Fewer connections for less signal distortion
- ANL/mini ANL Fuse holder offers ideal protection for high powered systems
- Envy-Flex cable and wire
- Full spec cable is true to gauge
- Strand Count: 1862
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's warranty
Kit includes:

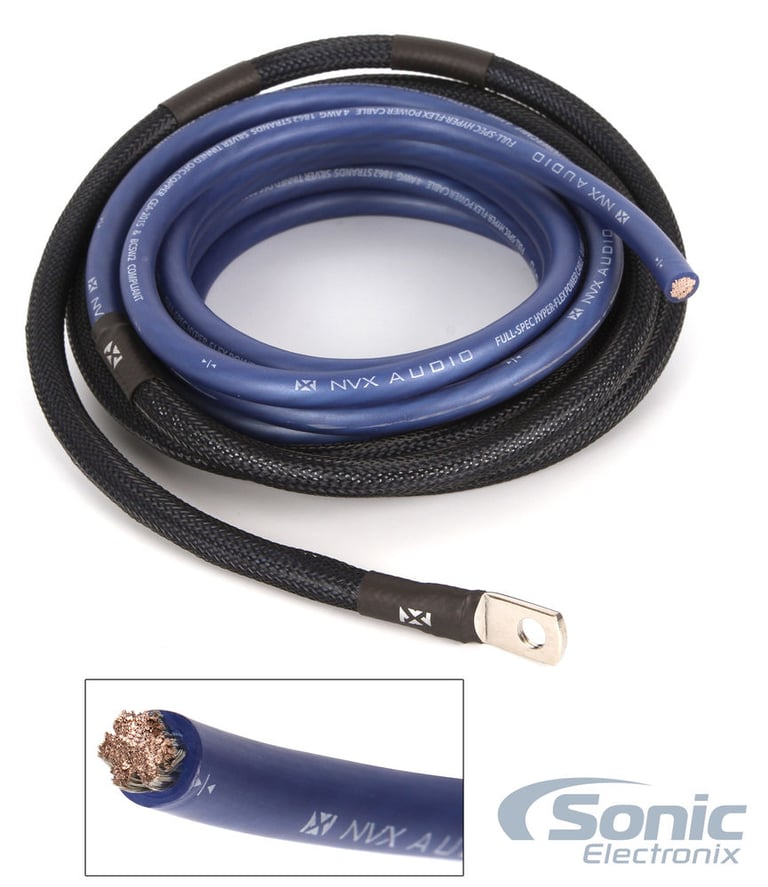

- 20 ft. (6.1 meters) Frosted Blue 4 gauge main power wire with seamless crimp ring terminal and 6 ft. expandable sleeving

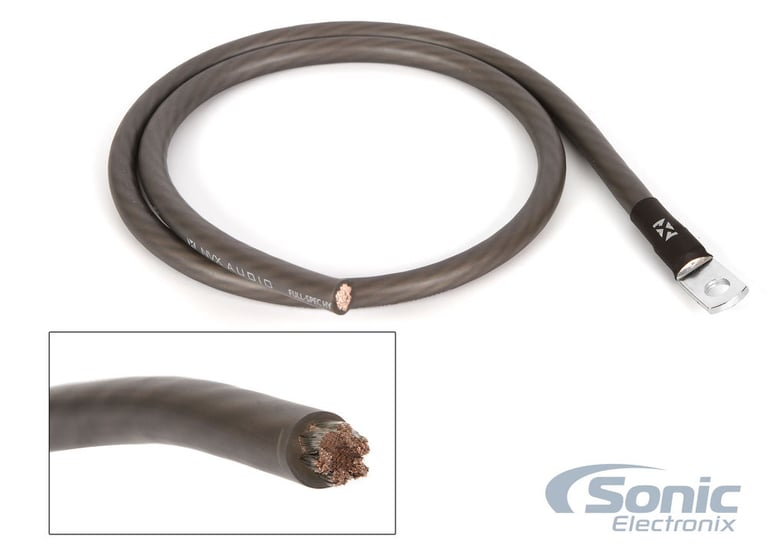

- 3 ft. (.91 meters) Frosted Gray 4 gauge main ground wire with seamless crimp ring terminal

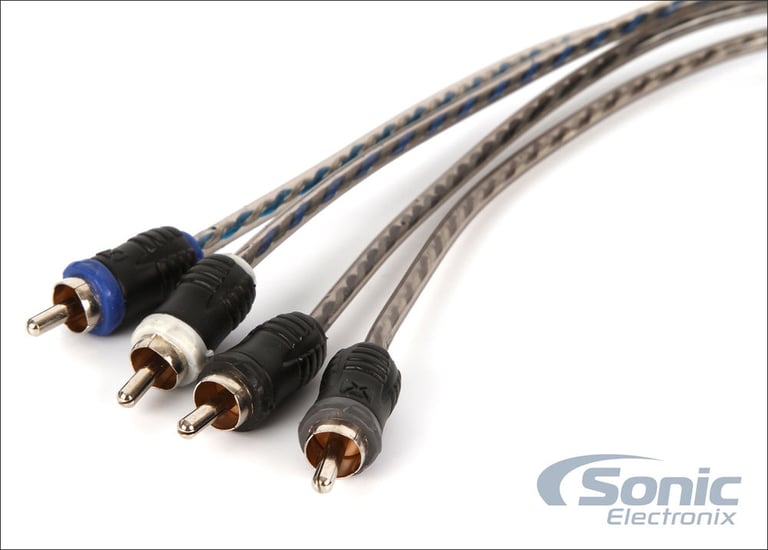

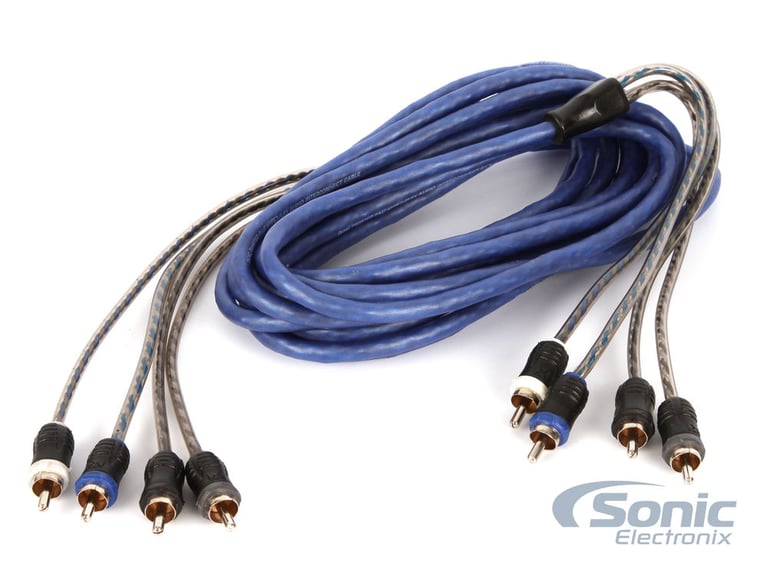

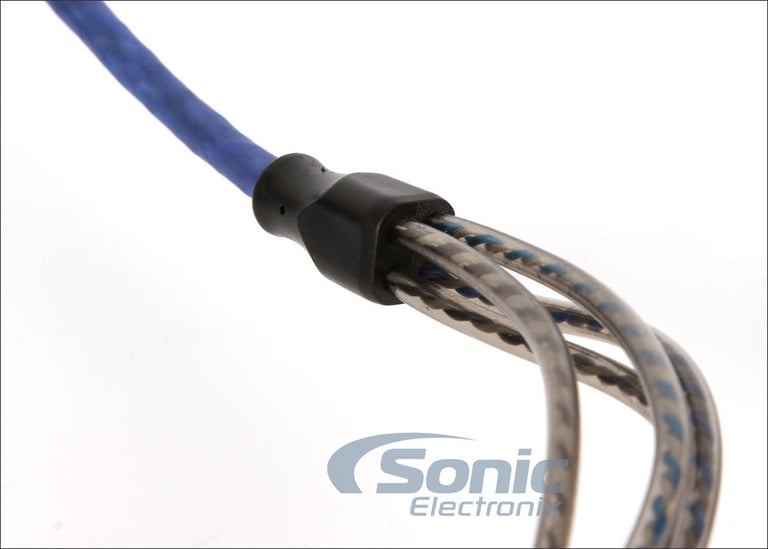

- One 16 ft. (5 meters) 4-channel twisted construction RCA interconnect Cable (NVX XIV45)

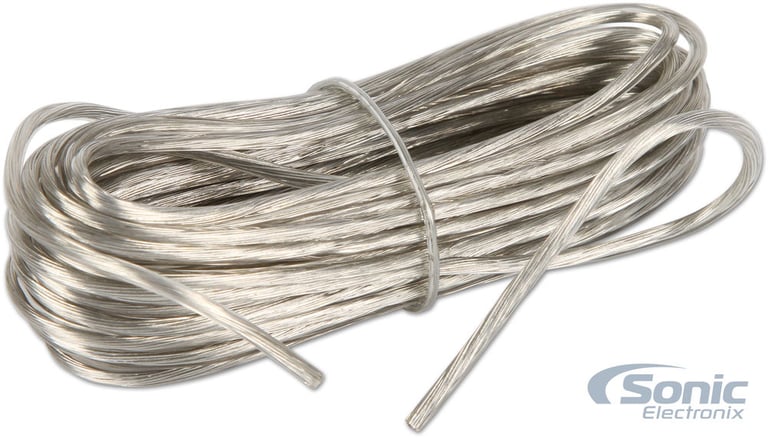

- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
- 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire

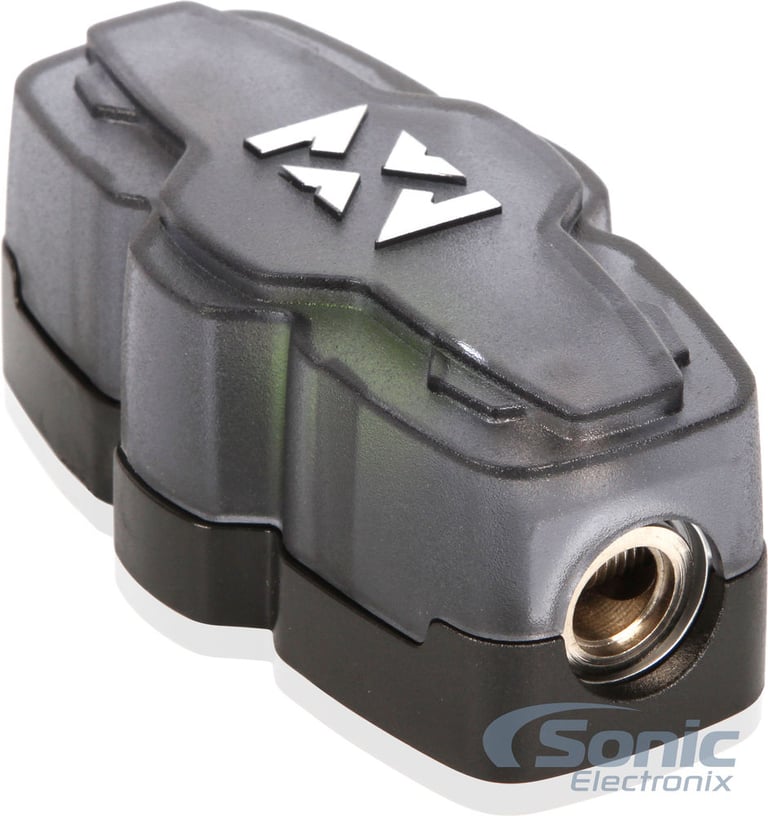

- One NVX XMANL04 ANL/Mini-ANL fuse holder with 100 amp Mini-ANL fuse

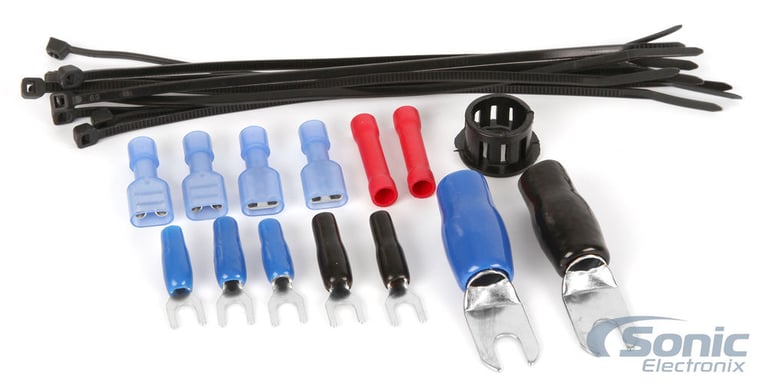

- One 1/2" black rubber firewall grommet
- Two black 4 gauge nickel-plated spade terminals
- Three blue 16 gauge spade lugs
- Four 16 gauge quick disconnects
- Two black 16 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 6" black zip ties
