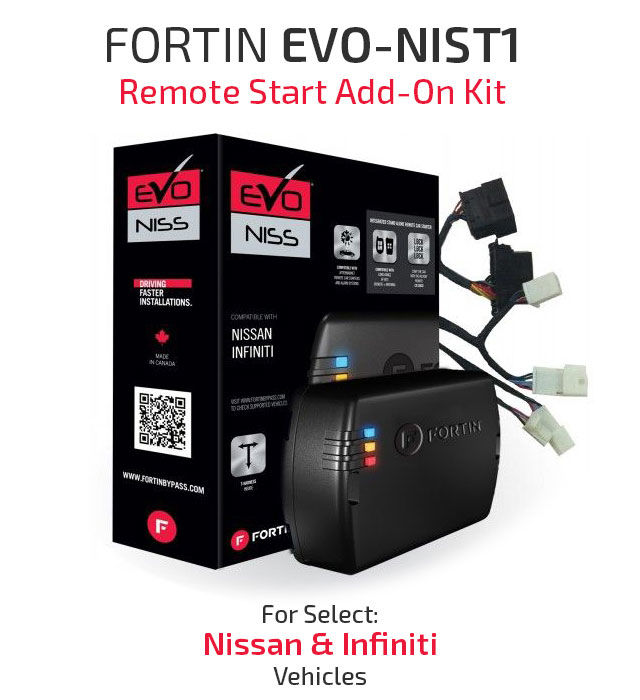

Remote Start System For 2007-up Nissan and Infiniti (Fortin EVO-NIST1)

General Features:

• ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface
• Factory Fit T-Harness for easy install
• Module uses a multiple bus architecture to provide more complete functionality
• On-board LEDs for simplified programming and diagnostics
• Preloaded firmware for maximum compatibility
Stand alone remote starter, with 3x Lock remote start
• Crimestopper RFALL641W 1-way, 4-button RF remote kit, 3500-foot range
• Crimestopper RFALL642W 2-way, 4-button RF remote kit, 3500-foot range
• FLU-100.2 Flash Link Updater required for Run Time configuration & advanced feature control
• 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems
• 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly
• Authorized Internet Dealer
• 1-year Sonic Electronix Warranty

General Specifications:

• (3)CAN-Bus controllers
• (3) General purpose controllers (J1850, Class 2, encrypted key etc.)
• (1) On-board relay (SPDT)
• (1) On-board relay (DPDT)
• (1) Analog controller 0-12VDC @ 20mV steps (Passlock, MUX)

Parts Included:

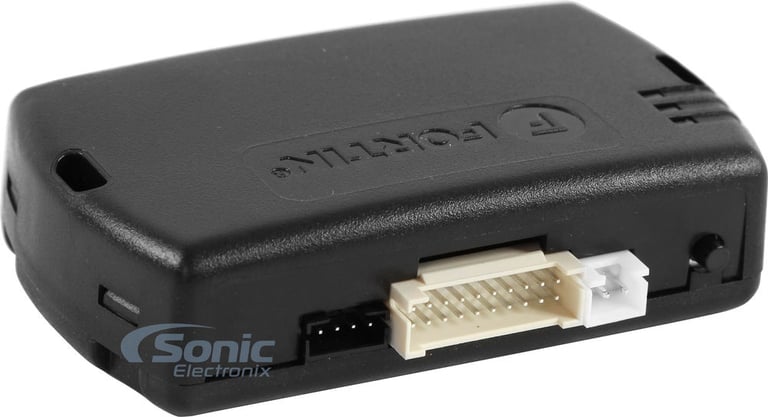

• EVO-ALL control module (firmware preloaded)
• Warning label
• 4 Pin Fortin 2-way data-link harness

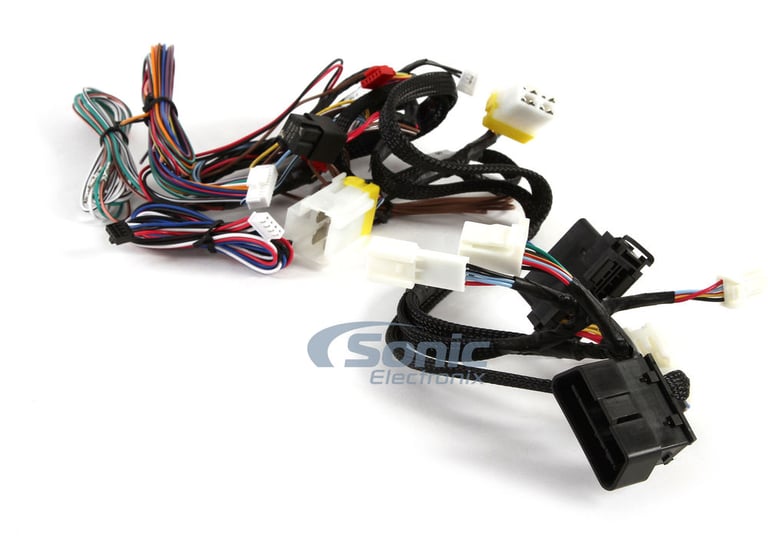

• Factory Fit T-Harness

Note: Professional installation is always recommended. Consult with an installer for reduced labor cost as these units are not labor intensive.
