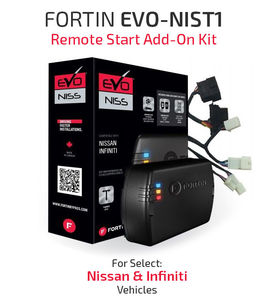

Fortin EVO-NIST1

General Features:

• ALL-IN-ONE data immobilizer bypass, doorlock, alarm & remote start interface
• Factory Fit T-Harness for easy install
• Module uses a multiple bus architecture to provide more complete functionality
• On-board LEDs for simplified programming and diagnostics
• Preloaded firmware for maximum compatibility
Stand alone remote starter, with 3x Lock remote start
• Crimestopper RFALL641W 1-way, 4-button RF remote kit, 3500-foot range
• Crimestopper RFALL642W 2-way, 4-button RF remote kit, 3500-foot range
• FLU-100.2 Flash Link Updater required for Run Time configuration & advanced feature control
• 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems

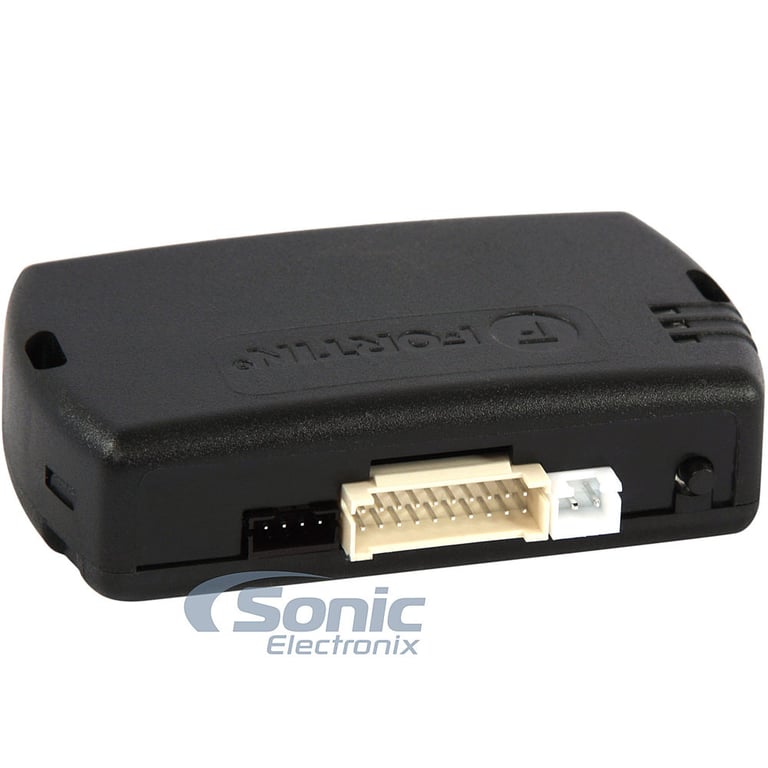

• 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems
• Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Specifications:

• (3)CAN-Bus controllers
• (3) General purpose controllers (J1850, Class 2, encrypted key etc.)
• (1) On-board relay (SPDT)
• (1) On-board relay (DPDT)
• (1) Analog controller 0-12VDC @ 20mV steps (Passlock, MUX)

Parts Included:

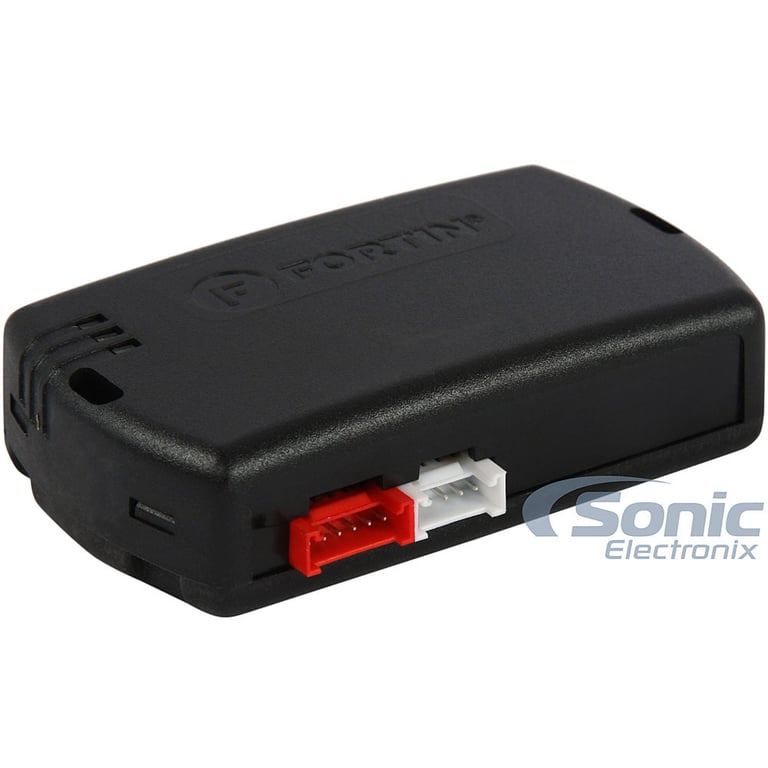

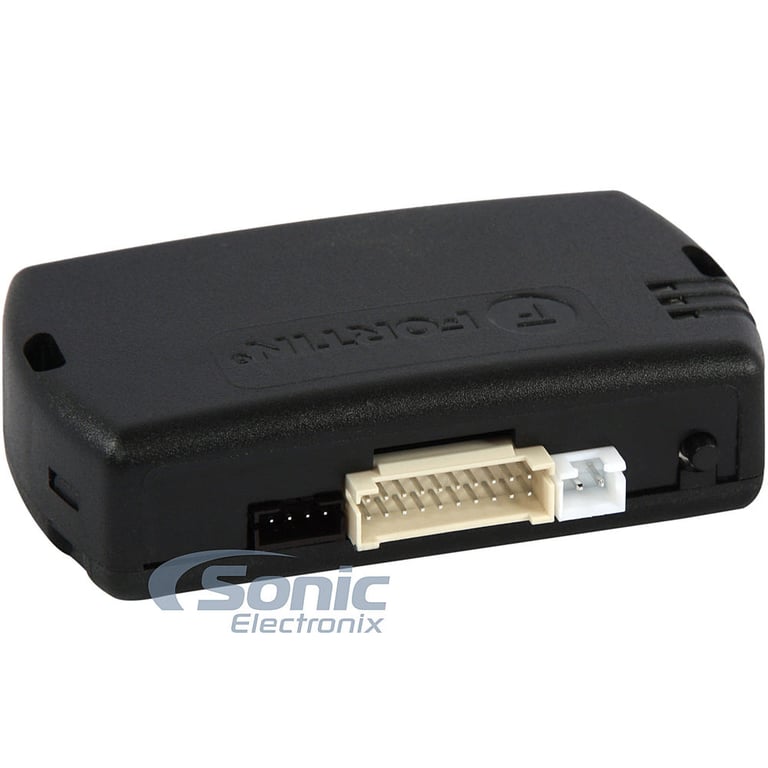

• EVO-ALL control module (firmware preloaded)
• Warning label
• 4 Pin Fortin 2-way data-link harness

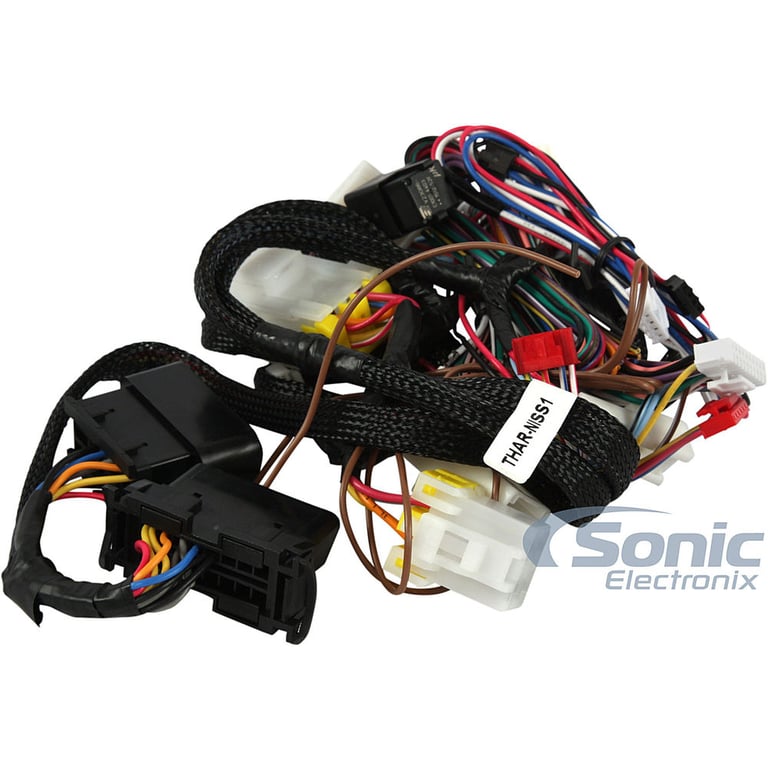

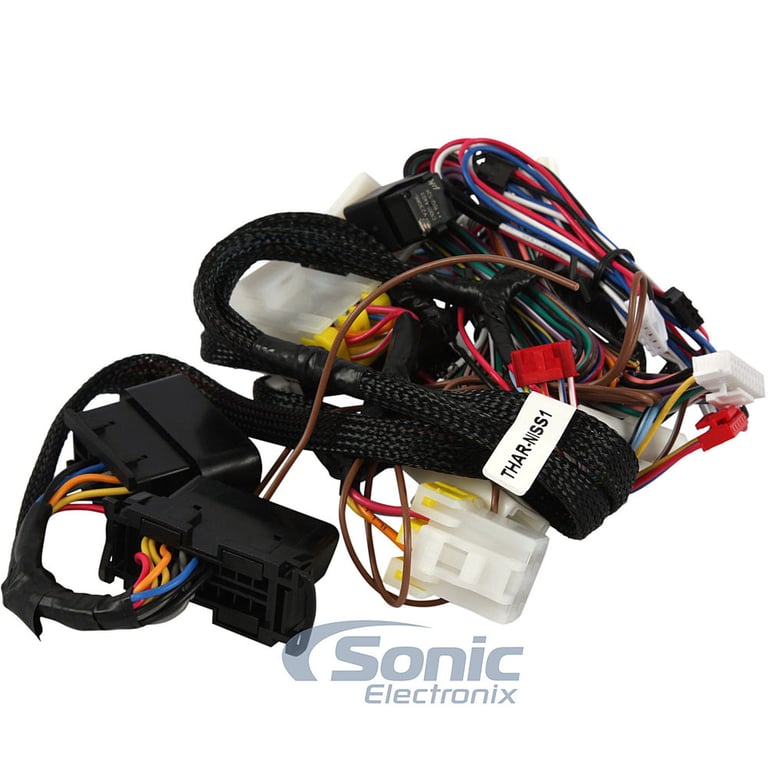

• Factory Fit T-Harness

Compatibility List:

• Infiniti:
  • 2014 - 2015 EX35 (Push-To-Start)
  • 2015 - 2015 EX37 (Push-To-Start)
  • 2015 - 2015 FX35 (Push-To-Start)
  • 2015 - 2015 FX37 (Push-To-Start)
  • 2015 - 2015 FX45 (Push-To-Start)
  • 2014 - 2015 FX50 (Push-To-Start)
  • 2015 - 2015 G25 (Push-To-Start)
  • 2015 - 2015 G35 (Push-To-Start)
  • 2015 - 2015 G37 (Push-To-Start)
  • 2015 - 2015 M34H (Push-To-Start)
  • 2014 - 2015 M37 (Push-To-Start)
  • 2015 - 2015 M56 (Push-To-Start)
  • 2015 - 2015 Q40 (Push-To-Start)
  • 2015 - 2015 Q60 (Push-To-Start)
  • 2015 - 2015 Q70 (Push-To-Start)
  • 2014 - 2015 Q70L (Push-To-Start)
  • 2015 - 2015 QX50 (Push-To-Start)
  • 2015 - 2015 QX56 (Push-To-Start)
  • 2015 - 2015 QX70 (Push-To-Start)
  • 2015 - 2015 QX80 (Push-To-Start)
• Nissan:
  • 2014 - 2015 350Z (Push-To-Start)
  • 2015 - 2015 370Z (Push-To-Start)
  • 2015 - 2015 Altima (Hybrid, Push-To-Start)
  • 2015 - 2015 Altima (Push-To-Start)
  • 2015 - 2015 Cube (Push-To-Start)
  • 2014 - 2015 GT-R (Push-To-Start)
  • 2015 - 2015 Juke (Push-To-Start)
  • 2015 - 2015 Maxima (Push-To-Start)
  • 2015 - 2015 Murano (Push-To-Start)
  • 2015 - 2015 Quest (Push-To-Start)
  • 2014 - 2015 Sentra (Push-To-Start)
  • 2015 - 2015 Tiida (Euro) (Push-To-Start)
  • 2015 - 2015 Versa (Sedan, Push-To-Start)
  • 2015 - 2015 Versa Note (Push-To-Start)
