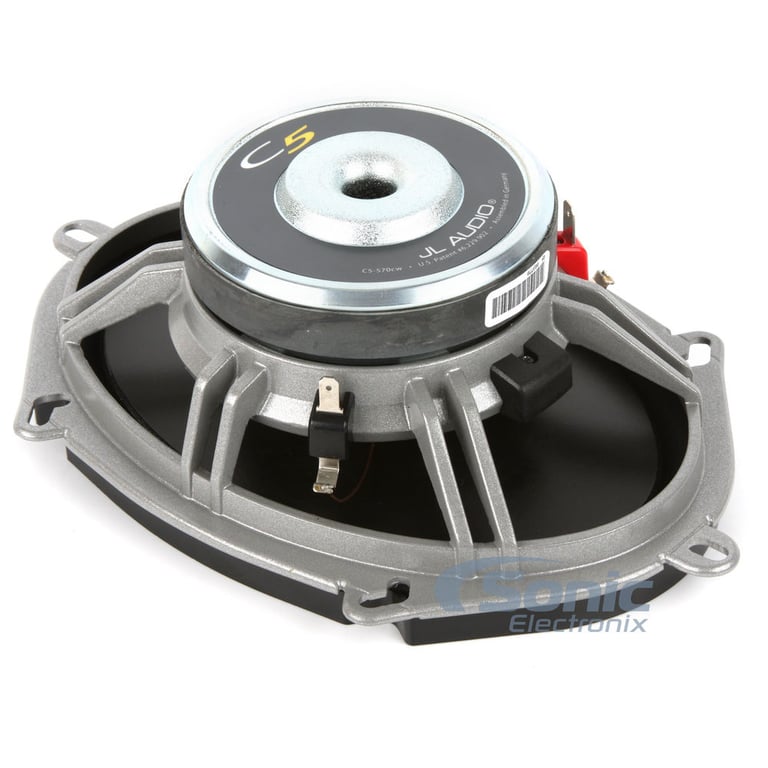

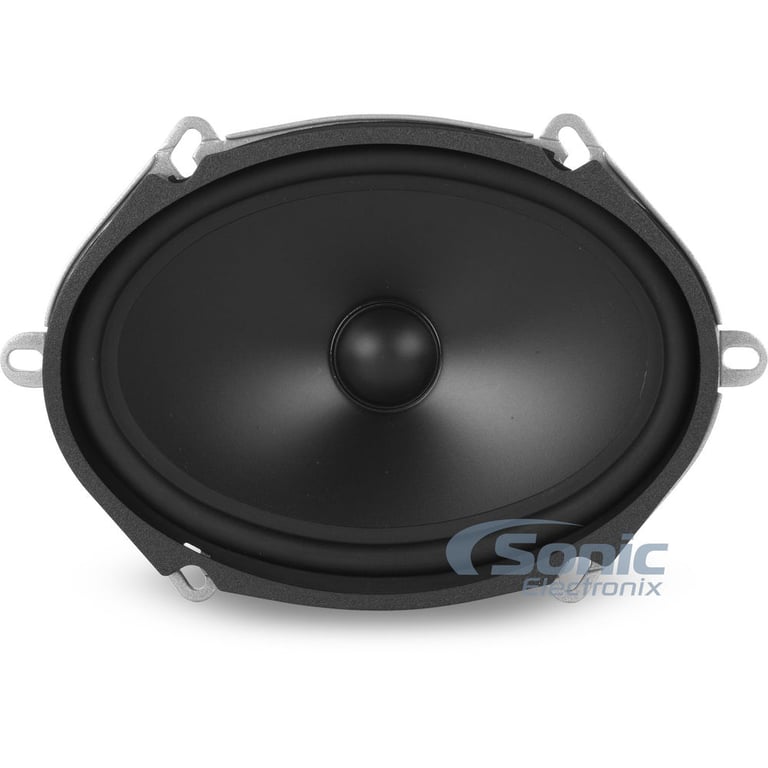

JL Audio C5-570
450W 5" x 7" / 6" x 8" Evolution C5 Series 2-Way Component Speaker System
Quantity: 2 (Two Pair)
Product Features:
 |
 |
 |
 |
- 5" x 7" / 6" x 8" Evolution C5 Series 2-way Component Car Speakers
- Power Handling:
- Peak: 900 watts per set / 225 watts per channel
- RMS: 300 watts per set / 75 watts per channel
- Recommended Power Range: 25 - 150 watts per channel
- Mineral-Filled Polypropylene Cone
- Butyl Rubber Surround
- Cast Alloy Frame/Basket
- Elevated Frame Cooling
- Ferrite Woofer Magnet
- 1.00" Voice Coil on Kapton® Former
- Low-Profile, Symmetrical Roll Spider
- Dynamic Motor Analysis (DMA) Optimized Motor

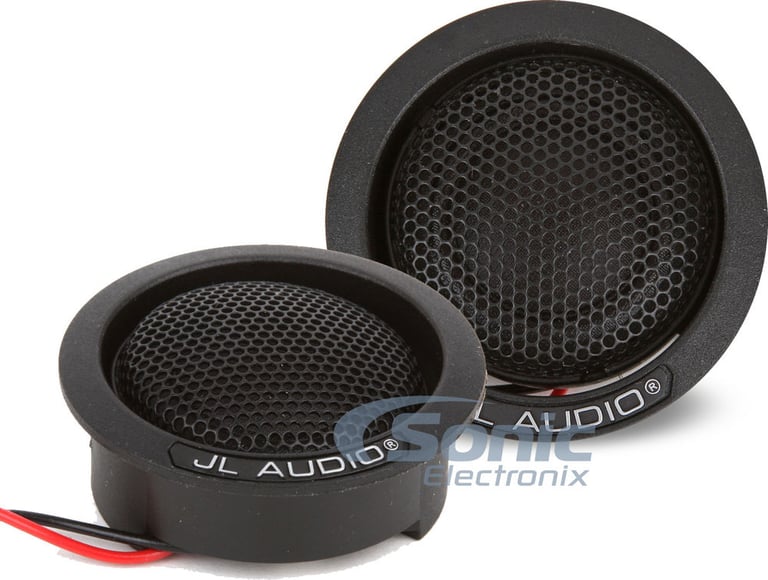

- 0.75" Silk Soft Dome Tweeter
- Ferrofluid Cooling/Damping Neodymium Tweeter Magnet

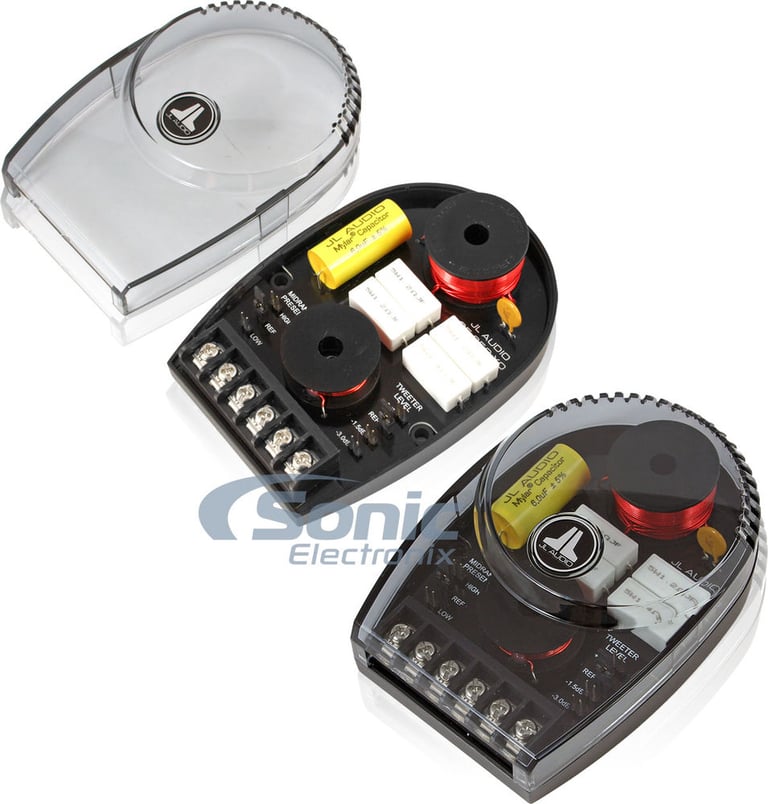

- 2-way Crossover Network w/ 2nd Order Low-Pass and 2nd Order High-Pass Circuit
- Premium Mylar® Capacitors w/ Air-Core Inductors
- 4-Position Adjustable Tweeter Output Level
- 3-position Mid-range Presence Control
- Polyswitch Tweeter Protection
- Black Steel Mesh Grille with An Electroformed JL Audio Logo Included

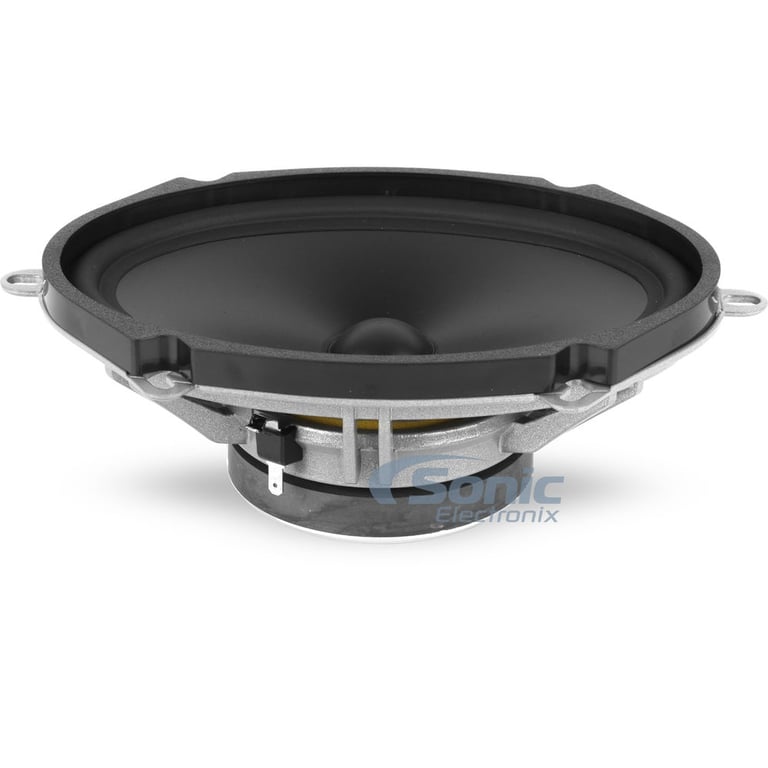

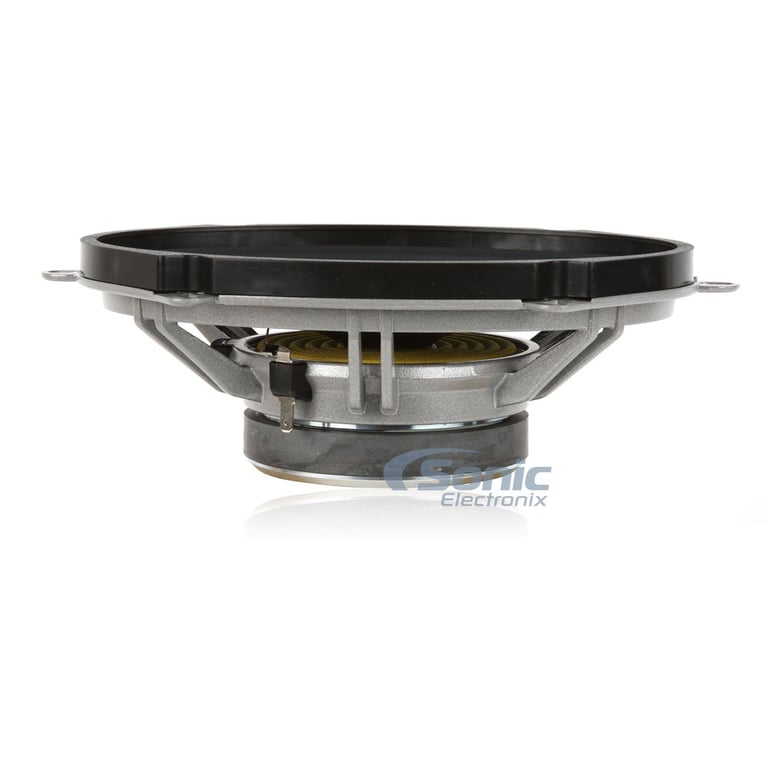

- Woofer Dimensions:
- Top-mount depth: 2.40"
- Frame Outer Diameter: 5.47" x 7.68"
- Tweeter Dimensions: (Flush Mount)
- Top-mount depth: 0.56"
- Cutout Dimensions: 1.50"
- Crossover Dimensions:
- Width: 3.36"
- Height: 1.44"
- Depth: 4.72"
- Nominal Impedance: 4 ohm
- Efficiency: 90.5dB @ 1 watt / 1 meter
- Frequency Response: 48 Hz - 25 KHz ± 3 dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

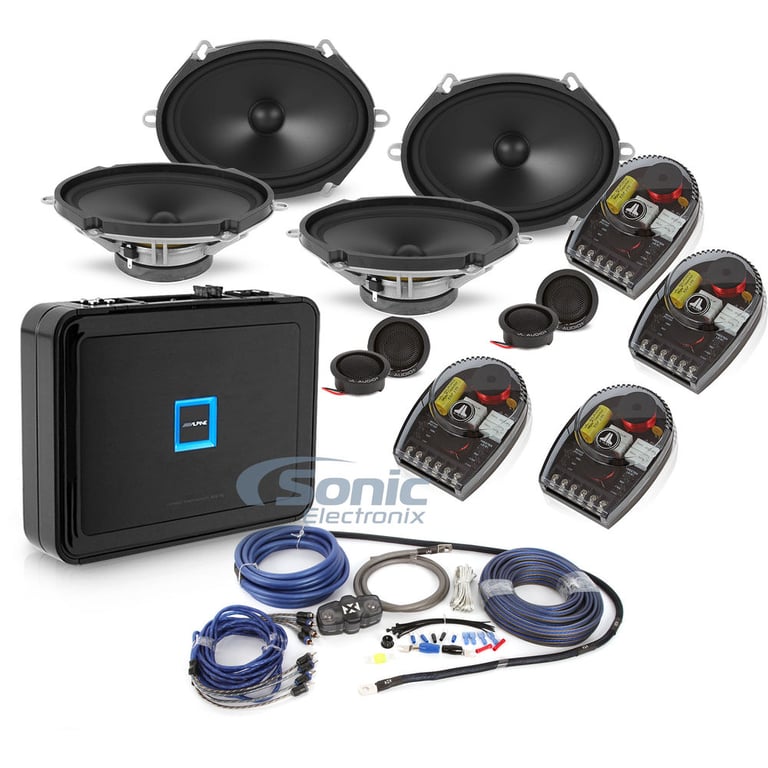

Priced Per Complete 4-Channel Component System: 4 midwoofers, 4 tweeters and 4 crossover networks.
Check out the JL Audio C5-570 Owner's Manual

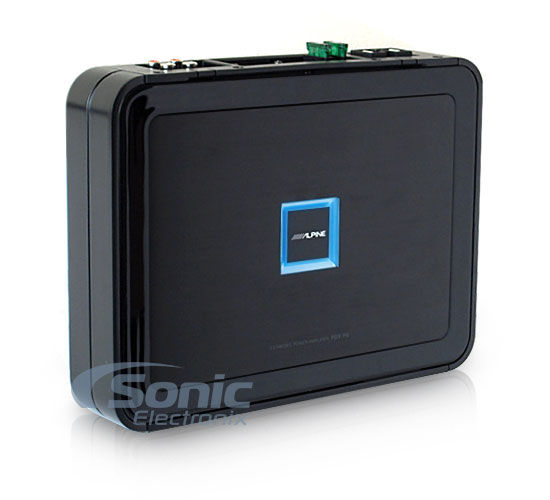

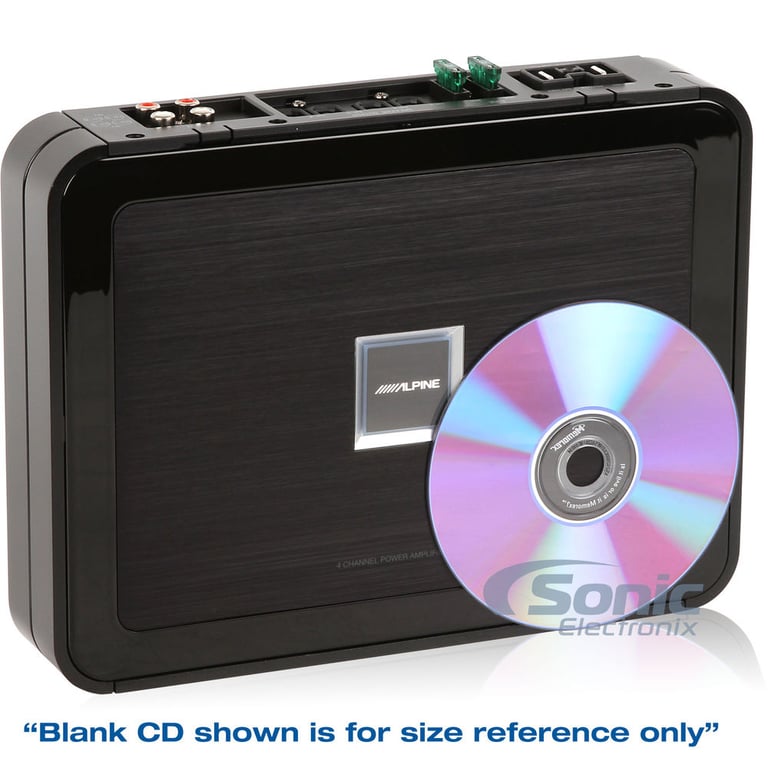

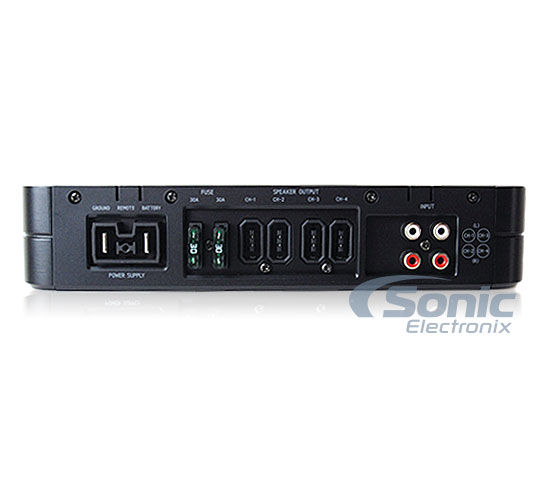

Alpine PDX-F4
400W PDX Series 4-Channel Power Density Digital Class D Car Amplifier
Quantity: 1
General Features:
- PDX Series 4-Channel Class D Car Amplifier
- RMS Power Rating (@ 14.4V):
- 4 ohm: 100 watts x 4 chan.
- 2 ohm: 100 watts x 4 chan.
- Bridged, 4 ohm: 200 watts x 2 chan.
- Total RMS output: 400 watts
- DC-DC PWM Power supply with STAR circuitry
- Blue LED power/status indicator conveniently located on the top
- Discrete pre-amp stage
- 6-Layer glass epoxy PC board
- Automatic over-current protection system
- Soft start turn-on prevent initial system popping
- 4/3/2 channel operation
- System Protection circuitry keeps the amp running properly
- Large aluminum alloy heatsink for extreme heat dissipation
- Gold-plated RCA level inputs
- Proprietary screw terminals ensure a solid and secure connection
- Input sensitivity: 200mV - 4V with input level
- Variable high-pass filter: 30-400 Hz, 12 dB/octave
- Variable low-pass filter: 30-400 Hz, 12 dB/octave
- CEA-2006 compliant amplifier
- Frequency response: 5-100,000 Hz
- Dimensions: 8-9/16"D x 10-1/8"W x 2"H
- 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
- 1-year Sonic Electronix Warranty
Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

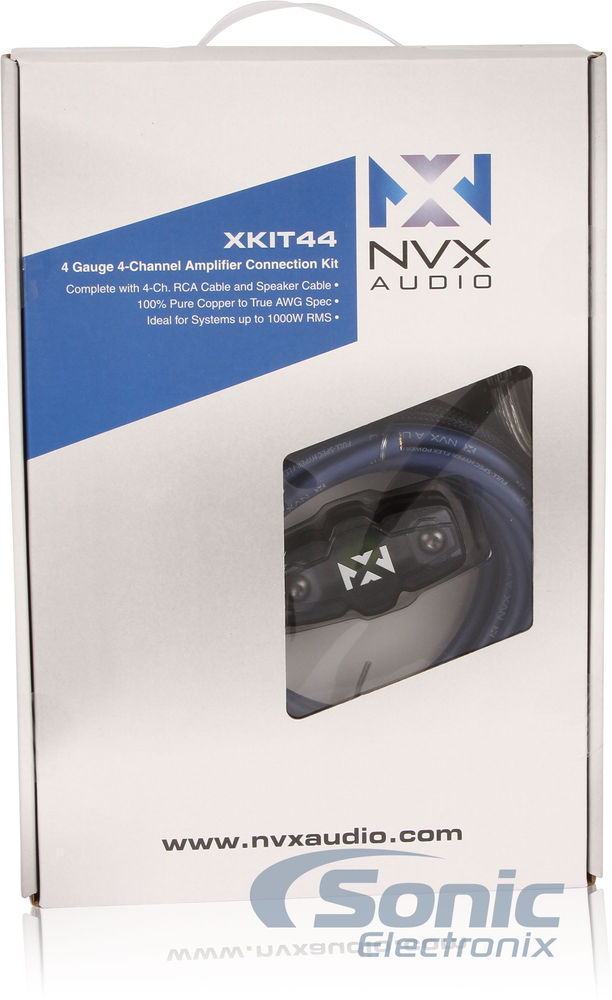

NVX XKIT44
100% Copper, 4-Chan. True Spec 4 Gauge Amp Installation Kit w/RCA Interconnect & 60 ft Speaker Cable
Quantity: 1
Amplifier Kit Features:
- Complete 4 Gauge Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Direct-connect engineering
- Fewer connections for less signal distortion
- ANL/mini ANL Fuse holder offers ideal protection for high powered systems
- Envy-Flex cable and wire
- Full spec cable is true to gauge
- Strand Count: 1862
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's warranty
Kit includes:

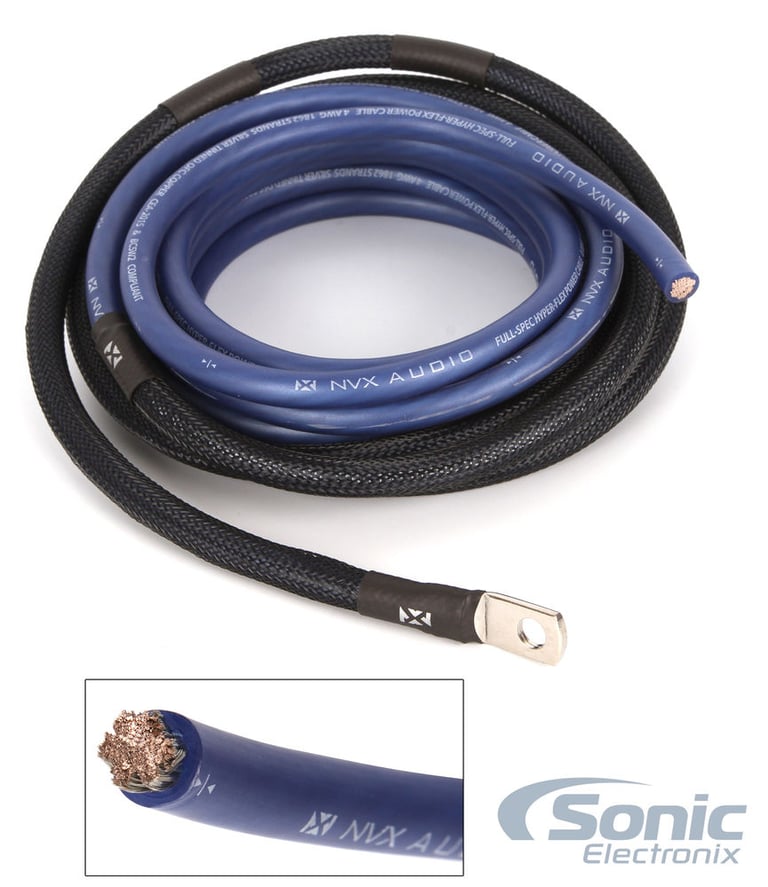

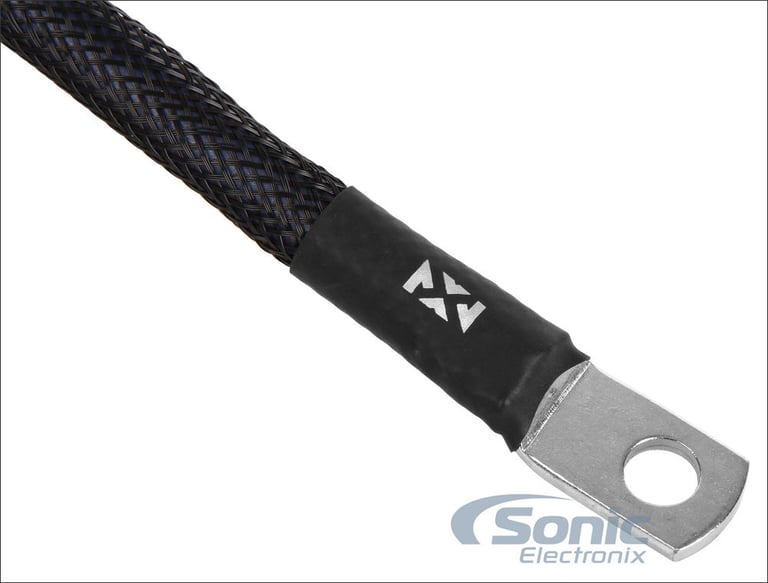

- 20 ft. (6.1 meters) Frosted Blue 4 gauge main power wire with seamless crimp ring terminal and 6 ft. expandable sleeving

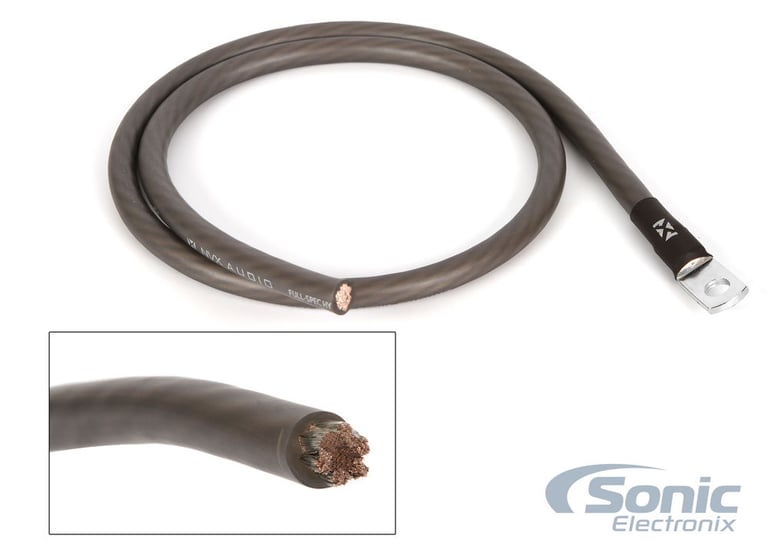

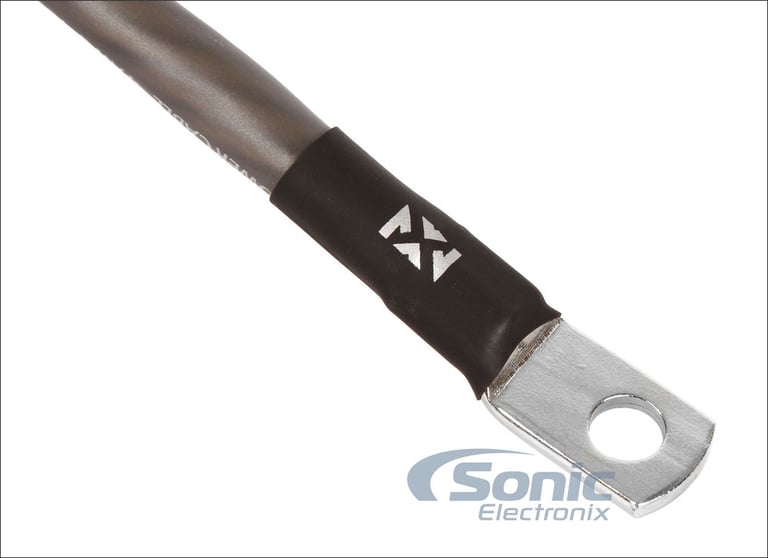

- 3 ft. (.91 meters) Frosted Gray 4 gauge main ground wire with seamless crimp ring terminal

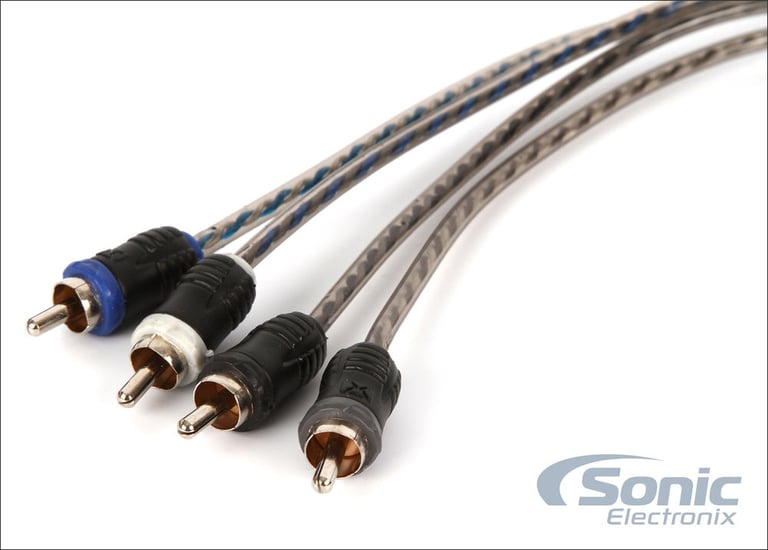

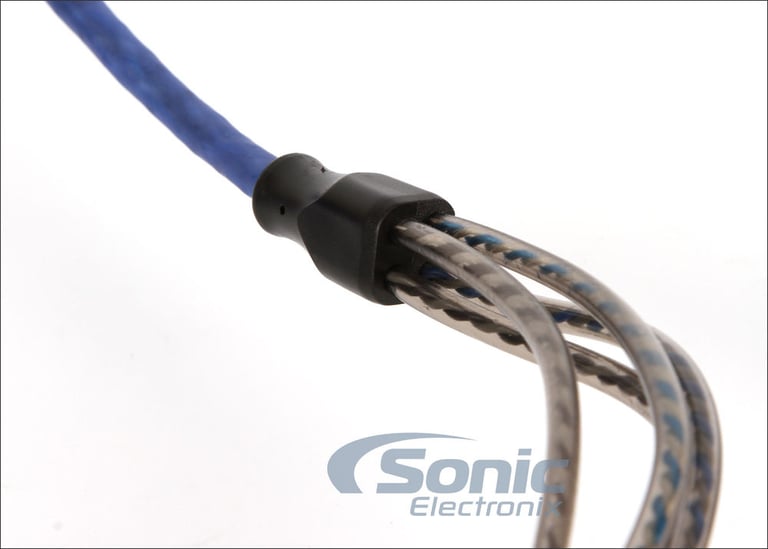

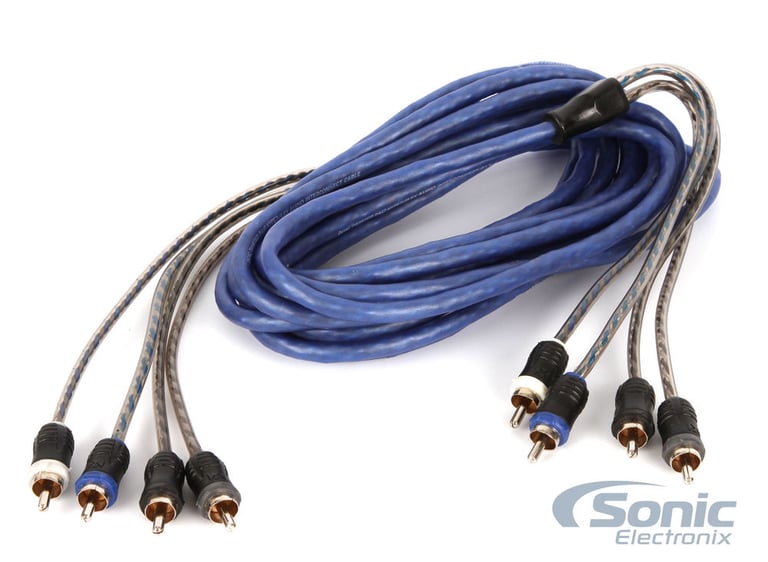

- One 16 ft. (5 meters) 4-channel twisted construction RCA interconnect Cable (NVX XIV45)

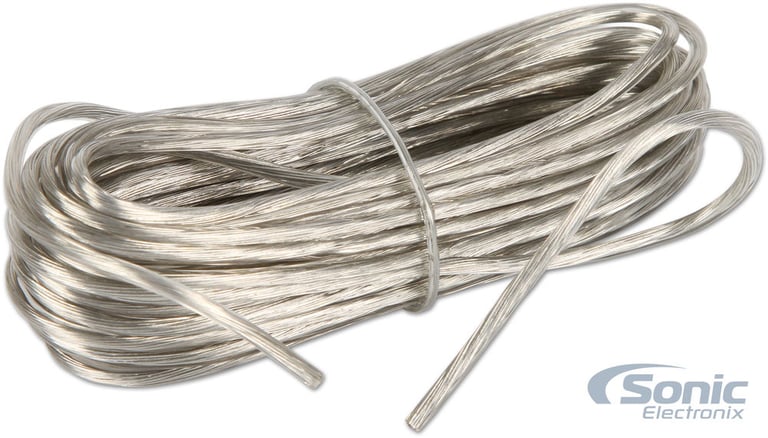

- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

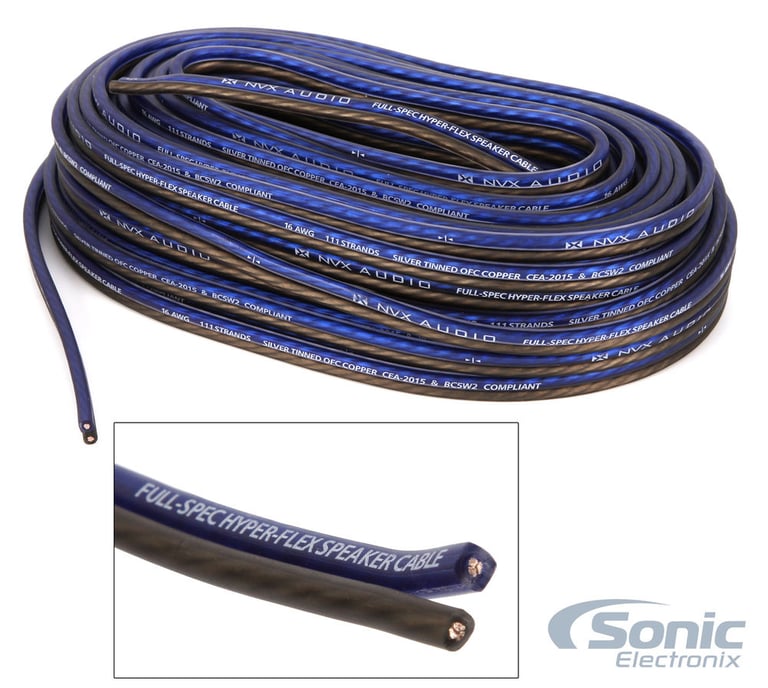

- 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire

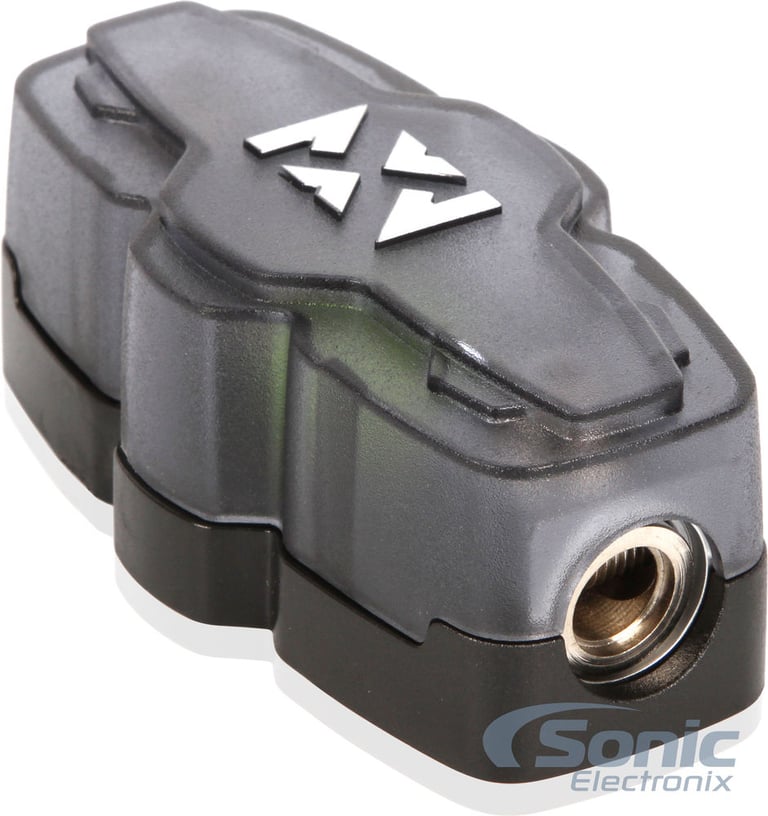

- One NVX XMANL04 ANL/Mini-ANL fuse holder with 100 amp Mini-ANL fuse

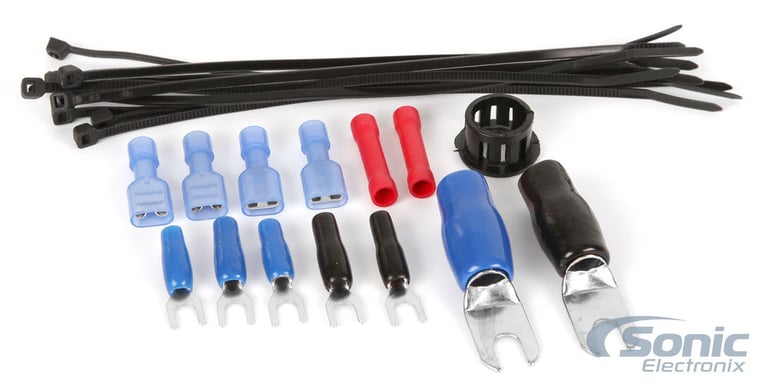

- One 1/2" black rubber firewall grommet
- Two black 4 gauge nickel-plated spade terminals
- Three blue 16 gauge spade lugs
- Four 16 gauge quick disconnects
- Two black 16 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 6" black zip ties
