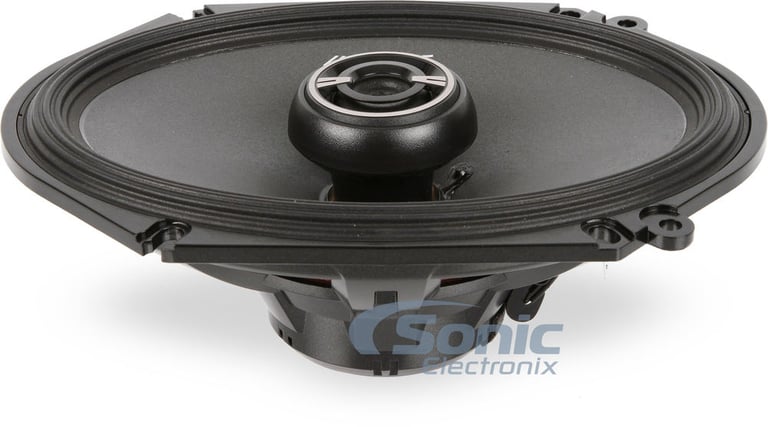

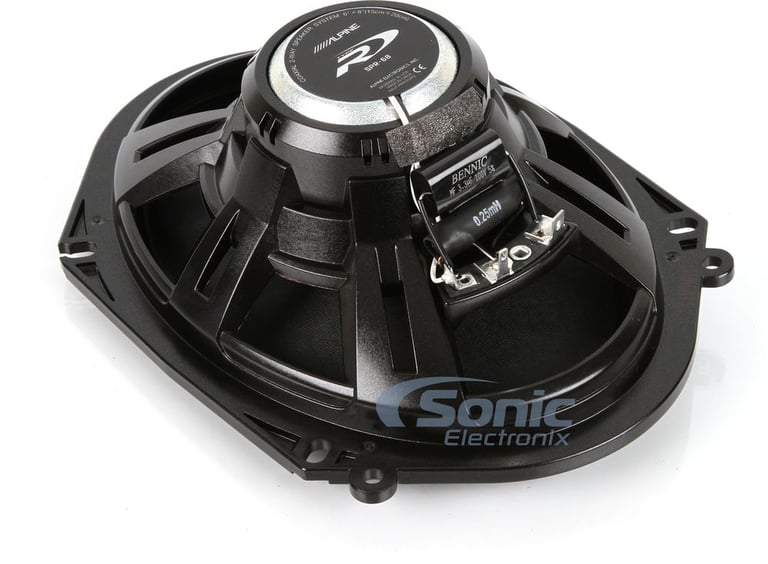

Alpine SPR-68
6" x 8" / 5" x 7" 2-Way Type-R Series Coaxial Car Speakers
Quantity: 2 (Two Pair)
General Features:
- 6" x 8" / 5" x 7" Type-R Coaxial 2-way Car Speakers
- Power Handling:
- Peak: 600 watts per pair / 300 watts each
- RMS: 200 watts per pair / 100 watts each
- Multi-Layer hybrid fiber cone delivers a really strong bass response
- High Amplitude Multi Roll (HAMR) Santoprene rubber surround provides consistent, extended cone movement
- 1" Swiveling silk ring-dome tweeter produces smooth highs
- High-Density polymer frames
- Frequency Response: 63-29,000 Hz
- Sensitivity: 89 dB
- Top Mount depth: 2-9/16"
- 1-year SonicElectronix.com Warranty
Priced Per Two Pair, Four Speakers Total

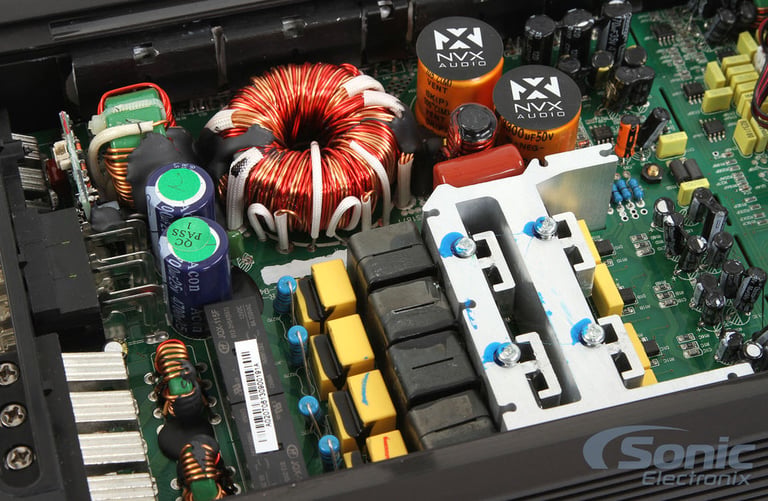

NVX JAD800.4
True 800W RMS, Full Range Class D 4-Channel Amplifier (JAD-800.4)
Quantity: 1
General Features:
- Class D 4-Channel Amplifier
- RMS Power Rating:
- 4 ohm: 125 watts x 4 chan.
- 2 ohm: 200 watts x 4 chan.
- Bridged, 4 ohm: 400 x 2 chan.
- Sonic Electronix Certified Power Rating*:
- 4 ohm: 175 watts x 4 chan.
- 2 ohm: 297 watts x 4 chan.
- Non-regulated efficient S.M.P.S power supply design
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- High speed rectifying diodes
- Soft start turn-on
- 4/3/2 channel operation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals

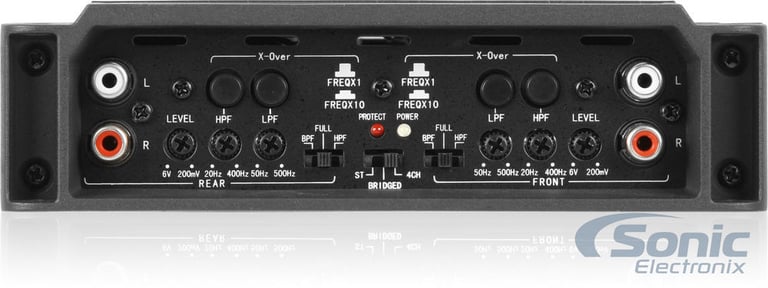

- Variable high-pass filter (20-400 Hz, 24 dB/octave)
- Variable low-pass filter (50-500 Hz, 24 dB/octave)
- Input Sensitivity: 200mV-6V
- Frequency response: 20-20,000 Hz
- 4 gauge power and ground wiring is required for installation
- Dimensions: 6-7/10"W x 10-4/10"L x 1-8/10"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.
NVX XKIT44
100% Copper, 4-Chan. True Spec 4 Gauge Amp Installation Kit w/RCA Interconnect & 60 ft Speaker Cable
Quantity: 1
Amplifier Kit Features:
- Complete 4 Gauge Amplifier Installation Kit
- Designed specifically for car audio systems up to 1000 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Direct-connect engineering
- Fewer connections for less signal distortion
- ANL/mini ANL Fuse holder offers ideal protection for high powered systems
- Envy-Flex cable and wire
- Full spec cable is true to gauge
- Strand Count: 1862
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's warranty
Kit includes:

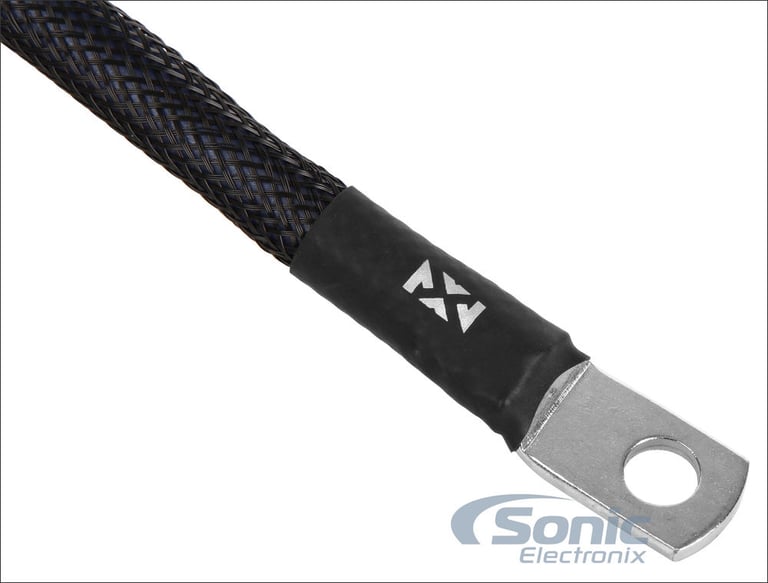

- 20 ft. (6.1 meters) Frosted Blue 4 gauge main power wire with seamless crimp ring terminal and 6 ft. expandable sleeving
- 3 ft. (.91 meters) Frosted Gray 4 gauge main ground wire with seamless crimp ring terminal
- One 16 ft. (5 meters) 4-channel twisted construction RCA interconnect Cable (NVX XIV45)
- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
- 60 ft. (18.29 meters) Frosted Black/Blue 16 gauge speaker wire

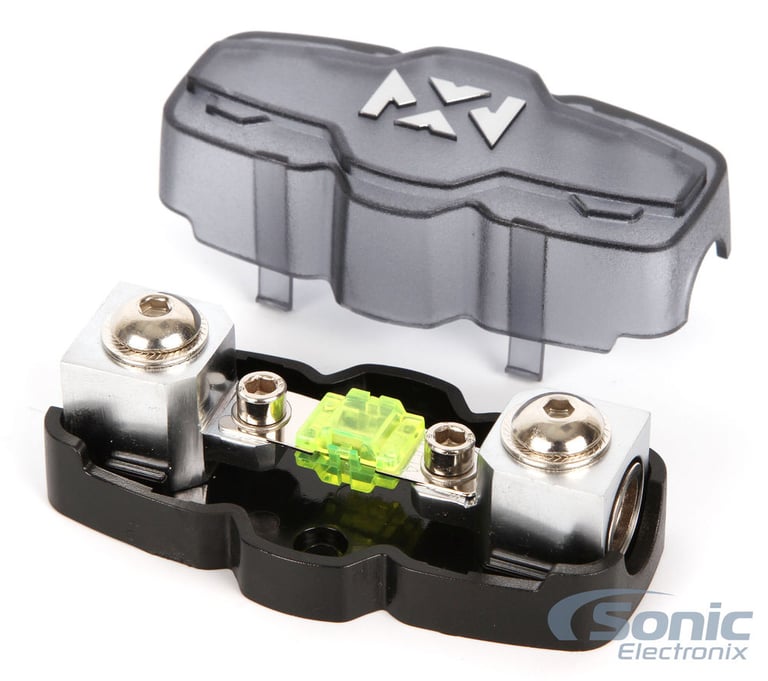

- One NVX XMANL04 ANL/Mini-ANL fuse holder with 100 amp Mini-ANL fuse
- One 1/2" black rubber firewall grommet
- Two black 4 gauge nickel-plated spade terminals
- Three blue 16 gauge spade lugs
- Four 16 gauge quick disconnects
- Two black 16 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 6" black zip ties
