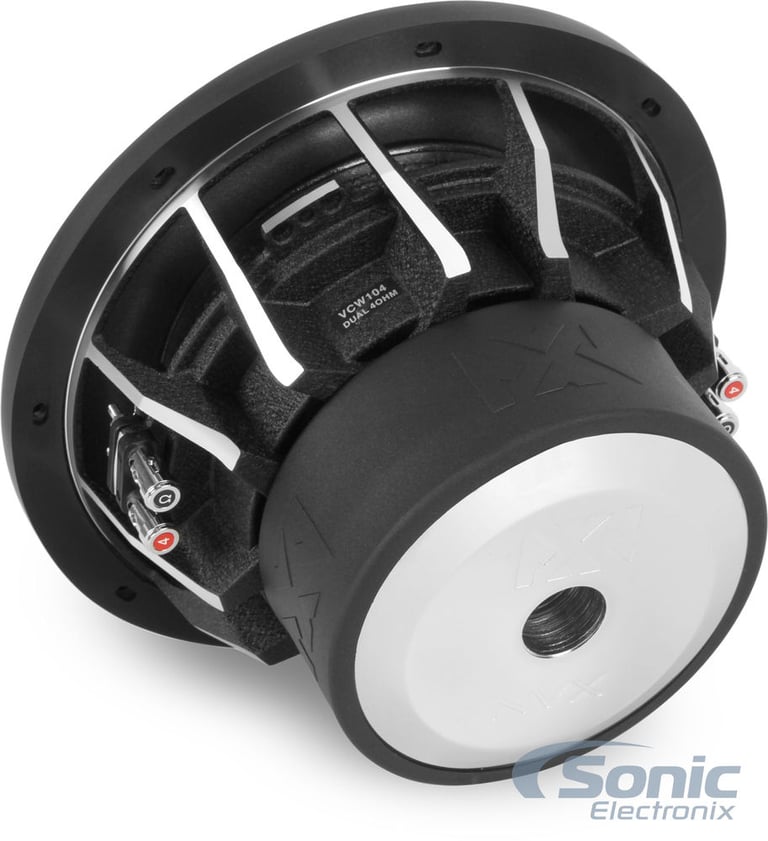

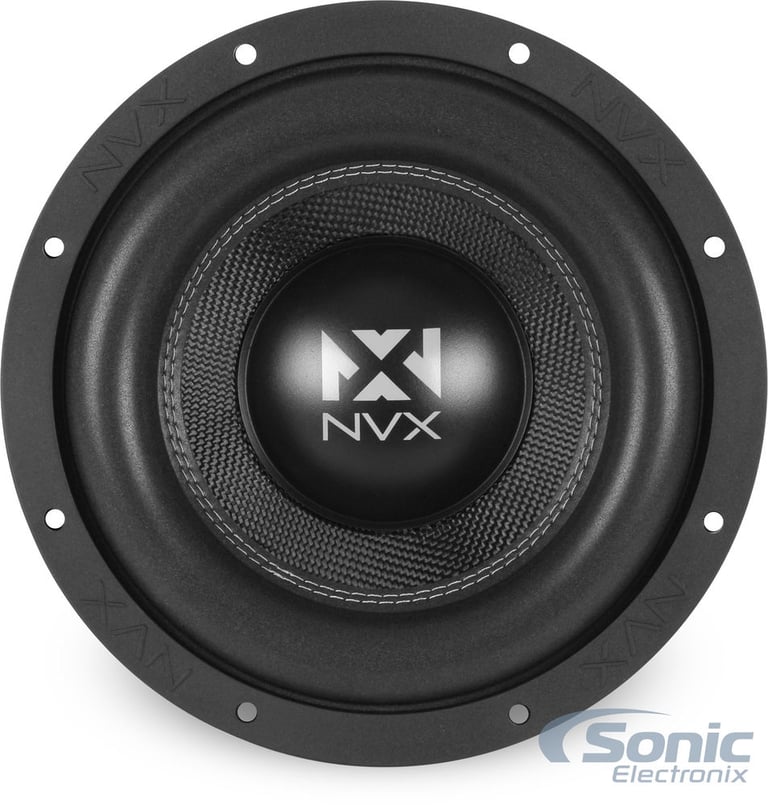

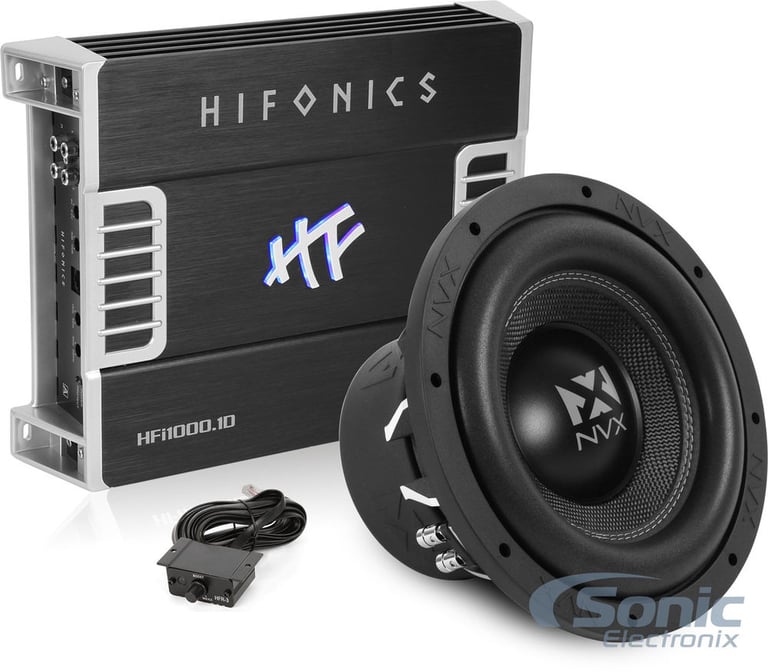

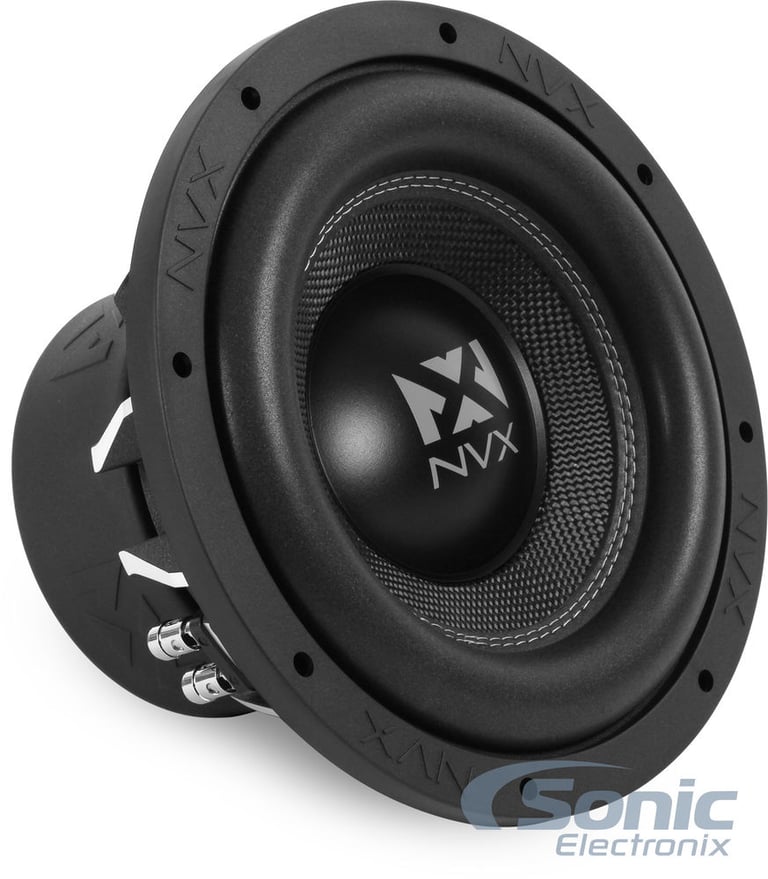

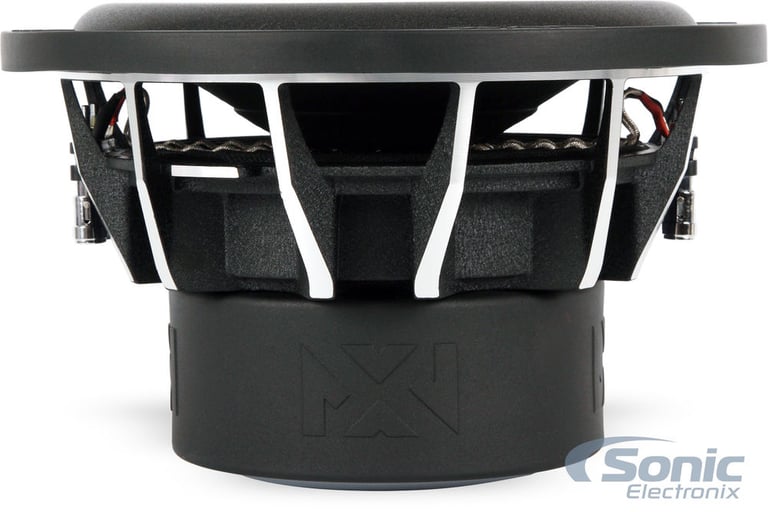

NVX VCW104
750W 10" VC-Series Dual 4-ohm Car Subwoofer
Quantity: 1
General Features:
- 10" Dual 4-ohm VC-Series Car Subwoofer
- Power Handling:
- RMS Power Range: 600-750 watts
- Impedance: Dual 4 ohm
- 2 ohm final load, when wired in Parallel

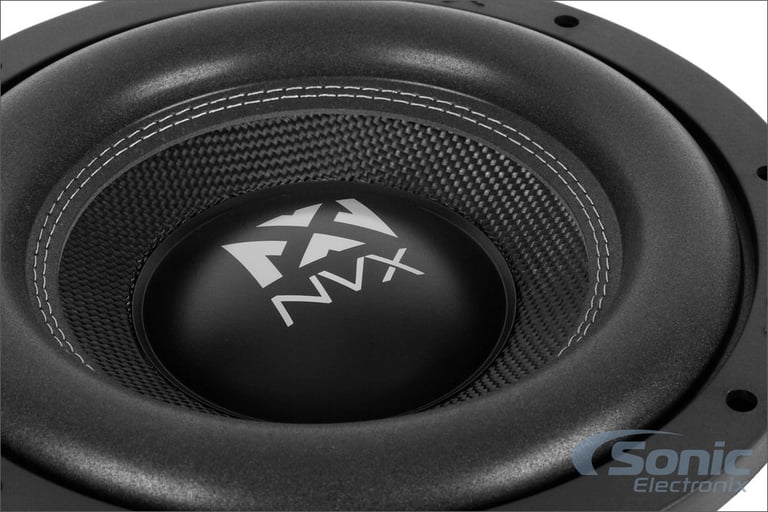

- Pressed paper cone with woven fiber top
- Custom High Roll Foam Surround with Nylon Stitching
- Heavy Duty Die Cast aluminum basket for maximum rigidity
- Dual Poly-Cotton Spiders
- 2.5" High Temperature Aluminum Voice coil
- 127oz. Triple stacked Ferite magnet motor structure with protective rubber boot
- Frequency response: 20-220 Hz
- Resonance Frequency (Fs): 31 Hz
- Optimal sealed box volume: .65 cubic feet
- Optimal ported box volume: 1.0 cubic feet
- Top-mount depth: 6"
- Sensitivity: 83dB
- NVX VCW10GR protective subwoofer grill available (Sold Separately)
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty

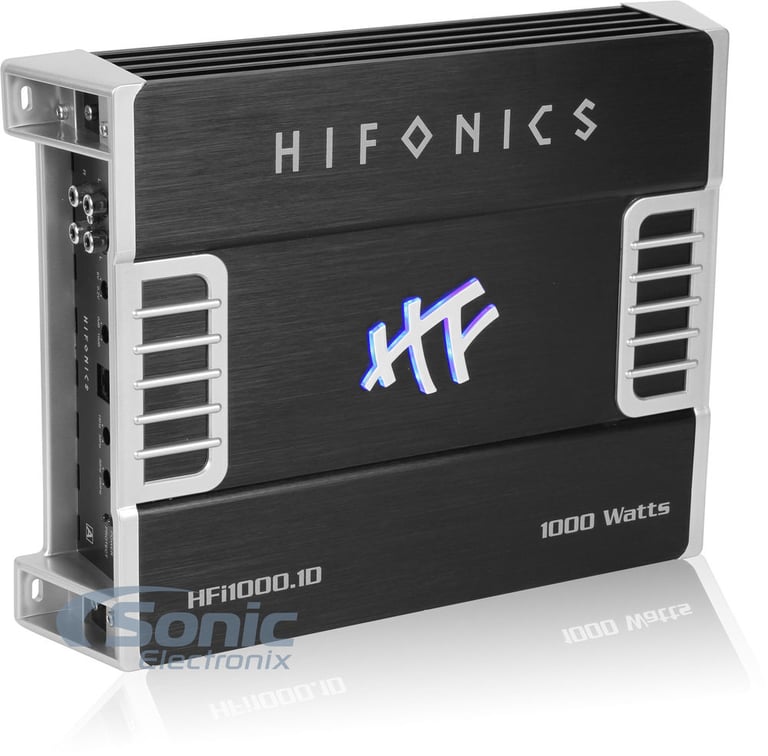

Hifonics HFi1000.1D
1000W RMS Class D Monoblock HFi Series Amplifier
Quantity: 1
|
General Features:
- HFi Series Single Channel Monoblock Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 475 watts x 1 chan.
- 2 ohm: 750 watts x 1 chan.
- 1 ohm: 1000 watts x 1 chan.
- Pulse Width Modulated (PWM) MOSFET power supply
- LED power (green) and protect (red) indicators

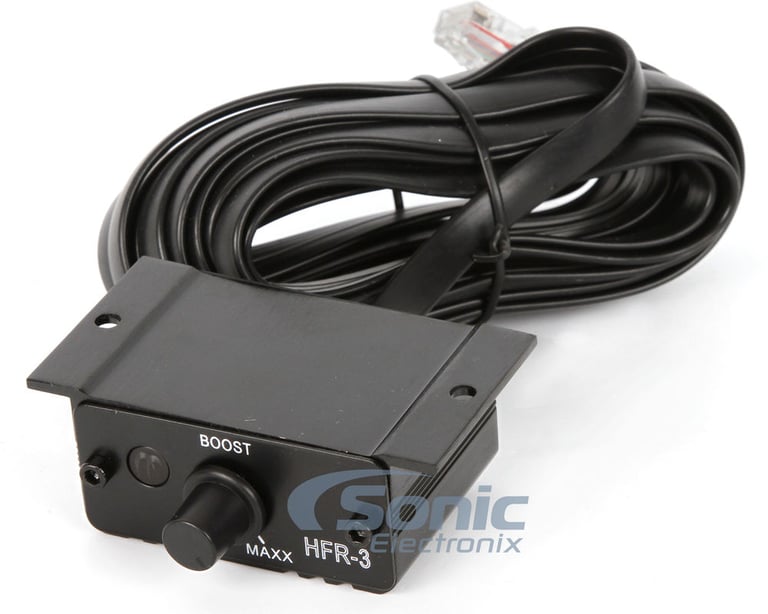

- Wired HFR-3 remote bass level control included
- Blue illuminated Hifonics badge
- Soft start sound function

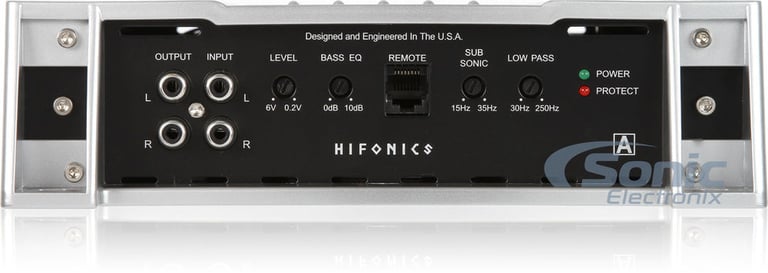

- Preamp RCA outputs to daisy chain multiple amps
- 4-Way System Protection circuitry (thermal, overload, DC, and speaker short protection)

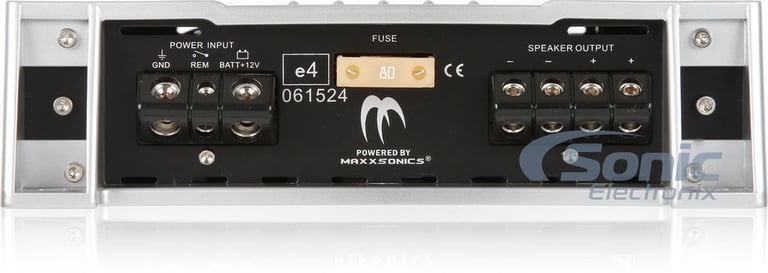

- Dual 12 gauge speaker output terminals simplify hookup
- Heavy duty aluminum alloy vented heatsink for maximum heat dissipation
- Silver nickle-plated RCA level inputs
- Silver nickle-plated screw terminals
- Four corner mounting ear tabs
- Input sensitivity: 200mV - 6V
- Frequency Response: 15 - 250 Hz
- THD and Noise: <0.1
- Signal to Noise Ration: >95 dB
- Damping factor: >200
- Variable low-pass filter: 30 - 250 Hz, 24 dB/octave
- Subsonic filter: 15 - 35 Hz
- Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz
- Fuse Rating: 80A x 1
- 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 13-1/2"L x 8-13/16"W x 2-7/16"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
