Pioneer AVH-280BT

Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo with 6.2" Touchscreen Display iPod/iPhone Control and Auxiliary USB & 3.5mm Inputs

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• Built-in Bluetooth technology for hands-free talking and audio streaming
• 2 Sets of 2V Preamp Outputs
• 5-band graphic equalizer
• Compatible with Apple iPhone 6/6+ and iOS 8+ software
• 6.2" TFT Active Matrix Driving Display

Learn more about the avh280bt

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

avh211ex thumbnail

Pioneer AVH-211EX

OUR PRICE: $219.99

View item

Loading...
PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

49ST9MR8 main

Kicker ST9MR8 (49ST9MR8)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 8-ohm Speakers

-9.09%

$199.99

List price $219.99

220-US2-C65A-150 main

SSV Works US2-C65A-150

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

220-US2-C65A-200 main

SSV Works US2-C8A-200

Loaded 8" Cage-Mount Speaker-Pods Enclosure with SSV Works Speakers

Pioneer TS-X210

200W Peak (100W RMS) 5.25" 3-way 4-ohm Surface Mount Coaxial Car Speakers

1
-15.79%

$159.99

List price $190.00

Product Highlights


• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• Built-in Bluetooth technology for hands-free talking and audio streaming
• 2 Sets of 2V Preamp Outputs
• 5-band graphic equalizer
• Compatible with Apple iPhone 6/6+ and iOS 8+ software
• 6.2" TFT Active Matrix Driving Display

Description


Pioneer brand icon

Authorized dealer

AVH-X Headunits: Preview at CES 2016
















General Features:

  • Pioneer AVH-280BT In-Dash A/V Receiver

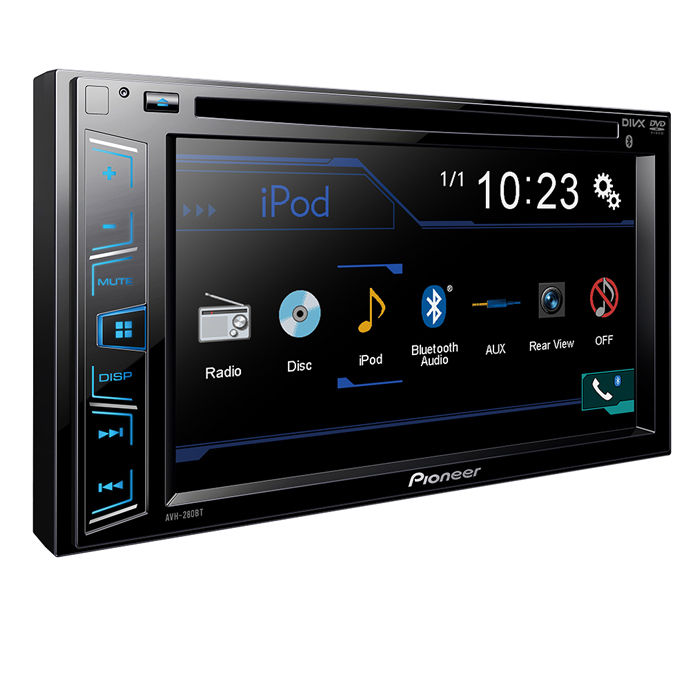

  • Features the responsive, powerful and intuitive NEX user interface
  • Improved, Clear Resistive Touchscreen
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels, 5% THD
    • CEA2006: 14 watts x 4 channels, <1% THD
  • AM/FM RDS tuner with 18FM/6AM presets
  • MP3 ID3 Tag Display (Title/Artist/Album)

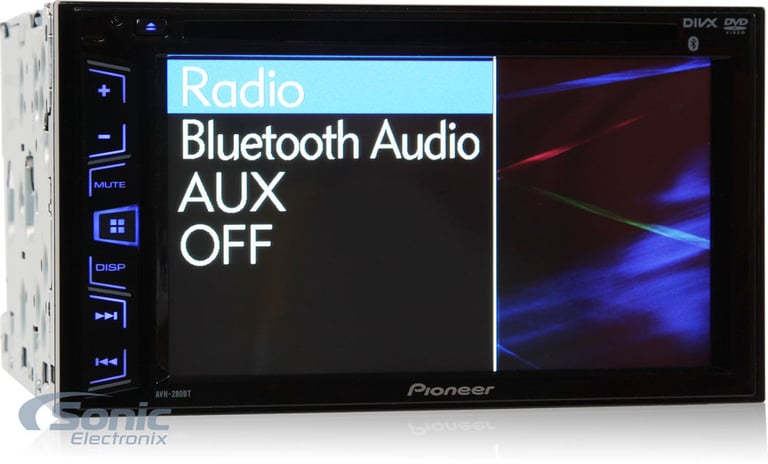

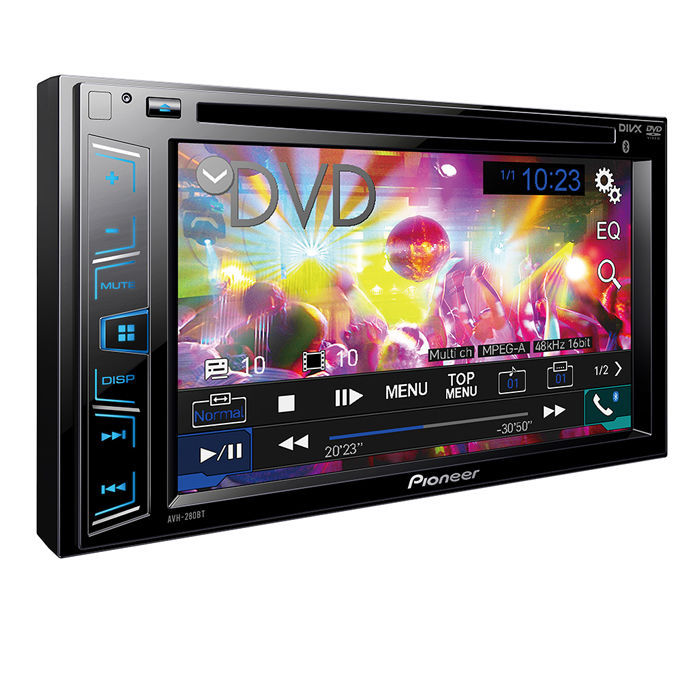

  • 6.2" TFT Active Matrix Driving Display
  • On/Off Dimmer Setting & Brightness Control
  • Resolution: WVGA, 800 x 480
  • Signal to Noise Ratio: 91dBA
  • Dimensions: 7" W x 3-7/8" H x 6-1/2" D
  • 1-year Sonic Electronix Warranty

Playback and Audio Features:

  • Android Audio integration via Bluetooth
    • Devices with Ice Cream, Jelly Bean, Kit Kat or newer operating systems are not supported through the USB (Charge Only) , must connect via Bluetooth
  • Compatible with Apple iPhone 6/6+ and iOS 8+ software
    Review manual for details
    • iPod/iPhone with Lightning Connector requires standard USB to Apple Lightning connector
    • iPod/iPhone with 30-Pin Connector requires Pioneer CD-IU201V
      • The Pioneer CD-IU201V will take up both the 3.5mm Input and USB Input
      • Available Sources: Audio & Video
  • 24-bit Digital to Analog Converter
  • 3.5mm Rear A/V Auxiliary Input

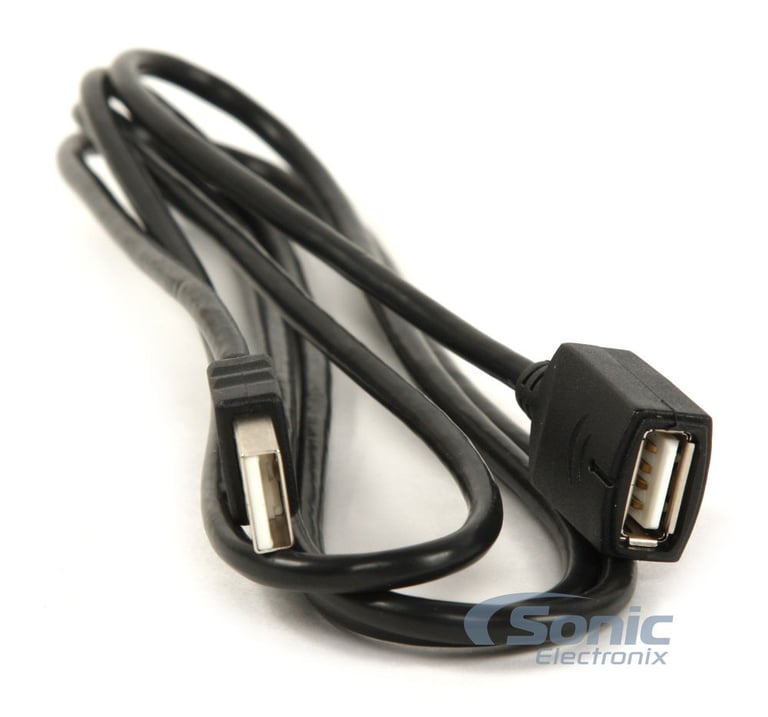

  • Rear USB Input
  • CD/CD-R/RW, MP3/WMA/AAC/WAV and AVI/WMV Playback
  • 7 preset equalizer curves: S.Bass / Powerful / Natural / Vocal / Flat / Custom 1 / Custom 2
  • 5-band graphic equalizer
    • ±12 dB Gain at 100Hz / 315Hz / 1.25 kHz / 3.15 kHz / 8 kHz
  • Selectable-Point High-pass Filter and Low-pass Filter
    • HPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz, 12 dB/octave
    • LPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz, 18 dB/octave
    • +6 dB to -24 dB variable gain
  • Selectable Phase: Normal / Reverse
  • Variable Bass Boost: 0 - +12 dB
  • 2 Sets of 2V preamp outputs (front, rear/subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 3.0 +EDR certified
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SSP: Secure Simple Pairing, this improves the pairing experience for Bluetooth devices, while increasing the use and strength of security.
  • Works with most Bluetooth enabled cell phones

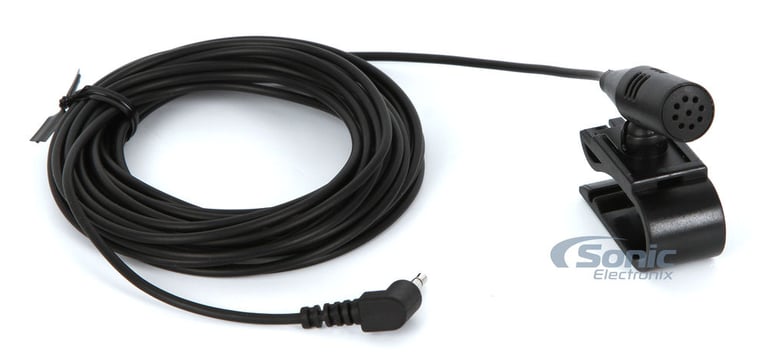

  • Includes an external wired microphone for clear, convenient, distortion-free talking

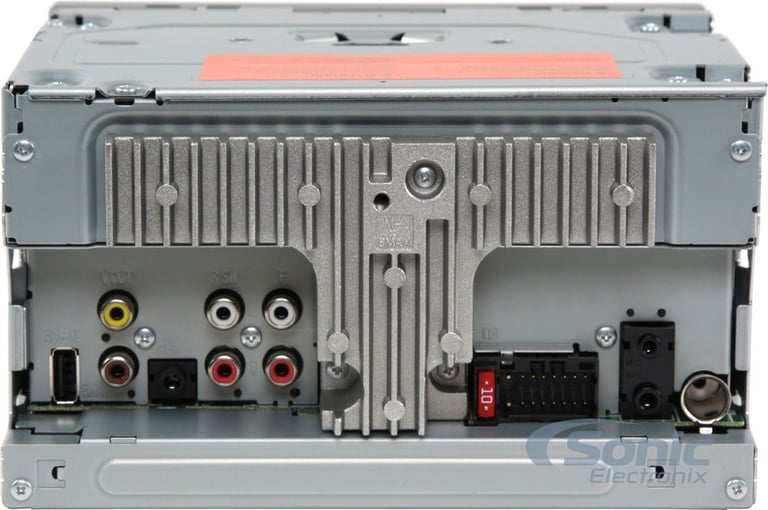

Expandability Options:

  • Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
  • Rear RCA Video Output: Used for connection to separate monitors and other devices


Check out the Pioneer AVH-280BT User Manual



Product history:

Pioneer AVH-211EX thumbnail
(newest, current model)
Pioneer AVH-210EX thumbnail
(previous model, replaced by Pioneer AVH-211EX)
Pioneer AVH-200EX thumbnail
(previous model, replaced by Pioneer AVH-210EX (Ships as AVH-211EX))
Pioneer AVH-290BT thumbnail
(previous model, replaced by Pioneer AVH-200EX)
Pioneer AVH-280BT thumbnail
(previous model, replaced by Pioneer AVH-290BT)
Pioneer AVH-270BT thumbnail
(previous model, replaced by Pioneer AVH-280BT)

Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(3)

$349.99

List price $420.00

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

DMH-W4660NEX small

Pioneer DMH-W4660NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Wired and Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

(2)

$599.99

List price $750.00

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

RB10TUN14 small

Stinger HEIGH10 - RB10TUN14 for 2014-2021 Tundra

• 10.1" Single DIN and Double DIN In-Dash Digital Multimedia Receiver
• Compatible with select 2014-2025 Tundra and Tundra i-Force Max
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• iGo Navigation System-ready (Optional)
• 3 sets of 4 volts preamp outputs
• 15 Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Wireless streaming audio with aptX for better sound quality

$999.00

List price $999.00

CV15BT small

Cerwin-Vega CV15BT

• Single DIN Bluetooth Digital Media Receiver
• Digital LED Backlit Display
• USB/SD/AUX Input
• Three sets of 5 volts preamp outputs
• Multiple Preset EQ

(3)

$69.99

List price $69.99

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
No
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Dedicated Subwoofer Preamp RCA Output
No
Preamp Voltage
2 volts
Built-In Equalizer
5-Band
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
6.2"
Display Adjustment
Brightness
Color
Contrast
Dimmer
Hue
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Expandability Features
Inputs
Audio/Video (Rear)
Backup Camera
Outputs
Composite Video (RCA)
Steering Wheel Control Compatible
DO NOT USE - Universal (Accessory required and sold separately)
  • PAC SWI-CP5: PAC ControlPRO Universal Steering Wheel Control Interface
  • Axxess ASWC-1: Axxess ASWC-1 Universal Steering Wheel Control Interface
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

AVH-280BT

Weight:

8.00lbs

Internal SKU:

avh280bt

Internal Product ID:

100175

Product and How-to Videos


Customer Ratings & Reviews


Pioneer AVH-280BT thumbnail image

5 star
70%
4 star
20%
3 star
5%
2 star
5%
1 star
0%



Durability
4.7
Value
4.5
Features
4.5
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

good value

As advertised, and has the features I wanted. I don't need all of the other stuff that comes with the more expensive units.

By Michael R. on November 7, 2016

5 found this helpful


Very pleased!

Good product, good price. Had a problem with installation, contacted Sonic and they promptl helped me fix MY mistake over the phone. Looking to buy another for different vehicle in the future.

By J.D. on March 3, 2017

3 found this helpful


its ok

the stereo looks good and operates ok but i don't like how it has a delay on turning off and the instructions dont tell you what wire is the aux off. the bluetooth is great but wish it would also show the clock when on the phone

By BRIAN on December 19, 2016 Checkmark Icon Verified purchase
2008 Hummer H3

3 found this helpful


Great radio

Bluetooth has worked flawlessly. Great sound. Only complaints is it has a basic eq and it would be nice to be able to change the background image. Otherwise we'll worth the money.

By Scott on November 11, 2016

2 found this helpful


Great product

I would recommend this product to all of my friends

By Rodney on May 29, 2016

2 found this helpful


Pioneer head unit.

Pioneer is a great manufacturer,you cant go wrong with any of their head units,you get what you pay for,high quality here.

By Anonymous on September 12, 2018 Checkmark Icon Verified purchase
2006 Pontiac G6

1 found this helpful


Happy!

I'm very happy with this product, it's just what I wanted. Bluetooth for phone and music works great. And I want one that displays what your listening too. Installation was fairly simple, I did have to do a little trimming on the face plate for the stereo to fit. I also used the backup camera feature which is ok. The display is a bit busy but easy enough to maneuver through. Screw was missing for back glide support. All in all very happy.

By Gary on December 14, 2016

1 found this helpful


upgraded radio

This radio is worth every dollar I paid for it!!! I have no complaints. All I wanted was more volume and I got way more. The bluetooth is clear when I use it. I don't sound like I am in a tunnel or even get any feedback. I also like the easy access screen. It is not difficult to use especially when you are driving. I would definitely recommend this product to anyone who is looking to upgrade.

By John on March 7, 2017

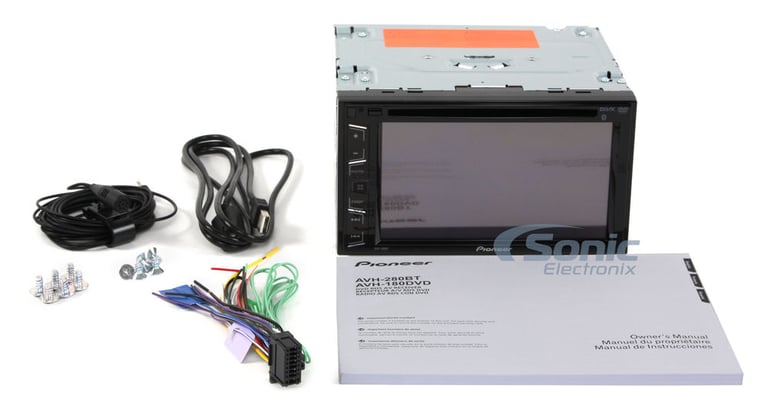

PIoneer AVH-280BT

Very pleased with product , easy install and very good user manual

By Donald on February 11, 2017


Great!

I would recommend, used it to replace my factory stereo in my 2006 Mustang GT, Fit great and installed easily.

By Lee on November 14, 2016




A-RMX500 small

Warrantech XchangeCard A-RMX500

Consumer Electronics $401-$500: 1-year Replacement Warranty Plan

$54.99

List price $69.99

KMRD382-73W small

Kenwood KMR-D382BT with KFC-1673MRWL

Single-DIN In-Dash CD Marine Multimedia Receiver with Bluetooth (Sirius XM Ready) + 6.5" Marine Coaxial Speakers

(1)

$319.00

List price $500.00

No picture

Pioneer AVH-X3800BHS - Open Box, Good Condition (Used)

Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo with 6.2" Touchscreen Display, Dual Camera Input and Built-in HD Radio Open Box Complete (Good, Used)

$179.99

List price $400.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1973 Volvo 142

2007 Saturn Vue

2013 Chevrolet Spark

2020 Kia Stinger

2010 Acura MDX

2016 Mitsubishi Lancer

1987 Buick Electra

2009 Dodge Durango

2007 Kia Spectra5

2004 Toyota Matrix

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
