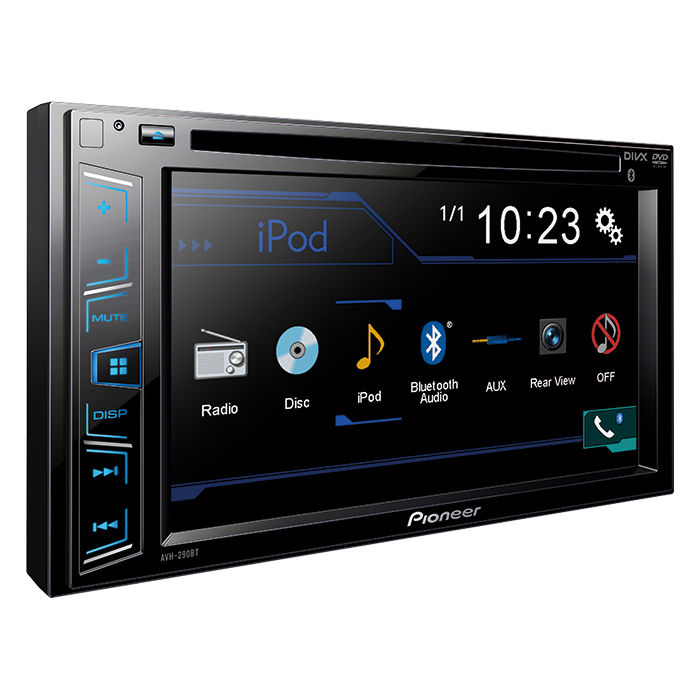

Pioneer AVH-290BT

Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo w/ 6.2" WVGA Display

Pioneer
Shop all Pioneer
highlight-star-icon

• Built-in Bluetooth technology for hands-free talking and audio streaming
• 5-band graphic equalizer
• 6.2" TFT Active Matrix Driving Display
• 3.5mm Rear A/V Auxiliary Input
• Compatible with Apple iPhone/iPods
• CEA-2006 compliant amplifier

Learn more about the avh290bt

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

avh211ex thumbnail

Pioneer AVH-211EX

OUR PRICE: $219.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Description


Pioneer brand icon

Authorized dealer












Product Details:

  • Pioneer AVH-290BT In-Dash A/V Receiver
  • Power Handling:

    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels, 5% THD
    • CEA 2006: 14 watts x 4 channels, <1% THD
  • Features the responsive, powerful and intuitive NEX user interface
  • CEA-2006 compliant amplifier
  • AM/FM RDS tuner with 18FM/6AM presets
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 6.2" TFT Active Matrix Driving Display
  • On/Off Dimmer Setting & Brightness Control
  • Resolution: WVGA, 800 x 400
  • Signal to Noise Ratio: 72 dB
  • Dimensions: 7" W x 3-7/8" H x 6-1/2" D
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • Compatible with Apple iPhone 6/6+ and iOS 8+ software
    Review manual for details
    • iPod/iPhone with Lightning Connector requires standard USB to Apple Lightning connector
    • iPod/iPhone with 30-Pin Connector requires Pioneer CD-IU201V
      • The Pioneer CD-IU201V will take up both the 3.5mm Input and USB Input
      • Available Sources: Audio & Video
  • 24-bit Digital to Analog Converter
  • 3.5mm Rear A/V Auxiliary Input
  • Rear USB Input
  • CD/CD-R/RW, MP3/WMA/AAC/WAV and AVI/WMV Playback

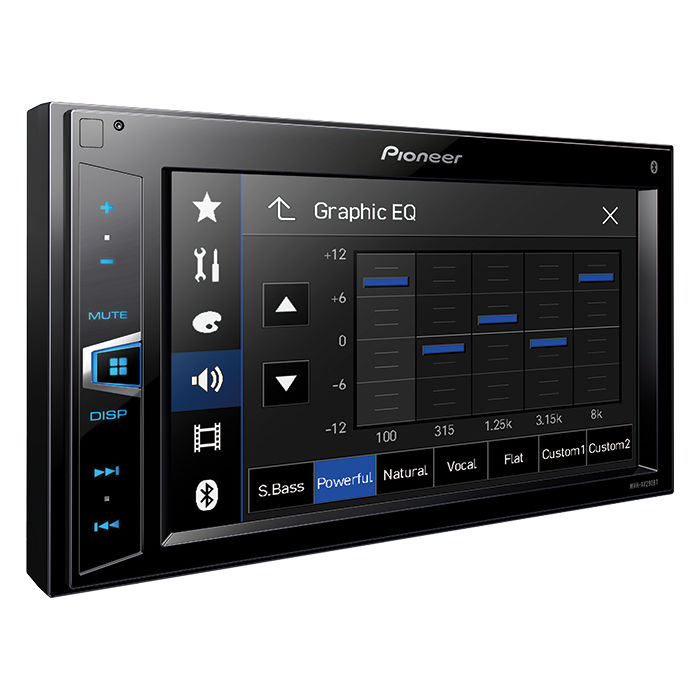

  • 7 preset equalizer curves: S.Bass / Powerful / Natural / Vocal / Flat / Custom 1 / Custom 2
  • 5-band graphic equalizer
    • ±12 dB Gain at 100Hz / 315Hz / 1.25 kHz / 3.15 kHz / 8 kHz
  • Selectable-Point High-pass Filter and Low-pass Filter
    • HPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz, 12 dB/octave
    • LPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz, 18 dB/octave
    • +6 dB to -24 dB variable gain
  • Selectable Phase: Normal / Reverse
  • Variable Bass Boost: 0 - +12 dB

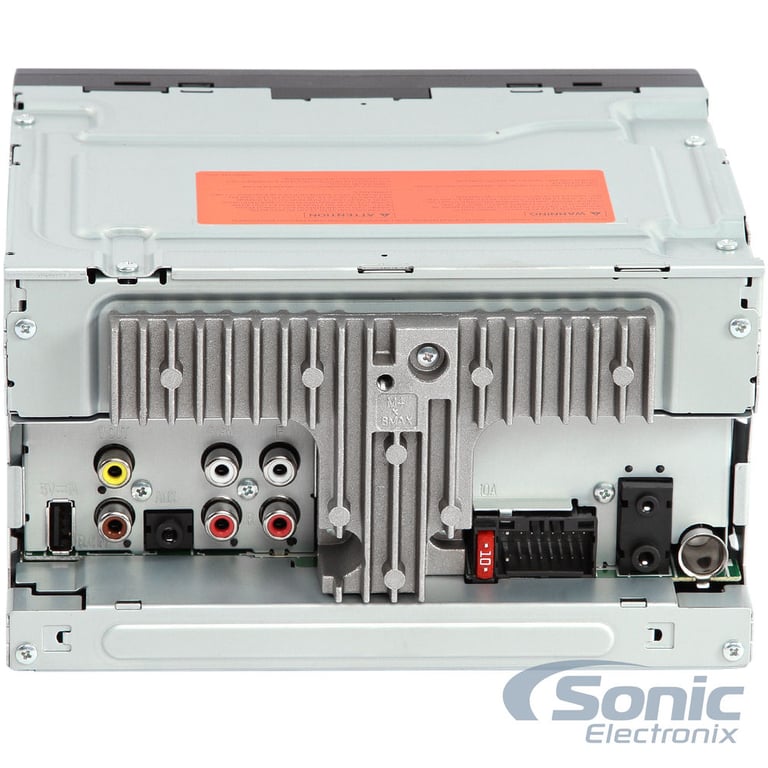

  • 2 Sets of 2V preamp outputs (front, rear/subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • Works with most Bluetooth enabled cell phones
  • Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

  • Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input.
  • Rear RCA Video Output: Used for connection to separate monitors and other devices


Product history:

Pioneer AVH-211EX thumbnail
(newest, current model)
Pioneer AVH-210EX thumbnail
(previous model, replaced by Pioneer AVH-211EX)
Pioneer AVH-200EX thumbnail
(previous model, replaced by Pioneer AVH-210EX (Ships as AVH-211EX))
Pioneer AVH-290BT thumbnail
(previous model, replaced by Pioneer AVH-200EX)
Pioneer AVH-280BT thumbnail
(previous model, replaced by Pioneer AVH-290BT)
Pioneer AVH-270BT thumbnail
(previous model, replaced by Pioneer AVH-280BT)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(3)

$339.99

List price $420.00

DMH-W3050NEX small

Pioneer DMH-W3050NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Amazon Alexa
• 3 sets of 4 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatibility
• Built-in Wi-fi

(1)

$469.99

List price $620.00

DMX709S small

Kenwood eXcelon DMX709S

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• Short chassis for flexible installation

(20)

$399.00

List price $600.00

iLX-W670-M small

Alpine iLX-W670-M

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.75" Capacitive Touchscreen Display Display
• Wired Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Correction
• SiriusXM Satellite Radio Ready
• iDataLink Maestro compatible

(2)

$349.95

List price $500.00

DMH-241EX small

Pioneer DMH-241EX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.2" Resistive Touchscreen Display
• Apple and Android compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Graphic Equalizer
• Pandora and Spotify capable via Bluetooth

(20)

$194.99

List price $300.00

XAV-AX3200 small

Sony XAV-AX3200

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.95" TFT Active Matrix Display
• Apple CarPlay and Android Auto Compatible
• Mirror Android or iOS device via WebLink Cast
• 3 sets of 2 volts preamp outputs
• 10-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

(15)

$298.00

List price $399.99

DMX809S small

Kenwood eXcelon DMX809S

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.75" WVGA Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer
• SiriusXM Satellite Radio Ready

(11)

$499.00

List price $800.00

DMX4710S small

Kenwood DMX4710S

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2.5 volts preamp outputs
• 13 Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Ready

(2)

$299.00

List price $480.00

KW-V660BT small

JVC KW-V660BT

• Double DIN Bluetooth CD/DVD Multimedia Receiver
• 6.8" Capacitive Touchscreen Display Display
• Apple CarPlay and Android Auto Compatible
• Screen mirroring features for iPhone and Android
• 3 sets of 2 volts preamp outputs
• 13-Band Graphic Equalizer with 7 Selectable Presets
• SiriusXM Satellite Radio Ready

(10)

$399.00

List price $479.00

Specifications & Details


Key Features
Key Features
USB input
Touchscreen
In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Wireless Remote
No
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Dedicated Subwoofer Preamp RCA Output
No
Preamp Voltage
2 volts
Built-In Equalizer
5-Band
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
6.2"
Display Adjustment
Brightness
Color
Contrast
Dimmer
Hue
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Expandability Features
Inputs
Audio/Video (Rear)
Backup Camera
Outputs
Composite Video (RCA)
Steering Wheel Control Compatible
DO NOT USE - Universal (Accessory required and sold separately)
  • PAC SWI-CP5: PAC ControlPRO Universal Steering Wheel Control Interface
  • Axxess ASWC-1: Axxess ASWC-1 Universal Steering Wheel Control Interface
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AVH-290BT

Weight:

6.00lbs

Internal SKU:

avh290bt

Internal Product ID:

124991

Customer Ratings & Reviews


Pioneer AVH-290BT thumbnail image

5 star
73%
4 star
18%
3 star
3%
2 star
0%
1 star
6%



Durability
4.9
Value
4.8
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Excellent value

Great value with the package deal. Also had a promo code. Got everything I needed to install in a all in one package. Great deal!!

By Anonymous on August 8, 2018

2 found this helpful


Great sound great value!

This is a really nice head unit for the money

By Anonymous on August 6, 2018

2 found this helpful


Great value and stereo

Bought this nice deck for my 2002 Dodge Ram 2500 has it custom installed

By Jean on January 3, 2018 Checkmark Icon Verified purchase

2 found this helpful


By Andrew on September 15, 2024 Checkmark Icon Verified purchase

1 found this helpful


Great value

A lot of bang for your buck out of a double din. Very easy to install and easy to set sound how you want it.

By Anonymous on August 6, 2019

1 found this helpful


Awesome product

I would recommend this item because it has everything that I need attached to it.

By Anonymous on June 24, 2019

1 found this helpful

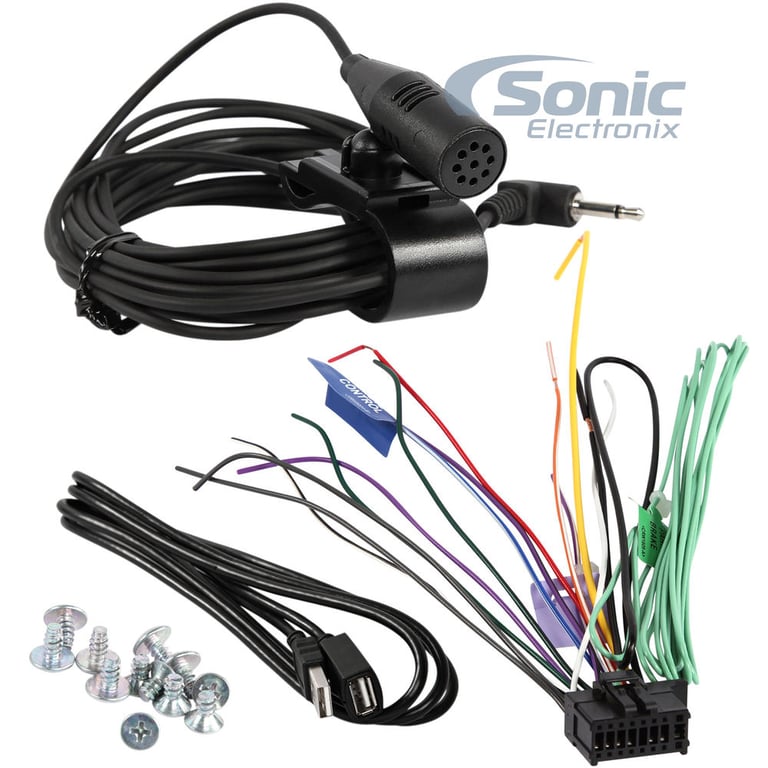

Pioneer AVH-290BT (FREE upgrade to AVH-200EX)

It's a great sounding stereo DVD sound could be much better or I'm not setting the EQ right. Also how do I clear out the bluetooth system

By Anonymous on August 31, 2018

1 found this helpful


Great product for the price.

Very easy install.Great playing and easy to use.Nice display.

By Ray on April 3, 2018

1 found this helpful


Great product

I'm buying another one for my truck you can get everything you need plug and play keep your installation money

By Shawn on March 28, 2018

1 found this helpful


Great value

Came with everything to install which I was able to do myself. Great price for equipment

By Chris on March 10, 2018

1 found this helpful




CK3100LCD_KIT_7550 small

Parrot CK3100 LCD KIT 7550

Voice Activated Hands-Free Car Kit for Select Nissan Vehicles

(1)

$167.98

List price $269.98

02-09-CHEVY-TRAILBLAZE-SALP small

Alpine E Series Factory Speaker Upgrade Package

Fits select 2002-2009 TrailBlazer

(6)

$198.86

List price $243.96

AQTB8 small

Lanzar AQTB8

8" 1000W Marine Slim Subwoofer System Low-Profile Bass Add-On

(1)

$144.99

List price $299.99

No picture

Ground Shaker XL 2 6X9-BLACK

$49.95

List price $89.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 BMW M3

2009 Nissan Pathfinder

1983 Ford F-150

2014 Mazda 3

Vehicle
Store
Delete

1988 BMW K1

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
