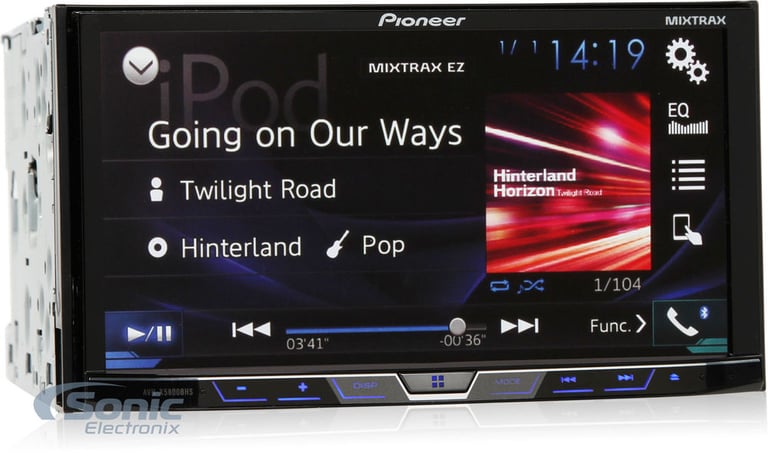

Pioneer AVH-X5800BHS - Open Box, Good Condition (Used)

Double DIN Bluetooth In-Dash DVD/CD/AM/FM Car Stereo with 7" Touchscreen Display, Dual Camera Input and Built-in HD Radio Open Box Complete (Good, Used)

Pioneer
Shop all Pioneer
highlight-star-icon

• Item Condition - Good, Used
• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
& bull; Built-in Bluetooth, Dual Camera Input & HD Radio
• 3 Sets of 4V Preamp Outputs
• 13-band graphic equalizer
• Pioneer AppRadio One: view and control compatible iPhone and Android smartphone apps
• Spotify & Pandora control for select mobile devices
• Compatible with Apple iPhone 6/6+ and iOS 8+ software
• 7" TFT Active Matrix Driving Display

Learn more about the LS-avhx5800bhs-OBC5

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Open Box, Good Condition:
A Good Open Box used product shows wear from consistent use, but it remains in good condition and works perfectly. It may be marked, have identifying markings on it, or show other signs of previous use or installation. Original packaging, paperwork or protective wrapping may be missing or not included in its entirety. Warranty details are included in the item description or comments.

AVH-X Headunits: Preview at CES 2016


























General Features:

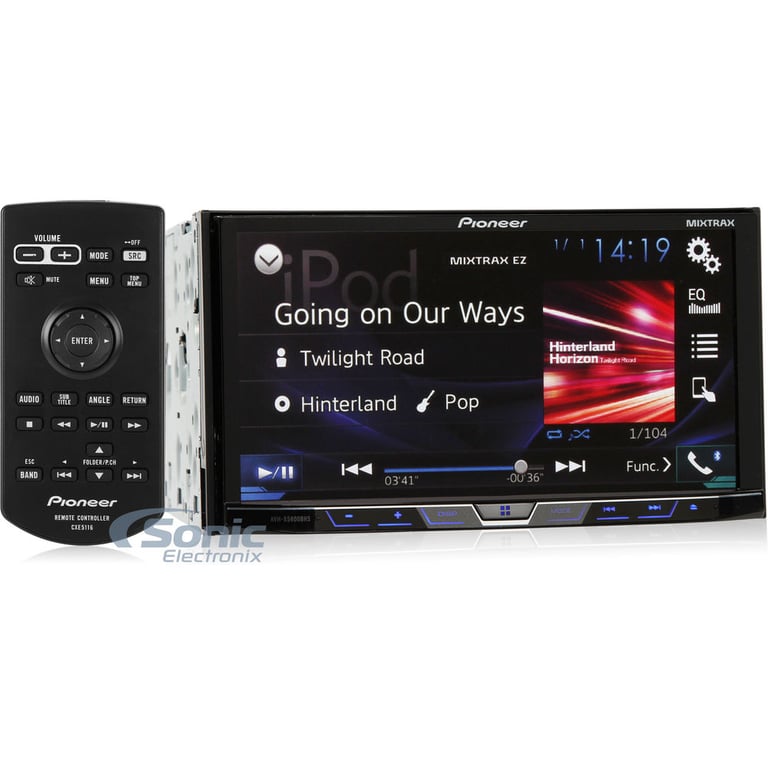

  • Pioneer AVH-X5800BHS In-Dash A/V Receiver

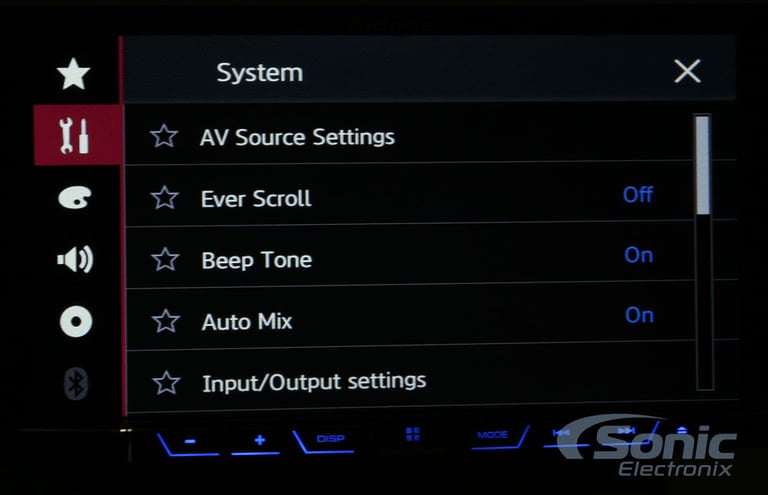

  • Features the responsive, powerful and intuitive NEX user interface
  • Improved, Clear Resistive Touchscreen
  • Dual Bluetooth connection allows for two phones to be connected simultaneously
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels, 5% THD
    • CEA2006: 14 watts x 4 channels, <1% THD
  • AM/FM RDS tuner with 18FM/6AM presets
  • MP3 ID3 Tag Display (Title/Artist/Album)

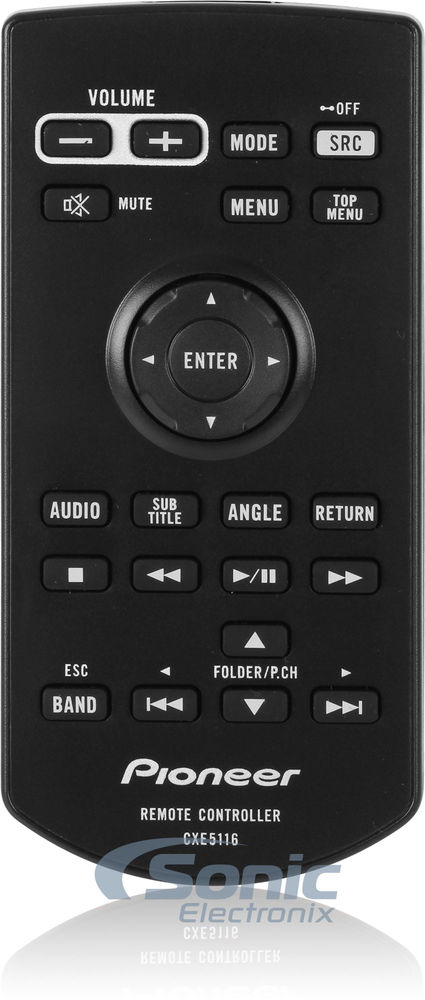

  • Remote control included
  • 7" TFT Active Matrix Driving Display
  • On/Off Dimmer Setting & Brightness Control
  • Variable button/key color illumination

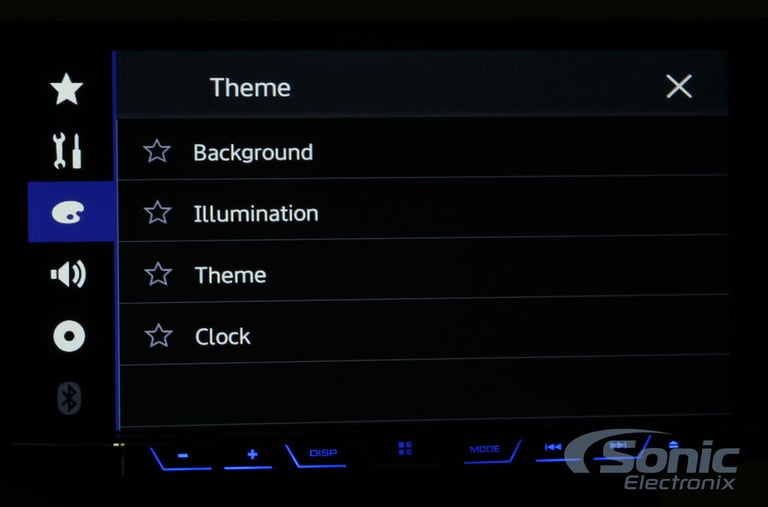

  • 13 Background, splash screen displays
  • Home screen shortcuts customization
  • Resolution: WVGA, 800 x 480
  • Signal to Noise Ratio: 91dBA
  • Dimensions: 7" W x 3-7/8" H x 6-1/2" D
  • 1-year Manufacturer's Warranty

Playback and Audio Features:

  • 24-bit Digital to Analog Converter
  • 3.5mm Rear A/V Auxiliary Input
  • Rear USB: FLAC/MP3WMA/AAC/WAV/H.264/MPEG4/JPEG
  • CD/CD-R/RW: MP3//WMA/AAC/DivX/MPEG1/MPEG2/MPEG4

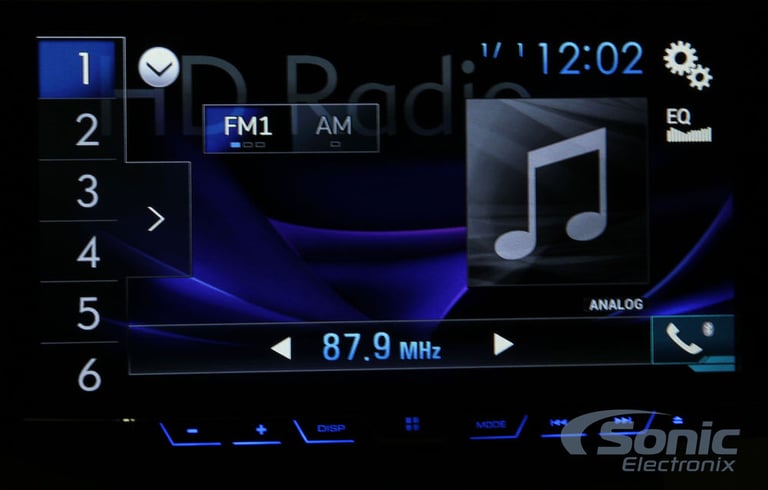

  • Built-in HD Radio w/ Artist experience® & Multicasting
  • Pioneer MIXTRAX creates a nonstop mix of your music library, with effects
  • Spotify control for select mobile devices
  • Pandora control and station presets for select mobile devices
  • Pioneer AppRadio One: view and control compatible iPhone and Android smartphone apps
  • FLAC file playback capability at up to 48 kHz/24 bit high resolution, via USB
  • Android Music Support
    • For Android devices running operating system 4.0 or later
    • Connect and listen to music stored on a device, without the need for an app
    • Made possible by using Media Transfer Protocol (MTP)
    • Access music via USB stored on an Android device and operate basic operations
    • Available Sources: Audio & AppRadioOne
      To use an Android Device for Control of Pandora and/or Spotify, consider the Pioneer AVH-X2800BS
  • Compatible with Apple iPhone 6/6+ and iOS 8+ software
    Review manual for details

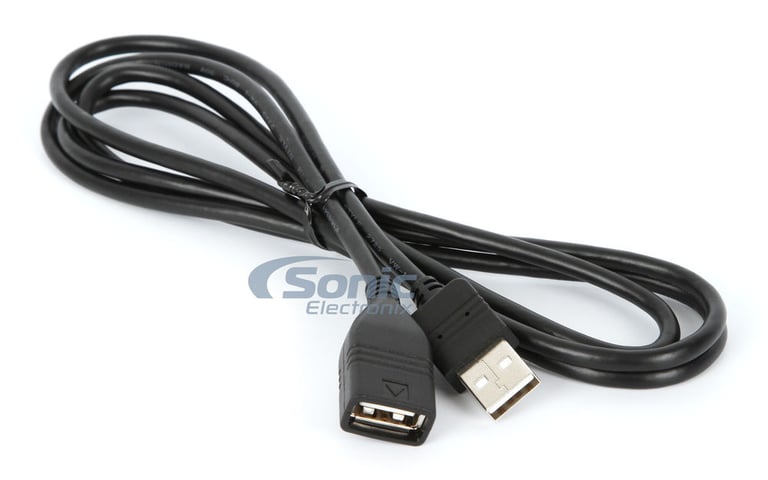

    • iPod/iPhone with Lightning Connector requires standard USB to Apple Lightning connector
    • iPod/iPhone with 30-Pin Connector requires Pioneer CD-IU201V
      • The Pioneer CD-IU201V will take up both the 3.5mm Input and USB Input
      • Available Sources: Audio, Video, Pandora, Spotify, and AppRadioOne
  • 7 preset equalizer curves: S.Bass / Powerful / Natural / Vocal / Flat / Custom 1 / Custom 2

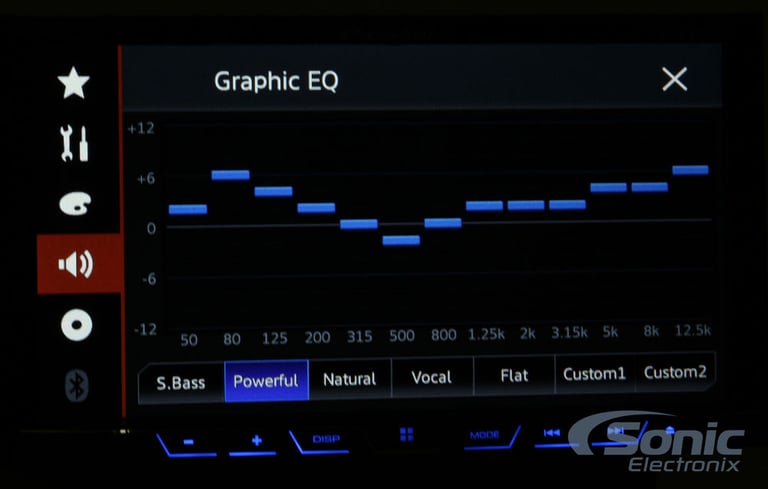

  • 13-band graphic equalizer
    • ±12 dB Gain at 50 Hz / 80 Hz / 125 Hz / 200 Hz / 315 Hz / 500 Hz / 800 Hz / 1.25 kHz / 2 kHz / 3.15 kHz / 5 kHz / 8 kHz / 12.5 kHz
  • Selectable-Point High-pass Filter and Low-pass Filter
    (Standard mode, see Manual for "Network Mode")
    • HPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz
    • LPF: 50 Hz / 63 Hz / 80 Hz / 100 Hz / 125 Hz / 160 Hz / 200 Hz
    • +10 dB to -24 dB variable gain
  • Selectable Crossover Slopes: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF
  • Selectable Phase: Normal / Reverse
  • Variable Bass Boost: 0 - +12 dB
  • Adjustable time alignment, subwoofer control and listening position selector
  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Siri® Eyes Free for iPhone® 4s or newer
  • Google Voice (VR) compatible for Android Devices
  • Bluetooth version 3.0 +EDR certified
  • Wideband Speech for double sampling frequency and bandwidth
  • Dual Bluetooth connection allows for two phones to be connected simultaneously
    • When two phones are connected, if an incoming call is received on the second phone while you are talking on the first, the dial confirmation screen for the second phone will be displayed.
    • If two phones are auto-connected, the phone book of the second phone is displayed
    • If two phones are auto-connected, Siri Eyes Free Mode will be set on the second phone
    • During a conversation, you can switch to private mode to talk directly on phone
      For off-road use
  • Works with most Bluetooth enabled cell phones

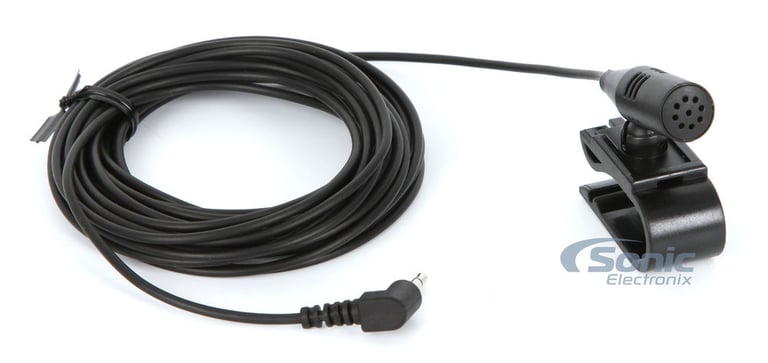

  • Includes an external wired microphone for clear, convenient, distortion-free talking
  • Bluetooth Profiles Supported:
    • HFP 1.6: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP 1.5: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SSP: Secure Simple Pairing, this improves the pairing experience for Bluetooth devices, while increasing the use and strength of security.
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications

Expandability Options:

  • Navigation Ready: Pioneer AVIC-U260 required, sold separately
  • SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required, sold separately
    • Tune Start & Tune Scan
    • Album-Art Display
  • Steering Wheel Control Ready: PAC ControlPRO or the Axxess ASWC-1 required and sold separately
  • Dual Camera Input
    • First Input to be Used for universal rear view cameras with an RCA composite input.
    • Second camera can be selectable to another location on the vehicle for additional assistance for driving, towing, or parking.

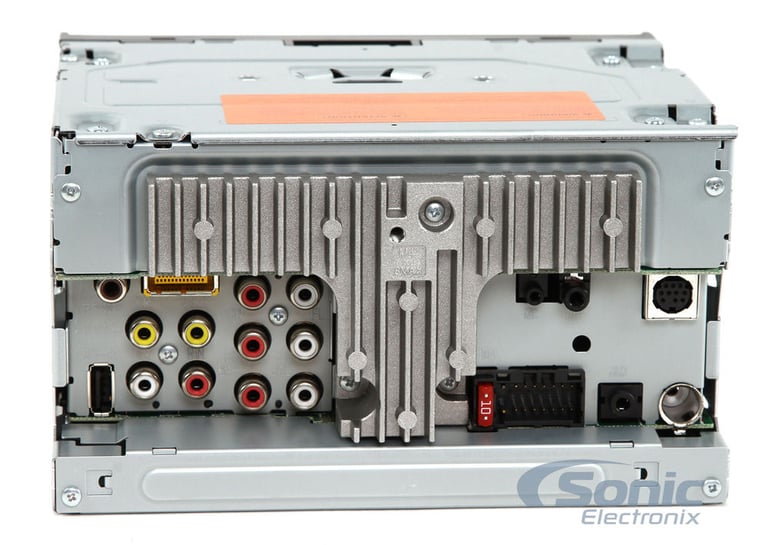

  • Rear RCA Video Output: Used for connection to separate monitors and other devices
  • Rear RCA Video Input: Used for connection auxiliary A/V devices to headunit

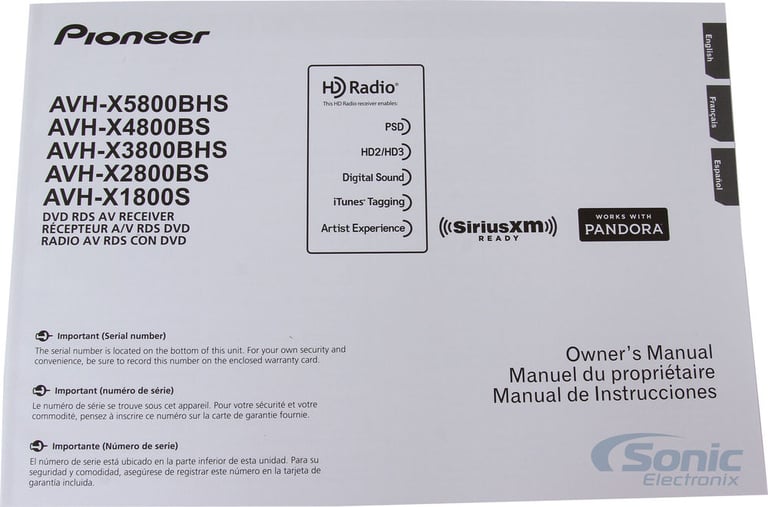

Check out the Pioneer AVH-X5800BHS User Manual



Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
13-band graphic equalizer
Display Type
TFT-LCD Display
Touchscreen
Yes
Screen Size
7"
Display Adjustment
Brightness
Color
Contrast
Dimmer
Hue
Smartphone Integration
Compatible Smartphones
iPhone (iOS)
Android
iPhone Control
Siri Eyes Free Control
Pandora Control
Expandability Features
Inputs
Audio/Video (Rear)
Outputs
Composite Video (RCA)
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AVH-X5800BHS-2

Weight:

8.00lbs

Internal SKU:

LS-avhx5800bhs-OBC5

Internal Product ID:

135909
