Clarion FX503
In-Dash 6.2" MP3/USB Digital Media Touchscreen Car Stereo Receiver w/ Bluetooth & SiriusXm Ready
Quantity: 1
General Features:
- In-Dash AM/FM, MP3, USB Receiver with Remote
- Full-color 6.2" LCD touchscreen display
- 2-way iPod control allows control from the iPod or the stereo
- Cloud-based Smart Access platform constantly updates apps and navigation
- Blue illuminated button lighting
- Power Output:
- Peak: 50 watts x 4 channels
- RMS: 18 watts x 4 channels
- MP3 ID3 Tag Display (Title/Artist/Album)
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Playback and Audio Features:
- Playback of MP3 and WMA (Does not play CDs)
- AM/FM tuner with 18FM/12AM presets
- Compatible with Apple iPhone 5 and iOS 6 software
- 6-band parametric equalizer
- 24-bit Digital Analog Converter (DAC) to enhance your MP3/WMA playback
- (32GB) microSD/SDHC Card reader for (audio and video) playback
Expandability Options:
- 3 Sets of 4V preamp outputs (front, rear and subwoofer)
- SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
- Built-in Bluetooth technology supports hands-free calling with a compatible Bluetooth phone
- iPod and iPhone Ready: Clarion 30-pin Video & Audio iPod Connection required and sold separately
- Android phone connectivity control with optional Clarion CCA771, Clarion CCA770 HDMI cables sold separately
- Front Auxiliary Input: 3.5mm headphone jack allows connection to portable media devices such as MP3 players
- Rear USB Input: USB port allows connection to digital devices such as flash drives, portable media players, etc.
- Dedicated Backup Camera Input
- Steering Wheel Control Ready: PAC ControlPRO or Axxess ASWC-1 are required and sold separately
Bluetooth Features:
- Built-in Bluetooth technology for hands-free talking and audio streaming
- Bluetooth range up to 32.8 ft.
- Supports SMS message notifications and A2DP audio streaming
- Bluetooth Profiles Supported:
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- Works with most Bluetooth enabled cell phones
- Includes a built-in microphone for clear, convenient and distortion-free talking
- External Bluetooth Microphone available and sold separately

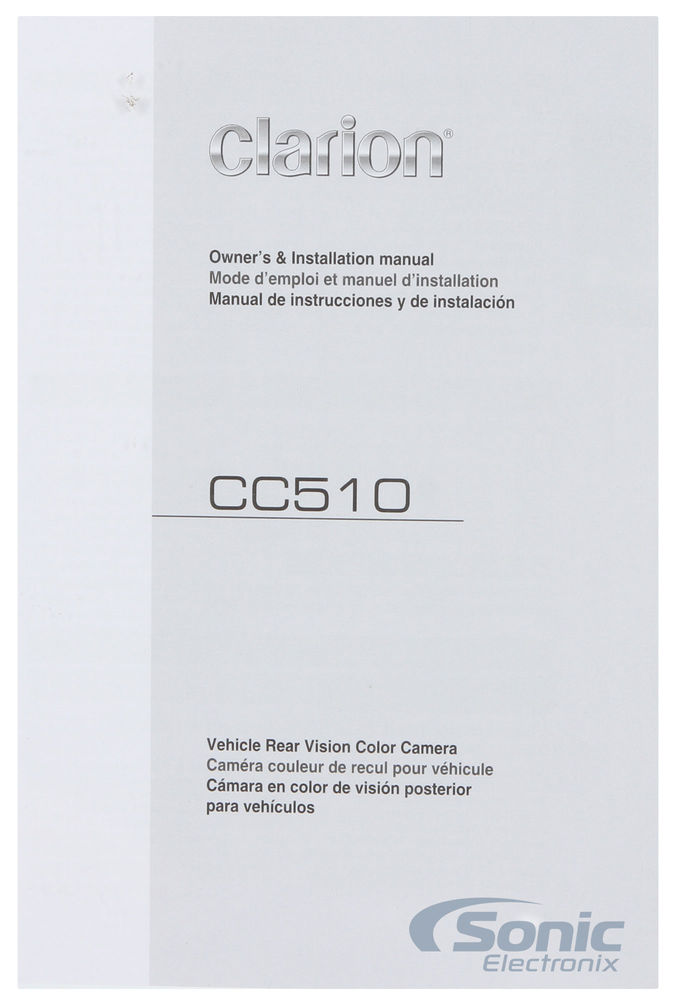

Clarion CC510
Rear Vision Camera with Distance Guide Lines and CMOS Sensor Technology
Quantity: 1
CC510 Features
- Compact Vehicular Rear Blackup Color Camera
- Integrated high performance 1/4" color CMOS sensor technology
- High visibility day and night
- 150° Horizontal wide viewing angle
- 100° Vertical viewing angle
- Auto gain control (AGC)
- Auto white balance
- Compact connector
- Includes tilt and swivel mount
- Sealed unit construction
- Mirror image inversion function presents optimum conditions for confirming rear view
- Resist image smearing even when bright light is directed at camera
- IP67 Water Ingress Protection ensures long lasting life regardless of weather conditions
- 8-Foot camera pigtail
- 23-Foot RCA and power connections
- Uses 12V power/RCA video output (NTSC)
- Can be used with Clarion CAU001 License Plate Frame for simple installation
- 1-year SonicElectronix.Com warranty
CC510 Specifications
- Power Source: DC 12V
- Image Resolution: 668 x 512 (342,016 Active Pixels)
- Image Sensor: 1/4" color CMOS sensor
- Minimum Subject Illumination: 0.5 LUX
- Video Output: NTCS
Clarion CCA644
Rear Vision Camera Input Cable for NX605, NX603 and FX503
Quantity: 1
General Features:
- Rear view Camera Input Cable
- Designed specifically for:
- 1-year Manufacturer's Warranty
