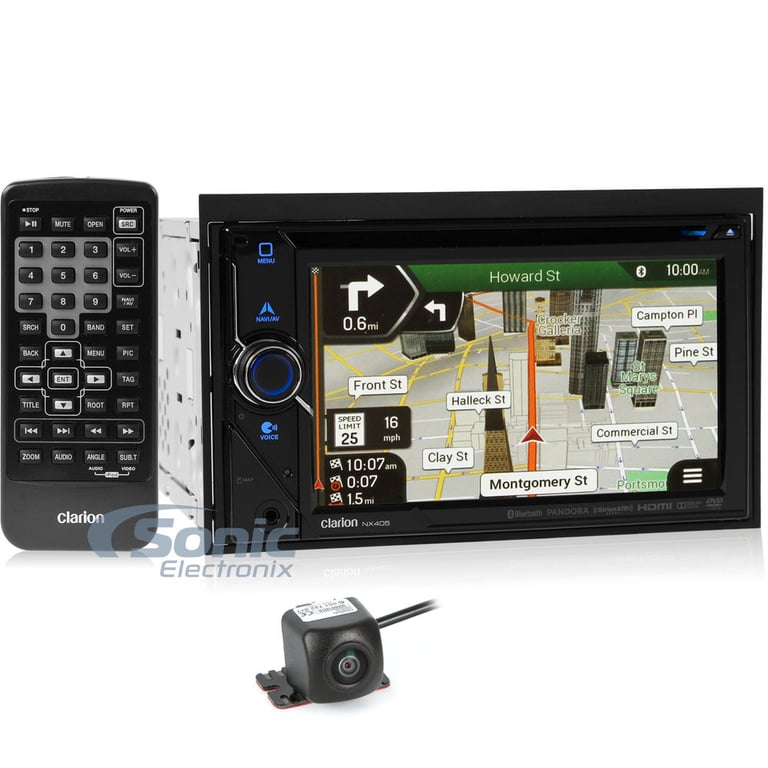

Clarion NX405 Double DIN Navigation In-Dash DVD/CD/AM/FM/Digital Media Receiver w/ Bluetooth, HDMI Input, and Dual USB Connection

Clarion NX405

Double DIN Navigation In-Dash DVD/CD/AM/FM Receiver w/ 6.0" Touschreen, Bluetooth, HDMI/MHL Input, and Dual USB Connection
Quantity: 1

Note: NX405 Software Update Available: Click Here
Improvement: Incorrect MP3 ID3 tag information

General Features:

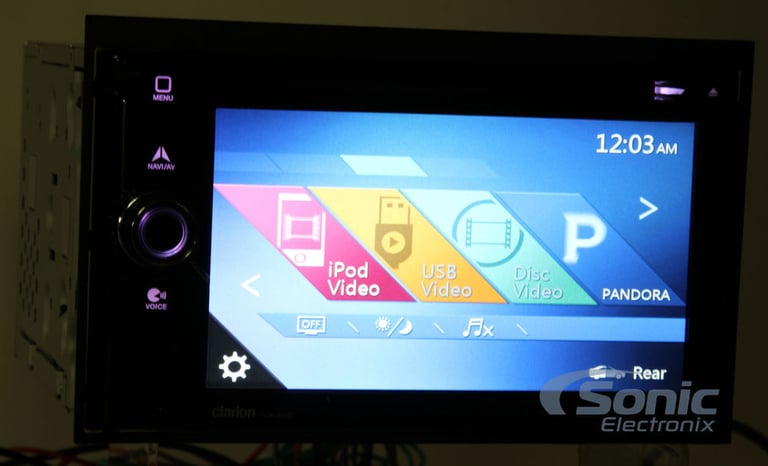

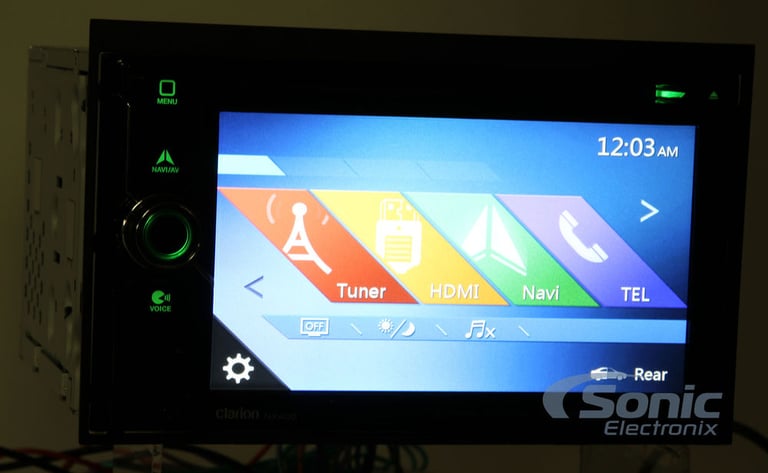

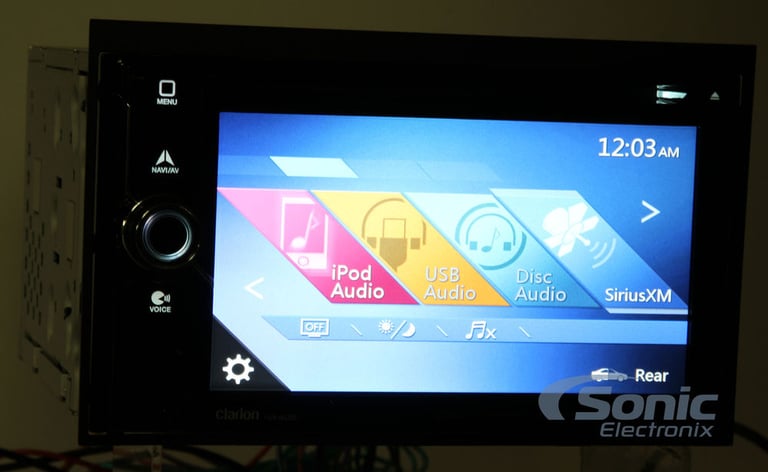

Clarion NX405 6.0" Touchscreen In-Dash Navigation Multi-Media Receiver
CEA-2006 compliant amplifier
Power Output:

Peak: 50 watts x 4 channels
RMS: 19 watts x 4 channels

CD Signal to Noise Ratio: 93dB
Frequency Response: 20 - 20,000 Hz
Harmonic Distortion: 0.1%
Variable Color Illumination: 728 Variable Color
CD text information display
MP3 ID3 Tag Display (Title/Artist/Album)

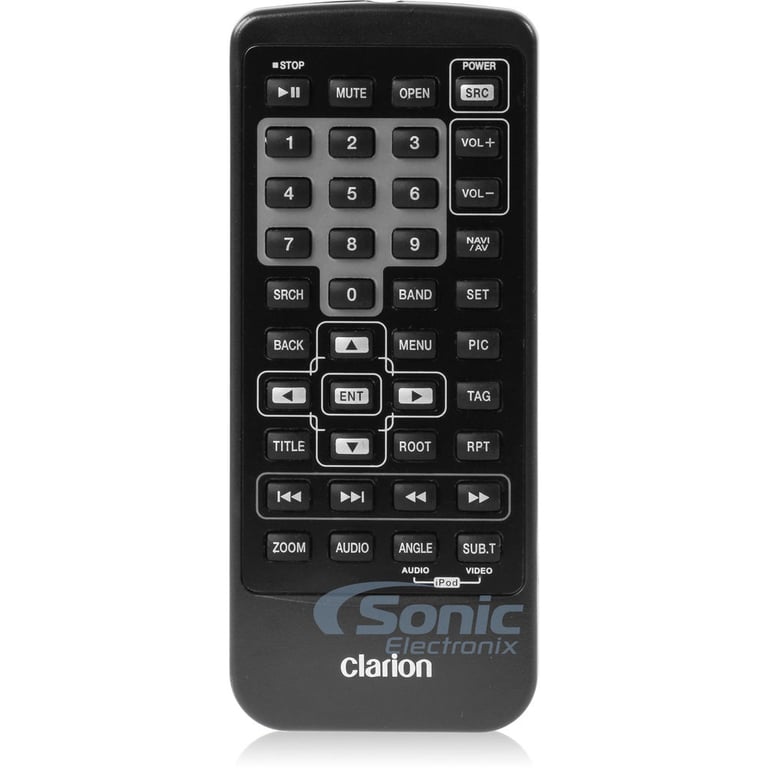

Remote control included
Authorized Internet Dealer
1-year Manufacturer's Warranty

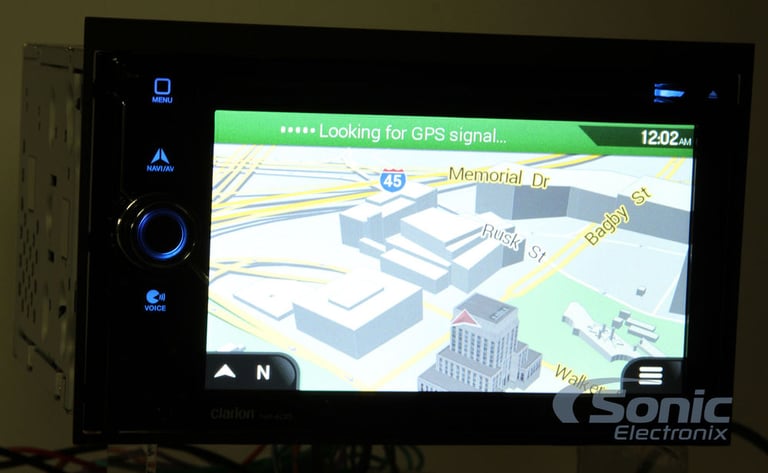

Navigation Features:

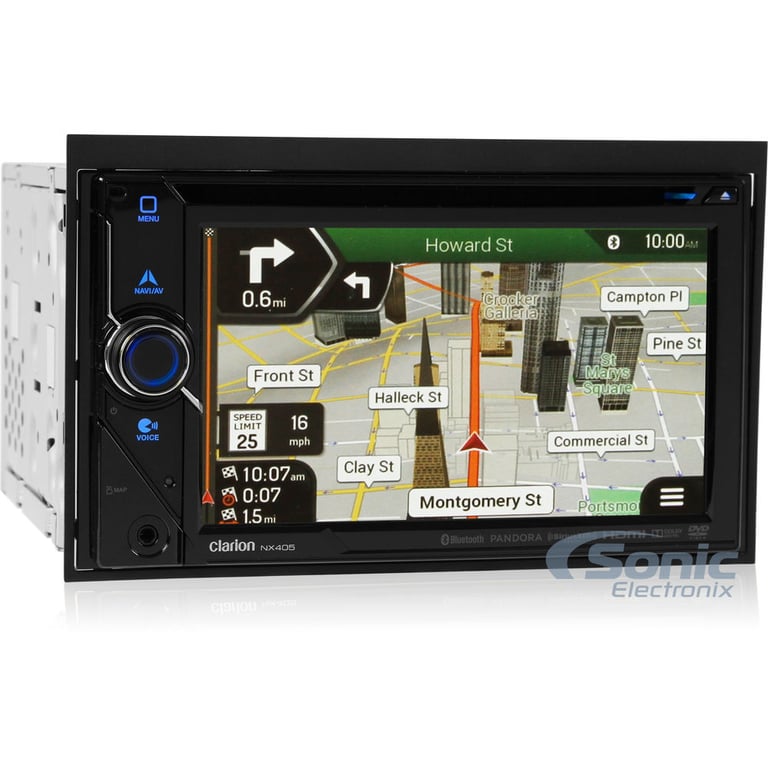

IGO Primo Navigation Software w/ TomTom Maps
Map coverage of all 50 U.S. States plus Puerto Rico & Canada
Simple destination input
Turn-by-turn voice prompts
Selectable route guidance -
11 million points of interest
Database includes national parks, restaurants, gas stations, etc..
8GB map storage
Supports English, Spanish and French
3D mapping includes elevation, 3D buildings and landmarks for Select cities
Navigation Voice Guidance : English, French, Spanish
Updates via clarion.navisextras.com

Download update from portal onto a microSD card & insert into front card slot
microSD card & slot ONLY for navigation data

Playback and Audio Features:

DVD, DVD+R/RW, DVD-R/RW, CD/CD-R/RW, MP3/WMA/AAC/MP4
High-resolution format support: H.264 video & FLAC (via USB)

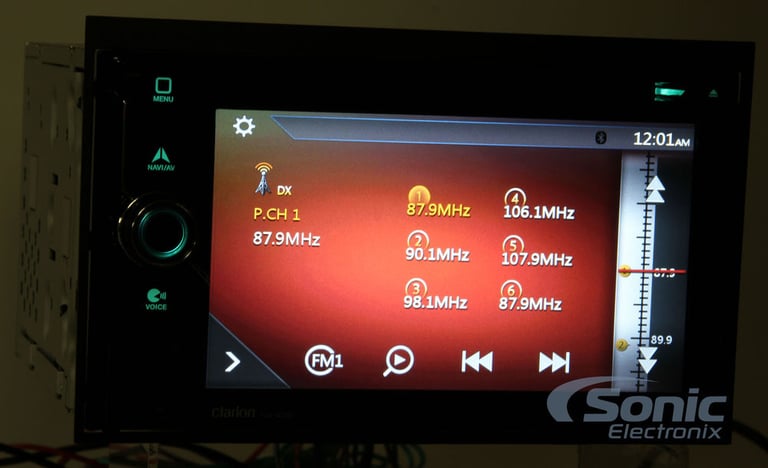

AM/FM tuner with 18FM/6AM presets
Compatible with Apple iPhone 6/6+ and iOS 8 software
HDMI/MHL Input
HDMI mode for displaying smartphone app screens and video content

Click Here for Clarion's Suggested Smartphone Connection Methods

HDMI to Micro HDMI Cable (Type A To Type D): Clarion CCA771

3-band parametric equalizer with 4 selectable tone curves (3 Preset, 1 User)
3.5mm Front Audio/Video Auxiliary Input

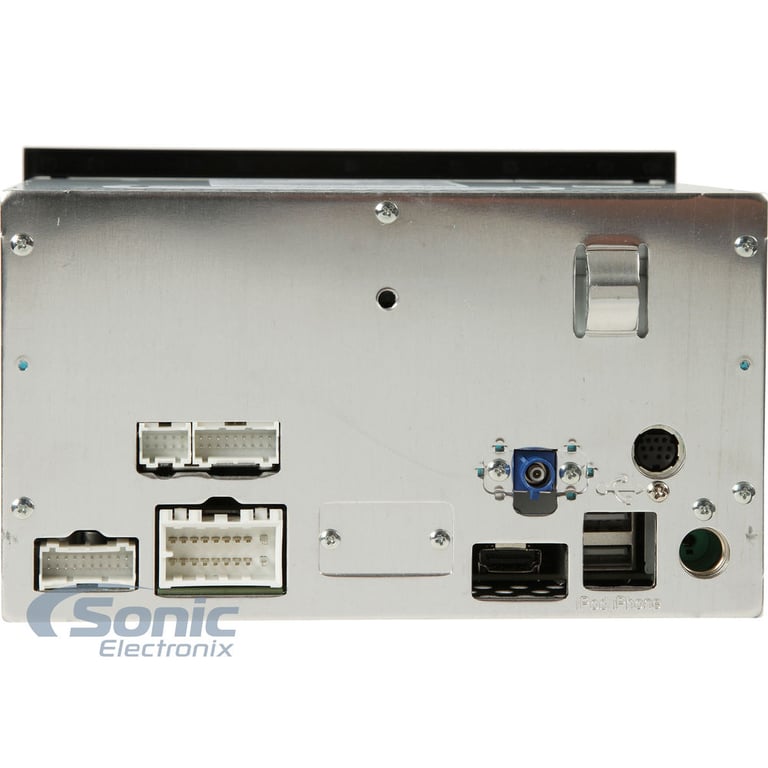

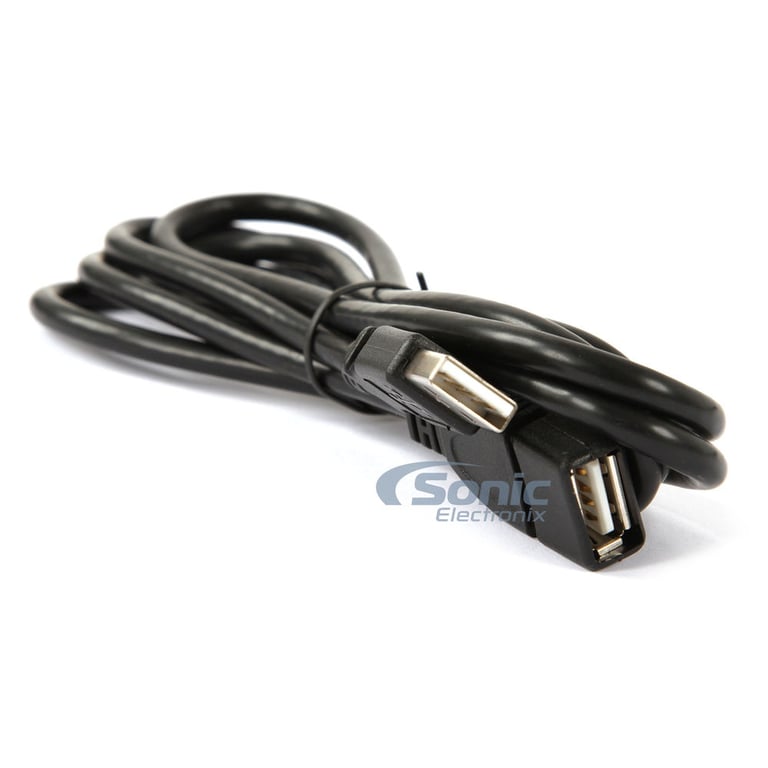

Dual Rear USB Input

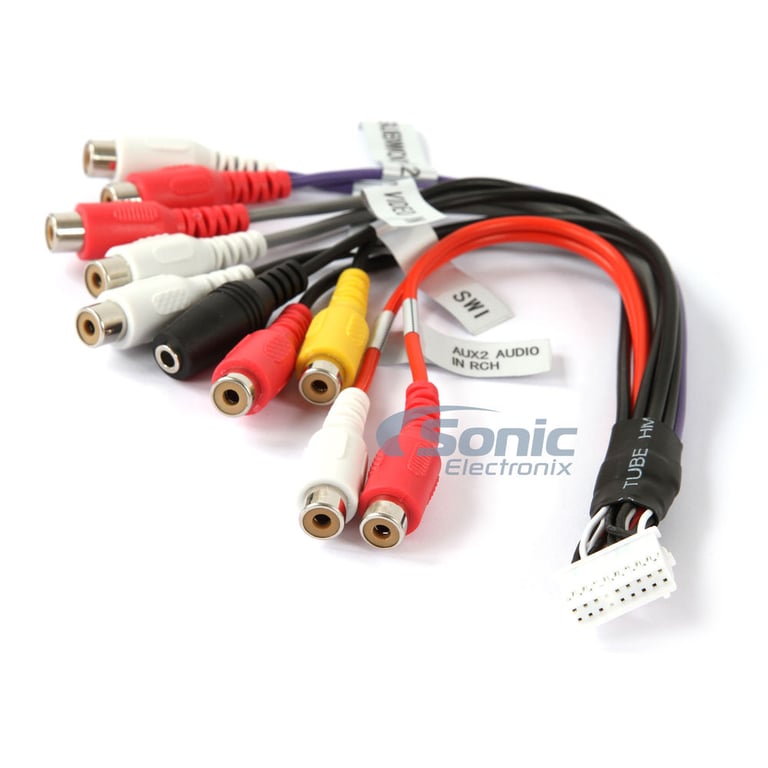

Audio/Video Output
2 Zone via RCA Audio/Video Outputs
3 Sets of 2V preamp outputs (front, rear and subwoofer)
Built-in High Pass and Low Pass Filters

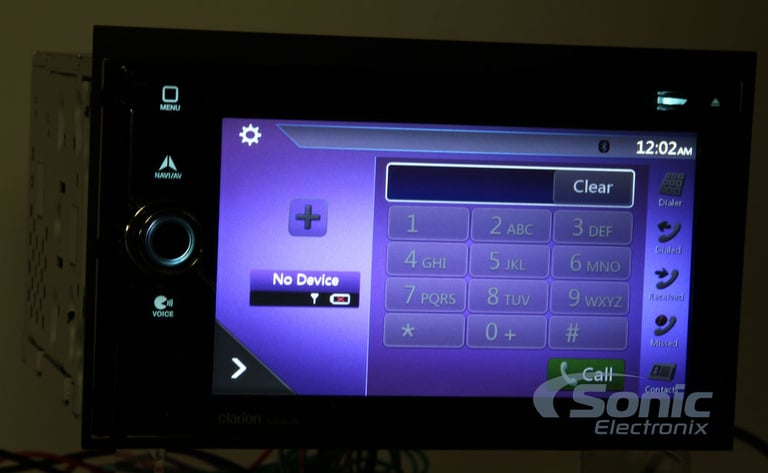

Bluetooth Features:

Built-in Bluetooth technology for hands-free talking and audio streaming
Bluetooth version 2.1+EDR certified
Bluetooth Profiles Supported:

HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
HSP: Headset Profile enables a Bluetooth headset to connect to a compatible mobile phone
PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth

Works with most Bluetooth enabled cell phones

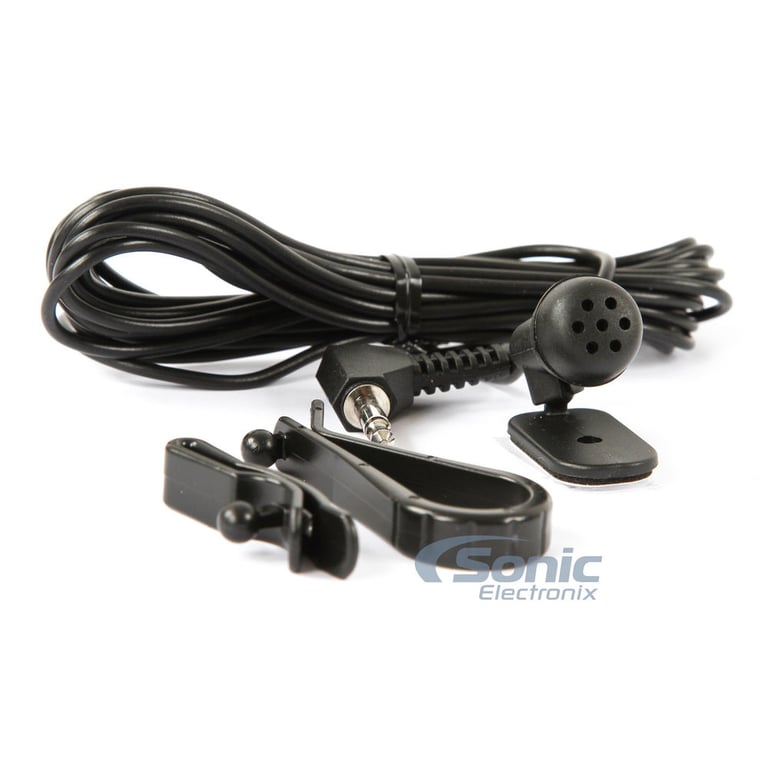

Includes a built-in & external microphone for clear, convenient, distortion-free talking

Expandability Options:

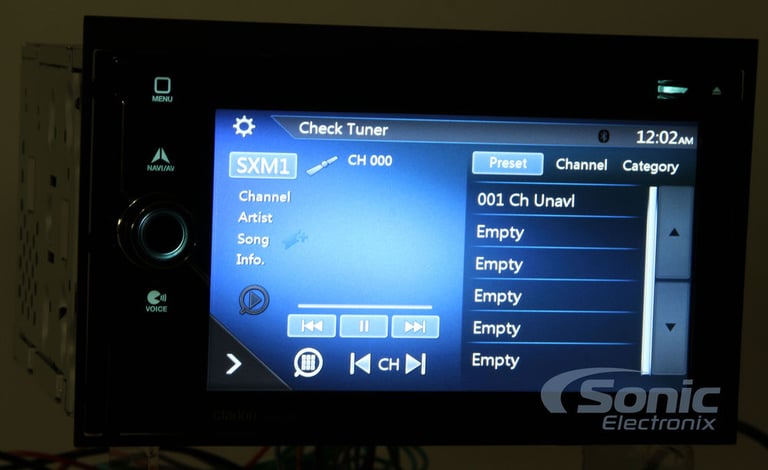

SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required and sold separately
Steering Wheel Control Ready: PAC ControlPRO (SWI-CP5) or the Axxess ASWC-1 required and sold separately
Dedicated Backup Camera Input

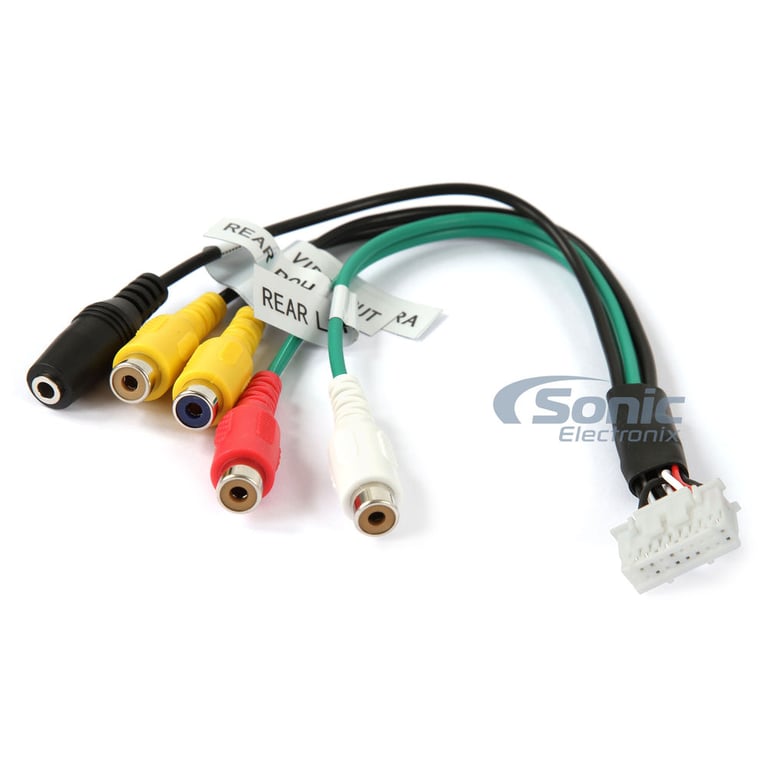

Rear RCA Video Output: Used for connection to separate monitors and other devices
Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Check out the Clarion NX405 User Manual

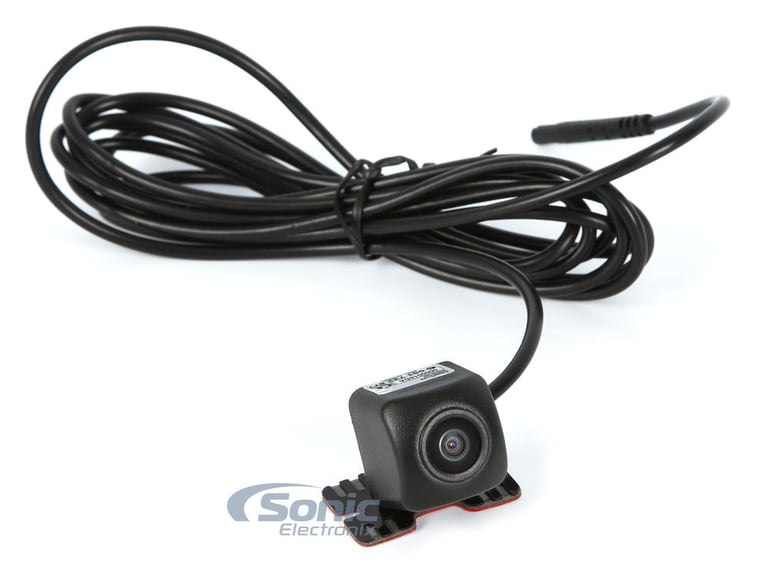

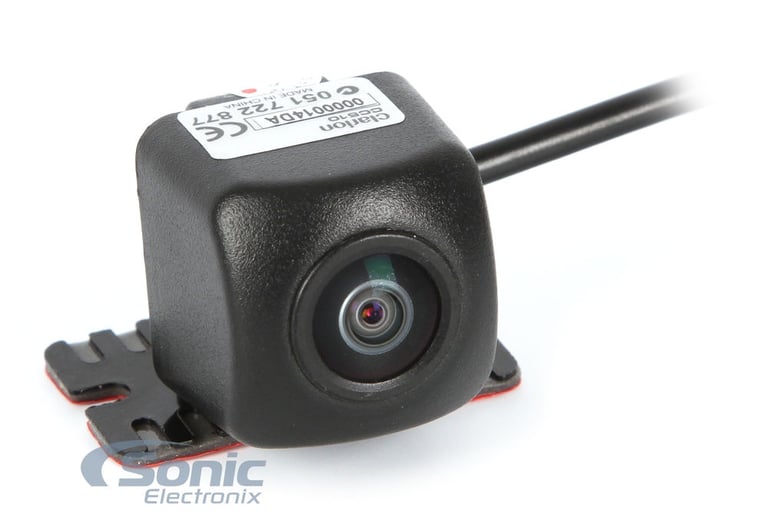

Clarion CC510

Rear Vision Camera with Distance Guide Lines and CMOS Sensor Technology
Quantity: 1

CC510 Features

Compact Vehicular Rear Blackup Color Camera
Integrated high performance 1/4" color CMOS sensor technology
High visibility day and night
150° Horizontal wide viewing angle
100° Vertical viewing angle
Auto gain control (AGC)
Auto white balance
Compact connector

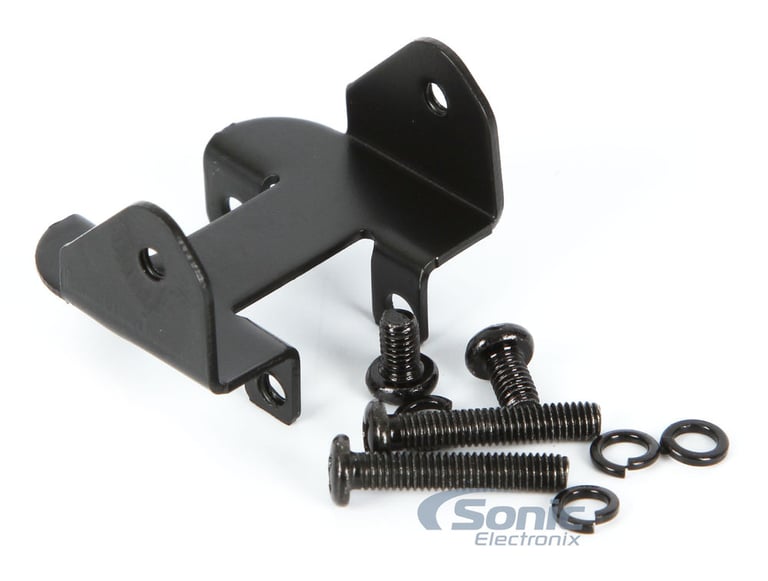

Includes tilt and swivel mount
Sealed unit construction
Mirror image inversion function presents optimum conditions for confirming rear view
Resist image smearing even when bright light is directed at camera
IP67 Water Ingress Protection ensures long lasting life regardless of weather conditions
8-Foot camera pigtail

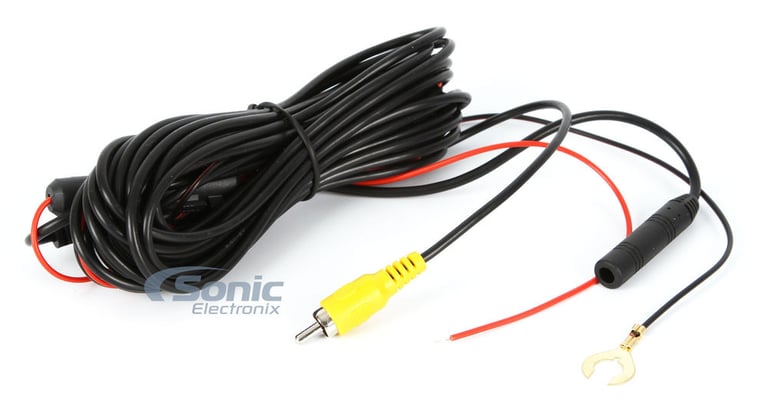

23-Foot RCA and power connections
Uses 12V power/RCA video output (NTSC)
Can be used with Clarion CAU001 License Plate Frame for simple installation
1-year SonicElectronix.Com warranty

CC510 Specifications

Power Source: DC 12V
Image Resolution: 668 x 512 (342,016 Active Pixels)
Image Sensor: 1/4" color CMOS sensor
Minimum Subject Illumination: 0.5 LUX
Video Output: NTCS

Customer Reviews

Sort by:

The following review is for CC510, which is a part of the bundle you are viewing.

I got this for my 2009 Malibu with the Kenwood Excelon DNX6190HD and it works great, even in low light. I installed it myself along with the Clarion license plate frame and it took maybe 45 minutes to an hour. Now the biggest test is will it survive the Michigan weather

By Tario on November 13, 2013

76 found this helpful

Report abuse

great price

The following review is for NX405, which is a part of the bundle you are viewing.

works great simple to install has great features the navigation works great. has great reception.

By Hoyle on December 29, 2015

10 found this helpful

Very Nice

Let me start off by saying I originally purchased the VX-405. I had it for a month and I started to have issues with the iPod connection. So I talked to Sonic and decided to send it back and upgrade. Boy am I glad I did! This unit is leaps and bounds better than the VX-405. Everything is faster and smoother. I am not sure if I just had a defective unit or if Clarion put more time into this unit. BT works awesome, CD, IPod and radio functions as stated. The only 1 issue I have is the navigation. There is a blue dot that shows up on the screen that shows your exact location. This gets annoying bc you catch yourself watching that and not the map. If someone knows how to fix this please let me know. Other than that this is the best unit I have had in awhile. I would recommend this unit to anyone who wants a double din unit that has it all...

By Chad on December 26, 2015 Checkmark Icon

Verified purchase

Good camera

Good camera for the price. I installed it on a 2006 Ford Crown Victoria LX and I like the way it gives somewhat of a factory look to the car.

By Alex on October 11, 2015

9 found this helpful

Works well

I have it installed for about 3 months and find that it works very well.
The Navigation is accurate, however the speed limit posting is out of date.
I use a iPhone and the paring was simple and works well.
I am very pleased with the stereo and especially with the two usb ports.
The Sonic service was a big help during install.

The only problem so far is that you cannot get any upgrades on Mac computers.

By V on September 28, 2015

Clarion nx405

This is my first time getting a clarion with all the features that it has.. I love it and sounds great.this product is what I wanted and I would recommend other people to this place.

By Kitte on January 7, 2016

7 found this helpful

NX405

You want bells and whistles well this is the item for you even for a new bee like myself easy to install nice looking unit , only thing would of been great if clock stayed on when u turned off radio

By michael on June 5, 2016

4 found this helpful

Recommended

Installed it on a 2006 Ford Crown Victoria LX with a Boss Audio head unit and never had any problems with it.

Unfortunately, because of the reversing lights position on the car, it causes a glare and makes it hard to see at night. I will need to make a cover type thing to put around the camera

By Eric on December 13, 2015 Checkmark Icon

5 star		63%
4 star		38%
3 star		0%
2 star		0%
1 star		0%

Durability		4.5
Value		4.4
Features		4.4
Design		4.8
Usability		4.7
