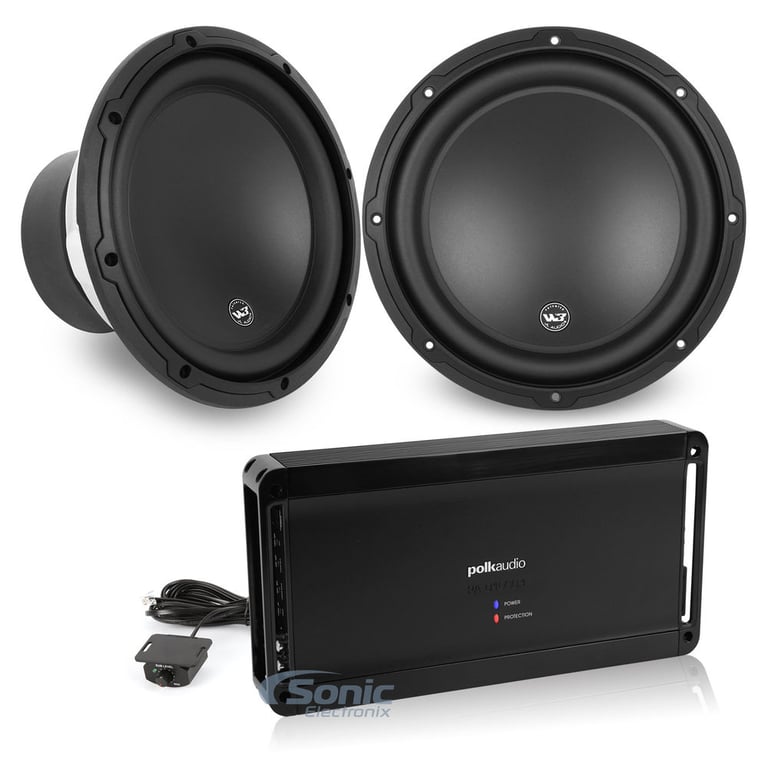

Two JL Audio 10W3v3-4 + Polk Audio PA D1000.1

500W RMS 10" W3v3 Series Single 4-Ohm Subwoofer s + PA D Series Class-D Monoblock Amplifier

EXCLUSIVE
highlight-star-icon

• 800 Watts RMS x 1 @ 2 ohm
• Sensitivity: 87.15 dB
• Mounting depth: 6.65 "
• Injection-molded, mineral-filled polypropylene cone
• Nitrile butadiene rubber surround
•Customization trim ring
• Floating Cone Attach Method
• DMA Optimized Motor
• Wired remote bass level control included
• CEA-2006 Compliant
• Signal to Noise Ration: 105 dBA
• Variable Bass Boost: 0 to +12 dB bass boost at 44 Hz
• Dimensions: 6-3/4" W x 12-15/16" L x 1-13/16" H

Learn more about the pad10001_2-10w3v34

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Description


Polk Audio brand icon

Authorized dealer

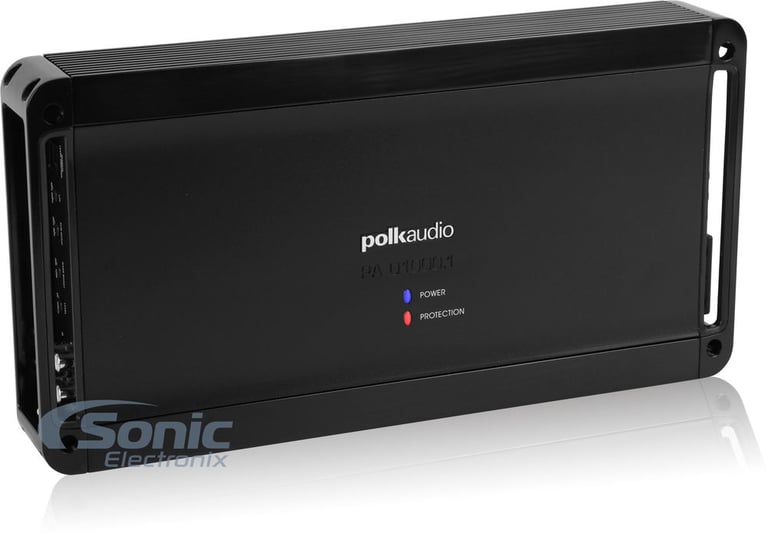

Polk Audio PA D1000.1

1200W RMS PA D Series Class-D Monoblock Car Amplifier
Quantity: 1

Product Features:





  • PA D Series Monoblock Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 500 watts x 1 chan.
    • 2 ohm: 800 watts x 1 chan.
    • 1 ohm: 1200 watts x 1 chan.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply

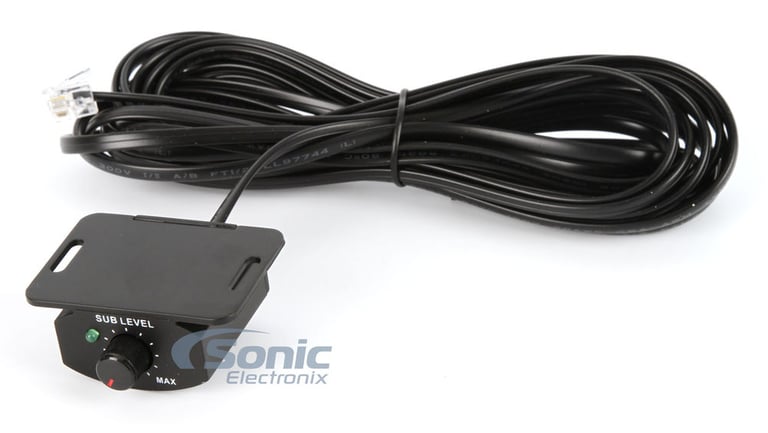

  • Wired remote bass level control included
  • LED power (blue) and protect (red) indicators
  • Soft start turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-way protection circuitry (thermal, overload, reverse polarity & speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 20 - 220 Hz
  • Damping Factor: >150
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ration: 105 dBA

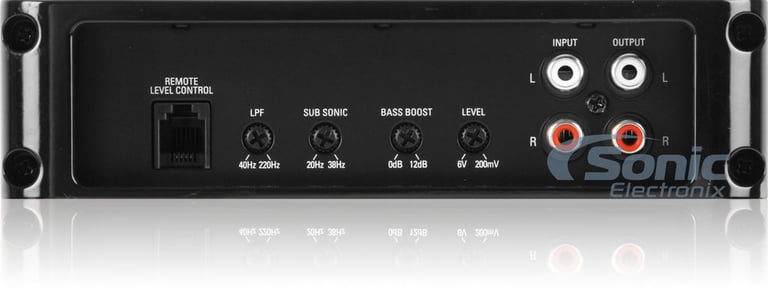

  • Variable low-pass filter: 40 - 220 Hz, 12 dB/octave
  • Subsonic filter: 20 - 38 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 44 Hz

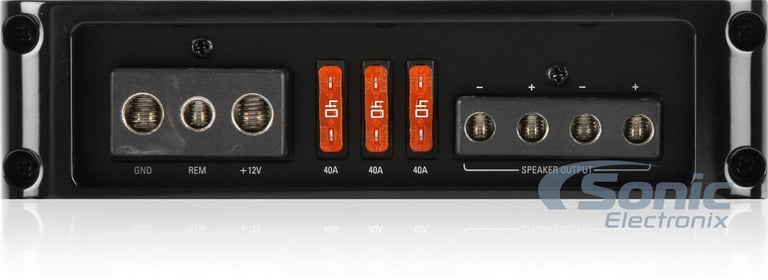

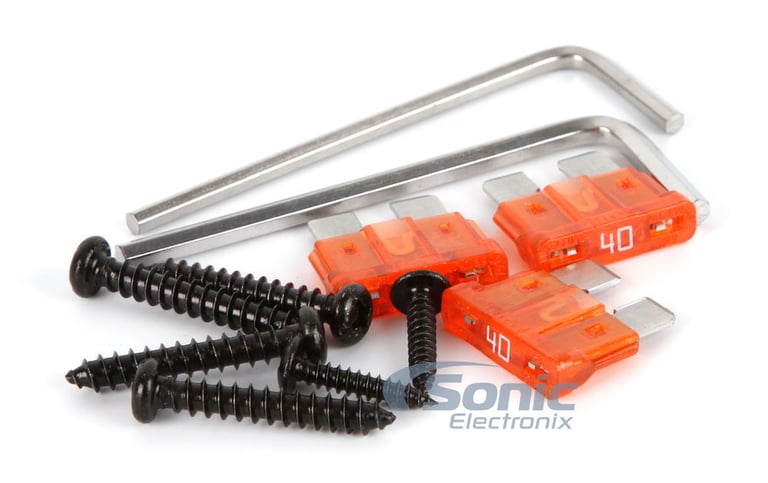

  • Fuse Rating: 40 A x 3
  • Supply Voltage: 10V - 16V
  • 12 AWG Speaker Connections
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 6-3/4"W x 12-15/16"L x 1-13/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

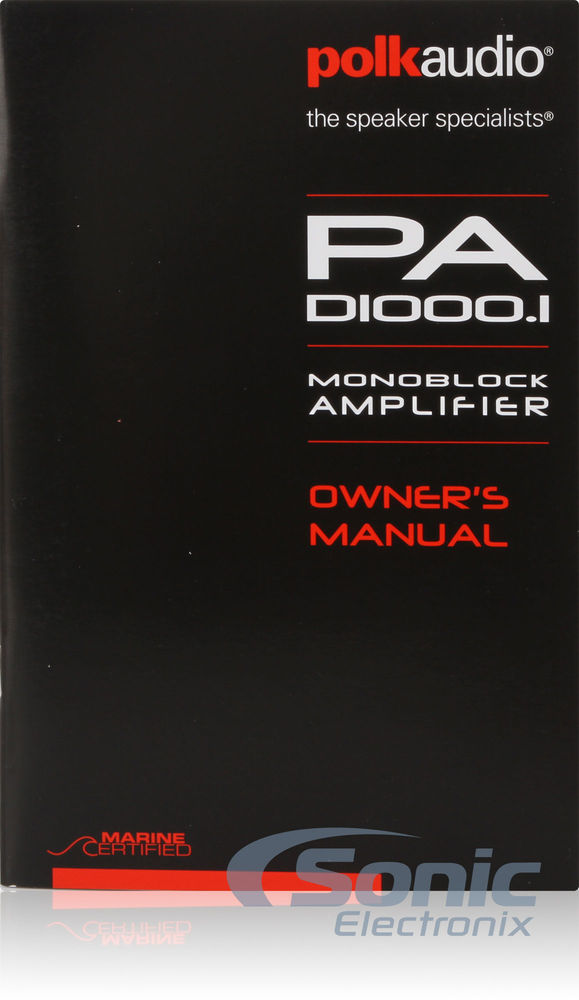

Check out the Polk Audio PA D1000.1 Owner's Manual

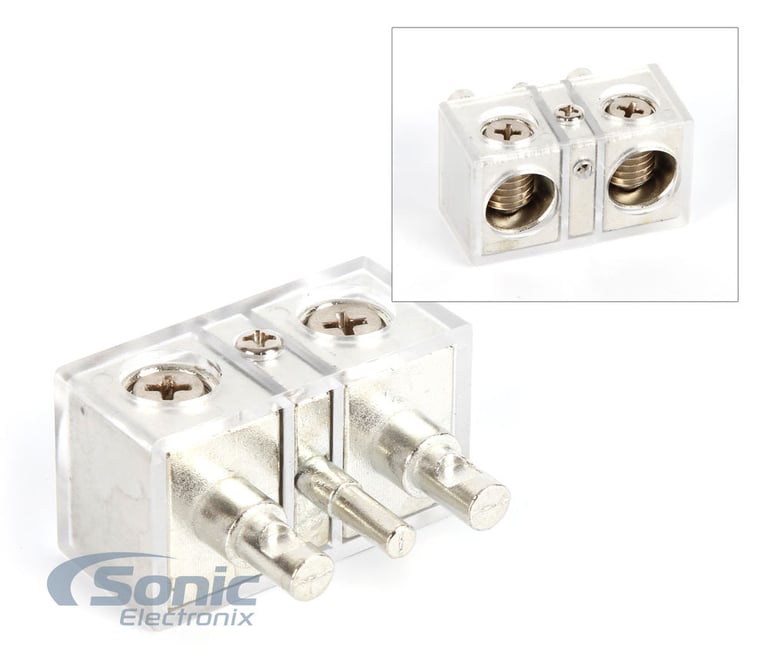

Important Note: Early versions of this amplifier included a "Terminal Adapter". As of 2016, Polk Audio has confirmed that they are no longer sending this adapter with their amplifier, albeit referenced in the user manual. We apologize for any inconvenience, and suggest browsing our selection of "Gauge Adapters" if you wish to use larger than recommended wiring. Thank you!

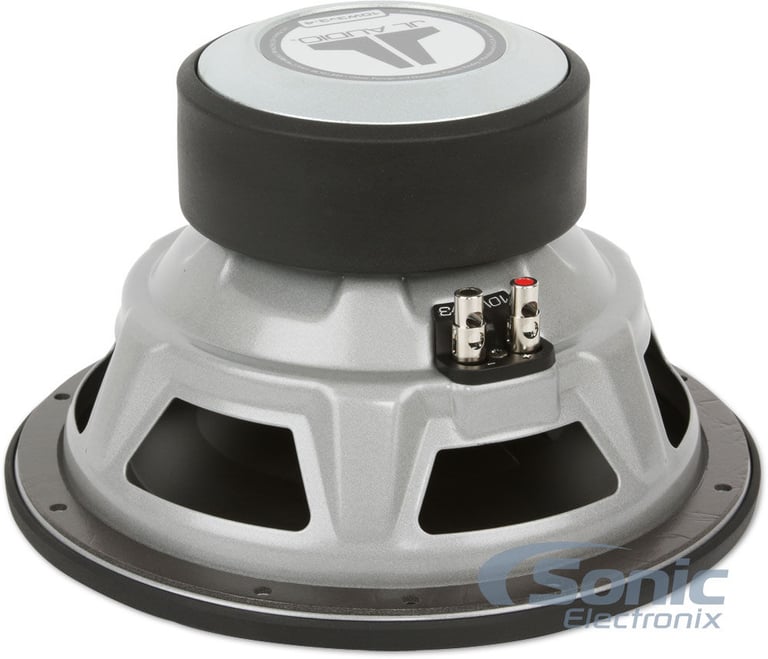

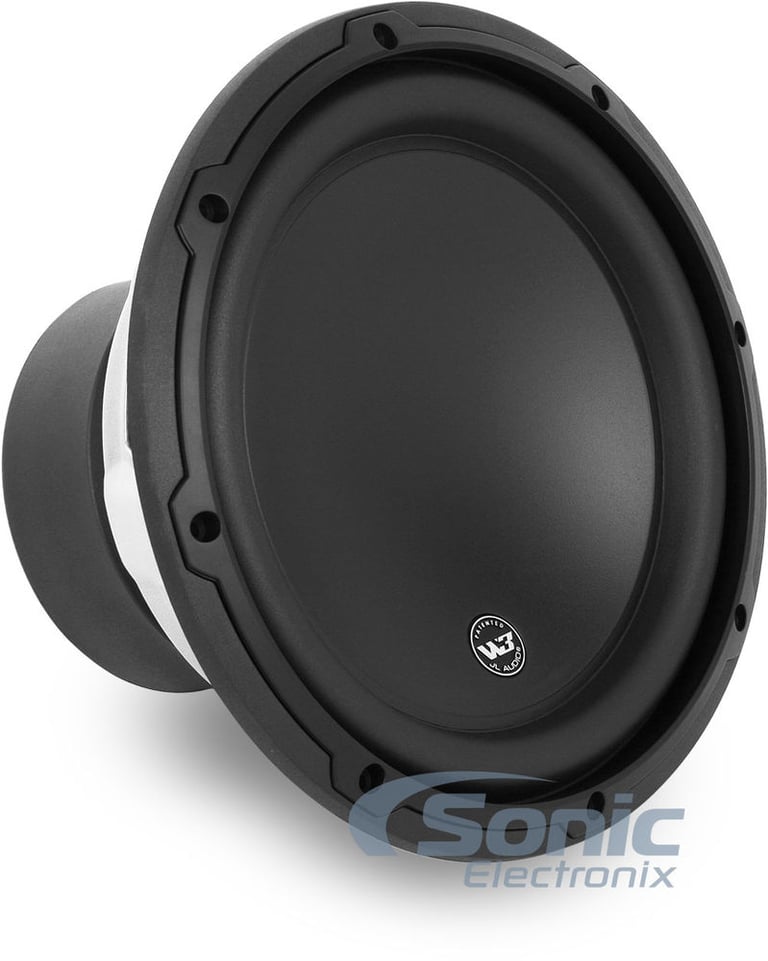

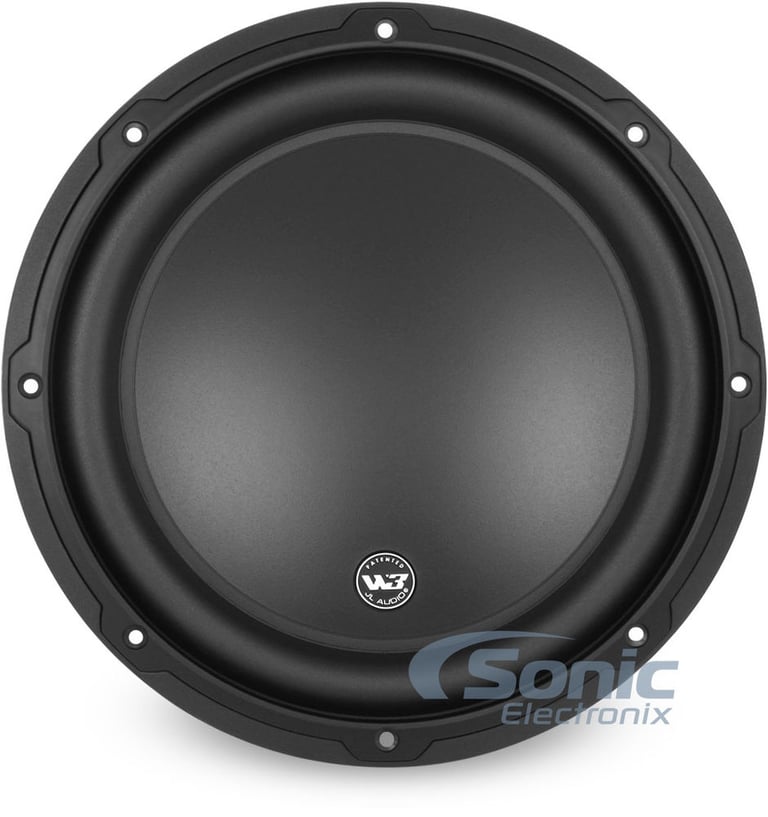

JL Audio 10W3v3-4

500W RMS 10" W3v3 Series Single 4-Ohm Subwoofer Driver
Quantity: 2

Product Features:

















  • 10" W3v3 Series Subwoofer Driver
  • Power Handling:
    • RMS: 1000 watts per pair / 500 watts each
  • Recommended Power Range: 300 - 1000 watts per pair / 150 - 500 watts
  • Impedance: Single 4-Ohm
  • Injection-molded, mineral-filled polypropylene cone
  • Nitrile butadiene rubber surround
  • Stamped steel basket
  • Customization trim ring
  • Floating-cone attach method
  • Highly linear, DMA-Optimized motor system
  • Insert molded suspension, coil and terminal sub-assembly
  • Patented vented reinforcement collar (VRC®)
  • Elevated frame cooling design
  • Nickel plated brass spring terminals
  • Engineered lead-wire design and attachments
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-10
  • Mounting depth: 5.93 "
  • Cutout dimensions: 9.0625 "
  • Free Air Resonance (Fs): 31.49 Hz
  • Sensitivity: 84.87 dB
  • Xmax: 14.0 mm
  • Reference Efficiency (no): 0.1900%
  • Frequency response: ~25 ~ 250 Hz
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

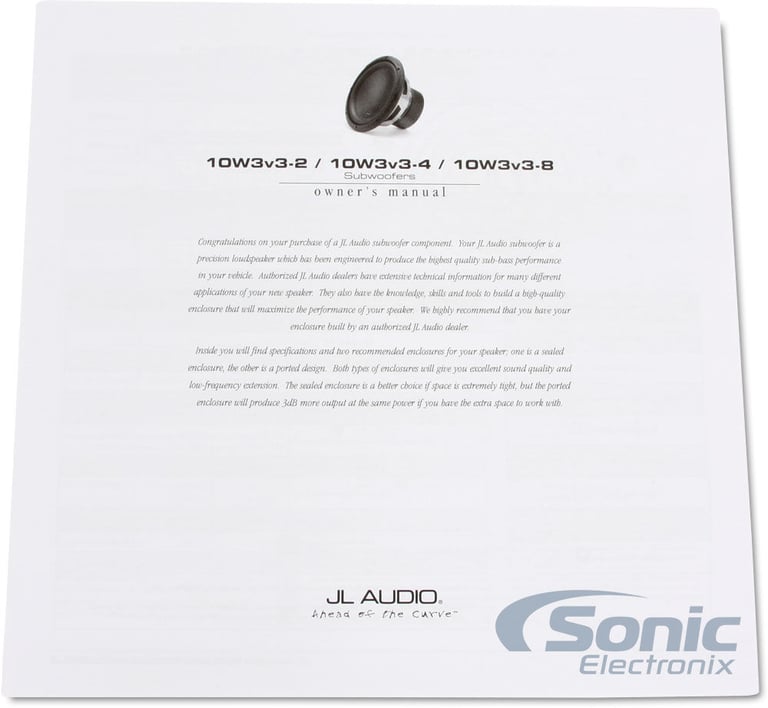

Check out the JL Audio 10W3v3 Owner's Manual



Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

P300-10 small

Rockford Fosgate Punch P3 P300-10

• 10" Subwoofer 300 Watts RMS
• Rockford Fosgate Sealed Enclosure
• 300 Watt Class-D Mono Block
• Bass Remote Included
• Low And High level Inputs

(58)

$339.99

List price $339.99

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

QB12SPA small

NVX QB12SPA

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$199.99

List price $299.98

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
500 watts x 1 channel
RMS Power @ 2 ohms
800 watts x 1 channel
RMS Power @ 1 ohm
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
20 - 38 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
40A x 3
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
W3 v3 Series
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
500 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Mineral-Filled Polypropylene
Sensitivity
84.87 dB
Frequency Response
25 - 250 Hz
Xmax (millimeters)
14 mm
Top-Mount Depth (Mounting Depth)
5.93"
Cutout Diameter
9.0625"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PA D1000.1_2-10W3v3-4

Weight:

36.70lbs

Internal SKU:

pad10001_2-10w3v34

Internal Product ID:

105365

Customer Ratings & Reviews


Two JL Audio 10W3v3-4 + Polk Audio PA D1000.1 thumbnail image

5 star
82%
4 star
14%
3 star
2%
2 star
0%
1 star
2%



Durability
4.8
Value
4.7
Features
4.8
Design
4.9
Usability
5

Customer Reviews

Sort by:

Loading...

Un Excelente Sub

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

Tengo instalado uno solo de éstos en un pick-up cabina sencilla, caja ventilada y creanme que estoy mas que satisfecho con el desempeño de éste subwoofer, una calidad excelente de sonido y no existe distorsión alguna, lo muevo con un Phoenix Gold de 600nom. y es mas que suficiente, quieres calidad en sonido y resistencia???? no lo dudes, adquierelo....!!!

I have one of these installed in my pickup truck, single cabin, vented box. Believe me, I am more than satisfied with its performance. This Subwoofer has excellent quality and there is no distortion. I push it with a Phoenix Gold of 600watts and its more than enough.
If you want good quality sound, don't even doubt about it and get it!

By alx30 on March 23, 2010

86 found this helpful


amazing

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

I just had one of these and j2 500.1 installed in my wifes car and man it bumps so worth the money I am now and forever a huge JL fan. If you want a great sub for a fair price look no more.

By lu on February 22, 2011

86 found this helpful


Great subwoofer

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

Very crisp, clean sound when driven from a good amp.

By Matthew on October 30, 2011

82 found this helpful


JL Has no competition

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

You cannot go wrong with any JL products, this sub hits many notes & is a reliable subwoofer. You get what you pay for :)

By A. Tran - Kill-illuminati on April 20, 2011

82 found this helpful


JL Audio never lets me down

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

2 10" JL Audio3v3-4, paralleled down to 2 ohm. Amp is a G1700 Mono and can handle the load, won't push them up to optimum at 2ohm which is 500rms but takes them close enough for me. Box is sealed and fits nicely in the back of my Nissan Maxima, ported might be louder but I wanted the clean slap to the back of the head when a drumbeat kicks one out not a synthesizer. Kept the factory head and used the jl cleansweep to level out the signals for the amp to work with.

By Kev on December 10, 2011

78 found this helpful


Love my JL 10w3

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

This gave me just the right amount of bass in my crew cab truck. I prefer the sealed box because it gives you a much more clean bass. Not the distorted bass you hear with cheap subs. I would recommend this to everyone. This is the perfect mid size sub for small spaces. It has much better bass then my friends 8w7 overall! That 8w7 gets low but if you just want GREAT quality bass stick with the 10w3 its an amazing thing. I am running a JL Slash V2 500/1 and you can tell they are meant for each other. I would for sure say buy this sub!

By Alex on November 19, 2011

77 found this helpful


Amazing Sub!!!

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

I recently put in a system in my 04 Chevy Reg. cab. And picked JL Audio cause I know they make one of the best speakers and subs out there, and that they would last. Anyways to make the story short, I hooked one up to a MTX Jackhammer(jh600) that is wired at 4ohms throwing 450rms. With the bass on +1 from my deck and it bangs so hard my rear view shakes as do my side mirrors. So if your looking for a sub for a small enclosure, that's quality, and cheap. Buy it at Sonic electronix.

By Ryan on March 18, 2010

76 found this helpful


Best Sub for the price!

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

The sub sounds great and hits very hard!

By Dorian on May 15, 2011

76 found this helpful


JL sub

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

Hits pretty darn deep!

By Twatts on July 26, 2011

71 found this helpful


Jl audio rocks!

The following review is for 10W3v3-4, which is a part of the bundle you are viewing.

The single 10 inch woofer is enough for quality sound in my Honda accord. Of course the speaker was professionally installed in a custom enclosure with alpine 117. If I wanted to upgrade I would buy again from Sonic.

By William on March 31, 2011

67 found this helpful
