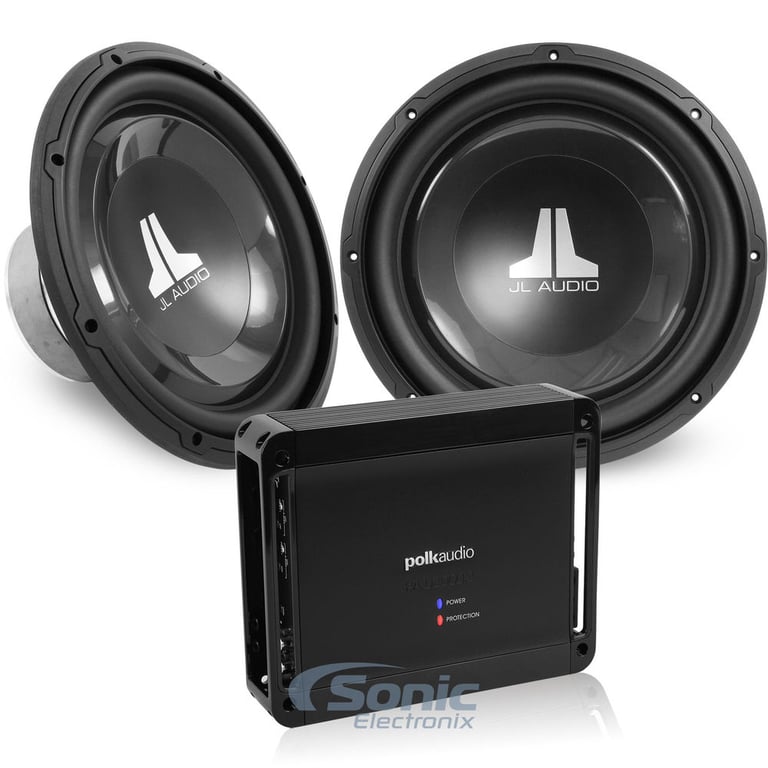

Two JL Audio 12W1v3-2 + Polk Audio PA D2000.2

300W RMS 12" W1v3 Series Single 2-Ohm Subwoofers + PA D Series Class-D 2-Channel Car Amplifier

JL Audio
Shop all JL Audio
highlight-star-icon

• 250 Watts RMS x 2 @ 2 ohm
• Sensitivity: 85.9 dB
• Mounting depth: 5.41"
• Customizable Trim Ring
• Vented Reinforcement Collar
• DMA-Optimized Motor System
• Floating Cone Attach Method
• Interlocking Cone and Dust Cap
• CEA-2006 Compliant
• Signal to Noise Ration: 105 dBA
• Selectable crossover modes: FULL / HPF / LPF
• Dimensions: 6-3/4" W x 8-1/4" L x 1-13/16" H

Learn more about the pad20002_2-12w1v32

We apologize

This item has been discontinued


Loading...
70-7005 main

Metra 70-7005 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Mitsubishi

7
-42.32%

$14.99

List price $25.99

HRN-HRR-MI1 main

iDataLink Maestro HRN-HRR-MI1 Wiring Harness

Install a New Car Stereo in select 2009-2019 vehicles from Mitsubishi (Requires ADS-MRR or ADS-MRR2 Module)

-13.04%

$79.99

List price $91.99

95-7015CHG main

Metra 95-7015CHG Dash Kit

Install a new Double-DIN car stereo in select 2014-2020 Outlander (High Gloss Charcoal)

-10.64%

$41.99

List price $46.99

Limited time!
R165X3 main

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

ADS-MRR main

iDataLink Maestro RR Interface Module

Universal Stereo Replacement Interface Module for iDataLink Maestro Compatible Stereos

35
-17.39%

$189.99

List price $229.99

Description


JL Audio brand icon

Authorized dealer

Polk Audio PA D2000.2 (PAD2000.2)

500W RMS PA D Series Class-D 2-channel Car Amplifier
Quantity: 1

Product Features:





  • PA D Series 2-Channel Class D Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 125 watts x 2 chan.
    • 2 ohm: 250 watts x 2 chan.
    • Bridged, 4 ohm: 500 watts x 1 chan.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Mono or 2-Channel Operation

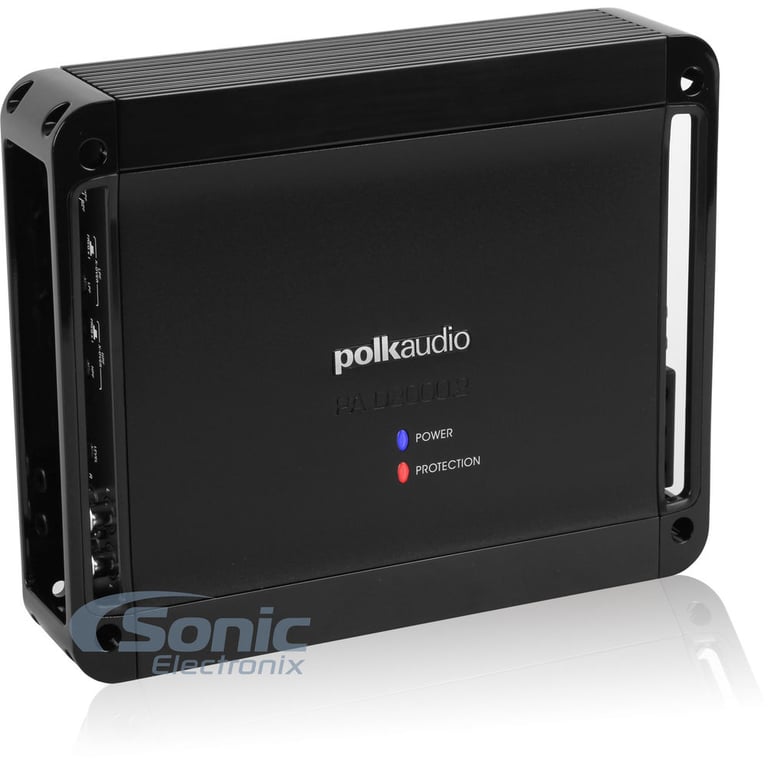

  • LED power (blue) and protect (red) indicators
  • Soft start turn-on

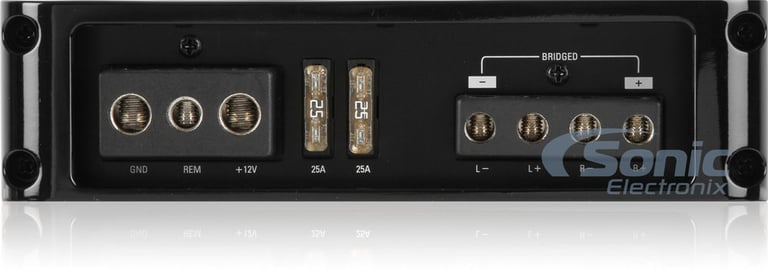

  • Preamp RCA outputs to daisy chain multiple amps
  • 4-way protection circuitry (thermal, overload, reverse polarity & speaker short protection)
  • Heavy duty aluminum alloy heat-sink
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity: 200mV - 6V
  • Frequency Response: 20 - 20,000 Hz
  • Damping Factor: >100
  • Total Harmonic Distortion (THD): <0.1%
  • Signal to Noise Ration: 105 dBA

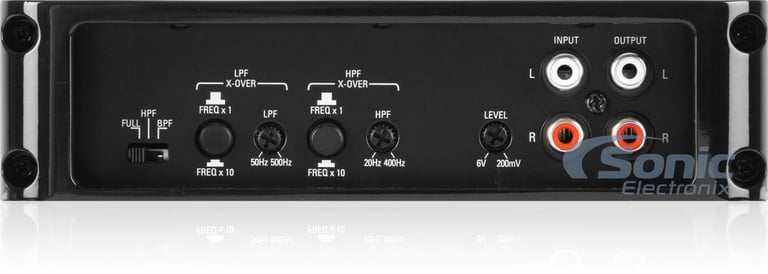

  • Selectable crossover modes: FULL / HPF / LPF
  • x10 Frequency Multiplier, Both Channels
  • Variable high-pass filter: 20 - 400 Hz (x10 Capable), 12 dB/octave
  • Variable low-pass filter: 50 - 500 Hz (x10 Capable), 12 dB/octave

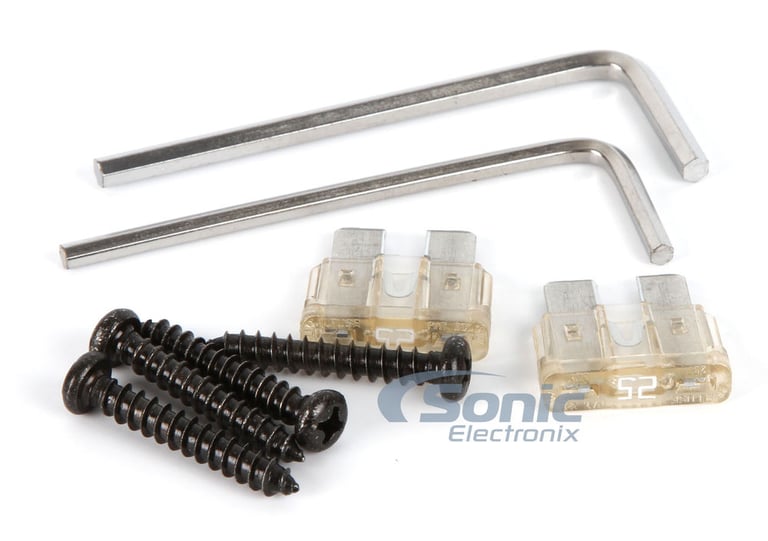

  • Fuse Rating: 25A x 2
  • Supply Voltage: 10V - 16V
  • 12 AWG Speaker Connections
  • 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.

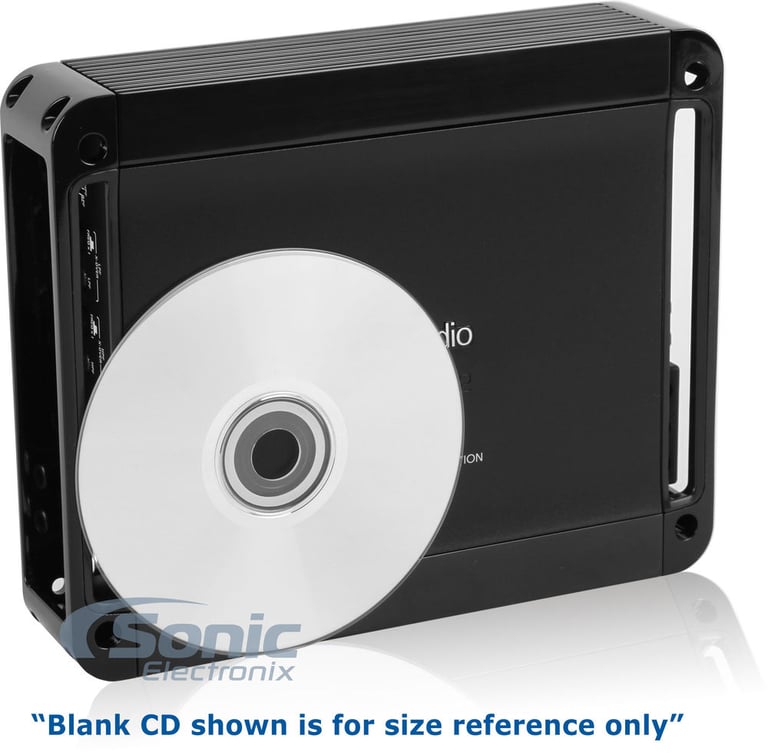

  • Dimensions: 6-3/4"W x 8-1/4"L x 1-13/16"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty


Check out the Polk Audio PA D2000.2 Owner's Manual

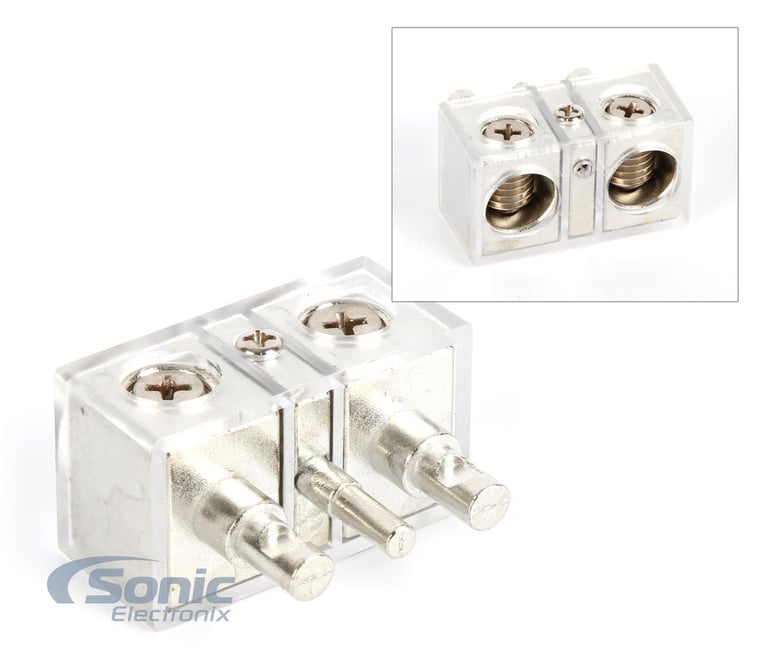

Important Note: Early versions of this amplifier included a "Terminal Adapter". As of 2016, Polk Audio has confirmed that they are no longer sending this adapter with their amplifier, albeit referenced in the user manual. We apologize for any inconvenience, and suggest browsing our selection of "Gauge Adapters" if you wish to use larger than recommended wiring. Thank you!

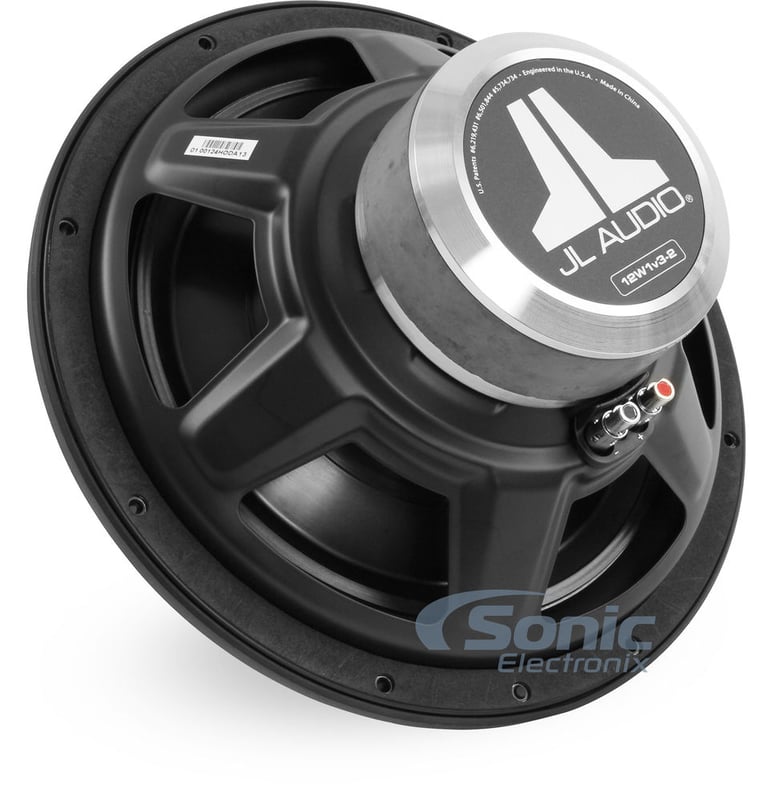

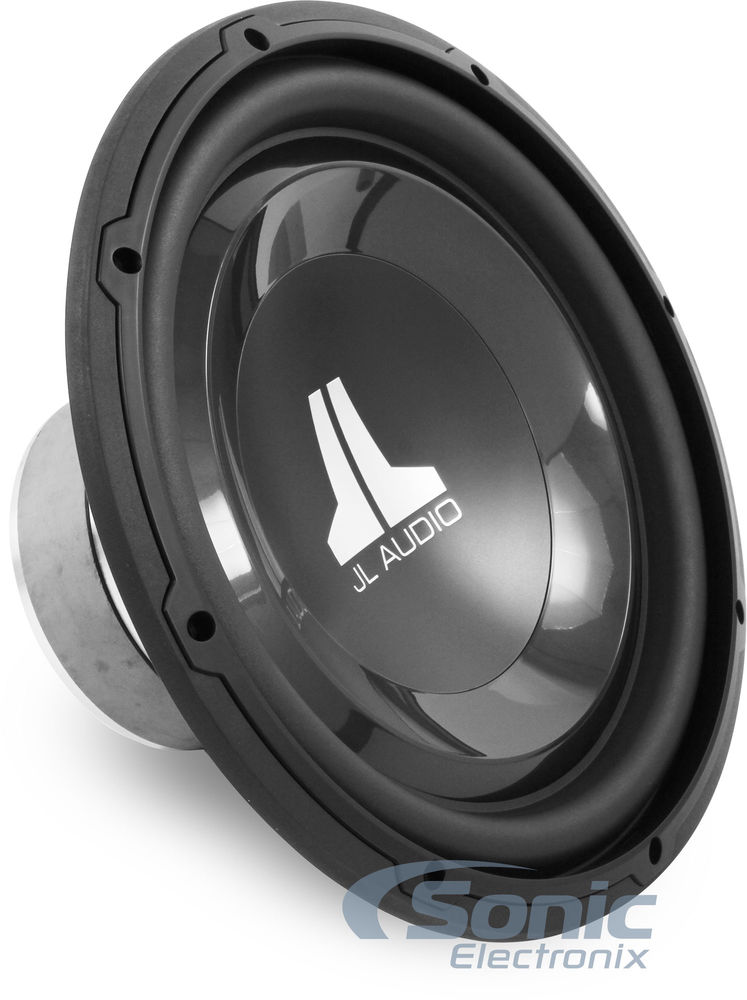

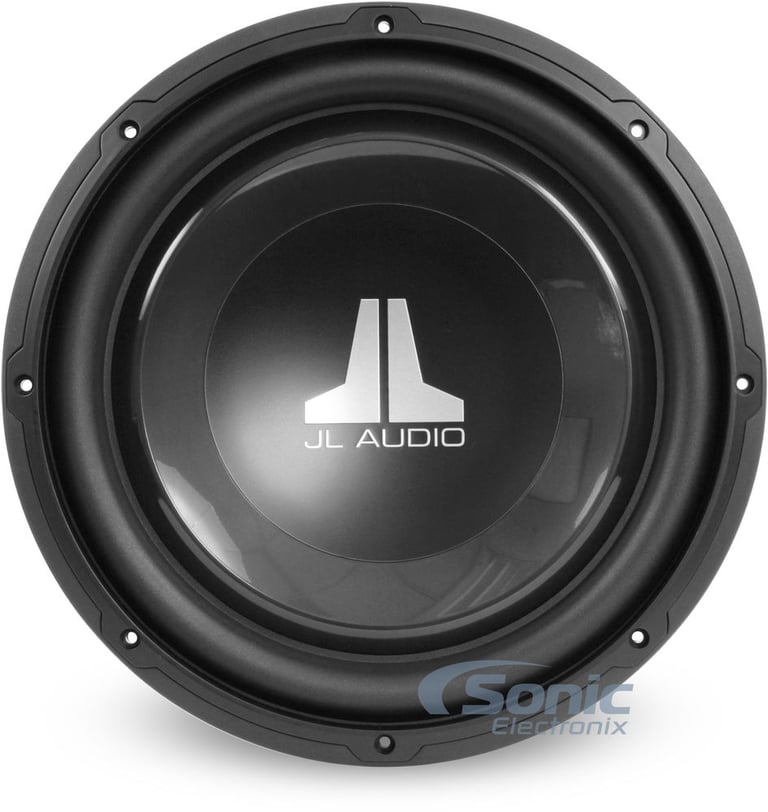

JL Audio 12W1v3-2

300W RMS 12" W1v3 Series Single 2-Ohm Subwoofer
Quantity: 2

Product Features:















  • 12" W1v3 Series Subwoofer Driver
  • Power Handling:
    • RMS: 600 watts per pair / 300 watts each
  • Recommended Power Range: 75 - 300 watts
  • Impedance: Single 2-Ohm
    Must wire one Driver Per Channel
  • Injection-molded, black mica-filled polypropylene cone
  • Nitrile-butylene rubber surround

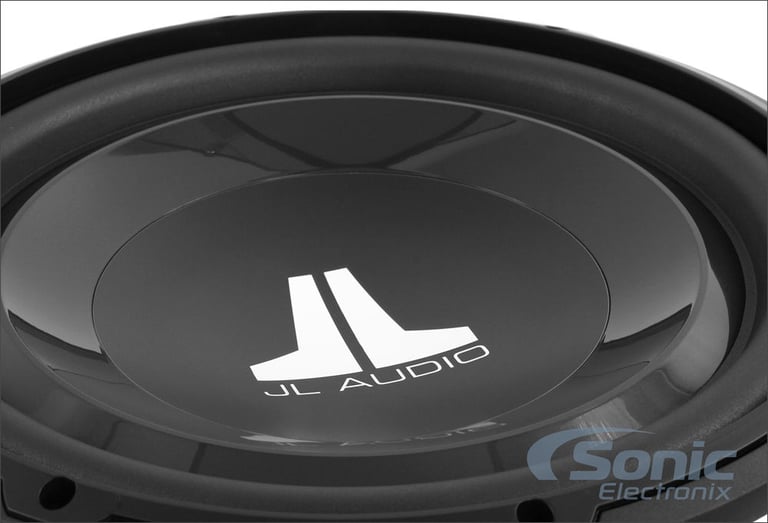

  • Aluminum dust-cap with JL Audio logo
  • Removable and customizable mounting flange trim ring
  • Vented reinforcement collar
  • Elevated frame cooling technology
  • DMA-Optimized motor system
  • Insert molded suspension/coil/terminal sub-assembly
  • Stamped steel basket
  • Floating Cone Attach Method
  • Interlocking Cone and Dust Cap
  • Surround Stress-Relief
  • Nickel plated push terminals
  • Mounting depth: 5.41 "
  • Cutout dimensions: 11.0625"
  • Free Air Resonance (Fs): 26.55 Hz
  • Sensitivity: 85.9 dB
  • Xmax: 11 mm
  • Reference Efficiency (no): 0.2300%
  • Frequency response: ~22 ~ 200 Hz
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-12
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Check out the JL Audio 12W1v3 Owner's Manual



Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
125 watts x 2 channel
RMS Power @ 2 ohms
250 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
20 - 4000 Hz
Low-Pass Crossover Frequency
50 - 5000 Hz
Signal-to-Noise Ratio
105 dB
Remote bass/level controller
No
Fan Cooled
No
Fuse Rating
25A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
W1 v3 Series
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
300 watts
Woofer Surround
Nitrile Butadiene Rubber NBR
Woofer Composition
Mica Injected Polypropylene - MIPP
Sensitivity
85.9 dB
Frequency Response
22 - 200 Hz
Xmax (millimeters)
11 mm
Top-Mount Depth (Mounting Depth)
5.41"
Cutout Diameter
11.0625"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PA D2000.2_2-12W1v3-2

Weight:

33.14lbs

Internal SKU:

pad20002_2-12w1v32

Internal Product ID:

105369

Customer Ratings & Reviews


Two JL Audio 12W1v3-2 + Polk Audio PA D2000.2 thumbnail image

5 star
91%
4 star
9%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Amazing Sound

The following review is for 12W1v3-2, which is a part of the bundle you are viewing.

I've always chosen JL audio for my car audio installs.

In a steal box environment it sounds absolutely amazing. I'm running a single 12" and couldn't be happier.

By Blake on November 1, 2014

47 found this helpful


dis shit bangs

The following review is for 12W1v3-2, which is a part of the bundle you are viewing.

badass sub with right amp n set up 300 500 max amp I run one in a single cab truck in it and I can't keep my review mirror straight hits hard for one Jl audio sub buy it u will b hella pleased

By Anonymous on September 7, 2019

34 found this helpful


Great mid-line sub

The following review is for 12W1v3-2, which is a part of the bundle you are viewing.

This is my first 12" sub. I have used 10" in past. This one seems to offer a little lower frequency extension, with great control. I like rock and in a small sealed enclosure, it is plenty fast enough to keep up. Volume is great with 300w RMS 2 ohm. So far no cons, works as I expect it to.

By CM on April 2, 2018

34 found this helpful


amazing speaker quality

The following review is for 12W1v3-2, which is a part of the bundle you are viewing.

very nicely made and sounds very good on 300w amp

By william on April 8, 2018 Checkmark Icon Verified purchase

32 found this helpful


Great sound quality

The following review is for 12W1v3-2, which is a part of the bundle you are viewing.

This is my 2nd JL sub after owning a 12W0 and they both sound great. The W1 sounds slightly better so I’d recommend it over the W0 For the extra $60-80. In a sealed truck box, I’m running it off of a JL JX 250/1 and LC2i along with the factory head unit.

By Michael on November 9, 2017 Checkmark Icon Verified purchase

31 found this helpful


The following review is for 12W1v3-2, which is a part of the bundle you are viewing.
By Tom on June 13, 2023 Checkmark Icon Verified purchase

30 found this helpful


Like it

The following review is for PA D2000.2, which is a part of the bundle you are viewing.

Great sound and low noise. Easy to install and clean looks.

By JD on April 24, 2013

26 found this helpful


Class D full range?

The following review is for PA D2000.2, which is a part of the bundle you are viewing.

After reading online about the issues faced by high frequency reproduction and class d technology I was skeptical whether these amps would perform well at high volume/high frequency. While my setup may not be quite audiophile grade, the addition of this amp has definitely brought it up a peg.

Seeing the Polk class D would run cooler and take up less space for the power, I bit the bullet and ordered. I am a believer now! This amp sounds great! While my Infinity Kappa 6x8's have always been a little on the bright side, they play much smoother than the other amps I've tried. Also, after playing the system at near full volume for 2hrs, the amp barely gets warm. Awesome!

May or may not be audiophile grade, but for anyone with a half way decent setup (aftermarket amps and speakers) will most likely be satisfied! I wouldn't let the amp class decide for you, get to your local audio shop and test one out today!!

By the way, did I mention the band-pass filter with the x10 multiplier? I think Polk just got a new #1 fan!!

P.S. I have only heard about Polk durability... gave it 5 stars
Settings have no graduated marks ... 4 stars

By M on March 4, 2013

21 found this helpful


INCREDIBLE

The following review is for PA D2000.2, which is a part of the bundle you are viewing.

I ordered this amp on a decision that it is cheap and has the 500rms I wanted. Plus I feel Polk Audio brand should be good enough to do the job.

Man...I was wrong. IT DID ONE HELL OF A JOB!

Obviously 500rms means power, but it isn't just SPL that this incredibly small Polk Audio amp provides; it provides superb subbass definition I have since long forgotten! I admit I wasn't expecting such a high sound quality out of this amp, but hearing is believing and this amp delivers! My subwoofer is AVI Sound SLS300, a high end subwoofer that once upon a time was paired with DLS Ultimate amp. This baby Polk did just as good if not better thanks to the higher power rating. It is just incredible.

Build quality is awesome too. It feels well made and solid with a nice weight to it. The piano black finish is gorgeous, and connection is very very good. The size? My goodness it is a blessing. The price? Ummm, if I said it I fear Sonic will jack up the price!

I suggests one thing for all of you guys wanting a high quality amp be it for front speakers or subwoofer; buy this amp!

I cannot say about reliability, but thus far I never blown an amp so maybe it is down to installation. Hell, why not, I just gonna give it 5/5 because this product truly impressed me.

Thank you to Sonic Electronix for the awesome delivery too!

By Danzzt231 on April 17, 2013

15 found this helpful


Crisp and clean and unreal amounts of power in this tiny package.

The following review is for PA D2000.2, which is a part of the bundle you are viewing.

I bought this with the PAD1000.1 for a new install. Driving a set of SR6500's. I have never had these speakers sound so good. Auditioned with some Duffy, Adele and then to see how they handle a pounding, some Five Finger. Nice, tight midrange and the vocals are breath taking with this new D series amp. Like the other PAD, this amp runs COOL over a long long period. The clarity of this amp is just nothing short of amazing. The SR6500's really shine with this amp. Did I mention how tiny this thing is? You can install it anywhere. Same heavy duty 1/0 accepting power connection and a beautiful finish. State of the art in all aspects. This amp cannot dissappoint.

By Kevin on November 3, 2011

12 found this helpful




IBP182B small

iLive IBP182B Portable iPhone/iPod FM Radio Boombox Speaker Dock Open Box

Portable FM Radio iPhone/iPod Docking Boombox Battery/AC Power Speaker System w/ 3.5mm Auxiliary In

$37.99

List price $59.99

BU-CP4-P small

Baretta USA BU-CP4-P (BU-CUP4P MAT)

Ultrasonic Parking Sensor System w/ Alert Buzzer (Black)

$34.99

List price $99.99

APL1-NAN4G-20-C3OTR small

OtterBox APL1-NAN4G-20-C3OTR (Black)

Impact Series Case for iPod nano 4G

$11.99

List price $19.95

BU-CP8-L2 small

Baretta USA BU-CP8-L2

8 Sensor Ultrasonic Parking Sensor System w/ Distance Display (Matte Black)

$114.99

List price $249.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2014 Mitsubishi Outlander

1993 Lexus SC400

2006 Mazda MPV

2013 Kia Optima

2015 Ford Expedition

2006 Ford Freestyle

2016 Volkswagen CC

1971 Ford Thunderbird

2015 Audi RS7

2001 Chrysler Sebring

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
