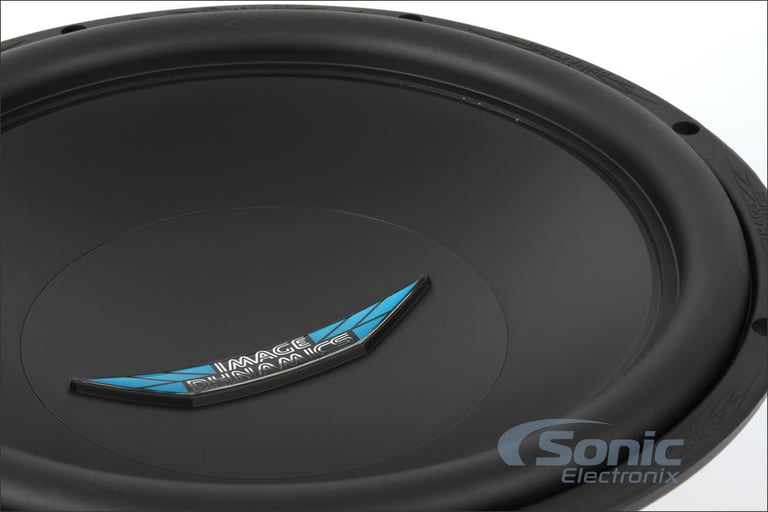

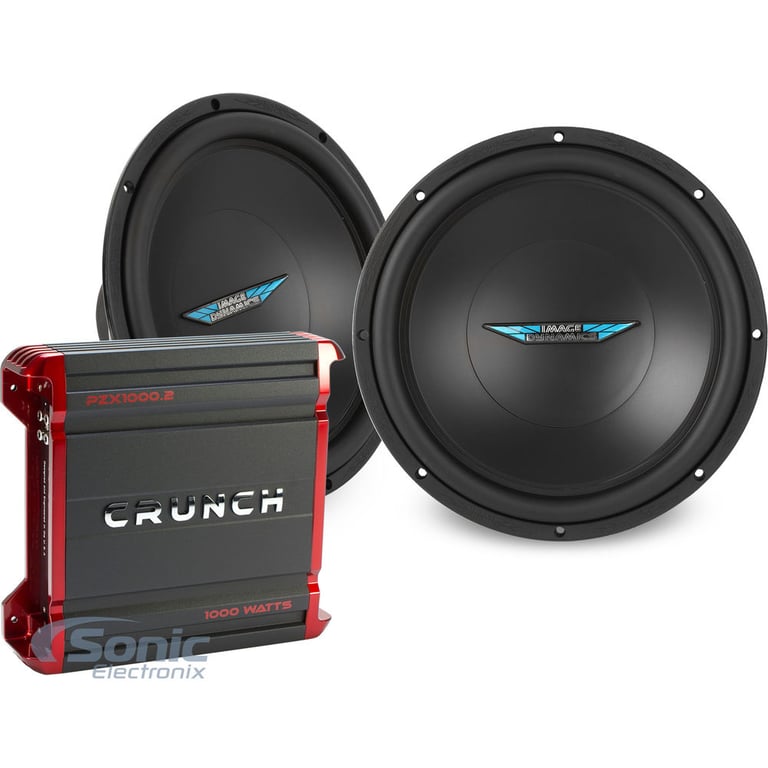

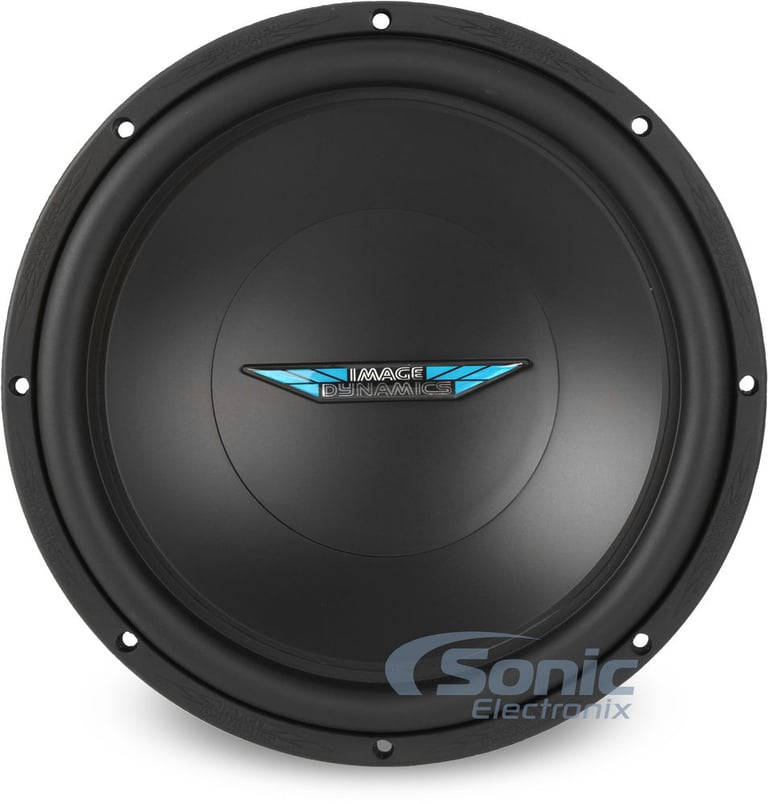

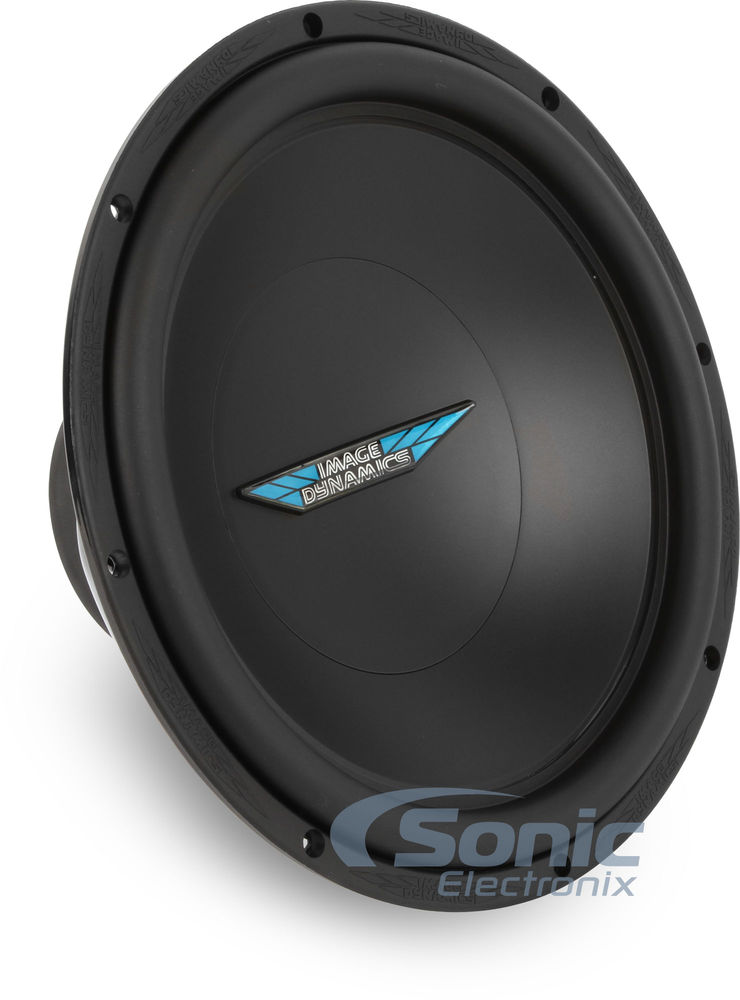

Image Dynamics CTX128
175W 12" CTX Series Single 8-Ohm Subwoofers
Quantity: 2
General Features
- 12" Single 8-Ohm CTX Series Subwoofer
- Power Handling:
- Peak RMS: 700 watts per pair / 350 watts each
- Recommended RMS: 350 watts per pair / 175 watts each
- Poly-mica cone woofer
- Butyl rubber surround

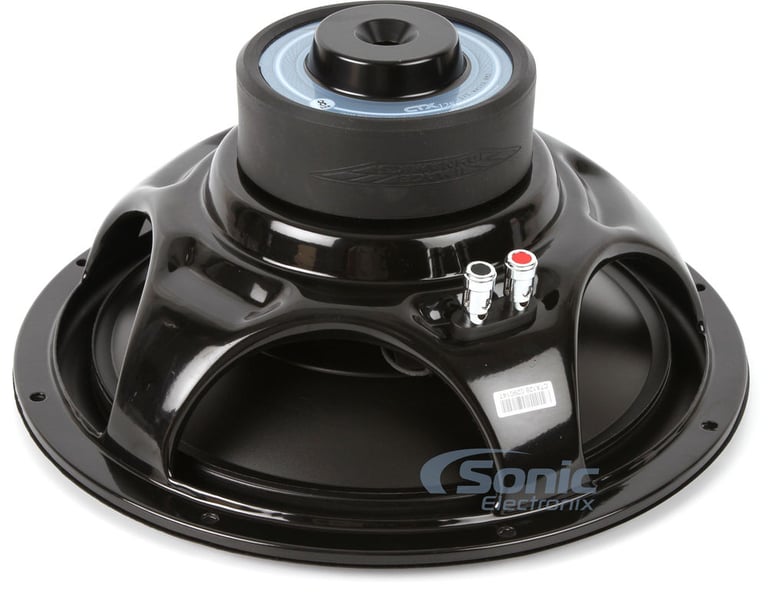

- Spring loaded push terminals for easy installation
- Conex spider with integrated tinsel leads
- Black anodized aluminum voice coil former
- Frequency response: 16 - 180 Hz
- Sensitivity: 86 dB
- Xmax: 16.0 mm
- Mounting Depth: 5.65"
- Cutout Dimensions: 11.0"
- Infinite Baffle "Free Air" Ready/Compatible
- Recommended Sealed Enclosures:
- Audiophile (Large Box): 3.0 ft³ w/ ~3-4lbs of Poly fill
- Universal (Med Box): 3.0 ft³ w/ No Poly fill
- Compact (Sm Box): 2.4 ft³ w/ ~2lb of Poly fill
- Recommended Ported Enclosures:
- Audiophile (Large Box): 5.6 ft³ @ 28 Hz w/ ~4lbs of Poly fill
- Universal (Med Box): 5.6 ft³ @ 28 Hz w/ No Poly fill
- Compact (Sm Box): 4.4 ft³ @ 28 Hz w/ ~2lb of Poly fill
- 1-year Manufacturer's Warranty

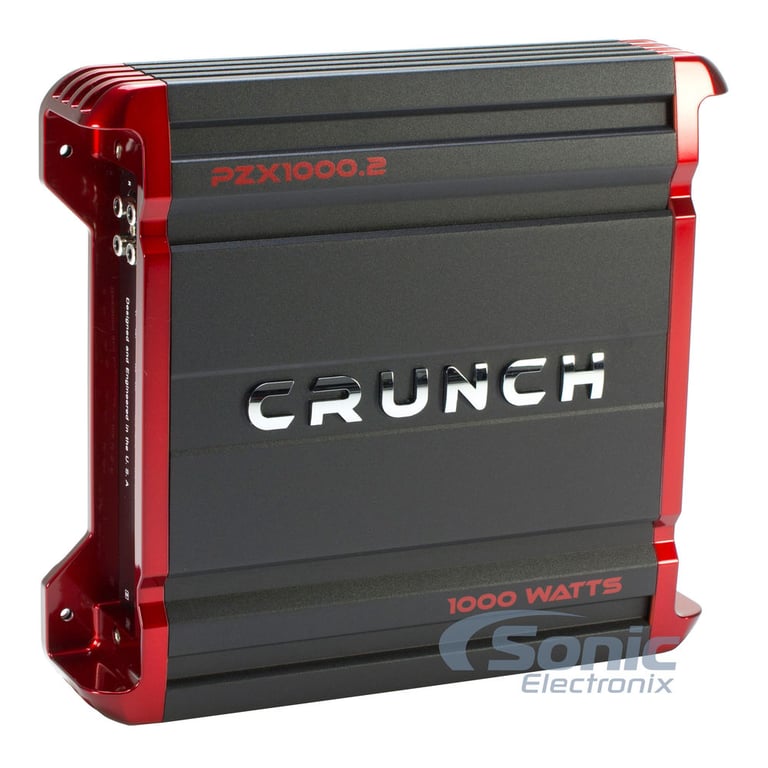

Crunch PZX1000.2
1000W 2-Channel Powerzone Series Class AB Car Amplifier
Quantity: 1
General Features:
- 2-Channel Powerzone Series Class AB Car Amplifier
- Max Power Rating:
- 4 ohm: 250 watts x 2 chan.
- 2 ohm: 500 watts x 2 chan.
- Bridged, 4 ohm: 1000 watts x 1 chan.
- Max power output: 1000 watts
- SEPP (Single Ended Push Pull) A/B Class Amplifier Designs
- Rugged Pulse Width Modulated MOSFET power supply

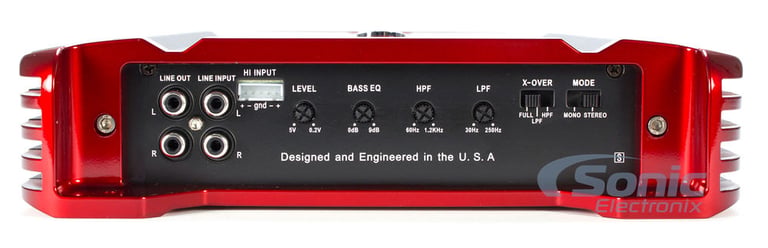

- Silver-plated RCA level inputs

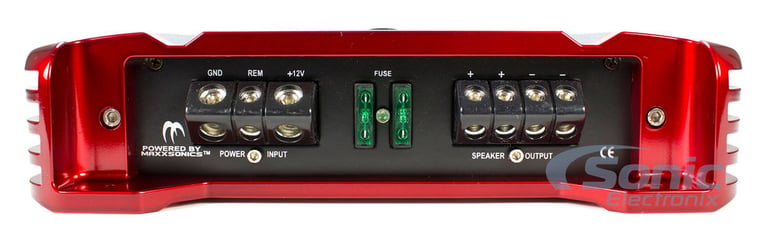

- Silver-plated screw terminals
- 2 channel or mono operation
- Speaker-level (high-level) inputs
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Input sensitivity: 200mV - 5V
- Frequency Response: 10 - 45,000 Hz
- Total Harmonic Distortion (THD): <0.05%
- Signal to Noise Ration: >90 dB
- Selectable crossover modes: FULL / LPF / HPF
- Variable low-pass filter: 30 - 250 Hz
- Variable high-pass filter: 60 - 1200 Hz
- Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
- Fuse Rating: 40A x 1
Photo gallery shows a different model, for reference - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 9.29"L x 8.66"W x 2.17"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
