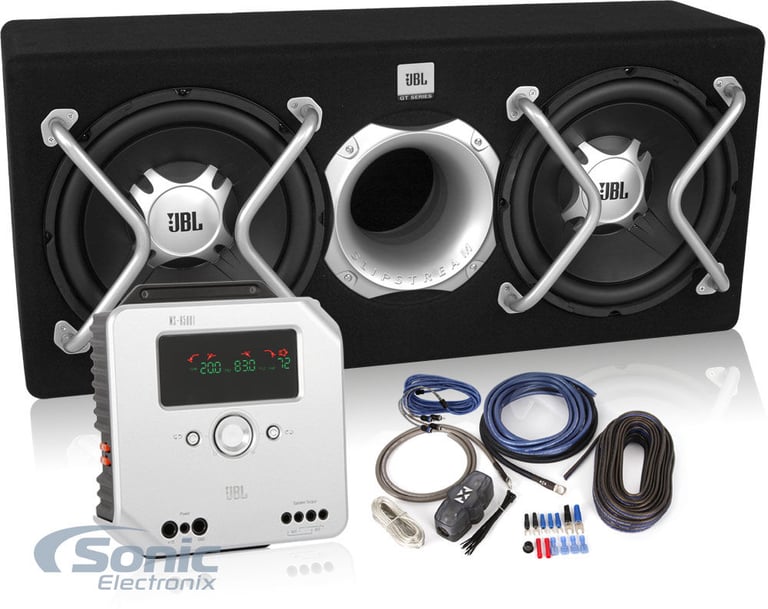

JBL GT5-2402BR + JBL MS-A5001 + Kit, Dual Sub Box with Amp & Wires

• Dual 12" GT Series Subwoofers Loaded in an JBL Enclosure
• Power Handling:
• Peak: 1600 watts (800 watts each)
• RMS: 550 watts (225 watts each)
• Recommended power range: 200 - 600 watts RMS
• Final Impedance: 2 ohm
• Polypropylene cone woofer
• Rubber surround
• Rubber coated tinsel leads
• Vented motor structure
• Dual-stacked, oversized magnets
• Sensitivity: 95 dB
• Authorized Internet Dealer
• 1-year Manufacturer's warranty (Subwoofer only)

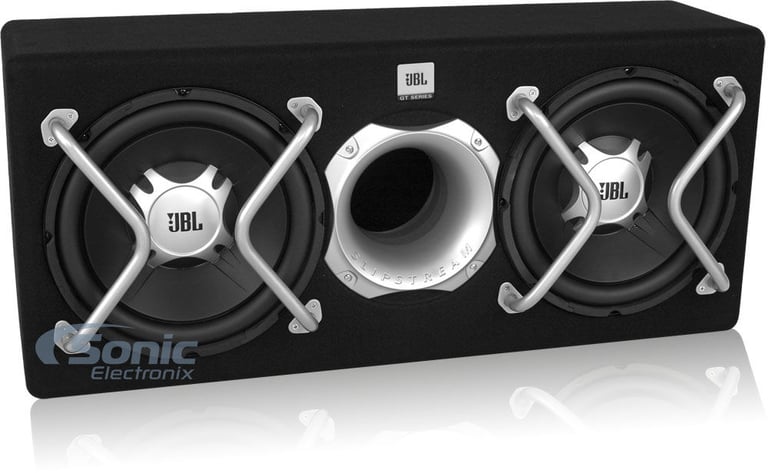

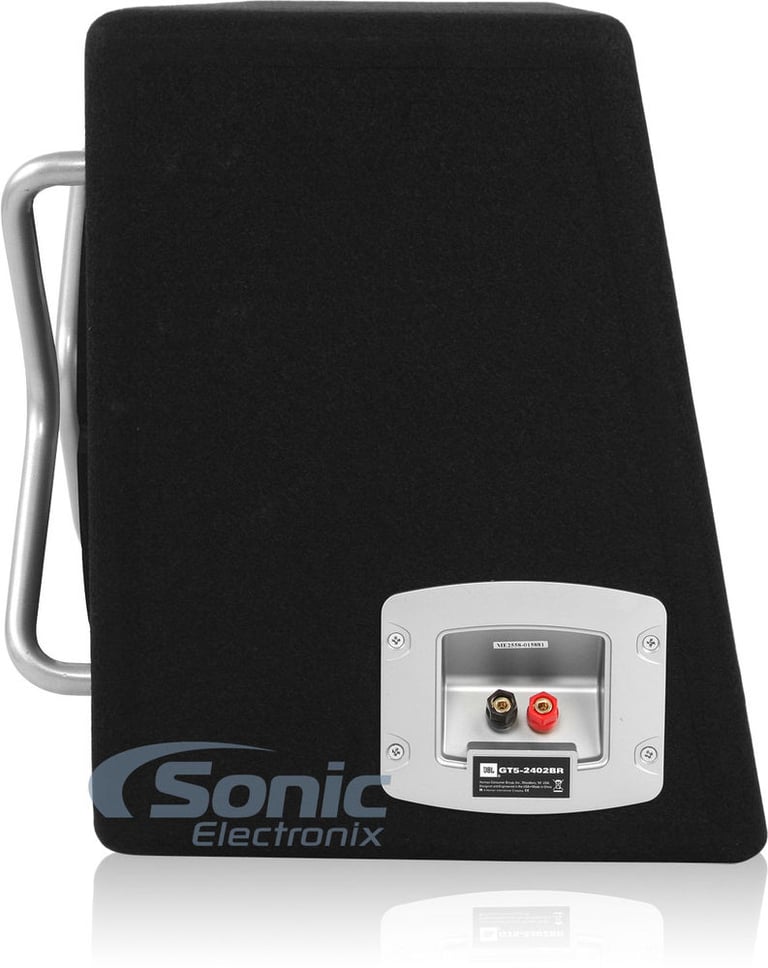

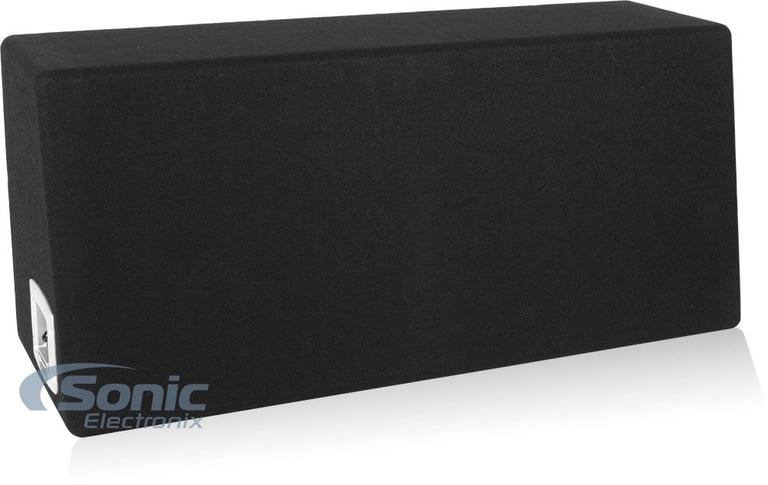

• JBL Tuned Slipstream Ported Enclosure
• Designed specifically for the JBL GT5-12 subwoofer
• Tuned to an optimal 40-200 frequency response
• Recommended power handling: 200-550 watts RMS
• Wired internally for a final impedance of 2 ohm
• Covered in black carpet for looks and durability
• Sturdy grill protects the subwoofer from unnecessary damage
• Gold plated terminals or excellent connectivity
• Banana clip ready
• Made from durable 3/4" MDF (Medium Density Fiberboard)
• Dimensions: 11-5/16"D1 x 14-3/8"D2 x 35-3/16"W x 15-7/16"H

General Features

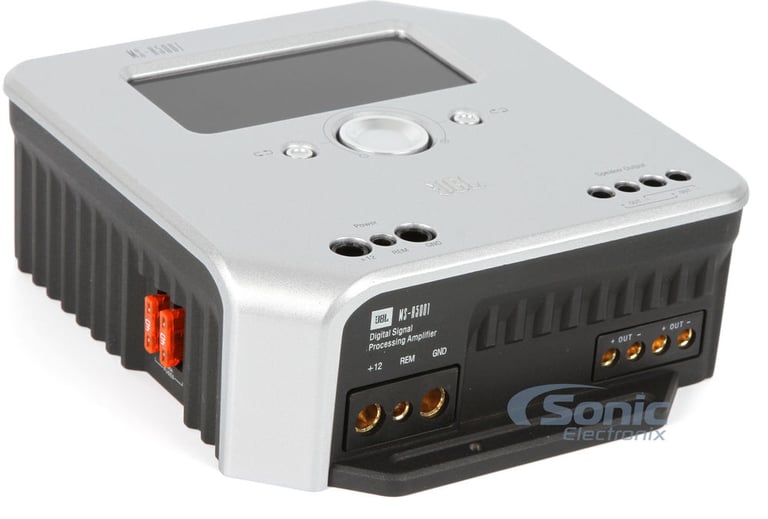

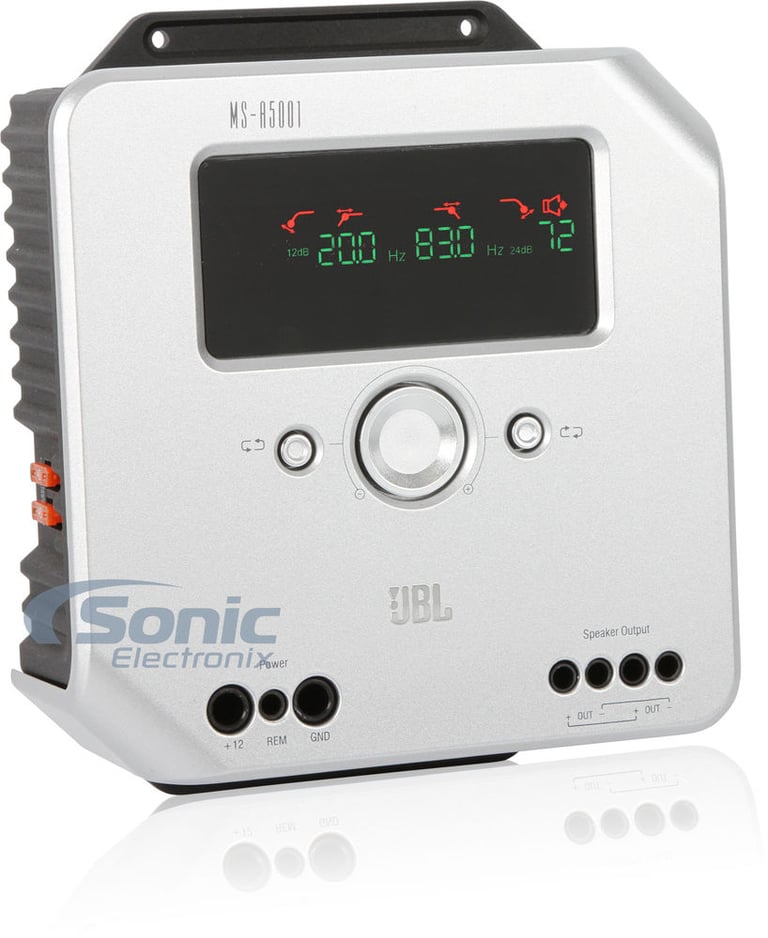

• MS Series Monoblock Class D Car Amplifier
• RMS Power Rating:
• 4 ohm: 500 watts x 1 chan.
• 2 ohm: 500 watts x 1 chan.
• Sonic Electronix Certified Power Rating*:
• 4 ohm: 468 watts x 1 chan.
• 2 ohm: 692 watts x 1 chan.
• CEA-2006 compliant amplifier
• Digital signal processing amplifier
• Pulse Width Modulated MOSFET power supply
• Wireless Remote bass level input (JBL MS-WBC remote level control sold separately)
• Built-in display shows tone and gain settings
• Soft Start Turn-on
• Mono channel operation
• "Hi2" input setting provides factory system amps with output loads, eliminating "speaker disconnected" error messages
• Speaker-level inputs with signal sensing for automatic turn-on
• Preamp RCA outputs to daisy chain multiple amps
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
• Digital input-mixer control eliminates the need for Y adapters
• Heavy duty aluminum alloy heatsink for extreme heat dissipation
• CD for system setup included
• Gold-plated RCA level inputs

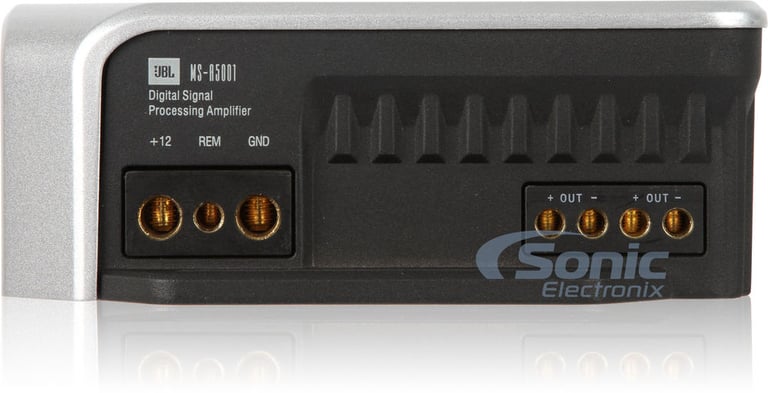

• Gold-plated screw terminals
• Input sensitivity: 100mV - 20V
• Signal to Noise Ratio: 80 dB
• Frequency Response: 20 - 270 Hz
• Selectable crossover slopes: 6 dB/oct, 12 dB/oct, 24 dB/oct
• Variable low-pass filter: 97 points from 20 - 140 Hz
• Variable high-pass filter: 97 points from 20 - 140 Hz
• Dimensions: 8-13/16"L x 7-1/4"W x 2-13/16"H
• 4 - 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

General Features:

• 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed specifically for car audio systems up to 600 watts RMS
• Premium power and ground wire provides optimal power transfer
• Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
• Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
• Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Strand Count: 735
• BC-5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

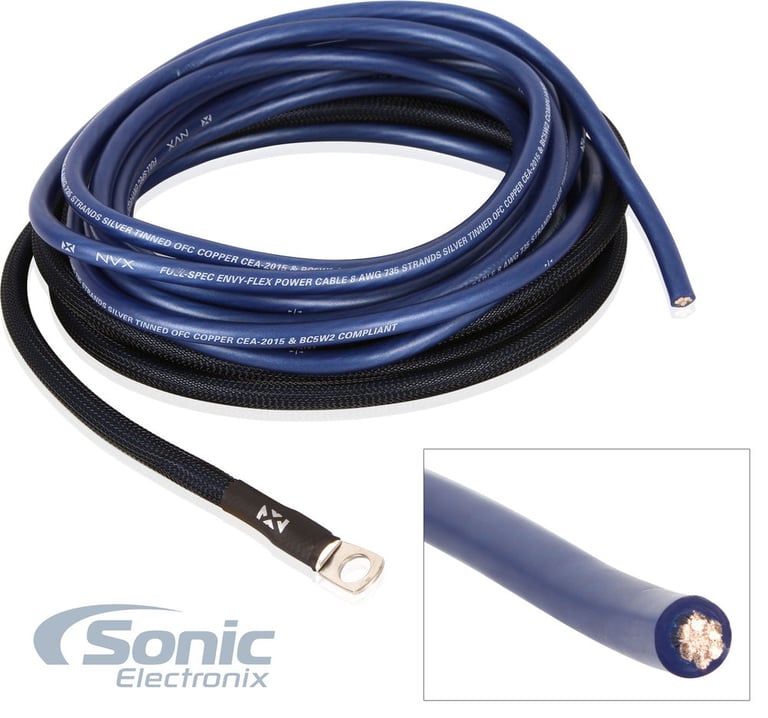

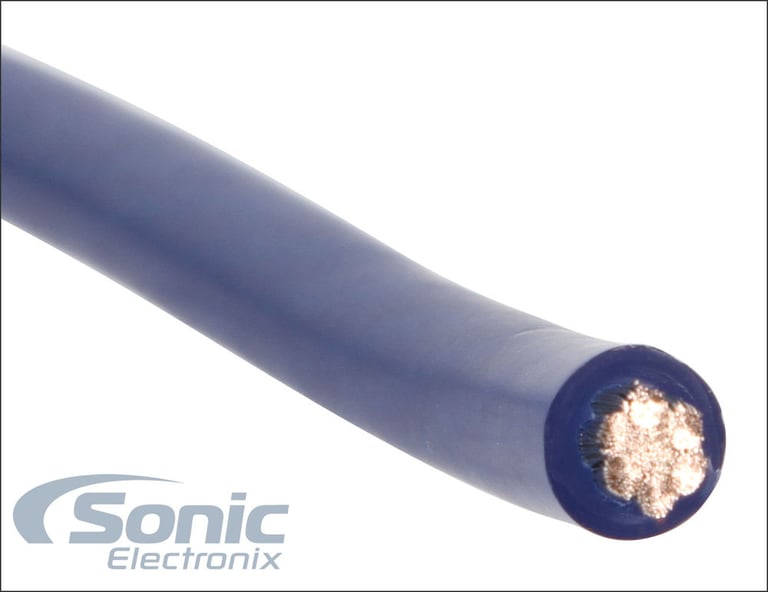

1. 20 ft. (6.1 meters) Frosted Blue 8 gauge power wire with seamless crimp ring terminal

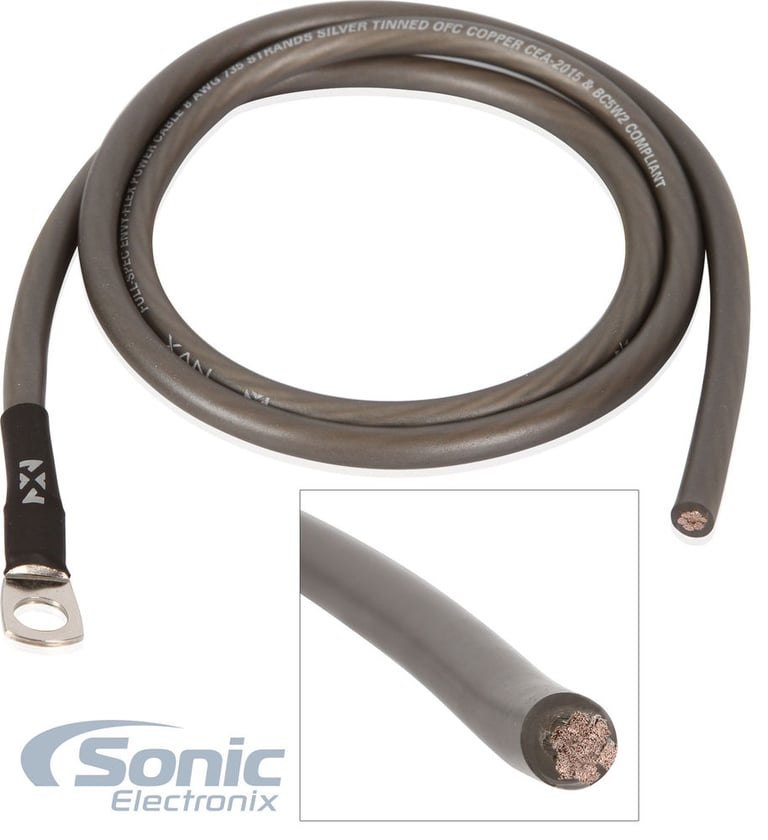

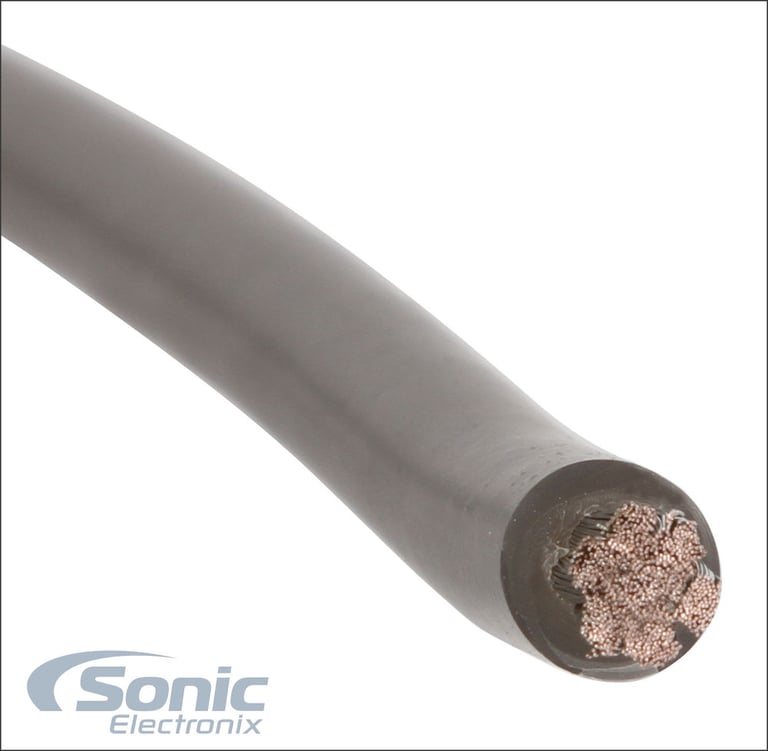

2. 3 ft. (.91 meters) Frosted Gray 8 gauge ground wire with seamless crimp ring terminal

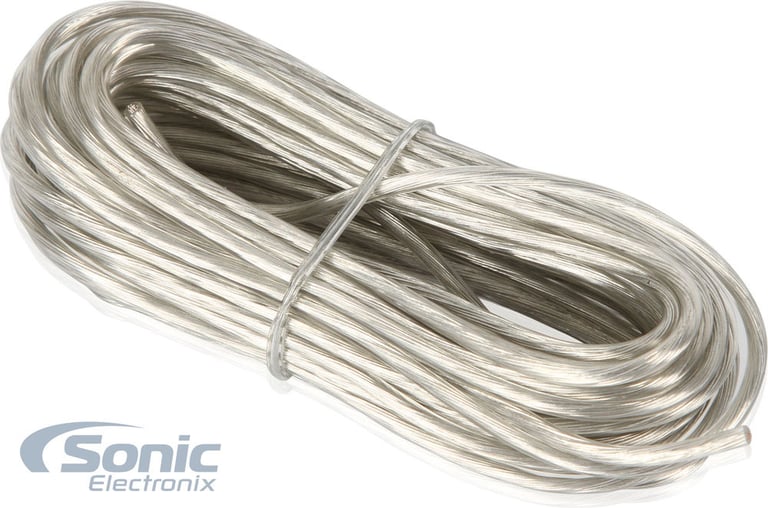

3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

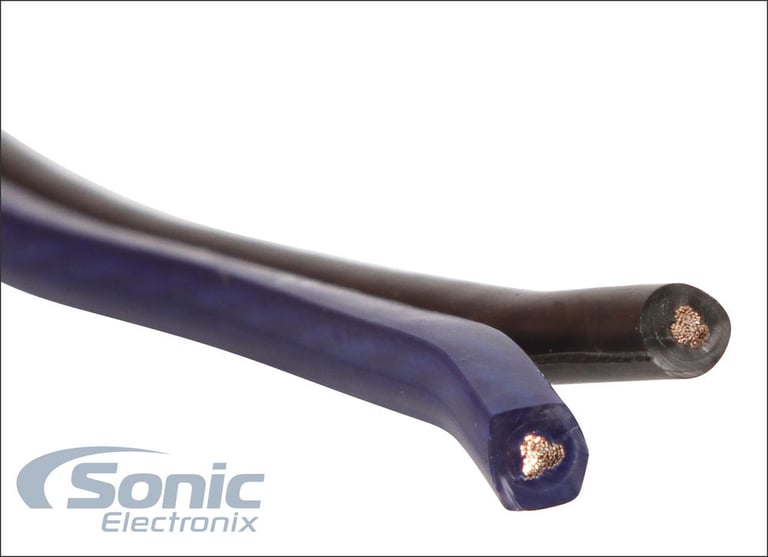

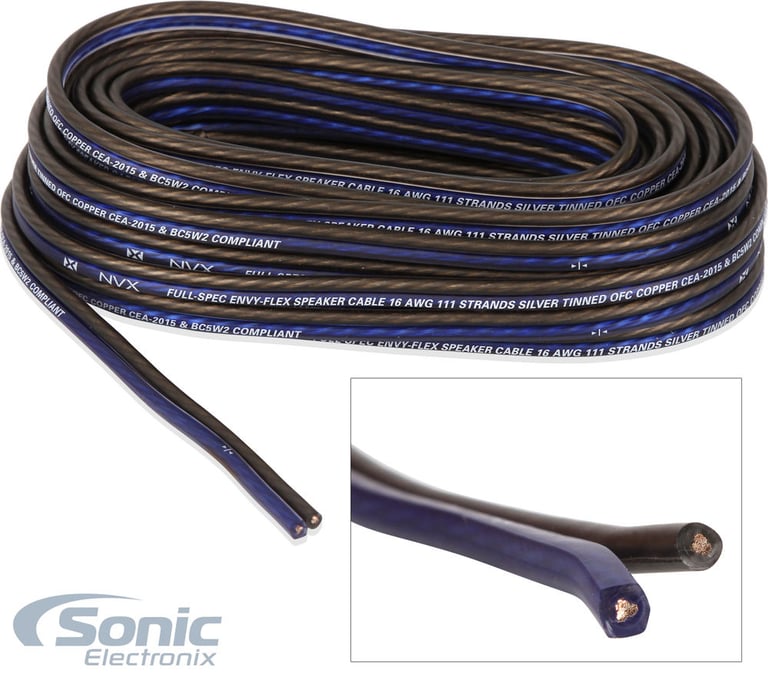

4. 40 ft. (12.2 meters) Frosted Gray/Blue 16 gauge speaker wire

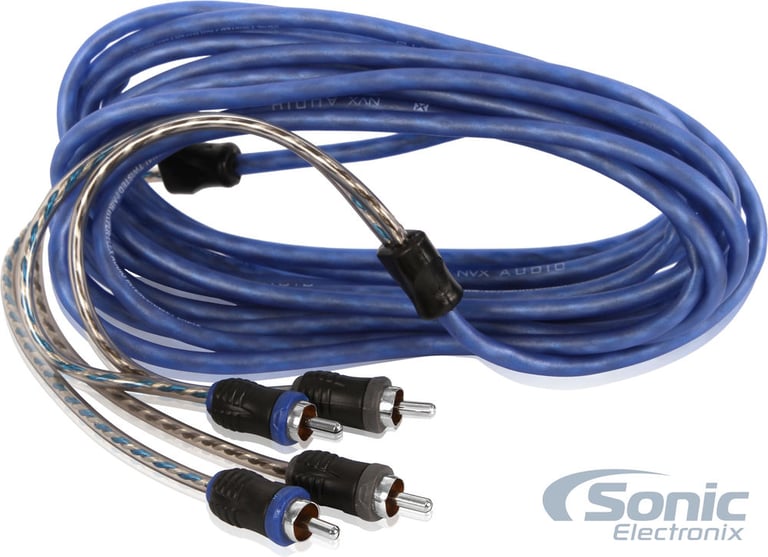

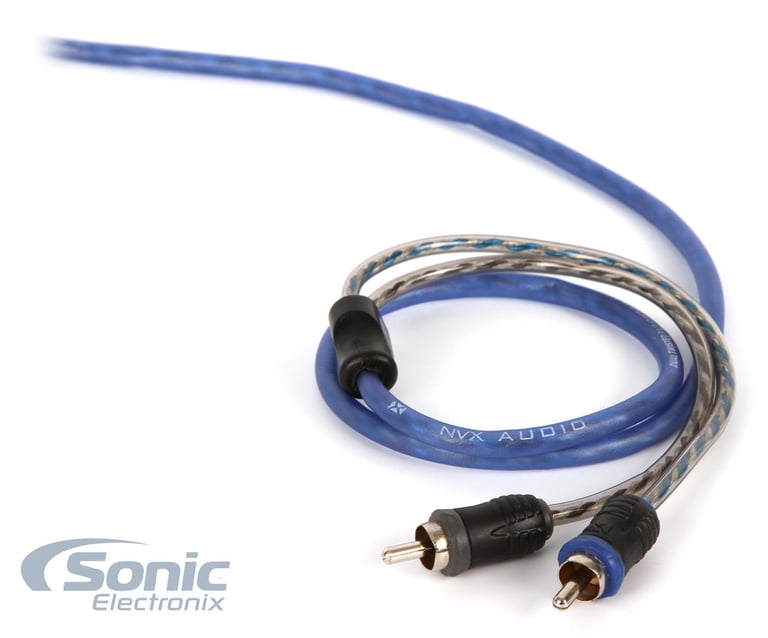

5. One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

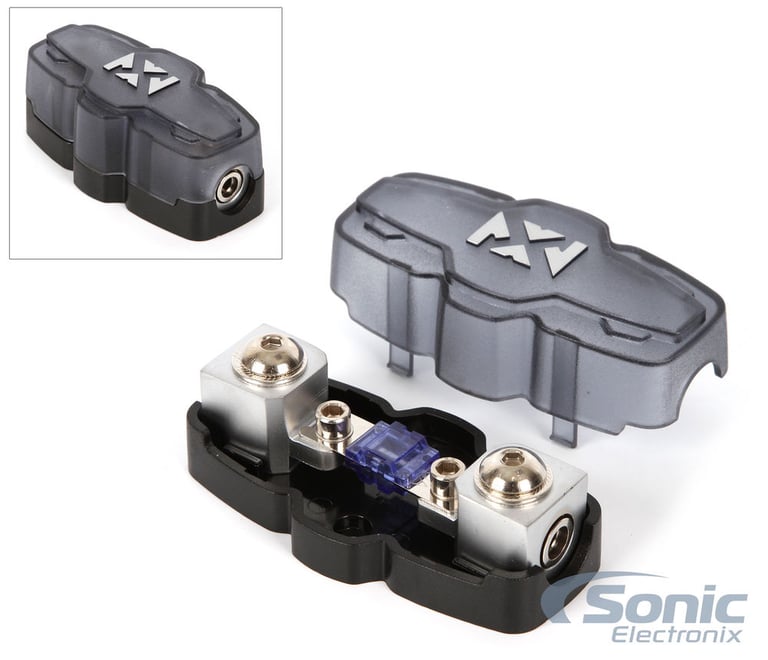

6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse

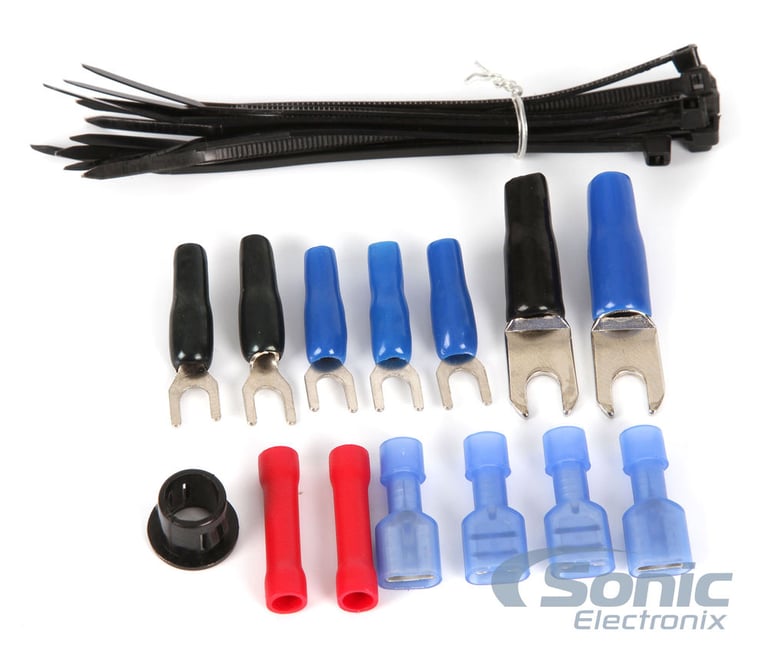

7. One 5/16" black rubber firewall grommet
8. Two 8 gauge spade terminals
9. Two black 16 gauge nickel-plated spade lugs
10. Three blue 16 gauge nickel-plated spade lugs
11. One black 18 gauge spade terminal
12. Two 18 gauge red butt connector
13. Ten 4" black zip ties
