Rockford Fosgate R165X3 for Harley Davidson 1998-2013 w/ Amp Installation Kit

6.5" PRIME Series Coaxial Speakers + Speaker Adapter Rings + RFKHD9813 Amp Installation Kit w/ Mounting Plate for compact Power & Punch Amps

Product videos
highlight-star-icon

• Peak Power: 180W
• RMS Power: 90W
• 1/2" Silk Dome Piezo Tweeter
• Mounting Depth: 2-3/16"
• CEA-2031 Compliant Speakers
• 4 Ohms Impedance
• Sensitivity: 91dB
• FULL spec cable - meets or exceeds AWG requirements
• 100% Pure Crystal-Oxygen Free Copper
• All cables in kit conform to the CEA-2015 AWG specification
• Upgraded cables for proper current and voltage requirements of amplifier
• 1998 - 2013 Harley Davidson Amplifier Installation Kit

Learn more about the r165x3_pmsa675_rfkhd9813

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 180W
• RMS Power: 90W
• 1/2" Silk Dome Piezo Tweeter
• Mounting Depth: 2-3/16"
• CEA-2031 Compliant Speakers
• 4 Ohms Impedance
• Sensitivity: 91dB
• FULL spec cable - meets or exceeds AWG requirements
• 100% Pure Crystal-Oxygen Free Copper
• All cables in kit conform to the CEA-2015 AWG specification
• Upgraded cables for proper current and voltage requirements of amplifier
• 1998 - 2013 Harley Davidson Amplifier Installation Kit

Description


Rockford Fosgate brand icon

Authorized dealer

Need Advice?

Phone:
1-661-257-9993

HOW TO MAKE YOUR HARLEY DAVIDSON SPEAKER SYSTEM SOUND AWESOME

Hi, we're here to help you find the perfect audio solution for your Harley Davidson. The Sonic staff have written this article to make your shopping experience better. Go to Blog

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3-way 4-ohm Coaxial Car Speakers
Quantity: 1

Product Details:

  • 6-1/2" Prime Series 3-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 180 watts per pair / 90 watts each
    • RMS: 90 watts per pair / 45 watts each
  • CEA-2031 compliant
  • Vacuum Polypropylene cone material
  • Rubber speaker surround
  • 1/2" Piezo pole-mounted Silk Dome tweeters
  • 1" voice coil
  • Crossover: 6dB high-pass
  • Top-mount Depth: 2.15"
  • Cutout Dimensions: 5.51"
  • Impedance: 4 ohms
  • Frequency Response: 52 - 20,000 Hz
  • Sensitivity: 91 dB
  • 2 speaker grilles included
  • Authorized Internet Dealer
  • MFR #: R165X3
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

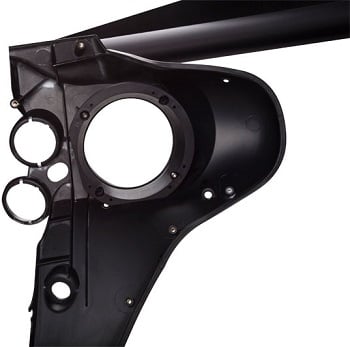

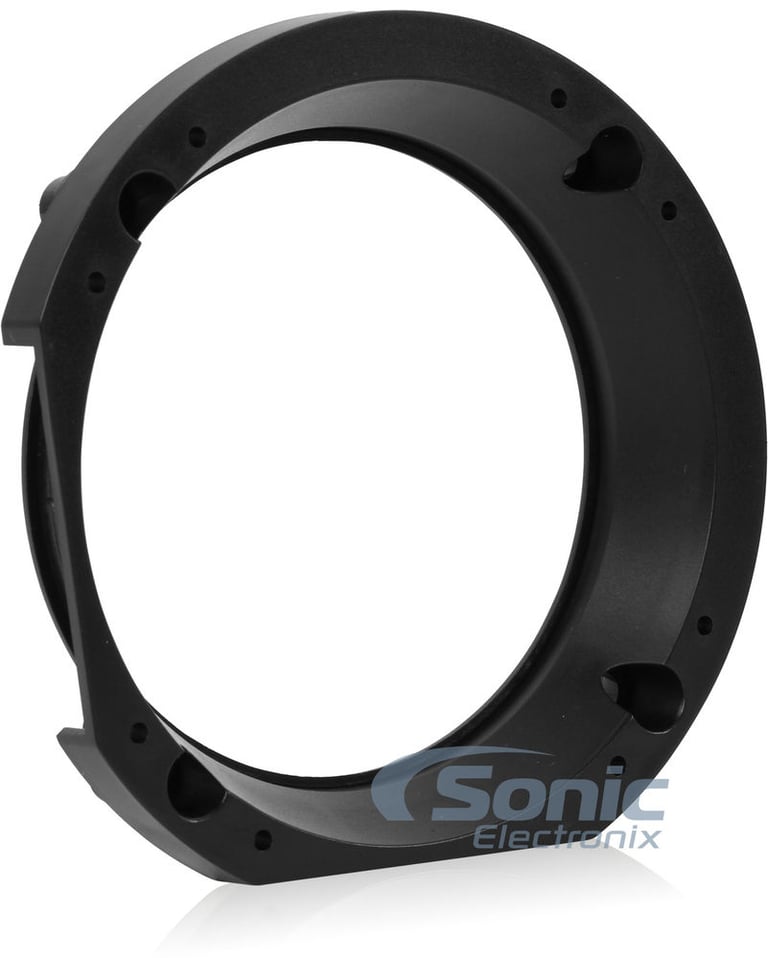

Rockford Fosgate PMSA675

Speaker Adapter Rings for 6.75" Speakers for Harley Davidson 1998-2013
Quantity: 1

General Features:



  • Integrates speakers with fairings on Harley-Davidson models 1998 - 2013
  • Allows use of 6.75" speakers in factory 5.25" cutout
  • Adapts speaker to factory fairing location
  • Molded for Harley-Davidson fairings
  • Kit includes mounting hardware
  • Kit contains 2 adapter rings
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Per Pair

Compatible Rockford Fosgate Speakers:



Check out the Rockford Fosgate PMSA675 Installation Reference Sheet

Rockford Fosgate RFKHD9813

Amplifier Installation Kit w/ Mounting Plate for Select Harley-Davidson Motorcycles and compact Power & Punch Amplifiers
Quantity: 1

General Features:

  • 1998 - 2013 Harley Davidson Amplifier Installation Kit
  • 100% Pure Crystal-Oxygen Free Copper
  • FULL spec cable - meets or exceeds AWG requirements
  • All cables in kit conform to the CEA-2015 AWG specification
  • Heat-sink provides extended thermal time under demanding situations
  • Upgraded cables for proper current and voltage requirements of amplifier

  •
  • Kit Includes:

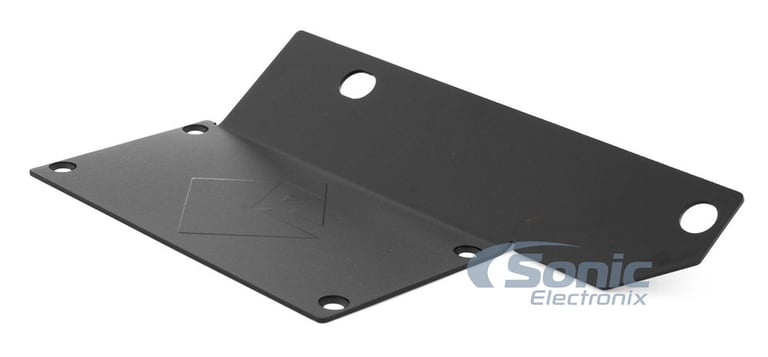

    • Amplifier Mounting Plate w/ Brackets

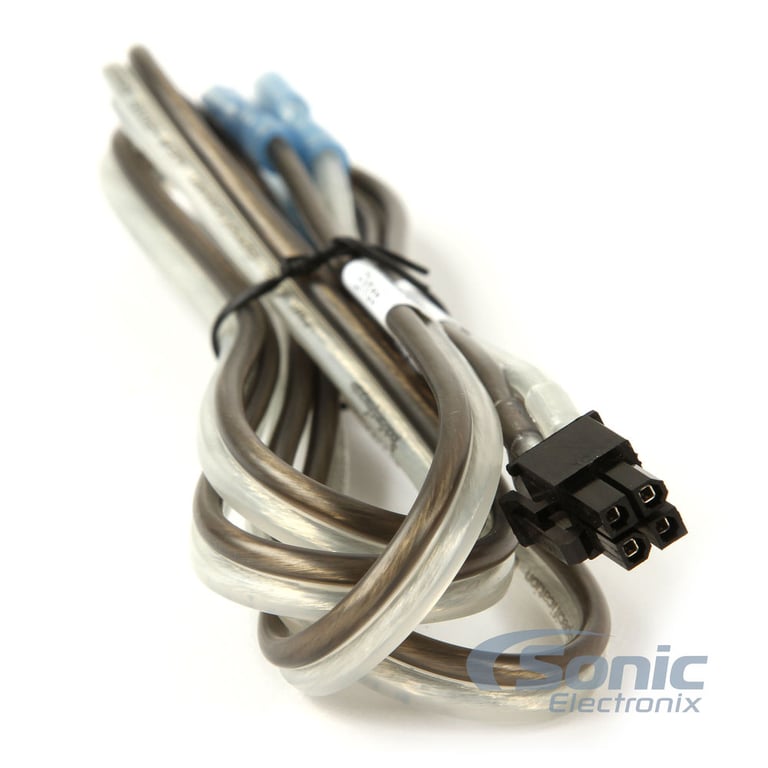

    • 8 AWG Power/Ground Harness
    • 16 AWG Front Speaker Input Harness
    • 16AWG Front Speaker Output Harness
    • 16AWG Rear Speaker Output / Input Harness
    • Inline Fuse Holder w/ 60 A MAXI Fuse
    • Mounting Hardware
    • Instruction Manual
  • Dimensions: 5.20"W x 8.40"L x 1.10"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Compatible 1998 - 2013 Haley Davidson Models:

  • Ultra Classic
  • Electra Glide
  • Street Glide
  • Tri Glide

Compatible Rockford Fosgate Amplifiers:



Check out the Rockford Fosgate RFKHD9813 Owner's Manual

Specifications & Details


Speaker Specifications
Series
Prime Series
Priced Per
Pair
Speaker Size
6-1/2"
Design
3-way Coaxial
Tweeter Design
Dome
Tweeter Size
1/2"
Tweeter Composition
Silk
Woofer Composition
Polypropylene
Peak Power Handling
90 watts
RMS Power Handling
45 watts
Sensitivity
91 dB
Frequency Response
52 - 20000 Hz
Impedance (Per Voice Coil)
4 ohms
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
2-3/16"
Bottom-Mount Depth
2-5/16"
Cutout Dimensions
5-1/2" x 5-1/2"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R165X3_PMSA675_RFKHD9813

Weight:

11.50lbs

Internal SKU:

r165x3_pmsa675_rfkhd9813

Internal Product ID:

105599
