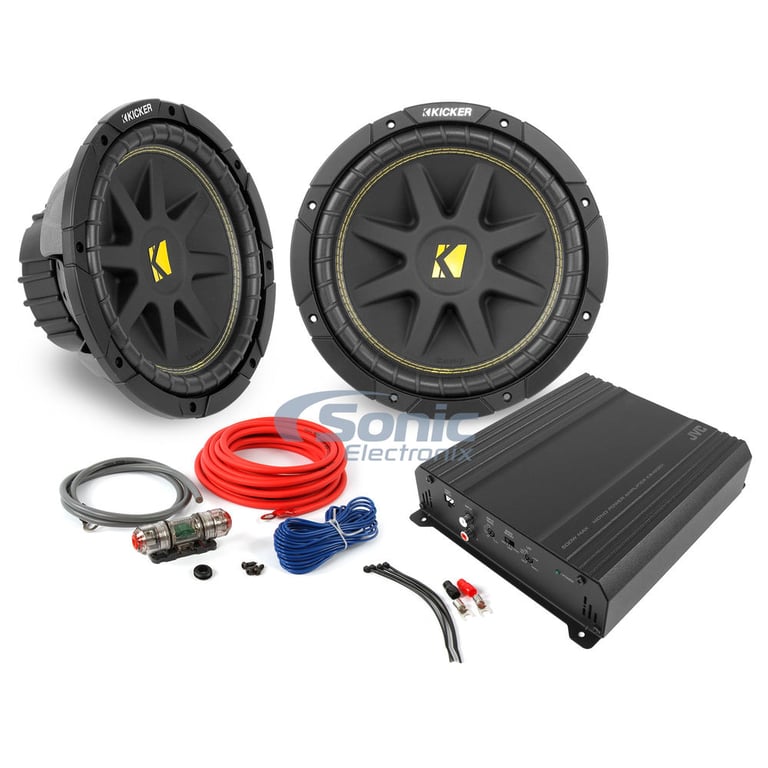

JVC KS-AX201 500W Monoblock + Kicker Dual 10" C104 Subwoofer with Amp Kit

The best balance between high value and high performance!

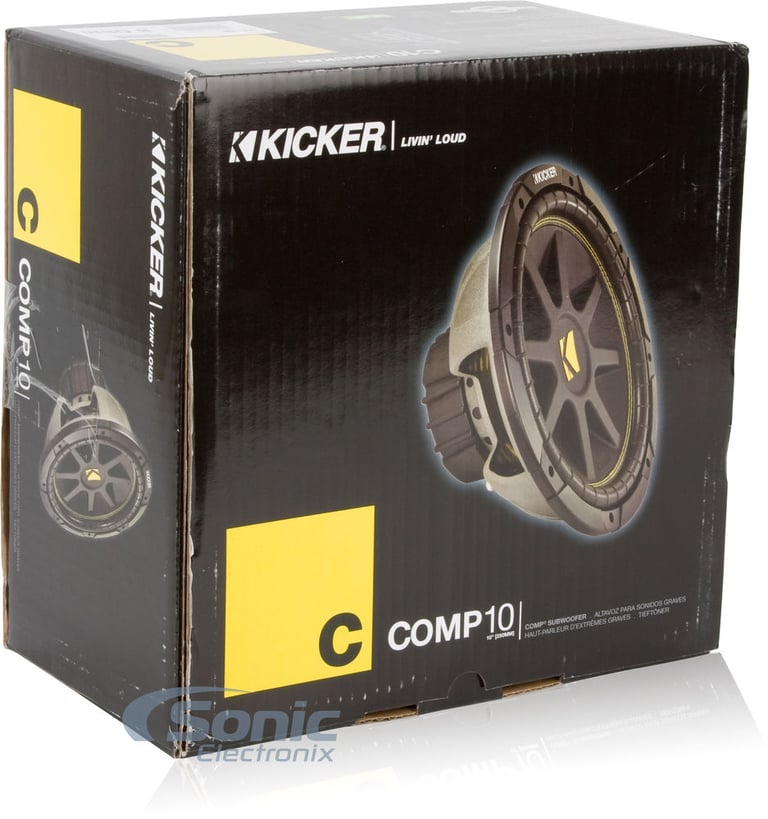

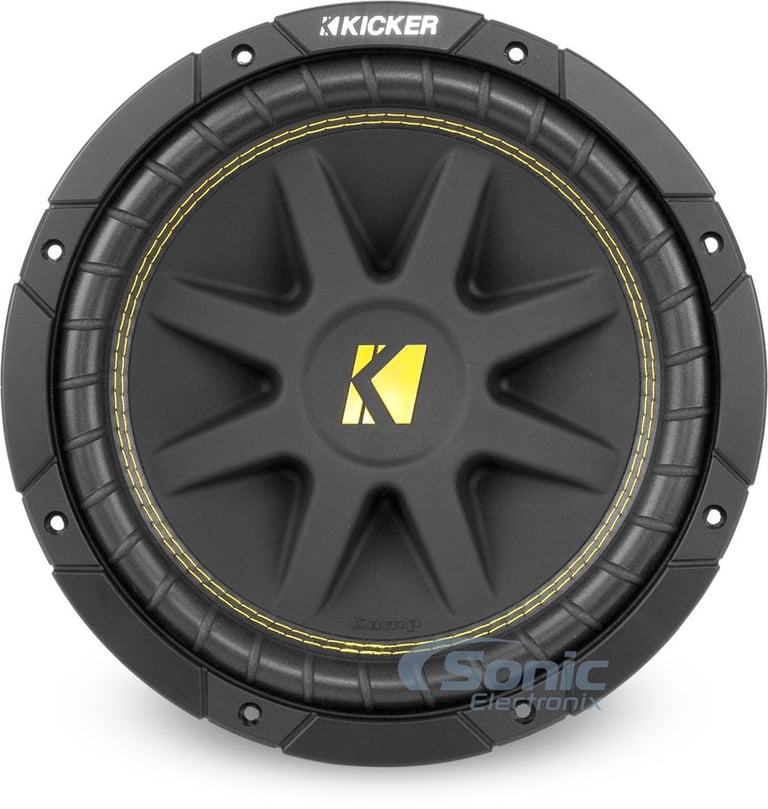

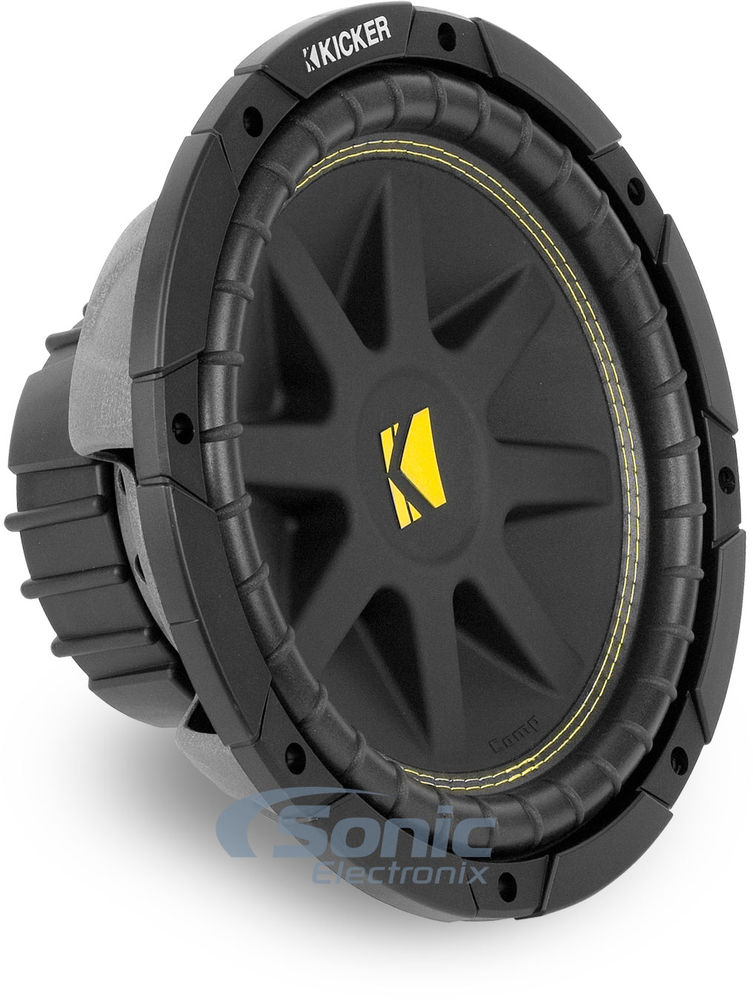

The famous Kicker Comp subwoofer provides excellent Kicker bass, while sticking to a tight budget. The Comp subwoofer has been redesigned for 2010 with looks that are stunning and technology that is time tested. Some of the engineering behind this subwoofer is the extremely rigid injection molded cone. The cone has been adjusted to match the 2010 Kicker line of subwoofer, but it still keeps it traditional black and yellow design that the Comp is known for. Behind the cone, the subwoofer features 360 degree back bracing, a vented pole piece, Kickers Spiralead tinsel leads, and a sturdy steel basket. This legendary Comp subwoofer from Kicker is the perfect balance between high value and high performance!

A 10" Kicker Comp subwoofer is perfect for Kicker Comp subwoofers are ideal for those that don't have the room to put a large enclosure that the 12" and 15" subs require, yet still what to have deep, accurate bass. Installing two or three of the 10" Comp subwoofer can result in incredible bass, while keeping costs down. For solid, clear bass the 10" Comp is an excellent choice. It is also available in 8", 10", 12" and 15".

• 10" Single 4 Ohm Competition (Comp) Series Subwoofer
• Power Handling:
• Peak: 600 watts per pair / 300 watts each
• RMS: 300 watts per pair / 150 watts each
• Recommended power range: 50 - 150 watts RMS
• Impedance: Single 4 ohm
  2 ohm final impedance when wired in Parallel
• Injection molded SoloKon cone
• Optimized Polyfoam Ribbed Surround

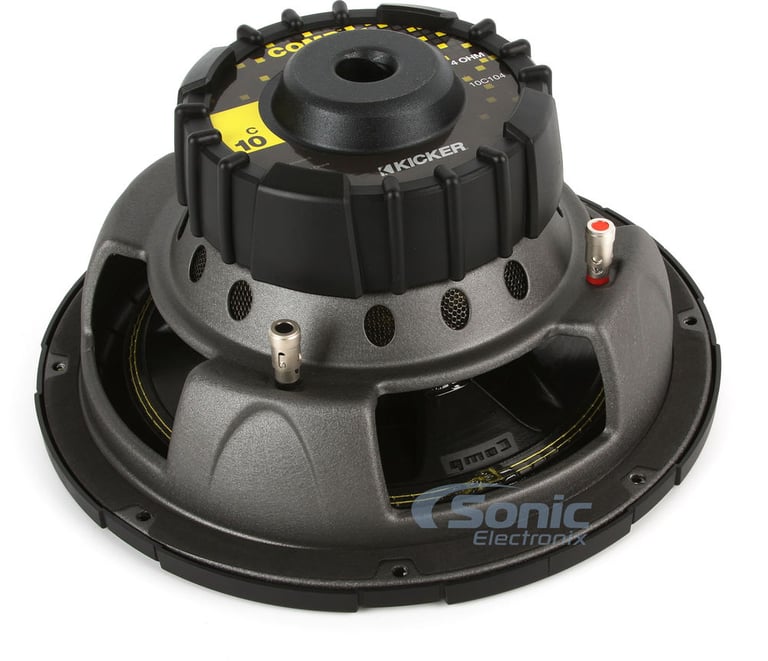

• Extremely rigid cone, along with 360 degree back bracing eliminates distortion
• Double stitched surround for enhanced durability
• Tinsel leads woven into the spider with Kicker's Spiralead technology
• Single high-temperature voice coil
• 45oz. Magnet structure
• Frequency response: 30-500 Hz
• Sensitivity: 86.2 dB
• Mounting depth: 5-1/16"
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• Also found as: 10C10-4 ohm, C-104, Comp 104, Comp 10" 4 ohm, 2010 C104

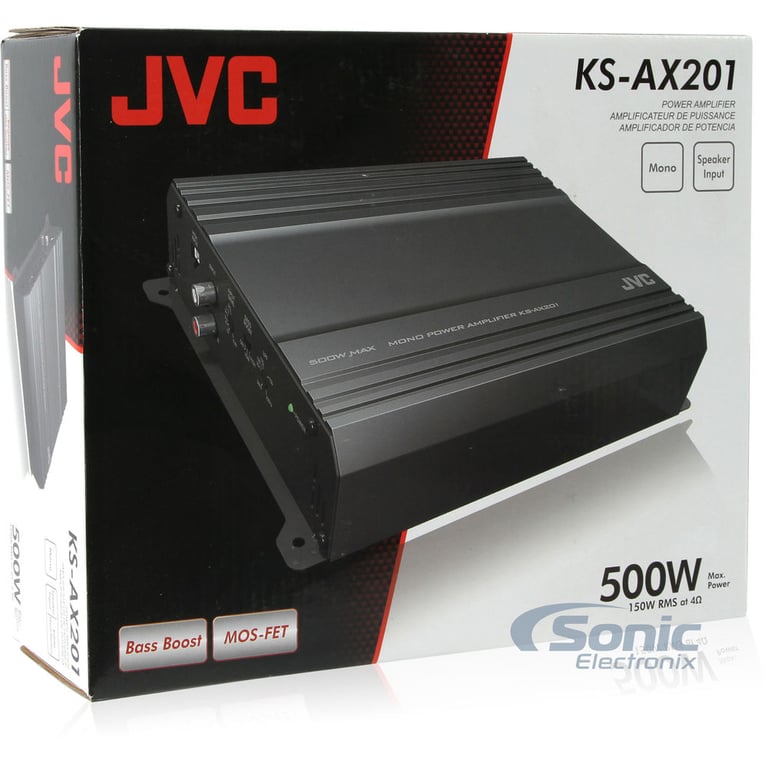

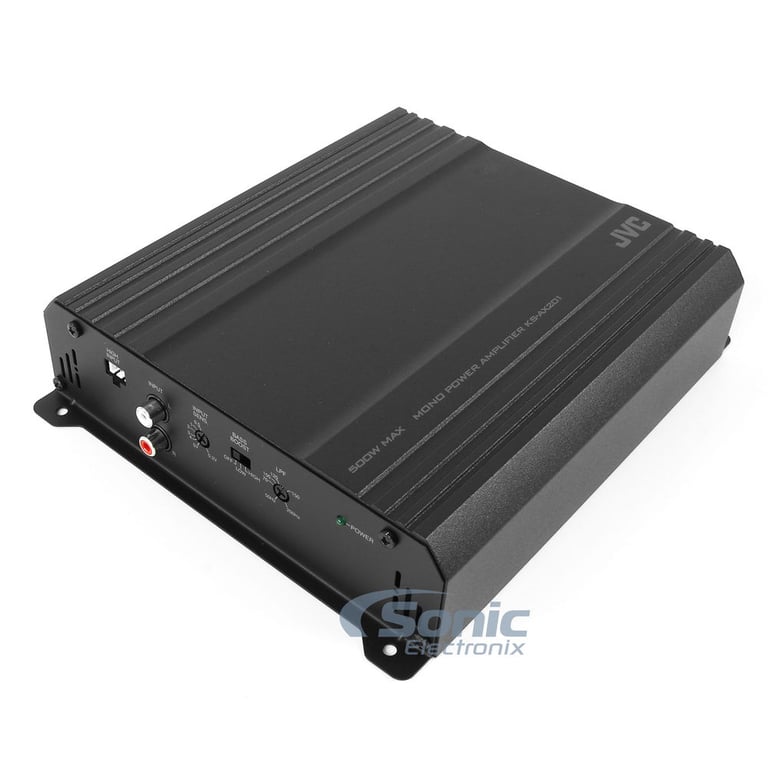

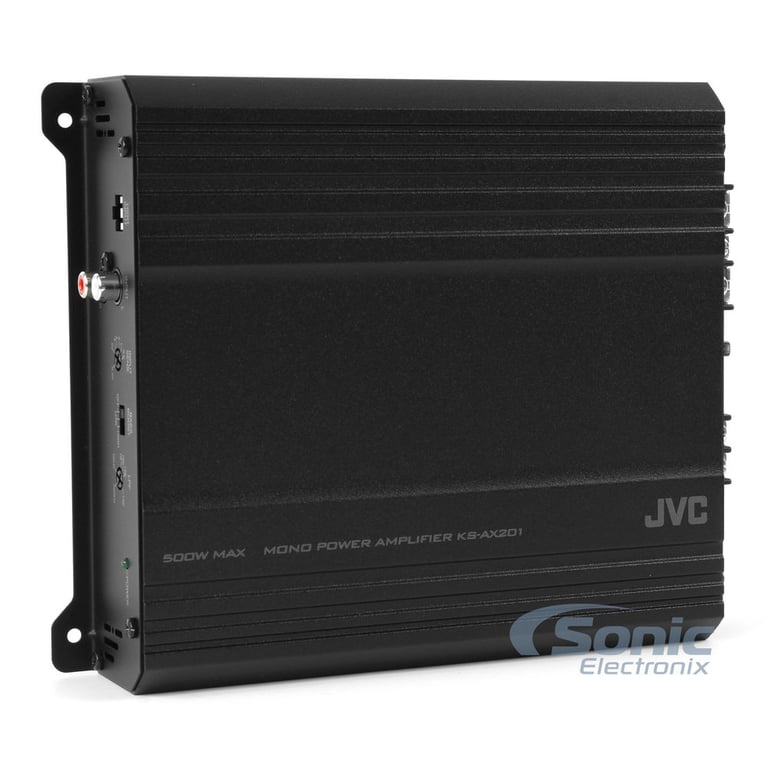

The KS-AX201 is a 2-Ohm stable Mono amplifier with 500 Watts Max power output and is perfect for connecting a single or pair subwoofers. It features high and low level inputs for connection to a factory or aftermarket stereo plus a low pass filter for use with a connected subwoofer. The CEA-2006 Compliant 250w RMS @2ohm is perfect for a humble system that does not require loud booming bass. Instead, the KS-AX201 is for the system that simply needs to fill the lack of low end.

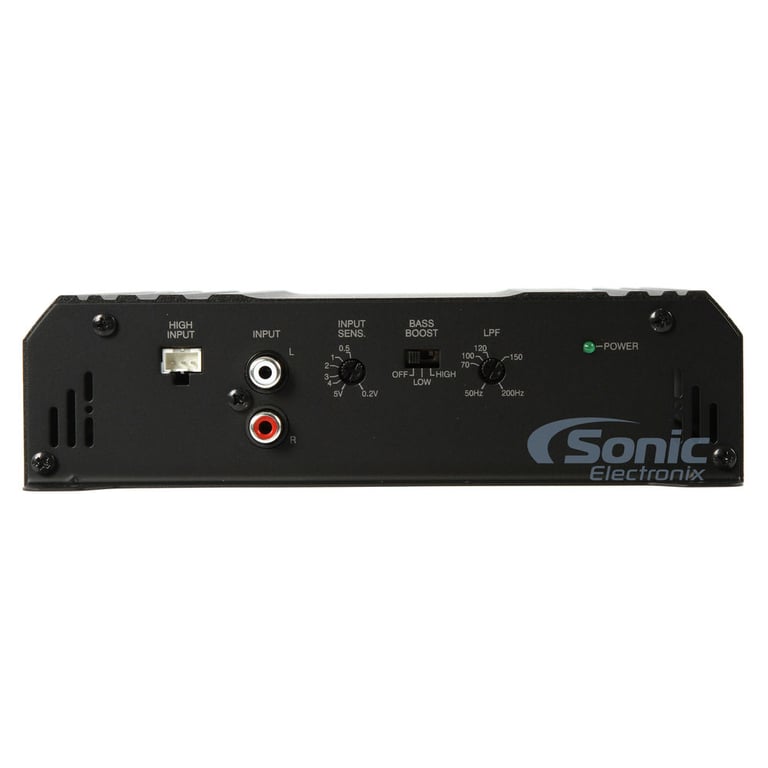

High Level and Low Level Inputs

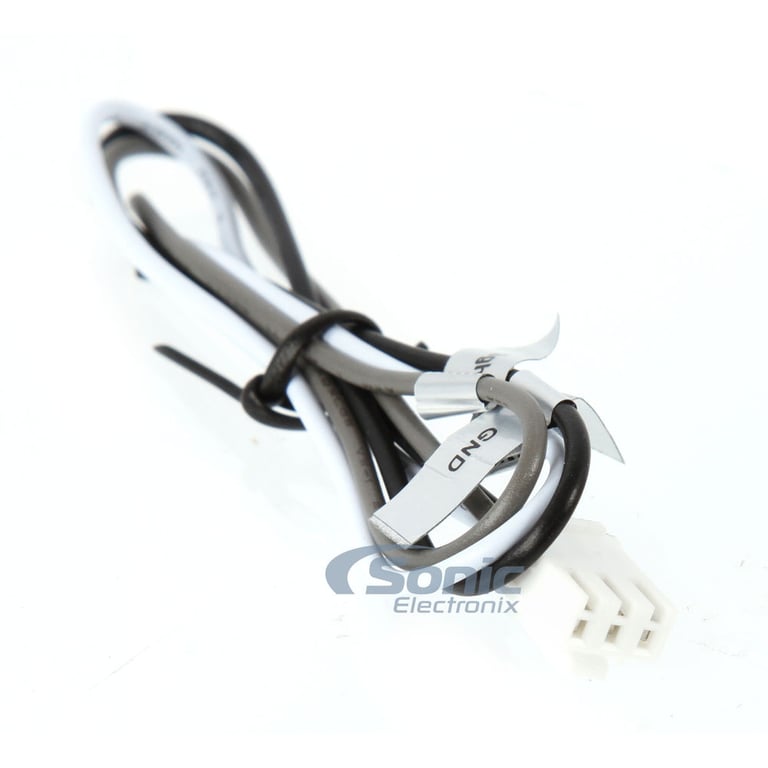

The JVC KS-AX201 is set up to integrate into various applications. The Low Level RCA inputs allow for the amplifier to be installed in any traditional setup where the headunit provides RCA Preouts. In situations where there aren't any RCAs, like when integrating into an OEM Headunit, the amplifier has you covered, with its included High Level Inputs and Harness.

Small Footprint Means Big Use

At roughly 9.0" x 7.3" , the KS-AX201 can easily be hidden away in most vehicles where space comes at a premium. The amplifier fits under most seats, in trunk side cavities, under rear decks, and even in some kick-panels. The imagination is the only limitation to where an installer can hide the amplifier for a discreet install.

The Necessities

The KS-AX201 is intended to be as user friendly as possible. As such, the amplifier provides very easy to use settings, omitting the confusing knobs and switches of fancier amplifiers and leaving only the necessary. The LPF allows for the user to Filter out all harmful midrange and highs and the Input Sens. makes sure the amplifier matches the sensitivity of the headunit.

General Features:

• AX2 Series Monoblock Class AB Car Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 1 chan.
• 2 ohm: 250 watts x 1 chan.
• Max power output: 500 watts
• CEA-2006 Compliant
• Selectable Bass Boost: 0 to +12 dB (Off - High) bass boost at 45 Hz
• Mono channel operation
• Speaker-level (high-level) inputs
• Power On Indicator (GREEN)/Protector Indicator (OFF)
• Total Harmonic Distortion: 0.08% @100 Hz
• Variable low-pass filter: 50 - 200 Hz
• Frequency Response: 20 - 200 Hz

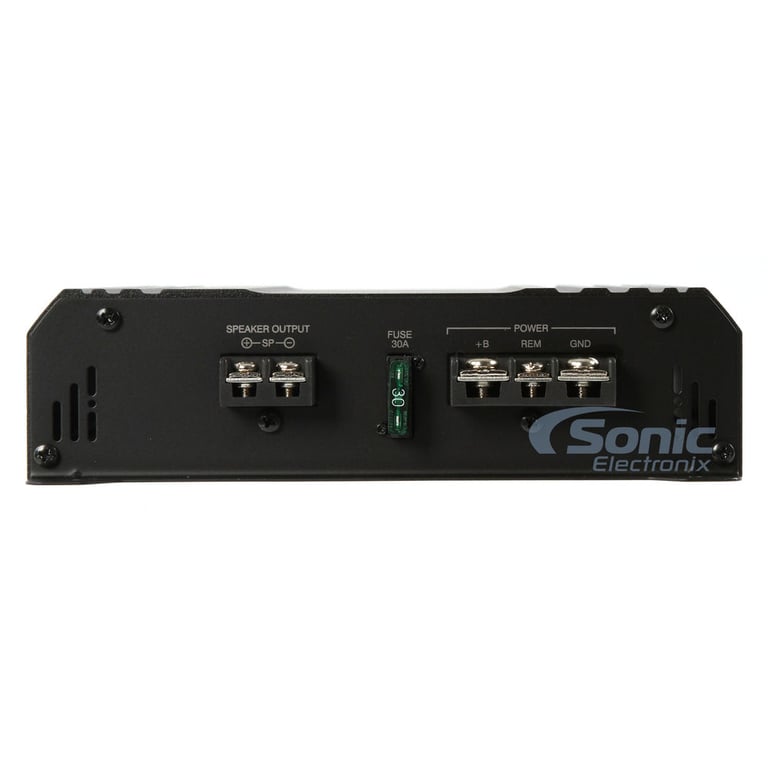

• 8 gauge power and ground wiring is recommended for installation
• Fuse Rating: 30A x 1
• Weight: 3.10 lbs
• Dimensions: 7.31"W x 8.94"L x 2.00"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

General Features:

• 8 gauge Power Amplifier Installation Kit
• Designed specifically for car audio systems up to 275 watts
• Premium power and ground wire provides optimal power transfer
• Terminals are Nickel-plated for excellent signal transfer
• ANL Fuse holder offers ideal protection
• True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Package Includes:

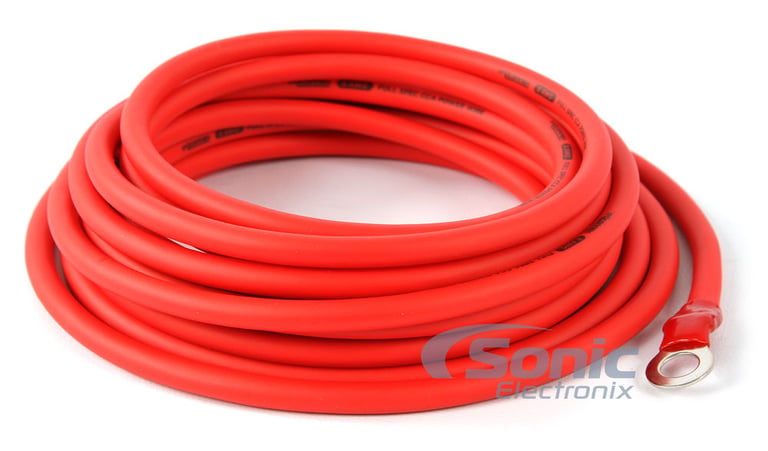

1. 17 ft. of 8 AWG Red power cable

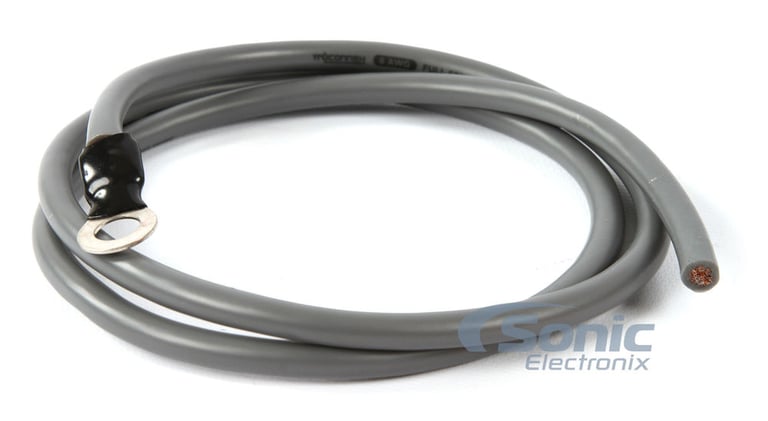

2. 3 ft. of 8 AWG Gray ground cable

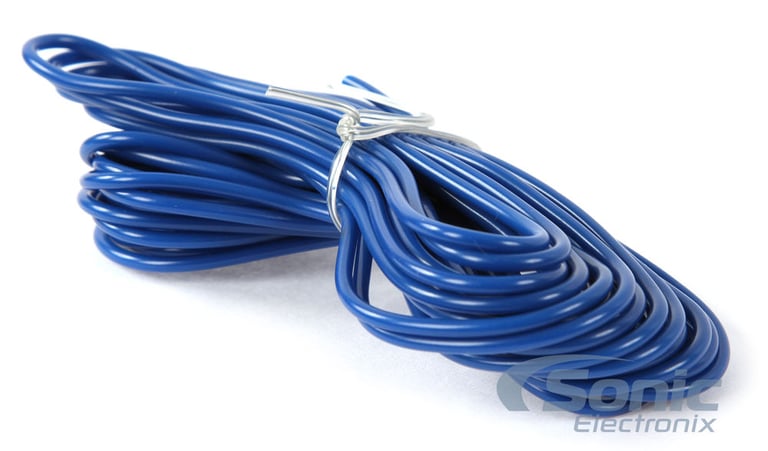

3. 17 ft. of Blue remote turn-on wire

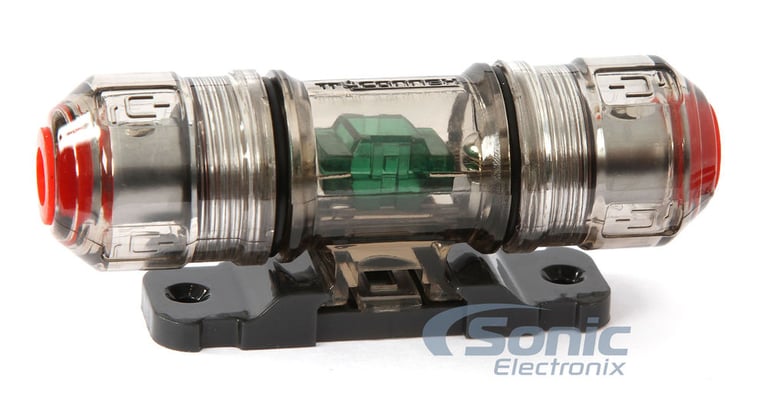

4. In-line mini ANL fuseholder
5. 60 Amp ANL fuse

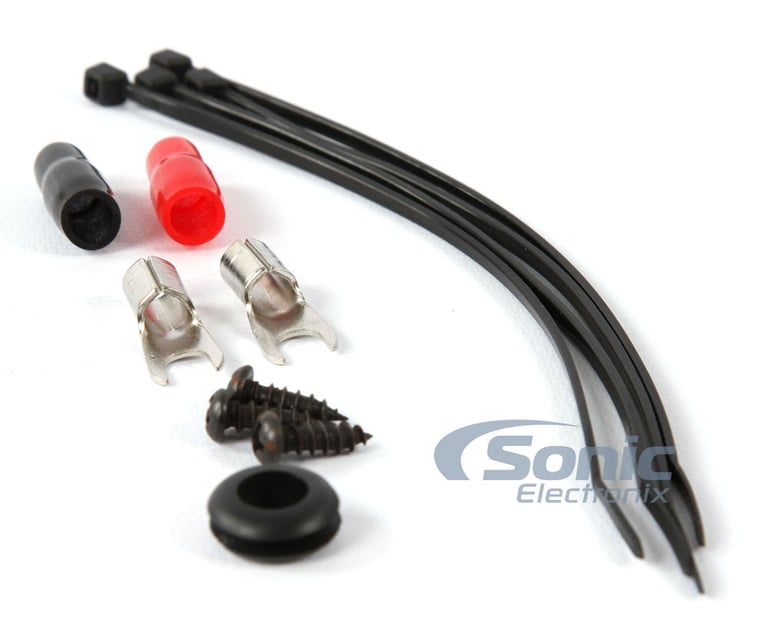

6. Ring Terminals
7. Ground Terminals
8. Vinyl Cable Ties
9. Screws
10. Spade Terminals
11. Grommets
