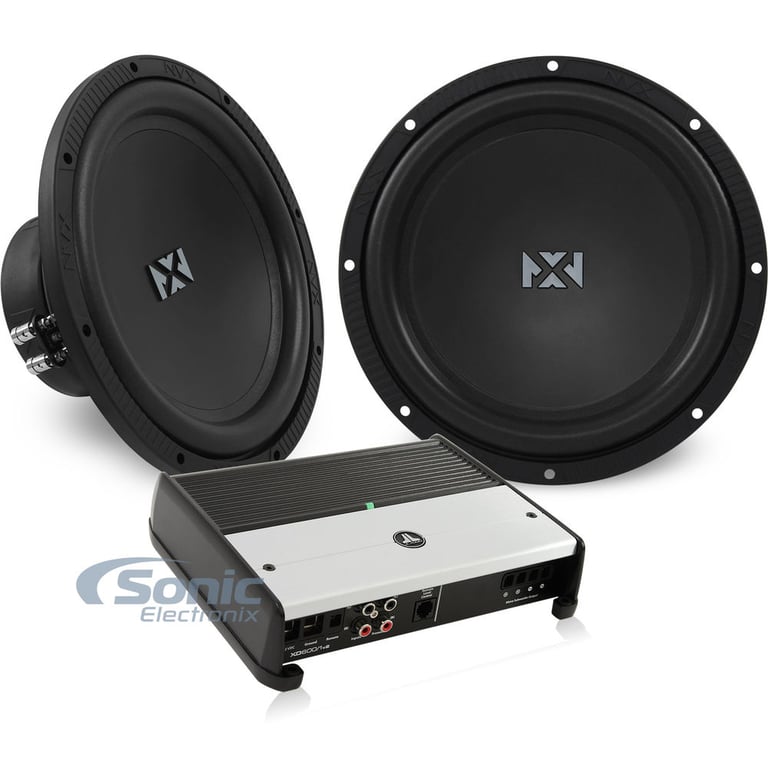

JL Audio XDv2 Series Amplifier + FREE NVX Audio 12" N-Series Subwoofer

JL Audio XD600/1v2 600W XDv2 Series Monoblock Class D Subwoofer Amplifier + NVX NSW122V2 N-Series V2 12" Dual 2-Ohm Car Subwoofer

JL Audio
Shop all JL Audio
EXCLUSIVE
highlight-star-icon

• 600 W x 1 @ 2 ohm
• Ultra-Light Non Pressed Paper Cone
• Custom Blended Foam Surround
• NexD™ Switching Technology
• Dual-Range Differential Balanced Input Section
• Advanced Rollback Protection
• Selectable Low-Pass Filter Slope: 12 dB or 24 dB
• Detented, Calibrated Filter Freq. Potentiometer

Learn more about the xd6001v2_2-nsw122v2

We apologize

This item has been discontinued


Loading...
CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

EPICPRO8X main

AudioControl EPICPRO8X

700W Peak (500W RMS) 8" Epic Pro Series Pro Audio Midrange 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
H80C main

Cerwin-Vega H80C

900W Peak (300W RMS) 8" HED Series 2 Way Component 4-ohm Speaker System

-16.67%

$219.99

List price $263.99

51KSC404 main

Kicker KSC4 (51KSC404)

300W Peak (150W RMS) 4" KS Series 2 Way Coaxial 4-ohm Speakers

3
-16.67%

$99.99

List price $119.99

No picture

Diamond Audio DMDX8

390W Peak (130W RMS) 8" DMDX Series 2-Way Cocentric Coaxial Car Speakers

ZXI-44 main

DS18 ZXI-44

300W Peak (100W RMS) 4" ZXI Series 2-way 4-ohm Coaxial Car Speakers

S2-S80C main

Alpine S2-S80C

520W Peak (170W RMS) 8" S-Series Hi-Res 2-Way Component Car Speakers

-17.26%

$239.95

List price $290.00

Description


JL Audio brand icon

Authorized dealer

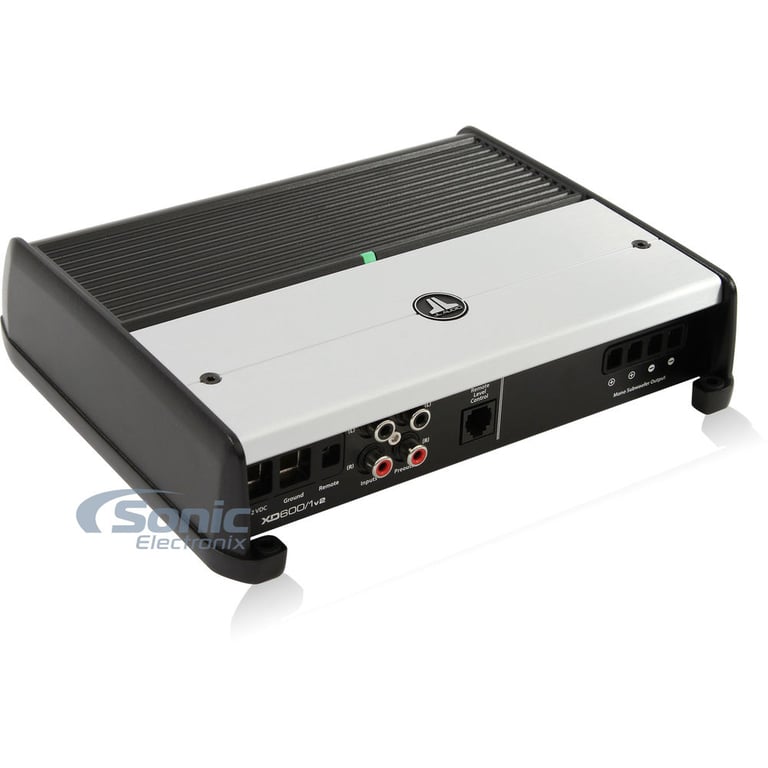

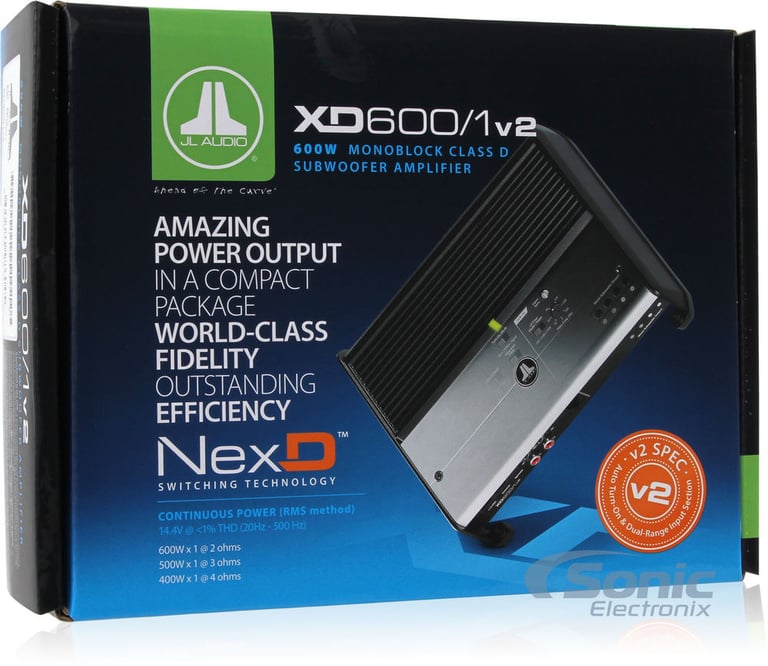

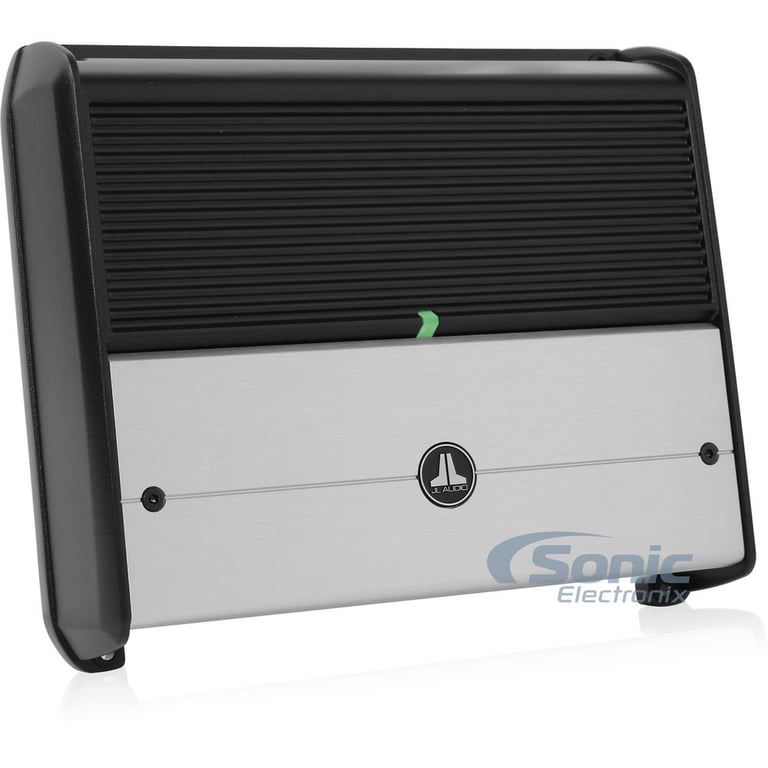

JL Audio XD600/1v2

600W XDv2 Series Monoblock Class D Subwoofer Amplifier with High-Speed NexD™ Switching Design
Quantity: 1

General Features:







  • XDv2 Series Class D Monoblock Amplifier
  • RMS Power Rating @14.4V:
    • 4 ohm: 400 watts x 1 chan.
    • 3 ohm: 500 watts x 1 chan.
    • 2 ohm: 600 watts x 1 chan.
    • 1 ohm: ----------N/A----------
  • RMS Power Rating @12.5V:
    • 4 ohm: 300 watts x 1 chan.
    • 3 ohm: 400 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
    • 1 ohm: ----------N/A----------

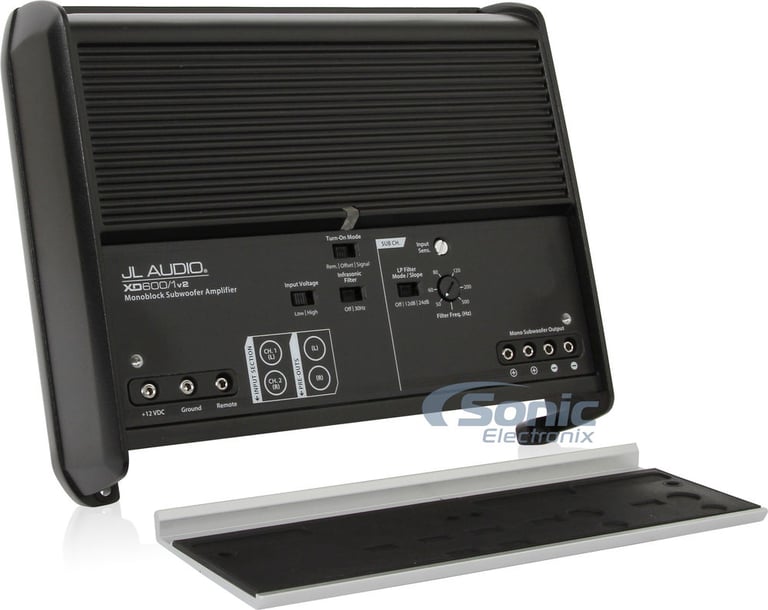

  • NexD™ High Speed Switching Class D Technology
  • Wired HD-RLC remote level control available, sold separately
  • LED power (green), over-current (yellow) and protect (red) indicators
  • Advanced Rollback Protection
  • Dual-Range Differential Balanced Input Section

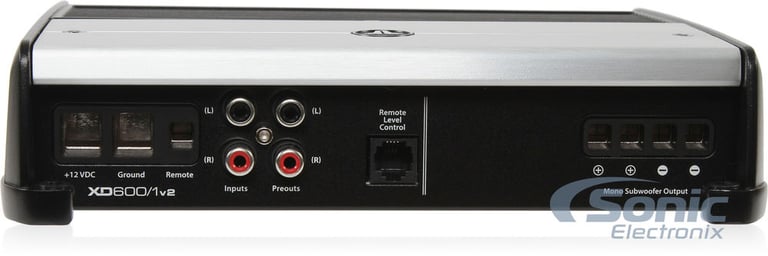

  • Buffered pass-through preamp RCA outputs

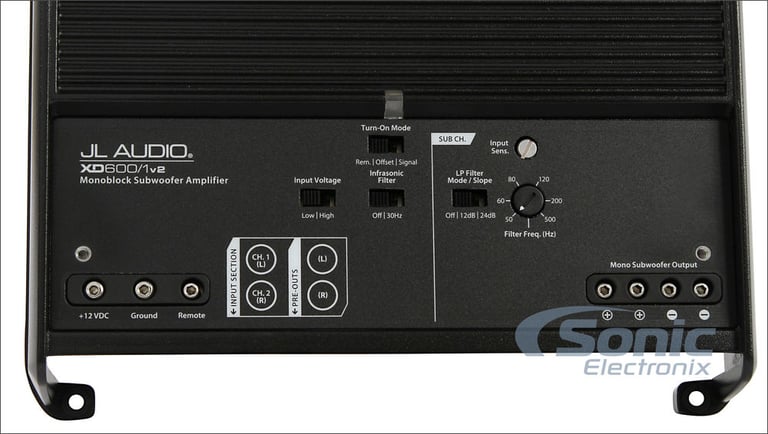

  • Selectable turn-on modes: REM / Offset / Signal
    • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
    • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
    • Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Detented, Calibrated Filter Freq. Potentiometer
  • 12 dB/octave Butterworth or 24 dB/octave Linkwitz-Riley Crossover

  •
  • Input sensitivity:
    • Low level: 800mV - 8V
    • High level: 200mV - 2V
  • Frequency Response: 7 - 500 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >87 dB
  • Damping Factor @4ohm: >1000 / 50 Hz
  • Selectable Infrasonic Filter: Off / 30 Hz
  • Selectable Low-Pass Filter Slope: 12 dB or 24 dB
  • Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
  • Fuse Rating: 50A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Weight: 6.30 lb
  • Dimensions: 7.09"W x 8.52"L x 2.05"H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

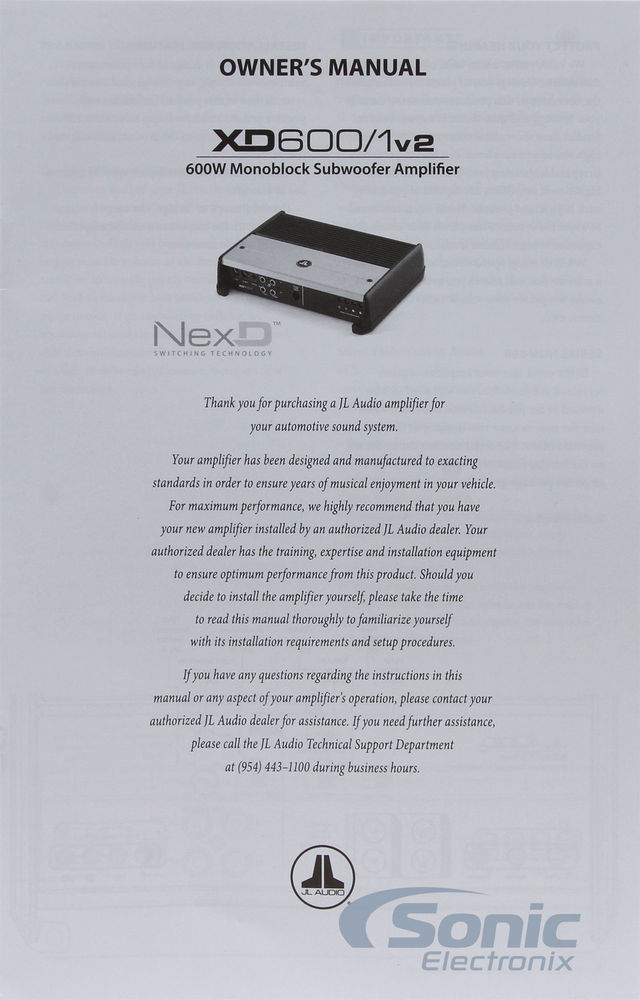

Check out the JL Audio XD600/1v2 Owner's Manual

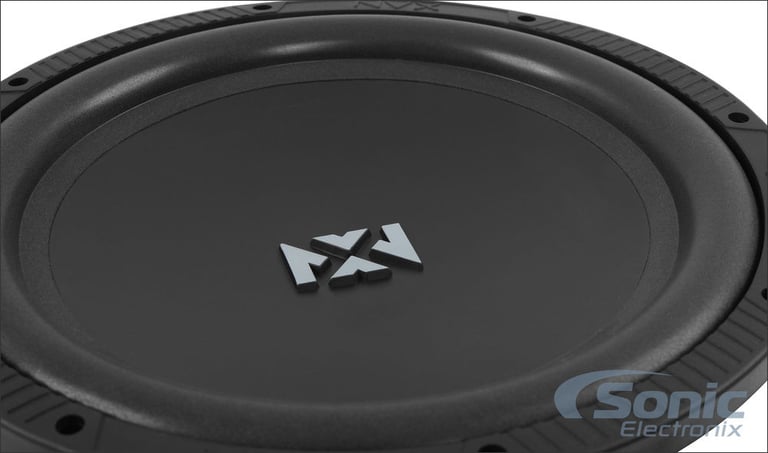

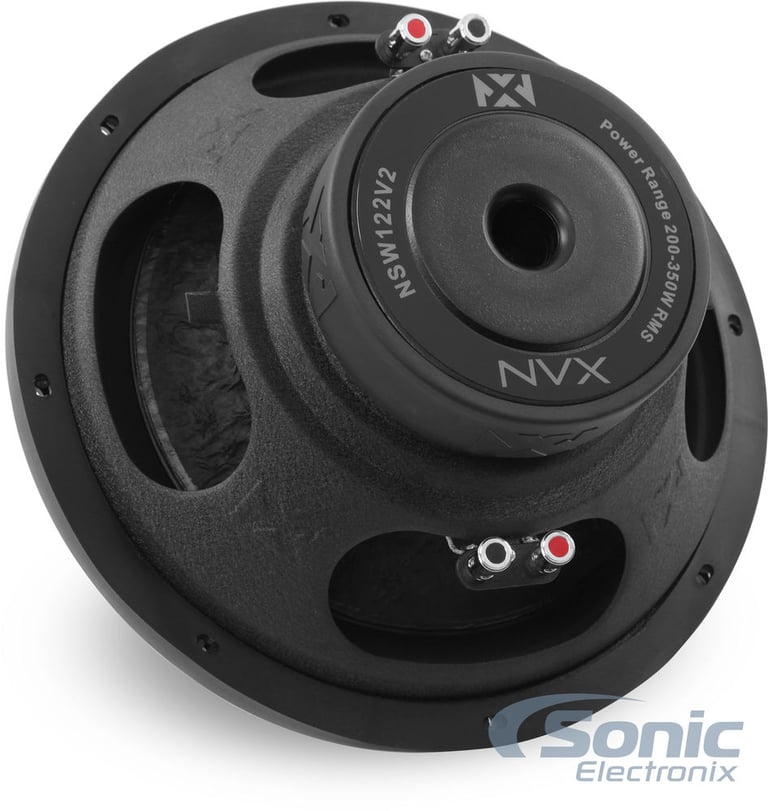

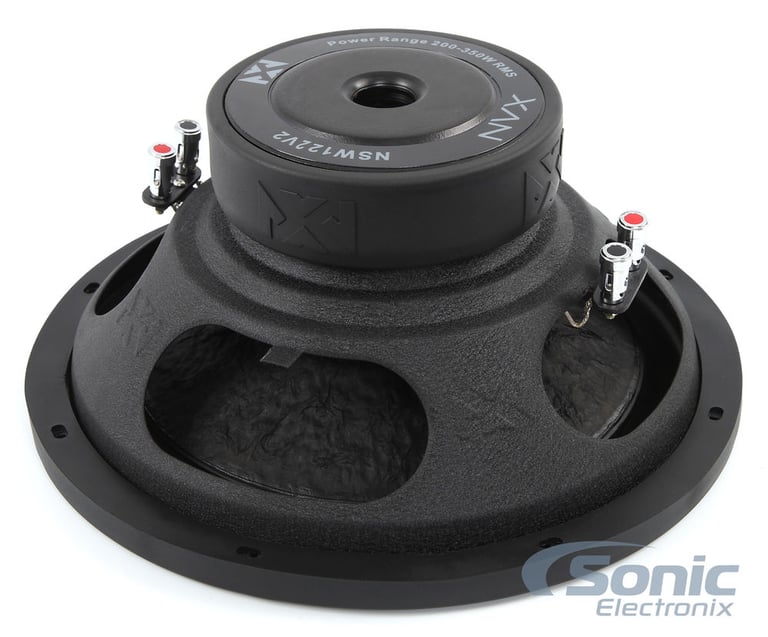

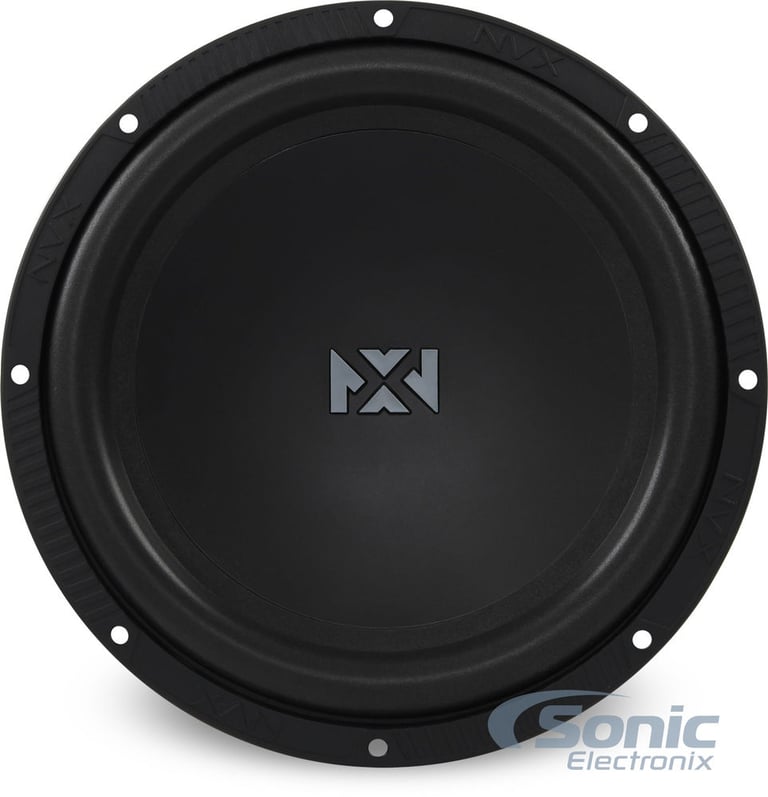

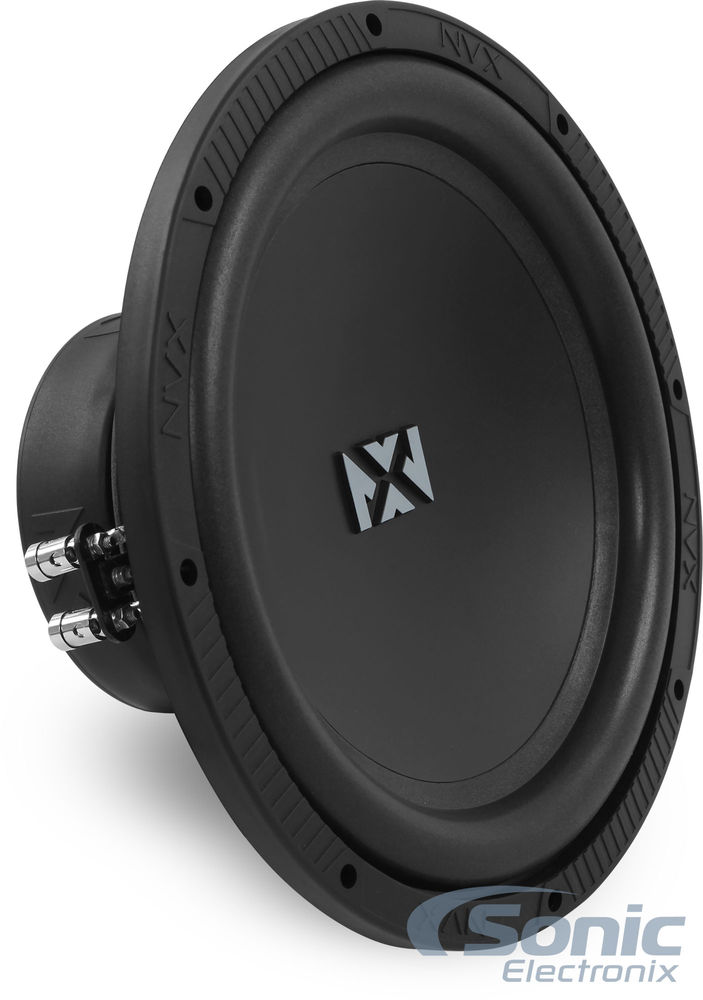

NVX NSW122V2

350W N-Series V2 12" Dual 2-Ohm Car Subwoofer
Quantity: 2

General Features:

  • 12" Dual 2-Ohm N-Series Subwoofer
  • Power Handling:
    • RMS: 700 watts per pair / 350 watts each
  • Recommended power range: 400 - 700 watts RMS per pair
  • Impedance: 2 ohm final impedance when Wired in Series/Parallel
  • Ultra-Light Non Pressed Paper Cone ensures accurate, responsive performance even at high volume levels
  • Custom Blended High-Roll Foam Surround for extended excursion
  • Specially designed high excursion strain-relieved tinsel leads
  • 2" High Temperature Aluminum Voice Coil

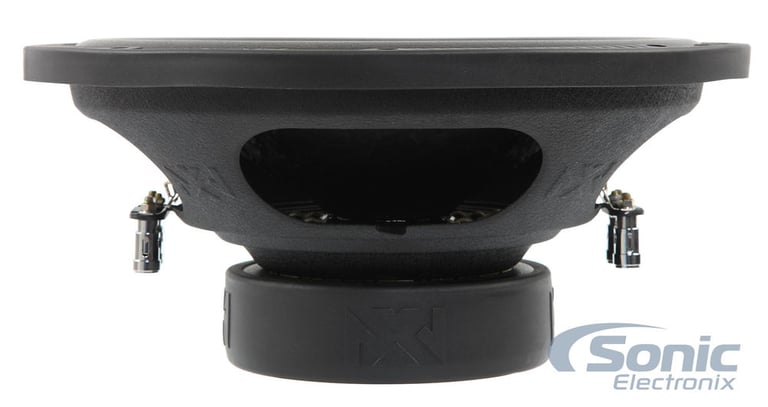

  • Top-mount depth: 5.01"
  • Frequency Response: 20 - 200Hz
  • Sensitivity: 86.9 dB
  • High strength steel basket retains exceptional rigidity to minimize distortion

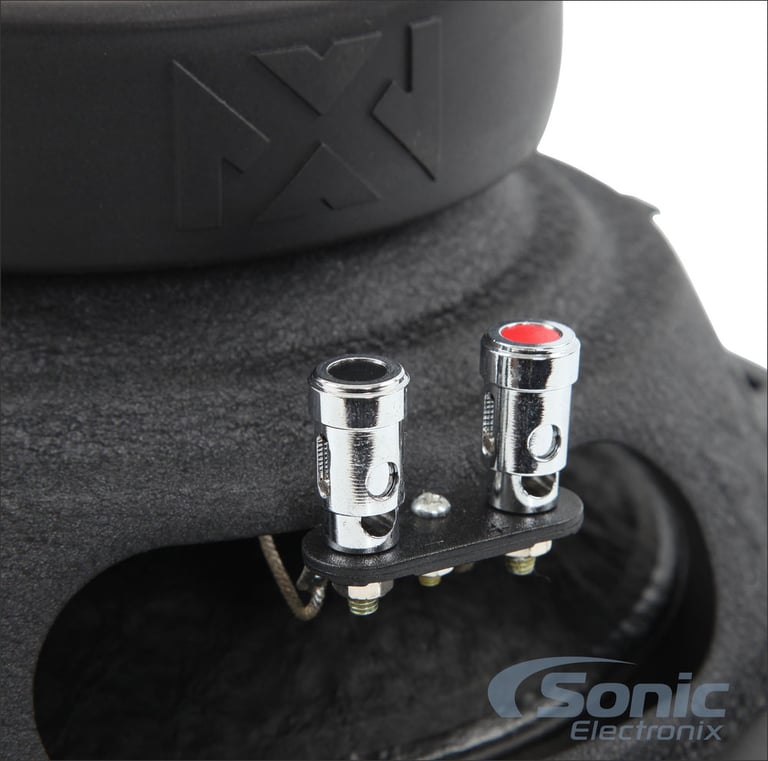

  • Chrome plated, spring loaded push terminals for easy, secure installations
  • High energy ferrite magnet motor structure allows for greater power handling and voice coil control during high excursions
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Enclosure Recommendations:

  • Ported Enclosure:
    • Recommended Volume: 1.75 ft3
    • Tuning Frequency: 36 Hz
    • Ideal Power RMS: 350W
    • F3 (Hz): 41
  • Sealed Enclosure:
    • Recommended Volume: 1.25 ft3
    • Ideal Power RMS: 350W
    • F3 (Hz): 47
    • FC (Hz): 55
    • QTC: 0.941

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
400 watts x 1 channel
RMS Power @ 2 ohms
600 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<1.0%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
87 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
50A X 1 In-Line Fuse Recommended
Subwoofer Specifications
Series
N Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
RMS Power Handling
350 watts
Peak Power Handling
700 watts
Woofer Surround
Foam
Woofer Composition
Non-Pressed Paper
Sensitivity
86.9 dB
Frequency Response
20 - 200 Hz
Xmax (millimeters)
10.2 mm
Top-Mount Depth (Mounting Depth)
5.01"
Cutout Diameter
10.83"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XD600/1V2_2-NSW122V2

Weight:

35.87lbs

Internal SKU:

xd6001v2_2-nsw122v2

Internal Product ID:

105839

Customer Ratings & Reviews


JL Audio XDv2 Series Amplifier + FREE NVX Audio 12

5 star
70%
4 star
22%
3 star
3%
2 star
0%
1 star
5%



Durability
4.6
Value
4.7
Features
4.8
Design
4.8
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

NVX for the win..

The following review is for NSW122v3, which is a part of the bundle you are viewing.

NVX Tweeters, Midbass and now the Subs, I believe NVX is firmly committed to SQ and offers a great product for a tremendous value. This subwoofer is their 2nd Generation and has the non-pressed paper cone, i spoke with NVX why they switched from Polypropylene to Paper and he told me lot's of reasons but mainly SQ and after listening to the subs for an extended session i have to agree that they sound fantastic in a 3.2 cu ft vented enclosure with 50 oz of polyfill, i can't imagine the SQ getting much better than it is right now and close to 130 db's is plenty loud for me, my ears are still ringing..
Each sub is wired in series for a 4 ohms then both subs are paralleled for a 2 ohm final load impedance on a 500 Wrms channel, they pound the ground and shake my entire full size van, much louder than the MTX Terminators that were replaced and i had to cut the bass knob back..
I highly recommend these subwoofers, the 1st Gen subs got lots of 5 star reviews and once people catch on to the 2nd Gen they will too, am extremely happy with my purchase and have nothing but good things to say for the NVX Brand speakers and subwoofers..
NVX for the win, the VSW122V2 is probably one of the best under $70 subwoofers on the market and i wouldn't hesitate to use any of their products..

By George on July 17, 2015

64 found this helpful


JL Audio XD600/1V2

The following review is for XD600/1V2, which is a part of the bundle you are viewing.

The wattage rating on this description is wrong. This amp does 600w in 2 ohms, not 1000w.

I had the JX500 before this amp. The output difference between the two is only 100w, so theoretically you shouldn't be able to hear much difference, but you can. You can feel and hear the difference. If you're heart is set on a JL amp and you can afford the jump in price, the XD line are nice amps.

By Johan on April 22, 2015

59 found this helpful


Great sound

The following review is for NSW122v3, which is a part of the bundle you are viewing.

The bass from this sub is deep and clean. The mounting depth is efficient for almost any 12 sub box. I'll recommend to anyone that want clean sounding bass.

Pros - Well built, sounds good.
Cons - None so far.

By Arthur on January 13, 2018

51 found this helpful


Nice subs!

The following review is for NSW122v3, which is a part of the bundle you are viewing.

Hooked up 2 of these to my 1000 W RMS amp with the gain turned down while I break them in. Sonic got them to me right on schedule, and they sound great so far. Dual voice coils are a great feature and I can see the quality built into these subs. Using a sealed box with recommended volume of 1.25 cu.ft. per chamber during break in, so far I don't think I will need to move them to a ported box after they loosen up. Great SQ at this power level, nice subs at this price point.

By kjbad on July 27, 2016 Checkmark Icon Verified purchase

51 found this helpful


Solid choice

The following review is for NSW122v3, which is a part of the bundle you are viewing.

I put one of these in a 1.25cuft box in my accord on an mrv-m500 wired to 4ohms and tune the amp to put out 300tms with my multimeter. Gotta say; at only 300 watts this is pretty impressive. Still fairly tight for a 12" but plenty of bottom end for what I usually listen to. I'm planning another build but two of these next.

By Anonymous on May 19, 2019

48 found this helpful


Good entry level subs

The following review is for NSW122v3, which is a part of the bundle you are viewing.

Easy on pocket and they hit the lows with deep rumbling bass

By kenneth on December 31, 2017 Checkmark Icon Verified purchase

48 found this helpful


Solid gear

The following review is for NSW122v3, which is a part of the bundle you are viewing.

This sub met my needs perfectly. I needed a low cost high quality driver with reasonable efficiency. I also needed to be under 5 inches top Mount depth. It fit my truck box for the tundra crewmax behind the rear seat perfectly and gave me plenty of clean bass. Only time will tell if it can handle the abuse to come. I'm using a rockville rxa t1 to power it. It's a great match. Cea compliant to match the sub and pushes it to the limit as well.

By Joe on October 21, 2016

48 found this helpful


Awesome product

The following review is for XD600/1V2, which is a part of the bundle you are viewing.

Once Sonic Electronic has made me a very happy customer!!!!!!

By Janell on February 17, 2016 Checkmark Icon Verified purchase

47 found this helpful


Great entry-level subs for the price!

The following review is for NSW122v3, which is a part of the bundle you are viewing.

I purchased these last November as a black friday special after a fitment issue with the pioneer champion series that came with the bundle( I know right?). The customer service rep spoke highly of her brand and I went with his recommendation for these NVX'23r hrs. I installed them into a nice 2 sub ported Belva box with 1.75 cubic ft per sub tuned at 40hz. Wired them in parallel 380 watts @ 2 ohms to my NVX JAD900.5. I broke them in out of the box with a single tone generator because I wanted to bang asap. They sounded great in the trunk of my Monte Carlo for months. I then put them into my Mazda 3 hatchback faced upward using the same amp.* I thought one of the subs blew because of it making a terrible rattle and only ran one sub 210 watts @ 4 ohms. After 3 months of only one sub, I found out that the dust cap came unglued. The cone was still nice and glued, so I bought some clear speaker adhesive and fixed my issue. Got both of them hooked back up and forgot how loud both of them were together. I really enjoyed my time with just one sub because it didn't bang as hard and fell in love with the sound quality. I play all sorts of genres from rap, EDM, dubstep, house, metal,to alternative. They can play anything I throw at them and do it accurately. A bunch of expensive name brand subs aren't even capable of going below 28hz and these go all the way to 20hz. While it may not produce those low notes loudly, their presence is there and can be heard clearly. One day I'm considering putting more power to them or a higher end NVX sub one day, but these will definitely put a smile on your face, even with only 200 watts each. Go ahead and get at least 2 of them. You know you want to!

I'm removing one star for the dust cap coming unglued. Everything is working great since I glued it back.

By Anonymous on September 30, 2018

47 found this helpful


Entry level... my foot!!

The following review is for NSW122v3, which is a part of the bundle you are viewing.

These babies Boom! Amazed by this entry level sub from NVX! Great SQ and loud! I have been through a lot of subs. These rate in the top 10 with me! Thanks Sonic!!!

By Anonymous on September 11, 2018

42 found this helpful




MDR-XB500 small

Sony MDR-XB500 Extra Bass Headphones with 40mm Drivers

Engineered Specifically to Maximize Bass and Features 40mm Drivers with Closed Ear Design

(2)

$69.95

List price $79.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 BMW 550i

2003 Ford Focus

2011 Acura TSX

2012 Honda Pilot

1992 Dodge B350

2004 Toyota Sequoia

2005 Chrysler PT Cruiser

2016 Ford Transit-350

1993 Geo Tracker

2002 BMW 530i

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
