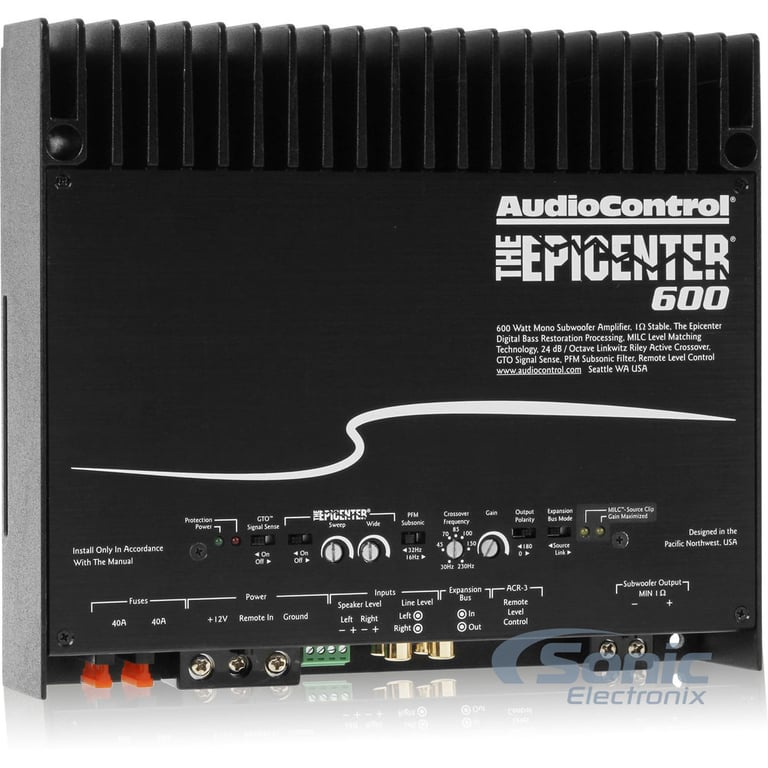

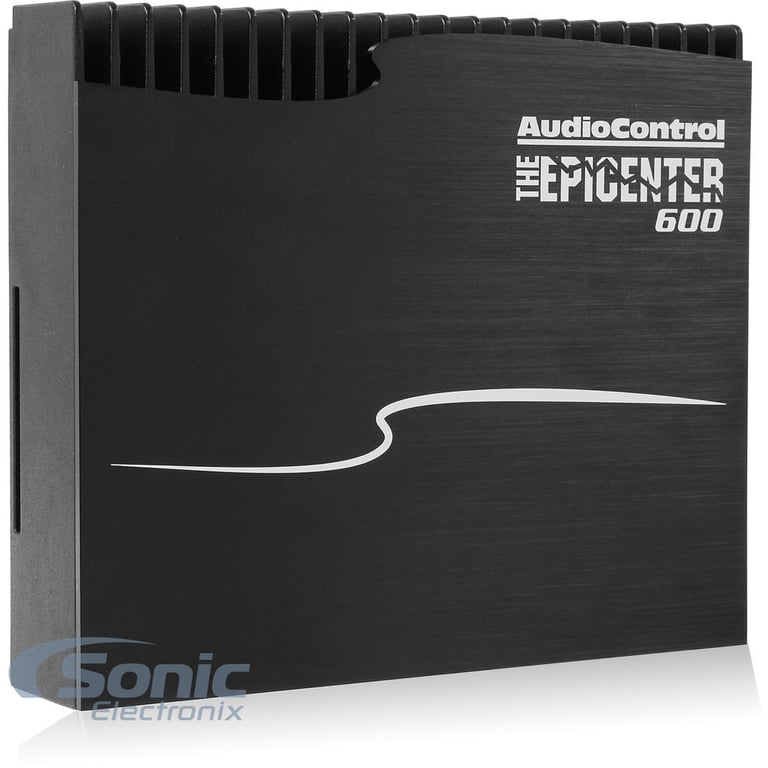

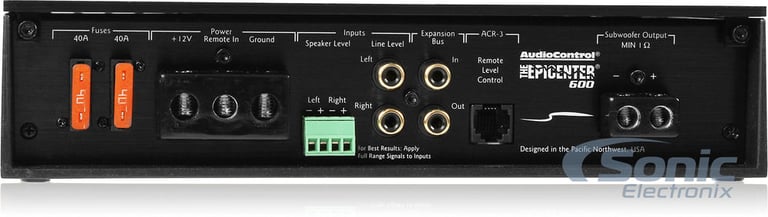

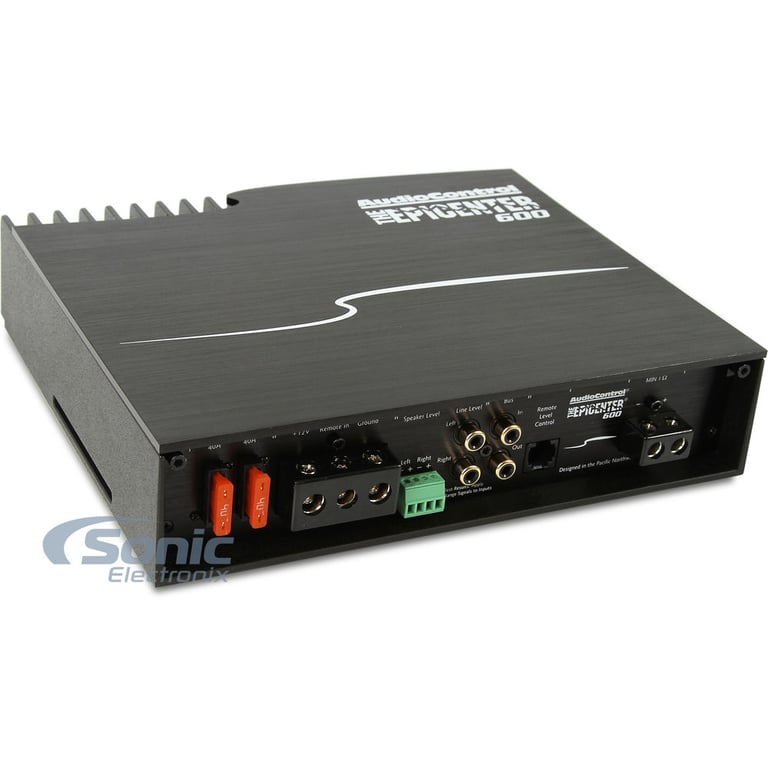

AudioControl The Epicenter 600
600W RMS Monoblock Epicenter Series Class D Amplifier w/ The Epicenter Bass Restoration Built-In
Quantity: 1
General Features:
- The Epicenter Monoblock Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 200 watts x 1 chan.
- 2 ohm: 350 watts x 1 chan.
- 1 ohm: 600 watts x 1 chan.
- Sonic Electronix Certified Power Rating*:
- 4 ohm: 262 watts x 1 chan.
- 2 ohm: 413 watts x 1 chan.
- 1 ohm: 611 watts x 1 chan.
- LED power (green) and protect (red) indicators
- Soft start turn-on
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Gold plated speaker and RCA terminals
- THE EPICENTER® Digital Bass Restoration Built-in
- MILC™ Maximum Input Level Control
- Maximum Input Level Control prevents clipping and damaging distortion
- 24 dB/octave Linkwitz-Riley Alignment Crossover
- GTO Signal Sense
- PFM Subsonic Filter
- Line-Level RCA Inputs and Active Speaker-Level Inputs
- Expansion Bus
- Allows two or more amps to be controlled by one set of controls
- Solid One-Piece Aluminum Chassis

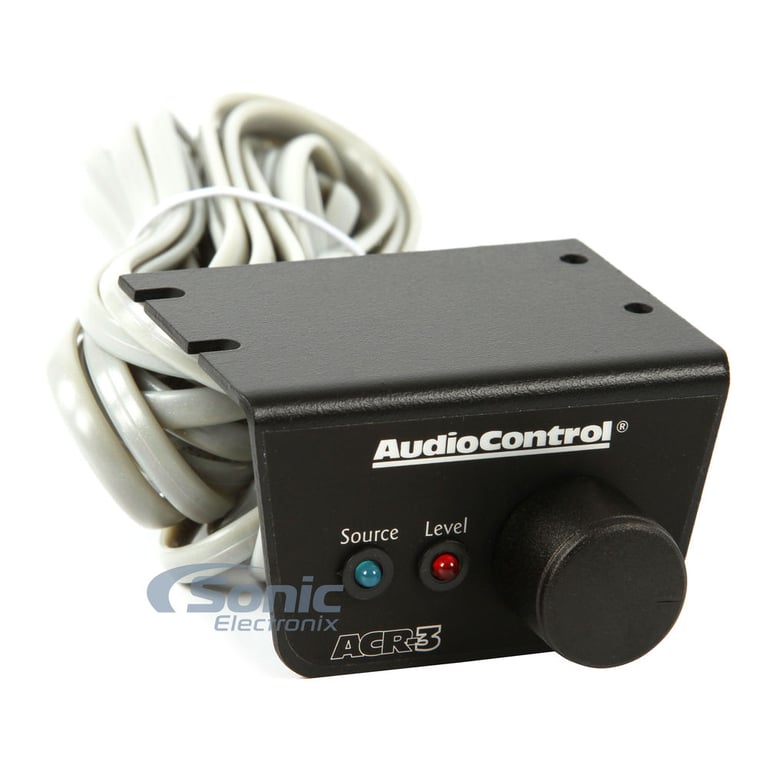

- ACR-3 Remote Control for Subwoofer Level and THE EPICENTER® effect
- Input sensitivity: 200mV - 6V
- Frequency Response: 16 - 250 Hz
- Total Harmonic Distortion (THD): <0.1%
- Signal to Noise Ration: 104 dBa, Ref 600 W at 1 Ohm
- Damping Factor: 670 at 10 V, 4 Ohm Output, 100 Hz
- Variable low-pass filter: 30 - 250 Hz, 24 dB/octave Linkwitz-Riley
- Subsonic filter: Selectable 16 or 32 Hz , 18dB/Octave
- Phase Selector: 0 - 180°
- Fuse Rating: 40A x 2
- CEA-2006 compliant amplifier
- 4 gauge OFC power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
- Dimensions: 7.95"W x 9.00"L x 2.10"H
- Authorized Internet Dealer
- 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)
Check out the AudioControl The Epicenter 600 Owner's Manual
*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.

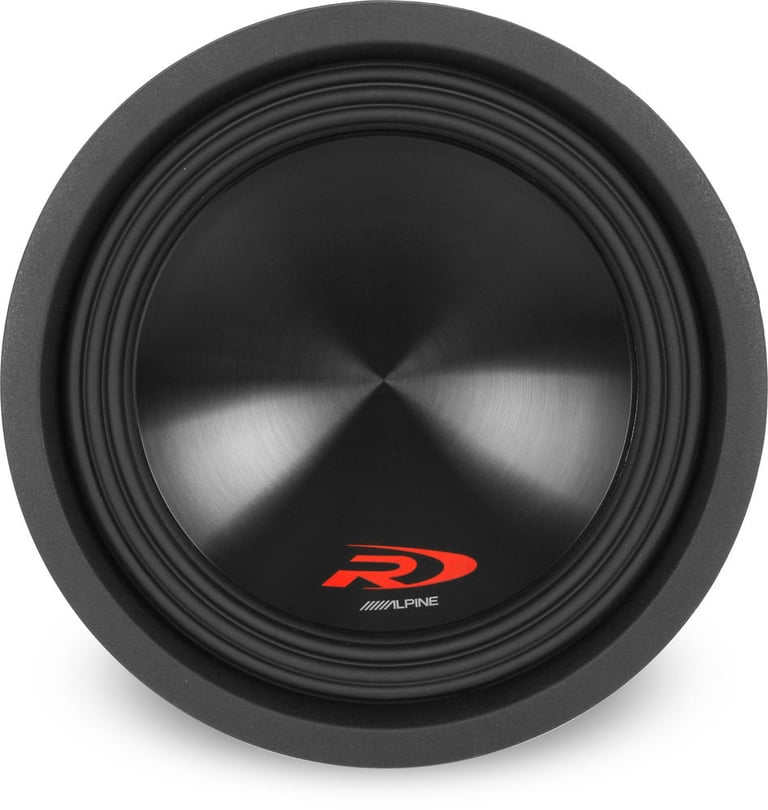

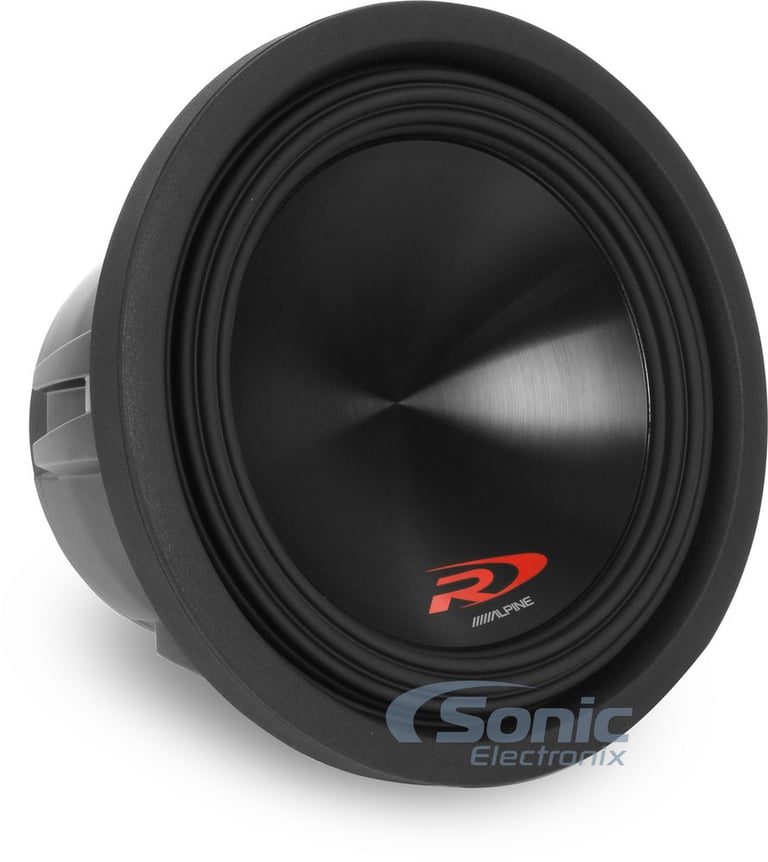

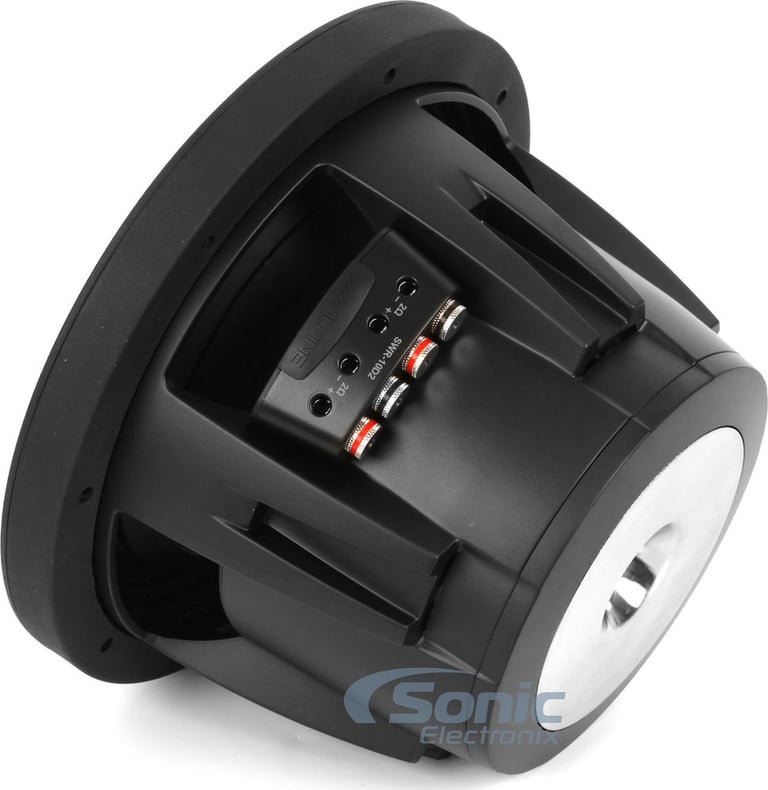

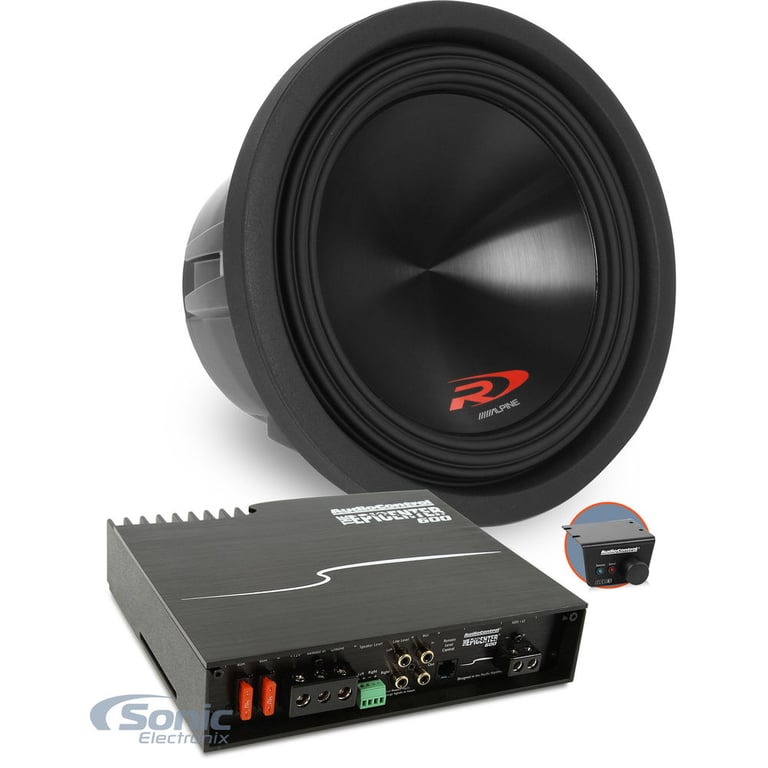

Alpine SWR-10D2
1000W 10" Type-R Dual 2-Ohm Subwoofer
Quantity: 1
General Features:
- 10" Dual 2-Ohm Type-R Series Car Subwoofer
- Power Handling:
- Peak: 3000 watts
- RMS: 300 - 1000 watts
- Recommend power: 400 - 750 watts RMS
- Impedance: Dual 2 ohm
- Kevlar treated pulp cone
- Durable HAMR Santoprene™ surround
- Progressive Conex spider
- Compound Radius Curve pole geometry
- Oversized 2.6", High-Temperature, 4-Layer Dual Voice Coil
- 10" Protective 2-Piece Subwoofer Grille Available, sold separately:
- Frequency response: 26-300 Hz
- Resonance Frequency (Fs): 31Hz
- Top-mount depth: 5-7/8"
- Sensitivity: 82dB
- 1-year Sonic Electronix Warranty
