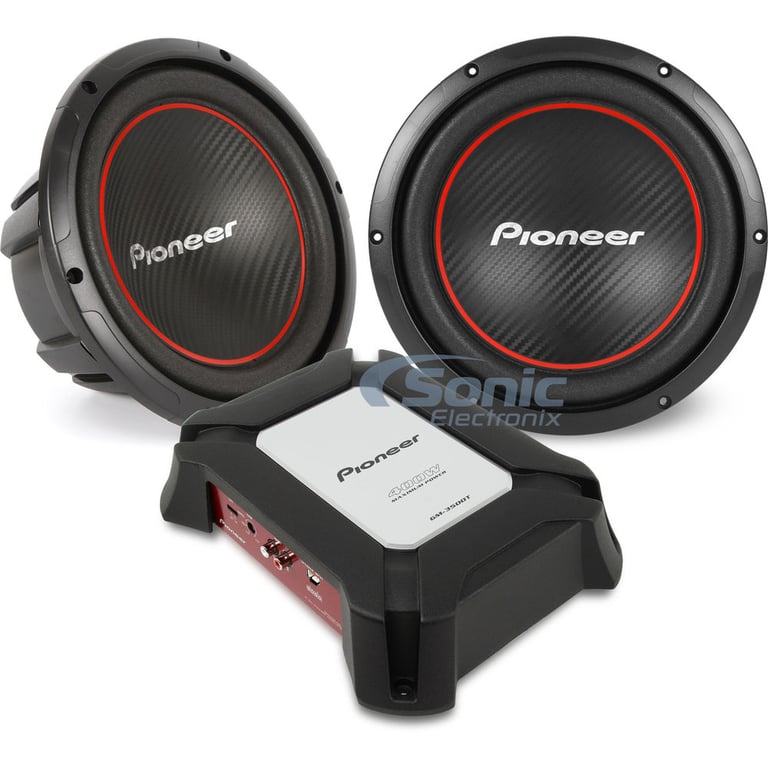

Pioneer GXT3504D

Pioneer TS-W254R 400W 2-Channel GM Series Class AB Amplifier + 2 GM-3500T 250W 10" Champion Series Single 4 ohm Subwoofers

Pioneer
Shop all Pioneer
highlight-star-icon

• 400W 2-Channel GM Series Class AB Amplifier
• 185 Watts RMS x 1 @ 4 ohm
• CEA-2006 Compliant
• 10" Single 4 ohm Champion Series Component Car Subwoofer

• RMS: 250 watts
• 2 subwoofers included

Learn more about the gxt3504d

We apologize

This item has been discontinued


Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
99-6506 main

Metra 99-6506 Dash Kit

Install a new Single-DIN car stereo in select 2004-2008 Pacifica

1
-12.12%

$28.99

List price $32.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
ZS35CX main

Hifonics ZS35CX

250W Peak (50W RMS) 3.5” Zeus Series 2-way 4-ohm Coaxial Car Speakers

10
FKB113 main

MB Quart FKB113

180W Peak (90W RMS) 5.25" Formula Series 2-Way 4-ohm Coaxial Car Speakers

4
-57.15%

$29.99

List price $69.99

Description


Pioneer brand icon

Authorized dealer

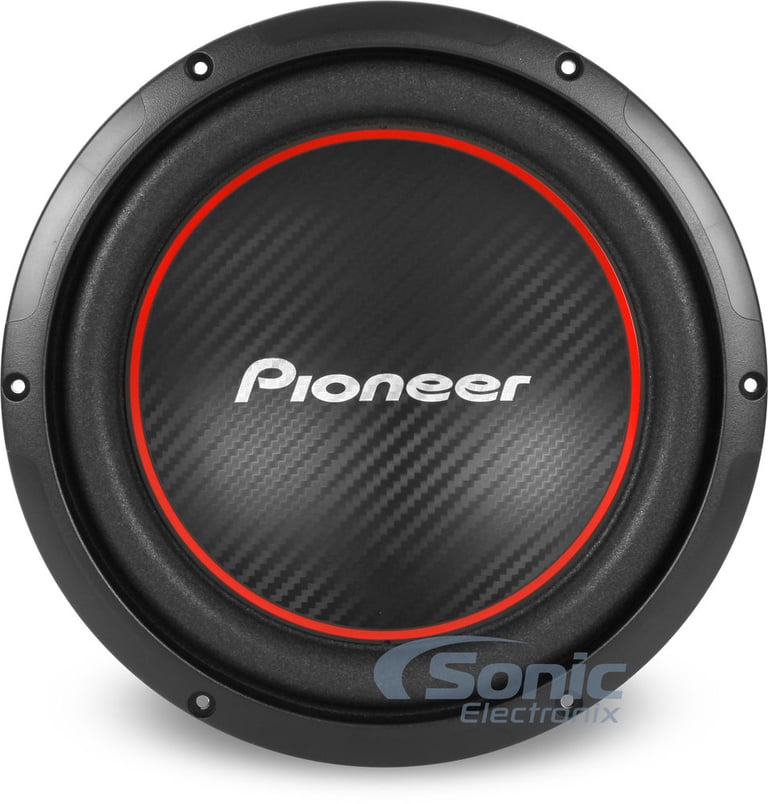

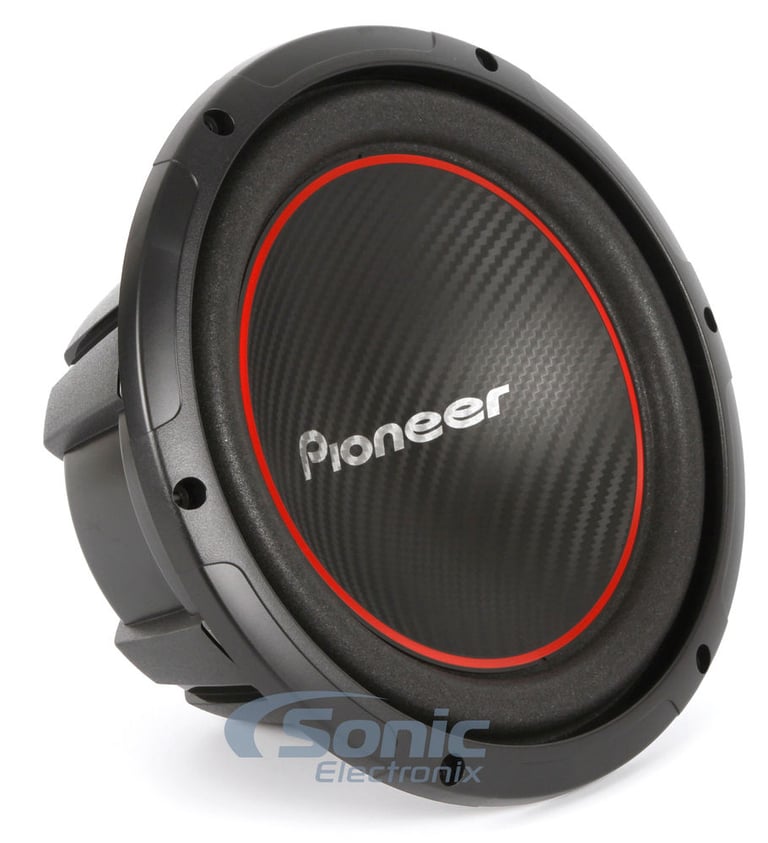

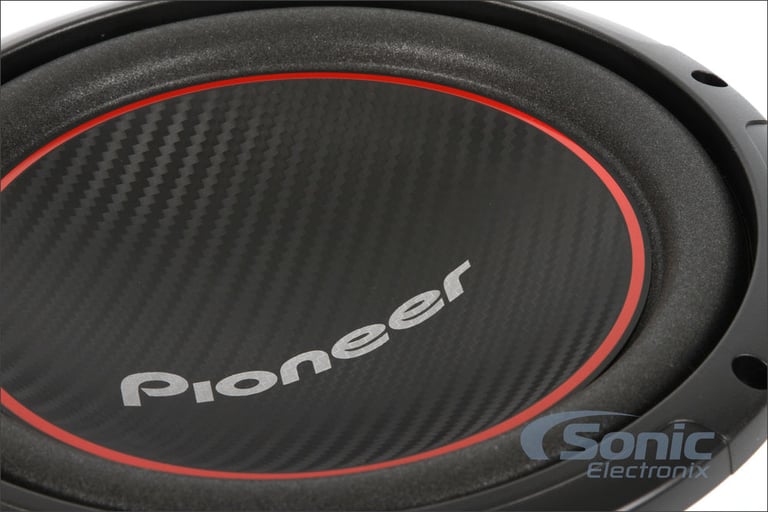

The GM-3500T Subwoofers

Product Features

  • 10" Single 4 ohm Champion Series Component Car Subwoofer
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 250 watts
  • Impedance: 4 ohm
  • IMPP Composite seamless cone woofer for a rich bass sound
  • Urethane surround for generous amounts of excursion
  • Extended pole yoke improves linearity during long excursion
  • Vented pole yoke allows better heat dissipation and increased power handling
  • Extended excursion design provides longer travel to create loud bass output
  • Large binding posts for heavy gauge wire
  • Best tuned parameters provide superior sound quality and reliability
  • 6-Layer long high temperature voice coil design
  • 33 oz large strontium magnet structure
  • Frequency Response: 20-220 Hz
  • Sensitivity: 93 dB
  • Xmax: 4.7 mm
  • Mounting Depth: 5"
  • Cutout Dimensions: 9-1/4"
  • 1-year Sonic Electronix Warranty
Priced per Pair for this package

The Pioneer TS-W254R Amplifier




General Features:

  • 400W 2-Channel GM Series Bridgeable Amplifier
  • Class-AB 2-Ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 60 watts x 2 chan.
    • 2 ohm: 85 watts x 2 chan.
    • Bridged, 4 ohm: 185 watts x 1 chan.
  • Total power output: 400 watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • 2 channel operation
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Frequency Response: 10 - 70 Hz
  • Total Harmonic Distortion (THD): .05% (1kHz)
  • Signal to Noise Ration: 98dB
  • Low-pass filter: 80 Hz, -12 dB/octave
  • Fuse Rating: 25 A x 1
  • 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 8-5/8"W x 11-3/8"L x 2-1/2"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
Check out the GXT3504D Owner's Manual


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
60 watts x 2 channel
RMS Power @ 2 ohms
85 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
200 watts
Minimum Impedance Unbridged
2 ohm
THD at Rated RMS Power
0.05%
Speaker Level Inputs
Yes
Built-in Crossover
Low-Pass (LP)
Signal-to-Noise Ratio
98 dB
Fuse Rating
25A x 1
CEA-2031 Compliant
Yes
Subwoofer Specifications
Series
Champion Series
Number of Subwoofers
2
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
250 watts
Total RMS Power Handling
250 watts
Peak Power Handling
1100 watts
Total Peak Power Handling
1100 watts
Woofer Surround
Urethane
Woofer Composition
Injection Molded Polypropylene Composite
Sensitivity
93 dB
Frequency Response
20 - 220 Hz
Xmax (millimeters)
4.7 mm
Top-Mount Depth (Mounting Depth)
5"
Cutout Diameter
9-1/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

GXT3504D

Weight:

21.70lbs

Internal SKU:

gxt3504d

Internal Product ID:

106157
