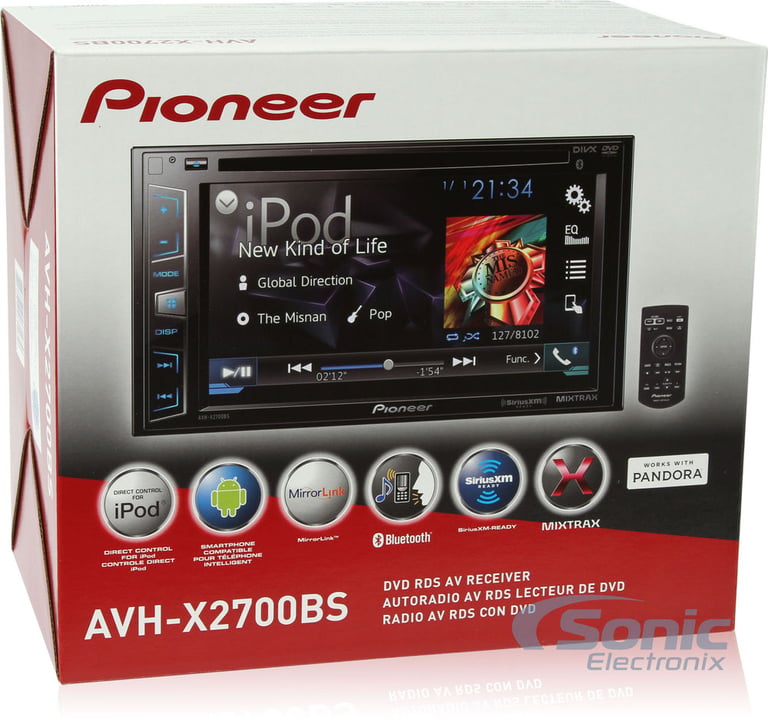

Pioneer AVH-X2700BS
Double DIN Bluetooth In-Dash DVD/AM/FM Receiver w/ 6.2" Touchscreen LCD Display
Quantity: 1
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
General Features:

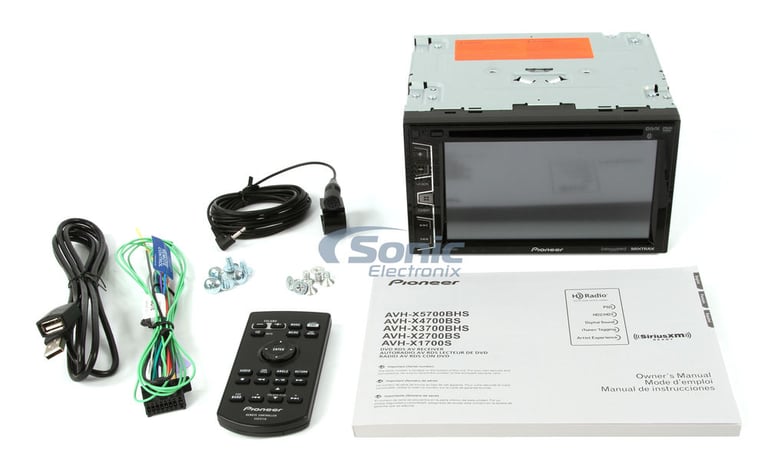

- Pioneer AVH-X2700BS In-Dash Receiver
- CEA-2006 compliant amplifier
- Power Output:
- Peak: 50 watts x 4 channels
- RMS: 17 watts x 4 channels

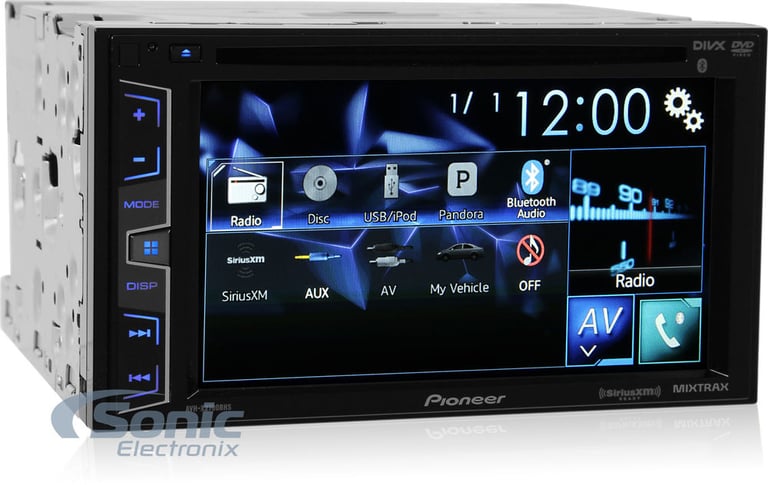

- 6.2" LCD touchscreen display
- Anti-glare screen coating
- Color and display customization
- Dimmer setting
- Brightness control
- Resolution: 800 x 480
- Aspect Ratio: 16:9
- MIXTRAX app Illumination Effects
- Customizable homescreen shortcuts
- iDatalink-Compatible:
- Connects serially to iDatalink Maestro products to seamlessly integrate with your vehicle's original infotainment systems
- Retain factory features like hands-free Bluetooth, USB media, satellite radio, steering wheel controls and more

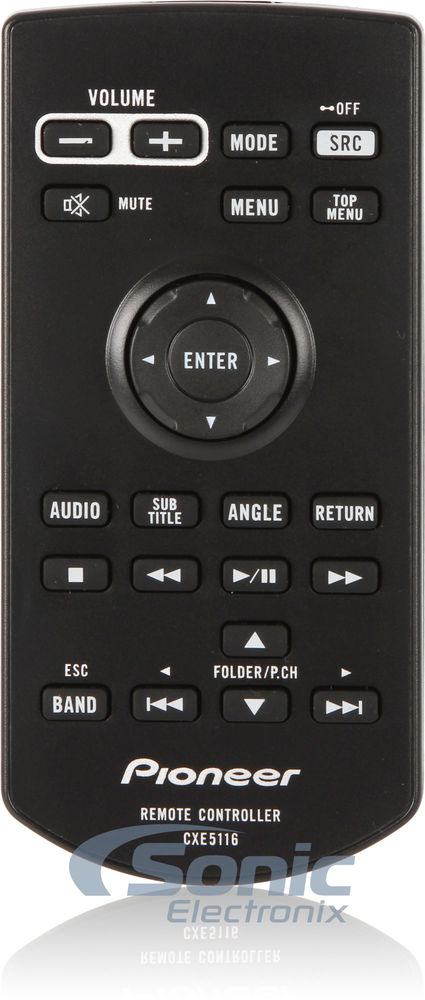

- Remote control included
- 1-year Sonic Electronix Warranty
Playback and Audio Features:
- CD, CD-R/RW, DVD, DVD-R/RW, MP3/WMA/AAC/MP4
- AM/FM tuner with 18FM/6AM presets
- Pandora station creation
- Siri Eyes Free mode
- iPod and iPhone Ready: Standard USB-to-iPod Cable and USB-to-Lightning Cable compatible
- Android music support
- 13-band customizable graphic equalizer
- Subwoofer Level Adjustable
- Built-in LPF/HPF
- Advanced Sound Retriever
- 24-bit D/A converter
- 3-way audio network mode

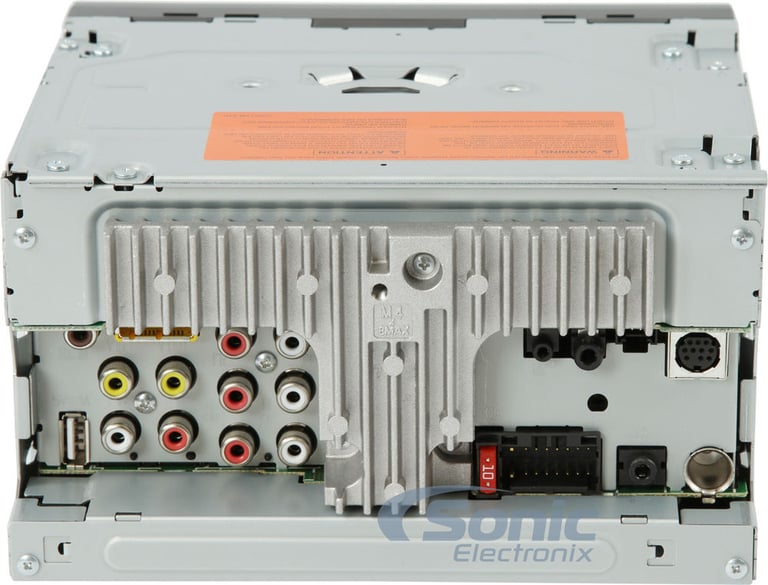

- 3.5mm Rear Auxiliary Input

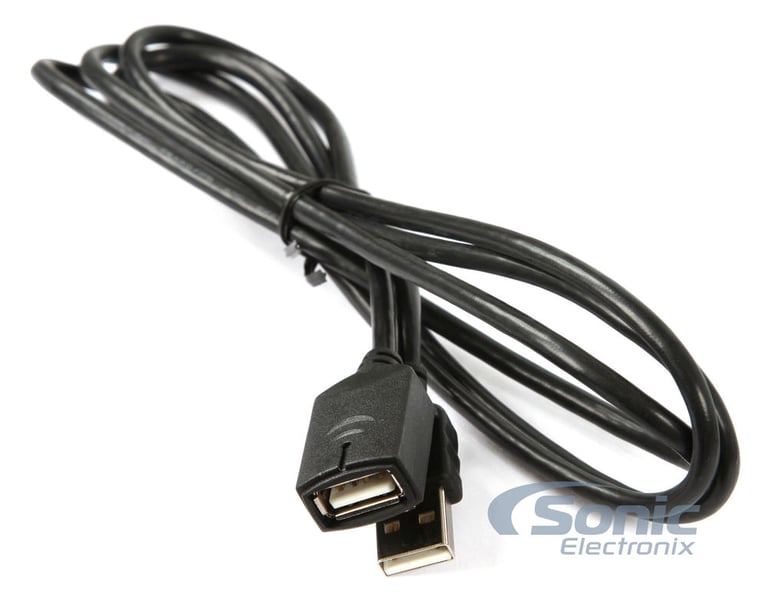

- Rear USB Input
- Composite Video Output
- Composite A/V Input
- CD text information display
- MP3 ID3 Tag Display (Title/Artist/Album)
Bluetooth Features:
- Built-in Bluetooth technology for hands-free talking and audio streaming
- Supports A2DP audio streaming
- Content browsing support via Bluetooth
- Wideband speech Hands Free Profile
- Works with most Bluetooth enabled cell phones

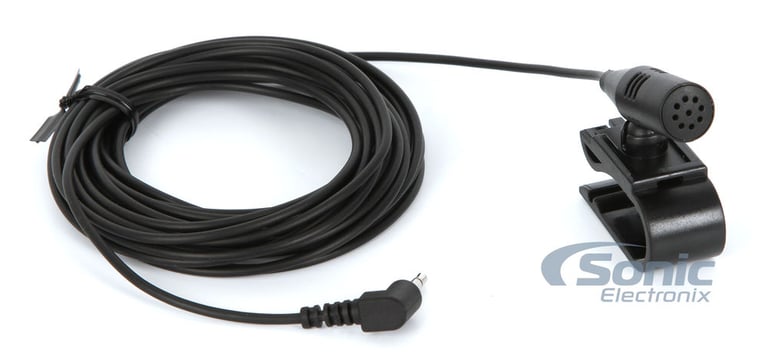

- Includes a, external wired microphone for clear, convenient talking
Expandability Options:
- 3 Sets of 4V preamp outputs (front, rear and subwoofer)
- SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
- MirrorLink Ready: CD-MU200 Interface Cable with MirrorLink cable required and sold separately
- Navigation Ready: Pioneer AVIC-U260 Add-On GPS Navigation System required and sold separately
- Steering Wheel Control Ready: PAC ControlPRO or Axxess ASWC-1 are required and sold separately
- Backup Camera Input: Universal Backup Camera recommended and sold separately

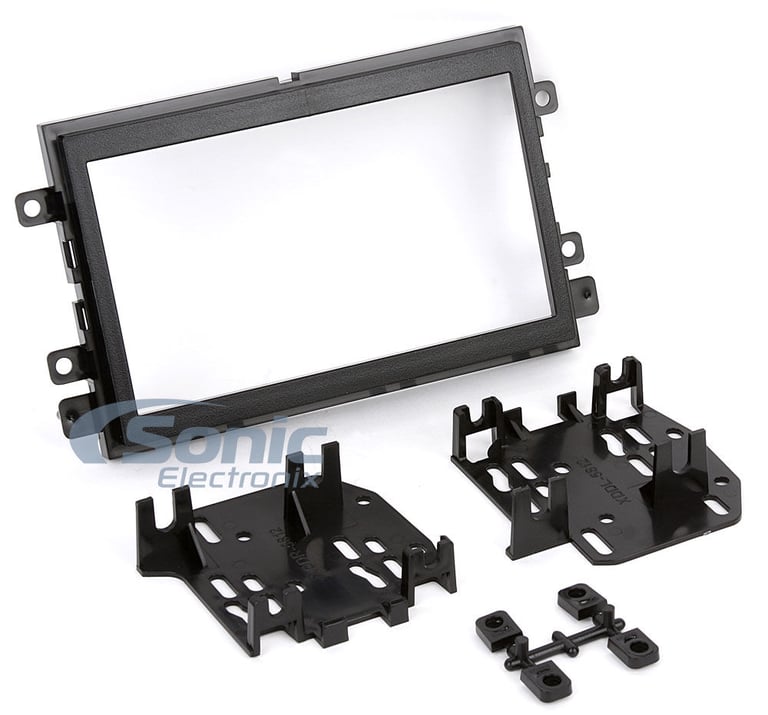

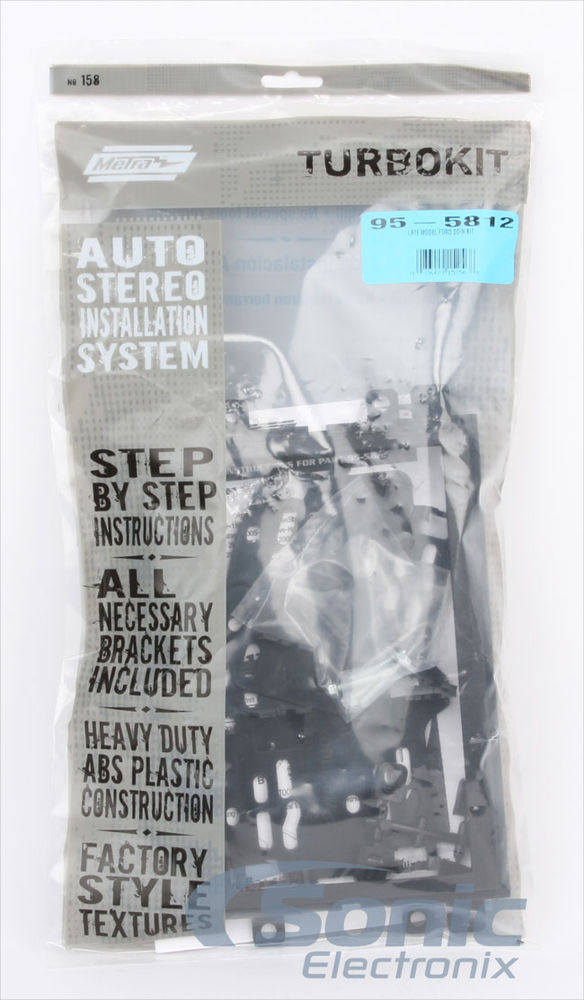

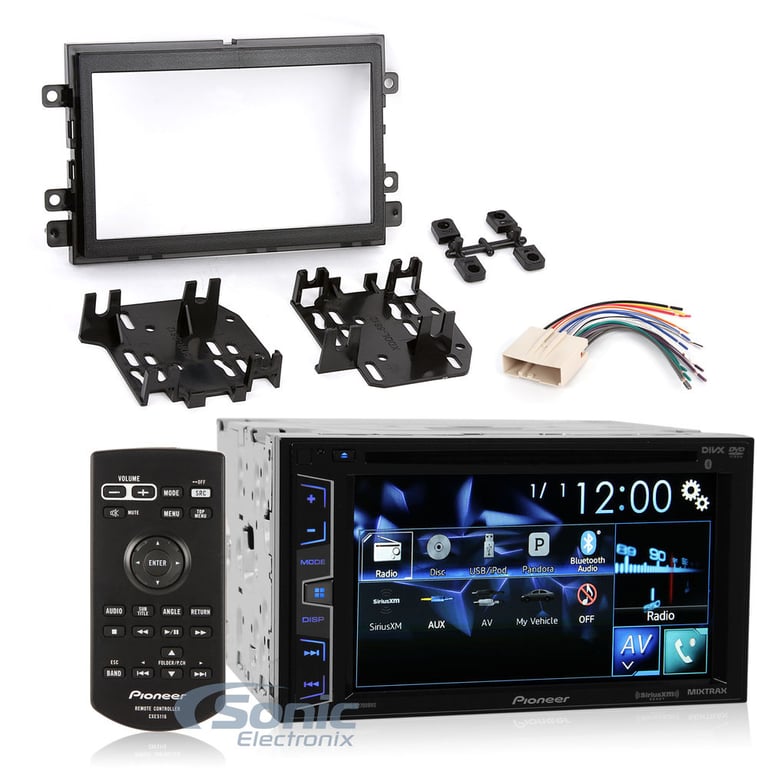

- Install dash kit for Double DIN/ISO Radios
- Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
- Painted to match factory dash color
- High-grade ABS plastic construction
- Factory style texture
- Kit Includes:
- Radio Housing Trim Plate
- Radio Housing Brackets
- Phillips Screwdriver
- Panel Removal Tool
- Socket Set
- Cutting Tool

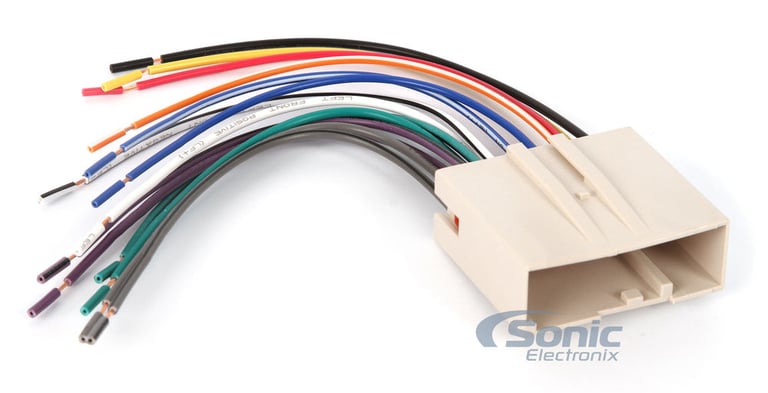

Product Features:
- Plugs into car harness
- Power/4-Speaker
- 24-pin connector
- For select 2003-2007 Ford, Lincoln, Mercury vehicles
- Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
- No cutting of factory wiring needed
- 1-year Manufacturer's warranty
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
