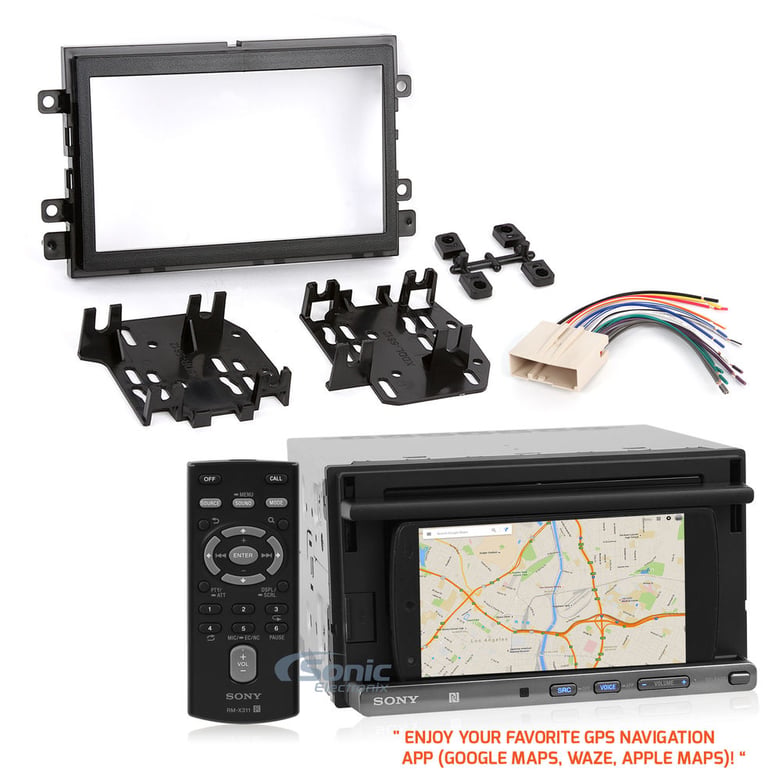

Sony XSP-N1BT Double DIN Car Stereo Package for Select 2005 - 2010 Ford Vehicles

General Features:

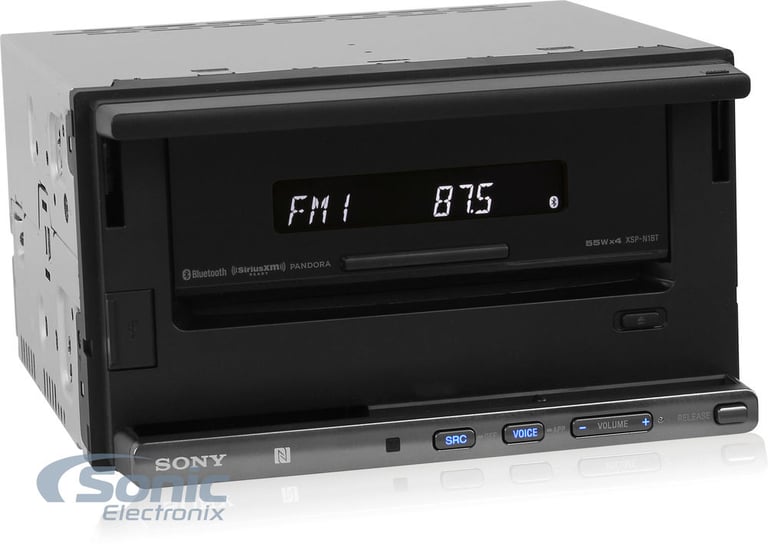

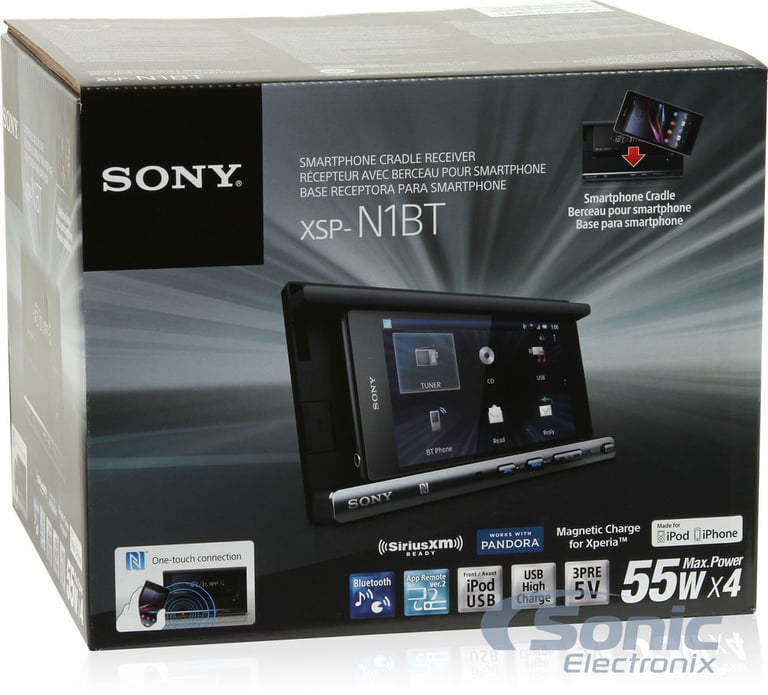

• Sony XSP-N1BT In-Dash Receiver
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 55 watts x 4 channels
• RMS: 17 watts x 4 channels

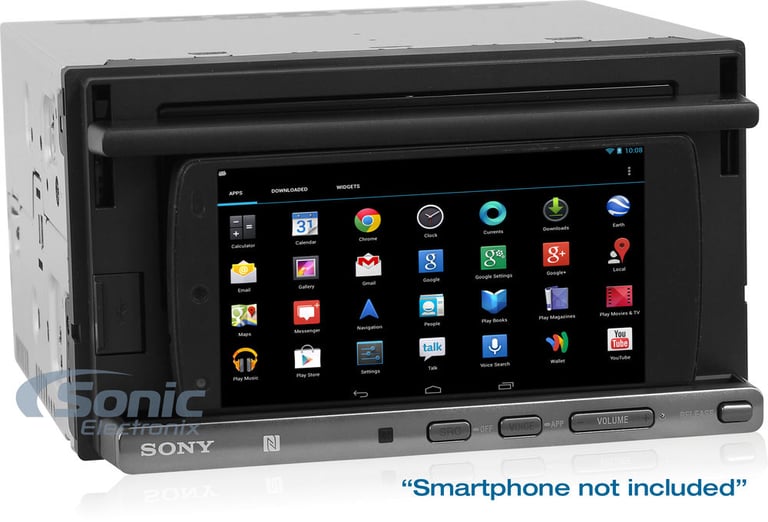

• Utilizes your smartphone as the display
• Requires free Sony App Remote app for iOS and Android devices
• iPhone 6 and 6+: The iPhone 6+ will fit into the brackets but users must remove any case on the phone. Alternatively keep your case on and connect via USB and download Sony’s AppRemote app to make your phone the user interface. (As a reference, the iPhone 6+ dimensions are 6.22" L x 3.06 W)
• Built-in magnetic charging dock for Sony for Sony Xperia Z1 and Z2 smartphones
• USB port allows for charging of other compatible devices
• Secondary LCD text display allows for use without a smartphone

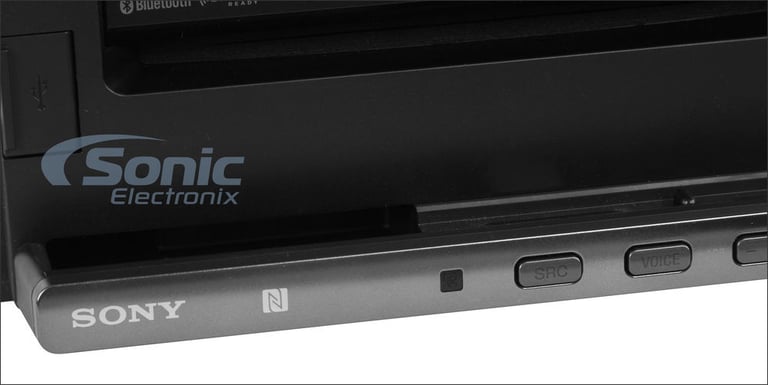

• Built-in Bluetooth with NFC
• Compatibilty:
• Unit is not compatible with all USB devices
• Requires iOS 5.0+ and USB connection for iPhone support
• Requires Android OS 4.0+ and Bluetooth connection for Android support
• Connect most Blackberry devices via Bluetooth

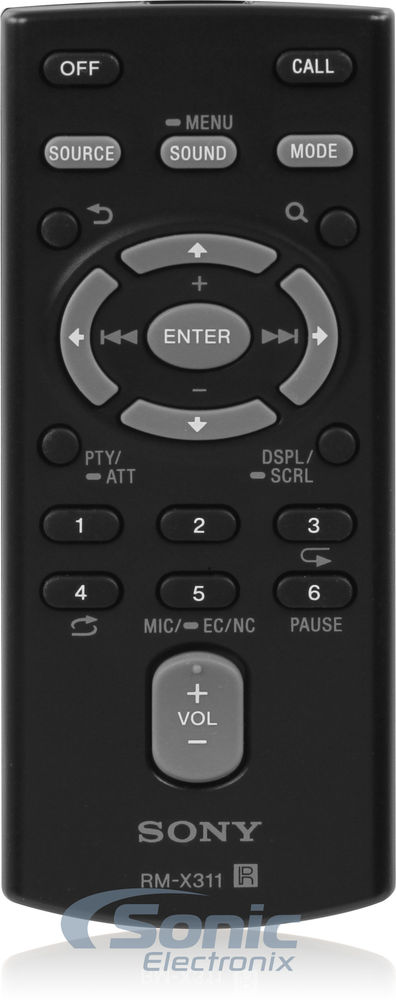

• Remote control included
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Playback and Audio Features:

• CD/CD-R/RW, MP3/WMA/WAV
• AM/FM tuner with 18FM/12AM presets
• iPod and iPhone Ready: Standard USB-to-iPod Cable and USB-to-Lightning Cable compatible
• 6" microUSB-to-USB adapter cable included for charging docked microUSB devices
• Complete access and control for Pandora Internet radio
• Intuitive music search with Quick-BrowZer allows you to find music by artist, album, genre, song or playlist
• Jump Mode allows you to jump through categories in 10% increments
• Digital Clarity Tuner provides industry leading sound quality
• 10-band equalizer
• Time alignment

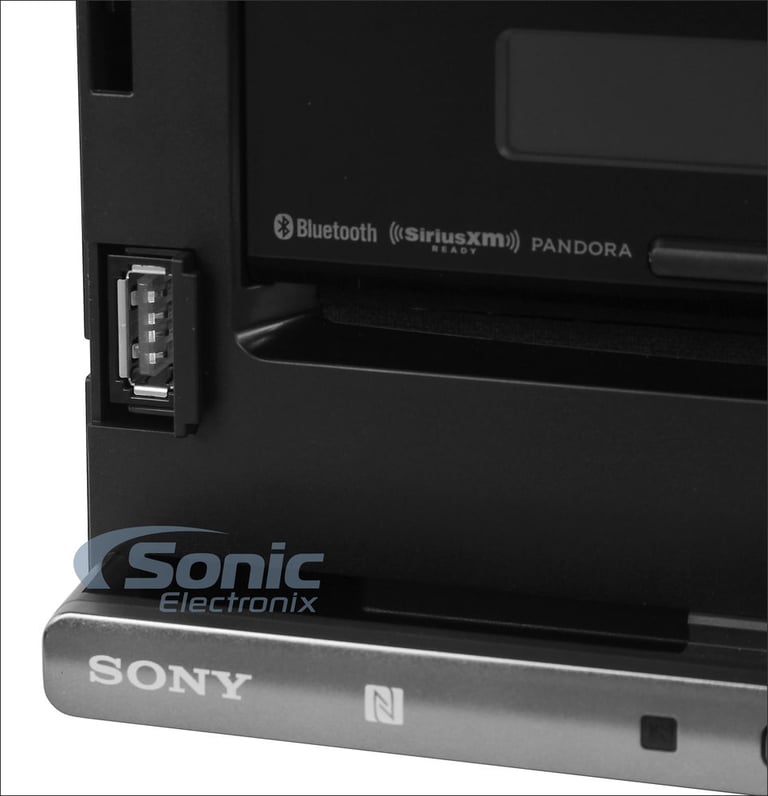

• Front USB Input
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Simple NFC pairing with compatible devices
• Supports A2DP audio streaming
• Works with most Bluetooth enabled cell phones

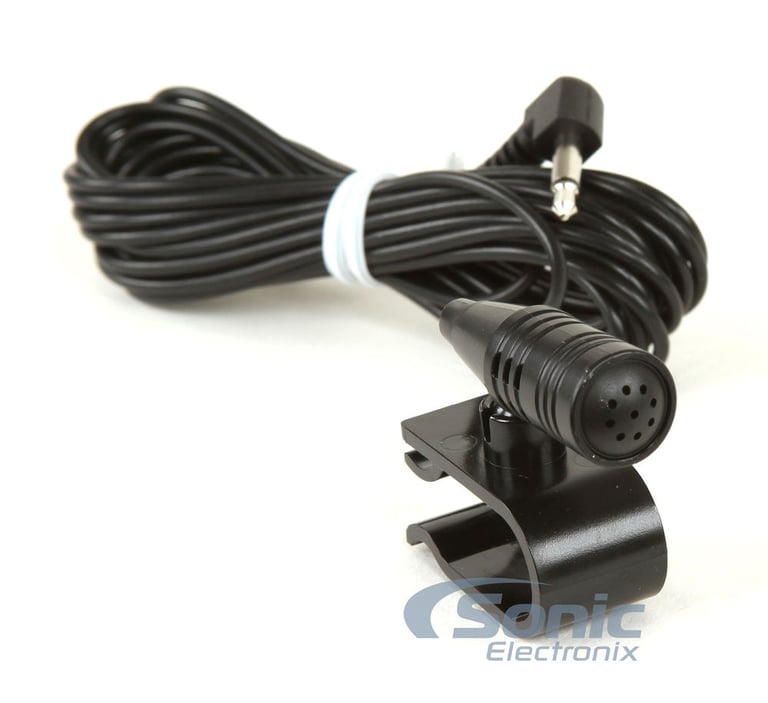

• Includes an external wired microphone for clear, convenient talking

Expandability Options:

• 3 Sets of 5V preamp outputs (front, rear and subwoofer)
• SiriusXM Satellite Radio Ready: SiriusXM Radio Package and subscription required and sold separately
• Steering Wheel Control Ready: PAC ControlPRO or Axxess ASWC-1 are required and sold separately

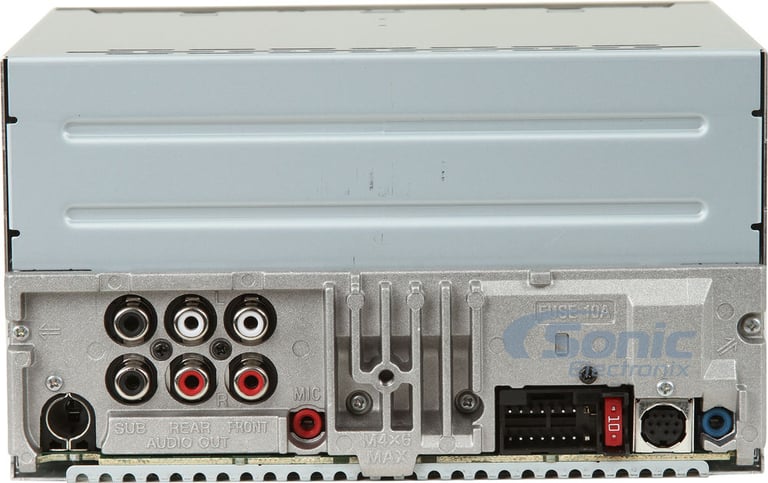

Note of caution from Sony: Bluetooth Microphone Connection Procedure
To ensure proper functionality of Sony head units the Bluetooth microphone must be connected to the correct port at the rear of the head unit labeled “MIC”, which is red .

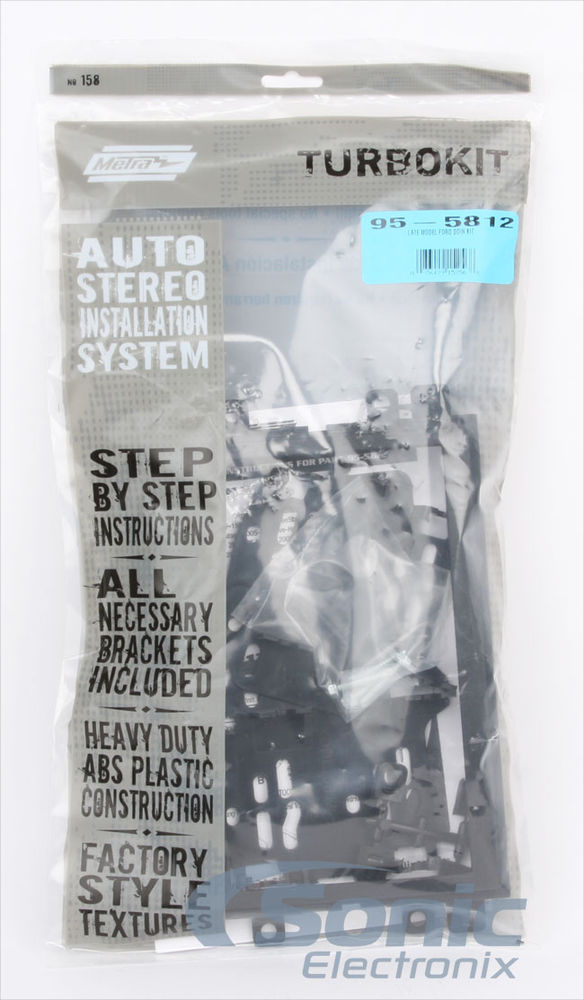

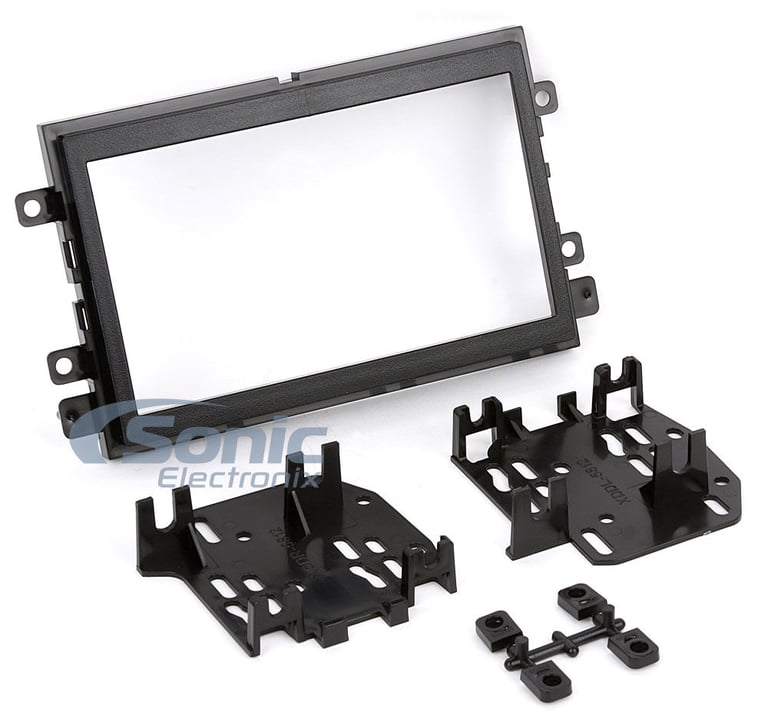

• Install dash kit for Double DIN/ISO Radios
• Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
• Painted to match factory dash color
• High-grade ABS plastic construction
• Factory style texture
• Kit Includes:

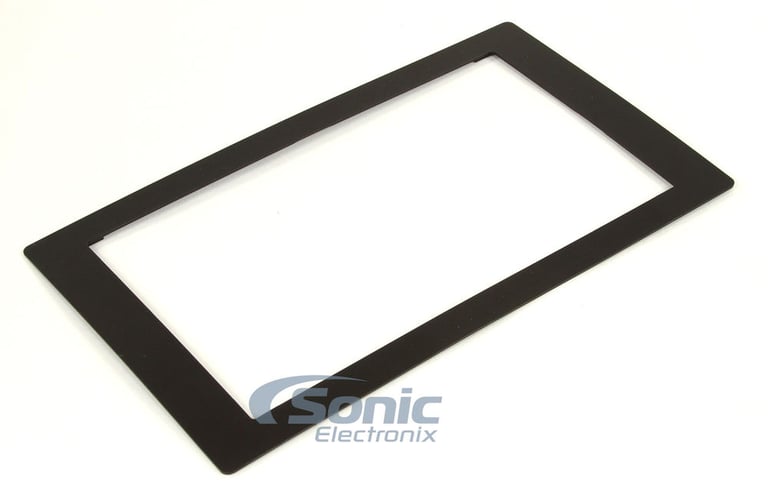

1. Radio Housing Trim Plate
2. Radio Housing Brackets

1. Phillips Screwdriver
2. Panel Removal Tool
3. Socket Set
4. Cutting Tool

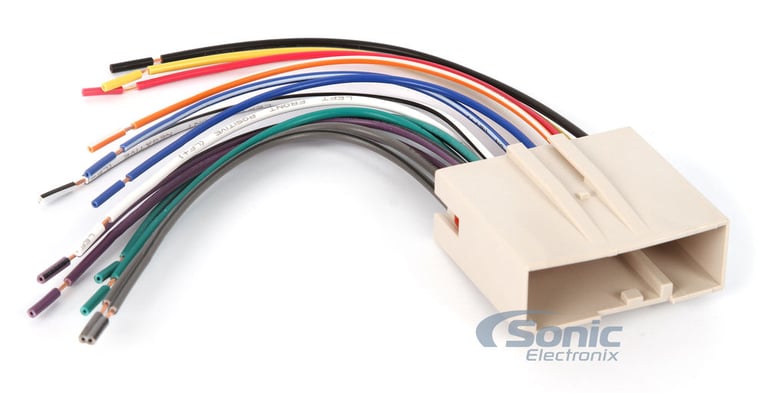

Product Features:

• Plugs into car harness
• Power/4-Speaker
• 24-pin connector
• For select 2003-2007 Ford, Lincoln, Mercury vehicles
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
• No cutting of factory wiring needed
• 1-year Manufacturer's warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
