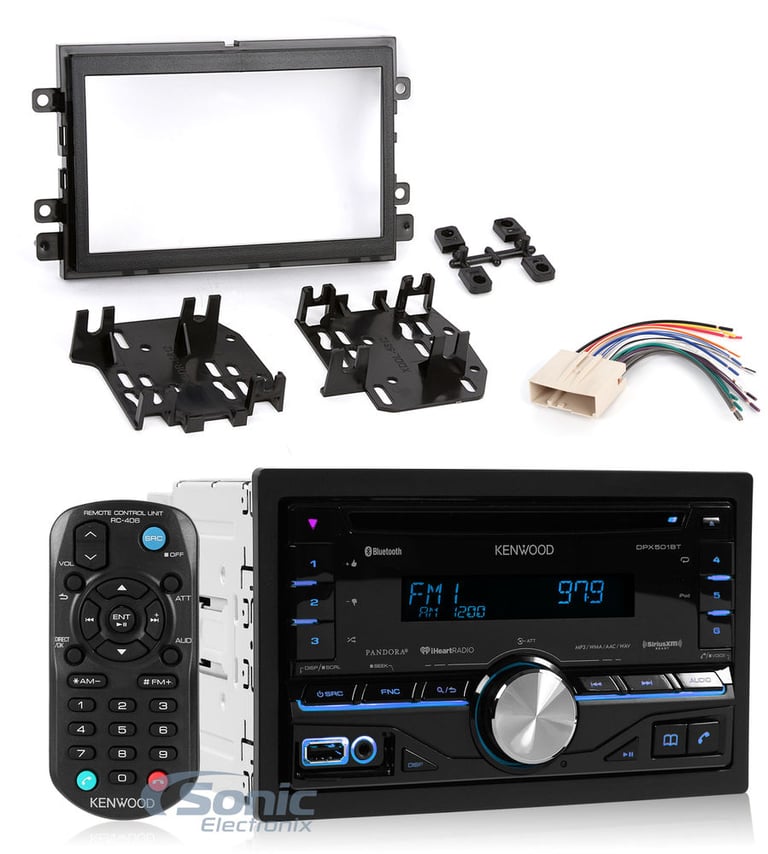

Kenwood DPX501BT Double DIN Car Stereo Package for Select 2005 - 2010 Ford Vehicles

General Features:

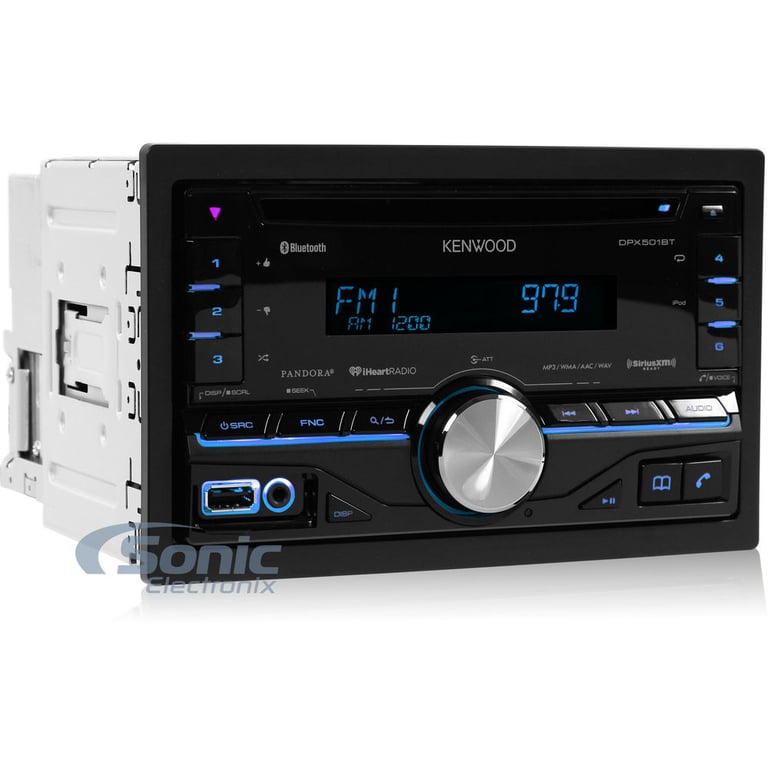

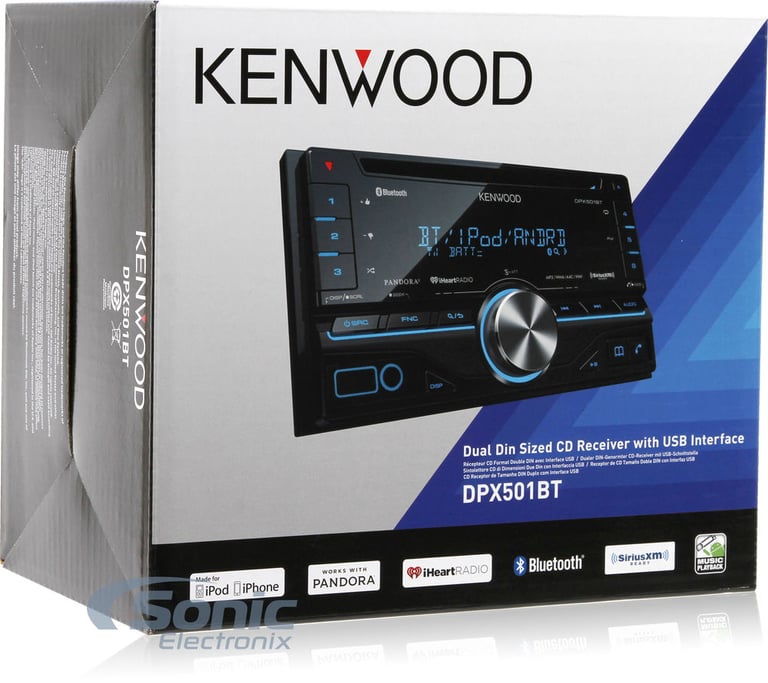

• Kenwood DPX501BT Bluetooth In-Dash Receiver
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 22 watts x 4 channels
• Speaker Impedance: 4 - 8Ω
• 13 Digit + 8 Digit 1.5Line LCD Display
• Variable Color Illumination

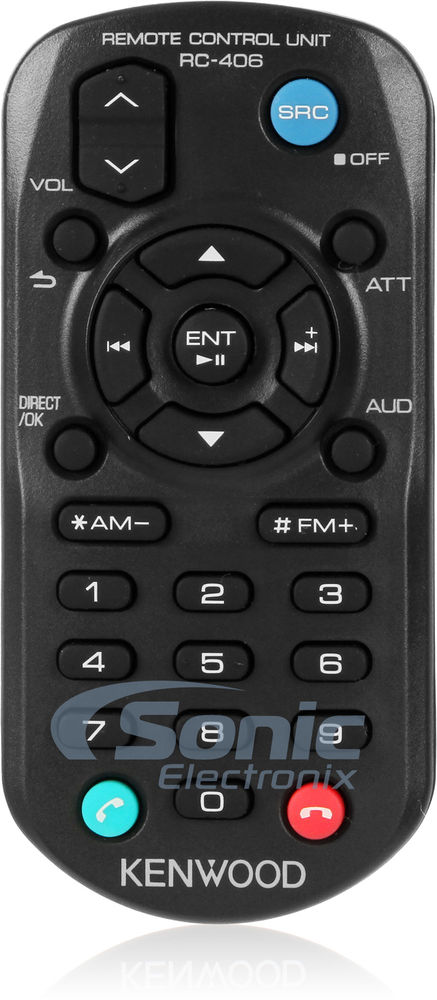

• Remote control included
• Manual Dimmer Control Function (on/off)
• CD Signal to Noise Ratio: 105 dB
• Frequency Response: 20 - 20,000 Hz
• Total Harmonic Distortion: 0.01% (1kHz)
• Dynamic Range: 90 dB
• Channel Separation: 85 dB
• 1-year Sonic Electronix Warranty

Playback and Audio Features:

• CD/CD-R/RW, MP3/WMA/AAC/WAV
• AM/FM tuner with 18FM/6AM presets, w/ RBDS Radio Text
• Compatible with Apple iPhone 6/6+ and iOS 8 software
• 30-pin type: Kenwood KCA-IP102
• Lightning type: Kenwood KCA-IP103
• AOA2 Support (Android Open Accessory Protocol V2)
• Download "Kenwood Music Play" App & Connect via USB
• 3-band parametric equalizer with 8 selectable tone curves (7 Preset, 1 User)
• 3.5mm Front Audio Auxiliary Input
• Front USB Input
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)

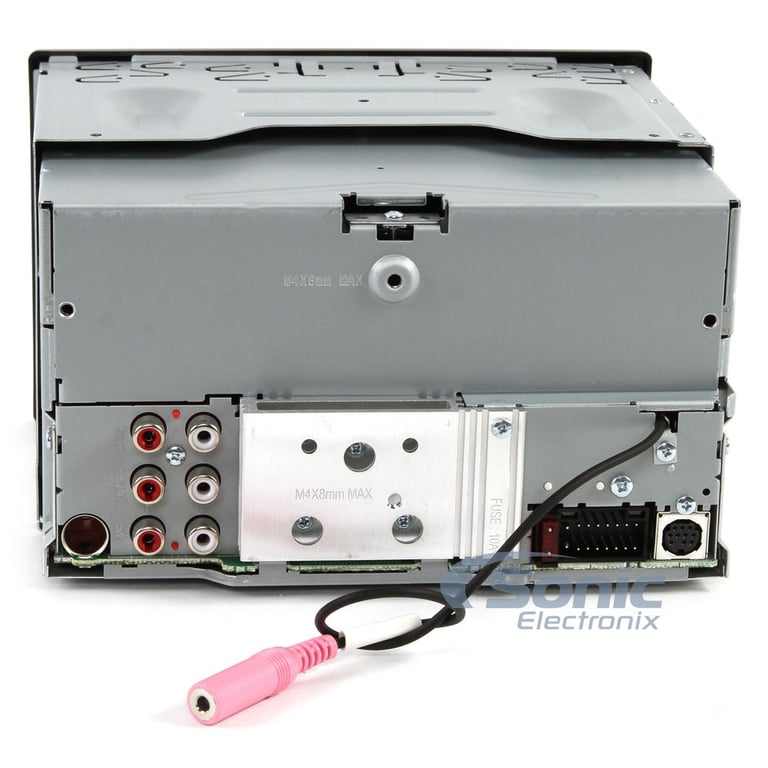

• 3 Sets of 2.5V preamp outputs (front, rear and subwoofer)
• Subwoofer level adjustment
• Bass Boost / Loudness Control
• Built-in LPF/HPF

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Bluetooth V2.1+EDR /Bluetooth 3.0
• Auto pairing function for iPhone & Android via USB
• Bluetooth Profiles Supported:
• HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
• PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
• A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
• AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
• OPP: Object Push Profile for sending basic "objects" such as pictures and other virtual material
• SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
• Works with most Bluetooth enabled cell phones

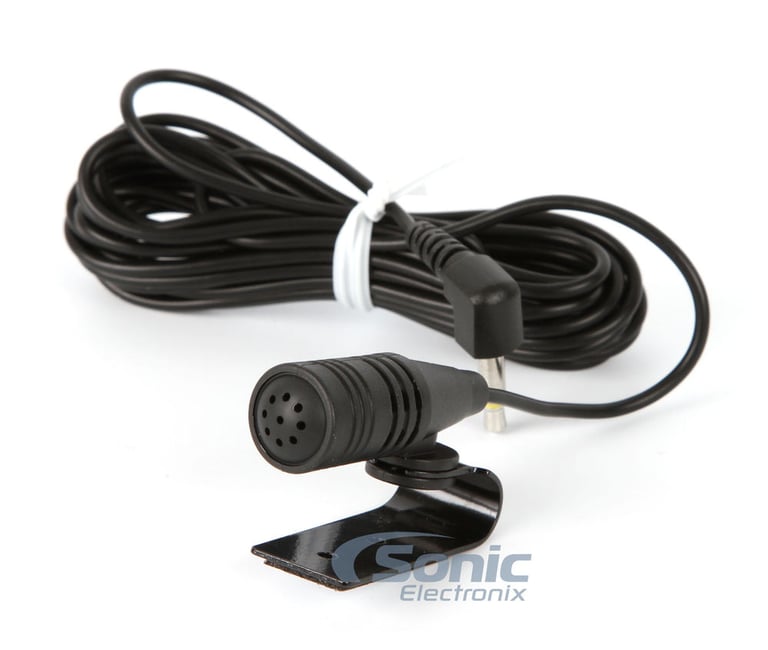

• Includes a (external wired/built-in) microphone for clear, convenient, distortion-free talking

Expandability Options:

• SiriusXM Satellite Radio Ready: SiriusXM SXV300v1 and subscription required and sold separately
• Steering Wheel Control Ready: PAC ControlPRO (SWI-CP5) or the Axxess ASWC-1 required and sold separately

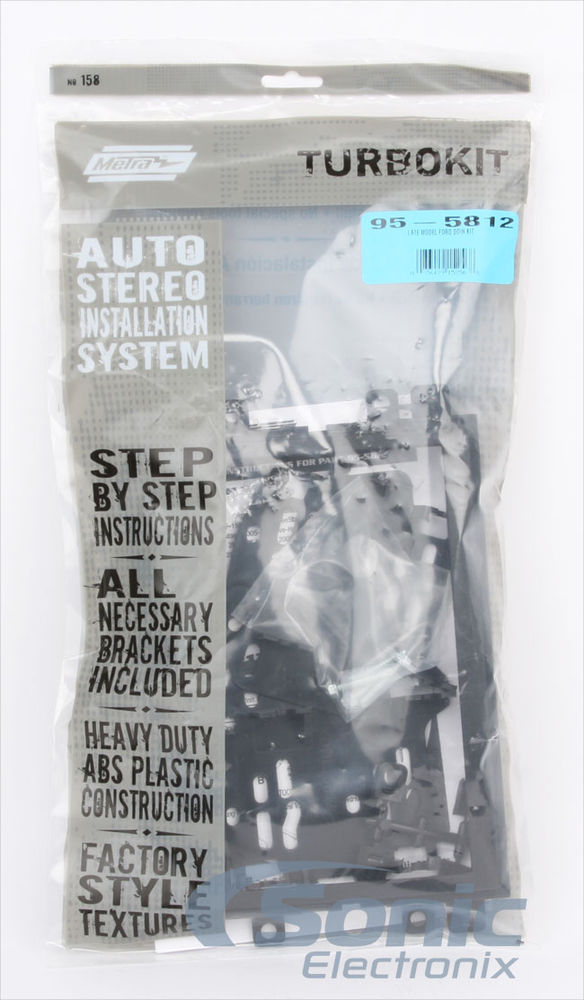

• Install dash kit for Double DIN/ISO Radios
• Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
• Painted to match factory dash color
• High-grade ABS plastic construction
• Factory style texture

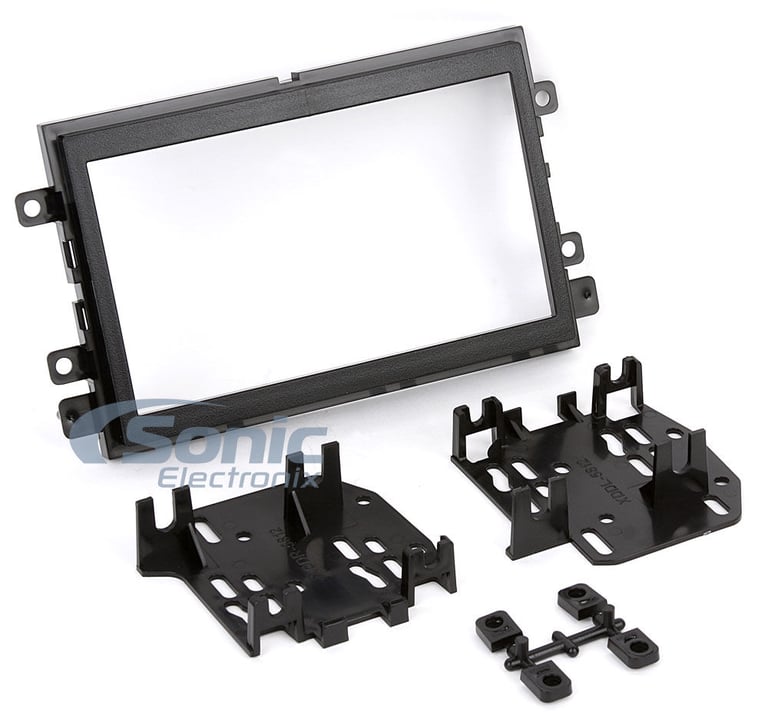

• Kit Includes:

1. Radio Housing Trim Plate
2. Radio Housing Brackets

1. Phillips Screwdriver
2. Panel Removal Tool
3. Socket Set
4. Cutting Tool

Product Features:

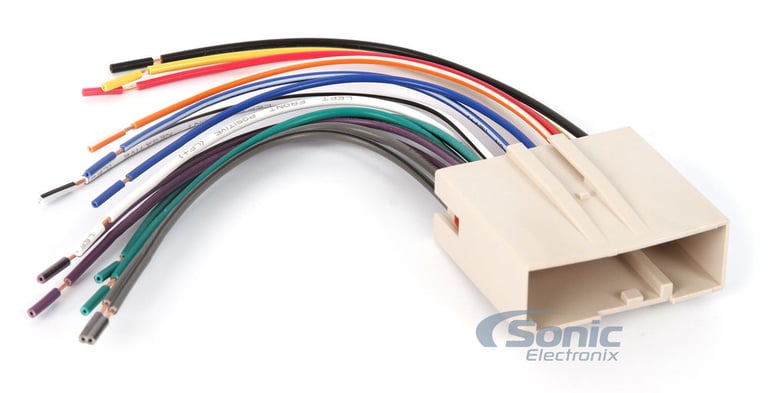

• Plugs into car harness
• Power/4-Speaker
• 24-pin connector
• For select 2003-2007 Ford, Lincoln, Mercury vehicles
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
• No cutting of factory wiring needed
• 1-year Manufacturer's warranty

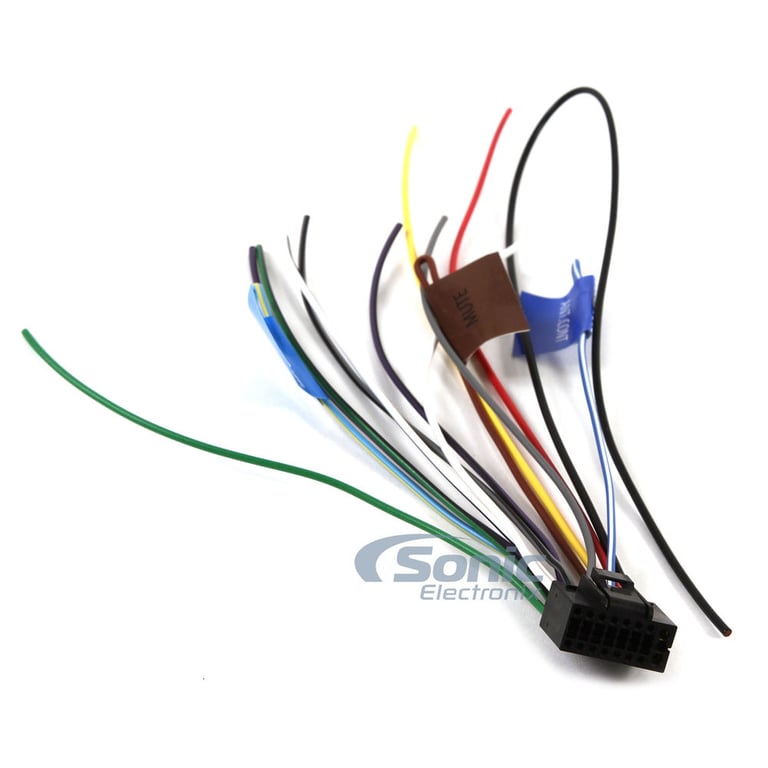

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
