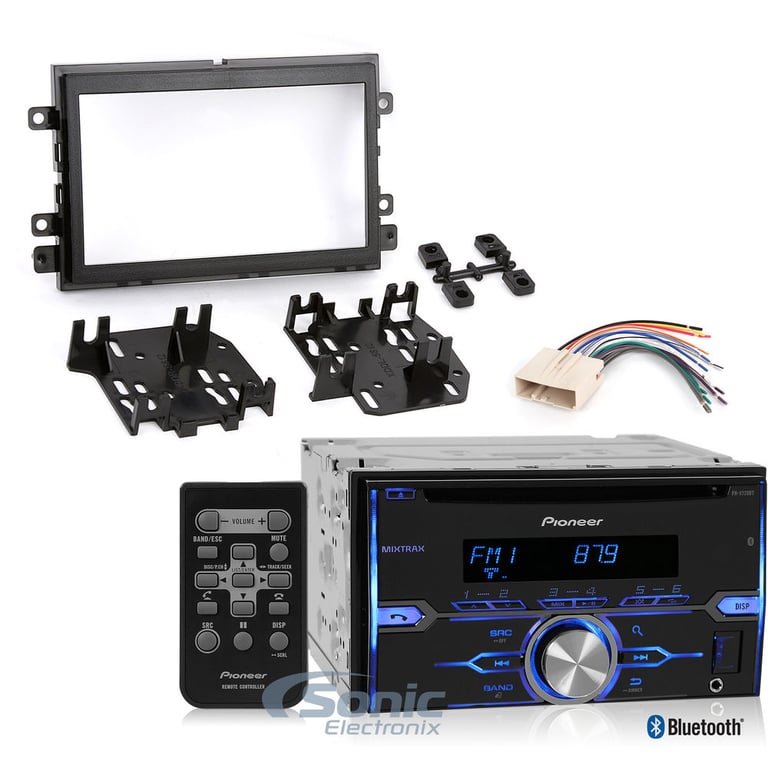

Pioneer Bluetooth Stereo Package for Select 2005 - 2010 Ford Vehicles

General Features:

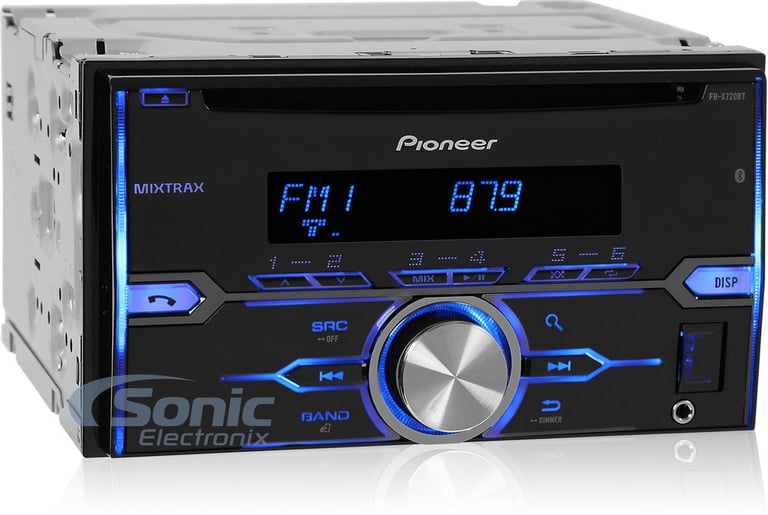

• Pioneer FH-X720BT In-Dash Receiver
• CEA-2006 compliant amplifier
• Power Output:
• Peak: 50 watts x 4 channels
• RMS: 14 watts x 4 channels
• Built-in Bluetooth
• Variable color illumination allows you to precisely match your vehicle's interior
• Integrated iOS device controls
• MIXTRAX allows for a DJ-inspired audio/visual experience with compatible devices

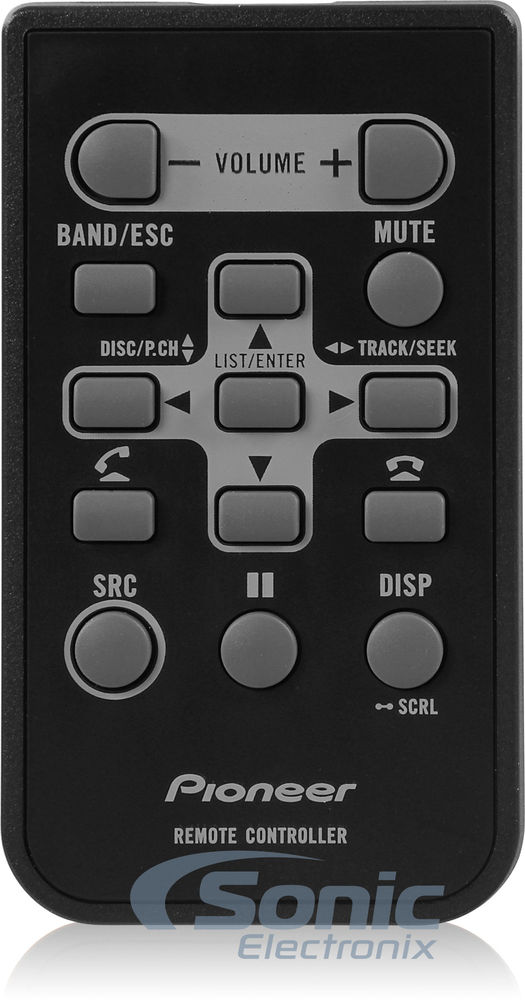

• Remote control included
• 1-year Sonic Electronix Warranty

Playback and Audio Features:

• CD/CD-R/RW, MP3/WMA
• AM/FM tuner
• iPod and iPhone Ready: Standard USB-to-iPod Cable and USB-to-Lightning Cable compatible
• Direct Pandora control for iOS devices
• Create new Pandora stations from current song or artist
• Android Media Transfer Protocol through a USB-to-Micro USB cable
• 5-band graphic equalizer
• Advanced Sound Receiver provides improved sound quality from compressed files
• 3-level loudness
• 3.5mm Front Audio Auxiliary Input
• Front USB Input
• Built-in low and high pass filters
• Subwoofer level control
• CD text information display
• MP3 ID3 Tag Display (Title/Artist/Album)

Bluetooth Features:

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Dual phone pairing allows for 2 devices to be paired at once
• Bluetooth Guest mode
• Unpaired iOS devices receive automatic prompt to pair when connected to USB
• Wirelessly browse your music library via AVRCP 1.5
• Supports A2DP audio streaming
• Works with most Bluetooth enabled cell phones
• Wideband Speech (HFP 1.6)
• Double bandwidth over traditional Bluetooth frequencies

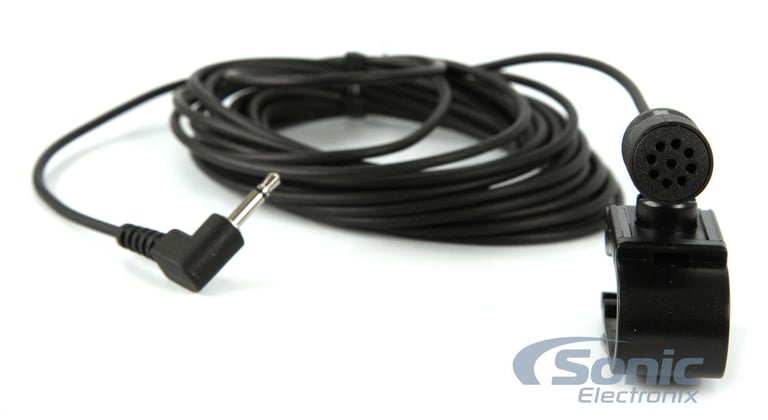

• Includes a external wired microphone for clear, convenient talking

Expandability Options:

• 2 Sets of 2V preamp outputs
• Steering Wheel Control Ready: PAC ControlPRO or Axxess ASWC-1 are required and sold separately

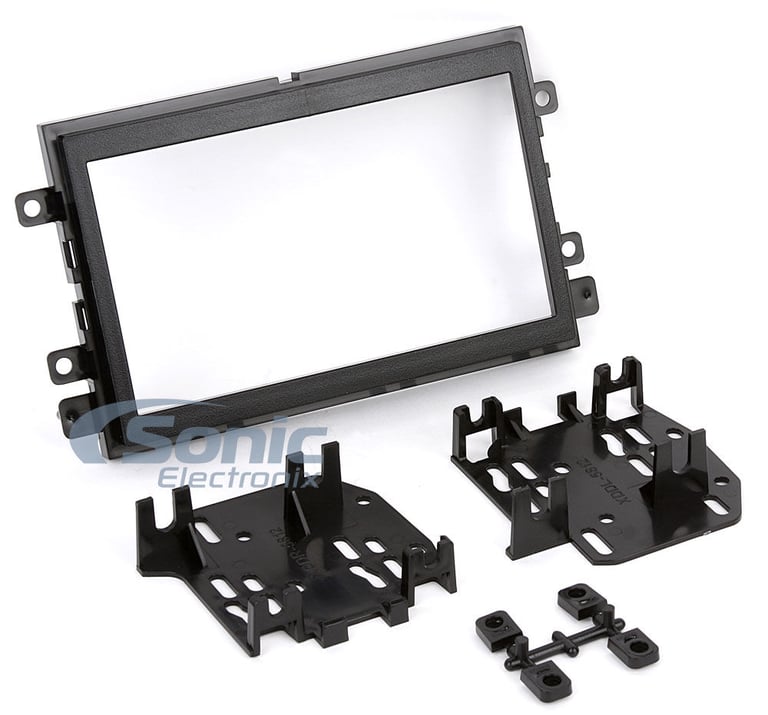

• Install dash kit for Double DIN/ISO Radios
• Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
• Painted to match factory dash color
• High-grade ABS plastic construction
• Factory style texture
• Kit Includes:

1. Radio Housing Trim Plate
2. Radio Housing Brackets

1. Phillips Screwdriver
2. Panel Removal Tool
3. Socket Set
4. Cutting Tool

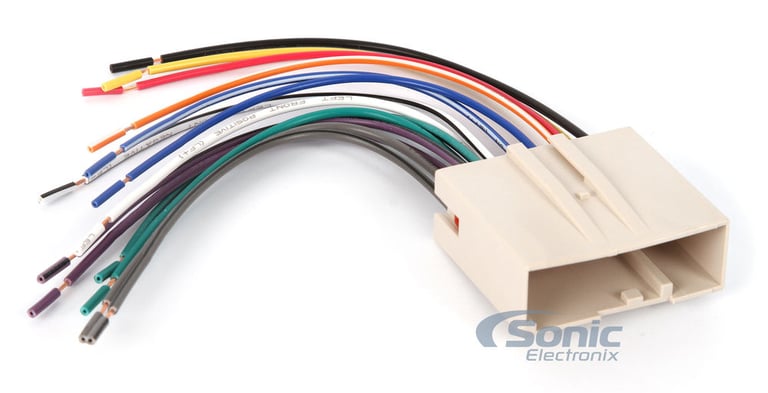

Product Features:

• Plugs into car harness
• Power/4-Speaker
• 24-pin connector
• For select 2003-2007 Ford, Lincoln, Mercury vehicles
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
• No cutting of factory wiring needed
• 1-year Manufacturer's warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
