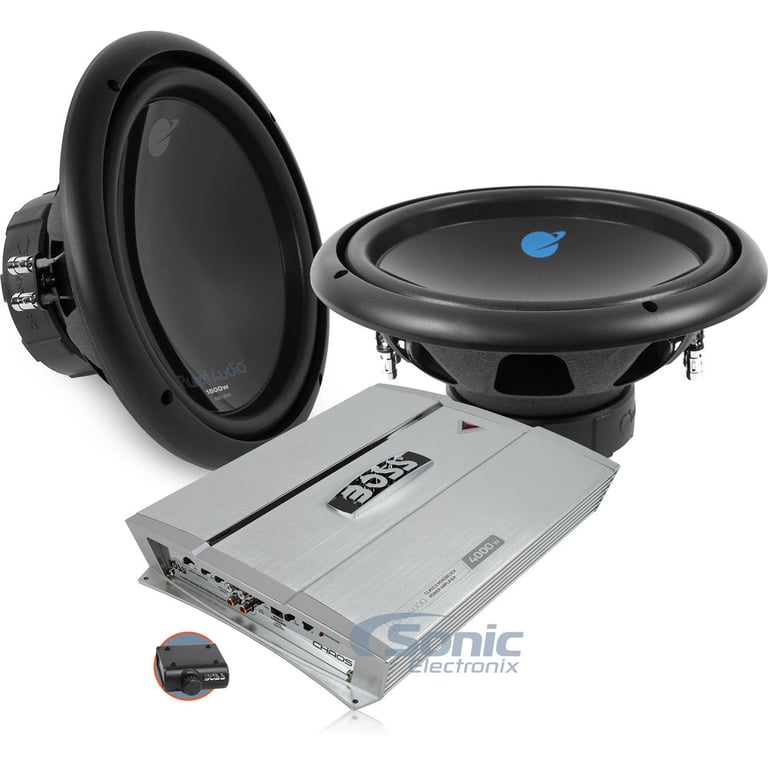

4000 Watt Max Dual 12" Planet Audio + Boss Amplified Bass Bundle

List price $339.97: (2) Planet Audio AC12D 12" Anarchy Series Dual 4 Ohm Car Subwoofer + Boss CHD4000 Monoblock Chaos Series Class D Amplifier

Boss
Shop all Boss
EXCLUSIVE
highlight-star-icon

• Total Peak Power: 4000W
• Nickel-plated RCA low level inputs/outputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Wired remote bass level control included
• 11.00" W x 13.95" L x 2.60" H

Learn more about the 2-ac12d_chd4000

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

40-VW10 main

Metra 40-VW10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 1973-2025 vehicles from Audi, Mercedes-Benz, Volkswagen

22
-33.36%

$7.99

List price $11.99

99-5831G main

Metra 99-5831G Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2014-2018 Transit Connect (Two-tone Gray and Black)

-42.86%

$107.99

List price $188.99

70-5524 main

Metra Ford Fiesta Wiring Harness (70-5524)

Wiring Harness For select 2011-2019 vehicles from Ford

1
-10.01%

$17.99

List price $19.99

AXDI-FOC main

Axxess AXDI-FOC

Install New Car Stereo and Retain Steering Wheel Controls and Other Factory Features In select 2011-2019 vehicles from Ford

-10.37%

$120.99

List price $134.99

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Description


Boss brand icon

Authorized dealer

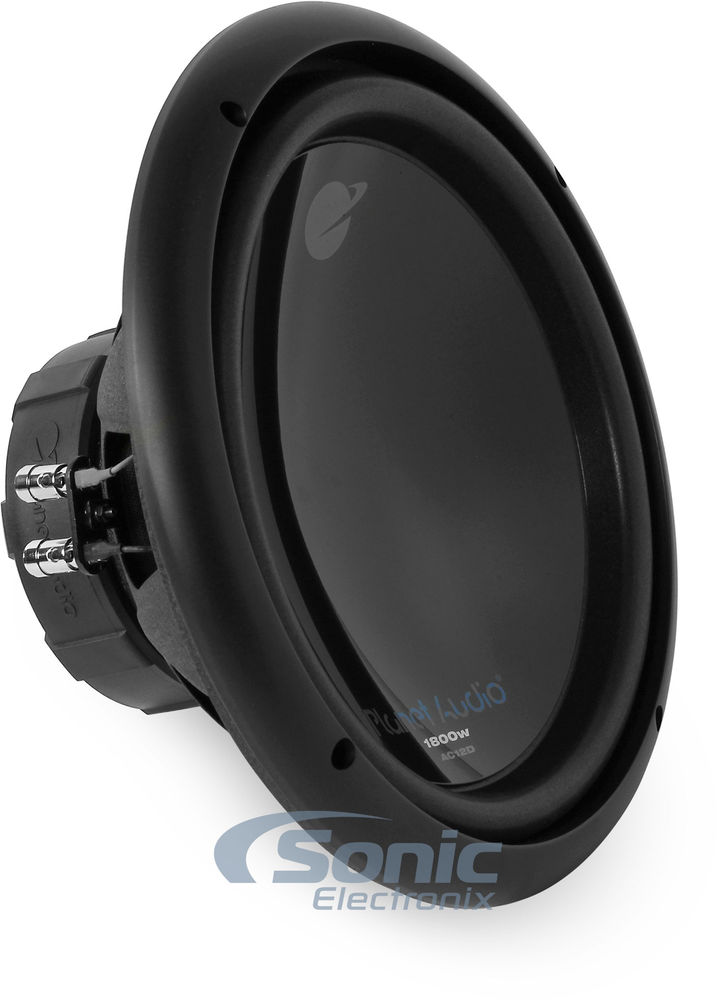

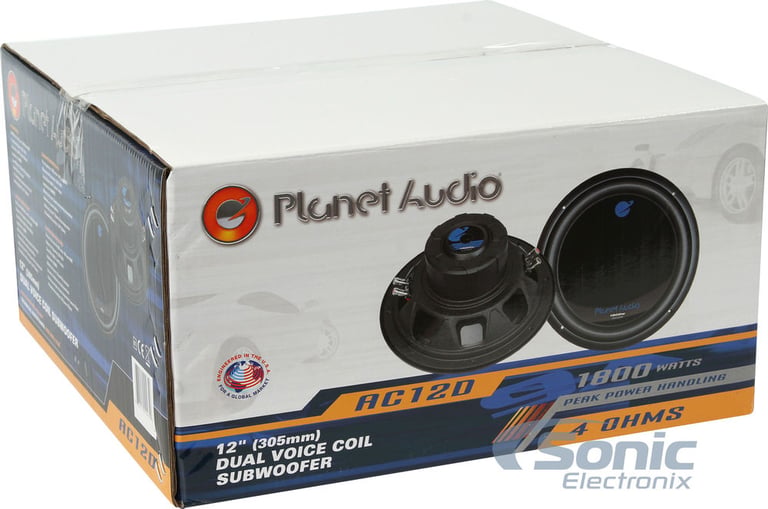

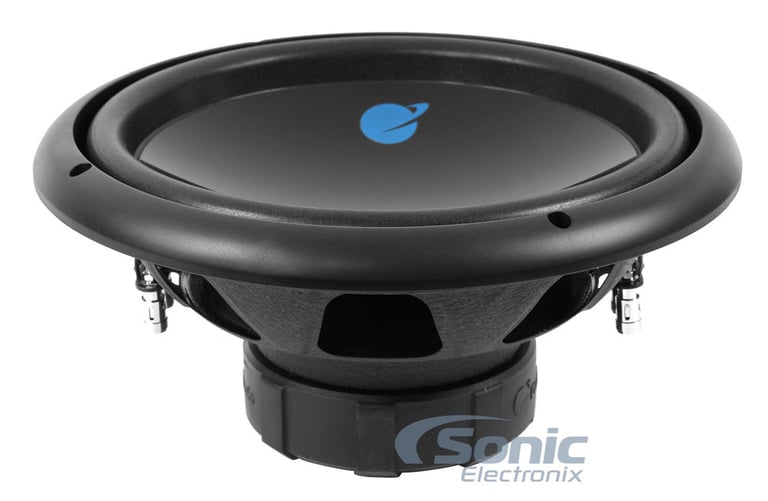

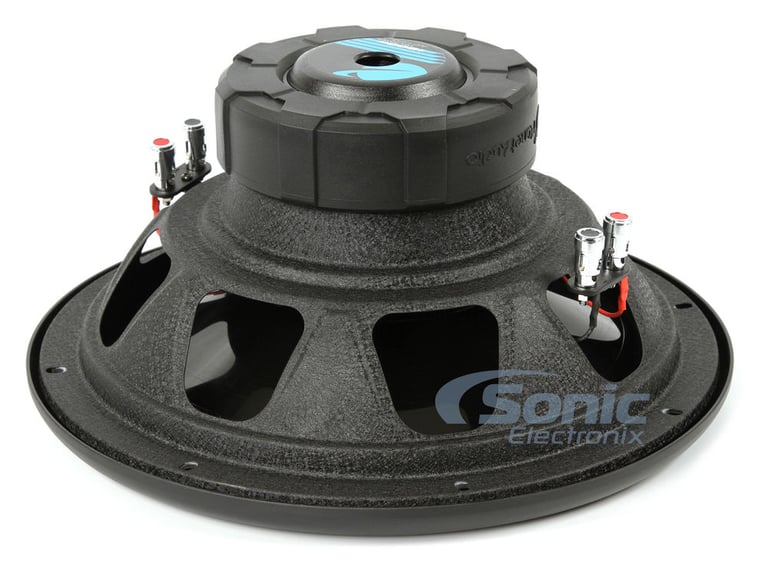

Planet Audio AC12D

900W 12" Anarchy Series Dual 4 Ohm Car Subwoofer
Quantity: 2

General Features:

  • 12" Dual 4 Ohm Anarchy Series Subwoofer
  • Power Handling:
    • Peak: 3600 watts per pair / 1800 watts each
    • RMS: 1800 watts per pair / 900 watts each
  • 1-ohm final load, when Wired in Parallel
  • Top-mount depth: 5.375"
  • Sensitivity: 88 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

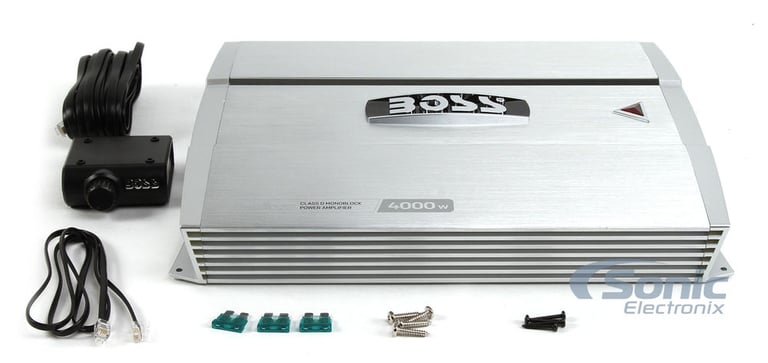

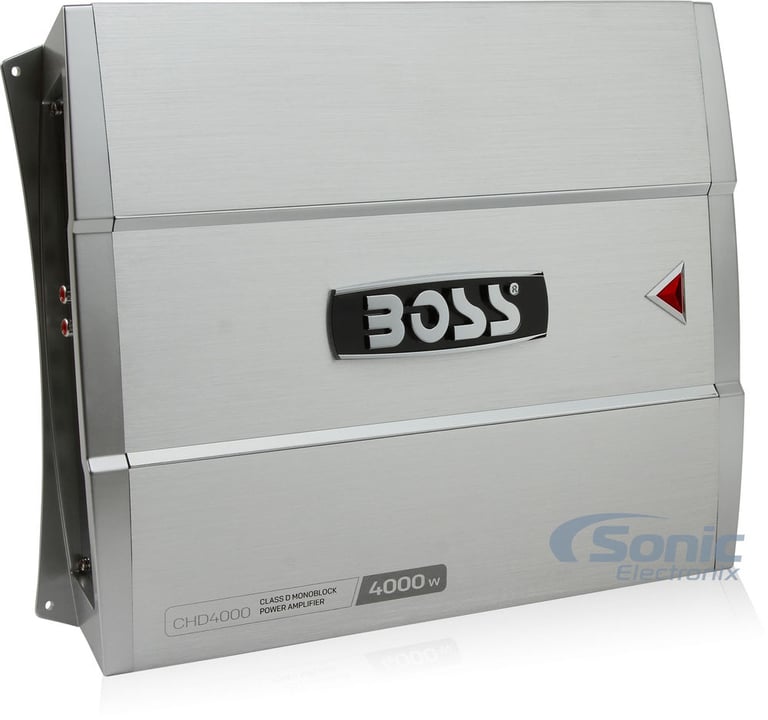

Boss CHD4000

4000W Monoblock Chaos Series Class D Amplifier
Quantity: 1

General Features:

  • Chaos Series Monoblock Class D Amplifier
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 chan.
  • Peak Power Rating:
    • 2 ohm: 2000 watts x 1 chan.
    • 1 ohm: 4000 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • 1 Ohm stable mono operation

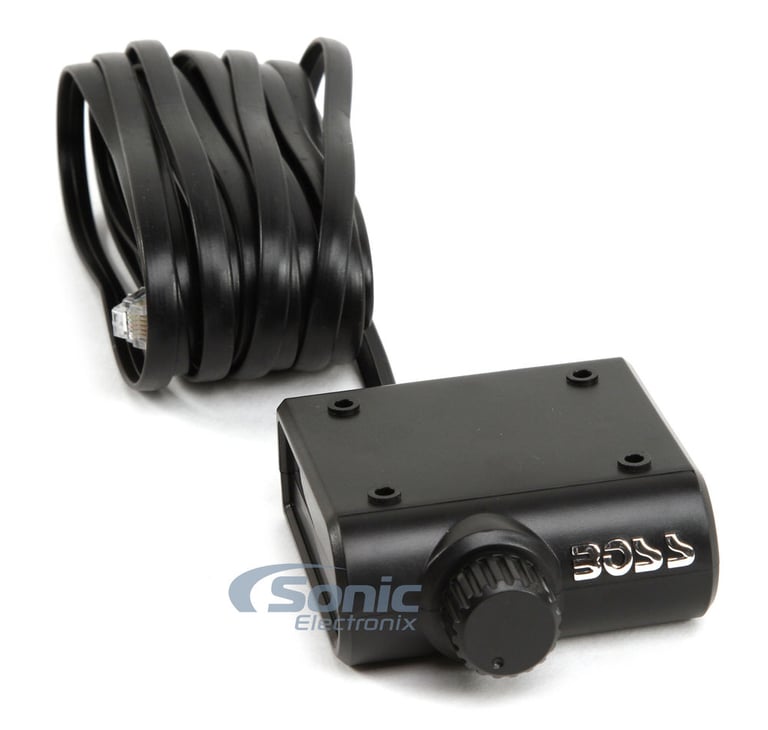

  • Wired remote bass level control included
  • Soft start turn-on

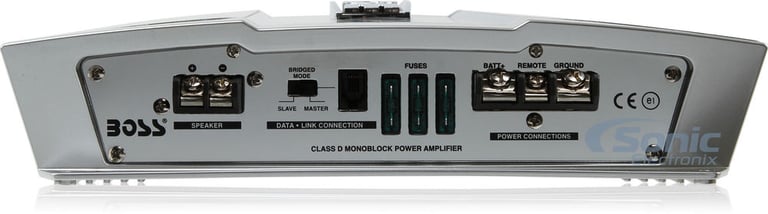

  • Nickel-plated speaker and power terminals
  • Nickel-plated RCA low level inputs/outputs
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Silver anodized heat-sink

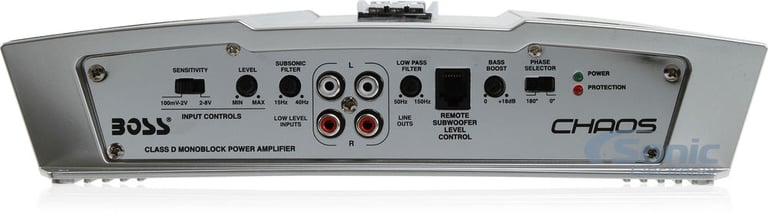

  • Input sensitivity: Selectable
    • 2V - 8V
    • 100mV - 2V
  • Frequency Response: 15 - 150 Hz
  • Total Harmonic Distortion (THD): ≤ 0.01%
  • Signal to Noise Ration: 100 dB
  • Variable Bass Boost: 0 to +18 dB
  • Phase Shift: 0 - 180°
  • Variable low-pass filter: 50 - 150 Hz
  • Variable Subsonic filter: 15 - 40 Hz

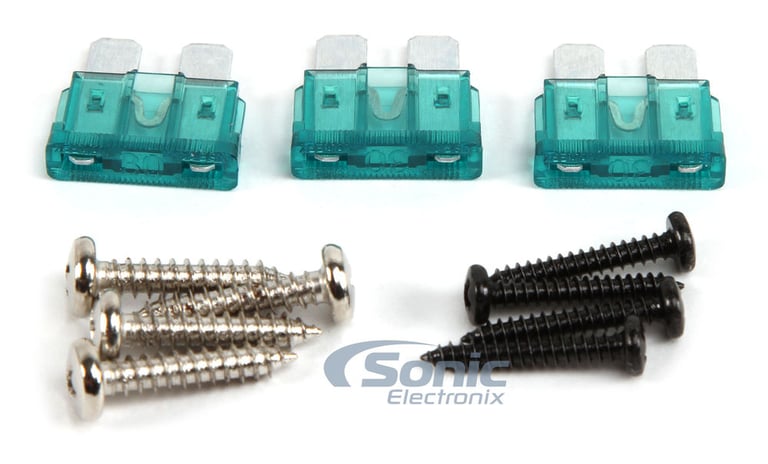

  • Fuse Rating: 30A x 3
  • 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Dimensions: 11.00"W x 13.95"L x 2.60"H
  • Authorized Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty

Check out the Boss CHD4000 Owner's Manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
≤0.01%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
100 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 3
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Anarchy Series
Subwoofer Size
12"
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
900 watts
Peak Power Handling
1800 watts
Minimum Sealed Box Volume
2 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Maximum Ported Box Volume
2 cubic feet
Sensitivity
88 dB
Xmax (millimeters)
10 mm
Top-Mount Depth (Mounting Depth)
5.375"
Cutout Diameter
11"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-AC12D_CHD4000

Weight:

36.32lbs

Internal SKU:

2-ac12d_chd4000

Internal Product ID:

106665

Customer Ratings & Reviews


4000 Watt Max Dual 12

5 star
58%
4 star
23%
3 star
6%
2 star
10%
1 star
3%



Durability
3.9
Value
4.6
Features
4
Design
4.7
Usability
4.5

Customer Reviews

Sort by:

Loading...

Hit Hard!!!!!!

The following review is for AC12D, which is a part of the bundle you are viewing.

I bought 2 of these subs and they hit hard. I have them hooked up to a Planet Audio 1900 watt max mono block amp(1400rms@1ohms/1000rms@2ohms). I'm running the amp and speakers on 2ohms. I don't even have the amp turned up half way. I had them in a Bbox vented box and it blew the box apart. Great buy for the money.

By LDot on September 30, 2014

94 found this helpful


bad

The following review is for AC12D, which is a part of the bundle you are viewing.

Doesn't do anything near rate rms... only had 500 clean watts going to it and it blew within 24hrs during its low volume break in period..

By d on March 22, 2015

80 found this helpful


So Far So Good for my Planet Audio AC12D

The following review is for AC12D, which is a part of the bundle you are viewing.

Great sub so far! I Bought this Sub woofer 3 months ago no issues what so ever, still non today. Also, LOL No way this thing will Ever handle 1800 or it's 800 RMS Like it claims. Because I'm running it on a 400 Watt Amplifier & That's almost to much for it with Gain Matched & set correctly. I usually like to deal with Kicker, JL Audio & DD's Subs, but this was something quick and cheap I wanted for a daily driver so far sounds amazing. When you first install it, it's not as loud because "like all sub woofers they go though a Break In period", if you're good with car Audio you'll know what Exactly I'm talking about. Just make sure you set you Gains good with a good Amplifier that has True RMS Rating's marked on it I'm sure you'll be Surprised. I have this Sub in a 2FT Cubic Box in the back of my 90 Ford bronco running off the Left Channel of my Cheapo (VM Audio 1000 Watt Amplifier Class AB RMS is 800) it sounds very good for being 40 bucks. Reason i have it running off one channel and not bridged is because the Sub woofer is 2 Ohms and my Amp is only 4 Ohms Bridged and 2 Ohms per channel. So I had no choice other why's I'd burn up my amp.

By Ryan Wright on October 17, 2014

83 found this helpful


awesome

The following review is for AC12D, which is a part of the bundle you are viewing.

I bought this speaker because one of my others blew. I'm now gonna buy another. They hit hard!

By bangen on December 1, 2014

75 found this helpful


sounds good

The following review is for AC12D, which is a part of the bundle you are viewing.

i bought this sub on a very tight budget and wish i would have bought a pair sooner. this sub hits hard and sounds good, one of the better subs I've owned

By Hispanic Mechanic on November 7, 2014

74 found this helpful


Cheap

The following review is for AC12D, which is a part of the bundle you are viewing.

I purchased this product and installed them. They didn't last no more than 10 minutes. Clearly the sub's are overrated. I put the SPL 3400 mono on them. It was the RMS it said they needed for both. Now I can't use them anymore. I won't recommend these sub's to anyone. Waste of money.

By Jairus on March 15, 2015

65 found this helpful


Great Price! Subs Hit Hard!

The following review is for AC12D, which is a part of the bundle you are viewing.

These subs hit hard. Can be mounted in a truck box, I have a 2011 Chevy Silverado 1500 Crew Cab with a Boss Amp and they pound, I've had them a couple of months with no issues and running about 500 watts RMS to each of them. They are clean sounding and honestly, hit as hard as the JL w3's I had before. $40 a woofer, great deal, better than paying $150 a woofer.

By Tyron on April 3, 2015

59 found this helpful


decent sub

The following review is for AC12D, which is a part of the bundle you are viewing.

For the money there is no better designed sub hands down pay attention to the rms rating and you won't be disappointed

By bigphish on May 17, 2015

56 found this helpful


Great subs for great price

The following review is for AC12D, which is a part of the bundle you are viewing.

These are great subwoofers for a good price, they were my first subs, but definitely wont be my last! Easy to install, and they bump

By Clay on May 3, 2015

56 found this helpful


I'm extremely happy with this product!

The following review is for AC12D, which is a part of the bundle you are viewing.

I haven't had these for too long but so far I am extremely please with this subwoofer. It was affordable as heck and for the price I couldn't be more happier with the complete setup, just recently bought another car, can't wait to put the other sub in the Genesis!

By AVS on April 7, 2015

56 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2016 Ford Transit Connect

1997 Ford Expedition

1995 GMC C1500

1998 Dodge Caravan

2017 Ford Taurus

2003 Subaru Baja

2007 Lexus RX350

2021 Ford Explorer ST

2002 Cadillac Escalade

2008 GMC Envoy

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
