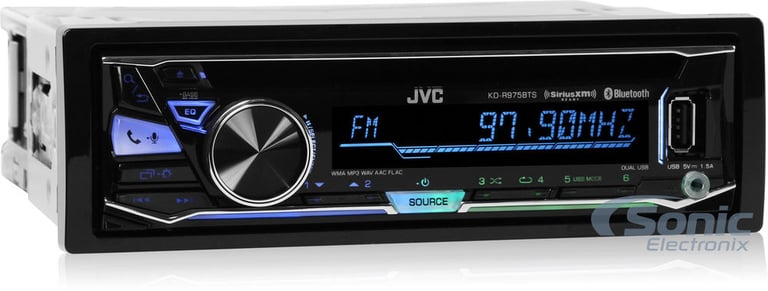

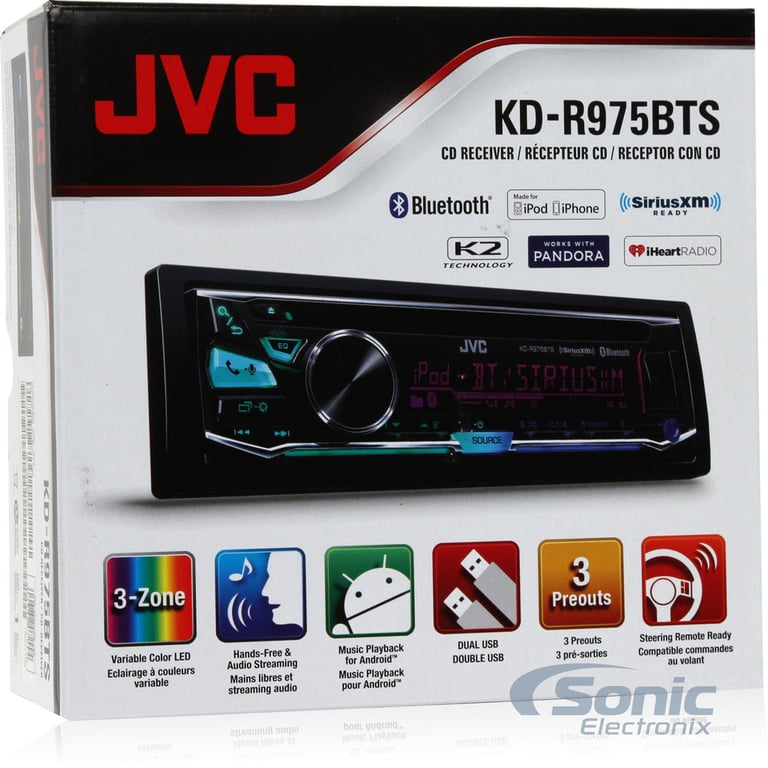

JVC Arsenal KD-R975BTS

Single DIN CD Car Stereo with Bluetooth and Satellite Radio

JVC
Shop all JVC
Product videos
highlight-star-icon

• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 12-band graphic/parametric equalizer with 8 selectable tone curves
• Variable Color Illumination
• SiriusXM Ready

Learn more about the kdr975bts

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

kdr995bts thumbnail

JVC KD-R995BTS

OUR PRICE: $119.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
P1650 main

Rockford Fosgate Punch P1 P1650

220W Peak (110W RMS) 6.5" Punch P1 Series 2 Way Coaxial 4-ohm Speakers

84
H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Rockford Fosgate Punch P1 P1675-S

240W Peak (120W RMS) 6.75" Punch Series 2 Way Component 4-ohm Speakers

20

$159.99

Product Highlights


• 50W x 4 Chan. MAX • 22W x 4 Chan. RMS
• 3 Sets of 4V Preamp Outputs
• 12-band graphic/parametric equalizer with 8 selectable tone curves
• Variable Color Illumination
• SiriusXM Ready

Description


JVC brand icon

Authorized dealer




















General Features:

  • JVC Arsenal KD-R975BTS In-Dash Receiver
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels

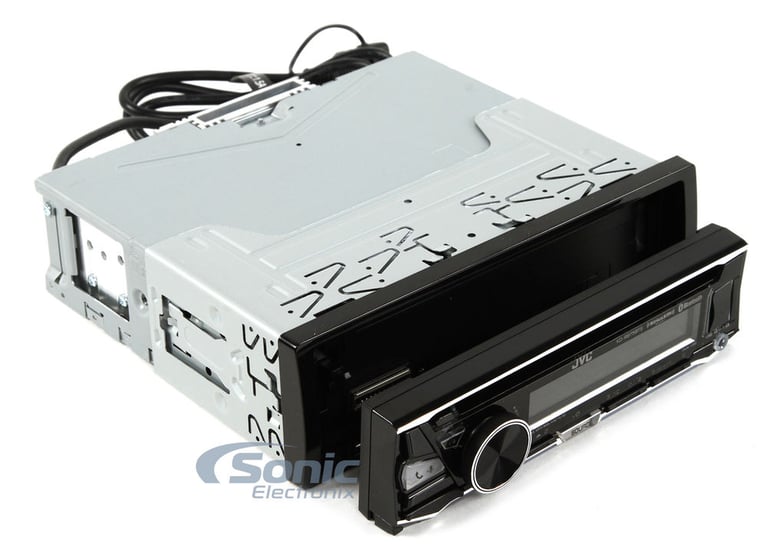

  • Theft-deterrent, detachable face plate: Optional Receiver Faceplate Case Available
  • CD text information display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • AM/FM tuner with 18FM/6AM presets

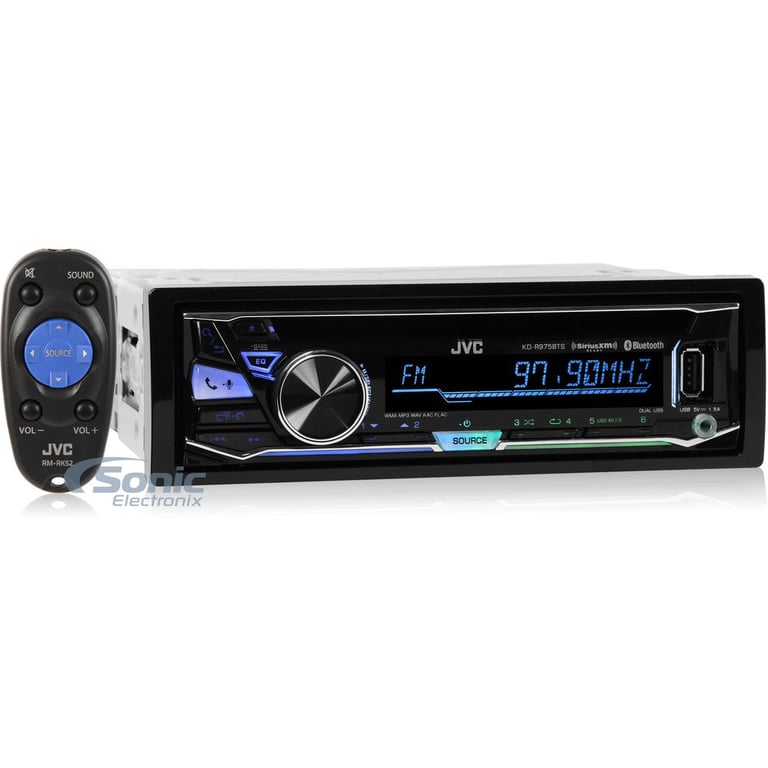

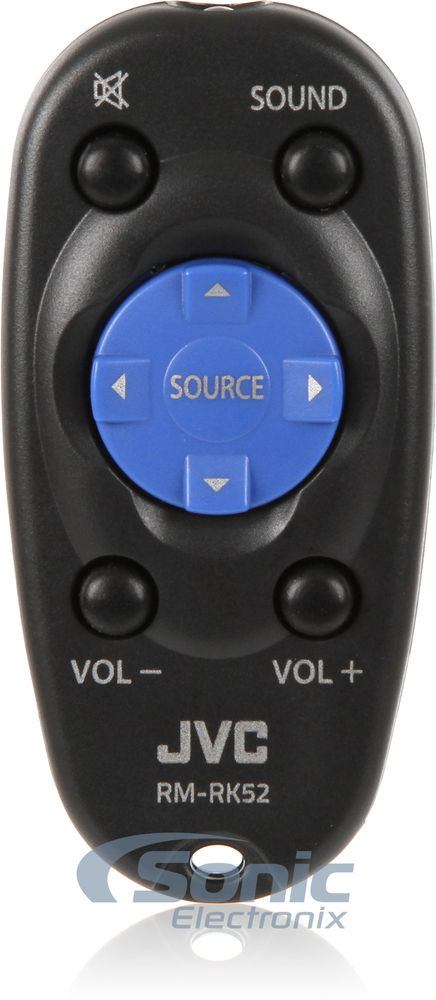

  • Remote control included
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty

Playback and Audio Features:

  • CD/CD-R/RW , MP3/WMA/AAC Playback
  • MP3/WMA/AAC/WAV/FLAC Playback via USB
  • Compatible with Apple iPhone 6/6+ and iOS 8 software
  • 13-band graphic/parametric equalizer with 8 selectable tone curves (7 Preset, 1 User)
  • 3.5mm Front Audio Auxiliary Input
  • Front and Rear USB Input

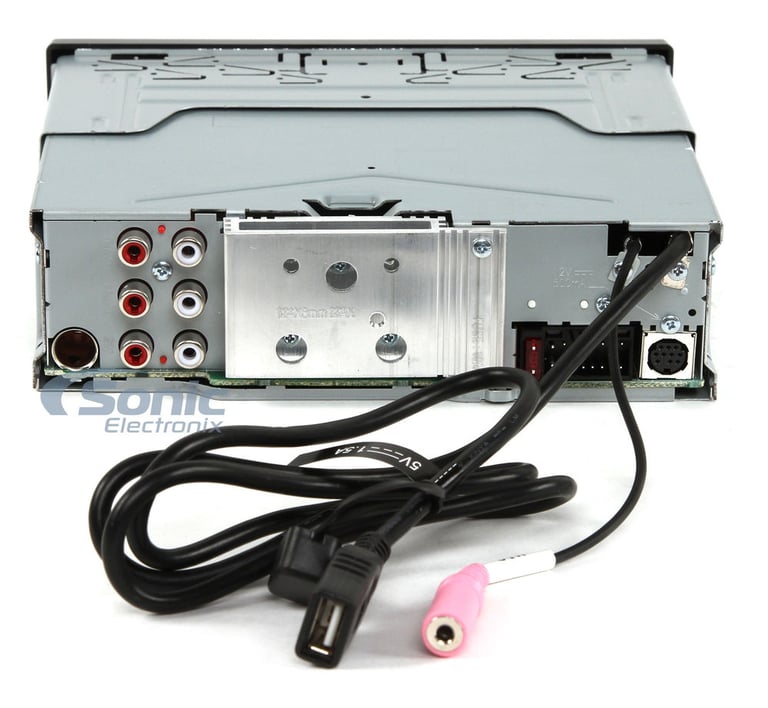

  • 3 Sets of 4V preamp outputs (front, rear and subwoofer)

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking and audio streaming
  • Bluetooth version 2.1 +EDR certified/Bluetooth 3.0
  • Bluetooth Profiles Supported:
    • HFP 1.6: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list of the mobile phone directly from the car stereo
    • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
    • AVRCP 1.5: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • Works with most Bluetooth enabled cell phones

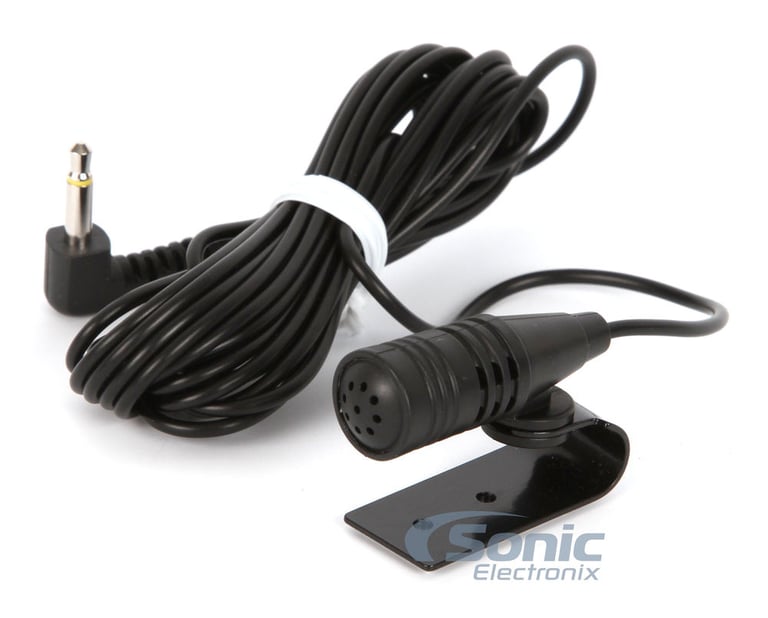

  • Includes an external microphone for clear, convenient, distortion-free talking
  • Maximum communication rage: 32.8 feet (approx, line of sight)

Expandability Options:

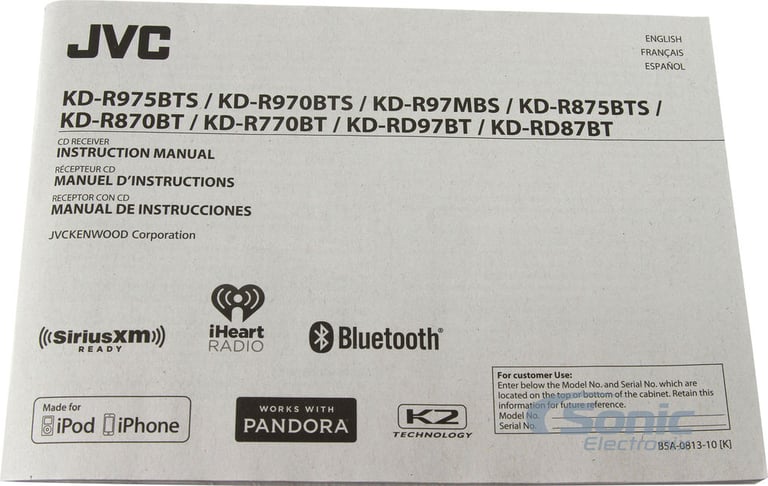

Check out the KD-R975BTS User Manual



Product history:

JVC KD-R995BTS thumbnail
(newest, current model)
JVC KD-R985BTS thumbnail
(previous model, replaced by JVC KD-R995BTS)
JVC KD-R975BTS thumbnail
(previous model, replaced by JVC KD-R985BTS)
JVC KD-AR959BS thumbnail
(previous model, replaced by JVC Arsenal KD-R975BTS)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

DMH-1800NEX small

Pioneer DMH-1800NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 2 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Easy to use graphic user interface

(59)

$339.99

List price $420.00

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

DAX800XR small

Kenwood eXcelon DAX800XR

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from GMC, Chevrolet, Nissan
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(1)

$999.00

List price $1500.00

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

RB10TUN14 small

Stinger HEIGH10 - RB10TUN14 for 2014-2021 Tundra

• 10.1" Single DIN and Double DIN In-Dash Digital Multimedia Receiver
• Compatible with select 2014-2025 Tundra and Tundra i-Force Max
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• iGo Navigation System-ready (Optional)
• 3 sets of 4 volts preamp outputs
• 15 Band Graphic Equalizer
• SiriusXM Satellite Radio Ready
• Wireless streaming audio with aptX for better sound quality

$999.00

List price $999.00

UTE-73BT small

Alpine UTE-73BT

• Single DIN Digital Media Receiver
• 1-line Digital LED Backlit Display with RGB illumination
• Control music/other apps via iPhone and Android
• 3 sets of 2 volts preamp outputs
• 3-Band Parametric Equalizer
• NFC-compatible for select Android devices
• Built-in amplifier

(44)

$149.95

List price $180.00

CV15BT small

Cerwin-Vega CV15BT

• Single DIN Bluetooth Digital Media Receiver
• Digital LED Backlit Display
• USB/SD/AUX Input
• Three sets of 5 volts preamp outputs
• Multiple Preset EQ

(3)

$69.99

List price $69.99

DMH-W3050NEX small

Pioneer DMH-W3050NEX

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• Built-in Amazon Alexa
• 3 sets of 4 volts preamp outputs
• 13-Band Customizable Graphic Equalizer
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatibility
• Built-in Wi-fi

(1)

$469.99

List price $620.00

D9-MST2015L-64GB small

Dynavin D9-MST2015L-64GB

• Replaces the 4" factory screen with a 10" touchscreen
• Custom Fit In-Dash Bluetooth Digital Multimedia Receiver
• 10.1" Capacitive Touchscreen Display
• Apple CarPlay and Android Auto Compatible
• Built-in Navigation
• 3 sets of 3 volts preamp outputs
• 16-Band Parametric Equalizer
• SiriusXM Satellite Radio Ready
• Integrated CANBUS for steering wheel controls

(2)

$899.99

List price $899.99

DMX709S small

Kenwood eXcelon DMX709S

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• Short chassis for flexible installation

(39)

$399.00

List price $600.00

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Single DIN
Anti-Theft Security
Detachable Faceplate
Wireless Remote
Yes
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
3 Sets (6-channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
4 volts
Built-In Equalizer
13 Band
Display Type
LCD Text Display
Expandability Features
Inputs
Auxiliary (Front)
Auxiliary (Rear)
Steering Wheel Control Compatible
DO NOT USE - Yes
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Radio Data System (RDS)
Yes
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

KD-R975BTS

Weight:

5.00lbs

Internal SKU:

kdr975bts

Internal Product ID:

106731

Product and How-to Videos


  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install a Car Stereo (Single & Double DIN) | Car Audio 101

Customer Ratings & Reviews


JVC Arsenal KD-R975BTS thumbnail image

5 star
60%
4 star
20%
3 star
20%
2 star
0%
1 star
0%



Durability
4.6
Value
4.5
Features
4.5
Design
4.6
Usability
4

Customer Reviews

Sort by:

Loading...

works

The following review is for a previous version (KD-AR959BS).

center readout not bright enough! when you eject cd or other media it should return to fm but it doesn't you have to scroll back to fm on a readout that you can barely see in the day. at night its ok and the stereo does sound good. and my remote does not work?

By david on May 30, 2015

20 found this helpful


Awesome Deck

The following review is for a previous version (KD-AR959BS).

Cool features. Easy to install. Love the large volume knob. Blue tooth link very easy to set up. Sounds amazing!

By Christopher on May 23, 2015

20 found this helpful


Good HU

The following review is for a previous version (KD-AR959BS).

This is better than one of the Head units I paid over twice as much for.
Everything works great and the menu is easy to use.
Not being able to navigate the folders on a USB drives is a miss and not being able to save settings is another.

Although, compared to a buddies JVC, it lacks the dynamic mode which is really nice for easy EQ tuning.

By Justin on October 6, 2015 Checkmark Icon Verified purchase

9 found this helpful


Jvc kd-ar959bs

The following review is for a previous version (KD-AR959BS).

The jvc kd-ar959bs is a great buy for the price. A great looking radio sound good and easy to operate. I recommend this to anyone looking for a good radio.

By Delvin on March 5, 2016

6 found this helpful


Works and sounds great

The following review is for a previous version (KD-AR959BS).

Definitely recommend.

Pros: three ways to manually control equalizer: easy, not as easy, and advanced...Take your pick! Bluetooth works well.

Cons: slightly dim display during the day, setup took longer than anticipated

By Tom on January 31, 2016

3 found this helpful


Great buy!!

Great look shipped fast! It has great crossoversoptions to fine tune compared to other head units I've owned so that's a huge plus! Has speaker size options which was cool because it actually mad it sound better through door speakers when selecting the right size. The only bad thing is I can't get a clean 4 volt signal out of this stereo through the subwoofer preamp output. I used my oscilloscope and the clean signal stopped at I believe 3.4 or 3.6 with everything set flat no loudness or bass boost. I will be keeping this because I do like It. It does work for me great. Should say up to 4 volts though ...

By Eric on September 19, 2016 Checkmark Icon Verified purchase

1 found this helpful


Muy buen precio y un buen modelo

Me gustó mi jvc disfrutó a lo máximo en mi trabajo con mi troca y los vendedores responsables gracias a sonicelectronix encontré mi aparato que buscaba

By Gabriel on August 19, 2016

1 found this helpful


JVC ARSENALKD-R975BTS CAR RADIO

9/17/16

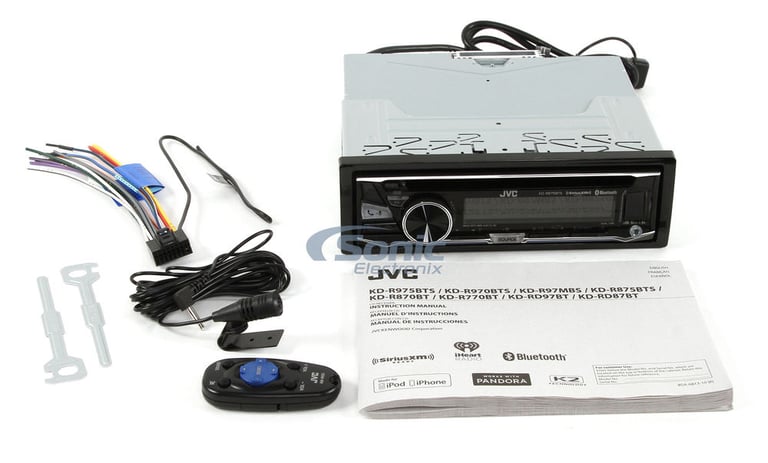

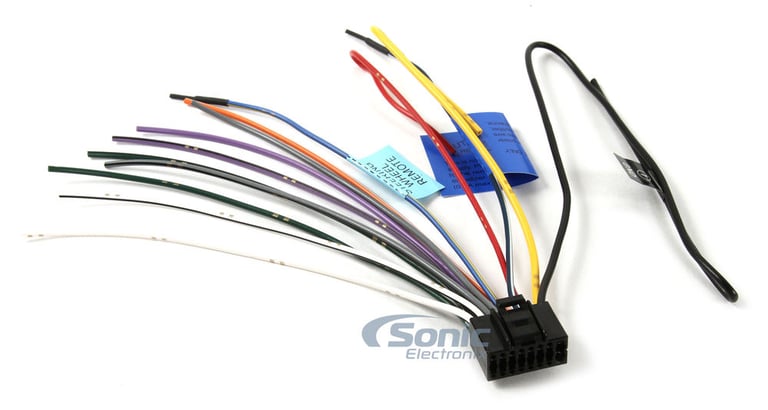

The radio was sent without any difficulties whatsoever with all appropriate extras and harnesses that I might need for the installation. It was rather easy to install.

It works fine. It plays CD's, USB, FM, and AM radio. The EQ variety is a plus. I have not subscribed to Sirius XM radio so I have not had the opportunity to use that part of the radio. However, local reception is good and it sounds great.

I am trying to figure out how to title songs on a CD or USB in order to get it to show the names of the songs. That is not clear to me yet and depends, evidently, on the program used to compose a song, burn or copy the songs to disc or USB.. However, it is supposed to be able to read ISO 9660 Level 1/2 Joliet, Long file name format title writing.

By Les on September 17, 2016 Checkmark Icon Verified purchase


Great deal!!

Fast shipping, everything is great so far! Iam still learning about what all this stereo can do!

By Rhonda on May 14, 2016 Checkmark Icon Verified purchase
1990 Honda Accord




LED RING 10-BLUE small

Wet Sounds LED RING 10-BLUE

10" Blue LED Acrylic Light Ring for Wet Sounds 10" XS and SW Subwoofers

$124.99

List price $174.99

DBTC500N small

Absolute DBTC500N

Chrome-plated Digital Negative Battery Terminal

(1)

$24.99

List price $39.99

No picture

Pinnacle QP3GLOSSBLACK

3-Element 2-Way Center Channel Speaker with Carbon Graphite Drivers

$499.00

List price $499.00

No picture

Pinnacle QP5GLOSSBLACK

5-Element Left/Center/Right Space Saving Speaker Sound Bar for Flat Panel TVs

$699.00

List price $699.00

99-7807T small

Metra 99-7807T Dash Kit

Install a new Single-DIN car stereo in select 2008-2012 Accord and Accord Crosstour and Crosstour (Taupe)

$60.99

List price $126.99

Kappa 800W small

Infinity Kappa 800W

1600W Peak (400W RMS) 8" Kappa Series Selectable Smart Impedance (SSI) Subwoofer

(2)

$99.95

List price $220.00

CS-AW7220 small

JVC Arsenal CS-AW7220

1800W Max, 12" Dual 2 ohm Subwoofer

(1)

$129.99

List price $319.99

TPBT-P small

Tsunami TPBT-P

Positive Fused Battery Terminal with One 1/0 or 4 AWG + Two 4 or 8 AWG Outputs

(5)

$11.99

List price $24.99

MBTN-GOLD small

MA Audio MBTN (Gold)

Negative Battery Terminal

$4.99

List price $9.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2010 Audi A4

2009 Volkswagen Eos

2002 Ford Explorer

2002 Ford Thunderbird

2017 Ford Taurus

2002 Ford Windstar

1984 Chrysler E Class

2002 Audi TT

2000 Audi TT

2000 Audi A6

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
