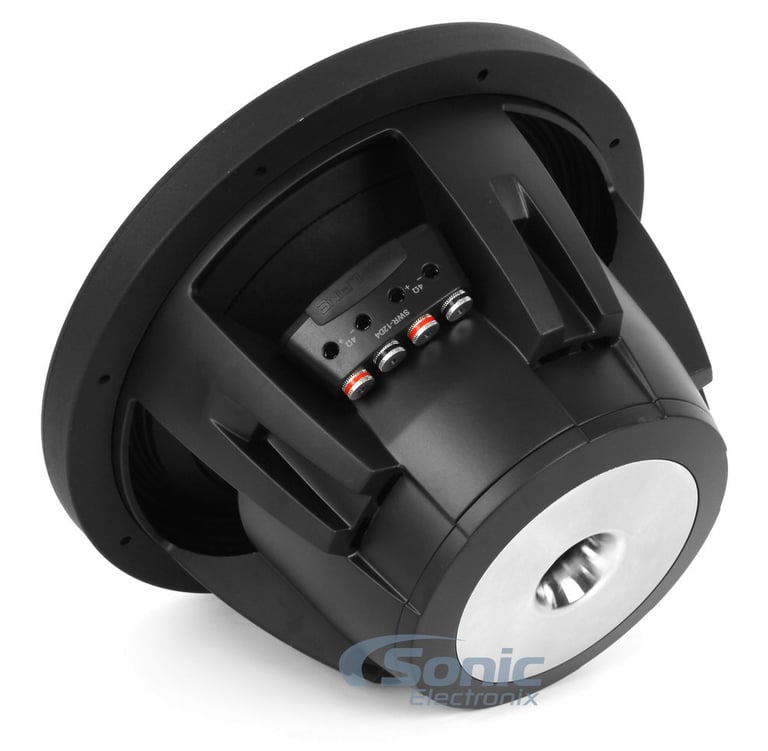

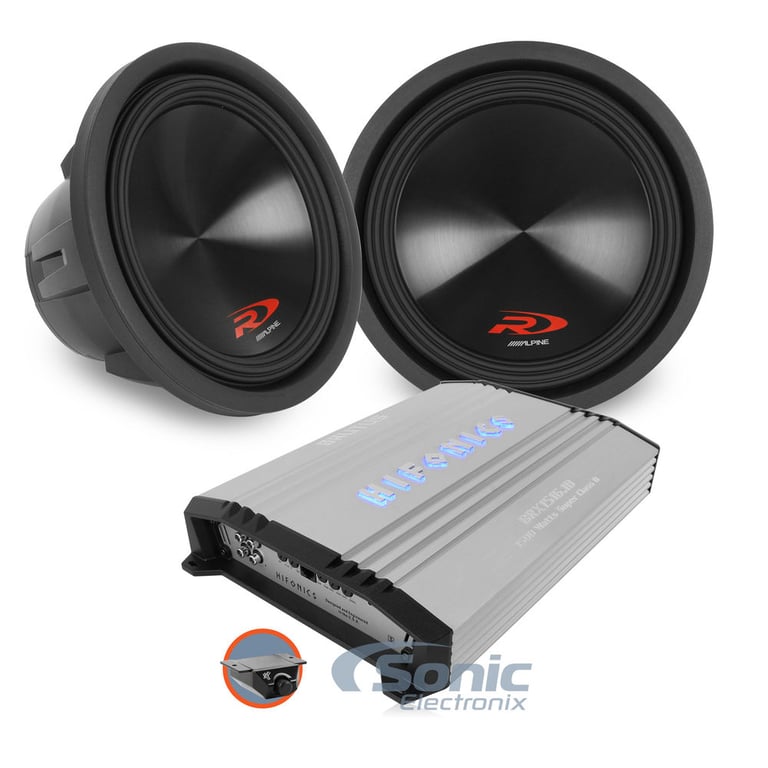

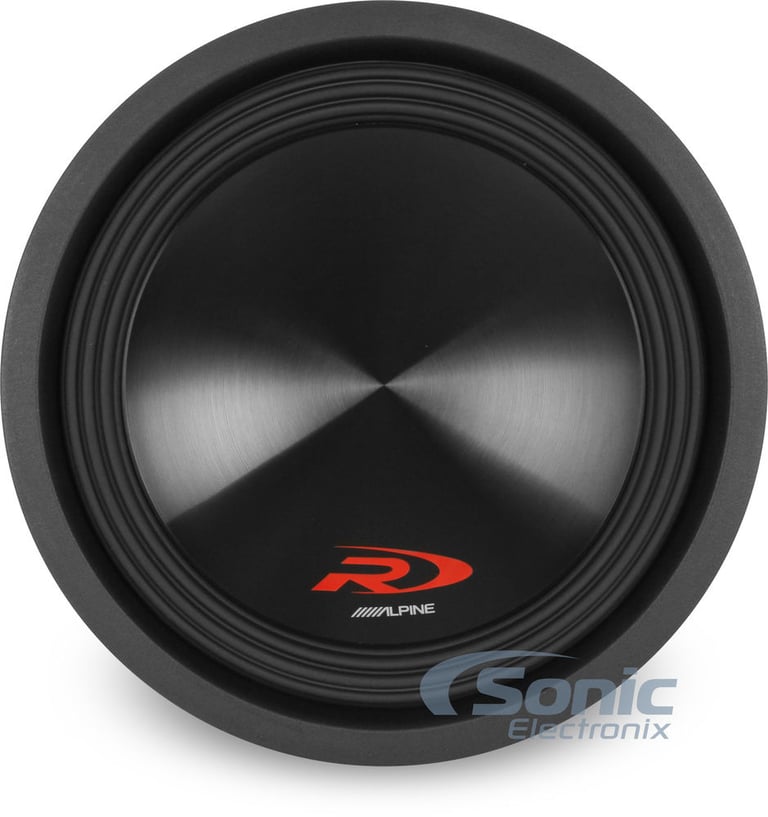

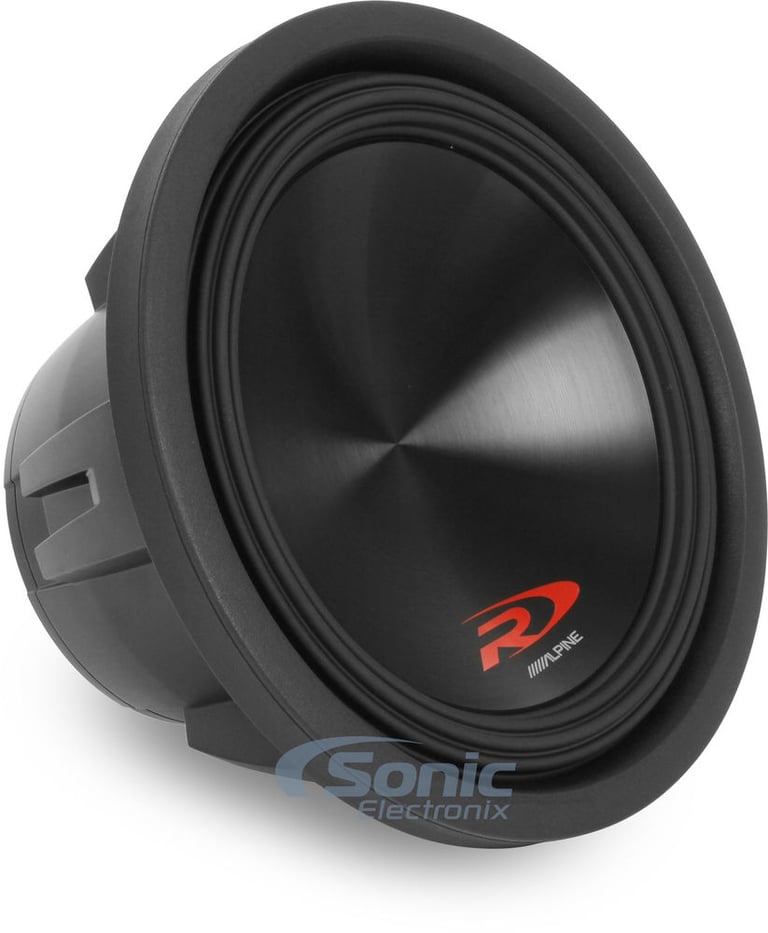

Alpine SWR-12D4
3000W Peak 12" Type-R Series Dual 4-ohm Subwoofer
Quantity: 2
General Features:
- 12" Fifth-Generation Type-R Series Car Subwoofer
- Power Handling:
- Peak: 6000 watts per pair / 3000 watts each
- RMS: 500 - 2000 per pair / 250-1000 watts each
- Recommend power range: 500 - 1500 watts RMS total
- Impedance: Dual 4 ohm (Wired in Parallel, to a 1 ohm final load)
- Kevlar treated pulp cone
- Reinforced parabolic cone structure with Poly-Mica dust cap
- Durable High Amplitude Multi-Roll santoprene surround
- Progressive Conex spider with reinforced layer tinsel lead
- Concealed mount gasket
- Cast aluminum frame with integral shorting sleeve
- Radial vented heat sink
- Compound Radius Curve pole geometry
- Oversized 2.6", High-Temperature, 4-Layer Dual Voice Coil
- Spiral cut, black anodized aluminum former
- Airflow Optimized dual flare pole vent
- High-grade strontium ferrite segmented magnet assembly

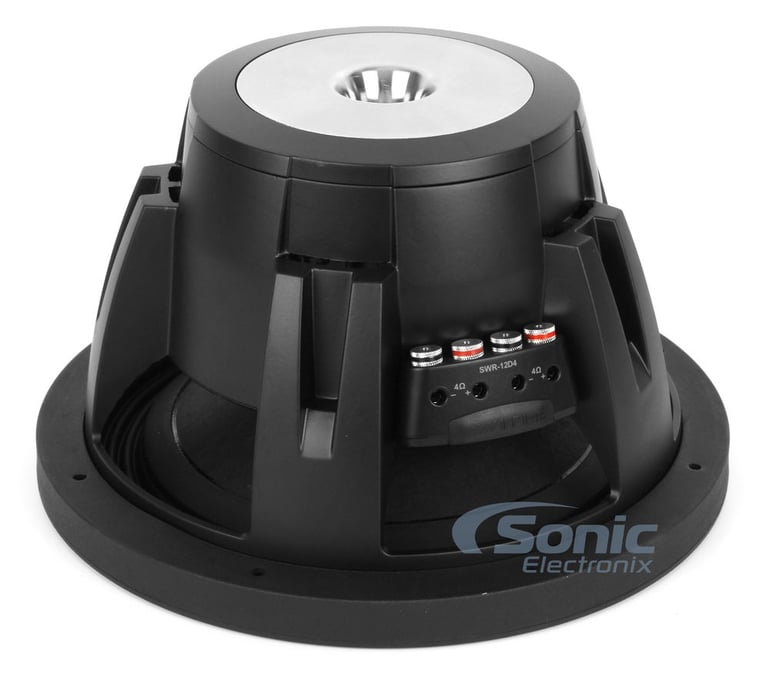

- Integrated 8 AWG push terminals with VC jumpers
- Top-mount depth: 6-3/8"
- Cutout diameter: 10-7/8"
- Frequency response: 24 - 200 Hz
- Xmax: 20mm
- Sensitivity: 84.9dB
- Magnet weight: 127oz
- Protective 2-Piece Grille Available, sold separately: Alpine KTE-12G
- Recommended sealed enclosure: 1.10 - 1.00 ft³
- Recommended ported enclosure: 2.00 - 3.00 ft³
- 1-year Sonic Electronix Warranty
Check out the Alpine Type-R Subwoofer Owner's Manual
Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

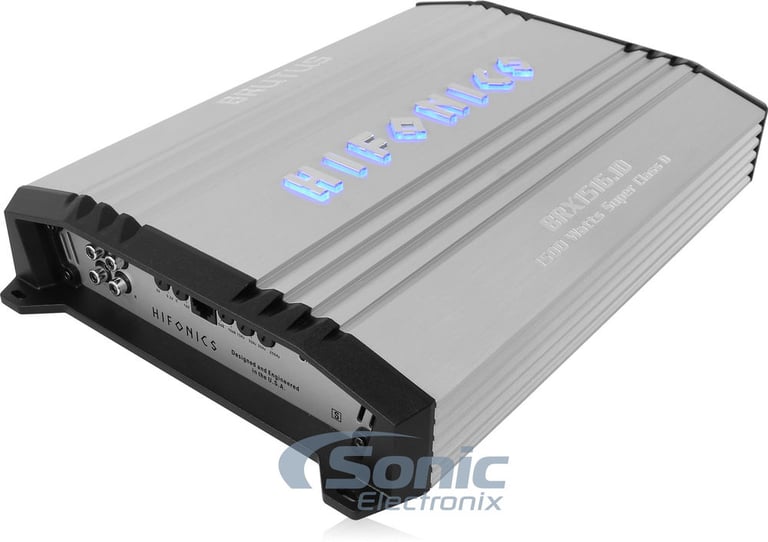

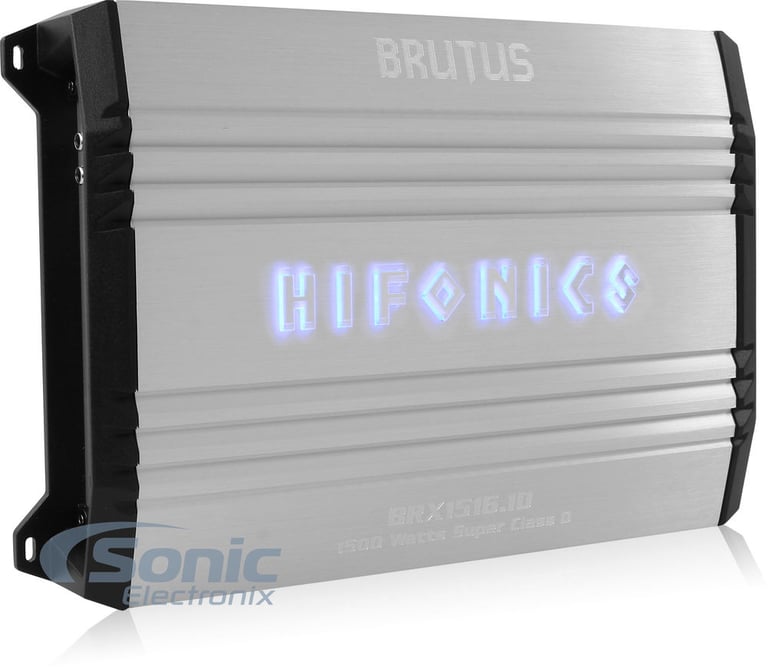

Hifonics BRX1516.1D
1500W Monoblock Brutus Series Super Class D Amplifier
Quantity: 1
General Features:
- Brutus Series Monoblock Class D Car Amplifier
- RMS Power Rating:
- 4 ohm: 550 watts x 1 chan.
- 2 ohm: 900 watts x 1 chan.
- 1 ohm: 1500 watts x 1 chan.

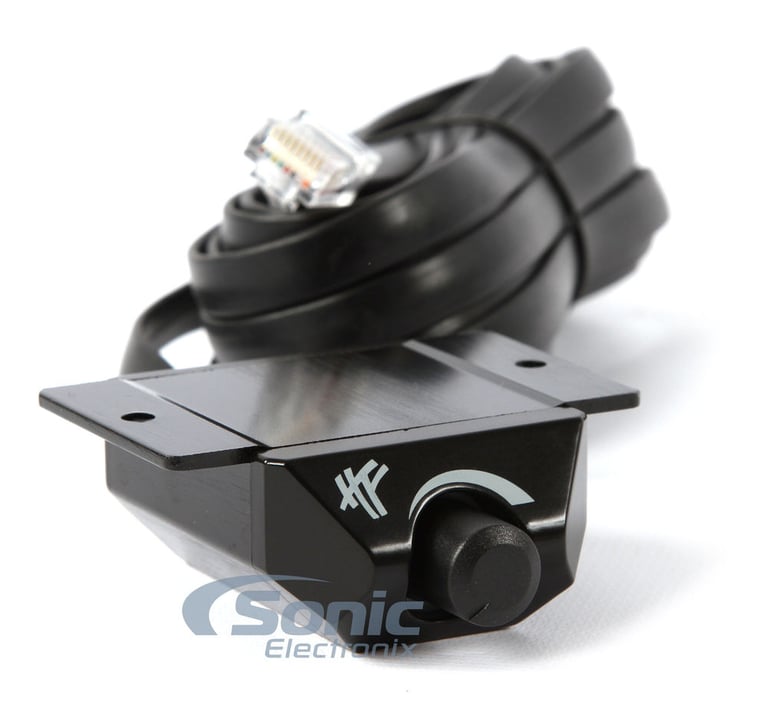

- Wired remote bass level control included
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicator lights
- Preamp RCA ouputs allow for daisy chaining multiple amps

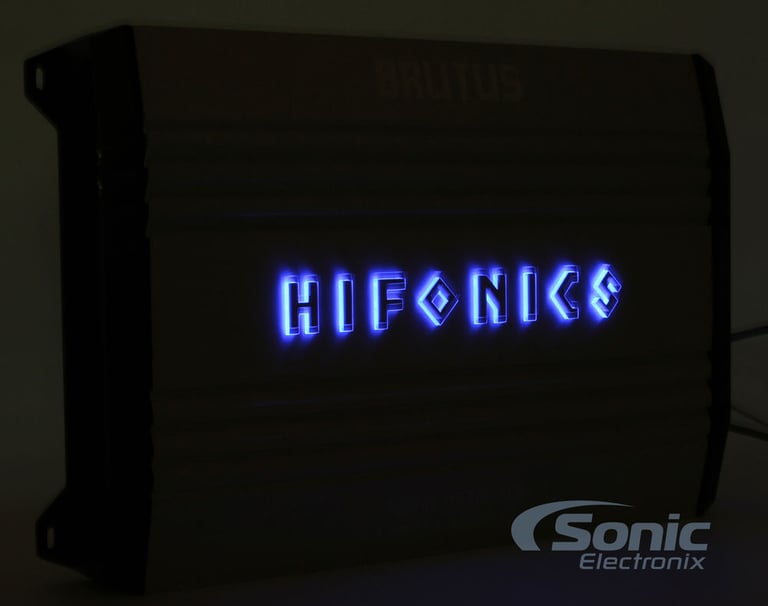

- Heavy duty aluminum alloy heat-sink with illuminated Hifonics logo
- Lighted connectors and blue wash of light
- 1-Ohm Stable operation

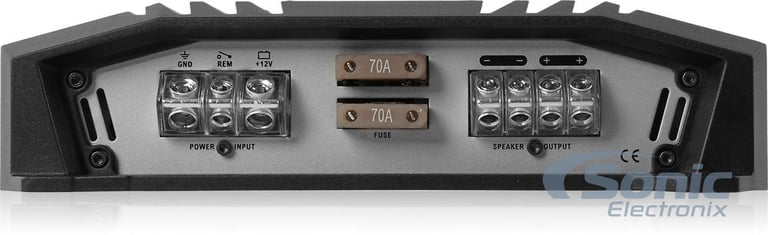

- 10 AWG speaker output connections
- Full-range Preamp RCA outputs to daisy chain multiple amps
Full-range only if a full range signal is connected to input - 3-way system protection circuitry (thermal, overload and speaker short protection)

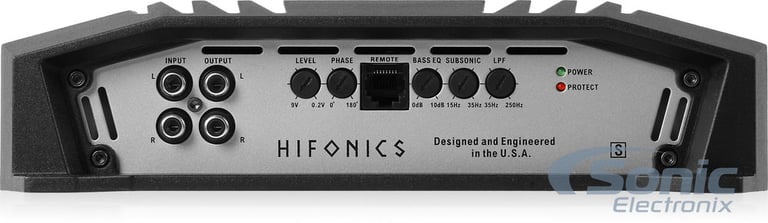

- Input sensitivity: 200mV - 9V
- Frequency Response: 15 - 250 Hz
- Total Harmonic Distortion (THD): <0.10%
- Signal to Noise Ration: >95dB
- Variable low-pass filter: 35 - 250 Hz
- Subsonic filter: 15 - 35 Hz
- Variable Bass Boost: 0 to +10 dB bass boost at 45 Hz
- Variable phase: 0 - 180°

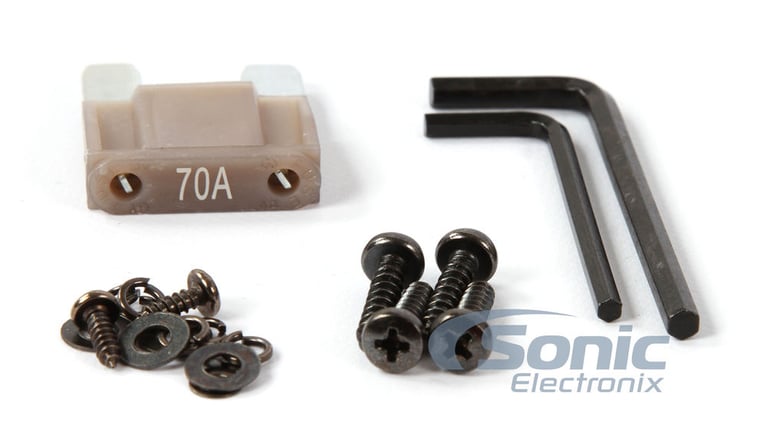

- Fust Rating: 70A Maxi x 2
- 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
- Dimensions: 9.8"W x 12.5"L x 2.4"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Check out the 2015 Hifonics Brutus Series' Manual Owner's Manual
Also found as: BRX15161D, BRX1516-1D
