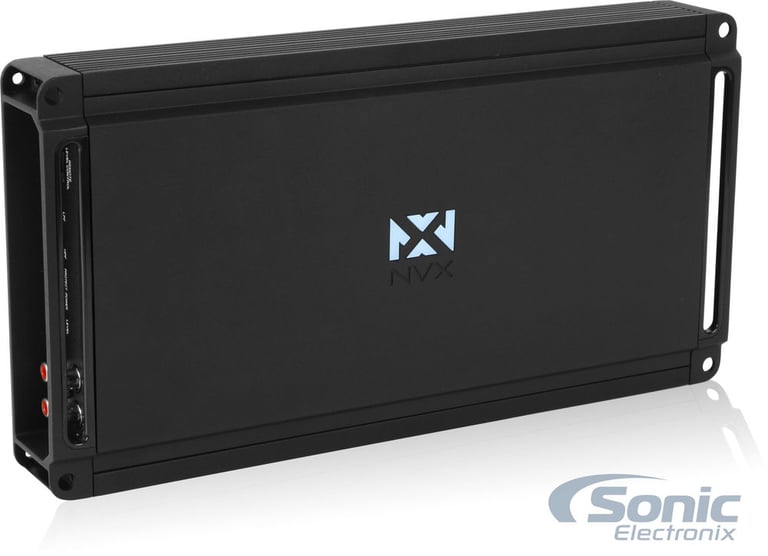

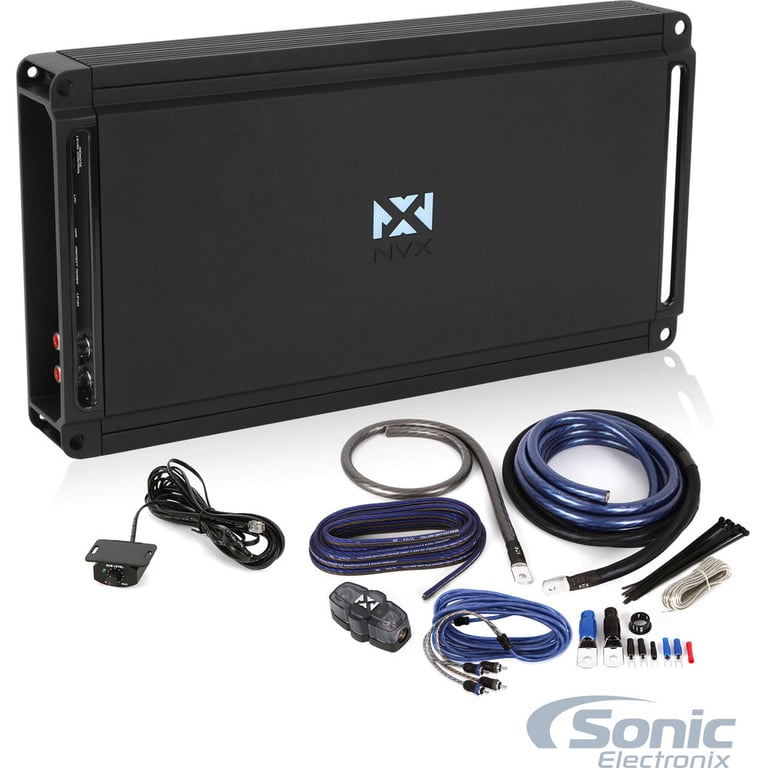

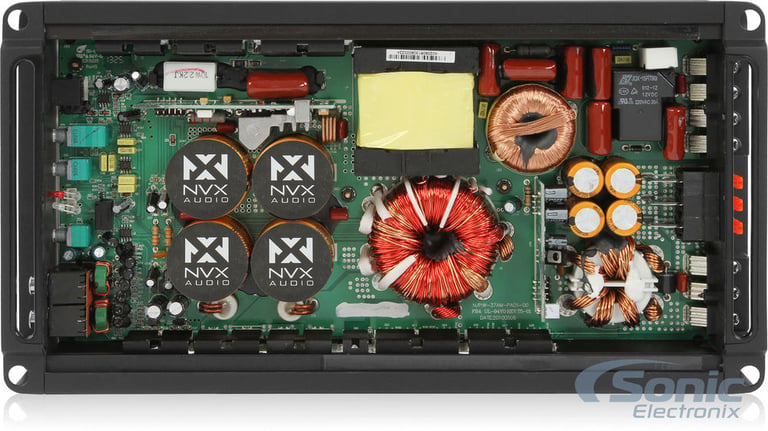

NVX JAD1200.1
True 1200W RMS, Class D Monoblock Amplifier with Bass Remote
Quantity: 1
General Features:
- Class D Monoblock Amplifier with Bass Remote
- RMS Power Rating:
- 4 ohm: 500 watts x 1 chan.
- 2 ohm: 800 watts x 1 chan.
- 1 ohm: 1200 watts x 1 chan.
- Sonic Electronix Certified Power Rating*:
- 4 ohm: 662 watts x 1 chan.
- 2 ohm: 1037 watts x 1 chan.
- 1 ohm: 1384 watts x 1 chan.
- CEA-2006 Compliant

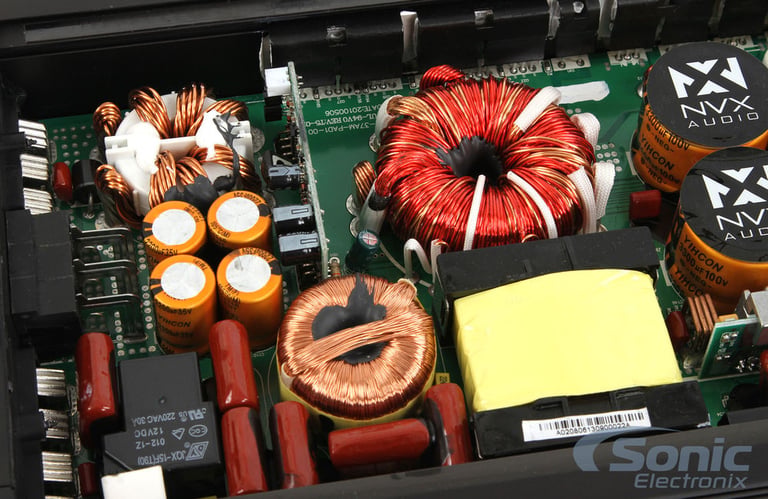

- Non-regulated efficient S.M.P.S power supply design
- Pulse Width Modulated MOSFET power supply

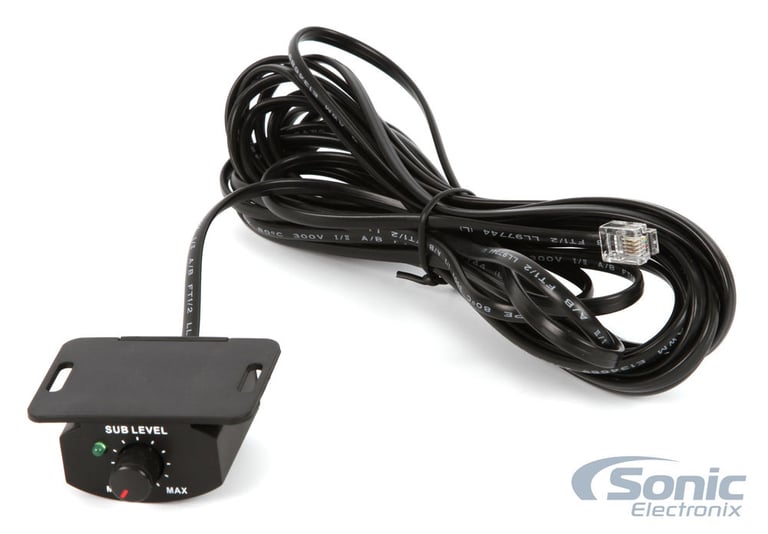

- Wired remote bass level control included
- LED power (green) and protect (red) indicators

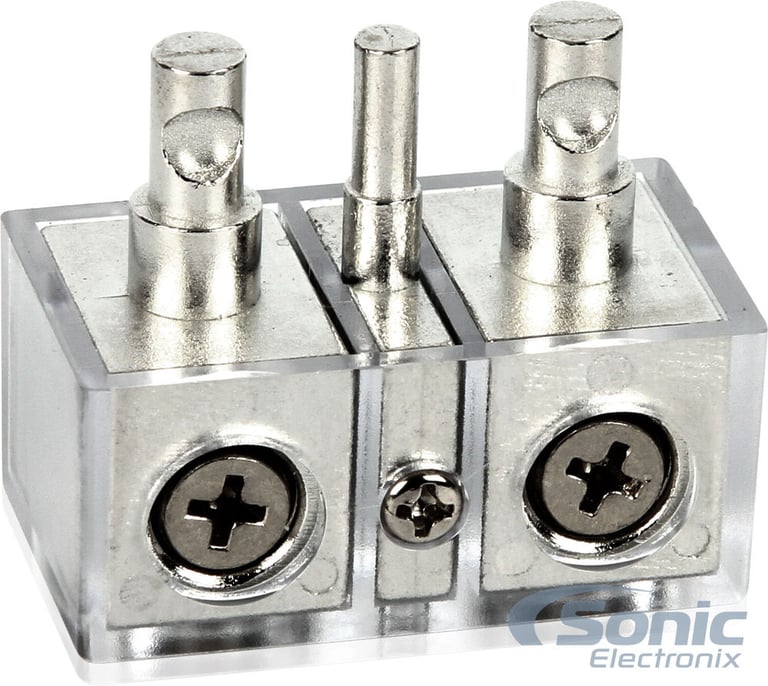

- Power and ground Gauge adapter included (Up to 0 gauge)
- Soft start turn-on
- Mono channel operation
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals

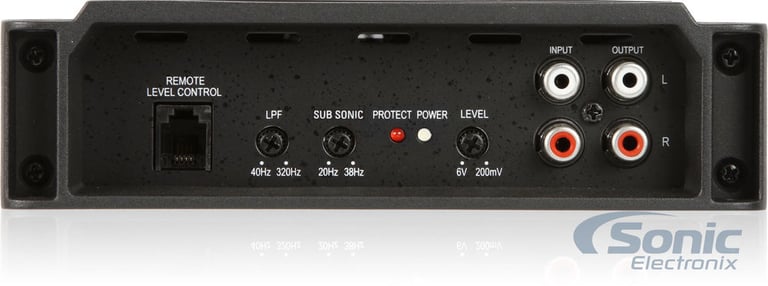

- Variable subsonic filter: 20 - 38 Hz, 24 dB/octave
- Variable low-pass filter: 40 - 320 Hz, 24 dB/octave
- Signal to Noise Ratio: 111 dB
- Total Harmonic Distortion: <1.0%
- Damping factor: 200
- Input Sensitivity: 200mV-6V
- Frequency response: 20 - 200 Hz

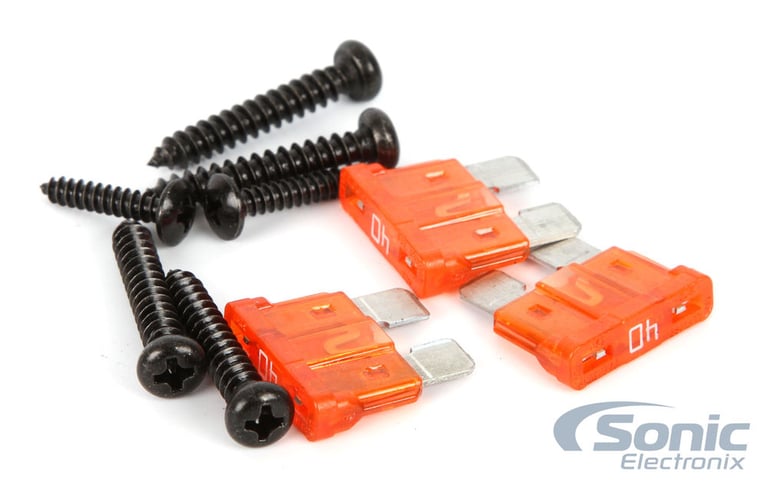

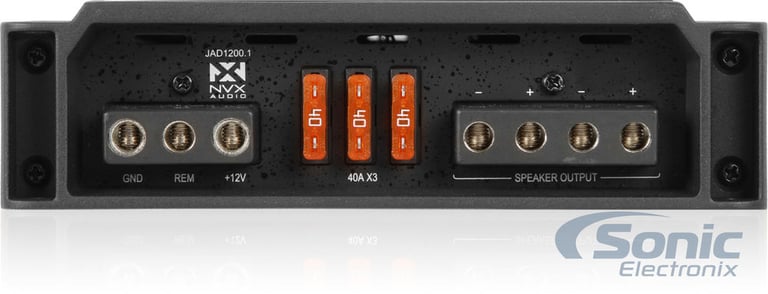

- Fuse Rating: 40A x 3
- Accepts 8, 4, 2, and 1/0 Gauge wire with gauge adapter
- Dimensions: 6-7/10"W x 12-8/10"L x 1-8/10"H
- Authorized Internet Dealer
- 2 Year Manufacturer's Warranty
Recommended Configurations:
- Two NVX VCW104 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
- One NVX VCW104 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
- One NVX VCW124 12" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
- One NVX VCW154 15" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
- Two NVX VSW124 10" Subwoofers wired to a 1ohm load for 1384W @ 14.05v - 1647W @ 14.42v RMS
- Two NVX NSW102V2 10" Subwoofers wired to a 2ohm load for 1037W @ 14.30v - 1128W @ 14.60v RMS
**Extend your NVX Manufacturer's Warranty to 2 Years when you install your new NVX amplifier with a compatible NVX power installation kit! This offer is only available through Authorized NVX dealers and will only last for a limited time. With this amplifier, the following power kits will qualify for the extended warranty program: NVX XAPK1D, NVX XKIT42, or NVX XAPK4
*The Sonic Electronix Certified Power Ratings listed are based on a test of a specific sample amplifier. Actual power ratings may slightly vary between amps.
NVX XKIT02
100% Copper, 2-Channel True Spec 1/0 Gauge Amplifier Installation Kit w/ RCA Interconnect and 20 ft Speaker Cable
Quantity: 1
General Features:
- 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed specifically for car audio systems over 1000 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
- Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems

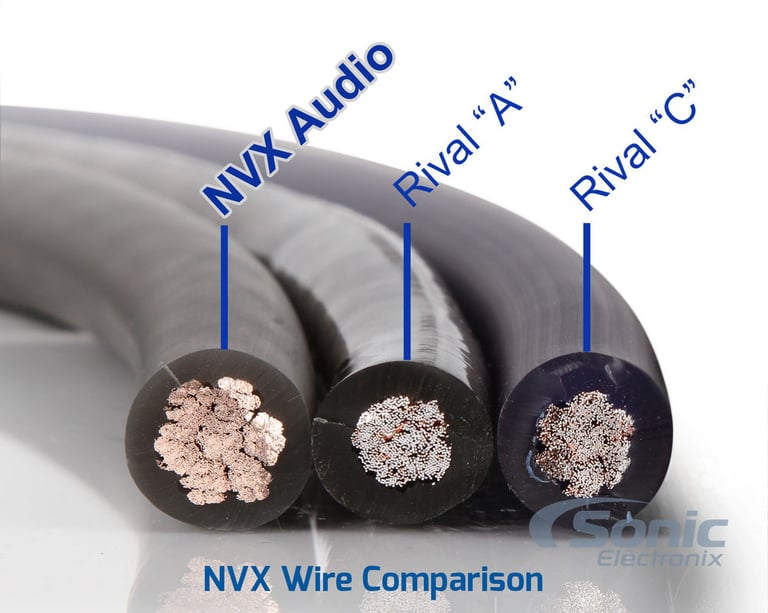

- True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
- Strand Count: 4704
- BC-5W2 Compliant
- Authorized Internet Dealer
- 2 Year Manufacturer's Warranty
Kit includes:

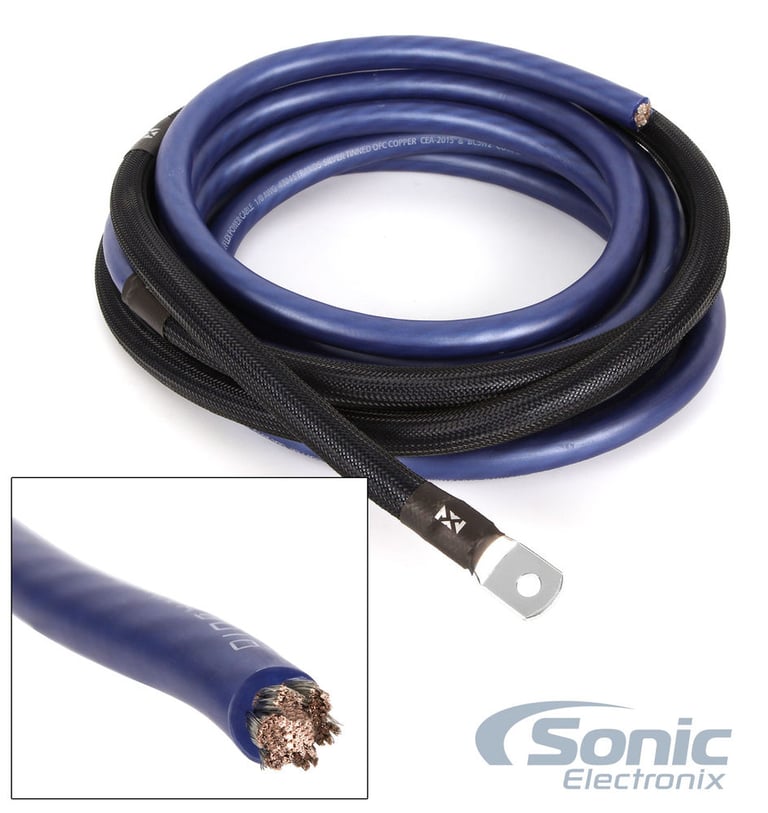

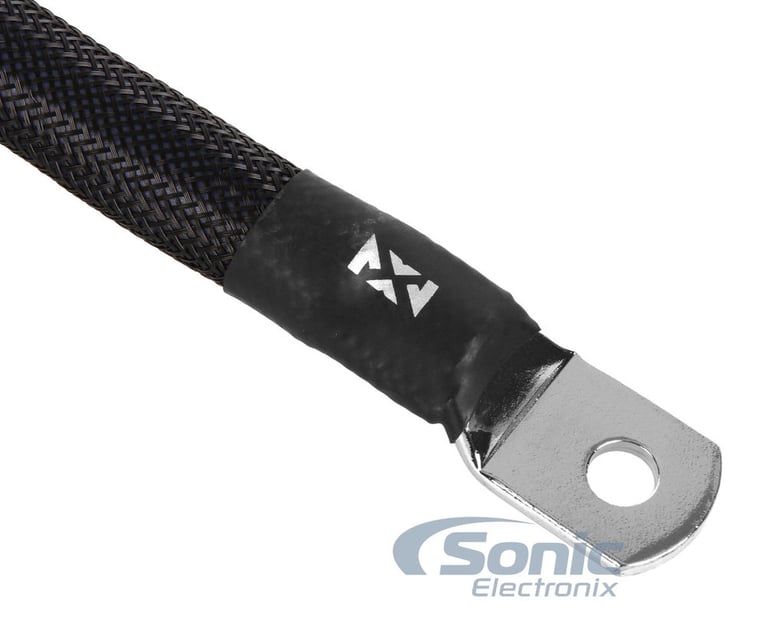

- 20 ft. (6.1 meters) Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal

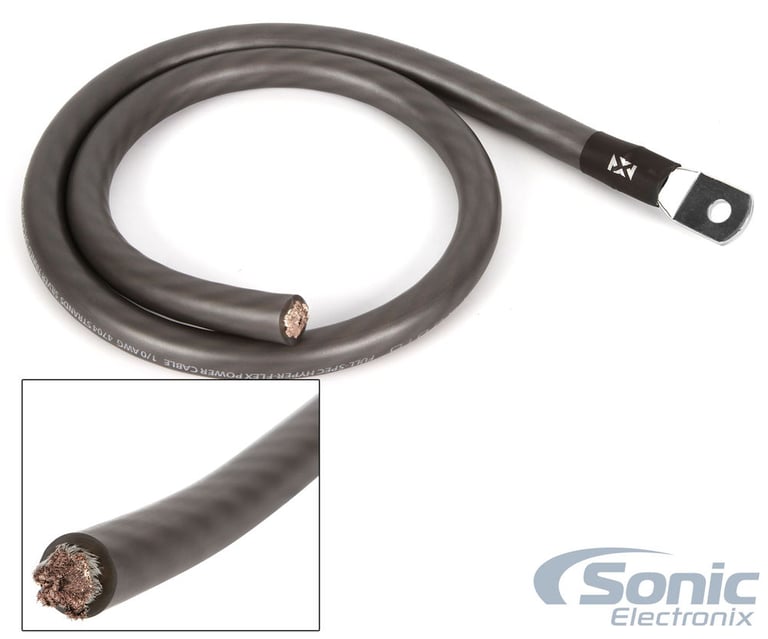

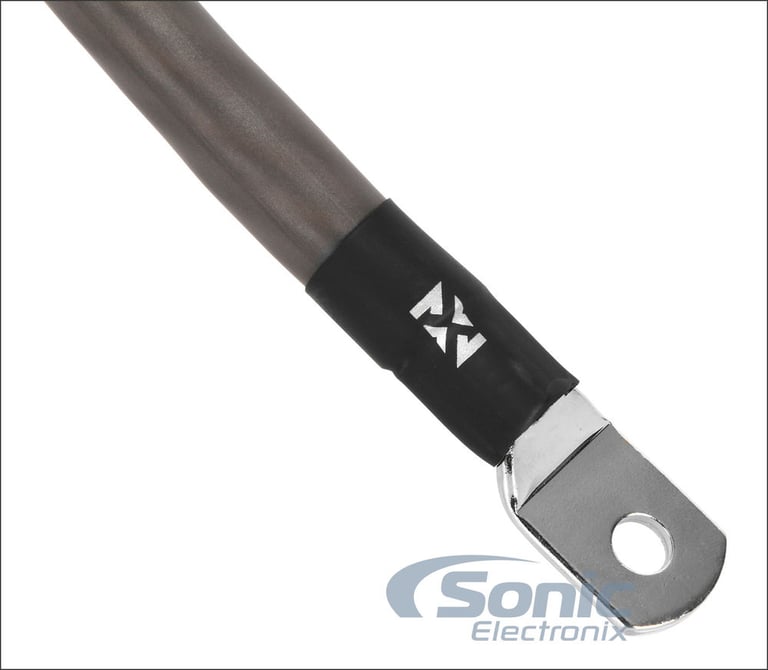

- 3 ft. (.91 meters) Frosted Gray 1/0 gauge ground wire with seamless crimp ring terminal

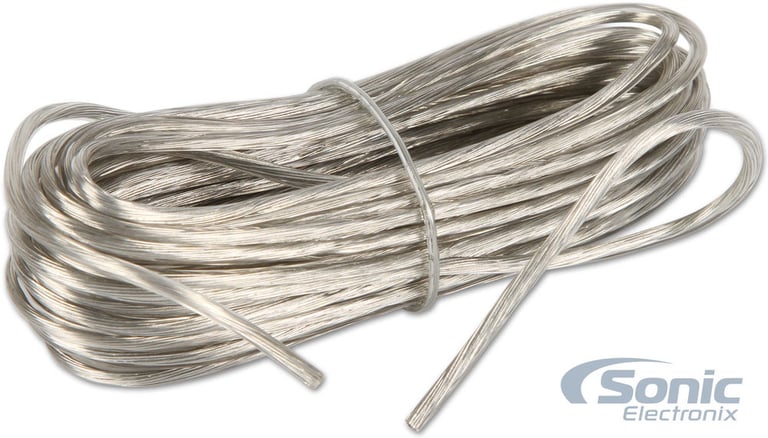

- 20 ft. (6.1 meters) Clear 18 gauge remote lead wire

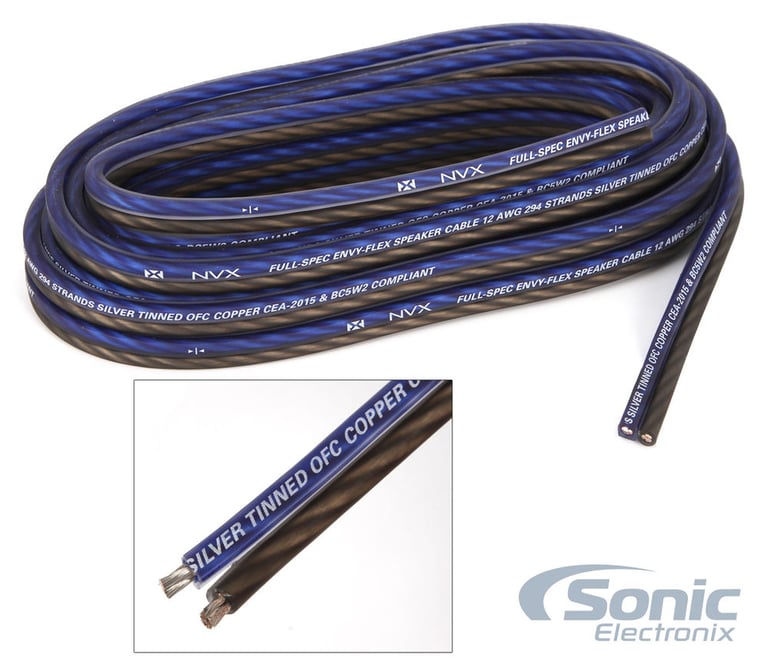

- 20 ft. (12.2 meters) Frosted Gray/Blue 12 gauge speaker wire

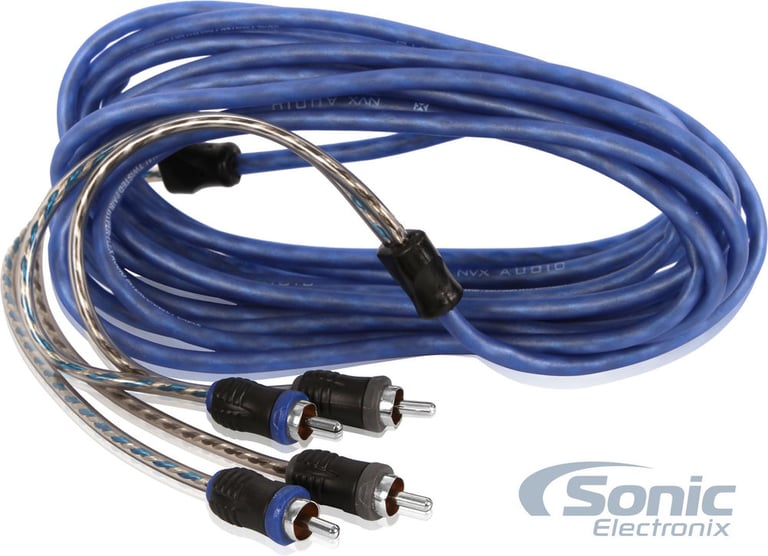

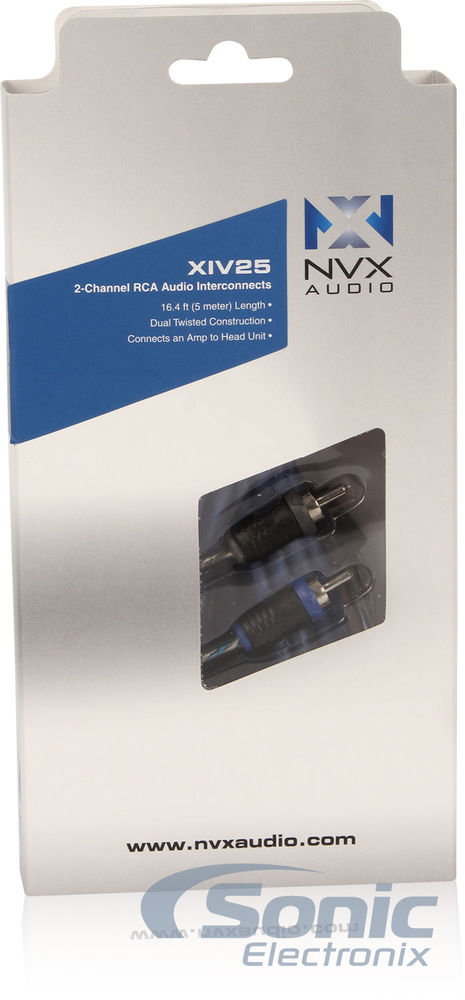

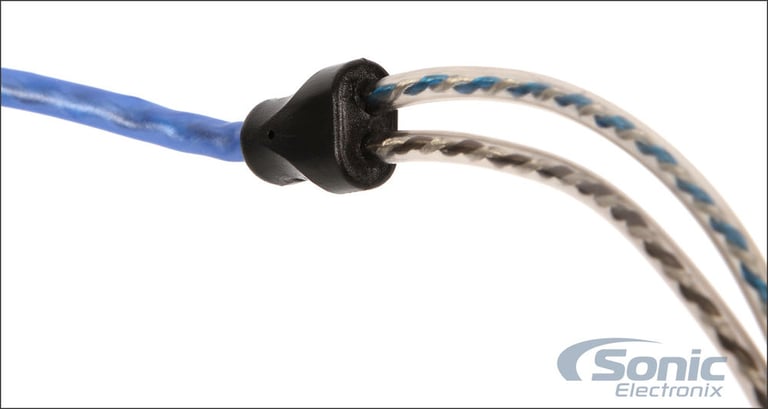

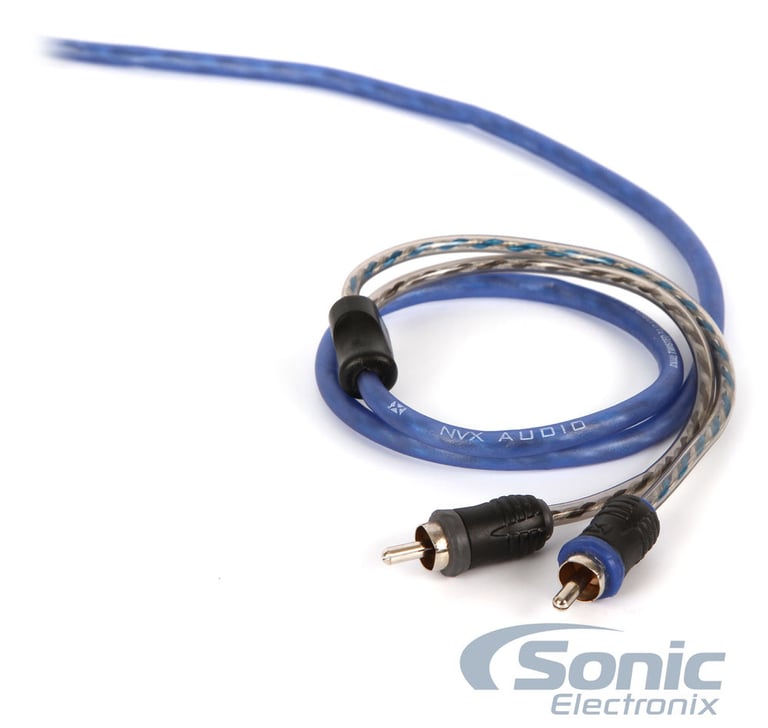

- One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

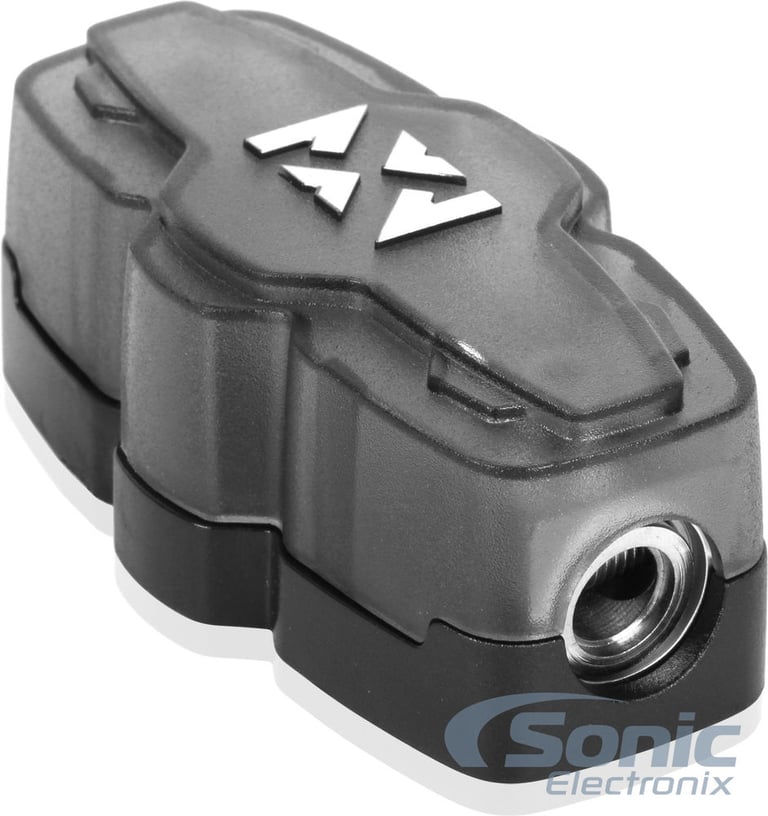

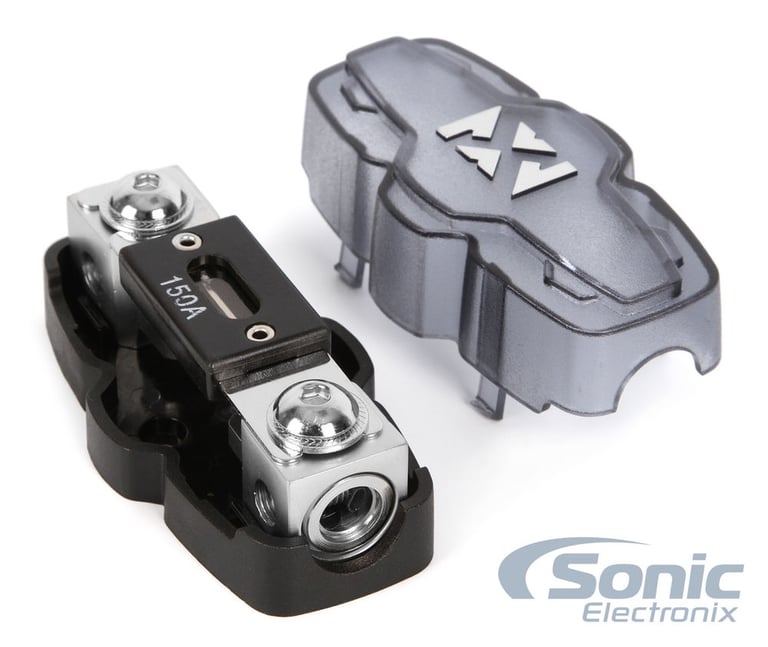

- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 150 amp Mini-ANL fuse

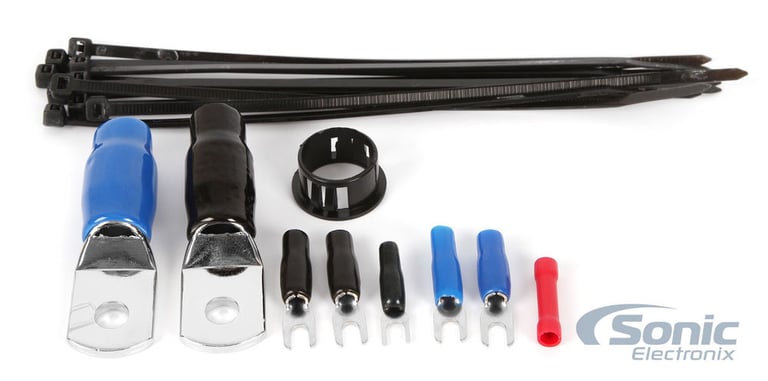

- One 5/16" black rubber firewall grommet
- Two 1/0 gauge spade terminals
- Two black 12 gauge nickel-plated spade lugs
- Three blue 12 gauge nickel-plated spade lugs
- One black 18 gauge spade terminal
- Two 18 gauge red butt connector
- Ten 4" black zip ties
