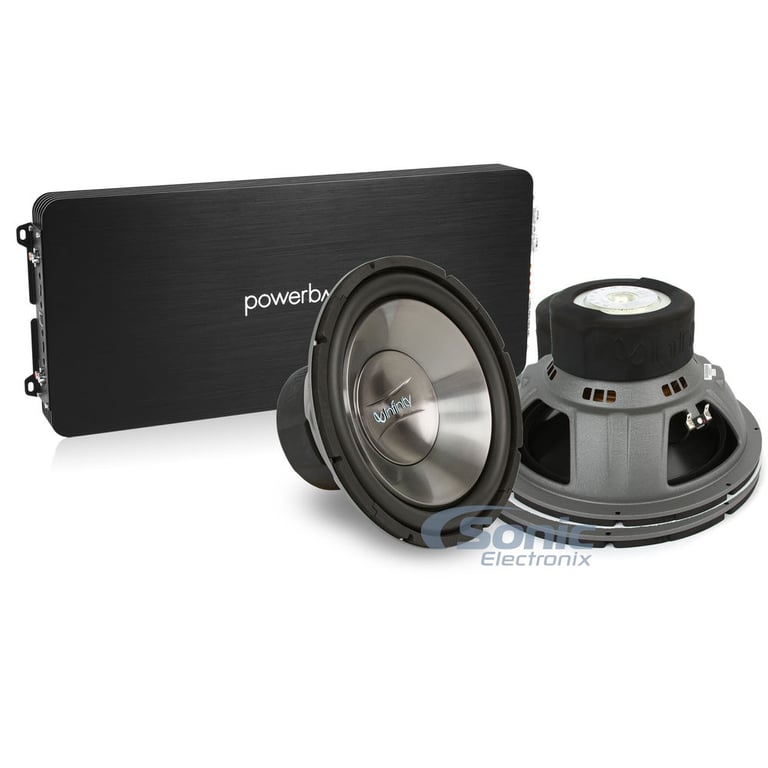

Two Infinity Reference 1260W 12" Subwoofers + PowerBass ASA 1200.2x Amplifier

(2) 300W 12" Reference Series Single 4 ohm Subwoofer + 2400W Max 2-Channel Class A/B Auto Sound Series Amplifier (ASA1200.2x)

Infinity
Shop all Infinity
EXCLUSIVE
Product videos
highlight-star-icon

• 300 Watts RMS x 2 @ 4 ohm
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces
• Progressive Spider
• 2 or Mono channel operation
• Frequency Response: 20 - 22,000 Hz
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

Learn more about the 2-1260w_asa12002x

We apologize

This item has been discontinued


Loading...
AXLOC-FD2 main

Axxess AXLOC-FD2

2-Channel 110W Line Output Converter with Gain Controller for select 2011-2025 vehicles from Ford with Non-Amplified Systems

3
-10.48%

$93.99

List price $104.99

SAT-01 main

PAC SAT-01 Antenna Adapter

Connect your factory SiriusXM antenna to a new aftermarket radio for select 2004-2024 vehicles from Ford, Audi, GMC

1
-44.86%

$15.99

List price $29.00

AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

99-5848CH main

Metra 99-5848CH TurboTouch Dash Kit

Single DIN or Double DIN Stereo TurboTouch Dash Kit and Harness for select 2011-2014 Edge with 4.2" Screen (Excluding SEL Trim)

1
-39.61%

$371.99

List price $615.99

VIMFD-95 main

Crux VIMFD-95

Video In-Motion Activation for select 2011-2015 vehicles from Ford, Lincoln with MyFord Touch Systems

-35.71%

$255.15

List price $396.90

99-5863HG main

Metra 99-5863HG Dash Kit

Install a New Single DIN 2" or Double DIN 4" Car Stereo with Factory 8" Screen in select 2011-2014 Edge

-44.62%

$735.99

List price $1328.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

85

Product Highlights


• 300 Watts RMS x 2 @ 4 ohm
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces
• Progressive Spider
• 2 or Mono channel operation
• Frequency Response: 20 - 22,000 Hz
• 3-Way System Protection circuitry (thermal, overload, and speaker short protection)

Description


Infinity brand icon

Authorized dealer

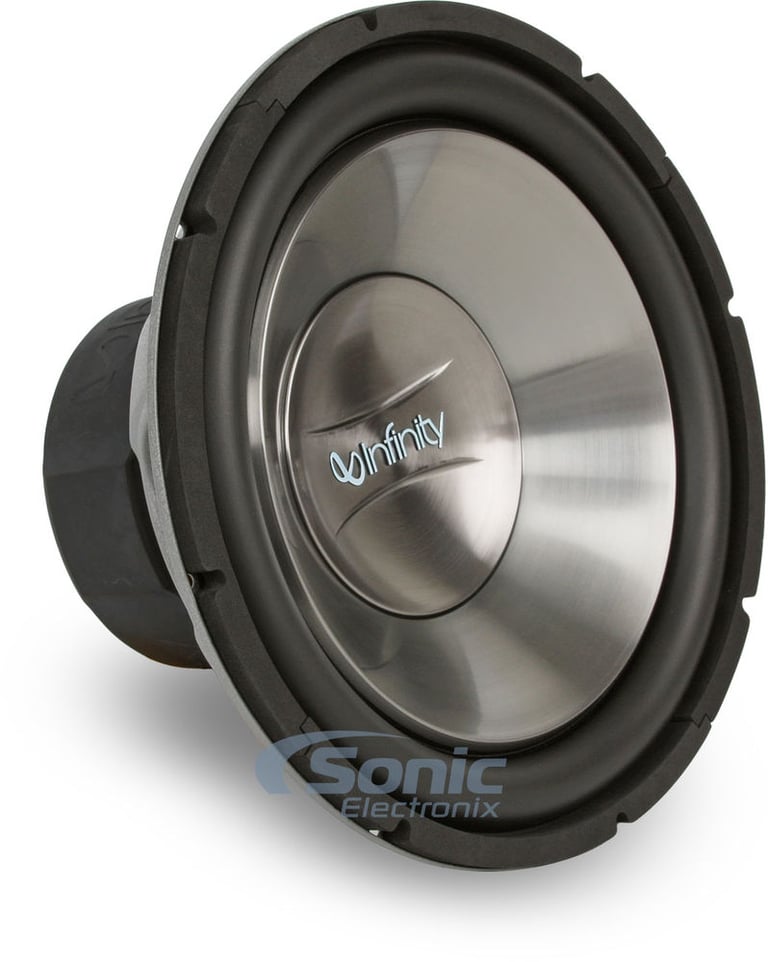

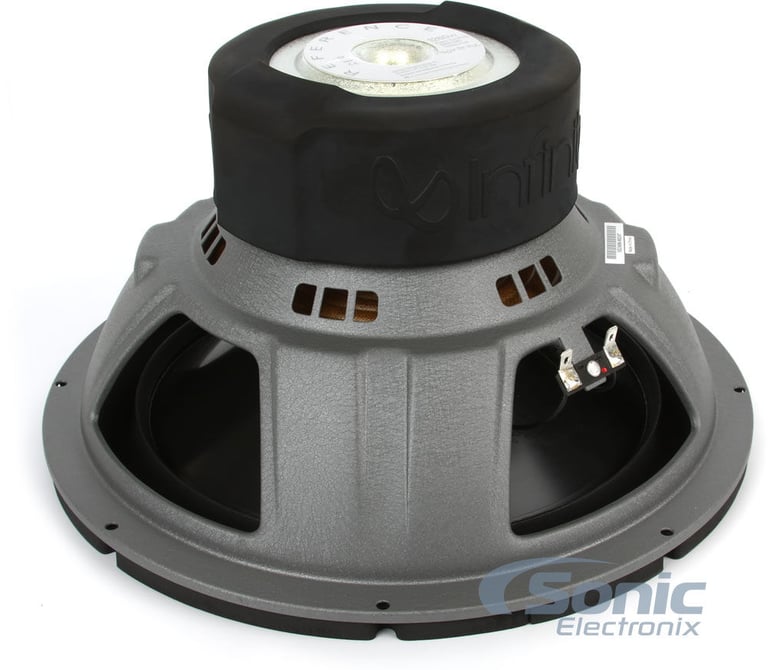

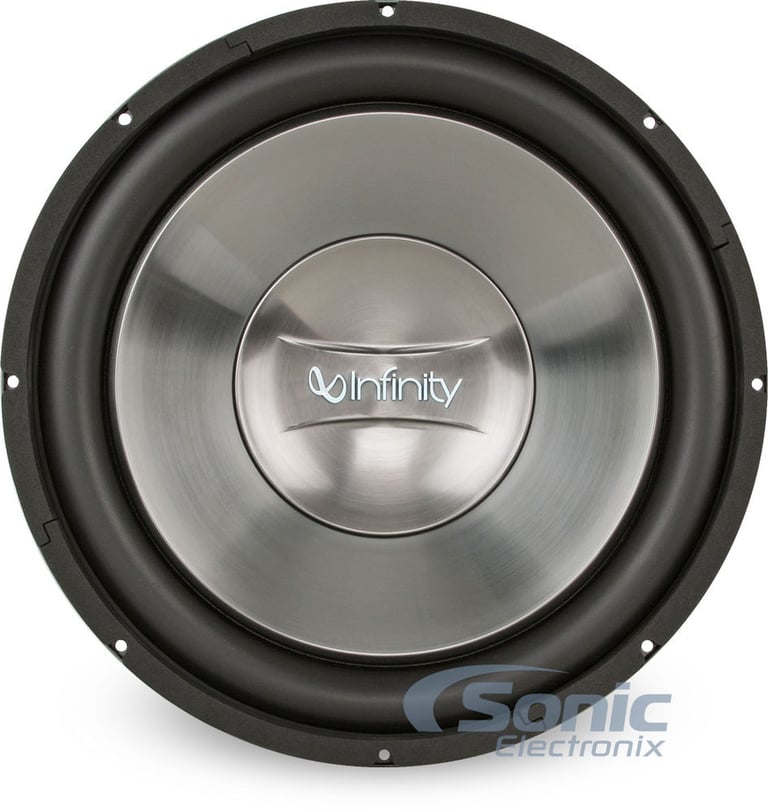

Infinity Reference 1260W

300W 12" Reference Series Single 4 ohm Subwoofer
Quantity: 2

General Features:

  • 12" Reference Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts total / 1200 watts each
    • RMS: 600 watts total / 300 watts each
  • Recommended power range: 100 - 300 watts RMS
  • Impedance: Single 4 Ohm, wired to each channel individually
  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions
  • Vented pole pieces provide additional cooling of the motor
  • Progressive spider provides better control at excursion limits
  • 2" Voice coil
  • Frequency response: 23-400 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 6-3/8"
  • Cutout Diameter: 11-1/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also found as: REF1260W

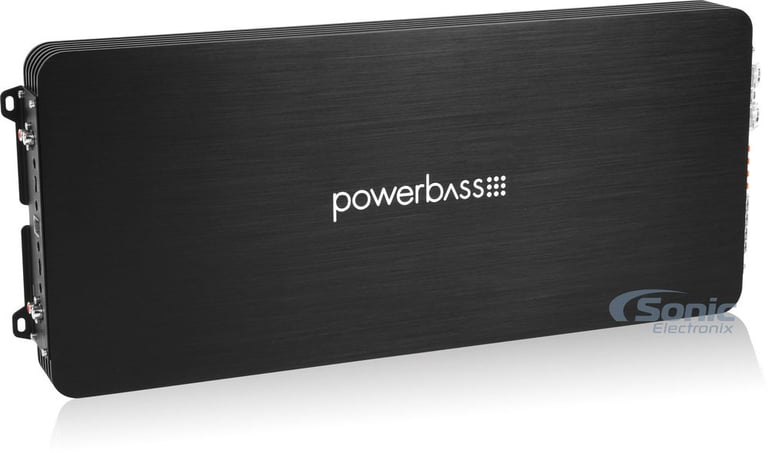

PowerBass ASA 1200.2x

2400W Max 2-Channel Class A/B Auto Sound Series Amplifier (ASA1200.2x)
Quantity: 1

General Features:

  • Auto Sound Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 2 chan.
    • 2 ohm: 600 watts x 2 chan.
    • Bridged, 4 ohm: 1200 watts x 1 chan.
  • Max power output: 2400 watts
  • Pulse Width Modulated MOSFET power supply
  • ASA Bass remote level control sold separately
    no longer available
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 2 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy ribbed heatsink for maximum heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity: 500mV - 8V
  • Frequency Response: 20 - 22,000 Hz
  • Total Harmonic Distortion (THD): <0.5%
  • Signal to Noise Ration: 90dB
  • Damping factor: >150

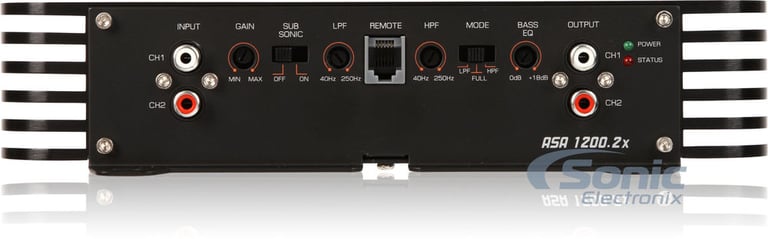

  • Selectable crossover mode: LPF / FULL / HPF
  • Variable high-pass filter: 40 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 40 - 250 Hz, 12 dB/octave
  • Selectable Subsonic filter: 28 Hz , 12 dB/octave
  • Variable Bass Boost: 0 to +18 dB bass boost at 40 Hz

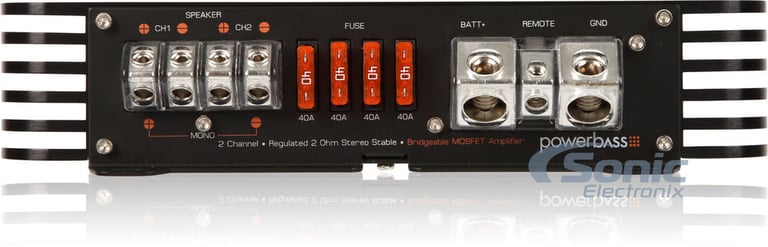

  • Fuse Rating: 40 A x 4
  • 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 21.40"L x 9.30"W x 1.90"H
  • 1-year Manufacturer's Warranty

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

51PTRTP10 small

Kicker PTRTP10 (51PTRTP10)

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$499.99

List price $549.99

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(81)

$279.99

List price $323.99

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 2 channel
RMS Power @ 2 ohms
600 watts x 2 channel
Bridged RMS Power
1200 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
2400 watts
Total RMS Power Output
1200 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<0.5%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Subsonic
High-Pass Crossover Frequency
40 - 250 Hz
Low-Pass Crossover Frequency
40 - 250 Hz
Subsonic Filter
28 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
40A x 4
CEA-2031 Compliant
No
Subwoofer Specifications
Series
Reference Series
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
300 watts
Peak Power Handling
1200 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Sensitivity
93 dB
Frequency Response
23 - 400 Hz
Xmax (millimeters)
13 mm
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
11-1/16"
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-1260w_ASA1200.2X

Weight:

49.00lbs

Internal SKU:

2-1260w_asa12002x

Internal Product ID:

107469

Product and How-to Videos


Customer Ratings & Reviews


Two Infinity Reference 1260W 12

5 star
73%
4 star
22%
3 star
4%
2 star
2%
1 star
0%



Durability
4.5
Value
4.9
Features
4.4
Design
4.5
Usability
4.8

Customer Reviews

Sort by:

Loading...

Knocks

The following review is for 1260w, which is a part of the bundle you are viewing.

I only have one of these in as of now but will be getting another one. Knocks hard just for one sub.

By Devin on November 1, 2014

50 found this helpful


Great slam for the buck

The following review is for 1260w, which is a part of the bundle you are viewing.

Put two of these 12's into a Ground-Shaker box, with two 1.65 cu ft chambers and added 2 ports to each chamber, 1-1/2" X 9" long to tune to approx 25 Hz. Using a subsonic filter set at 20Hz and powering with a 550W Alpine Class D amp. After loosening up the speakers for a few weeks, I have to say I'm impressed with the general sound quality of these drivers. These gotta be the value of the year! Harman may have cut some corners as far as using a stamped basket and where they are manufactured, but these drivers really do the job. I first tried them sealed, but ported is much better with these provided you have a large enough enclosure and use a subsonic filter. They are also relatively efficient and the fs/Q allows you use sealed or ported successfully.

By Todd_MKE on February 11, 2014

51 found this helpful


Best sub for the money!

The following review is for 1260w, which is a part of the bundle you are viewing.

This thing kicks and kicks hard! I have it installed in a 4th order bandpass box in my home theatre system and it shakes the house! Well worth the low cost!

By Judge on September 29, 2013

48 found this helpful


Pretty good, espcially for the price.

The following review is for 1260w, which is a part of the bundle you are viewing.

Picked up this sub for $60 off here and tossed it in a sealed enclosure built to specs to get me by. I have it being fed rated power, well, set my gain for 34.6VAC with a -3dB test tone. After that, I played the sub at low volume levels for a couple weeks, probably around 15Hrs. After that, I dialed up the sub volume. Single sub fills in the lows fairly well and sounds clean when not pushed hard. On some of my more bass heavy music and when volume levels reach the levels used when setting the gain, the sub's sound seems to get colored to some extent. It's by no means an SPL sub and it shows, but it for low to moderate levels, it does do quite well.

Initial plan was to install the sub in a JL HO enclosure, as it may be better suited for ported applications, but it really wasn't the sub I wanted to use for such. I bought it for that though and changed my mind last minute. I would like to believe the sub would perform better still in a proper ported enclosure, but I'll likely never know.

I'm probably going to be switching to a SQ HDS300 as I initially planned, now that they are back in stock.

Still, this Infinity was worth the price IMO, just not all I was looking for from a sub.

As for ratings, I'll give it a 4 overall. For value, it's difficult to beat, IMO. Aesthetics could use a little work perhaps, but looks mean little, I don't believe many watch their subs play after all. I've owned Infinity in the past and have good longevity from their products, if treated properly, I would like to believe same could be said of this product. Features? Well it's sub, so lets see. Polypropylene cone with a rubber surround. Not bad I guess. Included foam gasket, nice addition. 13mm Xmax, not too impressive by any means. SVC 4 ohm, easy to wire up. So, features are average. Ease of use, the terminals could have been better, but it's easy enough to wire up and use.

By Brandon on May 13, 2014

47 found this helpful


Incredible value and performance.

The following review is for 1260w, which is a part of the bundle you are viewing.

I went back and forth debating these against the kicker 07 cvrs. Kickers do hit and so do these. I just installed and they are amazing. They have such good quality and deliver bass tightly and accurately. Although they may not destroy your trunk like kickers these subs sound better and are a great value. Get these you will not be dissapointed.

By Josh on March 10, 2013

50 found this helpful


Excellent

The following review is for 1260w, which is a part of the bundle you are viewing.

This sub is excellent.
The bass is so clear that I just can't belive it , I like a very deep bass, not boomy, very low HZ and this guy delivers.
I had a sealed box according to specs and I added some Poly fill to make it sound even better smoother.
I building home tower speakers (5 ft tall) with subwoofer incorporated, so you can imagine two of these at the same time. my whole room vibrates.
Very importan that you "tame" them before you push them full power, at least two weeks everyday, the sounds gets better and better.
They look a lot better in person.
Sonic price is incredible, thank you.

By vidaldm on August 8, 2014

47 found this helpful


Can't go wrong with this sub!!!!

The following review is for 1260w, which is a part of the bundle you are viewing.

I upgraded from the Pioneer tsw310s4 12" sub. This Infinity rocks so much harder and hits way lower. I have yet after 30 days to have a complaint about this sub. I was blowing the Pioneers after about 10 hrs of use. This sub has not blown and continues to pound hard. Nothing negative to say: only positives. Order this sub and you will not be disappointed. This sub is way under rated as I am putting 580w of PPI power to it and it takes all you can throw at it.

By ken on November 6, 2013

47 found this helpful


Very good subwoofer!

The following review is for 1260w, which is a part of the bundle you are viewing.

I would give these subs a 10 of 10 for the price. The build quality of the Infinity 1260w is superb, and this speaker has everything you need. Spider cooling, Vented pole piece and a rubber surround that will never go bad! It hits the lowest of lows and is decent in the higher hz. I would recommend this subwoofer to ANYONE on a budget, it even outperforms subs that aRE OVER TWICE ITS PRICE! I have 16 of these pounding like a competition...seriously I get lotssa noise complaints from just hooking it up and testing them out! I run 500 solid watts to them and they never look like they struggle at all...

By Hazy on April 26, 2014

45 found this helpful


These bad boys slam.

The following review is for 1260w, which is a part of the bundle you are viewing.

I wrote a review before on these subwoofers back when i had a junkie power acoustic amp. I now have a hifonics 1000w gladiator amp and these puppies slam in my mustang. i have 2 12s in a small dual ported box and these things are boomy. I've broken my rear view mirror off with these bad boys. I barely can turn my volume past 25 without it destroying my car and the value goes up to 50! people always know when i arrive at there house. I love it lol i do however want to try a sealed box out and see how they sound. I highy recommand these subwoofers, for the price you can't find a better deal.

By Boomstang99 on April 11, 2013

44 found this helpful


Awesome sound

The following review is for 1260w, which is a part of the bundle you are viewing.

ive got 2 of these in a bandpass box, with a 1200 watt crunch ground and pound amp. I've had so many compliments and people asking what i've got and where did i get them. if you use these suckers right youll have people who paid over $400 for their subs, asking about yours and how much you paid, and then theyll be jealous because your $60 subs just kicked the crap out of thier $200 subs.

By Love of Infinity on April 1, 2013

43 found this helpful




P1-1050.2-RB_2-GT5-10D small

JBL & Crunch, Dual 10" Subwoofer Bass Bundle

JBL GT5-10D 10" GT Series Subwoofer + Crunch P1-1050.2 (Factory Refurbished) 2-Channel Power One Series Class AB Car Amplifier

(19)

$142.35

List price $379.89

FRP20T-T45 small

MTX Audio Thunderform FRP20T-T45 (Tan, Loaded)

Ford F-150 Regular Cab 1997-2003, 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

$382.99

List price $499.99

FRP20G-T45 small

MTX Audio Thunderform FRP20G-T45 (Gray, Loaded)

Ford F-150 Regular Cab 1997-2003, 2 10" 4 ohms Loaded Vehicle Specific Thunderform Subwoofer Enclosure

$382.99

List price $499.99

BU-CP-TLP small

Baretta USA BU-CP-TLP

Water Proof Rearview Night Vision Camera

$49.99

List price $129.99

No picture

NVX XBAF525( Open Box Complete)

Foldable silicone 5.25" speaker baffle with egg crate foam, one pair/box

$14.99

List price $0.00

Archiver CR6001A-PA small

Crosley Archiver CR6001A - Paprika

Archiver USB Record Player Turntable with CD/Cassette Player

$179.00

List price $219.95

BX500D small

Hifonics BX500D Brutus Class-D Series

$149.99

List price $699.99

PD 1100.2 BAK82 small

Crunch PD 1100.2 + Premium 8 gauge Amp kit

1100W Max Power Drive Series 2-Ohm Stable Bridgeable 2-Channel Amplifier Package

(40)

$80.95

List price $249.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2008 Saab 9-5

2013 Ford Edge

1993 GMC Sonoma

2019 Subaru Impreza

2004 Nissan Sentra

2000 Toyota 4Runner

2006 Chrysler Pacifica

1981 Ford Bronco

2012 Honda Civic

2008 Volkswagen Rabbit

Vehicle
Store
Delete

1995 Honda VFR750F Interceptor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
