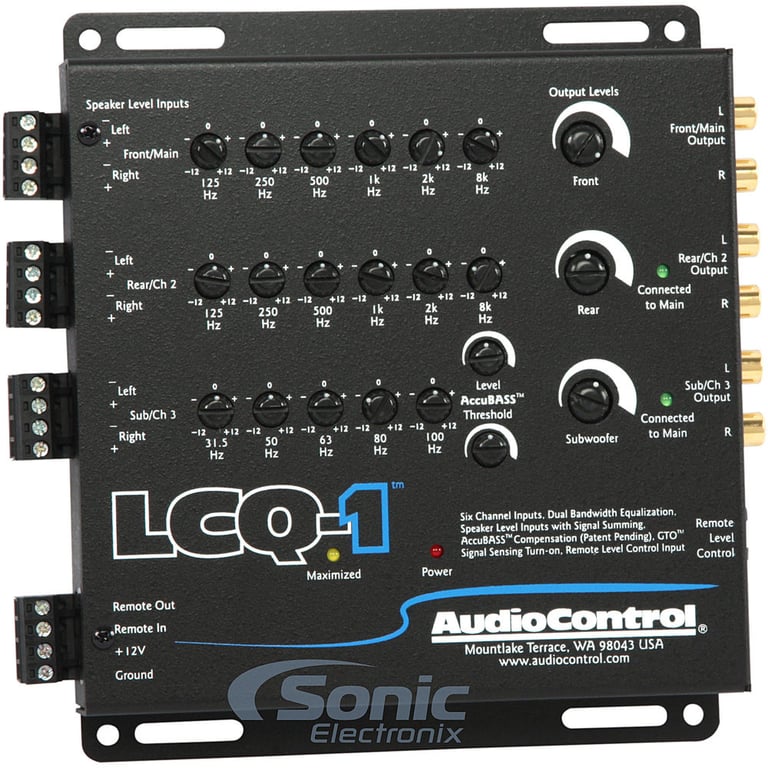

AudioControl LCQ-1 (Black)

6-Channel EQ Signal Processor with AccuBASS

highlight-star-icon

• 6-Channel Line Output Converter
• 6-Channel Preamp Level Outputs
• 12-Volt turn-on lead output
• Independent Front, Rear, and Sub EQ Controls

Learn more about the lcq1-blackblue

We apologize

This item has been discontinued

Description


AudioControl

Authorized dealer


For over two decades, AudioControl has been designing and manufacturing award-winning autosound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems. Nothing sounds better than an awesome recording played back on a kickbutt system. Unfortunately, the acoustics of your vehicle can take away from your systems performance. While AudioControl products do not change the laws of physics (although they act like they do), autosound enthusiasts have long known that AudioControl products "make good stereo sound better".


LCQ-1 - 6 Channel Line Out converter with EQ and AccuBASSâ„¢

Audio enthusiasts can now rejoice with the introduction of AudioControl's LCQ-1, a powerful six-channel signal processor that provides a gateway between factory installed source units and after-market amplifiers. The LCQ-1 allows Mobile Electronics enthusiasts to easily "tune" their audio systems and receive truly amazing sound quality. An ideal combination of discrete equalization controls combined with AudioControl's unique OEM integration circuitry, the LCQ-1 maximizes the performance of factory installed audio systems. Enthusiasts, who want amazing audio performance that only comes from custom-tuned audio systems, will truly enjoy the LCQ-1.

Basic, inexpensive, passive line output converters generally deliver poor sound quality and diminishing bass response. The active circuitry used in the LCQ-1 provides dramatically better sound quality and enhances the bass response. No longer will audio enthusiasts have to compromise when performing basic amplifier additions to factory installed audio systems. Enthusiasts looking for great sound will really love this product.

Designed for maximum sound quality and enhanced audio performance, the LCQ-1 is the latest AudioControl processor to incorporate AccuBASS™. This patent pending process automatically corrects for the bass roll-off that is common with many factory-installed audio systems. AudioControl engineers designed the LCQ-1 to be a very high-value processor, so subsequently it is equipped with a number of installer friendly features that simplify the OEM connection and calibration process.

Key Features:

Speaker-Level Inputs:

If you are like many people who like the look and features of their factory-installed source unit, but feel your system overall is lacking power and bass, we have good news. The LCQ-1 has high-impedance speakerlevel inputs that allow it to accept amplified signals (up to 400 watts per channel) from most factory-installed source units (even Bose) and output a high-quality pre-amp signal via standard RCA connectors. This will allow you to add better-quality amplifiers, processors and speakers while keeping the convenience features of your factory-installed source unit. Unlike inexpensive speaker-level and line-output converters available, the LCQ-1 offers high sound quality.

Auxiliary Source Input:

A set of auxiliary RCA inputs connects the audio signal of an iPod or other stereo source into the system through the LC8i. Tapping the included LC8i remote knob will change from Main input to the Aux inputs and tapping again will change the knob function from subwoofer level control to auxiliary volume control.

GTO™ Signal-Sensing Inputs:

Most factory-installed source units lack the features that make it easy to upgrade with really good-sounding, performance aftermarket products. One of those key features is a 12-volt trigger that will turn on devices like the LC8i and your external amplifiers. Therefore, we have equipped your LC8i with our unique GTO™ (Great Turn On) signal-sensing inputs. Once the GTO input of your LC8i detects a speaker-level signal on the Main Inputs, it powers up. When the speaker-level signal goes away, your LC8i will automatically turn-off. Optionally, your LC8i is also equipped with a standard 12-volt trigger (Remote In) that will allow you to turn on your LC8i in the traditional manner.

Internal Channel Summing:

The LC8i has the capability to combine together multiple (2, 4, 6, or 8) input signals from the factory source unit into 2 channels. This is page particularly handy when using the LC8i with a factory system that has multiple, actively crossed over signals being sent from an OEM source unit or amplifier(s). For example, in some vehicles there is an actively crossed over tweeter, midrange, and woofer all in the front of the vehicle. The LC8i lets you take all of those signals and sum them together to get a high quality, full range, pre-amp signal without the use of any additional cables or hardware.

AutoMode Inputs:

Sometimes in life (and car audio) we need more outputs than inputs. Therefore we have equipped your LC6i with AutoMode inputs that take the Channel 2 signal and automatically feeds it to the Channel 3 outputs, provided there is no signal present on the Channel 3 inputs. This means your LC6i will accept two input channels and give you four output channels. Or it can accept four input channels and give you six output channels.





AudioControl
LC2i
AudioControl
LC6i
AudioControl
LC7i
AudioControl
LC8i
AudioControl
LCQ-1
AudioControl
DQ-61
Your
Price
$99.99 $149.99 $189.99 $249.99 $299.99 $399.99
Line Out Converter 2 Channel 6 Channel 6 Channel 8 Channel 6 Channel 6 Channel
High Level Inputs
GTO™
Channel Summing
AccuBASS™
Remote Included
Auxiliary Input
Equalizer
Signal Delay
Input Level Control



Save on the Open Box Version:
Available Now - CLICK HERE


General Features:

  • 6-Channel Equalizer/Sound Processor/Line Output Converter
  • Designed to work with any factory stereo

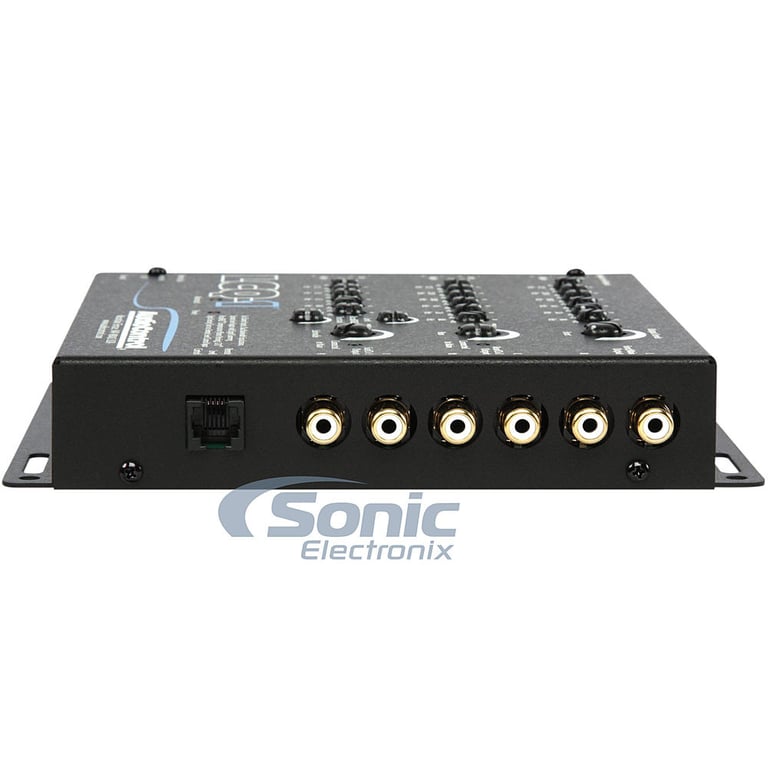

  • 6-Channel preamp level outputs

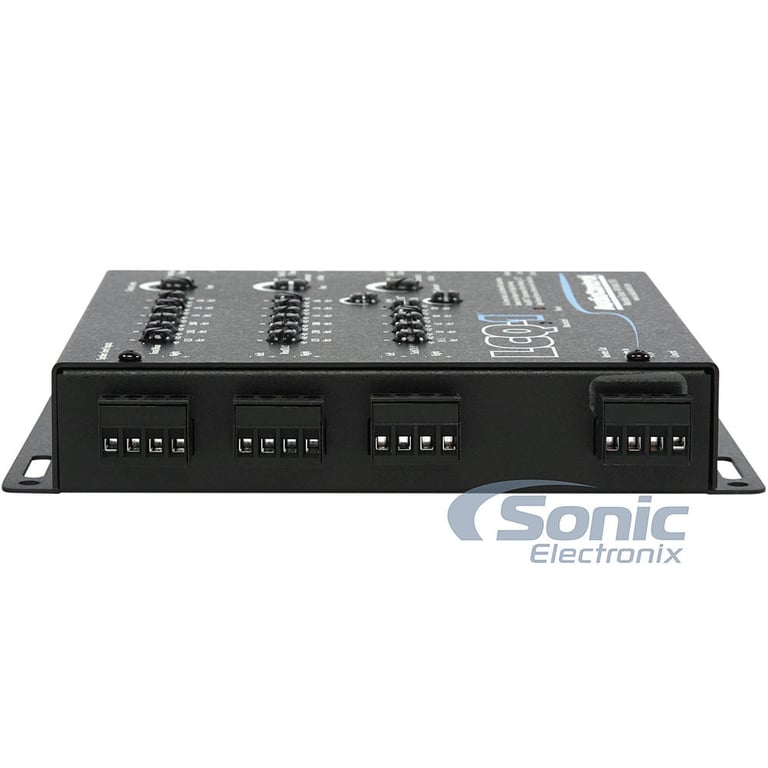

  • 6 High-level inputs
  • Independent front, rear, and sub EQ controls
  • AccuBASS processing for correction of bass roll-off
  • 12-Volt turn-on lead output (turns on amp when LCQ-1 turns on)
  • GTO - Signal sensing inputs
  • Channel summing lets you eliminate any factory-installed active crossovers
  • Optional ACR-2 Remote allows for control of the subwoofer level plus EQ bypass
  • Color: Black Blue
  • Also Available in Sierra White: AudioControl LCQ-1 White
  • Weight: 3 lbs
  • Dimensions: . 6.00" W x 5.875" D x 1.20"
  • Authorized Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

LCQ-1 Specifications:

  • Maximum speaker-level input: 400 watts @ 4 ohms
  • Maximum output level: 8.5Vrms
  • Output gain: ±12 dB
  • Frequency response: 10Hz - 22,000Hz
  • Total harmonic distortion: 0.01%
  • Input Impedance: 20 Kohms
  • Equalization Frequencies:
    • Front/Rear: 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
    • Sub Output: 31.5Hz, 50Hz, 63Hz, 80Hz, 1000Hz
  • Output Impedance: 150 Ohms
  • Power supply: High headroom PWM switching
  • Power draw: 350mA
  • Recommended fuse rating: 2 Amp
  • Remote Trigger Ouput Current: 1 Amp

Check out the AudioControl LCQ-1 Owner's Manual

Product history:

AudioControl LCQ-1 BlackBlue thumbnail
(newest, current model)
AudioControl LCQ-1-GRAY thumbnail
(previous model, replaced by AudioControl LCQ-1 (Black))

Specifications & Details


Equalizer Specifications
Type of Equalizer
Graphic
Equalizer Bands
6 band
Equalizer Frequencies
31.5 - 8000 Hz
Built-in Bass Reconstruction
No
Line Driver
Yes
Speaker Level Inputs
Yes
Total Number of Inputs
6
Total Number of Outputs
6
Signal Boost/Cut
12 dB
Max Output Level
8.5 volts
Frequency Response
10 - 22000 Hz
Input Sensitivity
10 - 22000 volts
Channel Separation
10 dB
THD (Total Harmonic Distortion)
0.01%
Width
6.00"
Height
1.20"
Depth
5.875"
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

LCQ-1 BlackBlue

Weight:

2.80lbs

Internal SKU:

lcq1-blackblue

Internal Product ID:

108349

Customer Ratings & Reviews



5 star
0%
4 star
0%
3 star
100%
2 star
0%
1 star
0%



Durability
4
Value
3
Features
4
Design
3
Usability
4

Customer Reviews

Sort by:

Loading...

Works but a headache

I bought the lcq1 from sonic and installed it myself. It works great and does give great sound quality besides the fact that there will be a slight hiss in the system. This was my second unit and it still had the hiss. I talked to both sonic and audiocontrol and both were great and gave me many solutions but unfortunately none of them were able to rid of it. I've spent so many hours trying get rid of it by trying multiple different wiring configurations and nothing worked. My gains were very low and the hiss was still there. The only way to get it almost gone was to have the gains and output on the lcq1 all the way down. When I did, it was still there but very subtle. And at that point, your music is quieter than it was just running off of stock power. I also tried ground loop idolaters and noise filters and they did nothing. I have a 4 channel and a mono with a sub hooked up to it and tested both amps with the lcq1 not hooked up in the loop, no hiss. I listen to music pretty loud when I'm in the car so I don't really hear it when I'm cruising but when the music is at a very low volume, you can hear the hiss. Especially when I went to a drive in, it was very annoying. In my situation, there's no dash kit available for an aftermarket headunit for my car so I'm using this. If you can, I would opt to just get an aftermarket headunit

By John on July 27, 2016 checkmarkIcon Verified purchase

12

found this helpful.
