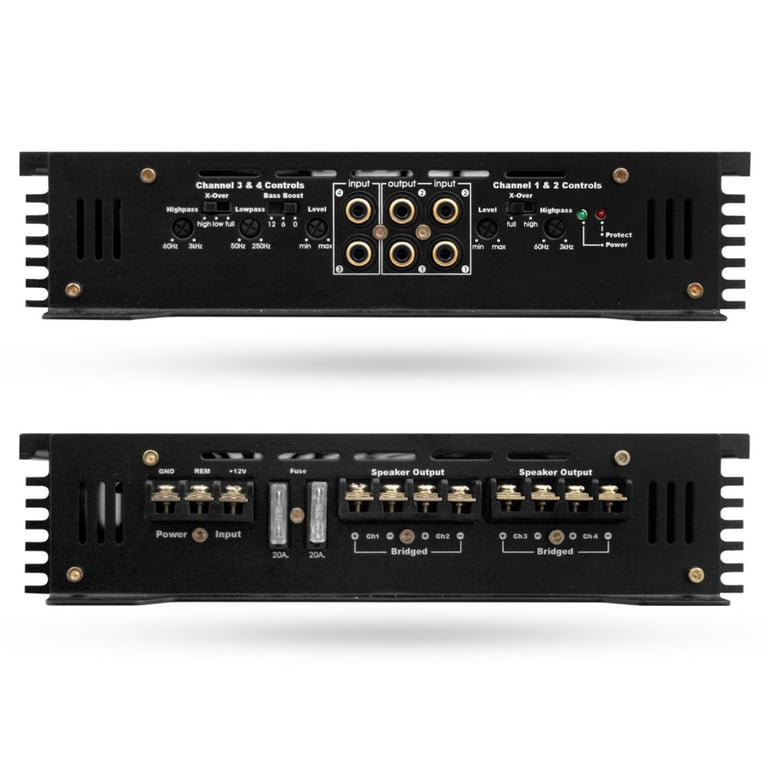

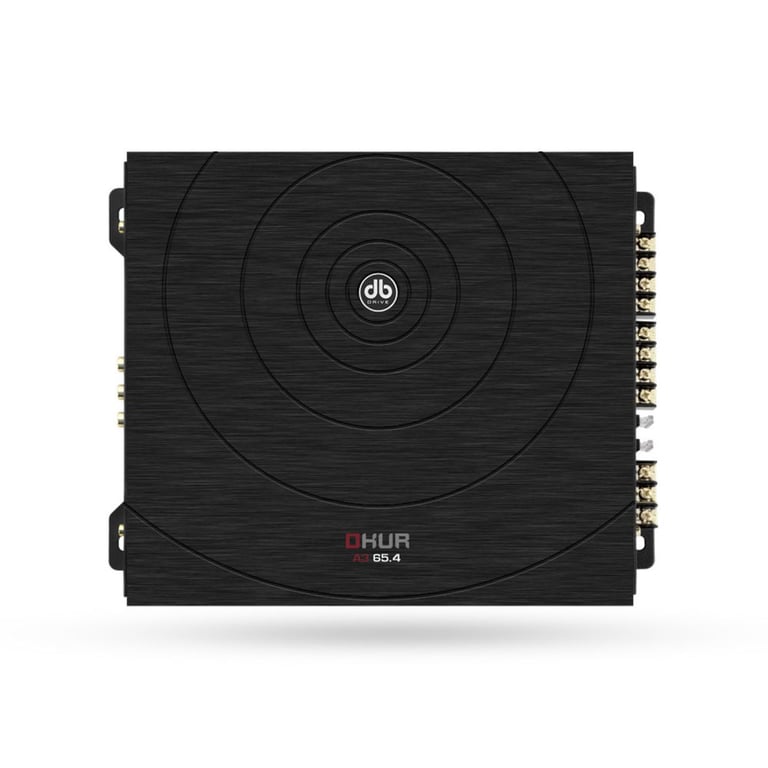

DB Drive A3 65.4

180W RMS 4-Channel Class AB A3 Series Car Amplifier

db Drive
Shop all db Drive
Product videos
highlight-star-icon

• 45W x 4 Chan. @ 4 ohm
• Max 65W x 4 Chan. @ 2 ohm
• Max 120W x 4 Chan. @ 2 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• DriveSink Heat Management System

Learn more about the a3654

We apologize

This item has been discontinued


Loading...
40-HD10 main

Metra 40-HD10 Antenna Adapter

Connect your factory antenna to a new aftermarket radio for select 2005-2024 vehicles from Honda, Mazda, Acura

29
-15.40%

$10.99

List price $12.99

MA03B main

Scosche MA03B Wiring Harness

Install a new car stereo in select 2001-2018 vehicles from Mazda

26
SWRMZ-64C main

Crux SWRMZ-64C Wiring Interface

Install new car stereo and retains steering wheel audio controls and other factory features in select 2003-2015 vehicles from Mazda

2
-35.71%

$85.05

List price $132.30

99-7521B main

Metra 99-7521B Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2012-2015 5 (Matte Black)

-10.21%

$43.99

List price $48.99

95-7521B main

Metra 95-7521B Dash Kit

Install a new Double-DIN car stereo in select 2012-2015 5

-38.47%

$23.99

List price $38.99

Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

Limited time!
46CSS684 main

Kicker CSS68 (46CSS684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Component 4-ohm Speakers

8
-28.02%

$143.96

List price $199.99

T1682 main

Rockford Fosgate Power T1 T1682

320W Peak (160W RMS) 6x8" Power Series 2-way 4-ohm Full-Range Car Speakers

23
Limited time!
KFC-C6866S main

Kenwood KFC-C6866S

500W Peak (60W RMS) 6x8" Sport Series 2 Way Coaxial 4-ohm Car Speakers

3
-31.00%

$69.00

List price $100.00

Product Highlights


• 45W x 4 Chan. @ 4 ohm
• Max 65W x 4 Chan. @ 2 ohm
• Max 120W x 4 Chan. @ 2 ohm
• 3-Way System Protection
• 4/3/2/1 Channel Operation
• 8 Gauge Power and Ground Inputs
• DriveSink Heat Management System

Description


db Drive brand icon

Authorized dealer

General Features:

  • A3 Series 4-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 45 watts x 4 chan.
  • Max Power Rating:
    • 4 ohm: 65 watts x 4 chan.
    • 2 ohm: 120 watts x 4 chan.
    • Bridged, 4 ohm: 200 watts x 2 chan.
  • Max power output: 200 watts x 2 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
  • Soft start turn-on
  • 4/3/2 or Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • DriveSink heat management system
  • Input sensitivity:
    • Level: 285mV-6V
  • Variable high-pass filter (50-500 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • 8 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
45 watts x 4 channel
Amplifier Specifications
Series
A3 Series
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
180 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
20 - 500 Hz
Low-Pass Crossover Frequency
50 - 3000 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
25A x 2
Strappable
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A3 65.4

Weight:

0.00lbs

Internal SKU:

a3654

Internal Product ID:

72056
