AudioControl MATRIX PLUS

6-Channel Line Driver

Out of stock

• 6-Channel Line Driver
• Provides up to 24 dB of Gain
• Gray steel chassis with gold-plated RCA jacks
• Balanced Differential Inputs
• Linkable Inputs - 2 Input Channels to 6 Output Channels

Learn more about the matrixplus-blackblue
Thanks , You Pay:


 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one matrixplus-blackblue.

Set your vehicle or Return to product page
Out of stock - Order risk-free, cancel any time.
Brand new

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Allstate logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Mechanical, electrical and product failure covered! 100% parts and labor covered. (Coverage starts after Mfr. warranty)
  • Easy online management! Zero hassle claim service, available 24/7

For over 23 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award-Winning Service
FREE Shipping Orders $49+
60-Day Easy Returns
Guaranteed Lowest Price
In-House Experts



Authorized dealer

For over two decades, AudioControl has been designing and manufacturing award-winning auto sound products at our factory located in the rainforests of the Pacific Northwest. During this period, countless sound-off winning contestants have chosen AudioControl products to give them the competitive edge. "Can you really win without AudioControl", was part of an article written commenting on competition winning systems? Nothing sounds better than an awesome recording played back on a kick-butt system. Unfortunately, the acoustics of your vehicle can take away from your system's performance. While AudioControl products do not change the laws of physics (although they act as they do), auto sound enthusiasts have long known that AudioControl products "make good stereos sound better".

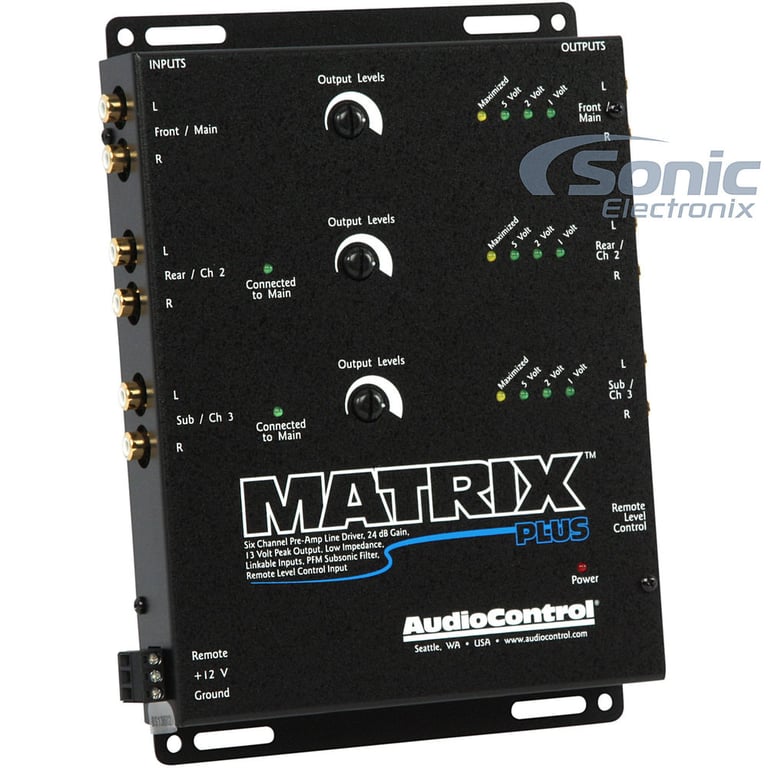

MATRIX PLUS - 6 Channel Line Driver

AudioControl created the MATRIX PLUS six-channel line driver with one goal in mind, to make your car audio system sound better. Modern car stereos boast many features but in many cases rather low pre-amp outputs, especially at low levels. Turn your stereo to a normal volume level, send the signal through a 20-foot cable, and your amps may end up with very little audio signal resulting in weak sound.

Equipped with 24 dB of gain, which can increase pre-amp signal levels up to 9.5 volts RMS/13 volts peak, the MATRIX PLUS line driver will transform your audio system. When integrating multi-media and video games or for driving dozens of amplifiers the MATRIX PLUS line driver gives your system a boost. With multiple sources, like video, the MATRIX PLUS level matches the different volume levels so switching between them is seamless. For SPL vehicles, the internal linking system of the Matrix means that two channels of input can drive all six outputs and each output can drive up to seven amplifiers.

The MATRIX PLUS line driver features an optional dash control input that facilitates remote control of pre-amp signal levels. This makes the MATRIX PLUS line driver an ideal controller for overall system master volume or subwoofer levels.

High-Voltage Line Driver:

The Matrix Plus is a pre-amp line driver that takes the input signal from up to three source units, increases it (up to 13 volts peak), and then delivers it downstream. No more low signal output voltages to allow noise into the rest of your performance car audio system.

Programmable Frequency Match (PFM) Subsonic Filter:

Many car audio systems truly push the limits of their subwoofer... without really knowing it. Tuned enclosures affect the roll-off of many speakers, yet lots of source material force the speakers to play lower than expected. The net result is wasted amplifier power and damaged speakers. The AudioControl PFM (Programmable Frequency Match) filter is a programmable subsonic filter. It allows you to only let the speaker play as low as it should be playing. Because every system is different, we allow you to change the PFM roll-off frequency to whatever you choose.

Six Channel Inputs & Outputs:

The Matrix Plus was designed for ultimate pre-amp flexibility. With that in mind, we have provided six channels for input and six for output! For even more flexibility, the Matrix Plus inputs can be linked internally whereby one input channel can feed one, two, or three output channels.

Anti-Oscillation Output Circuitry:

Driving long lengths of cable can present a nasty capacitive load to the source that has to drive them. This capacitance can cause instabilities, which can lead to oscillations, radio interference, and excessive system hiss. The Matrix Plus' low-impedance, high-current output circuitry easily handles long cable runs without their associated problems.

Balanced Inputs:

The Matrix Plus features a balanced differential input circuit that rejects noise that radiates into the signal path between the source unit and your Matrix Plus. Even better, this circuit uses standard RCA connectors.

Product Features:

  • 6-Channel Line Driver
  • Provides up to 24 dB of gain
  • Gray steel chassis with gold-plated RCA jacks
  • 12 dB of Signal Attenuation
  • PFM Subsonic Filter
  • Output Level Controls
  • Balanced Differential Inputs
  • Low Impedance Outputs
  • Voltage Indicator LEDs
  • Optional Remote level control: ACR-1
  • Weight: 2.25 lbs
  • Dimensions: 8.70" W x 6.70" D x 1.15" H
  • Authorized Dealer
  • 5 Year Manufacturer's Warranty (*when installed by an authorized AudioControl dealer)

EQS Specifications

  • Maximum input/output level: 9.5 Vrms/13.5 Vpeak
  • Frequency response: 10Hz - 100,000 Hz; ±1dB
  • Total harmonic distortion: 0.005%
  • Signal to Noise ratio: -110dB
  • Inputs/Outputs: 2, 4, or 6
  • Input Impedance: 20 K ohms
  • Output Impedance: 50 Ohms
  • Output gain: -12dB to +24dB
  • PFM Subsonic Filter: 33Hz/18dB per octave
  • Power supply: .Transformer isolated PWM DC/DC converter
  • Power draw: 250mA
  • Recommended fuse rating: 1 Amp

Check out the AudioControl MATRIX PLUS Owner's Manual

Product history:

AudioControl MATRIX PLUS-BlackBlue thumbnail
(newest, current model)
AudioControl MATRIX PLUS-GRAY thumbnail
(previous model, replaced by AudioControl MATRIX PLUS)
AudioControl MATRIX thumbnail
(previous model, replaced by AudioControl MATRIX PLUS (Gray))

Specifications & Details

Line Driver Specifications
Signal Boost/Cut
12 dB
Max Output Level
Speaker Level Inputs
Total Number of Inputs
Total Number of Outputs
Frequency Response
10 - 100000 Hz
THD (Total Harmonic Distortion)
Signal-to-Noise Ratio
110 dB
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider

Item Details


Model Number:




Internal SKU:


Internal Product ID:


Customer Ratings & Reviews

5 star
4 star
3 star
2 star
1 star


Customer Reviews

Sort by:


Makes a big difference in sound clarity. Hotter signal to amps means lower gain and clean sound.

I'm running Boston SPZ60's in my front doors, old Boston Pro's in the rears, both driven by Rockford 801x amp. Rockford 10" p3d4 Sub in sealed .5 box driven by alpine PDR-M65. Kenwood Excelon Head Unit, and Audio Control Three.2 being used on sub input only. The Matrix is easy to hook up. The manual says put it close to the head unit but size makes that hard so it put in under my front seat right next to the alpine amp. I called Audiocontrol 1st and they said in a perfect world it would be close to the head unit but in reality anywhere is fine. It made a noticeable difference in sound clarity and quality and allows me to keep my amp gains low by sending stronger voltage than the head unit will. The Kenwood says it's 5V. That may be true right at the unit at full volume but I measured volts at the end of 10 ft RCAs with volume at 27 and it's only about .75 volts on the fronts and rears and .95 on the sub output. The mids are very clear and can go loud with no distortion or ear fatigue. The sub is very smooth and clean and the kick gives me a back massage. The really low frequencies feel like a wave coming through the entire vehicle, instead of just vibration. Amp gains? Fronts and the sub-barely turned up, less than 1/4 of the way and the rears the amp gain is all the way down. Very happy with this unit.

By Anonymous on May 26, 2019 checkmarkIcon Verified purchase


found this helpful.

Great product

It really helps my amps work to their full potential

By David on August 14, 2016


found this helpful.
