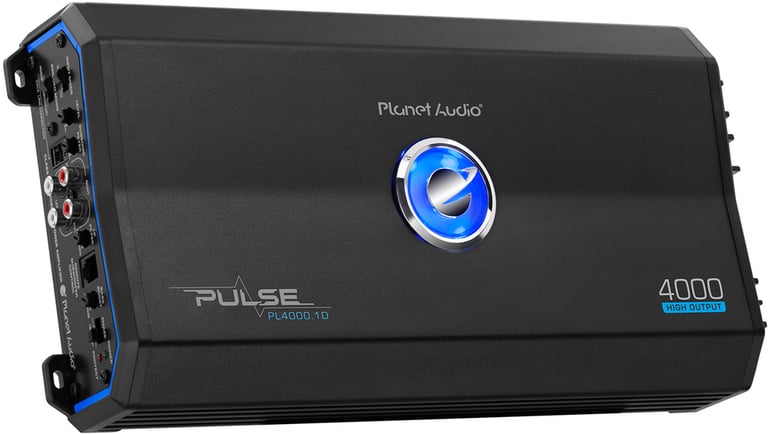

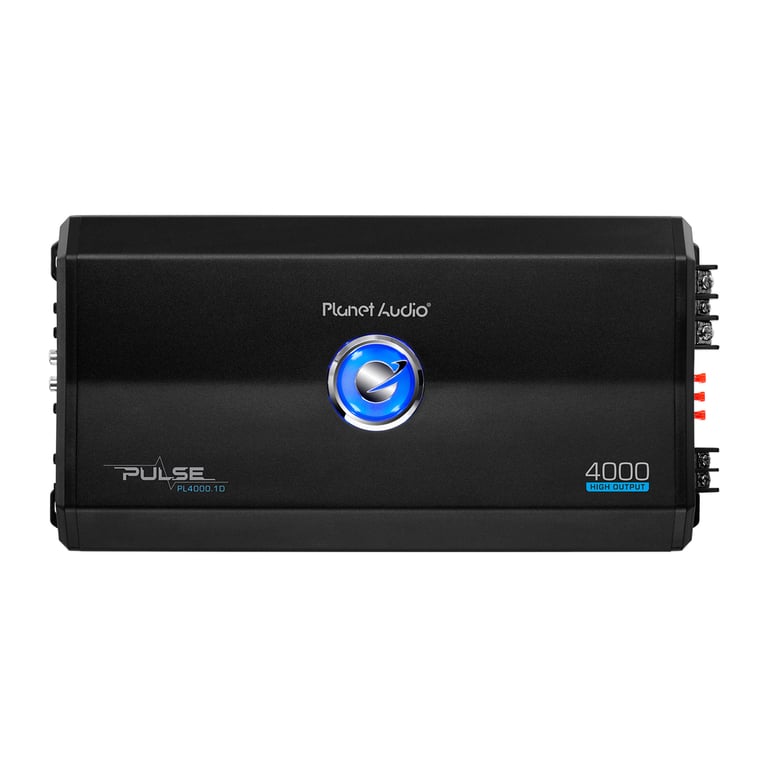

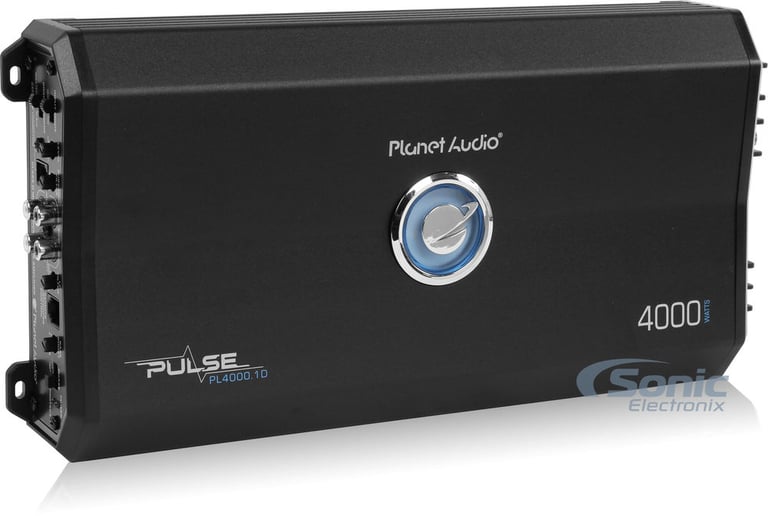

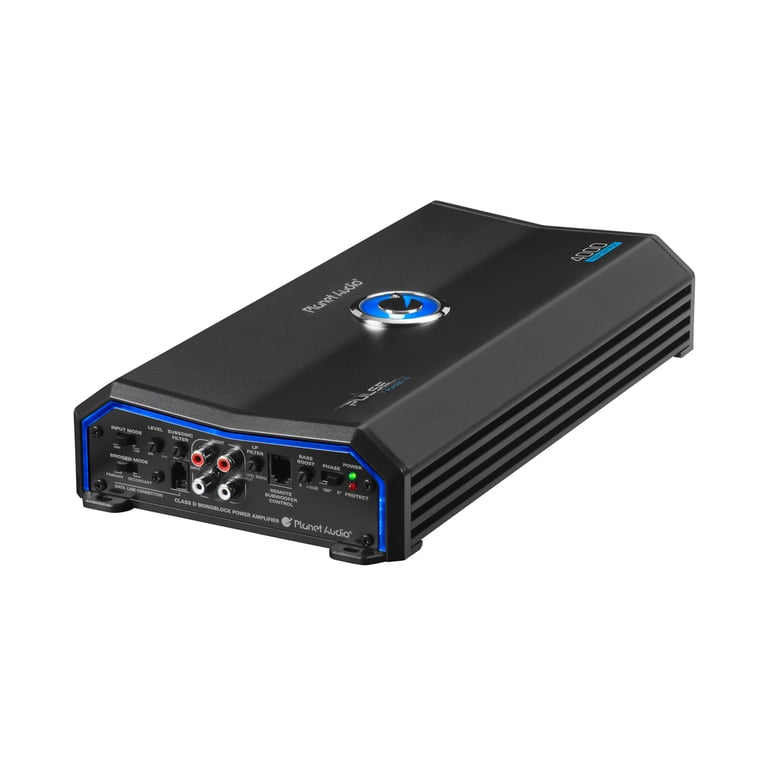

Planet Audio PL4000.1D

4000W Max Pulse Series Class-D 1-Ohm Stable Monoblock Power Amplifier

Product videos
highlight-star-icon

• 750 Watts RMS x 1 @ 4 ohm
• 1000 Watts RMS x 1 @ 2 ohm
• 2000 Watts RMS x 1 @ 1 Ohm
• Total Peak Power: 4000 Watts
• Frequency Response: 15Hz - 150Hz
• 3-way protection circuitry
• Variable low-pass filter: 50Hz to 150Hz

Learn more about the pl40001d

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC44 main

Kicker CSC4 (46CSC44)

300W Peak (100W RMS) 4” CS Series 2 Way Coaxial 4-ohm Speakers

38
-29.45%

$59.96

List price $84.99

Product Highlights


• 750 Watts RMS x 1 @ 4 ohm
• 1000 Watts RMS x 1 @ 2 ohm
• 2000 Watts RMS x 1 @ 1 Ohm
• Total Peak Power: 4000 Watts
• Frequency Response: 15Hz - 150Hz
• 3-way protection circuitry
• Variable low-pass filter: 50Hz to 150Hz

Description


Planet Audio brand icon

Authorized dealer

Planet Audio Authorized Dealer

General Features:

  • Planet Audio PL4000.1D
  • Class-D 1-Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 750 watts x 1 chan.
    • 2 ohm: 1000 watts x 1 chan.
    • 1 ohm: 2000 watts x 1 chan.
  • Total power output: 4000 watts
  • Pulse Width Modulated MOSFET power supply

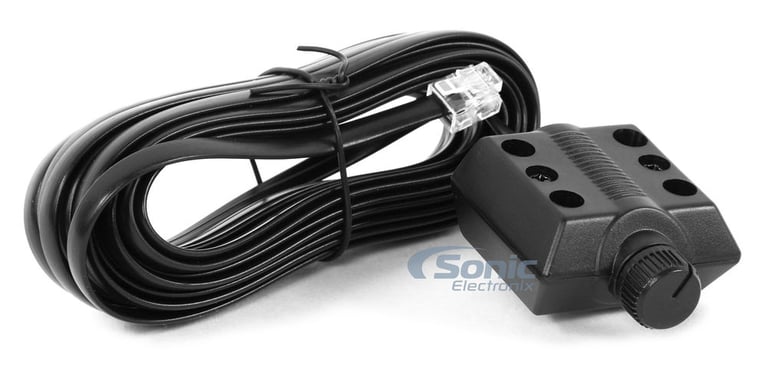

  • Wired remote bass level control included

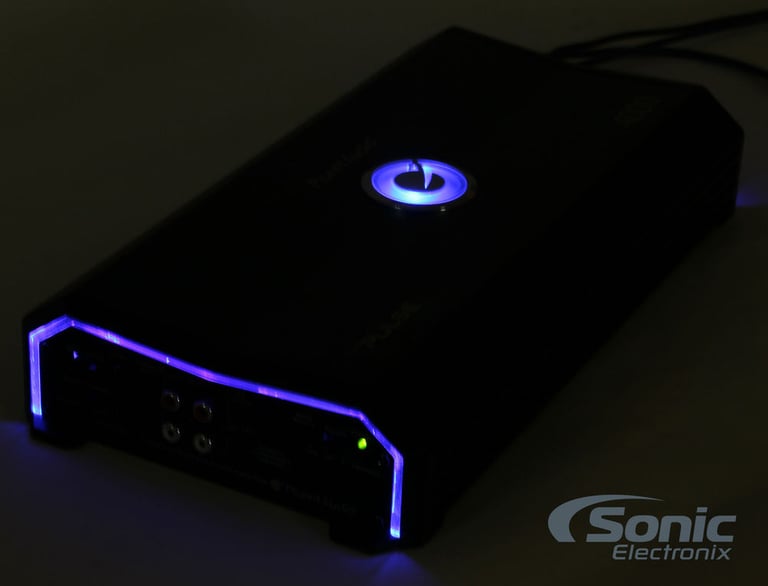

  • LED power (green) and protect (red) indicators
  • Mono channel operation
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Black anodized heatsink
  • Signal to Noise Ratio: 105dB
  • Frequency Response: 15Hz - 150Hz

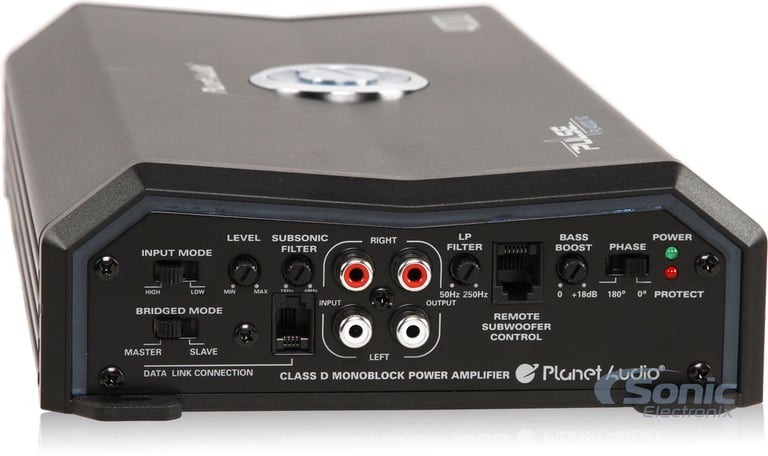

  • Variable low-pass filter: 50Hz to 150Hz
  • Variable Bass Boost: 0 to +18 dB bass boost

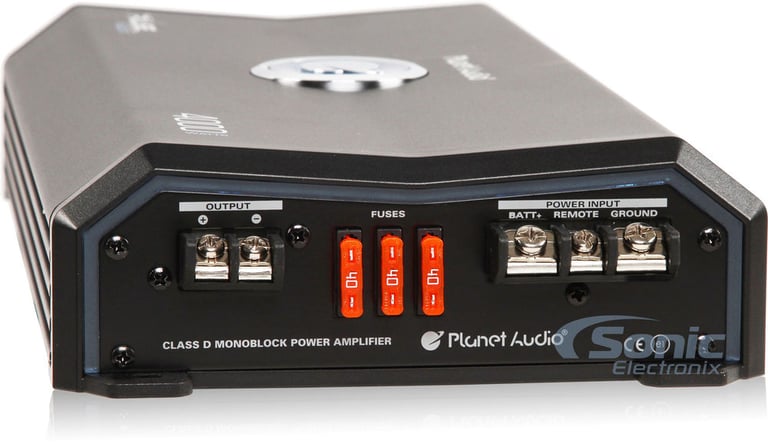

  • Fuse Rating: 40 A x 3
  • 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 7"W x 13.875"L x 2.26"H
  • Authorized Platinum Internet Dealer
  • 1 year Sonic Electronix, and 5 years Manufacturer's warranty
Check out the Pulse Series Owner's Manual

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

CVP8 main

Cerwin-Vega CVP8 (Sold Individually)

350W Peak (170W RMS) 8" CVPRO Series Pro Full Range 4-ohm Speaker

-16.67%

$49.99

List price $59.99

AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

39
-33.50%

$399.00

List price $600.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

126
-30.01%

$349.95

List price $500.00


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(19)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(41)

$399.99

List price $429.99

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(144)

$259.99

List price $335.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$449.99

List price $449.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(25)

$429.99

List price $429.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(38)

$209.99

List price $227.99

CXA400.1 small

Kicker CXA400.1 (46CXA4001T)

• 150 watts x 1 channel @ 4 ohm
• 300 watts x 1 channel @ 2 ohm
• 400 watts x 1 channel @ 1 ohm
• Total RMS Power: 400 watts
• Class D 1 ohm Stable Monoblock Amplifier

(24)

$199.99

List price $219.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
750 watts x 1 channel
RMS Power @ 2 ohms
1000 watts x 1 channel
RMS Power @ 1 ohm
2000 watts x 1 channel
Power Specifications - Full Range Channels
Peak Power @ 4 ohms
1500 watts x 1 channel
Peak Power @ 2 ohms
2000 watts x 1 channel
Peak Power @ 1 ohm
4000 watts x 1 channel
Amplifier Specifications
Series
Pulse Series
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
4000 watts
Total RMS Power Output
2000 watts
Maximum Input Gauge Size
Any Gauge with use of Spade Terminal AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
50 - 150 Hz
Subsonic Filter
15 - 40 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 3
Total Fuse Rating
120
Strappable
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
What is in the box?
Paperwork
User manual
WITB: Amplifiers
Amplifier

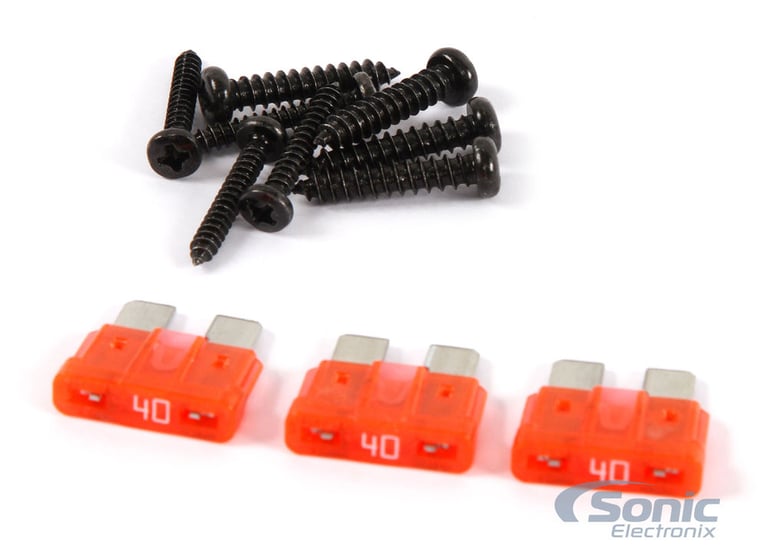

Mounting screws (4)
Three spare fuses
Warranty and Return Policy
Parts Warranty Duration
6 years
Labor Warranty Duration
6 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

PL4000.1D

Weight:

10.00lbs

Internal SKU:

pl40001d

Internal Product ID:

108537

Product and How-to Videos


Customer Ratings & Reviews


Planet Audio PL4000.1D thumbnail image

5 star
92%
4 star
8%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Awesome amp

This amp is awesome I have 1 Memphis audio 15 br series and this thing get down it never over Heats

By JAUNIE on January 30, 2020 Checkmark Icon Verified purchase

10 found this helpful


High Power

Great power. Has a 1250W rms 18 inch sub bumping hard enough to flex the back glass of my truck. 12v and Ground terminals should be way bigger. Other than that. Great amp for the price.

By Anonymous on May 31, 2019

10 found this helpful


Great sound

This amp is awesome. It powers my 2 12s without any issues. And for the price you cannot beat it.
Next is to see how it pushes 2 15 P3s????

By christopher on December 18, 2019 Checkmark Icon Verified purchase

9 found this helpful


Plenty of power

I recommend this amp to anybody that needs a lot of power I have it hooked up to a ds18 12 in 4000 Watt competition woofer and I have it in an extended cab GMC truck and I'm hitting in the high 140s and when the real deep bass hits it makes my roof fluctuate 3in. If you get this amp I recommend that you upgrade your power source because it draws a lot of power

By Anonymous on January 10, 2019

8 found this helpful


Great value

I would total recommend the Planet Audio PL4000.1D to any bass head I'm digging the power this throws out on my 3 12 inch subs. Don't have no complaints on this item! Thank you Sonic Electronics I'll be buying more items from yall when I can.

By ShaeLene on March 26, 2017 Checkmark Icon Verified purchase

8 found this helpful


great amp

easy to install and that about all folks good by now.

By rory on April 6, 2020

6 found this helpful


Good amp

It powered my 15” kicker sub pretty easily clean bass good amp

By Anonymous on July 24, 2019 Checkmark Icon Verified purchase

7 found this helpful


Planet Audio PL4000.1D

This is a great amp for a good price I like how it has my four 12s sounding.

By Anonymous on October 22, 2018

6 found this helpful


Great anp

Puts out good sound with awesome bass behind it and I’m a huge fan of planet audio

By Anonymous on October 16, 2018

6 found this helpful


Amp worth!

This amp did what I was wanting it pushed power out that wouldn't believe for it being fair priced very good amp!

By Zachary on March 28, 2020 Checkmark Icon Verified purchase
