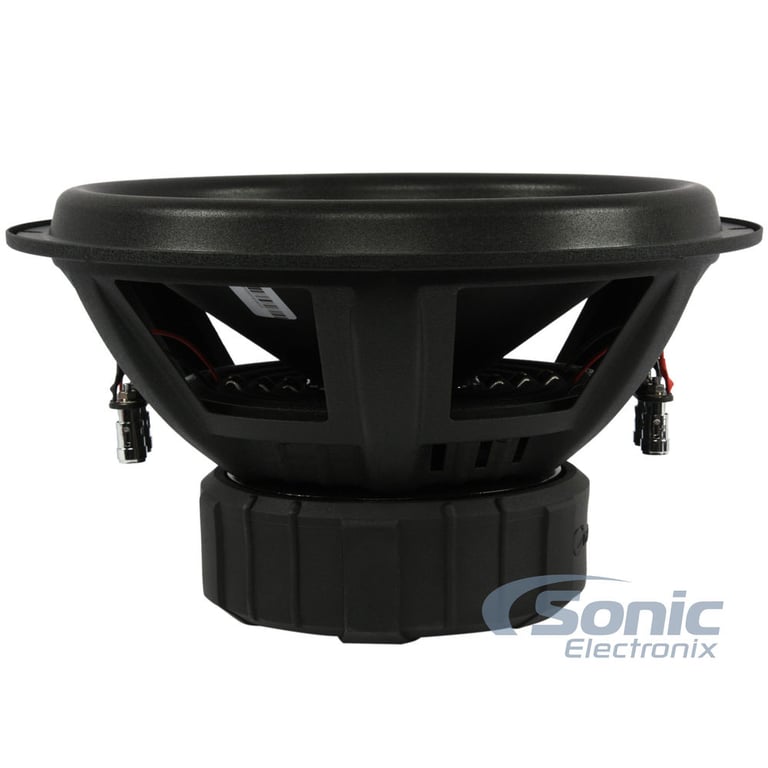

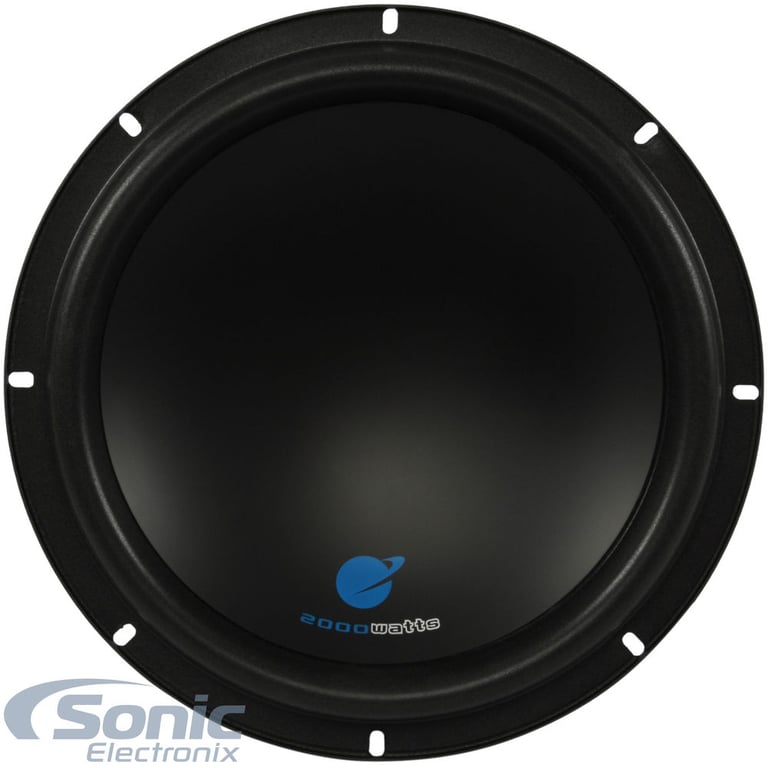

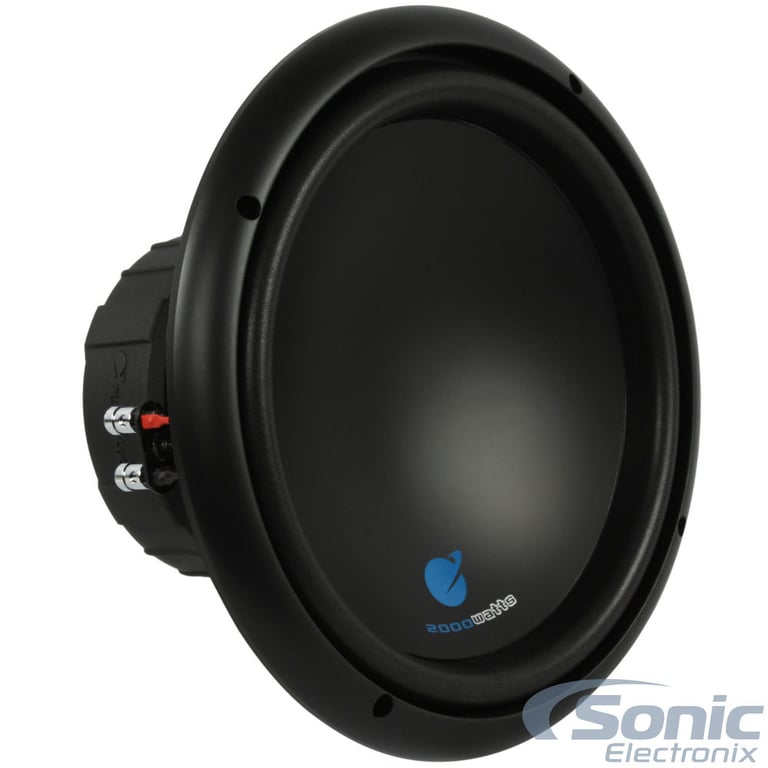

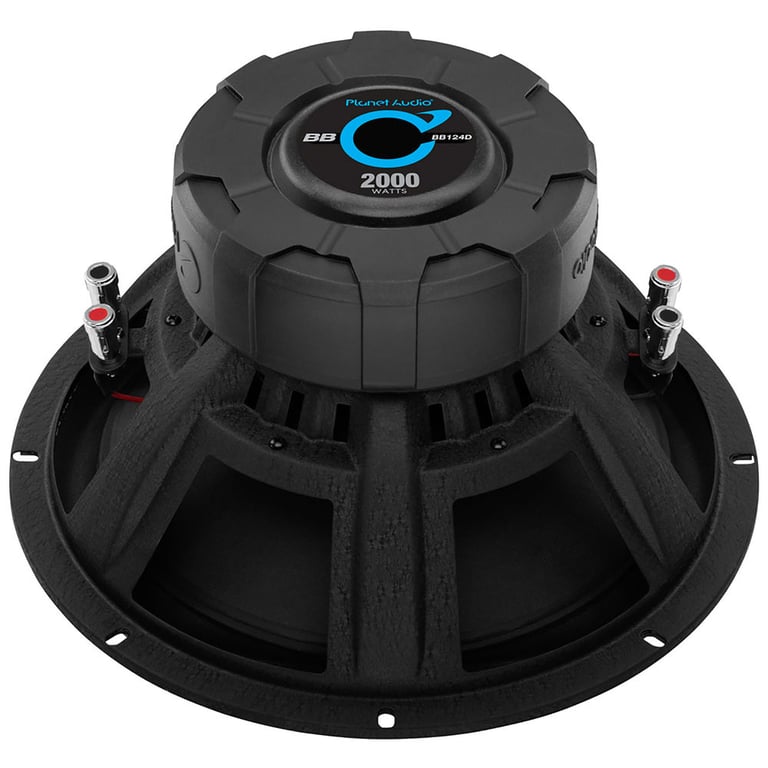

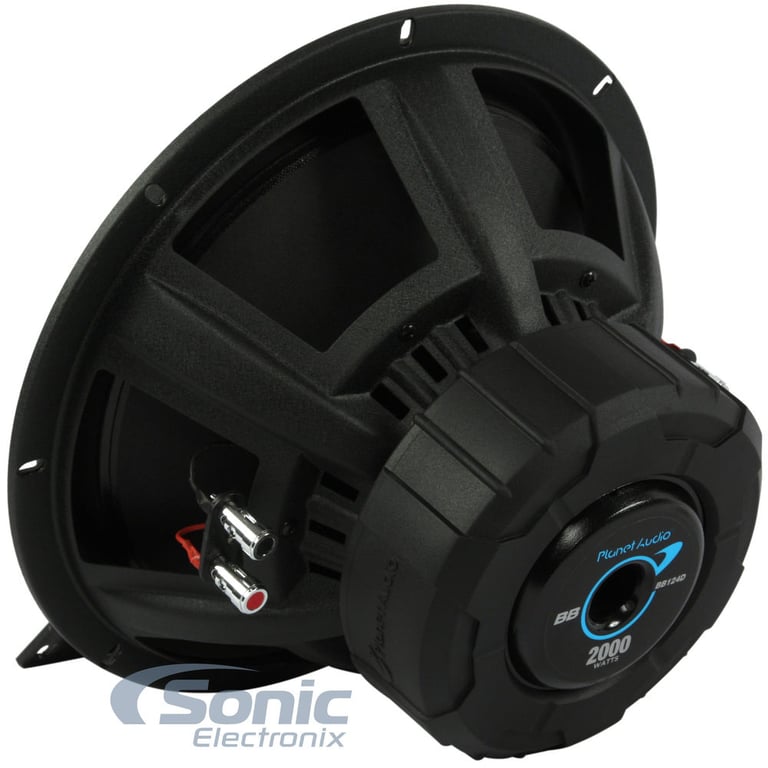

Planet Audio BB124D

2000W Peak (1000W RMS) 12" Series Dual 4-Ohm Car Subwoofer

Planet Audio
Shop all Planet Audio
Product videos
highlight-star-icon

• Peak: 2000 watts
• RMS: 1000 watts
• Polypropylene Cone and Surround
• Top-mount depth: 6.5"

Learn more about the bb124d

We apologize

This item has been discontinued


Loading...
72-8104 main

Metra 72-8104

Install New Speakers in select 1990-2024 vehicles from Toyota, Subaru, Mitsubishi

87
-20.01%

$11.99

List price $14.99

70-1761 main

Metra 70-1761 Wiring Harness

Install a new car stereo in select 1984-2022 vehicles from Toyota, Subaru, Scion

97
-14.31%

$5.99

List price $6.99

95-8202 main

Metra 95-8202 Dash Kit

Install a new Double-DIN car stereo in select 2000-2020 vehicles from Toyota, Subaru, Scion

35
-43.50%

$12.99

List price $22.99

82-3412 main

Metra 82-3412

Speaker Adapter Bracket for select 1998-2024 vehicles from Chevrolet, GMC, Subaru

1
-34.63%

$16.99

List price $25.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

Product Highlights


• Peak: 2000 watts
• RMS: 1000 watts
• Polypropylene Cone and Surround
• Top-mount depth: 6.5"

Description


Planet Audio brand icon

Authorized dealer



Planet Audio Authorized Dealer


General Features:

  • 12" 4 Ohm Dual Voice Coil Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000watts
  • Recommended power range: 700 - 1000 RMS
  • Polypropylene Cone
  • Foam Surround

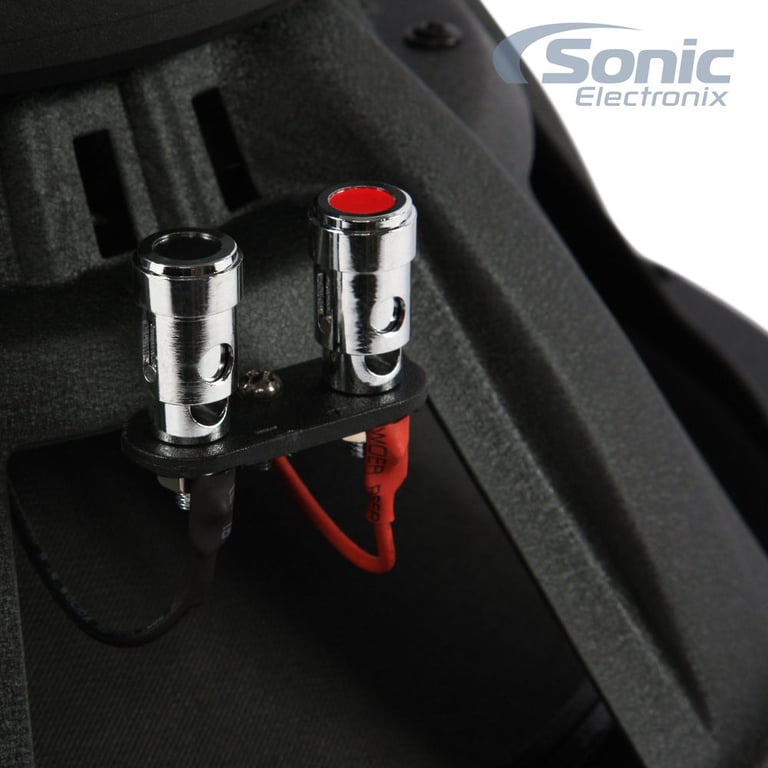

  • Push-Pin Terminals
  • 2.5" Copper Voice Coil
  • Top-mount depth: 6.5"
  • Cutout diameter: 11"
  • Sensitivity: 85dB
  • Resonance Frequency (Fs): 34Hz
  • Recommended Ported Enclosure: 1.5ft3
  • Recommended Sealed Enclosure: 0.6ft3
  • Authorized Internet Dealer
  • 3 Year Sonic Electronix Warranty
  • Priced Individually

Check out the BB124D Owner's Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Planet Audio BB124D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Planet Audio BB124D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Planet Audio BB124D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Planet Audio BB124D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
85 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.6 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
6.5"
Cutout Diameter
11"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
34 Hz
Equivalent Compliance (Vas)
1.73 liters
Total Speaker Q Value (Qts)
0.742
Electrical Q Value (Qes)
0.915
Electrical Resistance of Voice Coil (Re)
4 ohm
Mechanical Q Value (Qms)
3.91
Warranty and Return Policy
Parts Warranty Duration
3 years
Labor Warranty Duration
3 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

BB124D

Weight:

17.65lbs

Internal SKU:

bb124d

Internal Product ID:

108557
